CHEVROLET BLAZER 1995 2.G User Guide
Manufacturer: CHEVROLET, Model Year: 1995, Model line: BLAZER, Model: CHEVROLET BLAZER 1995 2.GPages: 380, PDF Size: 20.04 MB
Page 11 of 380

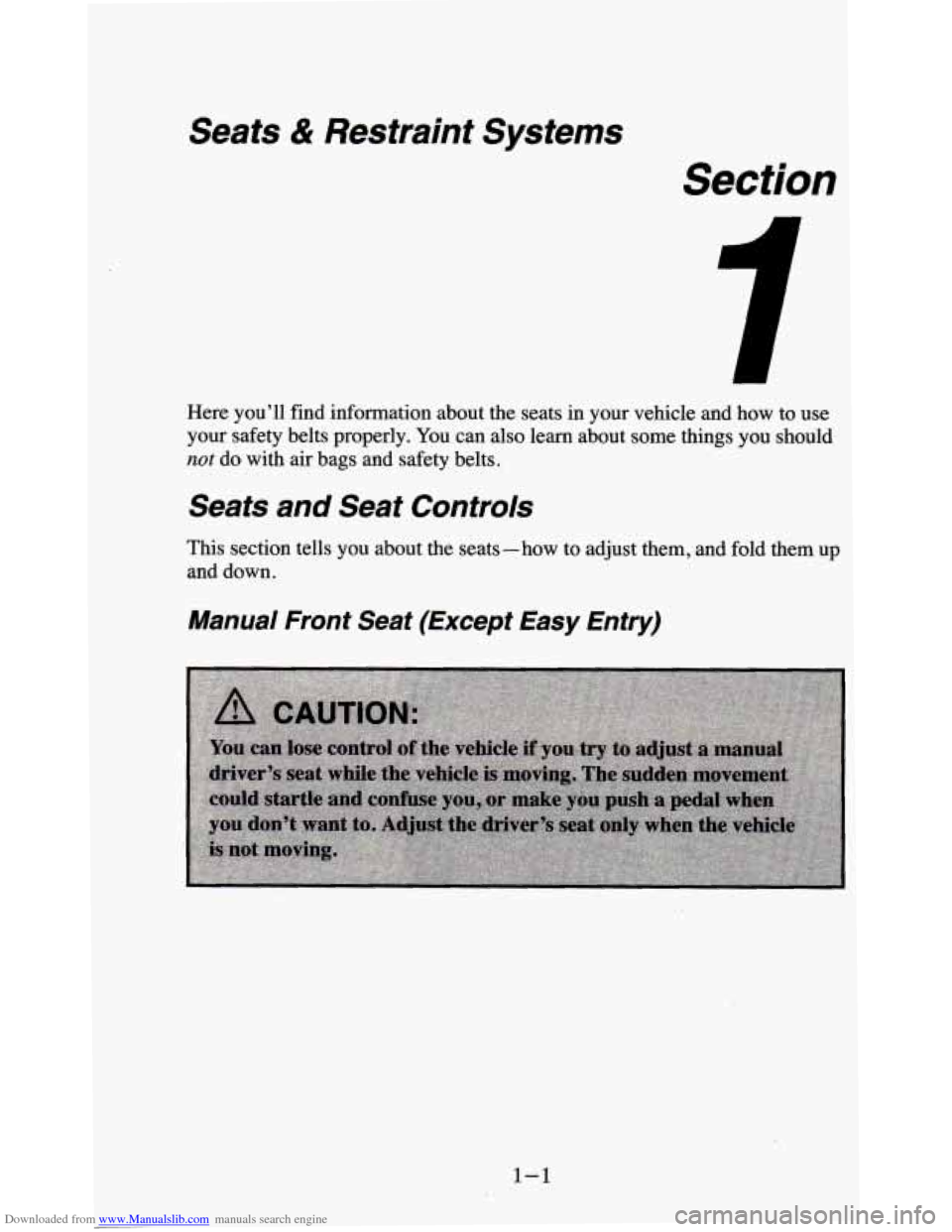

Downloaded from www.Manualslib.com manuals search engine Seats & Restraint Systems
Section
Here you’ll find information about the seats in your vehicle and how to use
your safety belts properly.
You can also learn about some things you should
not do with air bags and safety belts.
Seats and Seat Controls
Manual Front Seat (Except Easy Entry)
1-1
Page 12 of 380

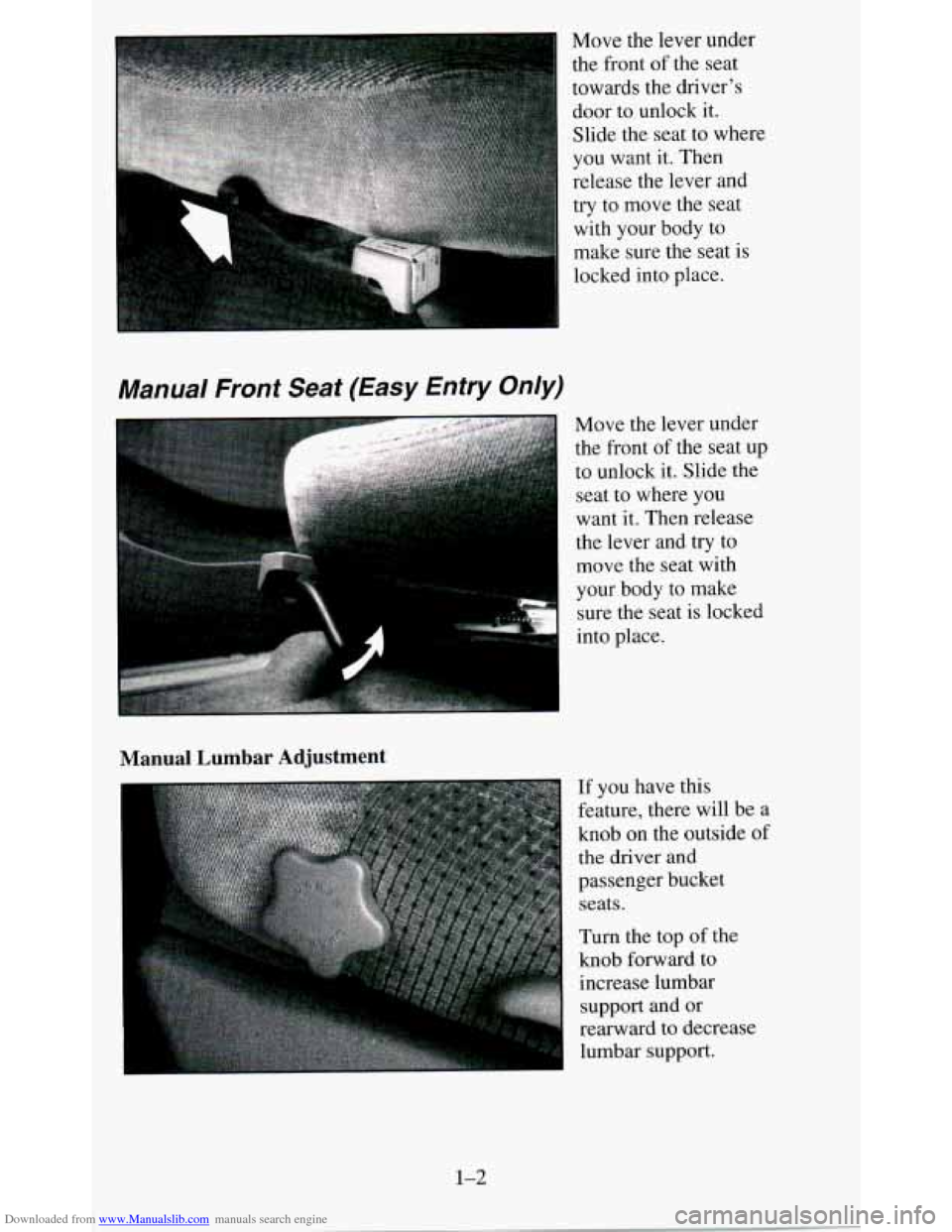

Downloaded from www.Manualslib.com manuals search engine Manual Front Seat (Easy Entry Only)
Move the lever under
the front of the seat
towards the driver's
door to unlock it.
Slide the seat to where
you want it. Then
release the lever and
try to move the seat with your body to
make sure the seat is
locked into place.
Move the lever under
the front of the seat up
to unlock it. Slide the
seat to where you
want it. Then release
the lever and try to move the seat with
' your body to make
-_ a, sure the seat is locked
into place.
Manual Lumbar Adjustment
If you have this
feature, there will be
a
knob on the outside of
the driver and
passenger bucket seats.
Turn the top
of the
knob forward to
increase lumbar support and or
rearward to decrease
lumbar support.
1-2
Page 13 of 380

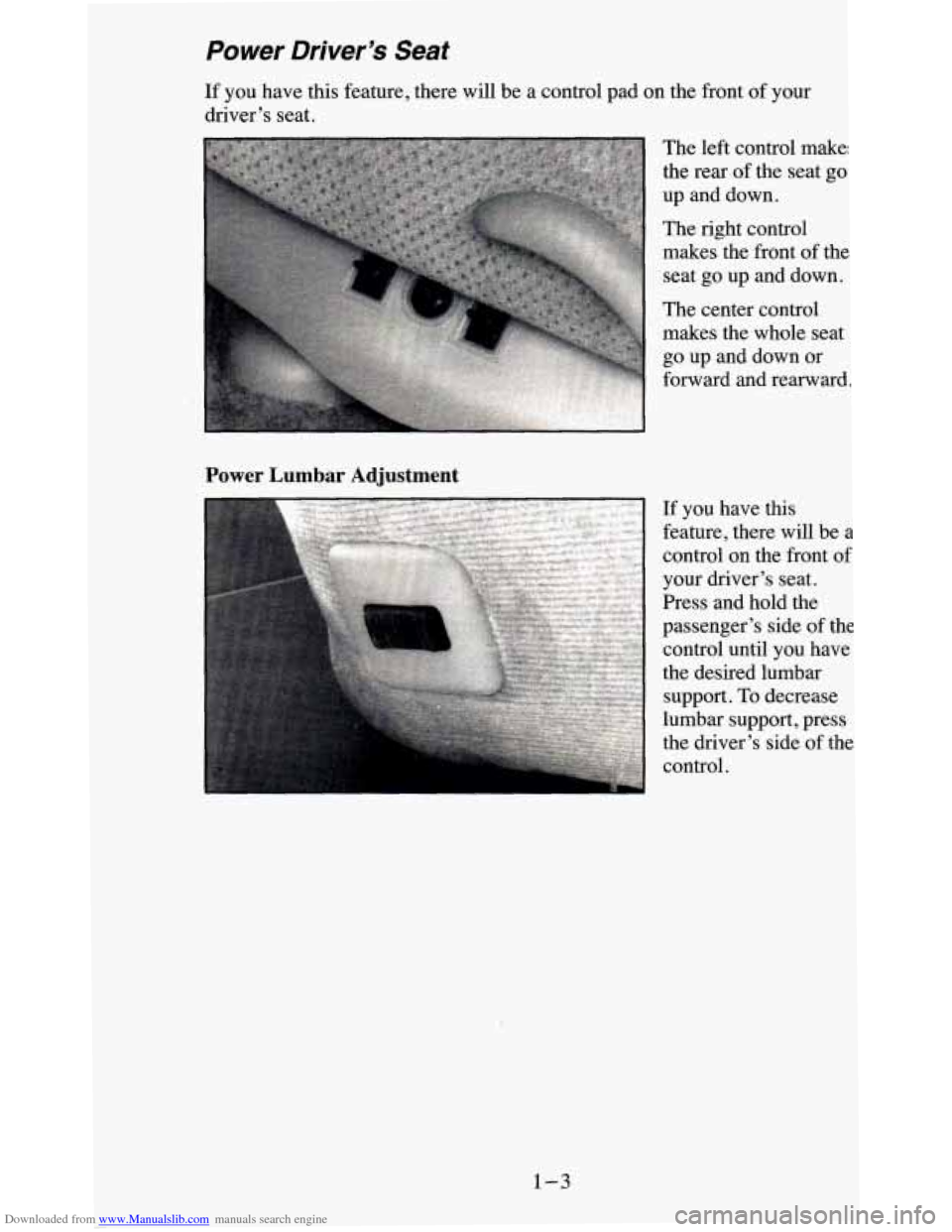

Downloaded from www.Manualslib.com manuals search engine Power Driver’s Seat
If you have this feature, there will be a control pad on the front of your
driver’s seat.
Power Lumbar Adjustment
The left control make
the rear of the seat
go
up and down.
The right control
makes the front of the
seat go up and down..
The center control
makes the whole seat
go up and down or
forward and rearward
If you have this
feature, there will be
a
control on the front of
your driver’s seat.
Press and hold the
passenger’s side of the
control until you have
the desired lumbar support. To decrease
lumbar support, press
the driver’s side
of the
control.
1-3
Page 14 of 380

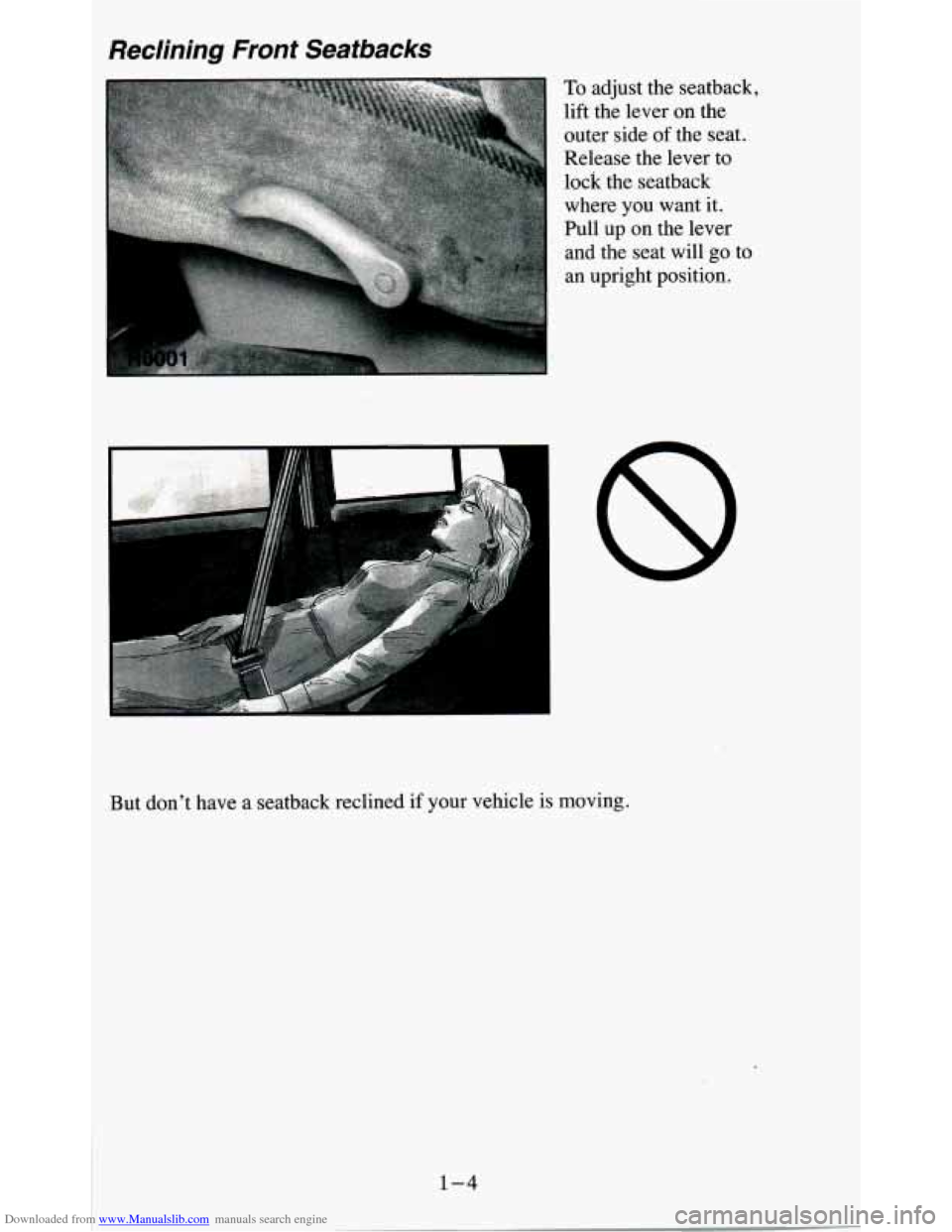

Downloaded from www.Manualslib.com manuals search engine Reclining Front Seatbacks
To adjust the seatback,
lift the lever on the
outer side
of the seat.
Release the lever to
lock the seatback
where you want it.
Pull up on the lever
and the seat will
go to
an upright position.
But don’t have a seatback reclined
if your vehicle is moving.
1-4
Page 15 of 380

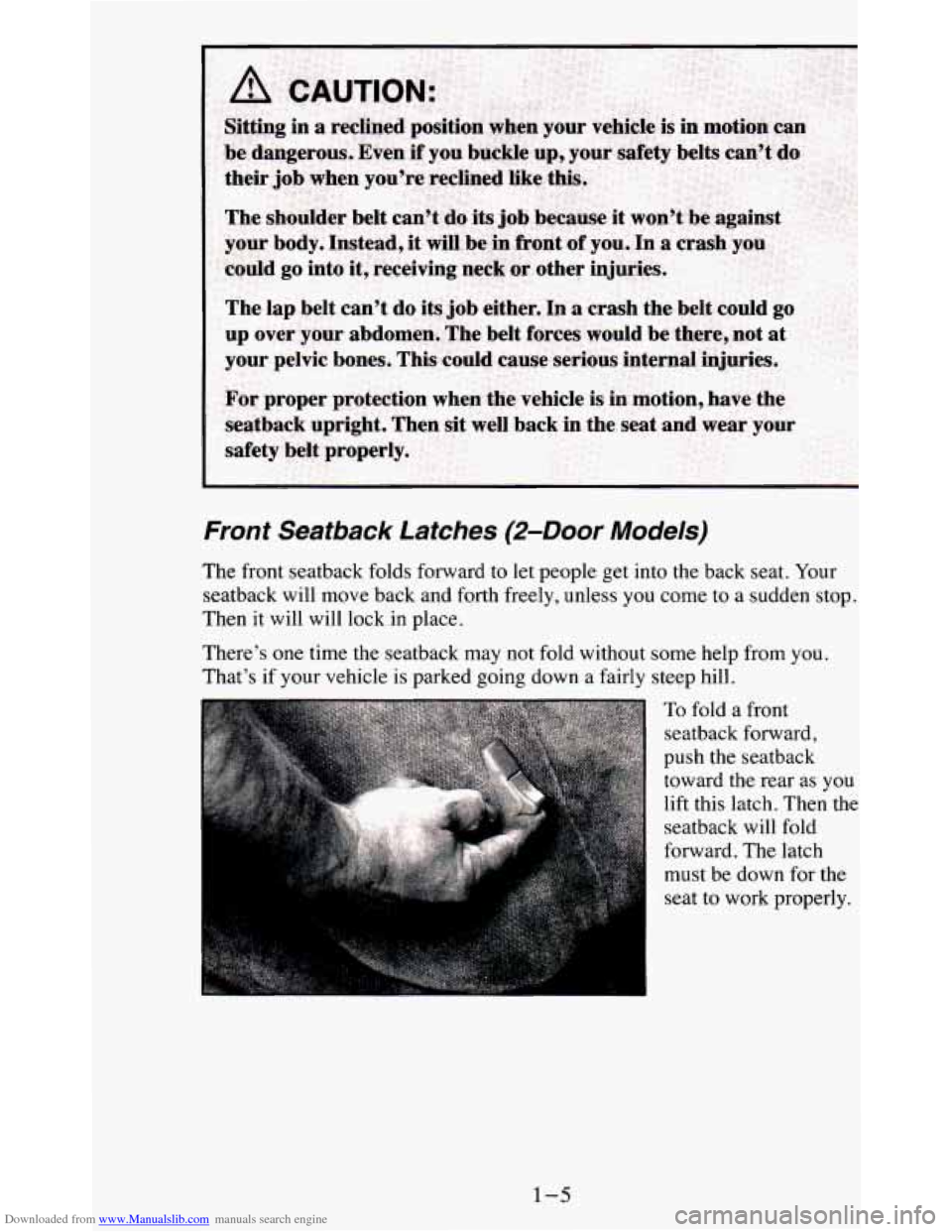

Downloaded from www.Manualslib.com manuals search engine Front Seatback Latches (2-Door Models)
The front seatback folds forward to let people get into the back seat. Your
seatback will move back and forth freely, unless
you come to a sudden stop.
Then it will will lock in place.
There’s one time the seatback may
not fold without some help from you.
That’s if your vehicle is parked going down a fairly steep hill.
To fold a front seatback forward,
push the seatback toward the rear as you
lift this latch. Then the
seatback will fold
forward. The latch
must be down for the
seat to work properly.
1-5
Page 16 of 380

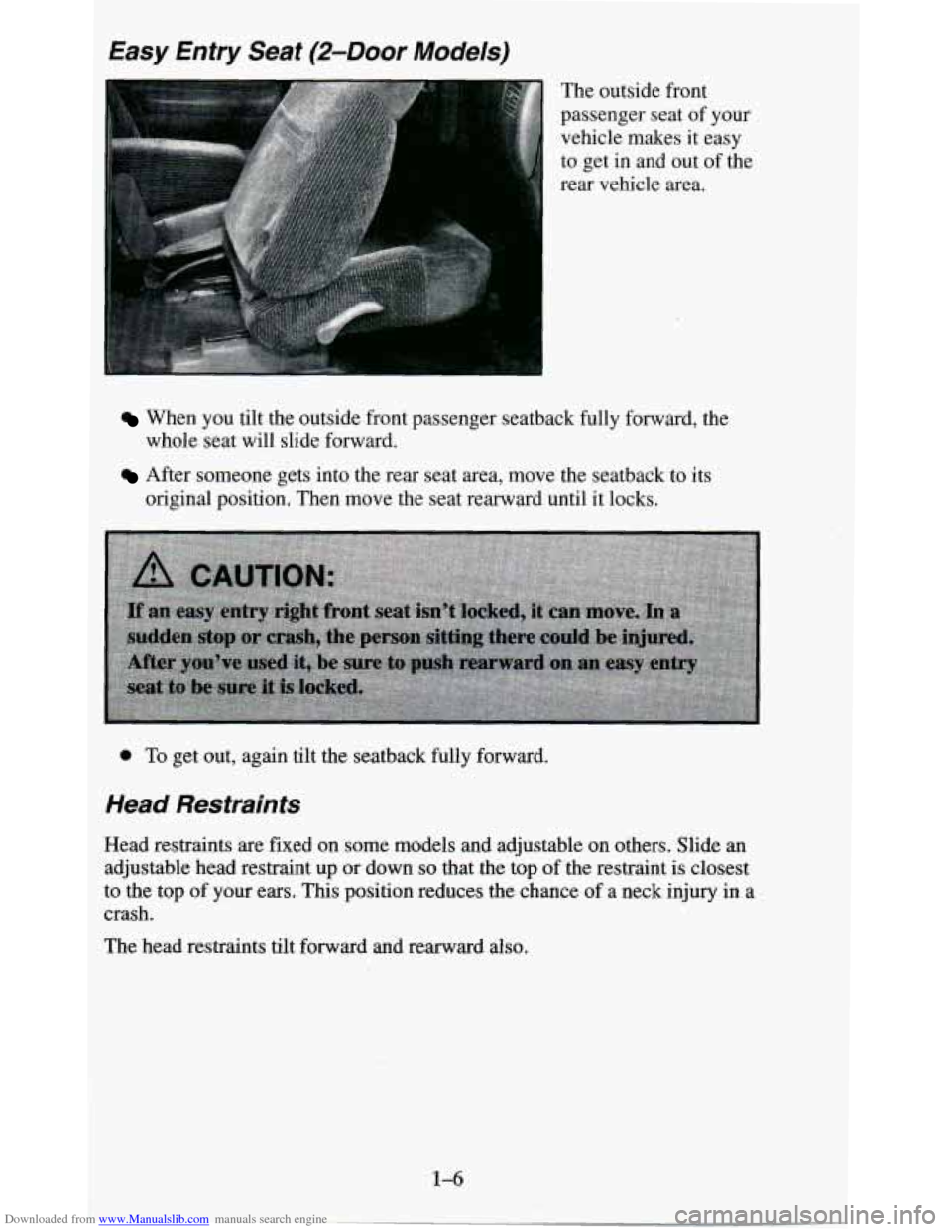

Downloaded from www.Manualslib.com manuals search engine Easy Entry Seat (2-Door Models)
The outside front
passenger seat of your
vehicle makes it easy
to get in and out of the
rear vehicle area.
When you tilt the outside front passenger seatback fully forwar\
d, the whole seat will slide forward.
After someone gets into the rear seat area, move the seatback \
to its
original position. Then move the seat rearward until it locks. \
0 To get out, again tilt the seatback fully forward.
Head Restraints
Head restraints are fixed on some models and adjustable on oth\
ers. Slide an
adjustable head restraint up or down so that the top of the restraint is closest
to the top
of your ears. This position reduces the chance of a neck injury in a
crash.
The head restraints tilt forward and rearward also.
1-6
Page 17 of 380

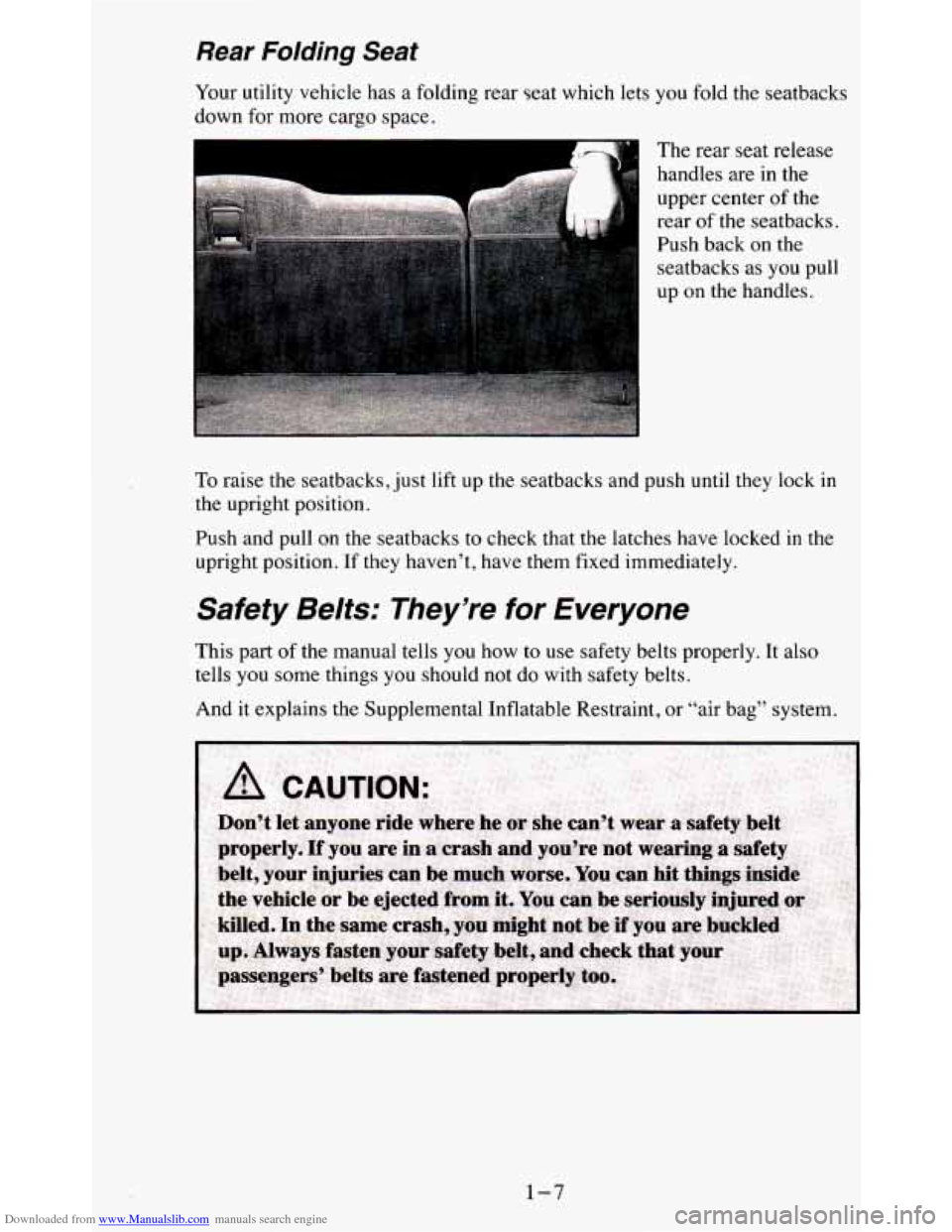

Downloaded from www.Manualslib.com manuals search engine Rear Folding Seat
Your utility vehicle has a folding rear seat which lets you fold t\
he seatbacks
down
for more cargo space.
The rear seat release
handles are
in the
upper center
of the
rear
of the seatbacks.
Push back on the
seatbacks as you pull
up
on the handles.
To raise the seatbacks, just lift up the seatbacks and push until they lock in
the upright position.
Push and pull on the seatbacks
to check that the latches have locked in the
upright position. If they haven’t, have them fixed immediately.
Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts properly. It also
tells
you some things you should not do with safety belts.
And it explains the Supplemental Inflatable Restraint, or “air bag” system.
1-7
Page 18 of 380

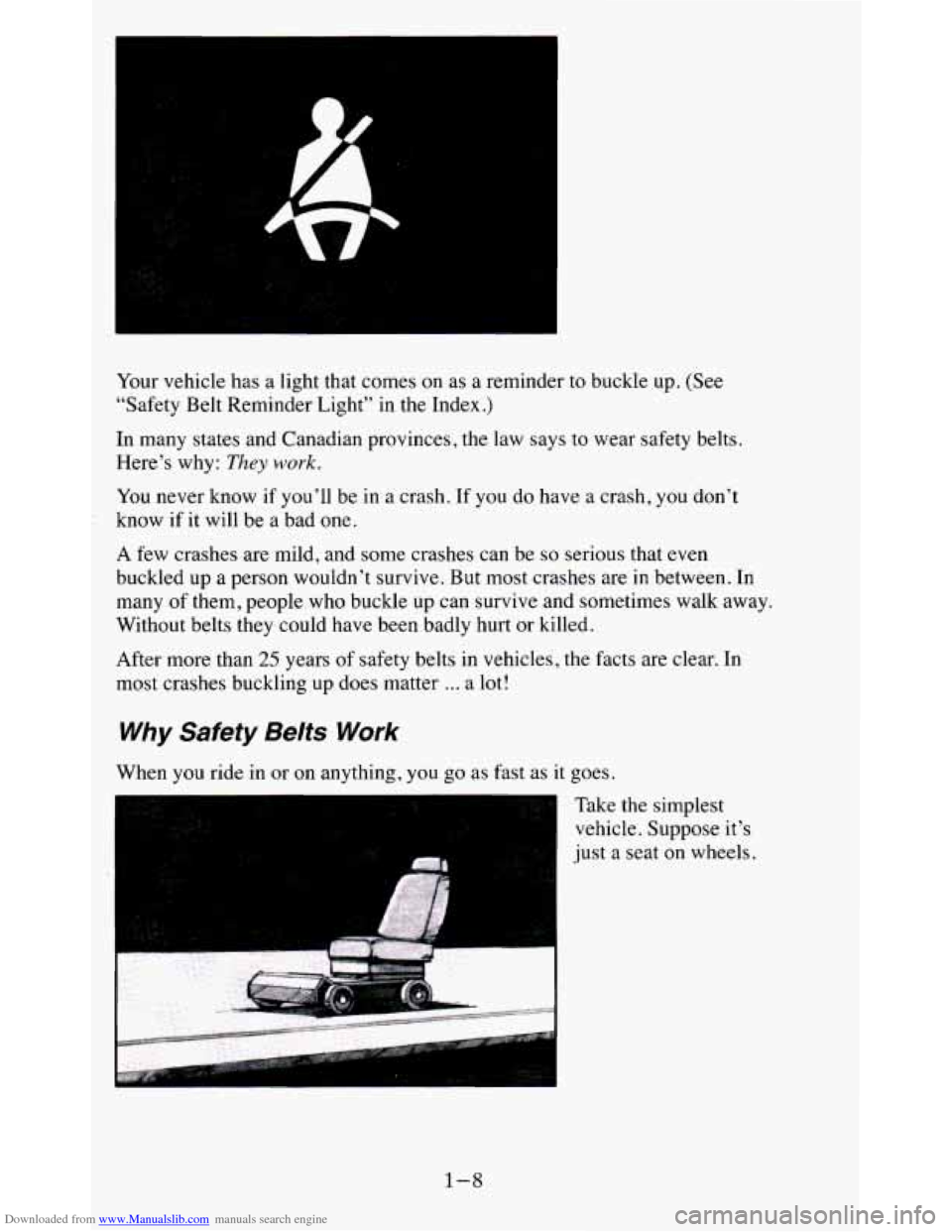

Downloaded from www.Manualslib.com manuals search engine Your vehicle has a light that comes on as a reminder to buckle up. (See
“Safety Belt Reminder Light’’ in the Index.)
In many states and Canadian provinces, the law says
to wear safety belts.
Here’s why:
They work.
You never know if you’ll be in a crash. If you do have a crash, you don’t
know if it will be a bad one.
A few crashes are mild, and some crashes can be
so serious that even
buckled up a person wouldn’t survive. But most crashes are in between. In
many of them, people who buckle up can survive and sometimes walk away.
Without belts they could have been badly hurt or killed.
After more than
25 years of safety belts in vehicles, the facts are clear. In
most crashes buckling up does matter ... a lot!
Why Safety Belts Work
I
When you ride in or on anything, you go as fast as it goes.
Take the simplest vehicle. Suppose it’s
just a seat on wheels.
--I
A
I
1-8
Page 19 of 380

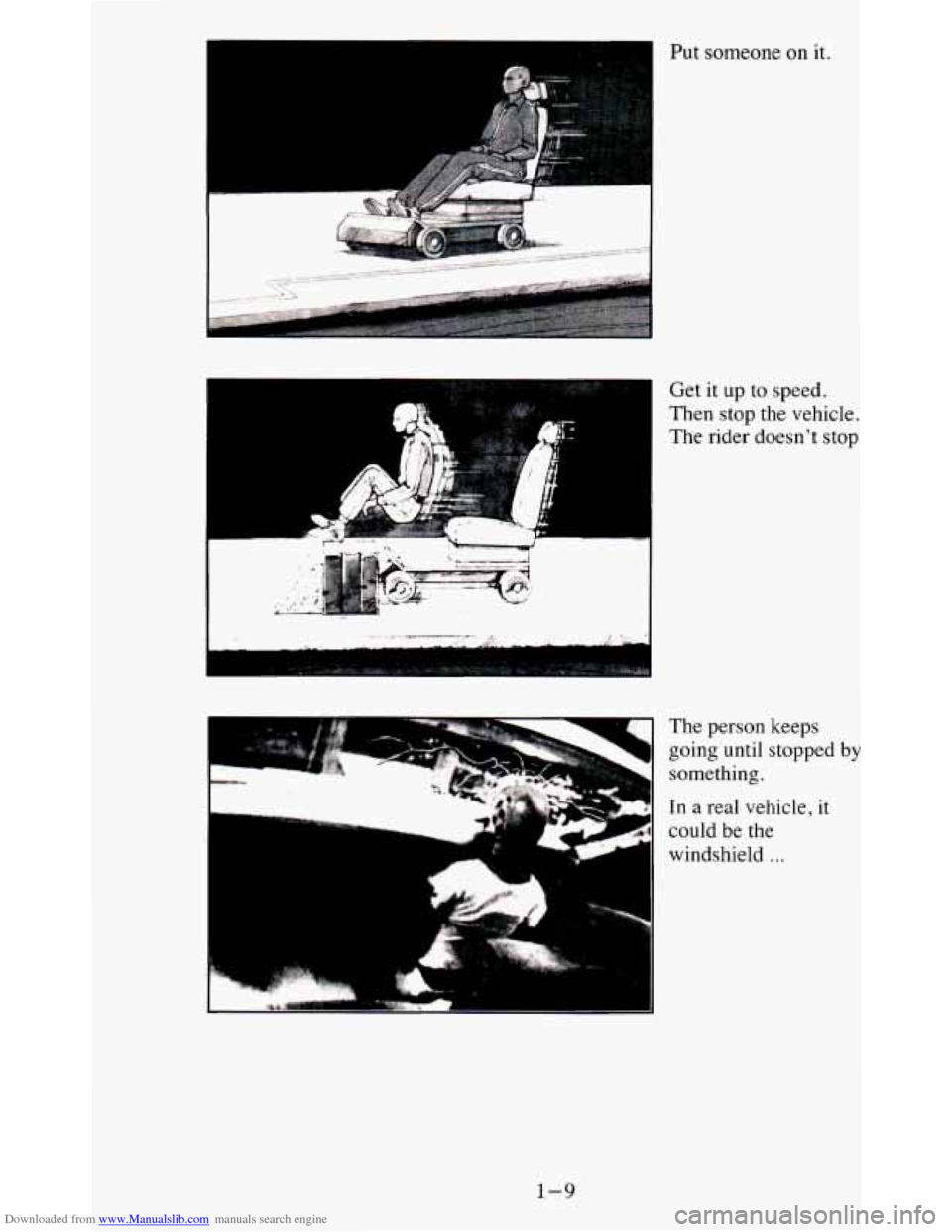

Downloaded from www.Manualslib.com manuals search engine Put someone on it.
i
Get it up to speed.
Then stop the vehicle.
The rider doesn't stop
The person keeps
going until stopped
by
something.
I
In a real vehicle, it
could be
the
windshield . . .
1-9
Page 20 of 380

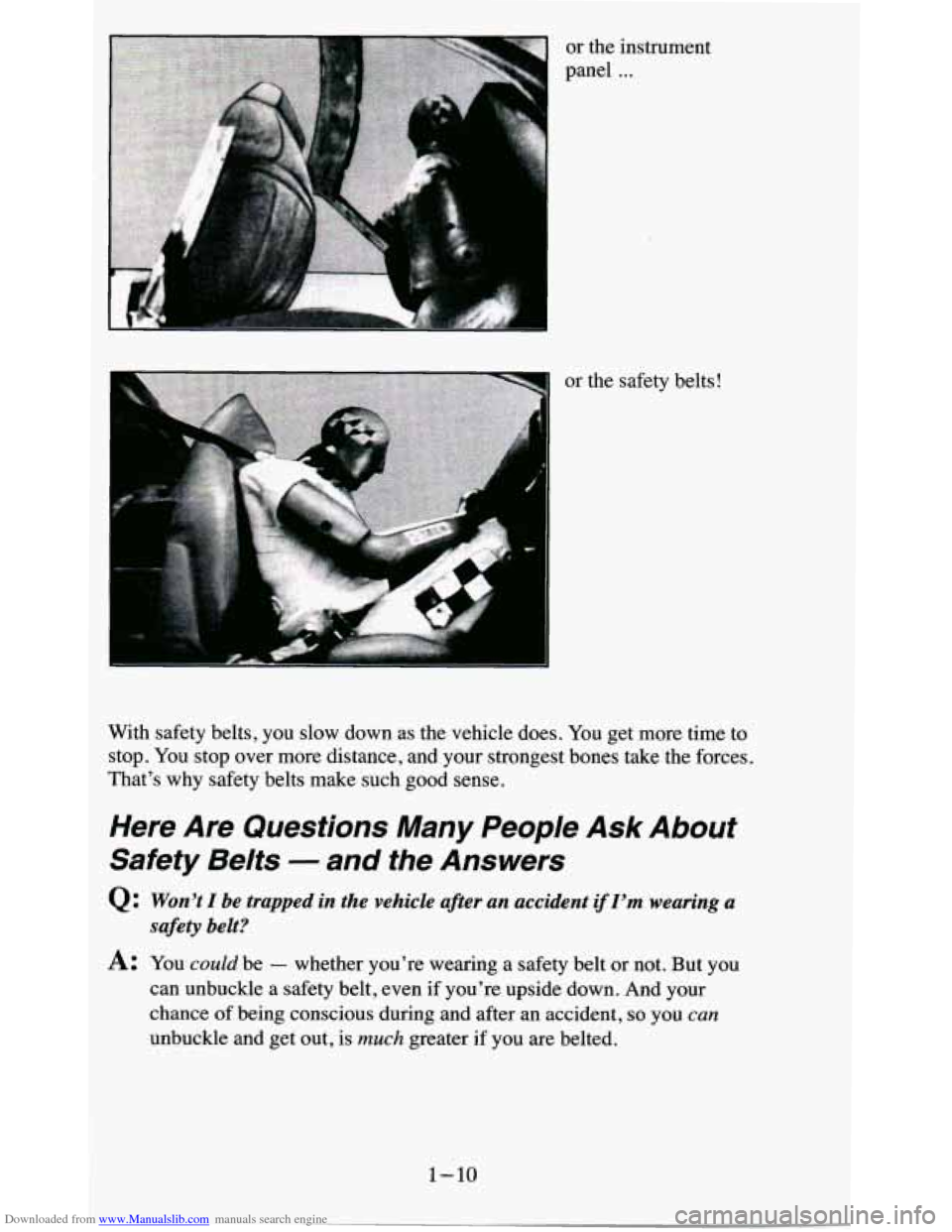

Downloaded from www.Manualslib.com manuals search engine or the instrument
panel
...
I
, F “ P ..
a
or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to
stop. You stop over more distance, and your strongest bones take the forces.
That’s why safety belts make such good sense.
Here Are Questions Many People Ask About
Safety Belts
- and the Answers
Q Won’t I be trapped in the vehicle after an accident if I’m wearing a
A: You could be - whether you’re wearing a safety belt or not. But you
can unbuckle a safety belt,
even if you’re upside down. And your
chance of being conscious during and after an accident,
so you can
unbuckle and get out, is much greater if you are belted.
safety belt?
1-10
