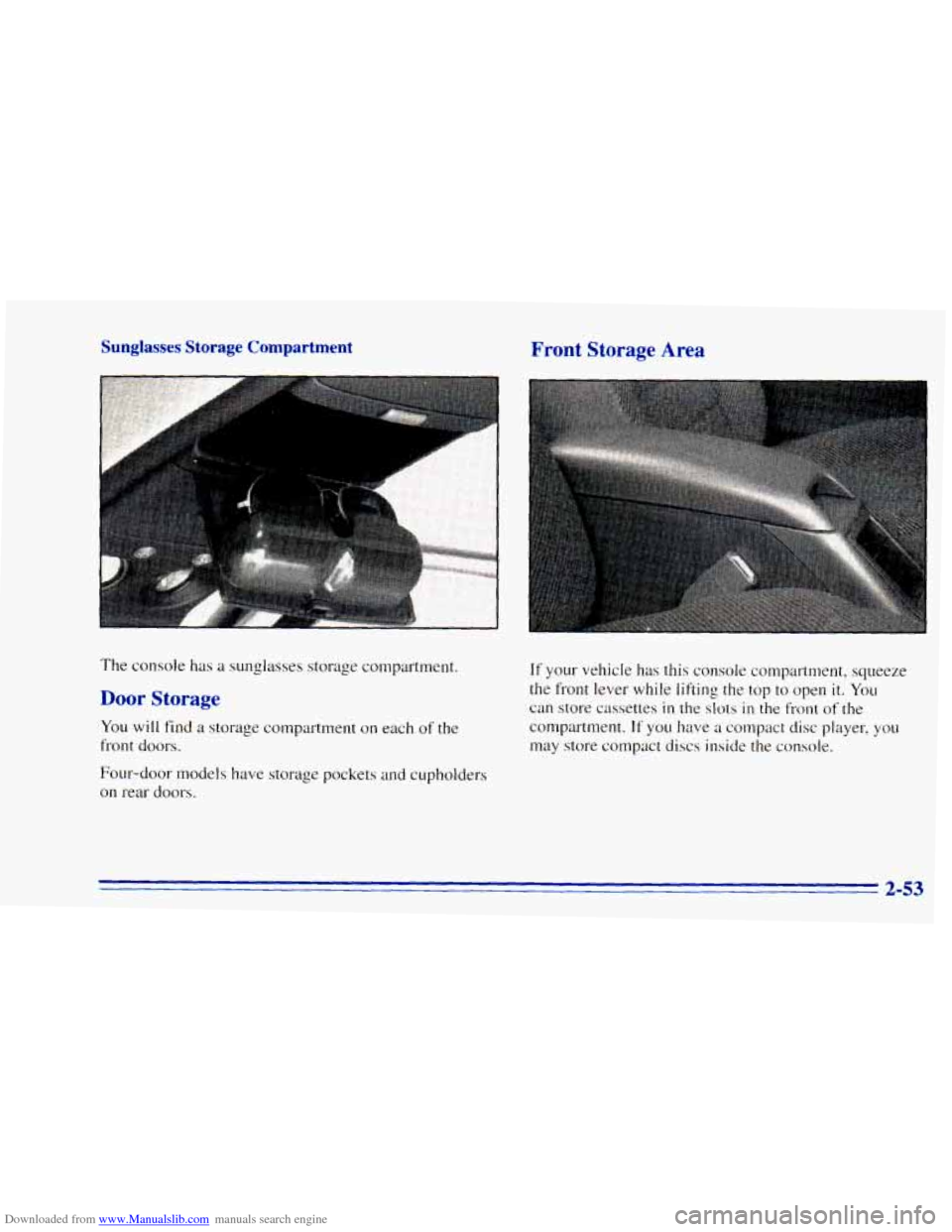

Downloaded from www.Manualslib.com manuals search engine Sunglasses Storage Compartment Front Storage Area
The console has a sunglasses storage compartment.
Door Storage
You will find a storage compartment on each of the
front doors.
Four-door models have storage pockets and cupholders
on rear doors.
If your vehicle has this console compartment, squeeze
the front lever while
lifting the top to open it. You
can store cassettes
in the slots in the front of the
compartment.
If you have a compact disc player, yo~l
may store compact discs inside the console.
2-53
Page 112 of 392

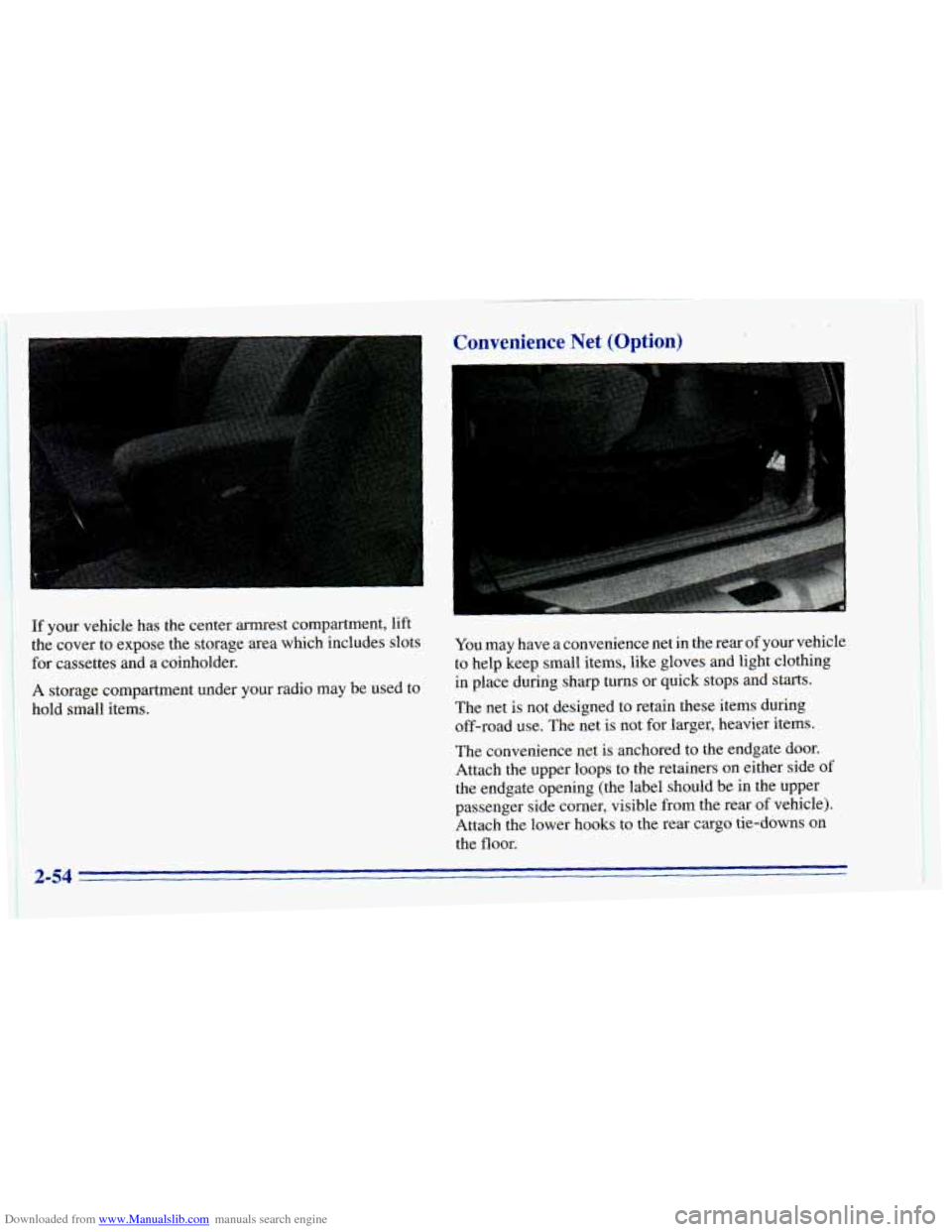

Downloaded from www.Manualslib.com manuals search engine If your vehicle has the center armrest compartment, lift
the cover to expose the storage area which includes slots
for cassettes and a coinholder.
A storage compartment under your radio may be used to
hold small items.
Convenience Net (Option) L
You may have a convenience net in the rear of your vehicle
to help keep small items, like gloves and light clothing
in place during sharp turns
or quick stops and starts.
The net
is not designed to retain these items during
off-road use. The net is not for larger, heavier items.
The convenience net is anchored to the endgate door.
Attach the upper loops
to the retainers on either side of
the endgate opening (the label should be in the upper
passenger side corner,. visible from the rear
of vehicle).
Attach the lower hooks to the rear cargo tie-downs on
the
floor.
2-54
Page 113 of 392

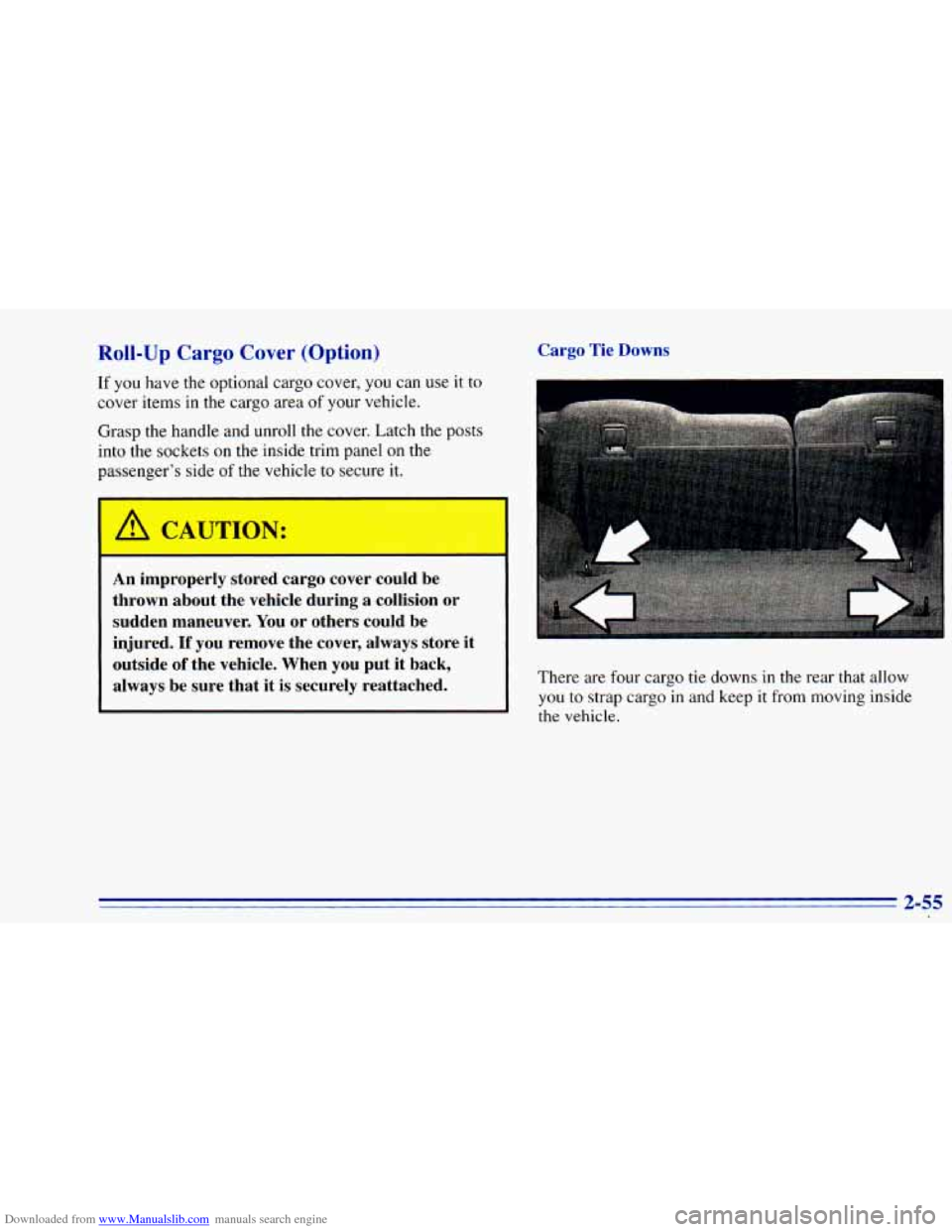

Downloaded from www.Manualslib.com manuals search engine Roll-Up Cargo Cover (Option)
If you have the optional cargo cover, you can use it to
cover items in the cargo area
of your vehicle.
Grasp the handle and unroll the cover. Latch the posts
into the sockets on the inside trim panel on
the
passenger’s side of the vehicle to secure it.
Cargo Tie Downs
A CAUTION:
I
An improperly stoJ cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You
or others could be
injured.
If you remove the cover, always store it
outside
of the vehicle. When you put it back,
always be sure that it
is securely reattached. There are four cargo tie downs in the rear that allow
you to strap cargo
in and keep it from moving inside
the vehicle.
Page 114 of 392

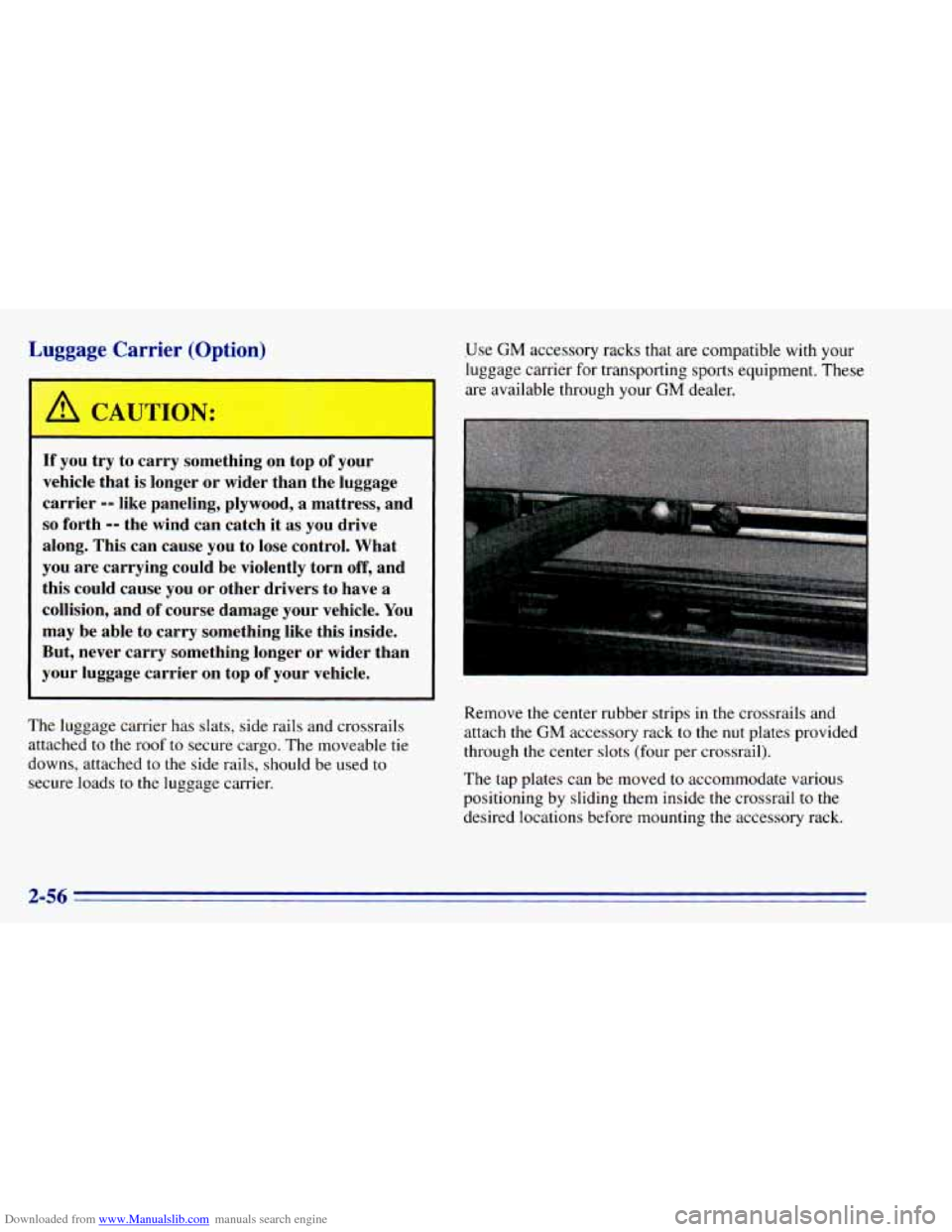

Downloaded from www.Manualslib.com manuals search engine L --
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress, and
so forth -- the wind can catch it as you drive
along. This can cause you to lose control. What
you are carrying could be violently torn
off, and
this could cause you or other drivers to have a
collision, and
of course damage your vehicle. You
may be able to carry something like this inside.
But, never carry something longer or wider than
your luggage carrier on top
of your vehicle.
The luggage carrier has slats, side rails and crossrails
attached
to the roof to secure cargo, The moveable tie
downs, attached to
the side rails, should be used to
secure loads to the luggage carrier. Use
GM accessory racks that
are compatible with your
luggage carrier for transporting
sports equipment. These
are available through your GM dealer.
Remove
the center rubber strips in the crossrails and
attach
the GM accessory rack to the nut plates provided
through the center slots (four per crossrail).
The tap plates can be moved to accommodate various
positioning by sliding them inside the crossrail to
the
desired locations before mounting the accessory rack.
Page 115 of 392

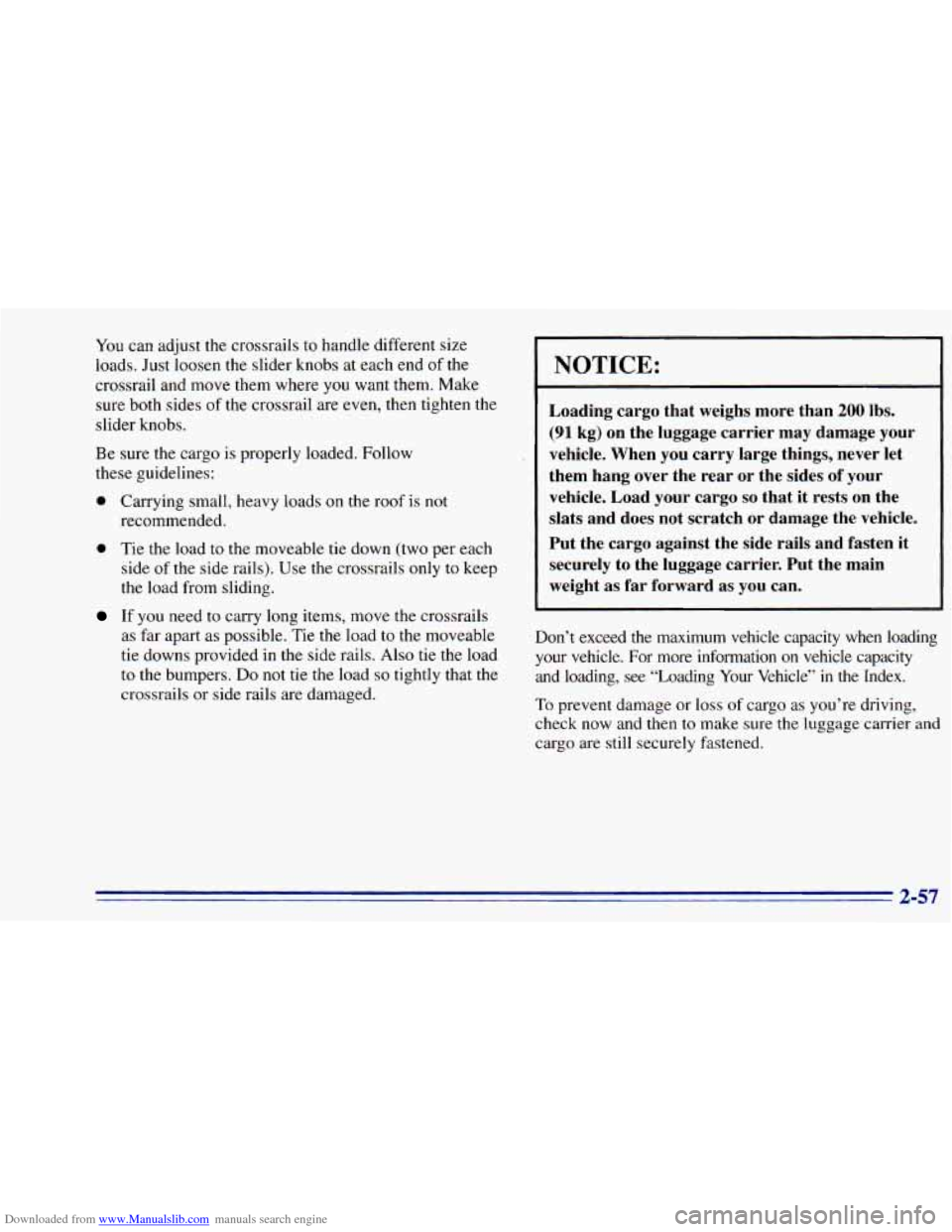

Downloaded from www.Manualslib.com manuals search engine You can adjust the crossrails to handle different size
loads. Just loosen the slider knobs at each end of the
crossrail and move them where you want them. Make
sure both sides of the crossrail are even, then tighten the
slider knobs.
Be sure the cargo is properly loaded. Follow
these guidelines:
0 Carrying small, heavy loads on the roof is not
recommended.
0 Tie the load to the moveable tie down (two per each
side
of the side rails). Use the crossrails only to keep
the load from sliding.
If you need to carry long items, move the crossrails
as far apart as possible. Tie the load
to the moveable
tie downs provided in the side rails. Also tie the load
to the bumpers.
Do not tie the load so tightly that the
crossrails or side rails are damaged.
NOTICE:
Loading cargo that weighs more than 200 lbs.
(91 kg) on the luggage carrier may damage your
vehicle. When you carry large things, never let
them hang over the rear
or the sides of your
vehicle. Load your cargo
so that it rests on the
slats and does not scratch or damage the vehicle.
Put the cargo against the side rails and fasten it
, securely to the luggage carrier. Put the main
I weight as far forward as you can.
Don’t exceed the maximum vehicle capacity when loading your vehicle. For more information on vehicle capacity
and loading, see “Loading Your Vehicle’’ in the Index.
To prevent damage or loss of cargo as you’re driving,
check now and then to make sure the luggage carrier and
cargo are still securely fastened.
2-57
Page 116 of 392

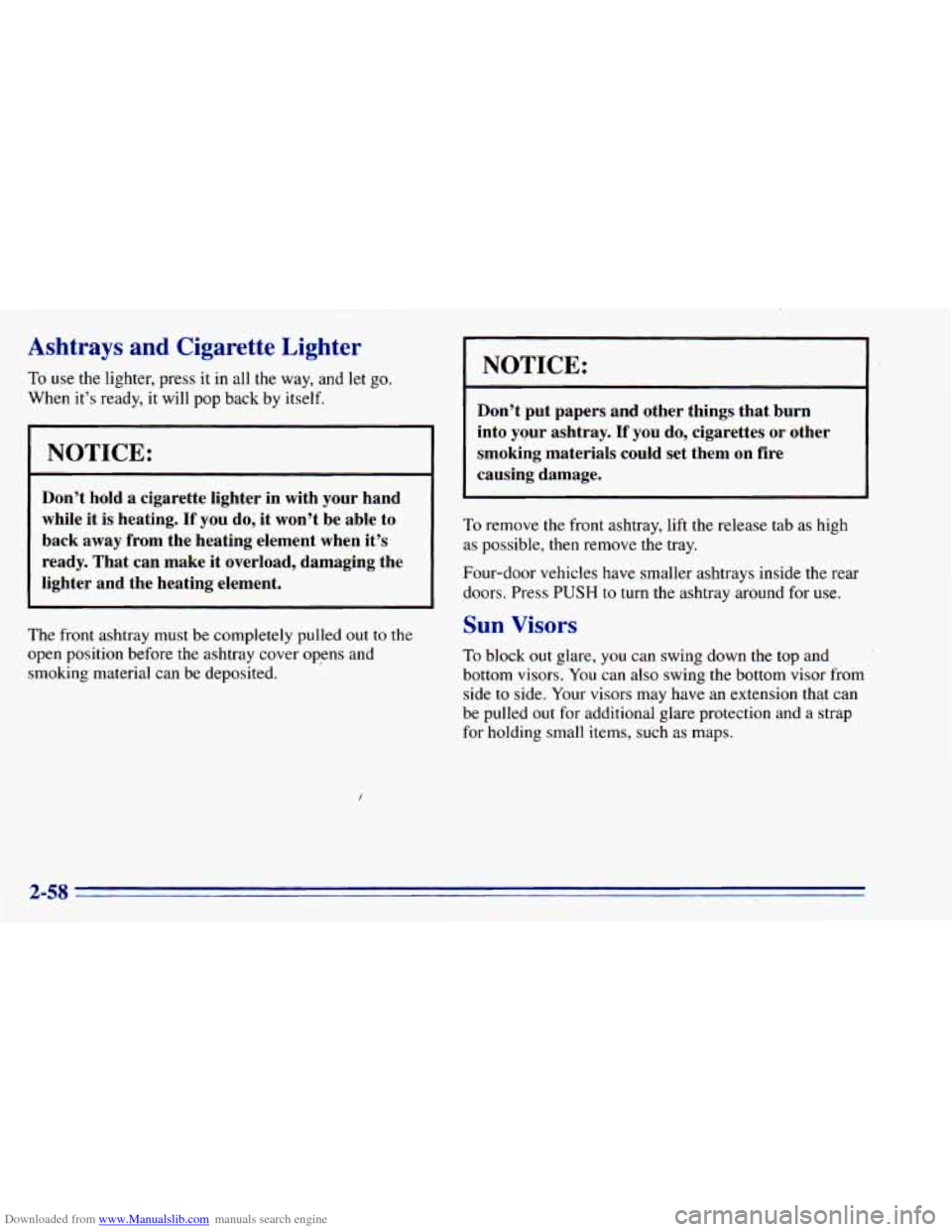

Downloaded from www.Manualslib.com manuals search engine Ashtrays and Cigarette Lighter
To use the lighter, press it in all the way, and let go.
When it’s ready, it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back
away from the heating element when it’s
ready. That can make it overload, damaging the
lighter and the heating element.
The front ashtray must be completely pulled out to the
open position before the ashtray cover opens and
smoking material can be deposited.
NOTICE:
Don’t put papers and other things that burn
into your ashtray.
If you do, cigarettes or other
smoking materials could set them on fire
causing damage.
To nove the front ashtray, lift the release tab as high
as possible, then remove the tray.
Four-door vehicles have smaller ashtrays inside the rear
doors. Press
PUSH to turn the ashtray around for use.
Sun Visors
To block out glare, you can swing down the top and
bottom visors. You can also swing the bottom visor from
side
to side. Your visors may have an extension that can
be pulled out for additional glare protection and a strap
for holding small items, such as maps.
2-58
Page 117 of 392

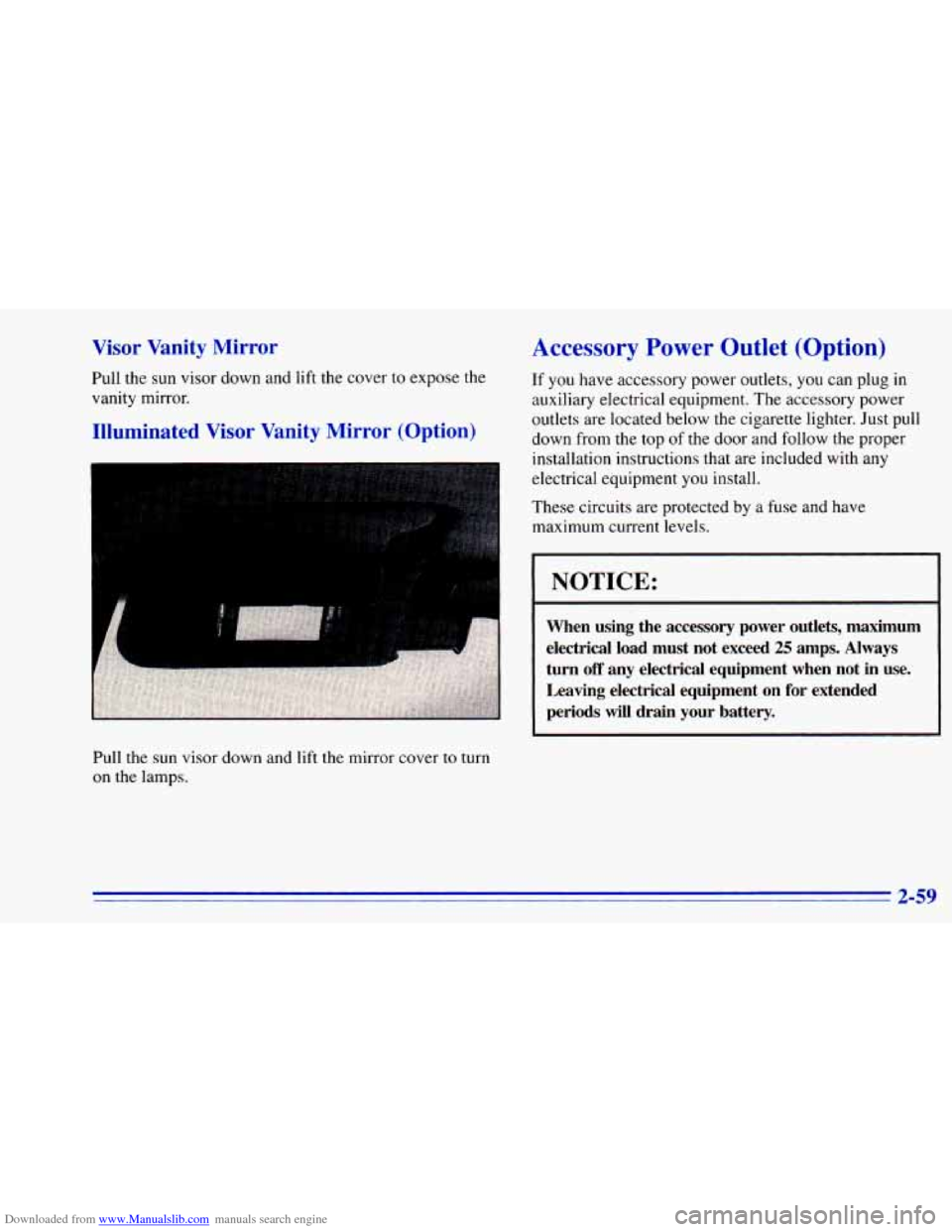

Downloaded from www.Manualslib.com manuals search engine Visor Vanity ,Mirror
Pull the sun visor down and lift the cover to expose the
vanity mirror.
Illuminated Visor Vanity Mirror (Option)
Pull the sun visor down and lift the mirror cover to turn
on the lamps.
Accessory Power Outlet (Option)
If you have accessory power outlets, you can plug in
auxiliary electrical equipment. The accessory power
outlets are located below the cigarette lighter. Just pull
down from the top
of the door and follow the proper
installation instructions that are included with any
electrical equipment you install.
These circuits are protected by a fuse and have
maximum current levels.
1 NOTICE:
When using the accessory power outlets, maximum
electrical load must not exceed
25 amps. Always
turn
off any electrical equipment when not in use.
Leaving electrical equipment on for extended
periods will drain your battery.
2-59
Page 118 of 392

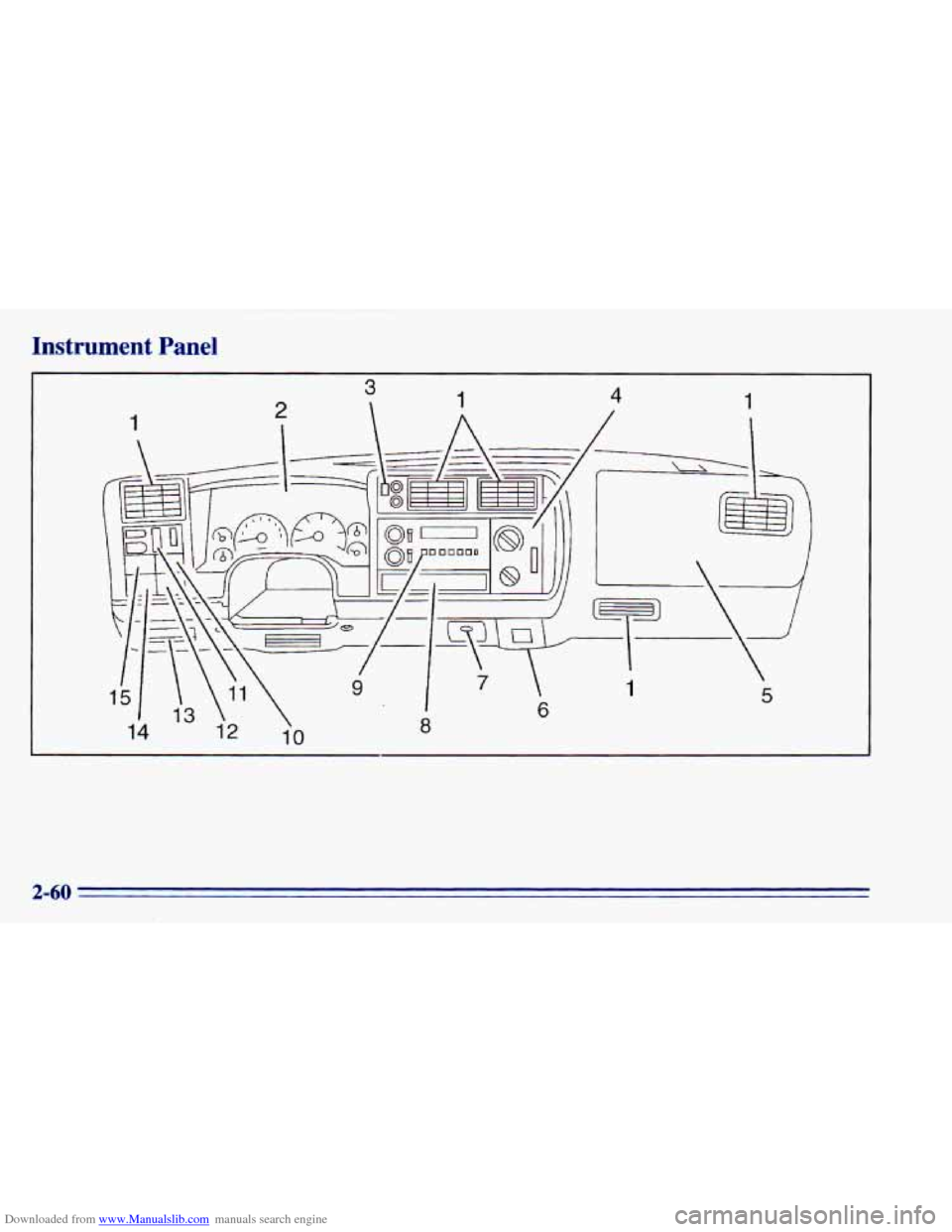

Downloaded from www.Manualslib.com manuals search engine Instrument Panel
2-60
Page 119 of 392

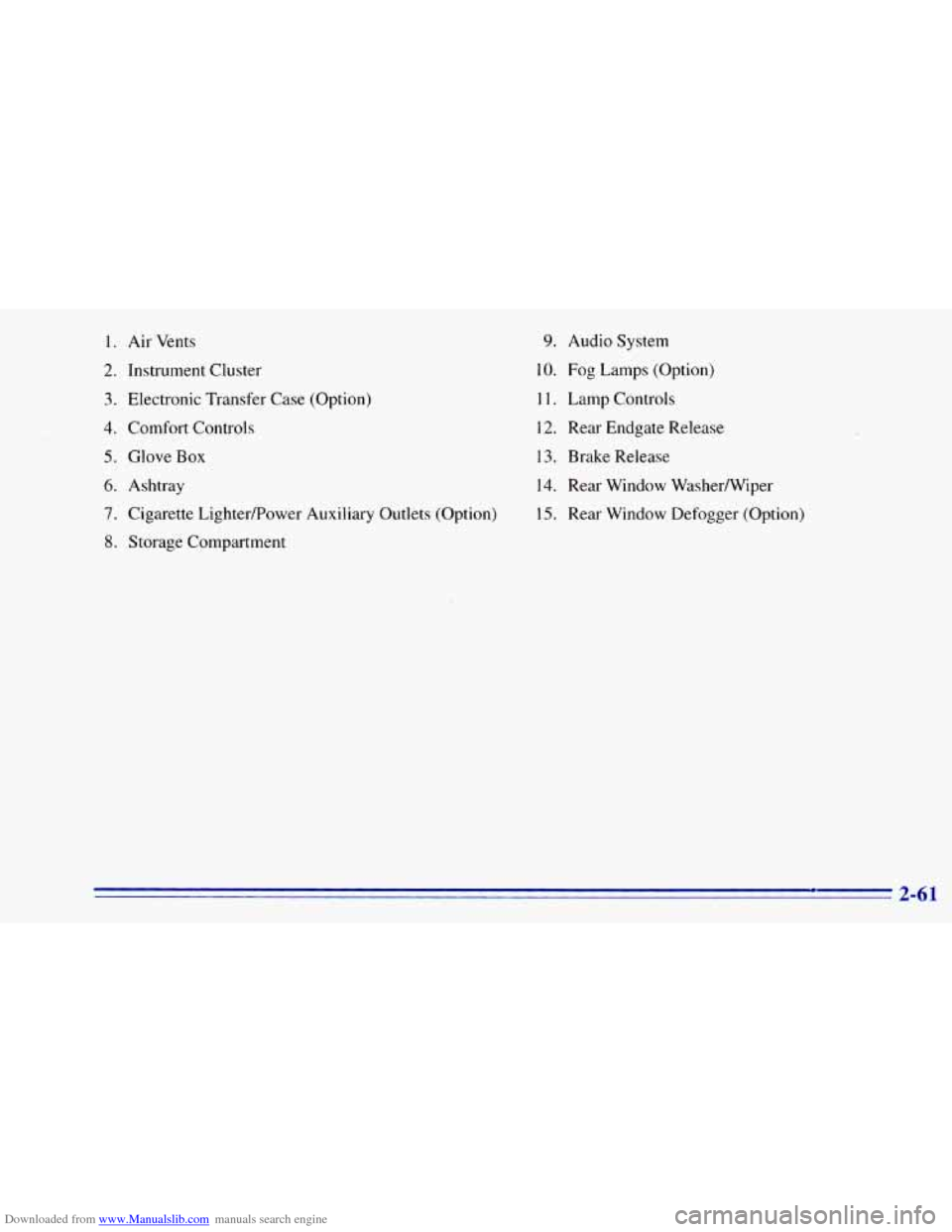

Downloaded from www.Manualslib.com manuals search engine 1. Air Vents
2. Instrument Cluster
3. Electronic Transfer Case (Option)
4. Comfort Controls
5. Glove Box
6. Ashtray
7. Cigarette Lighterpower Auxiliary Outlets (Option)
8. Storage Compartment
9. Audio System
10. Fog Lamps (Option)
1 1. Lamp Controls
12. Rear Endgate Release
13. Brake Release
14. Rear Window Washermiper
15. Rear Window Defogger (Option)
2-61
Page 120 of 392

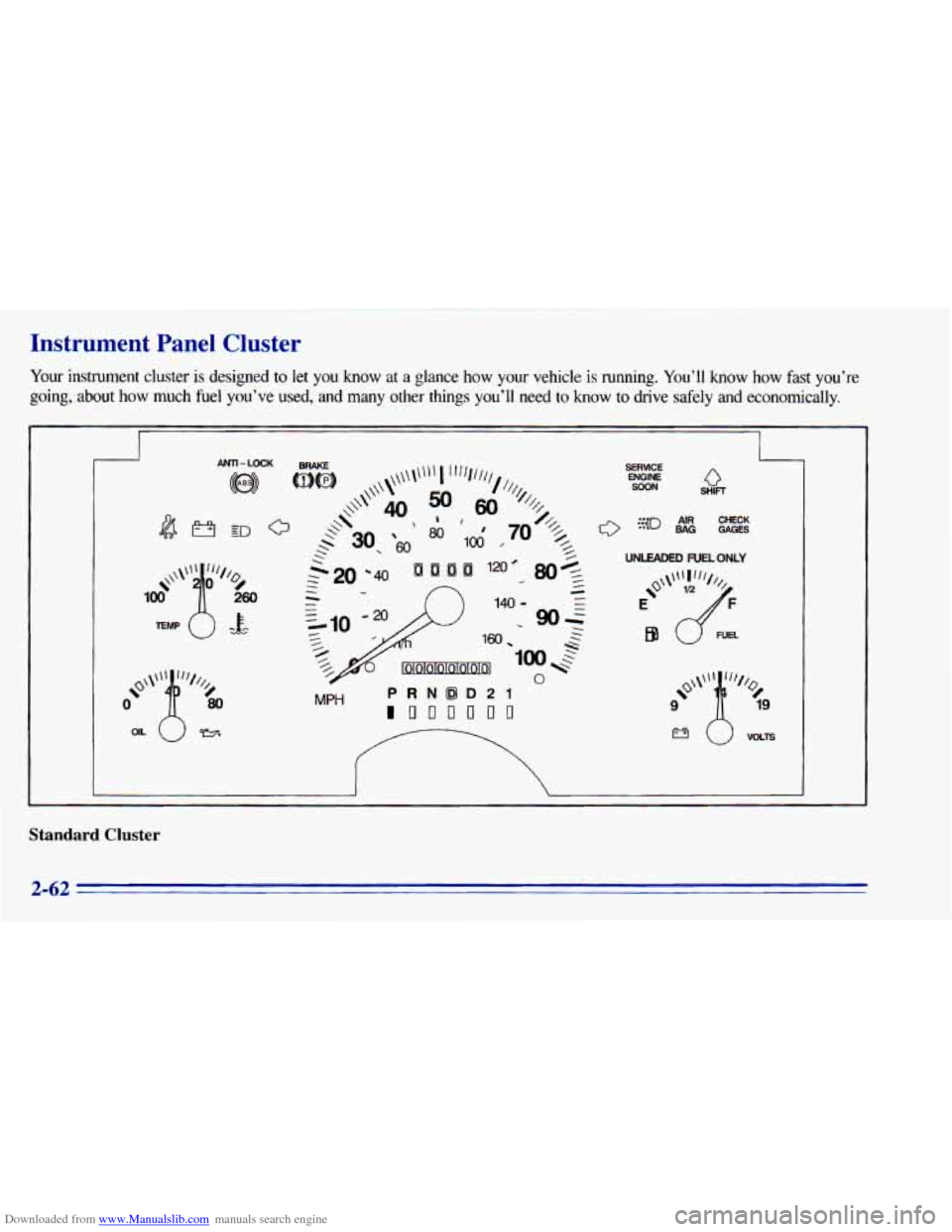

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Cluster
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re
going, about
how much fuel you’ve used, and many other things you’ll need \
to know to drive safely and economically.
MPH PRNBD21
I000000
SERVICE ENGINE SOON Q SHIFT
UNLEADED FUEL ONLY
Standard Cluster
