80 Instruments and Controls

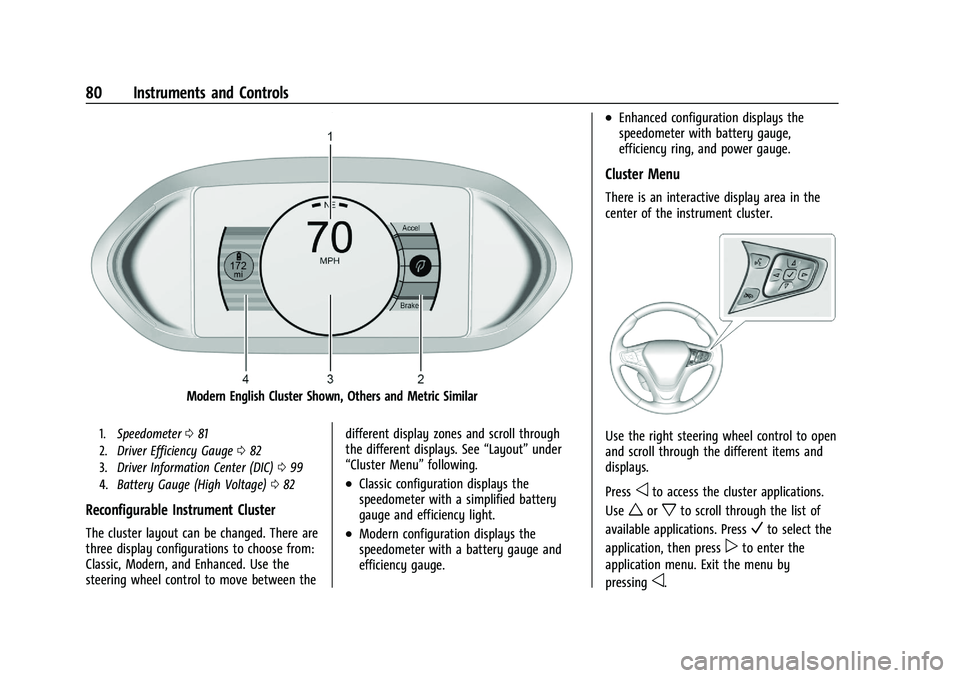

Modern English Cluster Shown, Others and Metric Similar
1.Speedometer 081
2. Driver Efficiency Gauge 082
3. Driver Information Center (DIC) 099
4. Battery Gauge (High Voltage) 082
Reconfigurable Instrument Cluster
The cluster layout can be changed. There are
three display configurations to choose from:
Classic, Modern, and Enhanced. Use the
steering wheel control to move between the different display zones and scroll through
the different displays. See
“Layout”under
“Cluster Menu” following.
.Classic configuration displays the
speedometer with a simplified battery
gauge and efficiency light.
.Modern configuration displays the
speedometer with a battery gauge and
efficiency gauge.
.Enhanced configuration displays the
speedometer with battery gauge,
efficiency ring, and power gauge.
Cluster Menu
There is an interactive display area in the
center of the instrument cluster.
Use the right steering wheel control to open
and scroll through the different items and
displays.
Press
oto access the cluster applications.
Use
worxto scroll through the list of
available applications. Press
Vto select the
application, then press
pto enter the
application menu. Exit the menu by
pressing
o.

Chevrolet Bolt EV Owner Manual (GMNA-Localizing-U.S./Canada-
14637856) - 2021 - CRC - 10/2/20
Instruments and Controls 81
Not all applications will be available on all
vehicles.

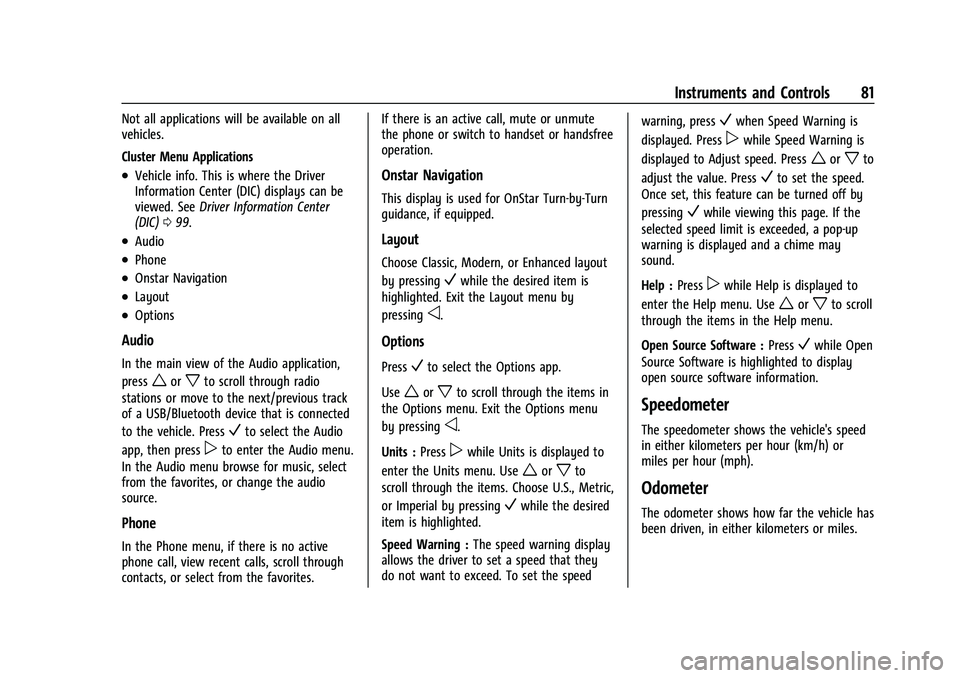

Cluster Menu Applications
.Vehicle info. This is where the Driver
Information Center (DIC) displays can be
viewed. SeeDriver Information Center
(DIC) 099.
.Audio
.Phone
.Onstar Navigation
.Layout
.Options
Audio
In the main view of the Audio application,
press
worxto scroll through radio
stations or move to the next/previous track
of a USB/Bluetooth device that is connected
to the vehicle. Press
Vto select the Audio
app, then press
pto enter the Audio menu.
In the Audio menu browse for music, select
from the favorites, or change the audio
source.
Phone
In the Phone menu, if there is no active
phone call, view recent calls, scroll through
contacts, or select from the favorites. If there is an active call, mute or unmute
the phone or switch to handset or handsfree
operation.
Onstar Navigation
This display is used for OnStar Turn-by-Turn
guidance, if equipped.
Layout
Choose Classic, Modern, or Enhanced layout
by pressing
Vwhile the desired item is
highlighted. Exit the Layout menu by
pressing
o.
Options
PressVto select the Options app.
Use
worxto scroll through the items in
the Options menu. Exit the Options menu
by pressing
o.
Units : Press
pwhile Units is displayed to
enter the Units menu. Use
worxto
scroll through the items. Choose U.S., Metric,
or Imperial by pressing
Vwhile the desired
item is highlighted.
Speed Warning : The speed warning display
allows the driver to set a speed that they
do not want to exceed. To set the speed warning, press
Vwhen Speed Warning is
displayed. Press
pwhile Speed Warning is
displayed to Adjust speed. Press
worxto
adjust the value. Press
Vto set the speed.
Once set, this feature can be turned off by
pressing
Vwhile viewing this page. If the
selected speed limit is exceeded, a pop-up
warning is displayed and a chime may
sound.
Help : Press
pwhile Help is displayed to
enter the Help menu. Use
worxto scroll
through the items in the Help menu.
Open Source Software : Press
Vwhile Open
Source Software is highlighted to display
open source software information.
Speedometer
The speedometer shows the vehicle's speed
in either kilometers per hour (km/h) or
miles per hour (mph).
Odometer
The odometer shows how far the vehicle has
been driven, in either kilometers or miles.

Chevrolet Bolt EV Owner Manual (GMNA-Localizing-U.S./Canada-
14637856) - 2021 - CRC - 10/2/20
82 Instruments and Controls
Trip Odometer
The trip odometer shows how far the
vehicle has been driven since the trip
odometer was last reset.
The trip odometer is accessed and reset
through the Driver Information Center (DIC).
SeeDriver Information Center (DIC) 099.
Battery Gauge (High Voltage)

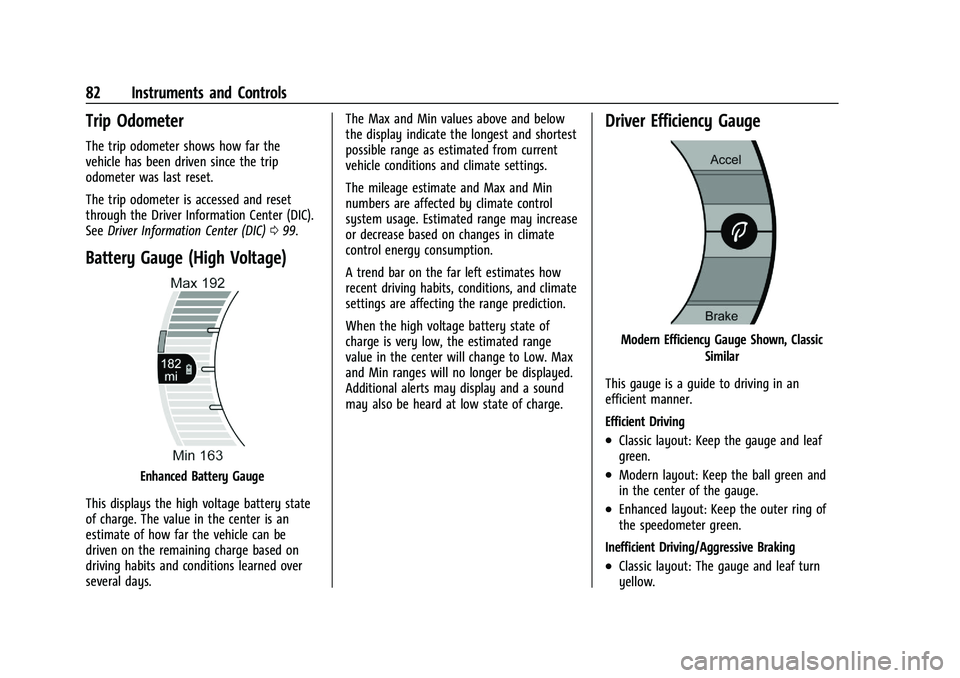

Enhanced Battery Gauge
This displays the high voltage battery state
of charge. The value in the center is an
estimate of how far the vehicle can be
driven on the remaining charge based on
driving habits and conditions learned over
several days. The Max and Min values above and below
the display indicate the longest and shortest
possible range as estimated from current
vehicle conditions and climate settings.
The mileage estimate and Max and Min
numbers are affected by climate control
system usage. Estimated range may increase
or decrease based on changes in climate
control energy consumption.
A trend bar on the far left estimates how
recent driving habits, conditions, and climate
settings are affecting the range prediction.
When the high voltage battery state of
charge is very low, the estimated range
value in the center will change to Low. Max
and Min ranges will no longer be displayed.
Additional alerts may display and a sound
may also be heard at low state of charge.
Driver Efficiency Gauge
Modern Efficiency Gauge Shown, Classic
Similar
This gauge is a guide to driving in an
efficient manner.
Efficient Driving
.Classic layout: Keep the gauge and leaf
green.
.Modern layout: Keep the ball green and
in the center of the gauge.
.Enhanced layout: Keep the outer ring of
the speedometer green.
Inefficient Driving/Aggressive Braking
.Classic layout: The gauge and leaf turn
yellow.

Chevrolet Bolt EV Owner Manual (GMNA-Localizing-U.S./Canada-
14637856) - 2021 - CRC - 10/2/20
Instruments and Controls 83
.Modern layout: When driving inefficiently,
the ball turns yellow and moves above
the center of the gauge. When braking
aggressively, the ball turns yellow and
moves below the center of the gauge.
.Enhanced layout: The outer ring of the
speedometer turns yellow.

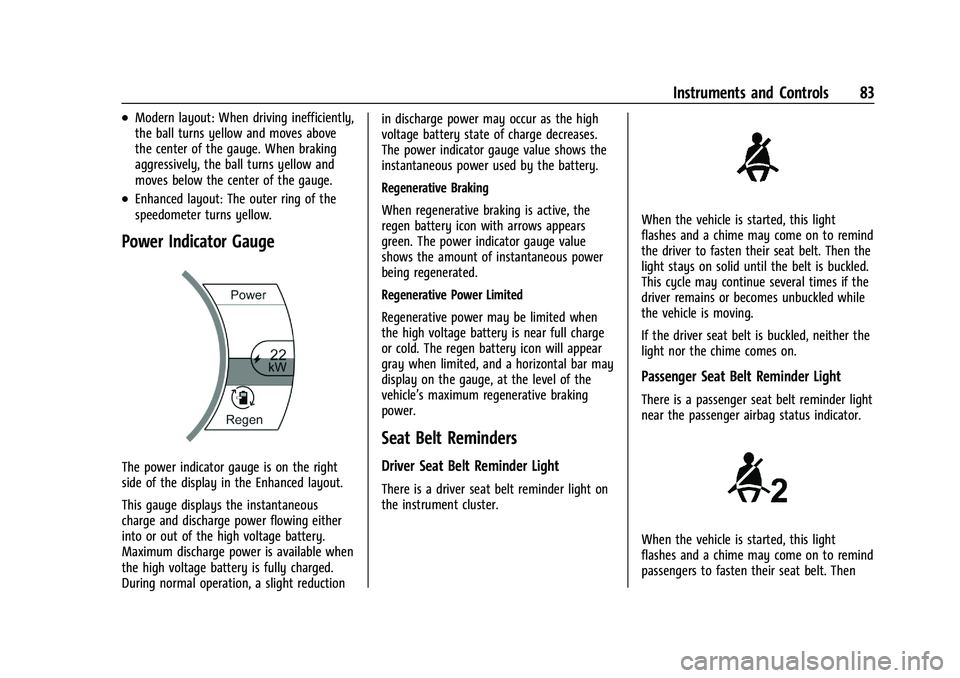

Power Indicator Gauge
The power indicator gauge is on the right
side of the display in the Enhanced layout.
This gauge displays the instantaneous
charge and discharge power flowing either
into or out of the high voltage battery.
Maximum discharge power is available when
the high voltage battery is fully charged.
During normal operation, a slight reductionin discharge power may occur as the high
voltage battery state of charge decreases.
The power indicator gauge value shows the
instantaneous power used by the battery.
Regenerative Braking
When regenerative braking is active, the
regen battery icon with arrows appears
green. The power indicator gauge value
shows the amount of instantaneous power
being regenerated.
Regenerative Power Limited
Regenerative power may be limited when
the high voltage battery is near full charge
or cold. The regen battery icon will appear
gray when limited, and a horizontal bar may
display on the gauge, at the level of the
vehicle’s maximum regenerative braking
power.
Seat Belt Reminders
Driver Seat Belt Reminder Light
There is a driver seat belt reminder light on
the instrument cluster.
When the vehicle is started, this light
flashes and a chime may come on to remind
the driver to fasten their seat belt. Then the
light stays on solid until the belt is buckled.
This cycle may continue several times if the
driver remains or becomes unbuckled while
the vehicle is moving.
If the driver seat belt is buckled, neither the
light nor the chime comes on.
Passenger Seat Belt Reminder Light
There is a passenger seat belt reminder light
near the passenger airbag status indicator.
When the vehicle is started, this light
flashes and a chime may come on to remind
passengers to fasten their seat belt. Then

Chevrolet Bolt EV Owner Manual (GMNA-Localizing-U.S./Canada-
14637856) - 2021 - CRC - 10/2/20
84 Instruments and Controls
the light stays on solid until the belt is
buckled. This cycle continues several times if
the passenger remains or becomes
unbuckled while the vehicle is moving.
If the passenger seat belt is buckled, neither
the chime nor the light comes on.
The front passenger seat belt reminder light
and chime may turn on if an object is put
on the seat such as a briefcase, handbag,
grocery bag, or other electronic device. To
turn off the reminder light and/or chime,
remove the object from the seat or buckle
the seat belt.

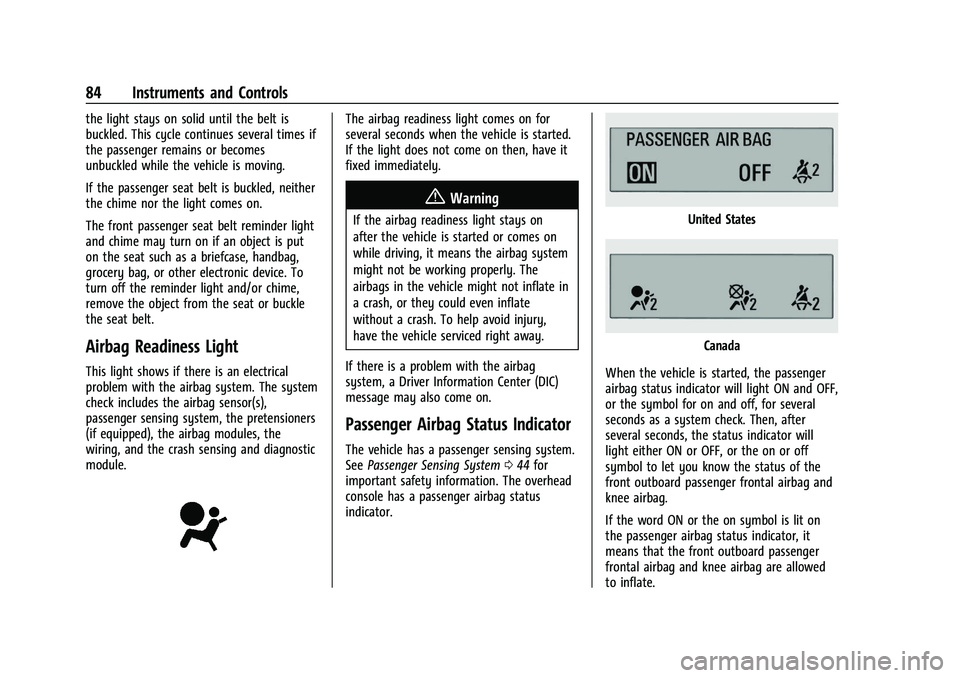

Airbag Readiness Light
This light shows if there is an electrical
problem with the airbag system. The system
check includes the airbag sensor(s),
passenger sensing system, the pretensioners
(if equipped), the airbag modules, the
wiring, and the crash sensing and diagnostic
module.
The airbag readiness light comes on for
several seconds when the vehicle is started.
If the light does not come on then, have it
fixed immediately.
{Warning
If the airbag readiness light stays on
after the vehicle is started or comes on
while driving, it means the airbag system
might not be working properly. The
airbags in the vehicle might not inflate in
a crash, or they could even inflate
without a crash. To help avoid injury,
have the vehicle serviced right away.
If there is a problem with the airbag
system, a Driver Information Center (DIC)
message may also come on.
Passenger Airbag Status Indicator
The vehicle has a passenger sensing system.
See Passenger Sensing System 044 for
important safety information. The overhead
console has a passenger airbag status
indicator.
United States
Canada
When the vehicle is started, the passenger
airbag status indicator will light ON and OFF,
or the symbol for on and off, for several
seconds as a system check. Then, after
several seconds, the status indicator will
light either ON or OFF, or the on or off
symbol to let you know the status of the
front outboard passenger frontal airbag and
knee airbag.
If the word ON or the on symbol is lit on
the passenger airbag status indicator, it
means that the front outboard passenger
frontal airbag and knee airbag are allowed
to inflate.

Chevrolet Bolt EV Owner Manual (GMNA-Localizing-U.S./Canada-
14637856) - 2021 - CRC - 10/2/20
Instruments and Controls 85
If the word OFF or the off symbol is lit on
the passenger airbag status indicator, it
means that the passenger sensing system
has turned off the front outboard passenger
frontal airbag and knee airbag.
If, after several seconds, both status
indicator lights remain on, or if there are no
lights at all, there may be a problem with
the lights or the passenger sensing system.
See your dealer for service.
{Warning
If the airbag readiness light ever comes
on and stays on, it means that
something may be wrong with the airbag
system. To help avoid injury to yourself
or others, have the vehicle serviced right
away. SeeAirbag Readiness Light 084
for more information, including important
safety information.

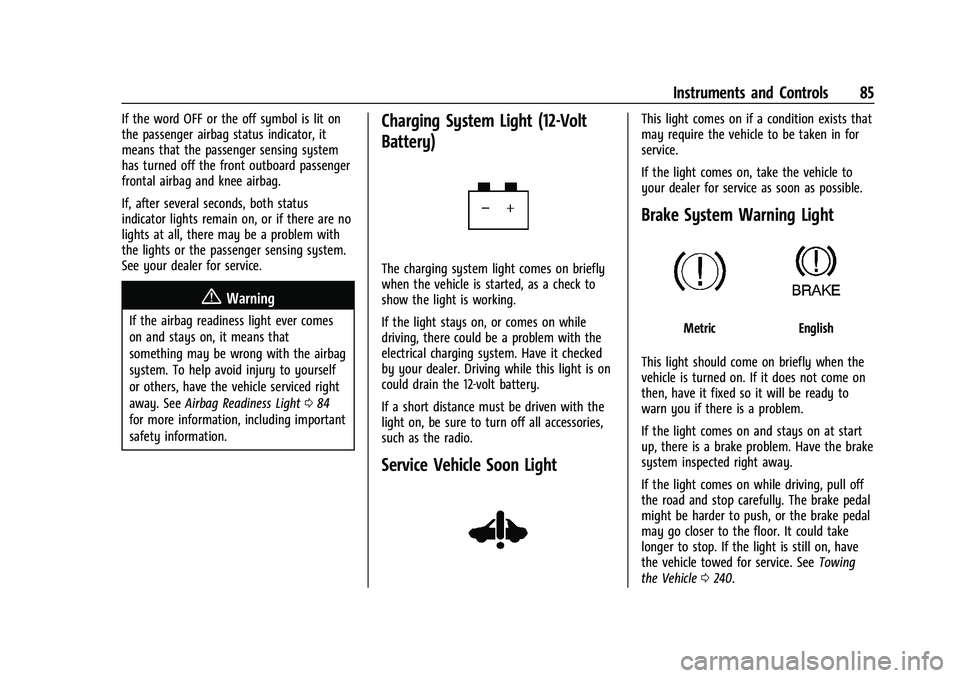

Charging System Light (12-Volt
Battery)
The charging system light comes on briefly
when the vehicle is started, as a check to
show the light is working.
If the light stays on, or comes on while
driving, there could be a problem with the
electrical charging system. Have it checked
by your dealer. Driving while this light is on
could drain the 12-volt battery.
If a short distance must be driven with the
light on, be sure to turn off all accessories,
such as the radio.
Service Vehicle Soon Light
This light comes on if a condition exists that
may require the vehicle to be taken in for
service.
If the light comes on, take the vehicle to
your dealer for service as soon as possible.
Brake System Warning Light
MetricEnglish
This light should come on briefly when the
vehicle is turned on. If it does not come on
then, have it fixed so it will be ready to
warn you if there is a problem.
If the light comes on and stays on at start
up, there is a brake problem. Have the brake
system inspected right away.
If the light comes on while driving, pull off
the road and stop carefully. The brake pedal
might be harder to push, or the brake pedal
may go closer to the floor. It could take
longer to stop. If the light is still on, have
the vehicle towed for service. See Towing
the Vehicle 0240.

Chevrolet Bolt EV Owner Manual (GMNA-Localizing-U.S./Canada-
14637856) - 2021 - CRC - 10/2/20

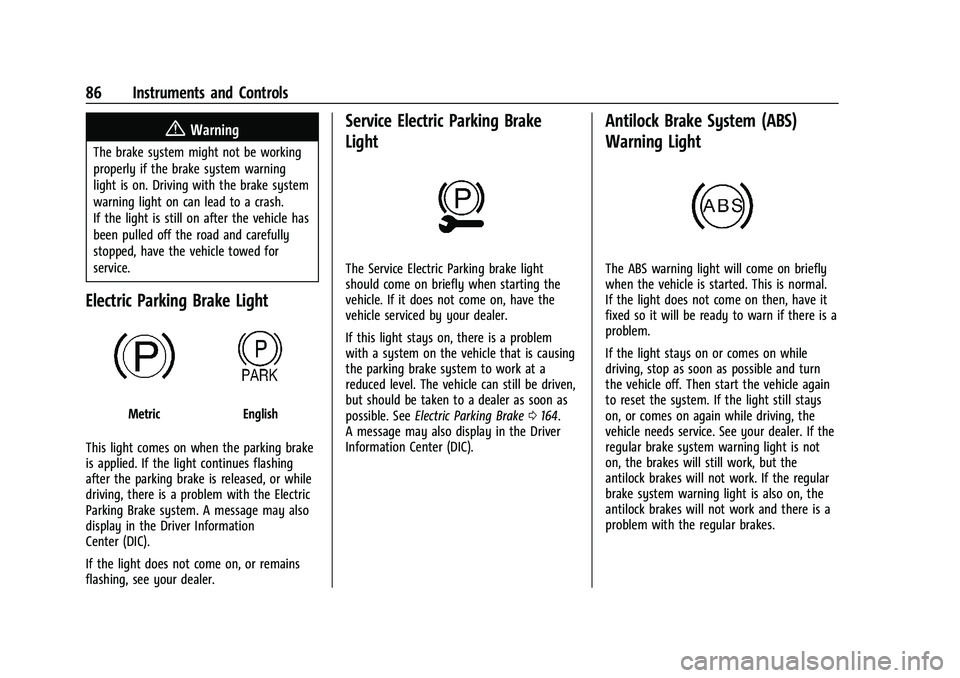

86 Instruments and Controls
{Warning
The brake system might not be working
properly if the brake system warning
light is on. Driving with the brake system
warning light on can lead to a crash.
If the light is still on after the vehicle has
been pulled off the road and carefully
stopped, have the vehicle towed for
service.
Electric Parking Brake Light
MetricEnglish
This light comes on when the parking brake
is applied. If the light continues flashing
after the parking brake is released, or while
driving, there is a problem with the Electric
Parking Brake system. A message may also
display in the Driver Information
Center (DIC).
If the light does not come on, or remains
flashing, see your dealer.
Service Electric Parking Brake
Light
The Service Electric Parking brake light
should come on briefly when starting the
vehicle. If it does not come on, have the
vehicle serviced by your dealer.
If this light stays on, there is a problem
with a system on the vehicle that is causing
the parking brake system to work at a
reduced level. The vehicle can still be driven,
but should be taken to a dealer as soon as
possible. See Electric Parking Brake 0164.
A message may also display in the Driver
Information Center (DIC).
Antilock Brake System (ABS)
Warning Light
The ABS warning light will come on briefly
when the vehicle is started. This is normal.
If the light does not come on then, have it
fixed so it will be ready to warn if there is a
problem.
If the light stays on or comes on while
driving, stop as soon as possible and turn
the vehicle off. Then start the vehicle again
to reset the system. If the light still stays
on, or comes on again while driving, the
vehicle needs service. See your dealer. If the
regular brake system warning light is not
on, the brakes will still work, but the
antilock brakes will not work. If the regular
brake system warning light is also on, the
antilock brakes will not work and there is a
problem with the regular brakes.

Chevrolet Bolt EV Owner Manual (GMNA-Localizing-U.S./Canada-
14637856) - 2021 - CRC - 10/2/20

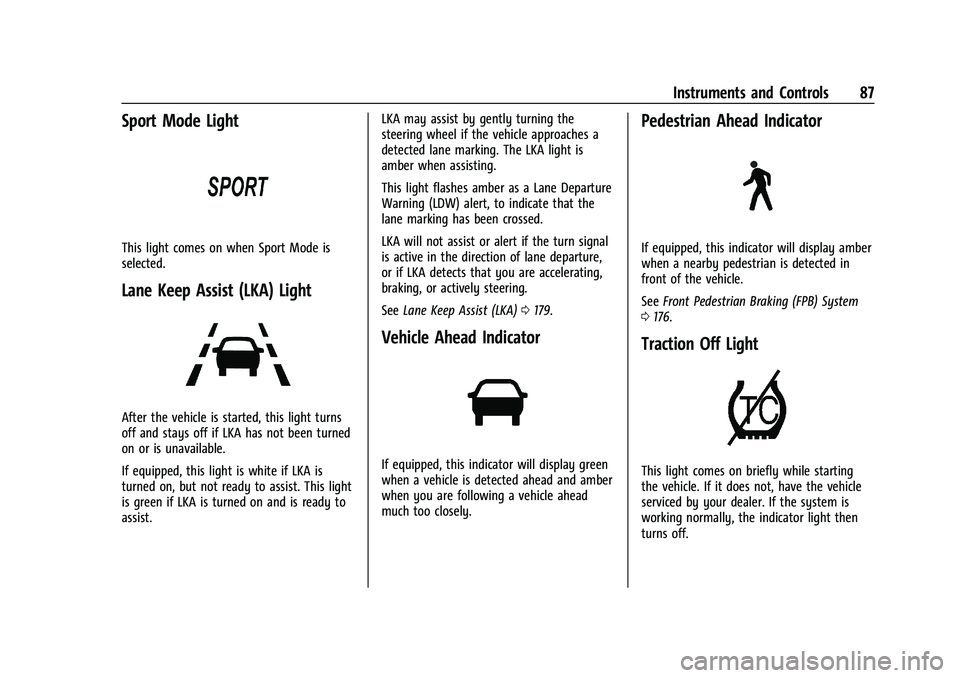

Instruments and Controls 87
Sport Mode Light
This light comes on when Sport Mode is
selected.
Lane Keep Assist (LKA) Light
After the vehicle is started, this light turns
off and stays off if LKA has not been turned
on or is unavailable.
If equipped, this light is white if LKA is
turned on, but not ready to assist. This light
is green if LKA is turned on and is ready to
assist.LKA may assist by gently turning the
steering wheel if the vehicle approaches a
detected lane marking. The LKA light is
amber when assisting.
This light flashes amber as a Lane Departure
Warning (LDW) alert, to indicate that the
lane marking has been crossed.
LKA will not assist or alert if the turn signal
is active in the direction of lane departure,
or if LKA detects that you are accelerating,
braking, or actively steering.
See
Lane Keep Assist (LKA) 0179.
Vehicle Ahead Indicator
If equipped, this indicator will display green
when a vehicle is detected ahead and amber
when you are following a vehicle ahead
much too closely.
Pedestrian Ahead Indicator
If equipped, this indicator will display amber
when a nearby pedestrian is detected in
front of the vehicle.
See Front Pedestrian Braking (FPB) System
0 176.
Traction Off Light
This light comes on briefly while starting
the vehicle. If it does not, have the vehicle
serviced by your dealer. If the system is
working normally, the indicator light then
turns off.

Chevrolet Bolt EV Owner Manual (GMNA-Localizing-U.S./Canada-
14637856) - 2021 - CRC - 10/2/20

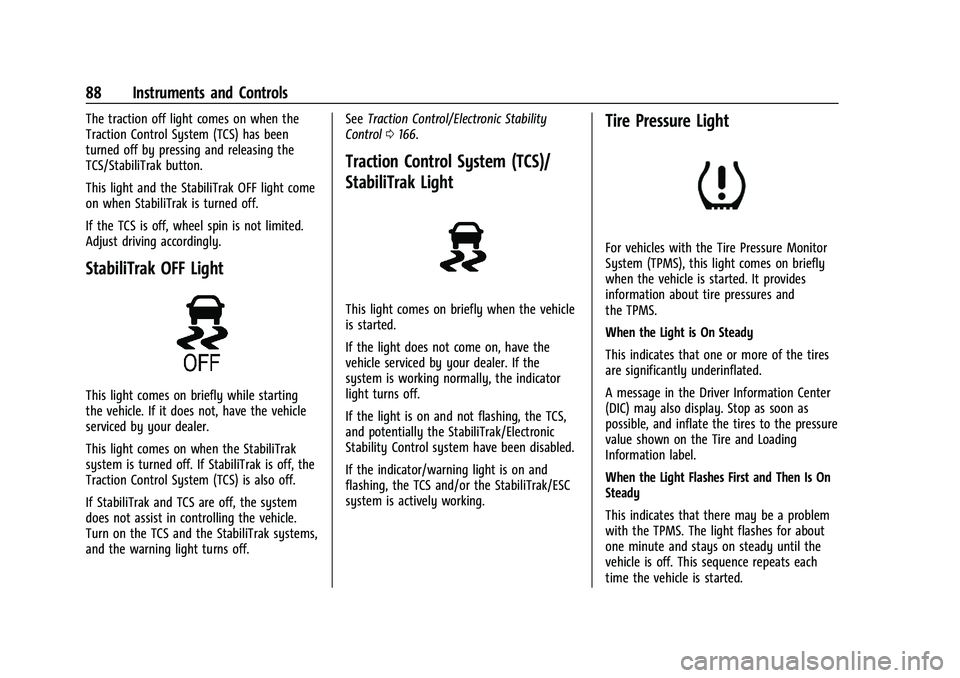

88 Instruments and Controls
The traction off light comes on when the
Traction Control System (TCS) has been
turned off by pressing and releasing the
TCS/StabiliTrak button.
This light and the StabiliTrak OFF light come
on when StabiliTrak is turned off.
If the TCS is off, wheel spin is not limited.
Adjust driving accordingly.
StabiliTrak OFF Light
This light comes on briefly while starting
the vehicle. If it does not, have the vehicle
serviced by your dealer.
This light comes on when the StabiliTrak
system is turned off. If StabiliTrak is off, the
Traction Control System (TCS) is also off.
If StabiliTrak and TCS are off, the system
does not assist in controlling the vehicle.
Turn on the TCS and the StabiliTrak systems,
and the warning light turns off.See
Traction Control/Electronic Stability
Control 0166.
Traction Control System (TCS)/
StabiliTrak Light
This light comes on briefly when the vehicle
is started.
If the light does not come on, have the
vehicle serviced by your dealer. If the
system is working normally, the indicator
light turns off.
If the light is on and not flashing, the TCS,
and potentially the StabiliTrak/Electronic
Stability Control system have been disabled.
If the indicator/warning light is on and
flashing, the TCS and/or the StabiliTrak/ESC
system is actively working.
Tire Pressure Light
For vehicles with the Tire Pressure Monitor
System (TPMS), this light comes on briefly
when the vehicle is started. It provides
information about tire pressures and
the TPMS.
When the Light is On Steady
This indicates that one or more of the tires
are significantly underinflated.
A message in the Driver Information Center
(DIC) may also display. Stop as soon as
possible, and inflate the tires to the pressure
value shown on the Tire and Loading
Information label.
When the Light Flashes First and Then Is On
Steady
This indicates that there may be a problem
with the TPMS. The light flashes for about
one minute and stays on steady until the
vehicle is off. This sequence repeats each
time the vehicle is started.

Chevrolet Bolt EV Owner Manual (GMNA-Localizing-U.S./Canada-
14637856) - 2021 - CRC - 10/2/20
Instruments and Controls 89

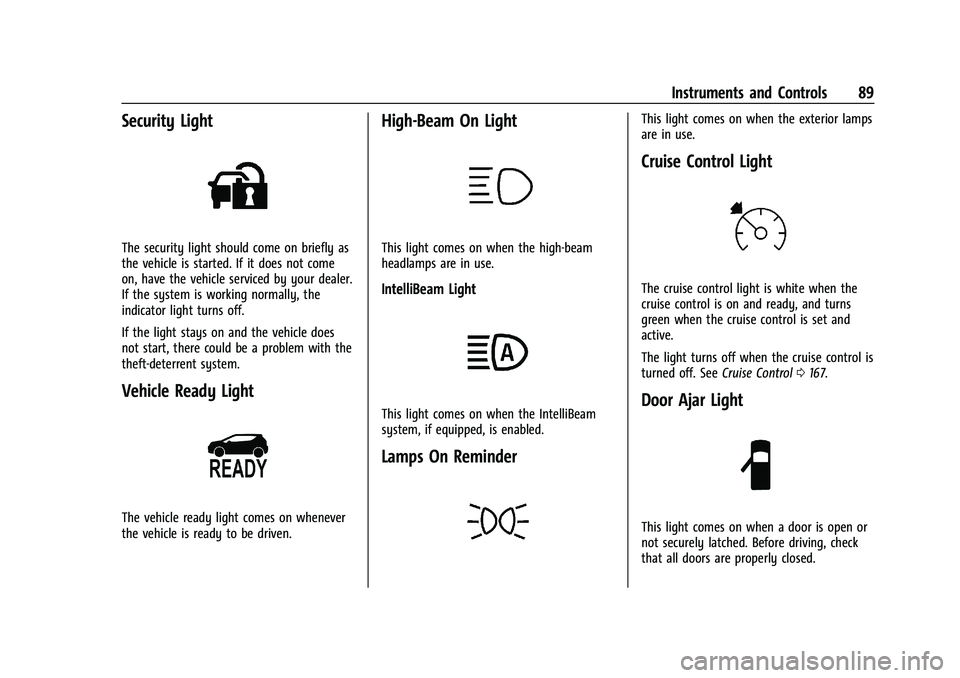

Security Light
The security light should come on briefly as
the vehicle is started. If it does not come
on, have the vehicle serviced by your dealer.
If the system is working normally, the
indicator light turns off.
If the light stays on and the vehicle does
not start, there could be a problem with the
theft-deterrent system.
Vehicle Ready Light
The vehicle ready light comes on whenever
the vehicle is ready to be driven.
High-Beam On Light
This light comes on when the high-beam
headlamps are in use.
IntelliBeam Light
This light comes on when the IntelliBeam
system, if equipped, is enabled.
Lamps On Reminder
This light comes on when the exterior lamps
are in use.
Cruise Control Light
The cruise control light is white when the
cruise control is on and ready, and turns
green when the cruise control is set and
active.
The light turns off when the cruise control is
turned off. SeeCruise Control0167.
Door Ajar Light
This light comes on when a door is open or
not securely latched. Before driving, check
that all doors are properly closed.
