CHEVROLET CAMARO 1993 Owners Manual

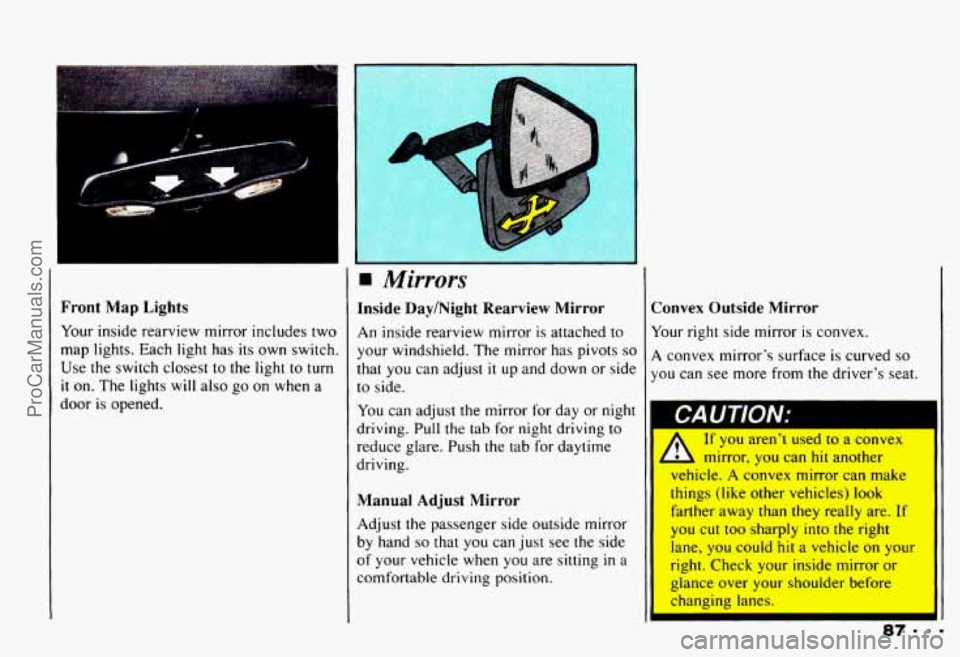

Front Map Lights
Your inside rearview mirror includes two
map lights. Each light has its own switch.
Use the switch closest to the light to
turn
it on. The lights will also go on when a
door is opened.
I
1
I'
. . . .. . .. . , . . .
Mirrors
Inside Day/Night Rearview Mirror
An inside rearview mirror is attached to
your windshield, The mirror has pivots
so
that you can adjust it up and down or side
to side.
You can adjust the mirror for day or night
driving. Pull the tab for
night driving to
reduce glare. Push the tab for daytime
driving.
Convex Outside Mirror
Your right side mirror is convex.
A convex mirror's surface is curvec so
you can see more from the driver's seat,
If you aren't used to a convex
L mirror, you can hit another
vehicle.
A convex mirror can make
things (like other vehicles) look
Manual Adjust Mirror
Adjust the passenger side outside mirror you cut too sharply into the right
by hand
so that you can just see the side lane, you could hit a vehicle on your
of your vehicle when you are sitting
in a right. Check your inside mirror or
comfortable driving position. glance over your shoulder before
farther
away than they really are.
If
changing lanes.
I
87.9-
ProCarManuals.com

Features & Controls
t

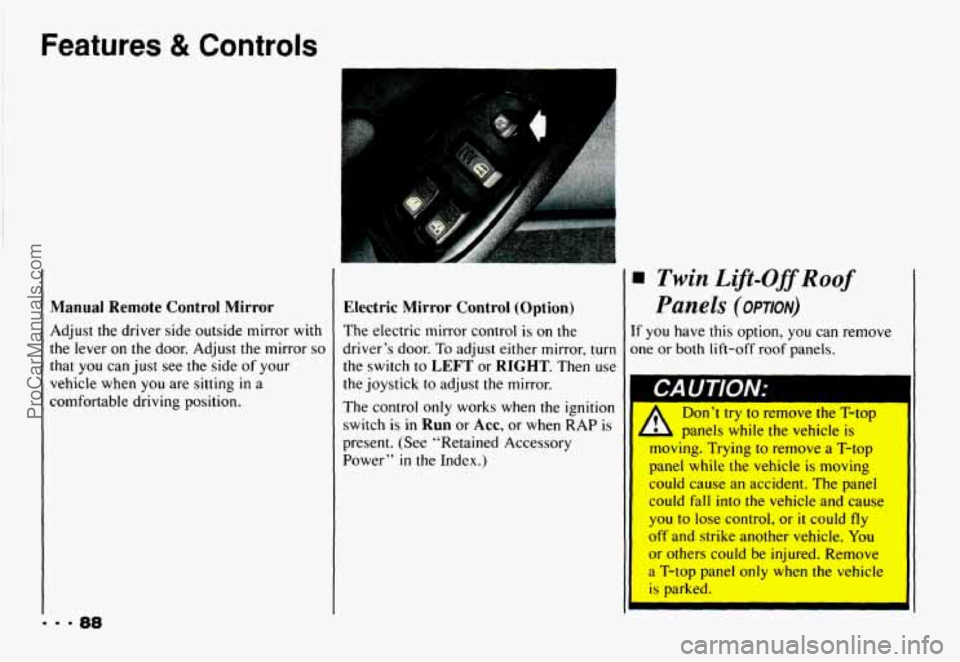

Manual Remote Control Mirror
Adjust the driver side outside mirror with
the lever
on the door. Adjust the mirror so
that you can just see the side of your
vehicle when
you are sitting in a
comfortable driving position.
Electric Mirror Control (Option)
The electric mirror control is on the
driver’s door.
To adjust either mirror, turn
the switch to LEFT or RIGHT. Then use
the joystick to adjust the mirror.
The control only works when the ignition
switch is
in Run or Acc, or when RAP is
present. (See “Retained Accessory
Power”
in the Index.)
Twin Lift-OffRoof
Panels (oPnoN)
f you have this option, you can remove
me or both lift-off roof
panels.
CAUTION: 1
Don’t try to remove the T-top
panels while the vehicle
is
moving. Trying to remove a T-top
panel
while the vehicle is moving
could cause an accident. The panel
could
fall into the vehicle and cause
you to lose control, or
it could fly
off and strike another vehicle. You
or others could be injured. Remove
a T-top panel only when the vehicle
I is parked.
ProCarManuals.com

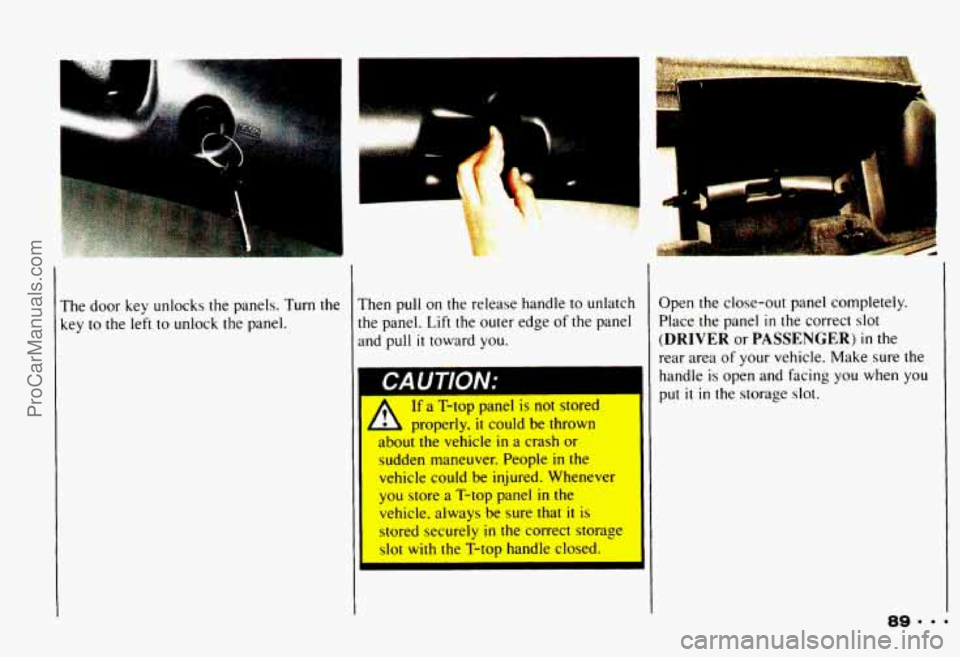

The door key unlocks the panels. Turn the
key
to the left to unlock the panel.
. .-
Then pull on the release handle to unlatch
the panel. Lift the outer edge of the panel
and pull
it toward you.
If a '1-top panel is not stored
properly,
it could be thrown
sudden maneuver. People
in the
vehicle could be injured. Whenever
you store
a T-top panel in the
vehicle. always be sure that
it is
stored securely in the correct storage
slot with the T-top handle closed. Open the
close-out panel completely.
Place the panel
in the correct slot
(DRIVER or PASSENGER) in the
rear area of
your vehicle. Make sure the
handle
is open and facing you when you
put it in the storage slot.
ProCarManuals.com

Features & Controls
I

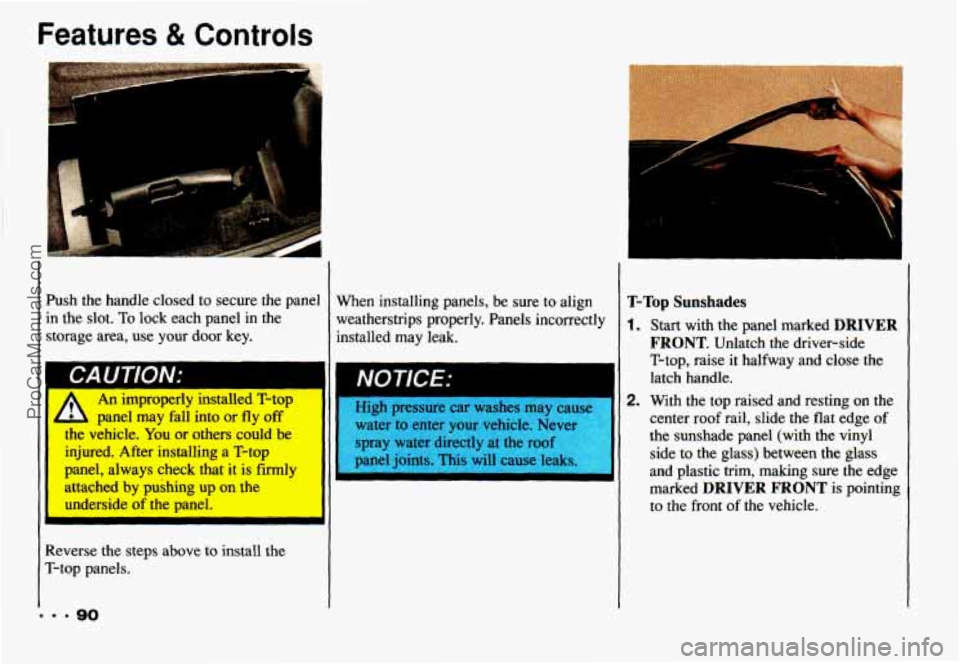

Push the handle closed to secure the panel in the slot.
To lock each panel in the
storage area, use your door key.
An improperly 111sw1ea l-rop
me vehicle. You
or others could be
injured. After installing a T-top
panel, always
check that it is firmly
attached by pushing up on the
L panel may fall into or fly off High pressure car washes may cause 1
water to enter your vehicle. Neve]
spray water directly at the roof
panel joints. This will cause leaks
underside of
the panel.
I
Reverse the steps above to install the
T-top panels.
... 90
When installing panels, be sure to align
weatherstrips properly. Panels incorrectly
installed may leak. T-Top Sunshades
1. Start with the panel marked DRIVER
FRONT. Unlatch the driver-side
T-top, raise it halfway and close the
latch handle.
2. With the top raised and resting on the
center
roof rail, slide the flat edge of
the sunshade panel (with the vinyl
side
to the glass) between the glass
and plastic trim, making sure the edge
marked
DRIVER FRONT is pointing
to the front of the vehicle.
ProCarManuals.com

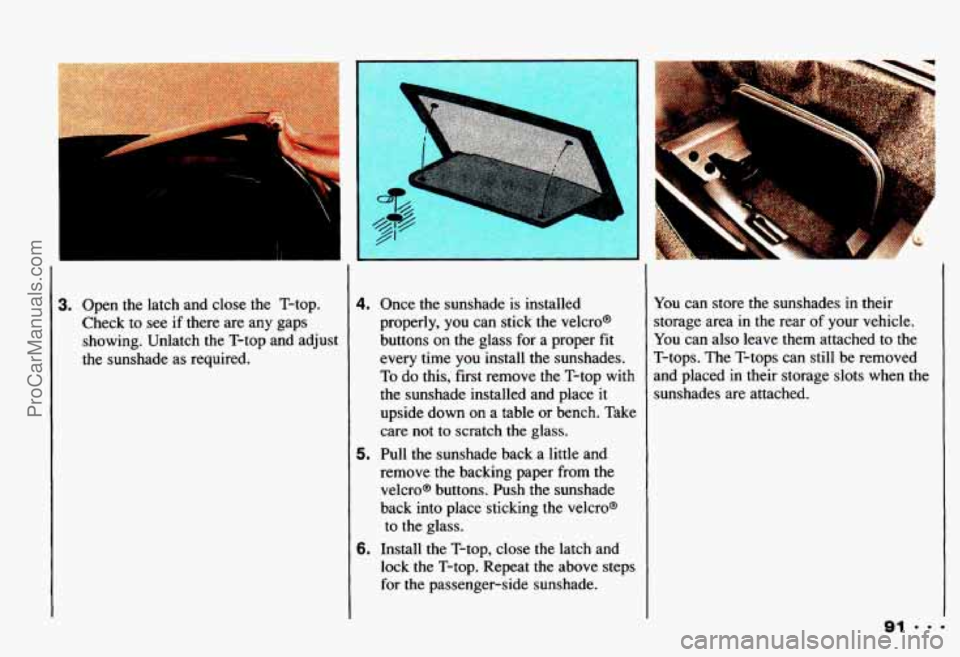

3. Open the latch and close the T-top.
Check to see
if there are any gaps
showing. Unlatch the T-top and adjust
the sunshade as required.
4. Once the sunshade is installed
properly, you can stick the Velcro@
buttons on the glass for
a proper fit
every time you install the sunshades.
To do this, first remove the T-top with
the sunshade installed and place
it
upside down on a table or bench. Take
care not to scratch the glass.
remove the backing paper
from the
Velcro@ buttons. Push the sunshade
back into place sticking the Velcro@
to the glass,
6. Install the T-top, close the latch and
lock
the T-top, Repeat the above steps
for the passenger-side sunshade.
5. Pull the sunshade back a little and You
can store the sunshades in their
storage
area in the rear of your vehicle.
You can also leave them attached to the
T-tops. The
T-tops can still be removed
and placed in their storage slots when the
sunshades are attached.
91 =-.
ProCarManuals.com

Features & Controls

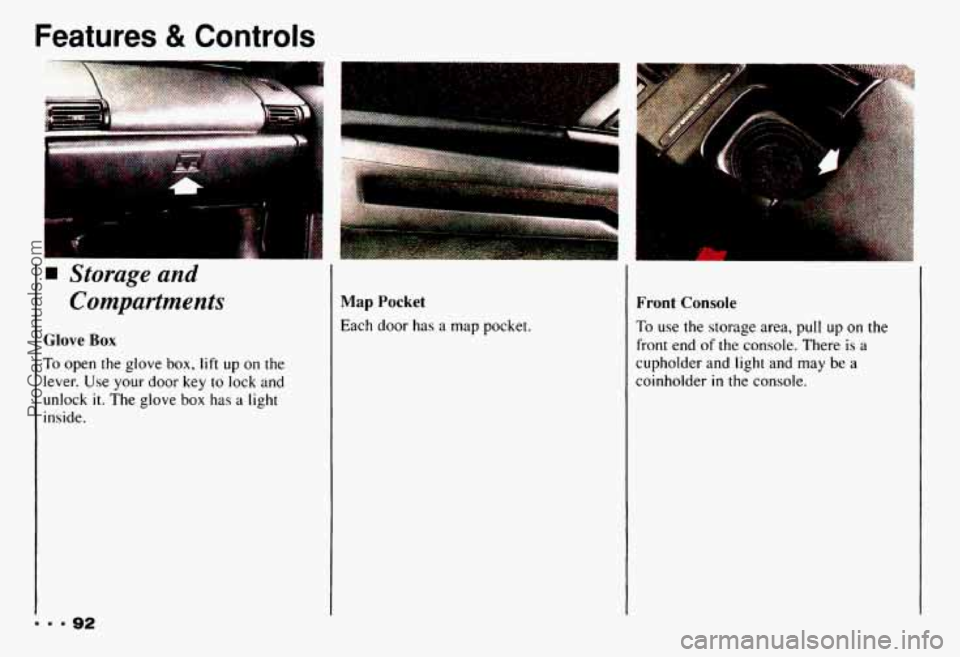

Storage and
Compartments
Glove Box
To open the glove box, lift up on the
lever.
Use your door key to lock and
unlock it. The glove box has a light
inside.
Map Pocket
Each door has a map pocket.
Front Console
To use the storage area, pull up on the
front end of the console. There is a
cupholder and light and may be a
coinholder
in the console,
ProCarManuals.com

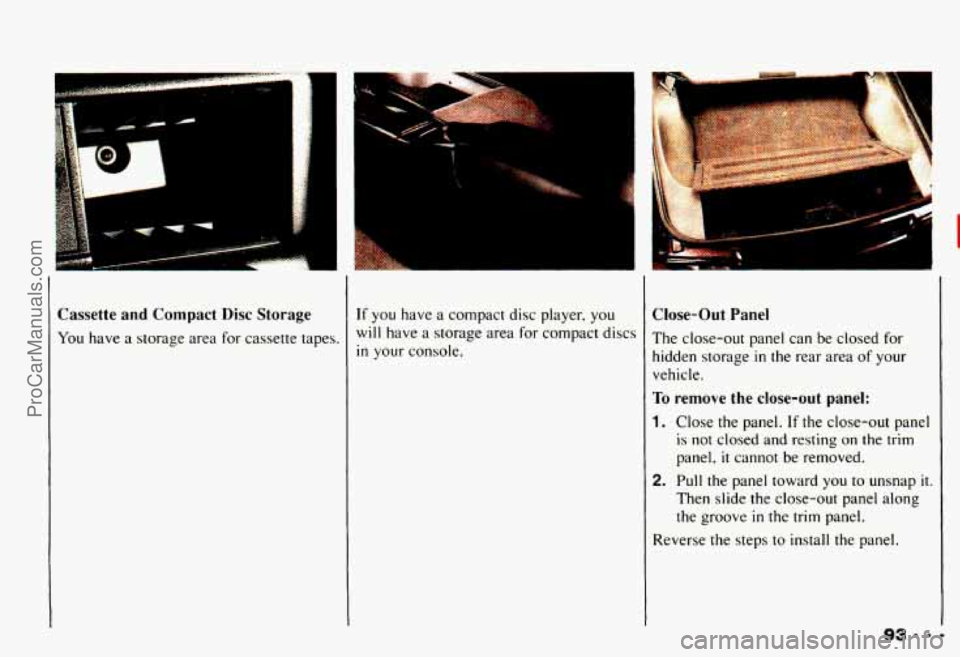

Cassette and Compact Disc Storage
You have a storage area for cassette tapes.
.
If you have a compact disc player, you
will have a storage area for compact discs
in your console.
Close-Out Panel
The close-out panel can be closed for
hidden storage
in the rear area of your
vehicle.
To remove the close-out panel:
1. Close the panel. If the close-out panel
is not closed and resting on the trim
panel, it cannot be removed.
2. Pull the panel toward you to unsnap it.
Then slide the close-out panel along
the groove
in the trim panel.
Reverse the steps to install the panel.
ProCarManuals.com

Features & Contr
I

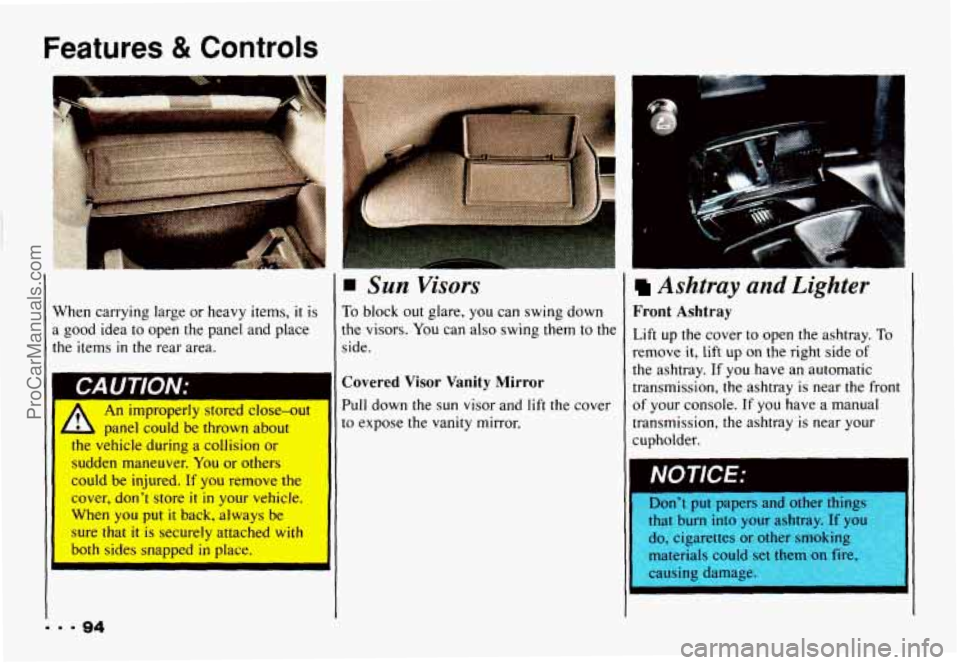

When carrying large or heavy items, it is
a good idea to open the panel and place
the items
in the rear area.
I
A An improperly stored close-out
, panel could be thrown about
I
Sun Visors
To block out glare, you can swing down
the visors. You can also swing them to the
side
.
Covered Visor Vanity Mirror
Pull down the sun visor and lift the cover
to expose the vanity mirror.
the vehicle during a collision or
sudden maneuver. You
or others
could be injured. If you remove the
cover, don’t store it in your vehicle.
When
you put it back, always be
sure
that it is securely attached with
both
sides snapped in place.
I
u
Ashtray and Lighter
Front Ashtray
Lift up the cover to open the ashtray. To
remove it, lift up on the right side of
the ashtray. If you have an automatic
transmission, the ashtray is near the front
of your console. If you have a manual
transmission, the ashtray is near your
cupholder.
Don’t put papers and 0th
t It burn into your ashtrc If you
cigarettes or other srr- --kg
naterials cot set them on
:awing dam, :.
IgS I
I
ProCarManuals.com

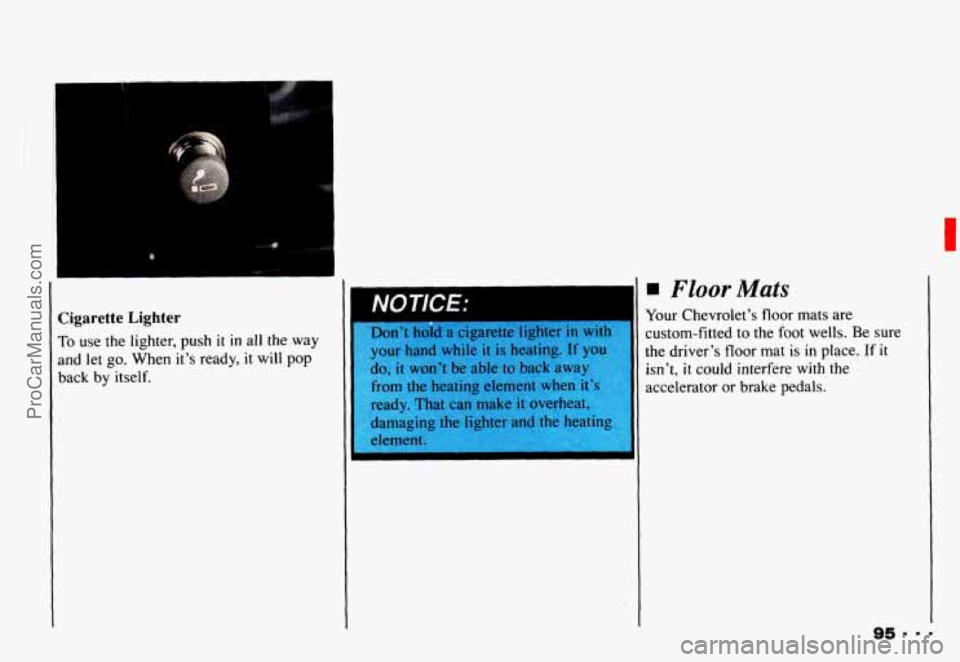

Cigarette Lighter
To use the lighter, push it in all the way
and let go. When it’s ready, it will pop
jack by itself.
f
Don’t hold a cigarette lighter in with
your hand while
it is heating. If you
lo, it won’t be able to back away
rom the heating element when it’!
ready. That can make
it overheat,
naging the lighter and the heating
.lement.
I
Floor Mats
Your Chevrolet’s floor mats are
custom-fitted to the foot wells. Be sure
the driver’s floor mat
is in place. If it
isn’t, it could interfere with the
accelerator
or brake pedals.
ProCarManuals.com

Features & Controls
