CHEVROLET CAMARO 1993 Owners Manual

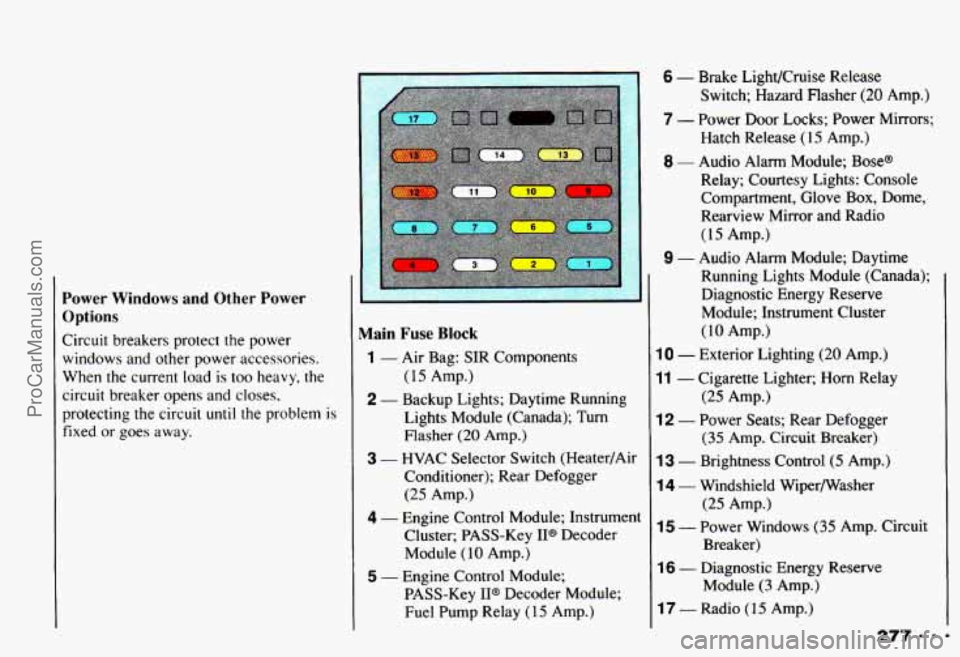

Power Windows and Other Power
Options
Circuit breakers protect the power
windows and other power accessories.
When the current load is
too heavy, the
circuit breaker opens and closes,
protecting the circuit
until the problem is
fixed or goes away.
Main Fuse Block
(15 Amp.)
Lights Module (Canada); Turn Flasher
(20 Amp.)
3 - HVAC Selector Switch (Heater/Air
Conditioner); Rear Defogger
(25 Amp.)
4 - Engine Control Module; Instrument Cluster; PASS-Key IP Decoder
Module
( 10 Amp.)
1 - Air Bag: SIR Components
2 - Backup Lights; Daytime Running
I
5 - Engine Control Module; PASS-Key
II@ Decoder Module;
Fuel Pump Relay
(1 5 Amp.)
6 - Brake LighVCruise Release
Switch; Hazard Flasher
(20 Amp.)
7 - Power Door Locks; Power Mirrors; Hatch Release (15 Amp.)
8 - Audio Alarm Module; Base@
Relay; Courtesy Lights: Console
Compartment, Glove Box, Dome,
Rearview Mirror and Radio
(15 Amp.)
9 - Audio Alarm Module; Daytime
Running Lights Module (Canada); Diagnostic Energy Reserve
Module; Instrument Cluster
(10 Amp.)
10 - Exterior Lighting (20 Amp.)
11 - Cigarette Lighter; Horn Relay
12 - Power Seats; Rear Defogger
13 - Brightness Control (5 Amp.)
14 - Windshield Wipermasher
15 - Power Windows (35 Amp. Circuit
(25 Amp.)
(35 Amp. Circuit Breaker)
(25 Amp.)
Breaker)
16 - Diagnostic Energy Reserve Module
(3 Amp.)
17 - Radio (15 Amp.)
ProCarManuals.com

Service & Appearance Care
278

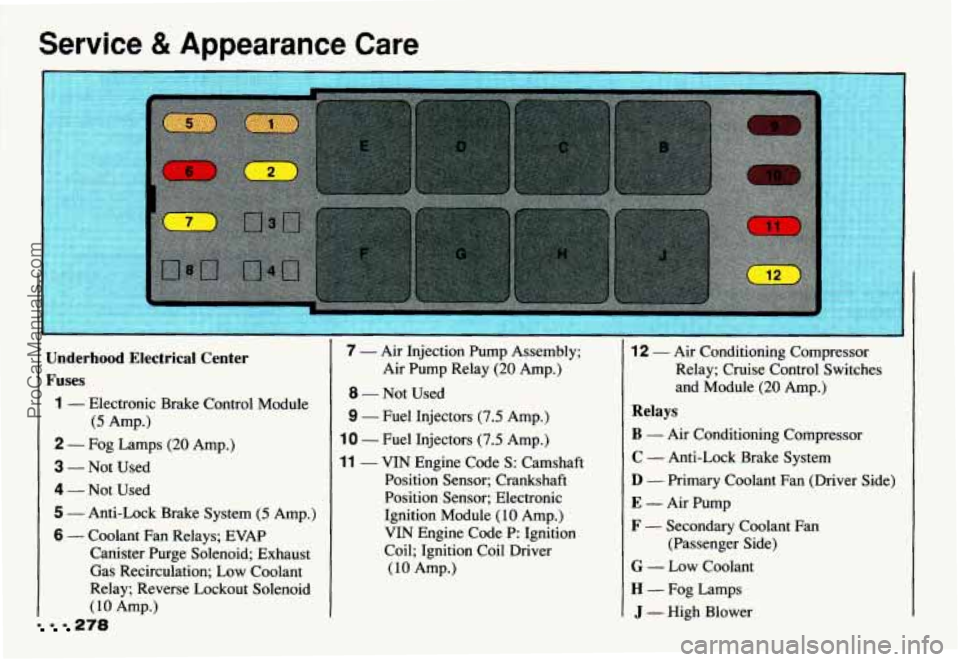

Underhood Electrical Center
Fuses
1 - Electronic Brake Control Module
(5 Amp.)
2 - Fog Lamps (20 Amp.)
3 - Not Used
4 - Not Used
5 - Anti-Lock Brake System (5 Amp.)
6 - Coolant Fan Relays; EVAP
Canister Purge Solenoid; Exhaust
Gas Recirculation; Low Coolant
Relay; Reverse Lockout Solenoid
(10 Amp.)
7 - Air Injection Pump Assembly;
8 - Not Used
9 - Fuel Injectors (7.5 Amp.)
10 - Fuel Injectors (7.5 Amp.)
11 - VIN Engine Code S: Camshaft
Air
Pump Relay
(20 Amp.)
Position Sensor; Crankshaft
Position Sensor; Electronic
Ignition Module
(10 Amp.)
VIN Engine Code P: Ignition
Coil; Ignition Coil Driver
(10 Amp.)
12 - Air Conditioning Compressor
Relay; Cruise Control Switches
and Module
(20 Amp.)
Relays
B - Air Conditioning Compressor
C - Anti-Lock Brake System
D - Primary Coolant Fan (Driver Side)
E - Air Pump
F - Secondary Coolant Fan
(Passenger Side)
G - Low Coolant
H - Fog Lamps
J - High Blower
ProCarManuals.com

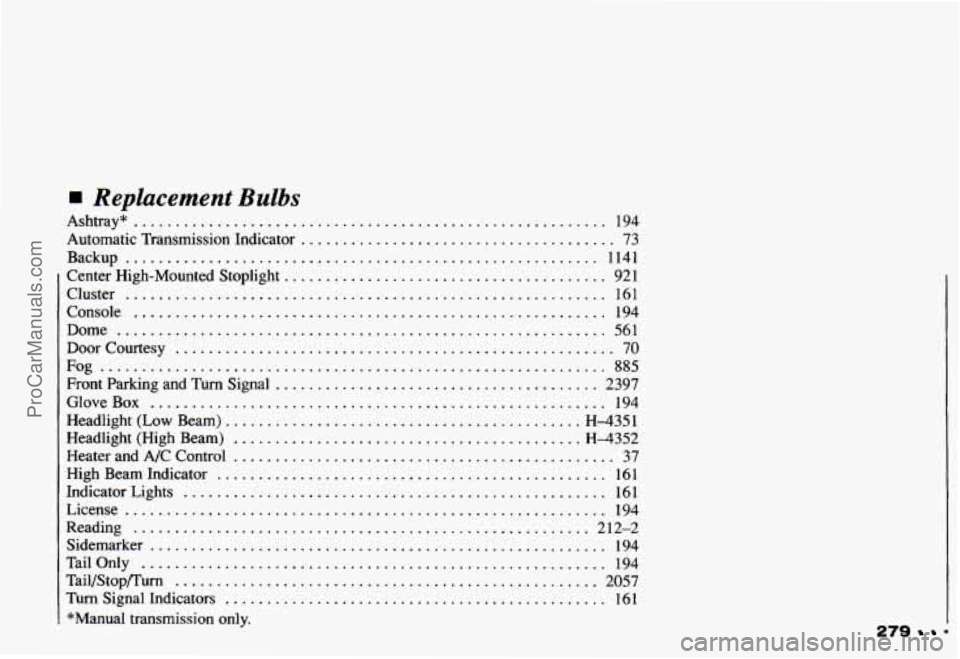

Replacement Bulbs
Ashtray* ......................................................... 194
Automatic Transmission Indicator
...................................... 73
Backup
......................................................... 1141
Center High-Mounted Stoplight
....................................... 921
Cluster
.......................................................... 161
Console
......................................................... 194
Dome
........................................................... 561
DoorCourtesy
..................................................... 70
Fog
............................................................. 885
GloveBox ....................................................... 194
Front Parking and Turn Signal
....................................... 2397
Headlight
(Low Beam) ........................................... H-4351
Headlight (High Beam)
.......................................... H-4352
Heater and
A/C Control .............................................. 37
High Beam Indicator
............................................... 161
Indicator Lights
................................................... 161
License
.......................................................... 194
Reading
....................................................... 212-2
Sidemarker
....................................................... 194
TailOnly
........................................................ 194
Tail/Stop/Turn
................................................... 2057
"Manual transmission only
.
Turn Signal Indicators .............................................. 161
279 =
ProCarManuals.com

I Service & Appearance Care
I
. = 280

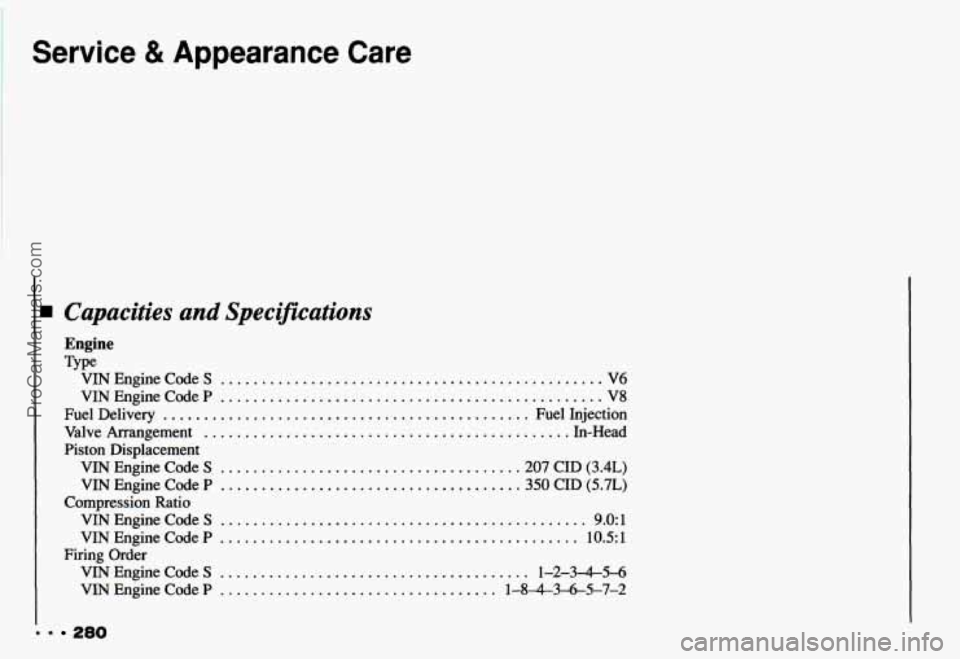

I Capacities and Specifications
Engine
Type
VINEnnineCodeS ............................................... V6 1
VINEngineCodeP ............................................... V8
Fuel Delivery
............................................. Fuel Injection
Valve Arrangement
............................................. In-Head
Piston Displacement VIN Engine Code
S .................................... .207 CID (3.4L)
VIN Engine Code
P ..................................... 350 CID (5.7L)
VIN Engine Code S ............................................. 9.0: 1
VIN Engine Code P ............................................ 10.5: 1
VINEngineCodeS ...................................... 1-2-3-4-5-6
VINEngineCodeP
.................................. 1-8434G5-7-2
Compression Ratio
Firing Order
ProCarManuals.com

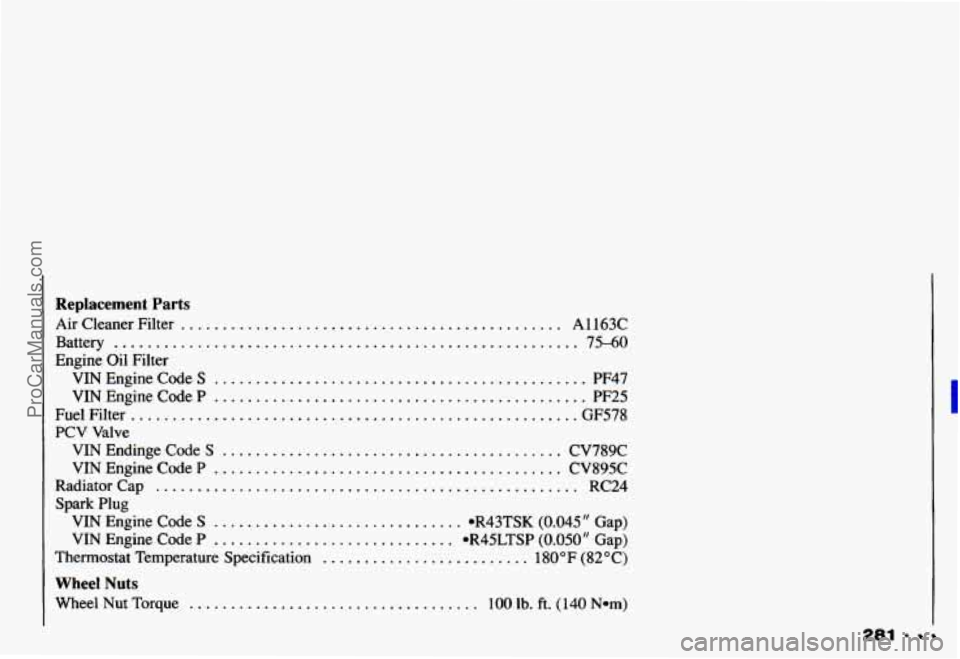

Replacement Parts
Air Cleaner Filter . . . . . . . . . . . . . . . . . . . . . . . , . . . . . . . . . . . . . . . . . . . . . . A1 163C
Battery
........................................................ 75-60
Engine Oil Filter VINEngineCodeS
............................................. PF47
VINEngineCodeP
............................................. PF25
FuelFilter
...................................................... GF578
PCV Valve
VINEndingeCodeS
......................................... CV789C
VIN Engine Code
P . . . . . . . . . . . . . , , . . . . . . . . . . . . . . . . . . . . . . . . . . . CV895C
Radiatorcap
................................................... RC24
Spark Plug VIN Engine Code
S . . . . . . . . . . , . . . . . . . . . . . . . . . . . . . oR43TSK (0.045 ” Gap)
VIN Engine
Code P . . . . . . . , . . , . . . . . . . . . . . . . , . . . . oR45LTSP (0.050” Gap)
Thermostat Temperature Specification
. . . . . . . . . . . . . . . . . . . . . . . . . 180°F (82°C)
Wheel Nuts
Wheel Nut Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . , . . 100 lb. ft. (140 Nom)
281 =
ProCarManuals.com

Service & Appearance Care

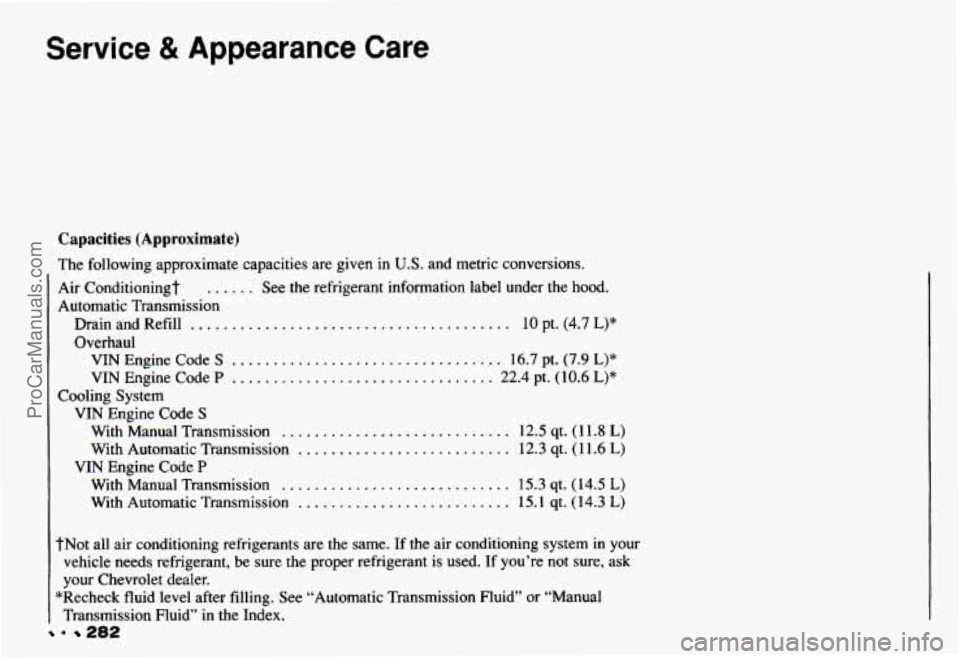

Capacities (Approximate)
The following approximate capacities are given in U.S. and metric conversions.
Air Conditioningt
...... See the refrigerant information label under the hood.
Automatic Transmission
Drain and Refill
....................................... 10 pt. (4.7 L)*
Overhaul VIN Engine Code
S ................................. 16.7 pt. (7.9 L)*
VIN Engine Code P ................................ 22.4 pt. (10.6 L)*
Cooling System
VIN Engine Code
S
With Manual Transmission ............................ 12.5 qt. (11.8 L)
With Automatic Transmission .......................... 12.3 qt. ( 11.6 L)
With Manual Transmission ............................ 15.3 qt. ( 14.5 L)
With Automatic Transmission .......................... 15.1 qt. (14.3 L)
VIN Engine Code P
tNot all air conditioning refrigerants are the same. If the air conditioning system in your
vehicle needs refrigerant, be sure the proper refrigerant is us\
ed. If you’re not sure, ask
your Chevrolet dealer.
Transmission Fluid” in the Index.
*Recheck fluid level
after filling. See “Automatic Transmission Fluid” or “Manual
. 282
ProCarManuals.com

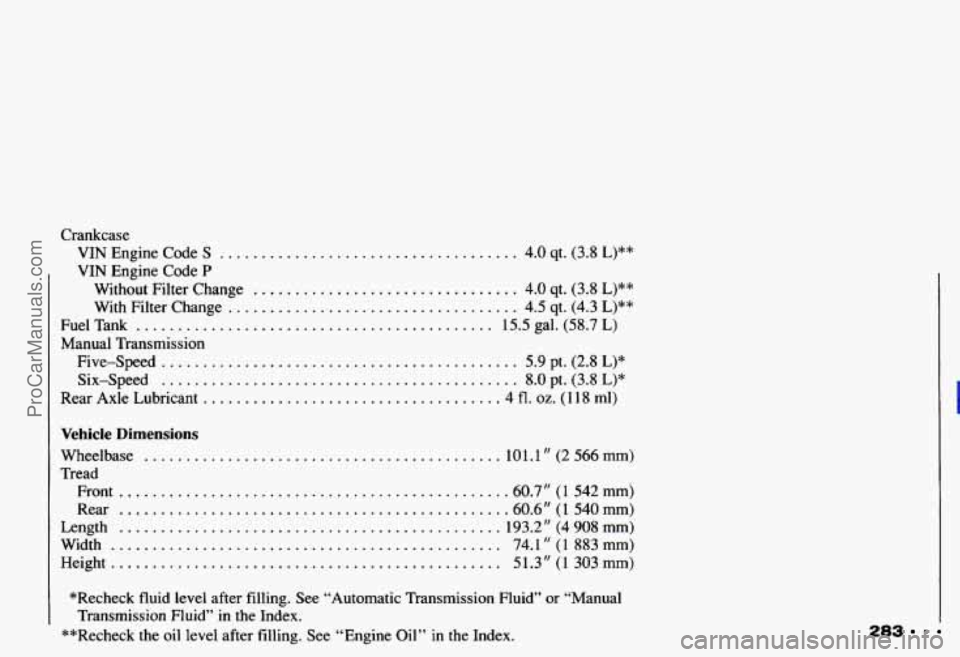

Crankcase VIN Engine Code
S .................................... 4.0 qt. (3.8 L)**
VIN Engine Code
P
Without Filter Change ................................ 4.0 qt. (3.8 L)**
With Filter Change
................................... 4.5 qt. (4.3 L)**
Fuel Tank
........................................... 15.5 gal. (58.7 L)
Manual Transmission Five-Speed
........................................... 5.9 pt. (2.8 L)*
Six-Speed ........................................... 8.0 pt. (3.8 L)*
Rear Axle Lubricant .................................... 4 fl. 02. (1 18 ml)
Vehicle Dimensions
Wheelbase ........................................... 101.1 “ (2 566 mm)
Tread Front
.............................................. .60.7“ (1 542 mmj
Rear
.............................................. .60.6” (1 540 mm)
Length
.............................................. 193.2” (4 908 mm)
Width
............................................... 74.1 “ (1 883 mm)
Height
............................................... 5 1.3“ (1 303 mm)
*Recheck fluid level after filling. See “Automatic Transmissio\
n Fluid”
or “Manual
Transmission Fluid” in the Index.
**Recheck the oil level after filling. See “Engine Oil” in the Index.
I
283
ProCarManuals.com

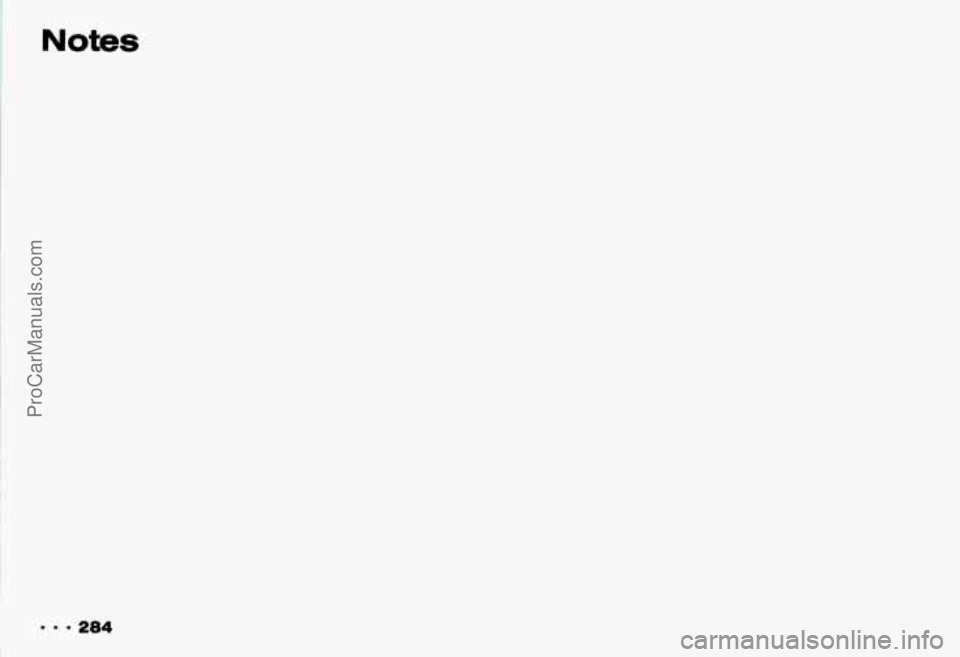

Notes
ProCarManuals.com

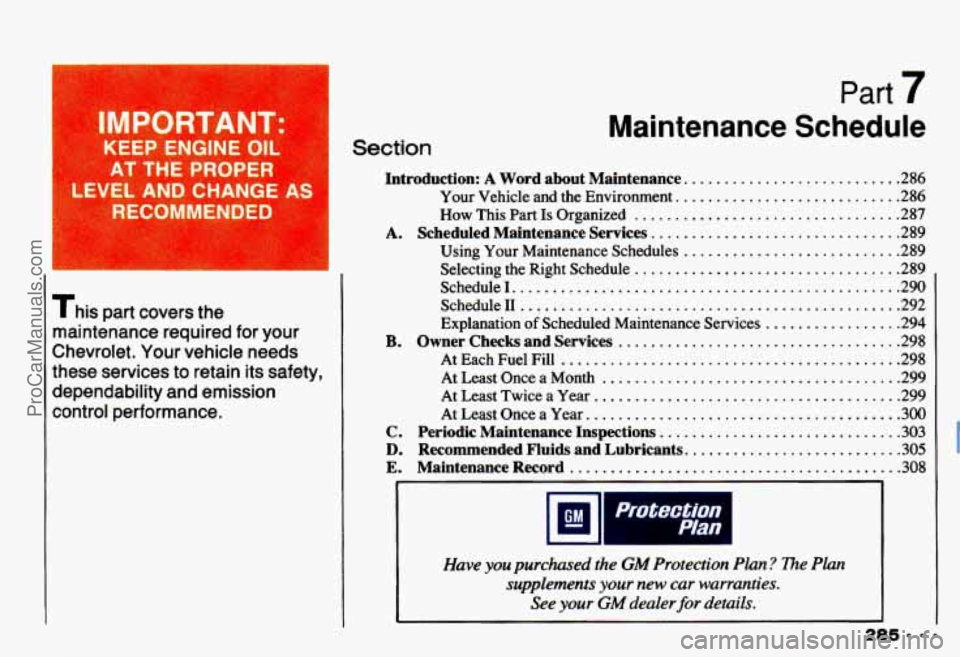

IMPORTANT: I
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS I
This part covers the
maintenance required
for your
Chevrolet . Your vehicle needs
these services to retain its safety.
dependability and emission
control performance
.
Section
.
Part
Maintenance Schedule
Introduction: A Word about Maintenance ........................... 286
Your Vehicle and the Environment
............................ 286
How This Part
Is Organized ................................. 287
A . Scheduled Maintenance Services ............................... 289
Using Your Maintenance Schedules
........................... 289
Selecting the Right Schedule
................................. 289
Schedule
I ................................................ 290
Schedulen
............................................... 292
Explanation
of Scheduled Maintenance Services ................. 294
B . Owner Checks and Services ................................... 298
At Each Fuel Fill
.......................................... 298
At Least Once a Month ..................................... 299
At Least Twice a Year ...................................... 299
At Least Once a Year ....................................... 300
C . Periodic Maintenance Inspections .............................. 303
D . Recommended Fluids and Lubricants ........................... 305 I
E . MaintenanceRecord ......................................... 308
piqm I
Have you purched the GM Protection Plan ? The Plan
supplements
your new car warranties .
See your GM dealer for details .
285 .
ProCarManuals.com

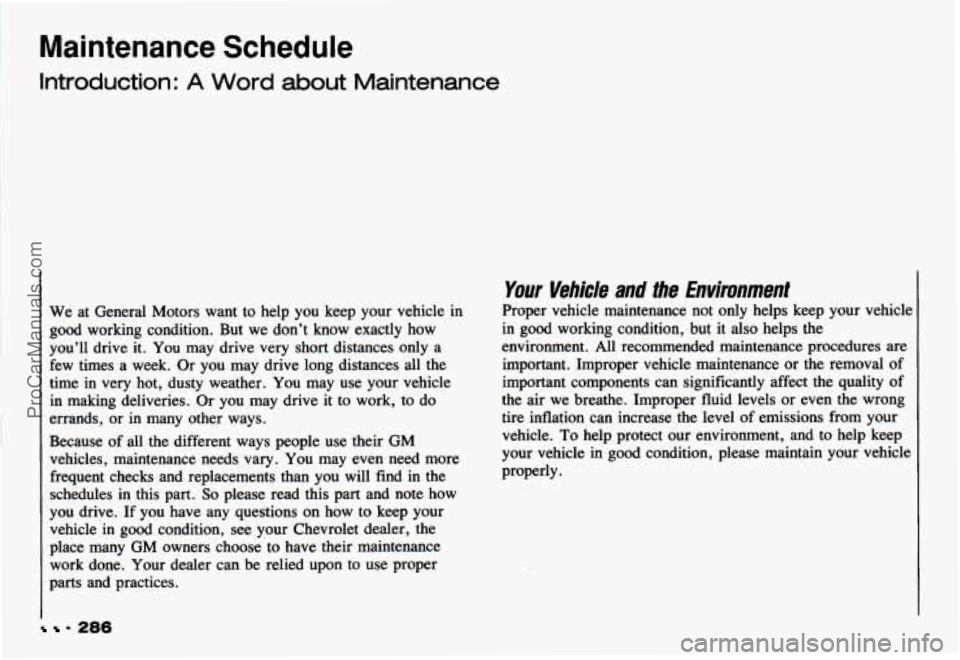

Maintenance Schedule
Introduction: A Word about Maintenance
9 286
We at General Motors want to help you keep your vehicle in
good working condition. But we don’t know exactly how
you’ll drive it.
You may drive very short distances only a
few times a week. Or you may drive long distances all the
time in very hot, dusty weather.
You may use your vehicle
in making deliveries. Or you may drive it to work, to do
errands, or in many other ways.
Because of all the different ways people use their
GM
vehicles, maintenance needs vary. You may even need more
frequent checks and replacements than you will find in the
schedules in this part. So please read this part and note how
you drive. If you have any questions on how to keep your
vehicle in good condition, see your Chevrolet dealer, the
place many GM owners choose to have their maintenance
work done. Your dealer can be relied upon to use proper
parts and practices.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps keep your vehicle
in
good working condition, but it also helps the
environment.
All recommended maintenance procedures are
important. Improper vehicle maintenance or the removal of
important components can significantly affect the quality of
the air
we breathe. Improper fluid levels or even the wrong
tire inflation can increase the level of emissions from your vehicle.
To help protect our environment, and to help keep
your vehicle
in good condition, please maintain your vehicle
properly.
ProCarManuals.com
