CHEVROLET CAMARO 1993 Owners Manual

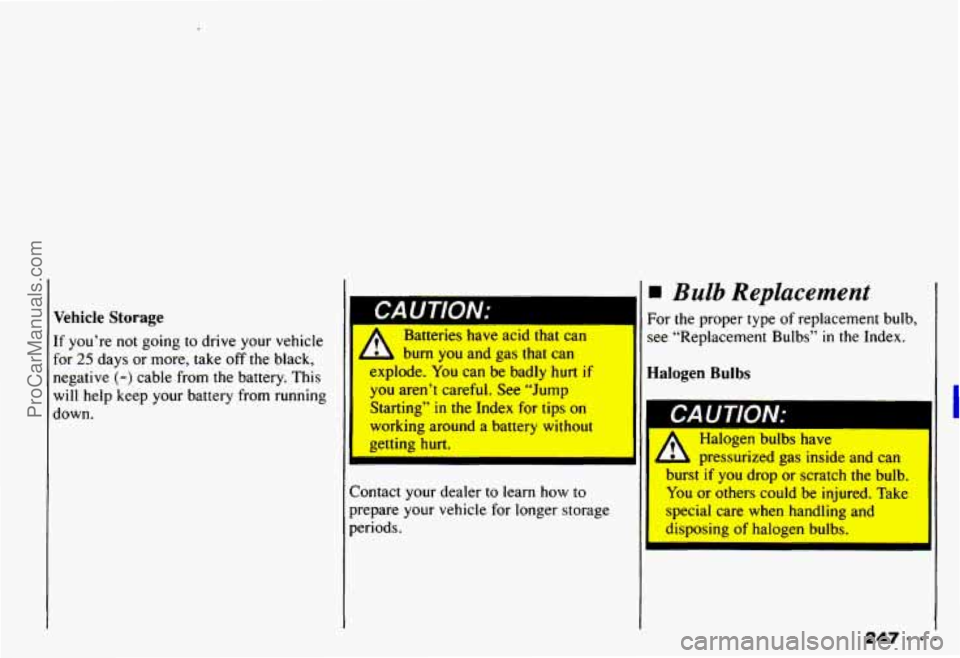

Vehicle Storage
If you’re not going to drive your vehicle
for
25 days or more, take off the black,
negative
(-) cable from the battery. This
will help keep your battery from running
down.
I I Bulb Replacement
CAUTION:
I
I For the proper type of replacement bulb,
Batteries have acid that can see “Replacement Bulbs” in the Index.
burn you and gas that can
explode. You can be badly hurt
if Halogen Bulbs
vou aren’t careful. See “Jump
:Starting” in the Index for tips on
working around a battery without
I
nettinn hurt.
Contact your dealer to learn how to
prepare your vehicle
for longer storage
periods. Halogen bulbs have
pressurized gas inside and can
I burst if you drop or scratch the bulb.
You or others could be injured. Take
special care when handling and
disposing of halogen bulbs.
ProCarManuals.com

Service & Appearance Care

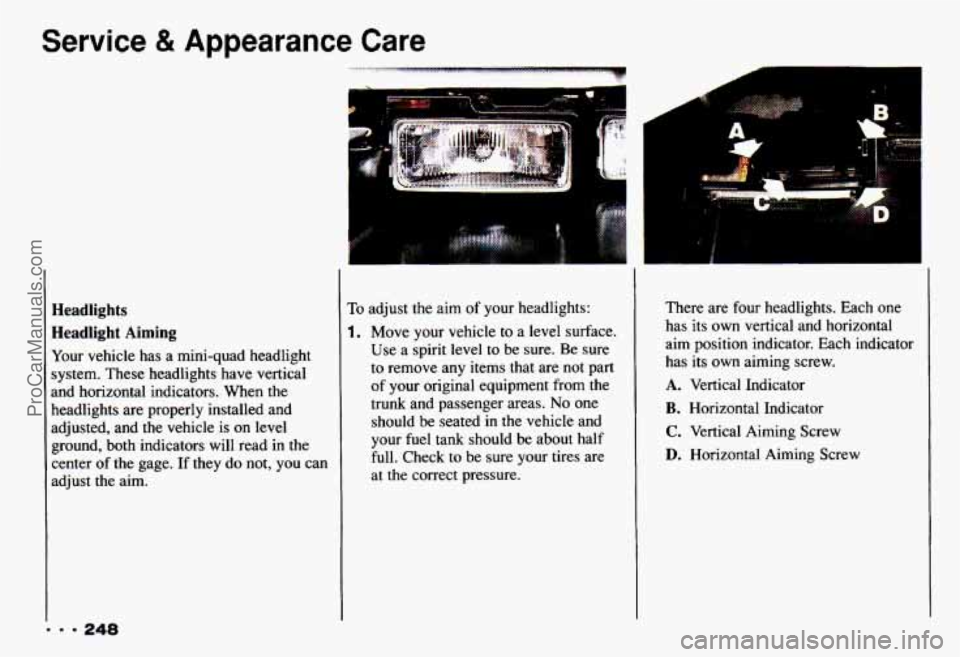

Headlights
Headlight Aiming
Your vehicle has a mini-quad headlight
system. These headlights have vertical
and horizontal indicators. When the
headlights are properly installed and
adjusted, and the vehicle is on level
ground, both indicators will read in the
center of the gage. If they do not, you can
adjust the aim.
A
To adjust the aim of your headlights:
1. Move your vehicle to a level surface.
Use a spirit level to be sure. Be sure
to remove any items that are not part
of your original equipment from the
trunk and passenger areas.
No one
should be seated in the vehicle and
your fuel tank should be about half
full. Check to be sure your tires are
at the correct pressure. There
are four headlights. Each one
has its own vertical and horizontal
aim position indicator. Each indicator
has its own aiming screw.
A. Vertical Indicator
B. Horizontal Indicator
C. Vertical Aiming Screw
D. Horizontal Aiming Screw
ProCarManuals.com

m
2.
3.
4.

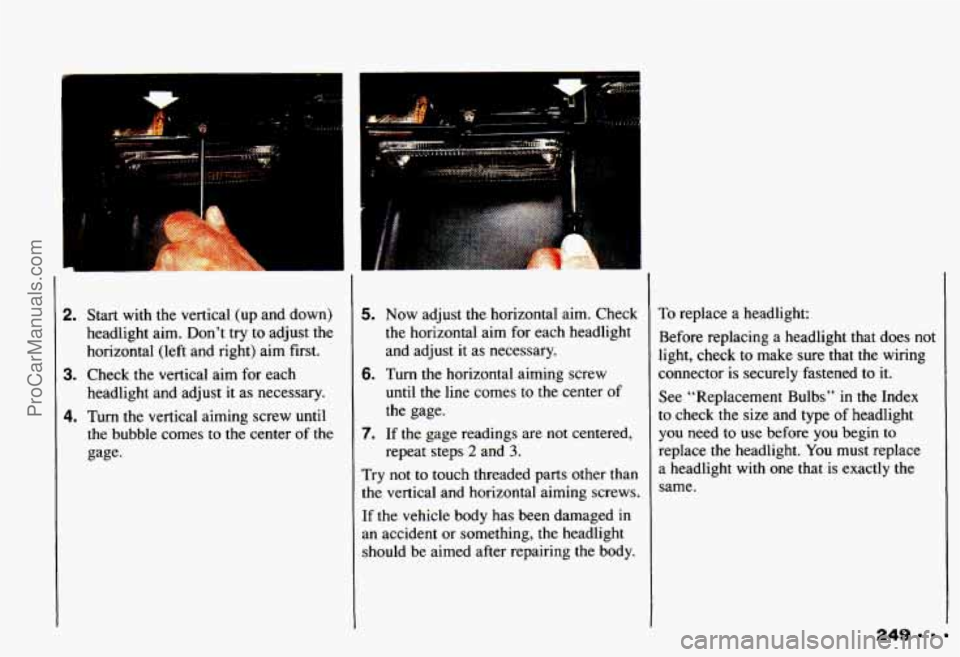

Start with the vertical (up and down)
headlight aim. Don’t try to adjust the
horizontal (left and right) aim first.
Check the vertical aim for each
headlight and adjust it as necessary.
Turn the vertical aiming screw until
the bubble comes
to the center of the
gage-
5. Now adjust the horizontal aim. Check
the horizontal aim for each headlight
and adjust it as necessary.
until the line comes to
the center of
the gage.
repeat steps
2 and 3.
6. Turn the horizontal aiming screw
7. If the gage readings are not centered,
Try not to touch threaded parts other than
the vertical and horizontal aiming screws.
If the vehicle body has been damaged in
an accident or something, the headlight
should be aimed after repairing the body.
To replace a headlight:
Before replacing a headlight that does not
light, check to make sure that the wiring
connector is securely fastened
to it.
See “Replacement Bulbs’’ in the Index
to check the size and type of headlight
you need to use before you begin to
replace the headlight. You must replace
a headlight with one that is exactly the
same.
249
ProCarManuals.com

Service & Appearance Care
t
1
... 250

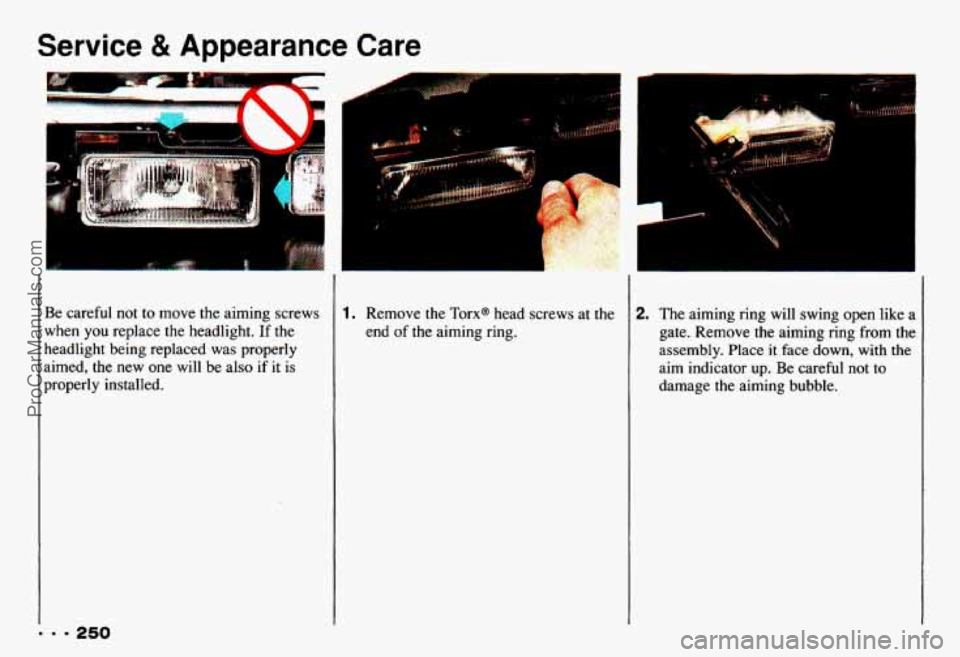

Be careful not to move the aiming screws
when
you replace the headlight. If the
headlight being replaced was properly
aimed, the new one will be also if it is
properly installed.
f- 7
i
1. Remove the Torx@ head screws at the
end of the aiming ring. 2. The aiming ring will swing open like a
gate. Remove the aiming ring from the
assembly. Place it face down, with the
aim indicator
up. Be careful not to
damage the aiming bubble.
ProCarManuals.com

I
r 1

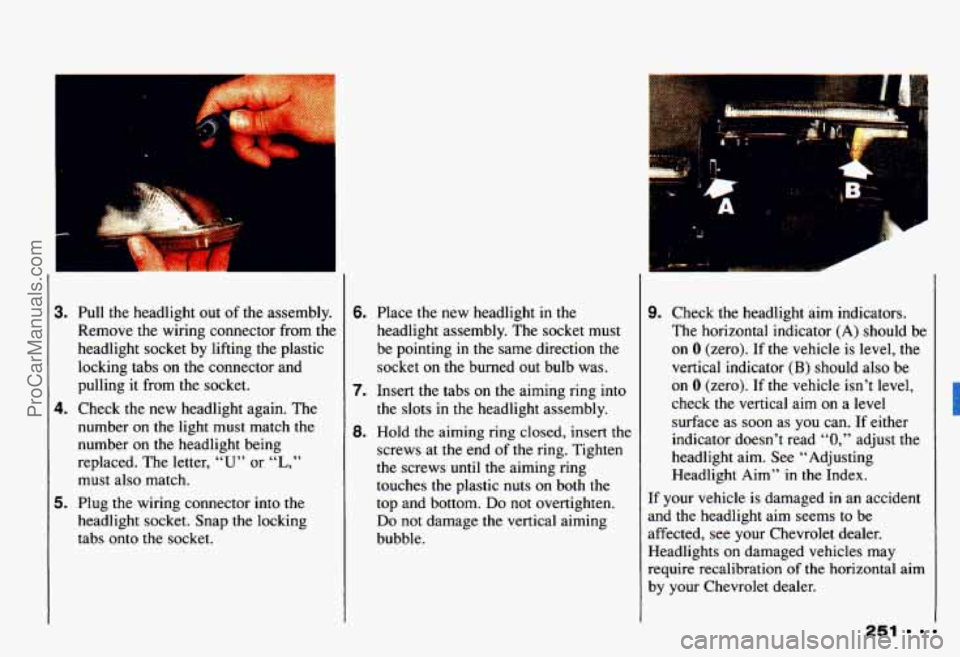

3.
4.
5.
Pull the headlight out of the assembly.
Remove
the wiring connector from the
headlight socket by lifting the plastic
locking tabs on the connector and
pulling it from the socket.
Check
the new headlight again. The
number on
the light must match the
number on
the headlight being
replaced. The letter,
“U” or “L,”
must also match.
Plug the wiring connector into the
headlight socket. Snap the locking
tabs onto the socket.
6.
7.
8.
Place the new headlight in the
headlight assembly. The socket must
be pointing
in the same direction the
socket on the burned out bulb was.
Insert the tabs on the aiming ring into
the slots in the headlight assembly.
Hold the aiming ring closed, insert the
screws at the end of the ring. Tighten
the screws
until the aiming ring
touches the plastic nuts on both the
top and bottom.
Do not overtighten.
Do not damage the vertical aiming
bubble.
. ..
9. Check the headlight aim indicators.
The horizontal indicator (A) should be
on
0 (zero). If the vehicle is level, the
vertical indicator
(B) should also be
on 0 (zero). If the vehicle isn’t level,
check the vertical aim on a level
surface as soon as you can. If either
indicator doesn’t read
“0,” adjust the
headlight aim. See “Adjusting
Headlight Aim”
in the Index.
If your vehicle
is damaged in an accident
and the headlight aim seems to be
affected, see your Chevrolet dealer.
Headlights on damaged vehicles may
require recalibration
of the horizontal aim
by your Chevrolet dealer.
251
ProCarManuals.com

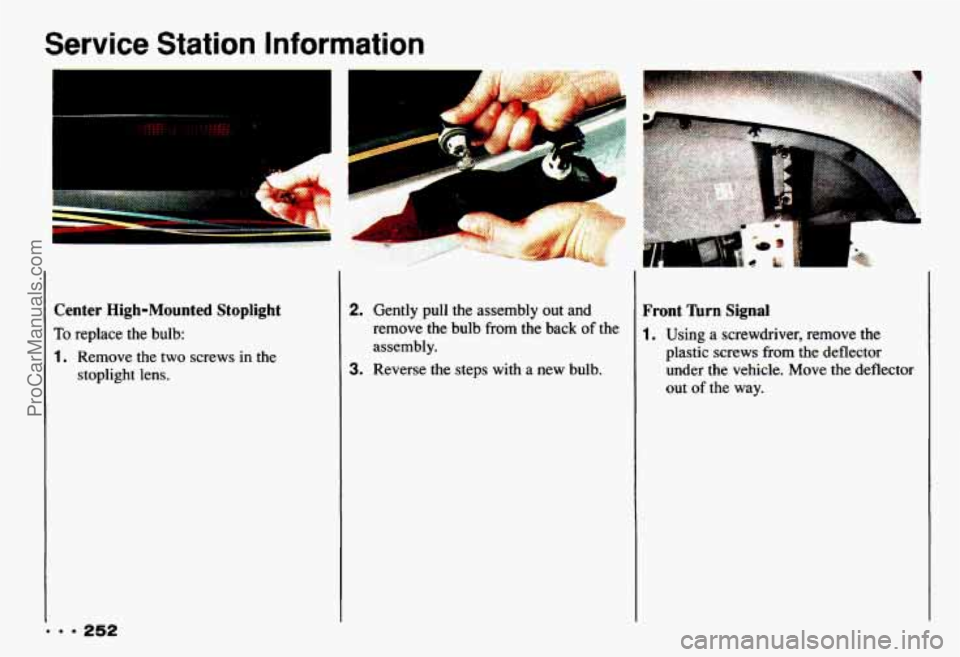

Service Station Information
, ,'
Center High-Mounted Stoplight
To replace the bulb:
1. Remove the two screws in the
stoplight lens.
2. Gently pull the assembly out and
remove the bulb
from the back of the
assembly.
3. Reverse the steps with a new bulb.
Front 'hrn Signal
1. Using a screwdriver, remove the
plastic screws from the deflector
under the vehicle. Move the deflector
out of the way.
ProCarManuals.com

- *,

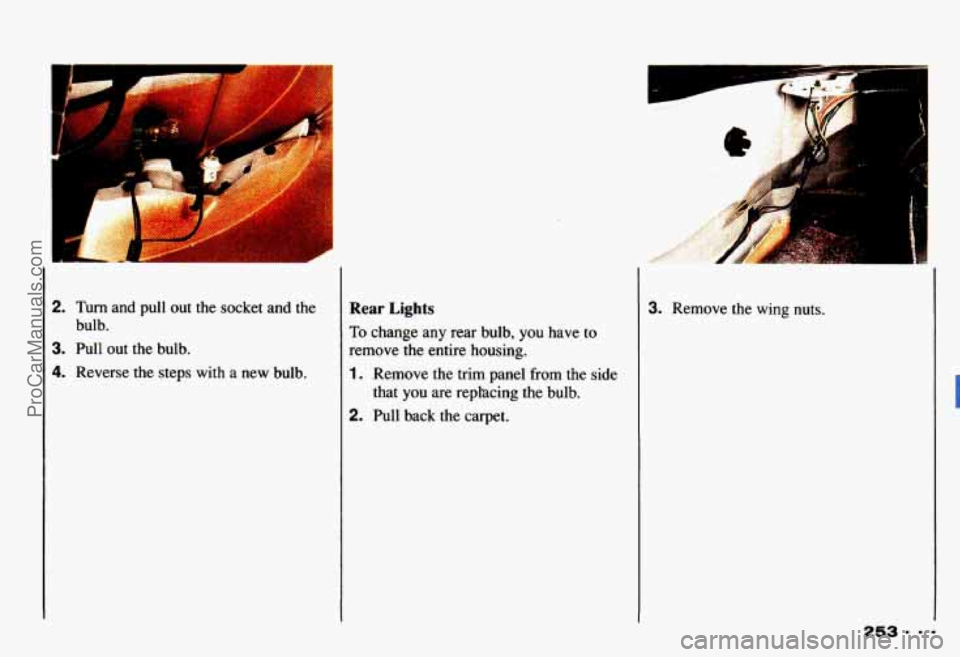

2. Turn and pull out the socket and the
bulb.
3. Pull out the bulb.
4. Reverse the steps with a new bulb.
Rear Lights
To change any rear bulb, you have to
remove the entire housing.
1. Remove the trim panel from the side
2. Pull back the carpet.
that
you are replacing the bulb.
3. Remove the wing nuts.
ProCarManuals.com

Service Station Information
L
h
U

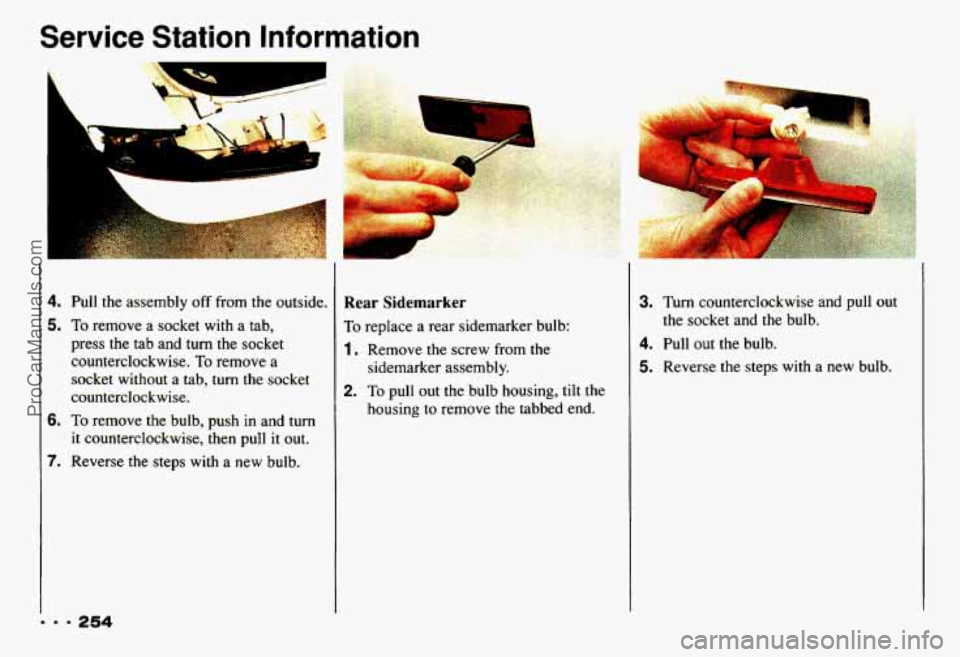

4. Pull the assembly off from the outside.
5. To remove a socket with a tab,
press the tab and turn the socket
counterclockwise.
To remove a
socket without a tab, turn the socket
counterclockwise.
6. To remove the bulb, push in and turn
7. Reverse the steps with a new bulb.
it
counterclockwise, then pull it out.
Rear Sidemarker
To replace a rear sidemarker bulb:
1, Remove the screw from the
sidemarker assembly.
2. To pull out the bulb housing, tilt the
housing
to remove the tabbed end.
3. Turn counterclockwise and pull out
4. Pull out the bulb.
5. Reverse the steps with a new bulb.
the
socket and the bulb.
ProCarManuals.com

CAPACITY WEIGHT BBW TIRE SIZE
INFORMATION

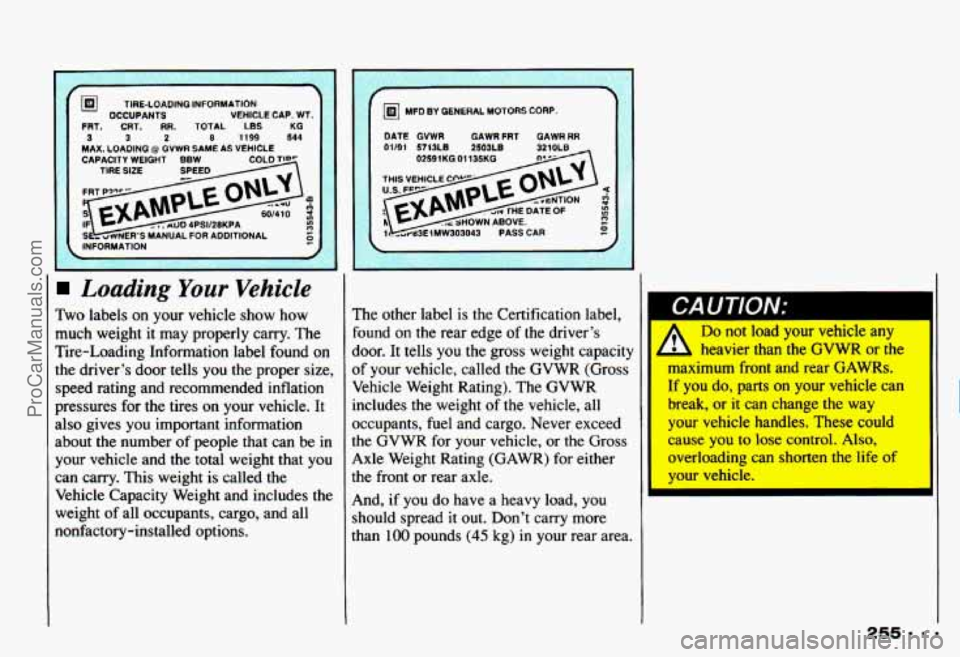

Loading Your Vehicle
Two labels on your vehicle show how
much weight it may properly carry. The
Tire-Loading Information label found on
the driver’s door tells
you the proper size,
speed rating and recommended inflation
pressures for
the tires on your vehicle. It
also gives you important information
about the number of people that can be in
your vehicle and the total weight that
you
can carry. This weight is called the
Vehicle Capacity Weight and includes the
weight of all occupants, cargo, and all
nonfactory-installed options.
DATE GVWR GAWRFRT GAWR RR 01/91 5713LB ZS03LB <. .
v)
The other label is the Certification label,
found on
the rear edge of the driver’s
door. It tells you the gross weight capacity
of your vehicle, called the GVWR (Gross
Vehicle Weight Rating). The GVWR
includes the weight of the vehicle, all
occupants, fuel and cargo. Never exceed
the GVWR for your vehicle,
or the Gross
Axle Weight Rating (GAWR) for either
the front or rear axle.
And,
if you do have a heavy load, you
should spread it out. Don’t carry more
than
100 pounds (45 kg) in your rear area.
Do not load your vehicle any
- L heavier than the GVWR or the
maximum front and rear GAWRs.
If you do, parts on your vehicle can
break, or
it can change the way
your vehicle handles. These could
cause you to lose control.
Also,
overloading can shorten the life of , ,
II
ProCarManuals.com

Service 81 Appearl nee Care

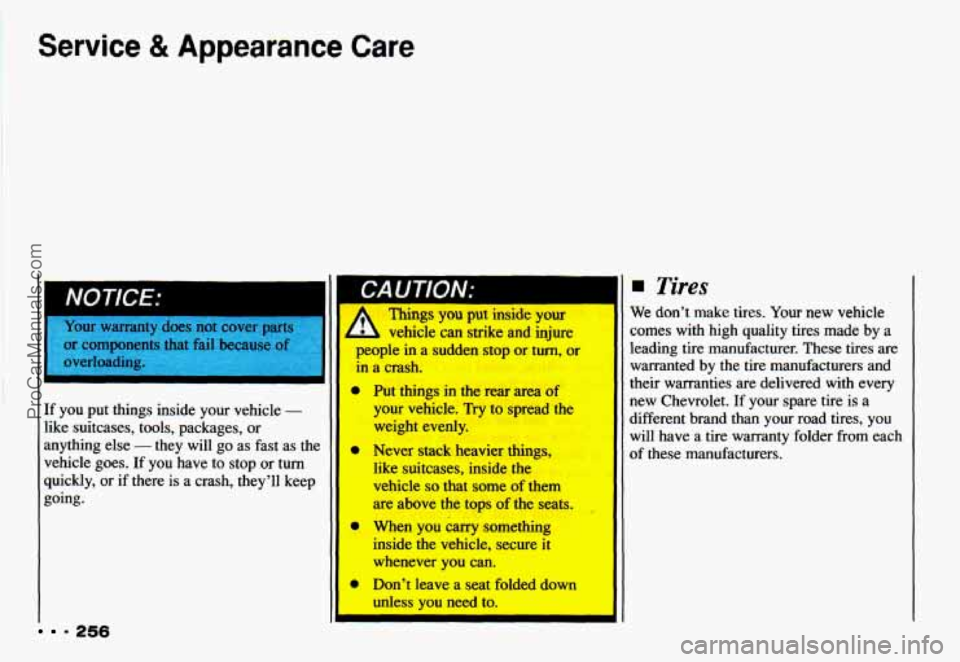

NOTICE: 11 CAUTION:
Your warranty does not cover parts
or components that fail because of
overloading.
If you put things inside your vehicle
-
like suitcases, tools, packages, or
anything else
- they will go as fast as the
vehicle goes.
If you have to stop or turn
quickly, or if there is a crash, they’ll keep
going.
A
Things you put inside your
vehicle can strike and injure
people in a sudden stop or tu&, or
in a crash.
a Put things in the rear area of
your vehicle. Try to spread the
weight evenly.
m Never stack heavier things,
like suitcases, inside the
vehicle so that some of them
are above the tops of the seats. ~
When you carry something
inside the vehicle, secure it
whenever you can.
a Don’t leave a seat folded down
unless
you need to.
Tires
We don’t make tires. Your new vehicle
comes with high quality tires made by
a
leading tire manufacturer. These tires are
warranted by the tire manufacturers and
their warranties are delivered with every
new Chevrolet.
If your spare tire is a
different brand than your road tires, you
will have a tire warranty folder from each
of these manufacturers.
9 256
