CHEVROLET CAMARO 1995 4.G Owners Manual

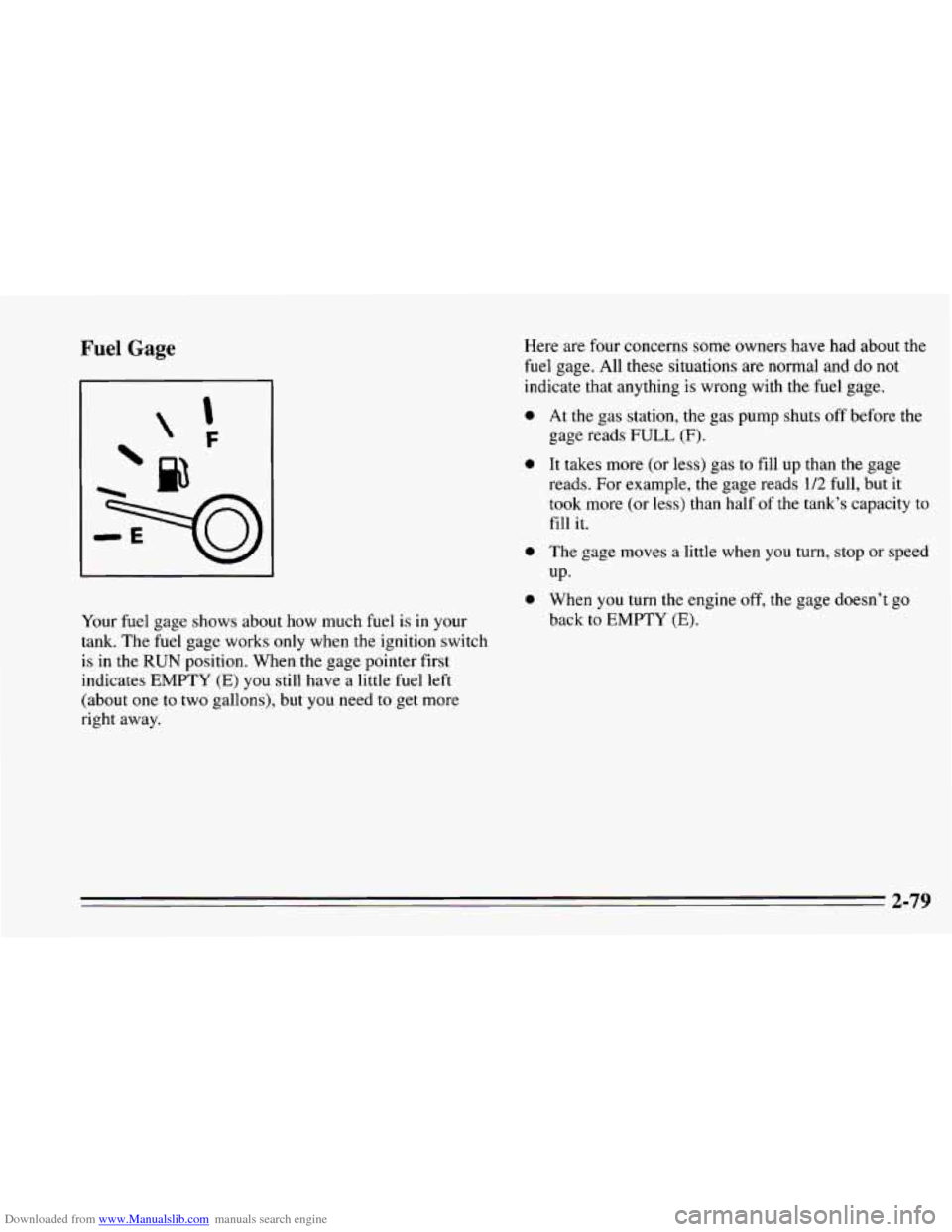

Downloaded from www.Manualslib.com manuals search engine Fuel Gage Here are four concerns some owners have had about the
fuel gage. All
these situations are normal and do not
indicate that anything is wrong with the fuel gage.
0
0
0
0
Your fuel gage shows about how much fuel is in your
tank. The fuel gage works only when the ignition switch
is in the RUN position. When the gage pointer first
indicates EMPTY
(E) you still have a little fuel left
(about
one to two gallons), but you need to get more
right away. At the
gas station,
the gas pump shuts off before the
gage reads
FULL (F).
It takes more (or less) gas to fill up than the gage
reads. For example, the gage reads 1/2 full, but
it
took more (or less) than half of the tank’s capacity to
fill
it.
The gage moves a little when you turn, stop or speed
UP.
When
you turn the engine off, the gage doesn’t PO
back to EMPTY (E),

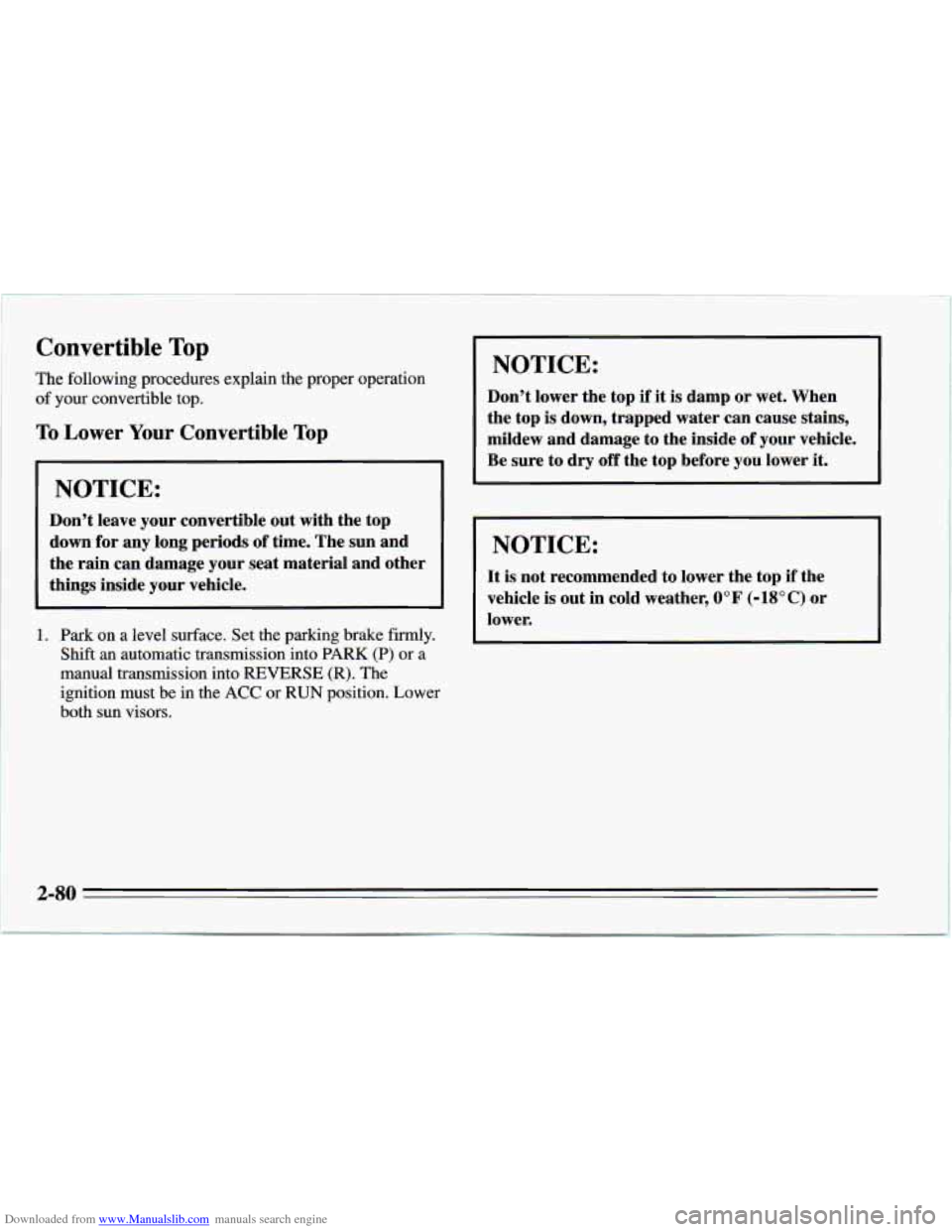

Downloaded from www.Manualslib.com manuals search engine Convertible Top
The following procedures explain the proper operation
of
your convertible top.
To Lower Your Convertible Top
NOTICE:
Don't leave your convertible out with the top
down for any long periods of time. The sun and
the rain can damage your seat material and other
things inside your vehicle,
1. Park on a level surface. Set the parking brake firmly.
Shift an automatic transmission into
PARK (P) or a
manual transmission into REVERSE (R). The
ignition must be in the
ACC or RUN position. Lower
both sun visors.
NOTICE:
Don't lower the top if it is damp or wet, When
the top is down, trapped water can cause stains,
mildew and damage to the inside of your vehicle.
Be sure to dry
off the top before you lower it.
I NOTICE:
It is not recommended to lower the top if the
vehicle
is out in cold weather, 0" F (-18" C) or
lower.
2-80
I

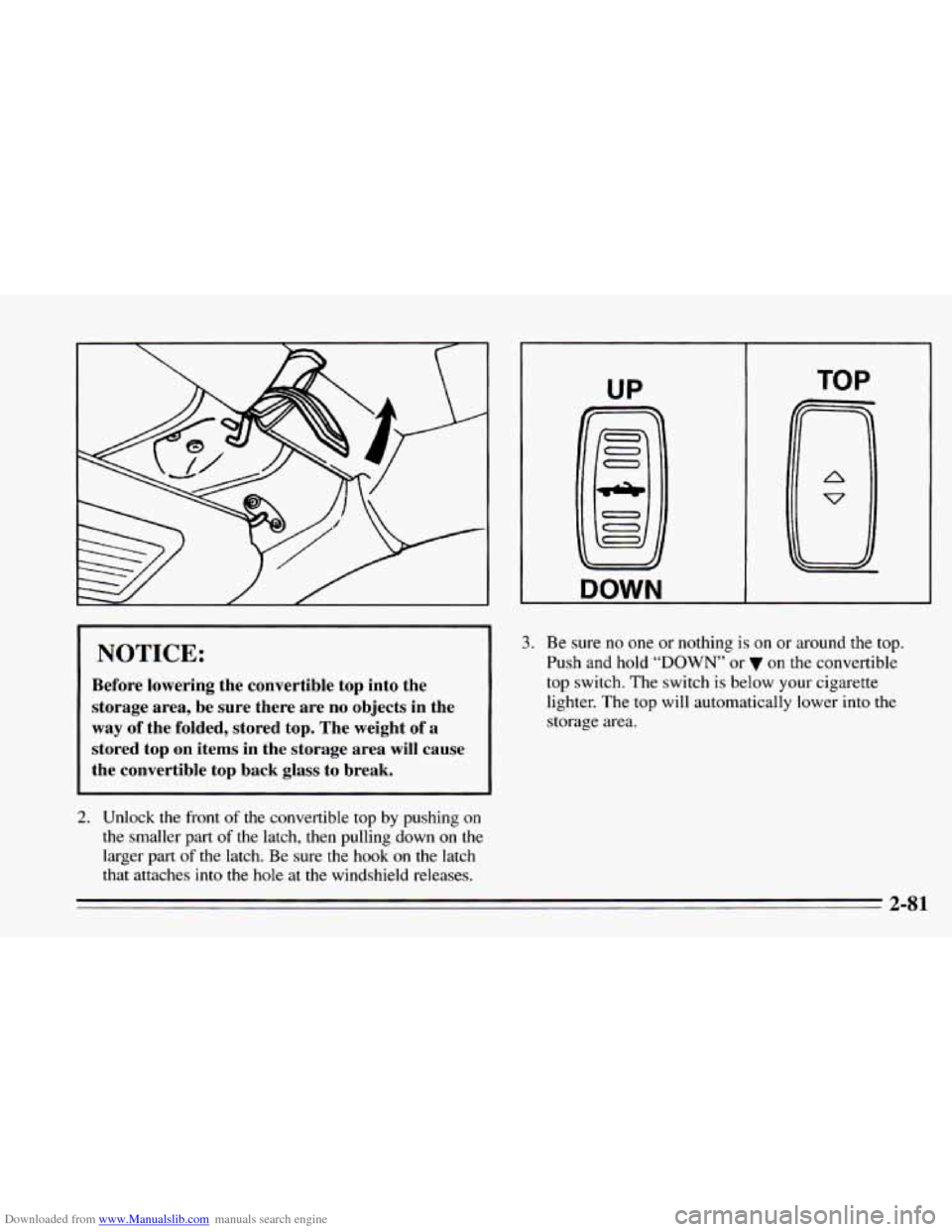

Downloaded from www.Manualslib.com manuals search engine 1 NOTICE:
Before lowering the convertible top into the
storage area, be sure there are no objects in the
way of the folded, stored top. The weight of a
stored top
on items in the storage area will cause
the convertible top back glass to break.
2. Unlock the front of the convertible top by pushing on
the smaller part of the latch, then pulling down on the
larger part of the latch. Be sure the hook on the latch
that attaches into the hole at
the windshield releases.
UP TOP
DOWN 1
3. Be sure no one or nothing is on or around the top.
Push
and hold “DOWN” or on the convertible
top switch.
The switch is below your cigarette
lighter.
The top will automatically lower into the
storage area.
2-81

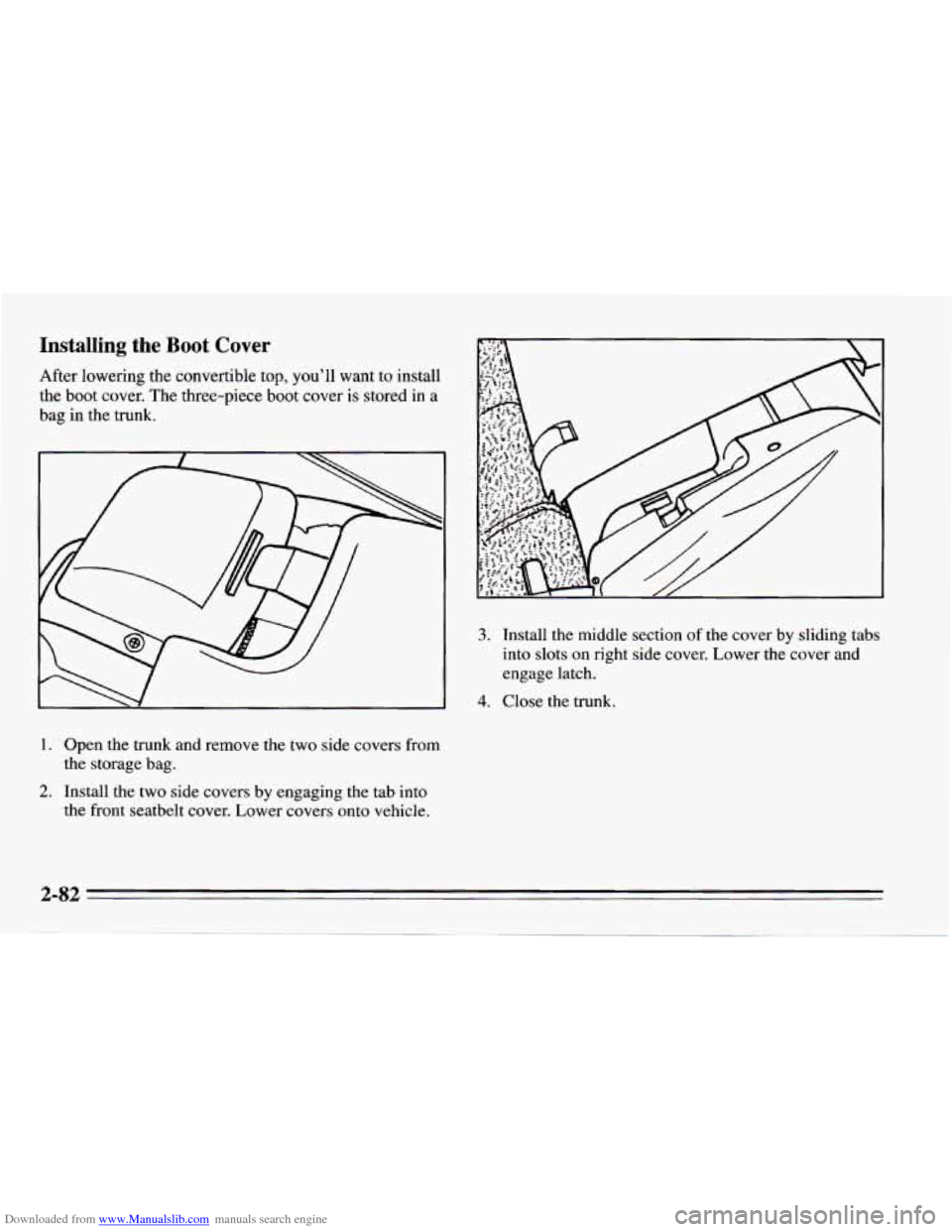

Downloaded from www.Manualslib.com manuals search engine Installing the Boot Cover
After lowering the convertible top, you’ll want to install
the boot cover. The three-piece boot cover
is stored in a
bag in the trunk.
3. Install the middle section of the cover by sliding tabs
into slots
on right side cover. Lower the cover and
engage latch.
1. Open the trunk and remove the two side covers from
the storage bag.
2. Install the two side covers by engaging the tab into
the front seatbelt cover. Lower covers onto vehicle.
4. Close the trunk.
2-82

Downloaded from www.Manualslib.com manuals search engine To Raise Your Convertible Top
1. Park on a level surface. Set the parking brake firmly.
If
you have an automatic transmission, shift into
PARK
(P). If you have a manual transmission, shift
into REVERSE (R). The ignition must be in the
ACC or RUN position. Then lower both sun visors
and lower both windows at least three inches. If the
boot cover is in place, it must be removed first.
2. Open the trunk. Remove the middle piece of the
cover
by pushing in on the latch and lifting up on the
cover.
3. Remove the two side pieces of the boot cover by
lifting
the rear of cover and sliding them out of their
slots.
2-83

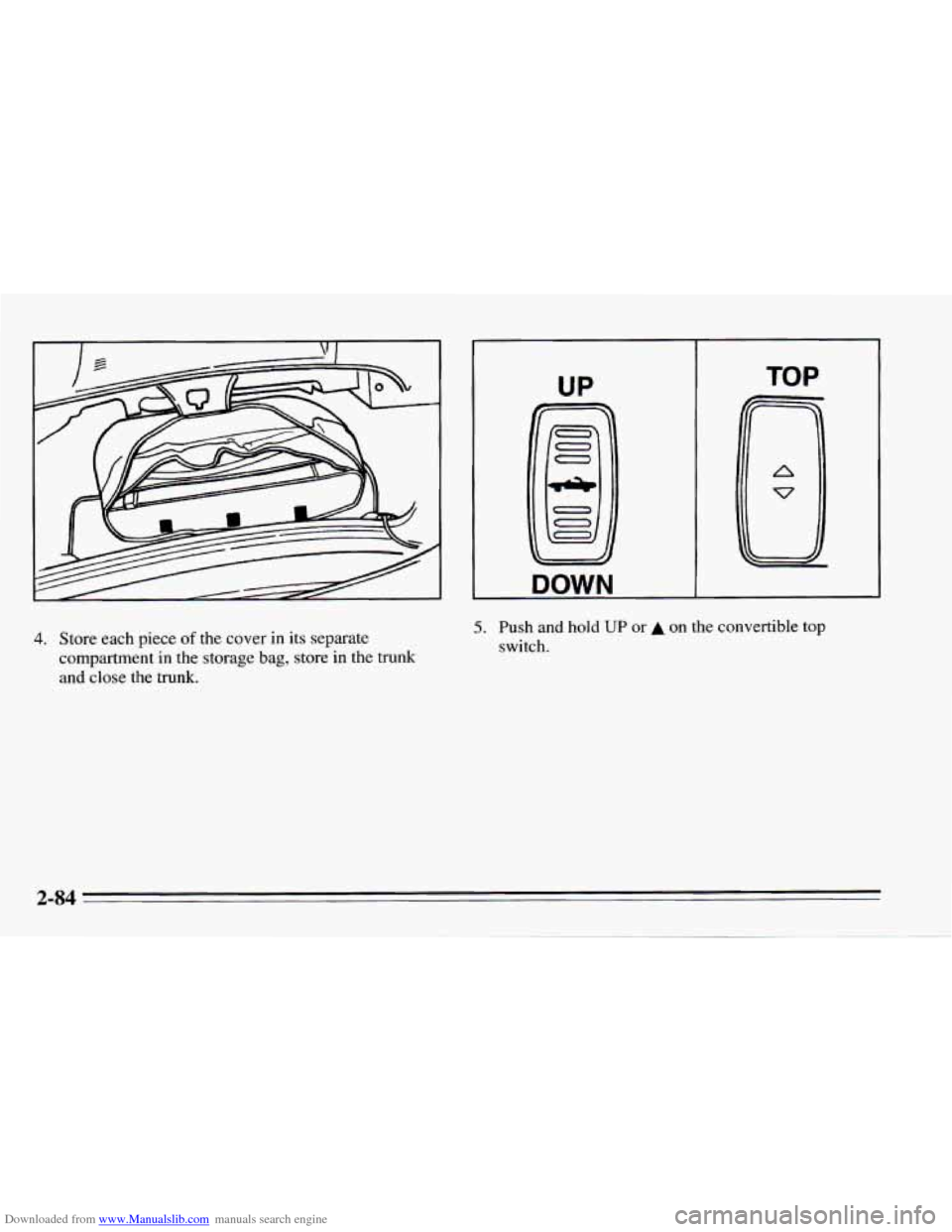

Downloaded from www.Manualslib.com manuals search engine 4. Store each piece of the cover in its separate
compartment in the storage bag, store in the trunk
and close the
trunk.
UP TOP
DOWN
5. Push and hold UP or A on the convertible top
switch.
2-84

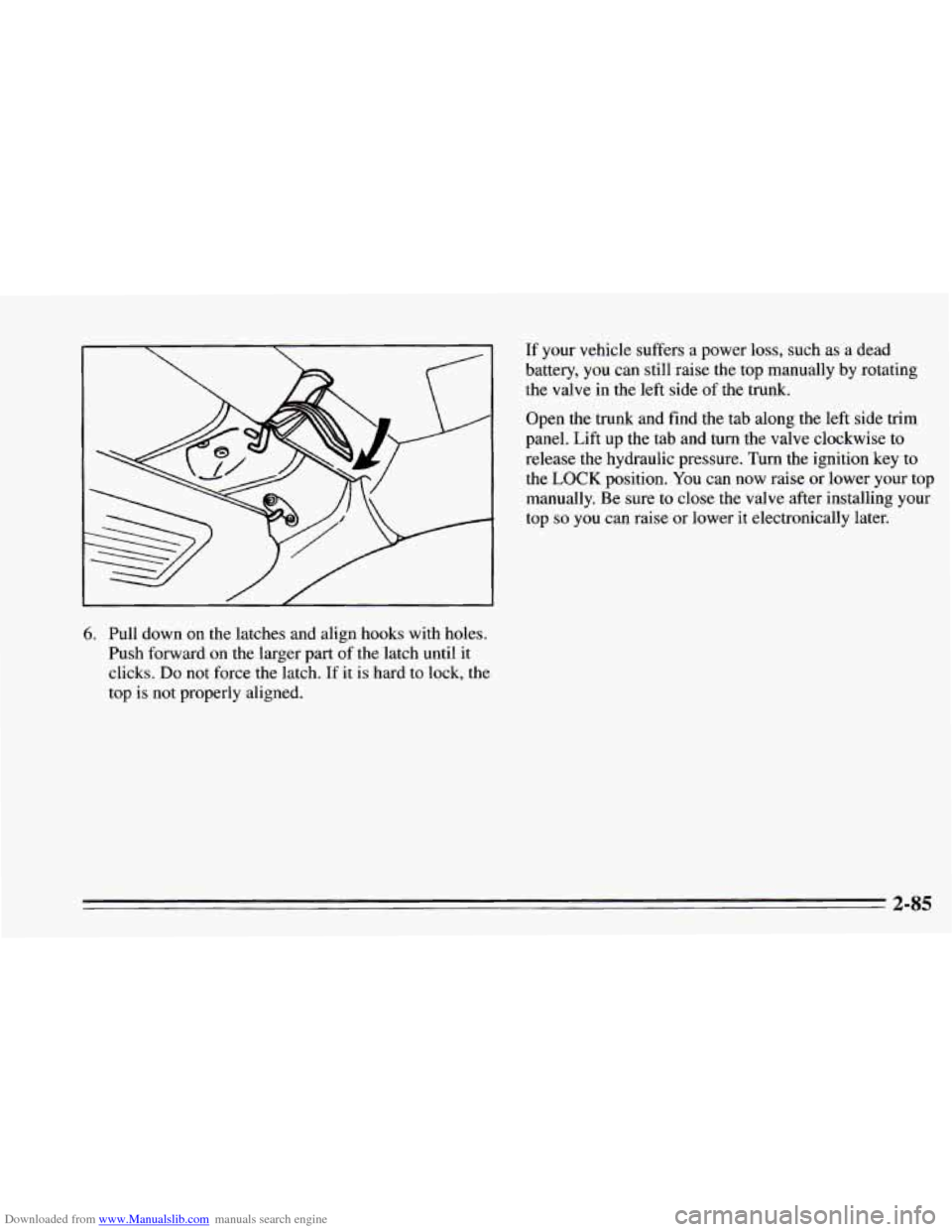

Downloaded from www.Manualslib.com manuals search engine If your vehicle suffers a power loss, such as a dead
battery, you can still raise
the top manually by rotating
the valve in the left side
of the trunk.
Open the trunk and find the tab along the left side trim
panel. Lift up the tab and
turn the valve clockwise to
release the hydraulic pressure. Turn the ignition key to
the LOCK position. You can now raise or lower your top
manually. Be sure to close the valve after installing your
top
so you can raise or lower it electronically later.
6. Pull down on the latches and align hooks with holes.
Push forward on the larger part
of the latch until it
clicks.
Do not force the latch. If it is hard to lock, the
top
is not properly aligned.
2-85

Downloaded from www.Manualslib.com manuals search engine NOTES
2-86

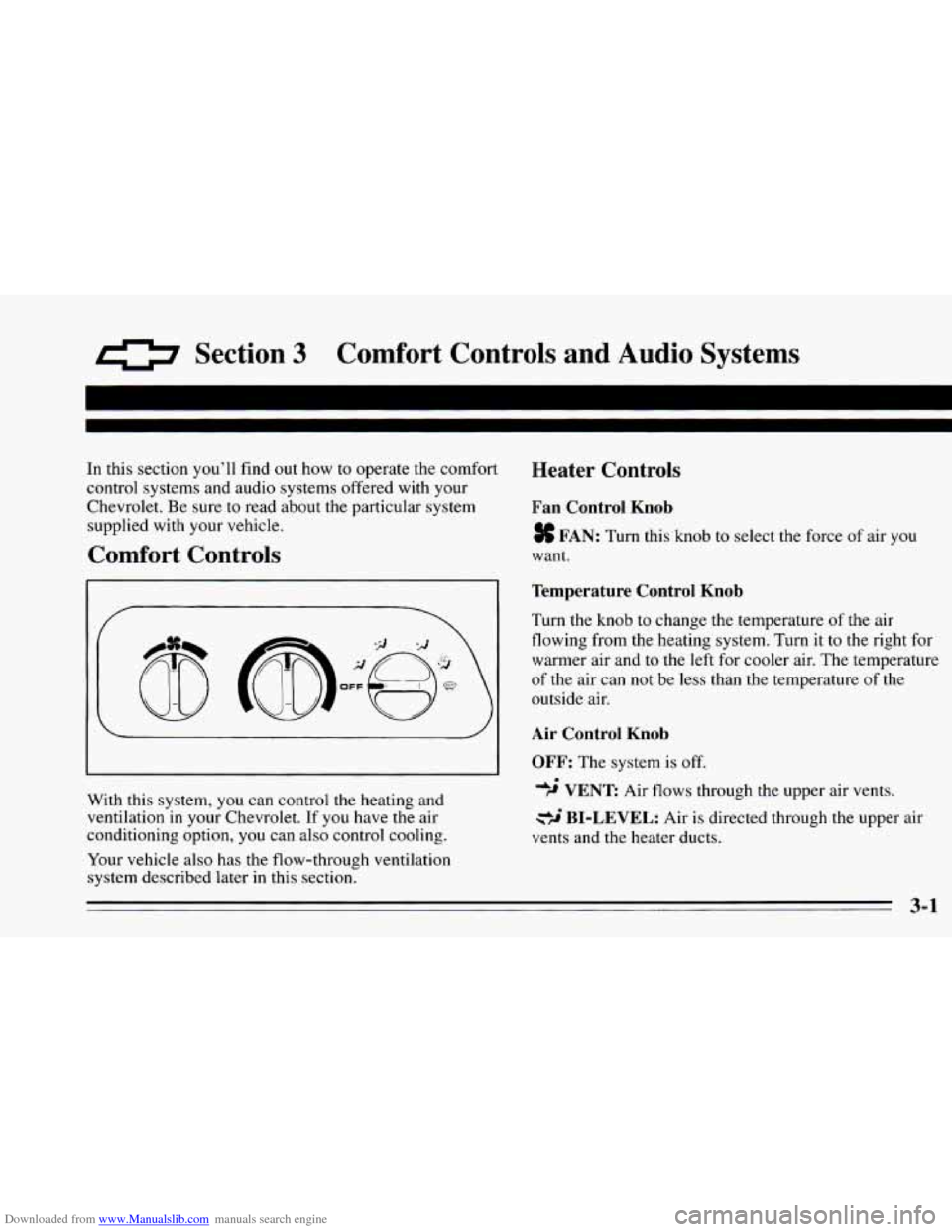

Downloaded from www.Manualslib.com manuals search engine 0 Section 3 Comfort Controls and Audio Systems
In this section you'll find out how to operate the comfort
control systems and audio systems offered with your
Chevrolet. Be sure to read about the particular system
supplied with your vehicle.
Comfort Controls
Heater Controls
Fan Control Knob
$$ FAN: Turn this knob to select the force of air you
want.
With this system,
you can control the heating and
ventilation
in your Chevrolet. If you have the air
conditioning option, you can also control cooling.
Your vehicle also has the flow-through ventilation
system described later
in this section.
Temperature Control Knob
Turn the knob to change the temperature of the air
flowing from the heating system. Turn it
to the right for
warmer air and to the left for cooler air. The temperature
of the air can not be less than the temperature of the
outside air.
Air Control Knob
OFF:
The system is off.
4' # VENT: Air flows through the upper air vents.
BI-LEVEL: Air is directed through the upper air
vents and the heater ducts.
3-1

Downloaded from www.Manualslib.com manuals search engine -3 HEATER: This setting directs most of the air
through the heater ducts and some of
the air through the
windshield defroster vents.
zi BLEND:Air is directed through the windshield I I defroster vents and the heater ducts.
I DEFROST: This setting directs most of the air
j through the windshield defroster vents and some of the
air through the heater ducts.
I Heating
I The heater works best if you keep your windows closed
while using it.
, 1. Turn the air control knob to HEATER.
2. Turn the fan control knob to the desired speed.
~ 3. Turn the temperature control knob to a comfortable
setting. During
initial start-up only, if your vehicle
is equipped
with an optional engine coolant heater,
you can use it in
cold weather (around
+20°F/-8”C or lower) to improve
heater performance
on start up. Because an engine
coolant heater warms the engine coolant, your vehicles
heating system can more efficiently provide heat for the
passenger area of your vehicle. See “Engine Coolant
Heater” in the Index.
Bi-Level Heating
You may want to use bi-level heating on cool, but sunny
days. This setting directs cool air toward your body and
warmer air toward your feet.
1. Turn the air control knob to BI-LEVEL.
2. Turn the temperature control knob to a comfortable
3. Turn the fan control knob to the desired speed.
setting.
