CHEVROLET CAMARO 1998 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Have you recently changed brands of fuel?
If
so, be sure to fuel your vehicle with quality fuel (see
“Fuel” in the Index). Poor fuel quality will cause your
engine not to run as efficiently as designed. You may
notice
this as stalling after start-up, stalling when you
put the vehicle into gear, misfiring, hesitation on
acceleration or stumbling on acceleration. (These
conditions may go away once the engine is warmed up.)
This will be detected by the system and cause the light
to turn on.
If you experience one or more of these conditions,
change the fuel brand you use. It will require at least one
full tank of the proper fuel to turn the light off.
If none of the above steps have made the light turn
off,
have your dealer or qualified service center check the
vehicle. Your dealer has the proper test equipment and
diagnostic tools to fix any mechanical or electrical
problems that may have developed.
Engine Oil Pressure Gage
\*
0
/
/ 80 \!
0
/
0 120
5.7L VS Engine 3800 V6 Engine
This gage tells you if there could be a problem with your
engine oil pressure.
The engine oil pressure gage shows the engine
oil
pressure in psi (pounds per square inch) in the U.S.,
or kPa (kilopascals) in Canada, when the engine is
running. Oil pressure should be
20 to 80 psi (140 to
550 kPa). On the 3800 engine, the oil pressure
should be between
20 and 120 psi (140 to 827 Wa).
2-83

Downloaded from www.Manualslib.com manuals search engine It may vary with engine speed, outside temperature and
oil viscosity, but readings above the red area show the
normal operating range. Readings in the red area tell
you that the engine is low on oil, or that you might have
some other oil problem. See “Engine Oil” in
the Index.
Don’t keep driving if the oil pressure is low. If
you do, your engine can become so hot that it
catches fire. You or others could be burned.
Check your oil as soon
as possible and have your
vehicle serviced.
NOTICE:
Damage to your engine from neglected oil
problems can be costly and
is not covered by
your warranty.
Low Oil Light
This warning light should
come on while you are
starting your engine.
If
the light doesn’t come on,
have
it repaired.
LOW OIL
I
If the light stays on after starting your engine, your
engine oil level may be too low. You may need to add
oil. See “Engine Oil’’ in the Index.
NOTICE:
The oil level monitoring system only checks the
oil level when you are starting your engine. It
does not keep monitoring the level once the
engine is running. Also, the oil level check only
works when the engine has been turned
off long
enough for the
oil to drain back into the oil pan.
2-84

Downloaded from www.Manualslib.com manuals search engine Check Gages Light
CHECK
GAGES
This warning light will
come on briefly when you
are starting the engine.
If the light comes on and stays on while you are driving,
check your gages to see if they are in the warning areas.
Fuel Gage
Your fuel gage shows about
how much fuel is in your
tank. The fuel gage works
only when the ignition is
in the
RUN.
When the gage pointer first indicates empty (E) you still
have a little fuel left (about one to two gallons)
(3.8 to
7.6 litres), but you need to get more fuel right away.
Here are four concerns some owners have had about the
fuel gage. All these situations are normal and do not
indicate that anything
is wrong with the fuel gage.
0 At the gas station, the gas pump shuts off before the
gage reads full
(F).
0 It takes more (or less) gas to fill up than the gage
reads. For example, the gage reads half full, but it
took more (or less) than half of the tank’s capacity to
fill it.
0 The gage moves a little when you turn, stop or
speed up.
0 When you turn the engine off, the gage doesn’t go
back to empty (E).
2-85

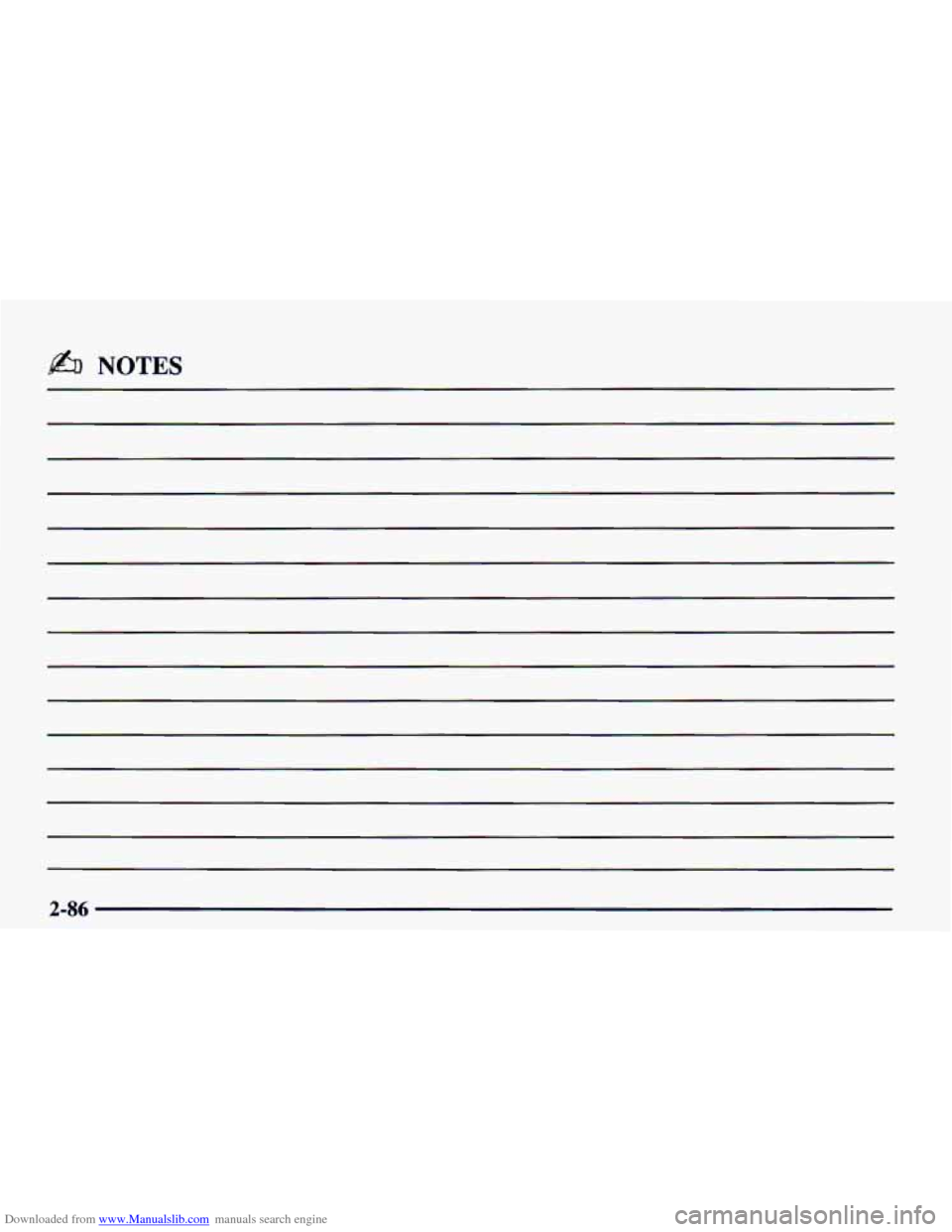

Downloaded from www.Manualslib.com manuals search engine ,@b NOTES
2-86

Downloaded from www.Manualslib.com manuals search engine 0 Section 3 Comfort Controls and Audio Systems
In this section, you’ll find out how to operate the comfort control and audio systems offered with your vehicle. Be
sure to read about the particular systems supplied with your vehicle.
3-2
3-3
3-4
3-4
3-5
3-5
3-6
3-6
3-7 Comfort Controls
Air Conditioning
Heating
Ventilation System
Defogging and Defrosting
Rear Window Defogger (If Equipped)
Setting the Clock for Systems without
Automatic Tone Control
Setting the Clock for Systems with
Automatic Tone Control
AM-FM Stereo with Cassette
Tape Player 3-9
3- 14
3-18
3-2 1
3-23
3-23
3-24
3 -25
3-25
3-25 AM-FM
Stereo with Cassette Tape Player and
Automatic Tone Control (If Equipped)
AM-FM Stereo
with Compact Disc Player and
Automatic Tone Control (If Equipped)
Trunk Mounted CD Changer
(If Equipped)
Theft-Deterrent Feature (If Equipped)
Understanding Radio Reception
Tips About Your Audio System
Care of Your Cassette Tape Player
Care of Your Compact Discs
Care of Your Compact Disc Player
Fixed Mast Antenna
3-1

Downloaded from www.Manualslib.com manuals search engine Comfort Controls
lhl
With this system, you can control the heating and
ventilation in your vehicle. If you have the air
conditioning option, you can also control cooling.
Your vehicle also has the flow-through ventilation
system described later in this section.
Fan Control Knob
# FAN: Turn this knob to select the force of air
you want.
Temperature Control Knob
Turn the knob to change the temperature of the air
flowing from the heating system. Turn it toward the red
or
to the right (clockwise) for warmer air and toward the
blue or to the left (counterclockwise) for cooler air. The
temperature of the air cannot be less than the
temperature of the outside air.
Air Control Knob
OFF: The system is off.
2 VENT Air flows through the upper air vents.
i
’!! BI-LEVEL: Air is directed through the upper air
vents and the heater ducts.
‘!A HEATER: This setting directs most of the air
through the heater ducts and some
of the air through the
windshield defroster vents.
9 BLEND: Air is directed through the windshield
defroster vents and the heater ducts.
9 DEFROST This setting directs most of the air
through the windshield defroster vents and some
of the
air through the heater ducts.
3-2

Downloaded from www.Manualslib.com manuals search engine Air Conditioning
The air conditioning system uses the same controls as
the heating system, except that the
air control knob has
two extra settings, described below.
MAX: Provides maximum cooling or quick cool-down
on
very hot days. This setting recirculates most of the air
inside your vehicle. If it is used for long periods of time,
the air may become
dry. This setting directs air through
the upper air vents.
A/C: Use for normal cooling on hot days. This
setting cools outside air and directs it through the
upper air vents.
The air conditioner compressor operates in
MAX, NC,
BI-LEVEL, BLEND and DEFROST when the outside
temperature is above freezing. When the air conditioner
is on, you may sometimes notice slight changes in your
vehicle’s engine speed and power. This is normal,
because the compressor uses power and the system
is
designed to cycle the compressor on and off to keep the
desired cooling and help fuel economy.
Cooling
The air conditioner works best if you keep your
windows closed. On very hot days, open the windows
just long enough for the hot
air to escape.
1. Turn the air control knob to A/C for normal cooling.
2. Turn the temperature control knob to a
3. Turn the fan control knob to the desired speed.
For
faster cooling move the knob to
MAX.
comfortable setting.
3-3

Downloaded from www.Manualslib.com manuals search engine Heating Ventilation System
The heater works best if you keep your windows closed
while using it.
1. Turn the air control knob to HEATER.
2. Turn the fan control knob to the desired speed.
3. Turn the temperature control knob to a
If your vehicle is equipped with an optional engine coolant
heater, you can use it in cold weather (around
20°F/-8 “C
or lower) to improve heater performance on initial start up.
Because
an engine coolant heater warms the engine
coolant, your vehicles heating system can more quickly
and efficiently provide heat for your vehicle’s passenger
area. See “Engine Coolant Heater” in the Index. comfortable
setting.
Bi-Level Heating
You may want to use bi-level heating on cool, but sunny
days. This setting directs cool air toward your body and
warmer air toward your feet.
1. Turn the air control knob to BI-LEVEL.
2. Turn the temperature control knob to a
comfortable setting.
3. Turn the fan control knob to the desired speed. Adjust the direction of airflow by moving the louvered vents.
Your vehicle’s flow-through ventilation system supplies outside
air into the vehicle when it is moving. Outside air
will also enter the vehicle when the blower fan is running.
For mild outside temperatures when little heating or
cooling
is needed, you can still direct outside air through
your vehicle.
1. Turn the air control knob to VENT.
2. Turn the temperature control knob to a
comfortable setting.
3. Turn the fan control knob to the desired speed.

Downloaded from www.Manualslib.com manuals search engine Ventilation Tips

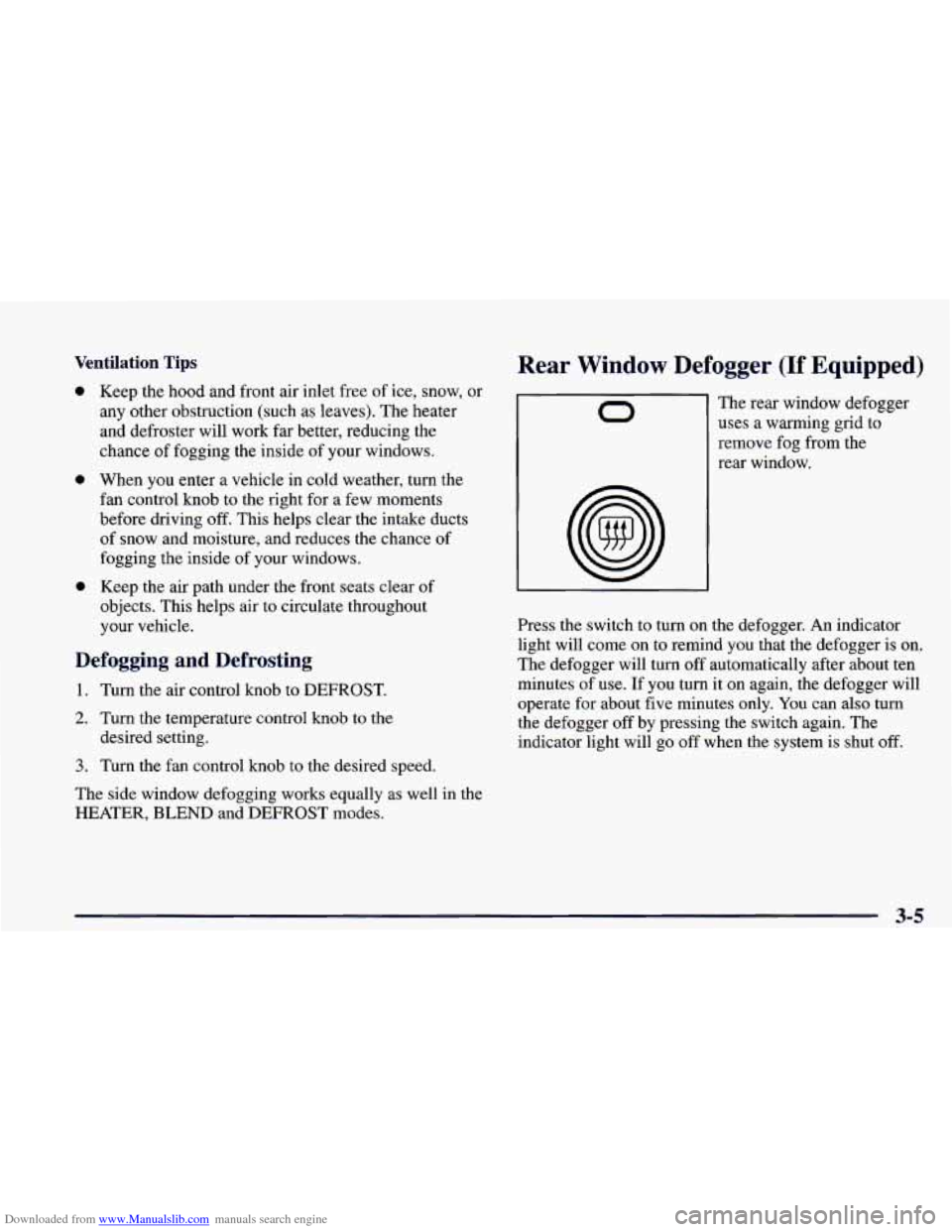

0
0 0 Keep the hood and front air inlet free of ice, snow, or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance
of fogging the inside of your windows.
When you enter
a vehicle in cold weather, turn the
fan control knob to the right for a few moments
before driving off. This helps clear the intake ducts
of snow and moisture, and reduces the chance of
fogging the inside of your windows.
Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.
Defogging and Defrosting
1. Turn the air control knob to DEFROST.
2. Turn the temperature control knob to the
desired setting.
Rear Window Defogger (If Equipped)
The rear window defogger
uses
a warming grid to
remove
fog from the
rear window.
Press the switch to
turn on the defogger. An indicator
light will come on to remind you
that the defogger is on,.
The defogger will turn off automatically after about ten
minutes of use. If you turn it on again, the defogger will
operate for about five minutes only.
You can also turn
the defogger off by pressing the switch again. The
indicator light will go off when the system is shut
off.
3. Turn the fan control knob to the desired speed.
The side window defogging works equally as well in the
HEATER, BLEND and DEFROST modes.
3-5

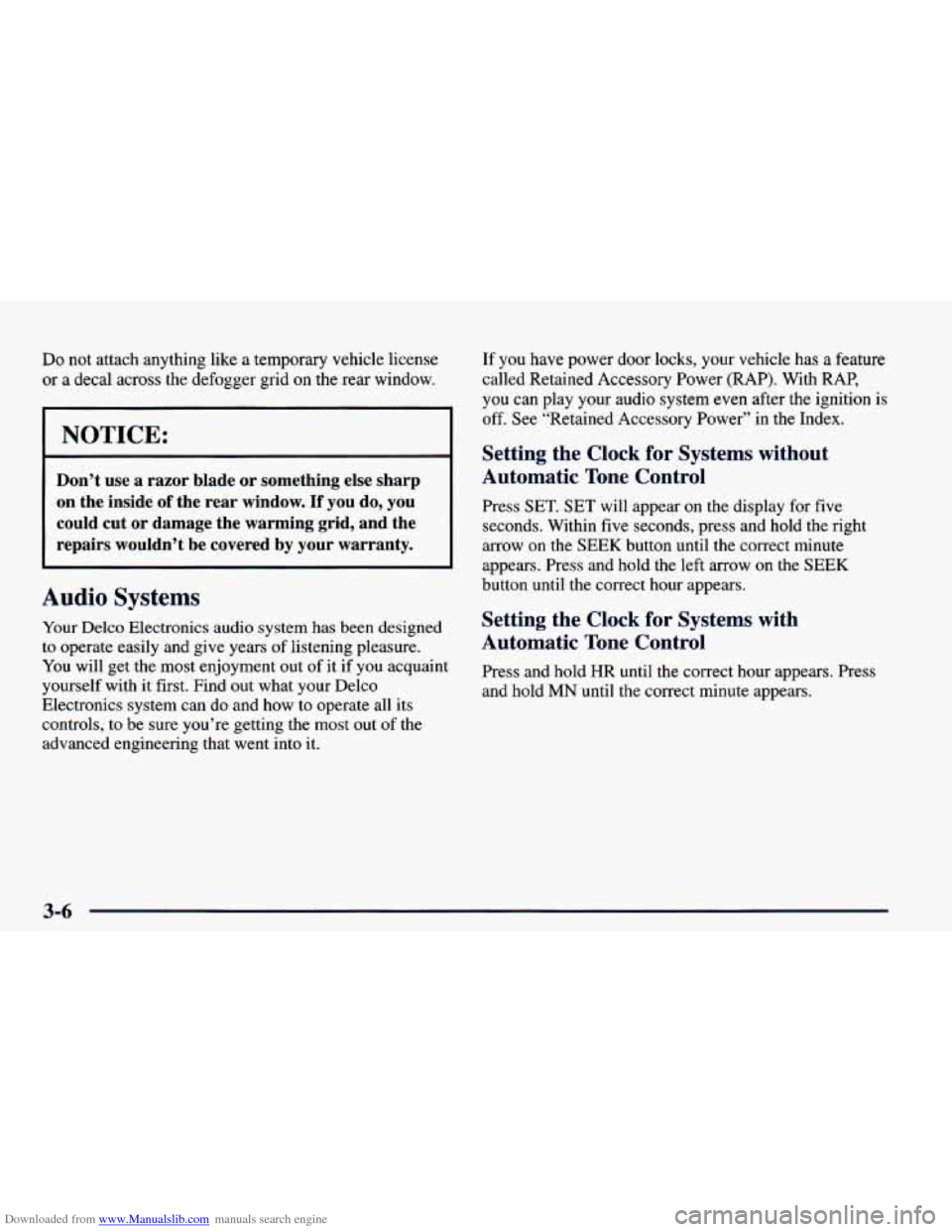

Downloaded from www.Manualslib.com manuals search engine Do not attach anything like a temporary vehicle license
or a decal across the defogger grid on the rear window.
NOTICE:
Don’t use a razor blade or something else sharp
on the inside
of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn’t be covered by your warranty.
Audio Systems
Your Delco Electronics audio system has been designed
to operate easily and give years of listening pleasure.
You will get the most enjoyment out of it if you acquaint
yourself with it first. Find out what your Delco
Electronics system can do and
how to operate all its
controls, to be sure you’re getting the
most out of the
advanced engineering that went into
it.
If you have power door locks, your vehicle has a feature
called Retained Accessory Power (RAP). With RAP,
you can play your audio system even after the ignition is
off. See “Retained Accessory Power” in the Index.
Setting the Clock for Systems without
Automatic
Tone Control
Press SET. SET will appear on the display for five
seconds. Within five seconds, press and hold the right
arrow
on the SEEK button until the correct minute
appears. Press and hold the left arrow on the
SEEK
button until the correct hour appears.
Setting the Clock for Systems with
Automatic Tone Control
Press and hold HR until the correct hour appears. Press
and hold
MN until the correct minute appears.
3-6
