CHEVROLET CAMARO 1998 4.G Owner's Manual

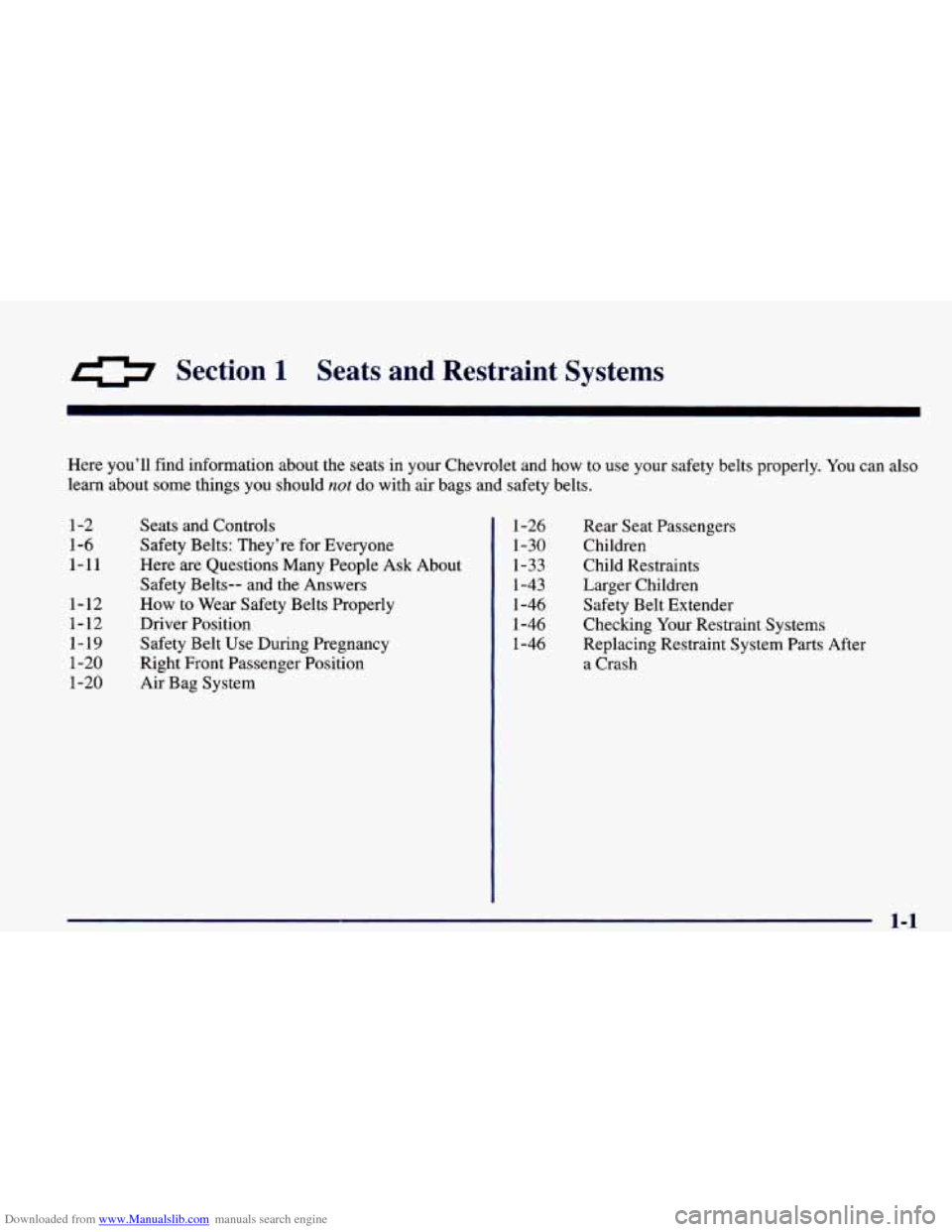

Downloaded from www.Manualslib.com manuals search engine Section 1 Seats and Restraint Systems
Here you’ll find information about the seats in your Chevrolet and how to use your safety belts properly. You can also
learn about some things you should
not do with air bags and safety belts.
1-2
1-6
1-11
1-12
1- 12
1-19
1-20
1-20 Seats
and Controls
Safety Belts: They’re for Everyone
Here are Questions Many People Ask About
Safety Belts-- and the Answers
How to Wear Safety Belts Properly
Driver Position
Safety Belt Use During Pregnancy
Right Front Passenger Position
Air Bag System Rear Seat Passengers
Children
Child Restraints
Larger Children
Safety Belt Extender
Checking Your Restraint Systems
Replacing Restraint System Parts After
a Crash
1-26
1-30
1-33
1-43
1-46 1-46
1-46
1-1

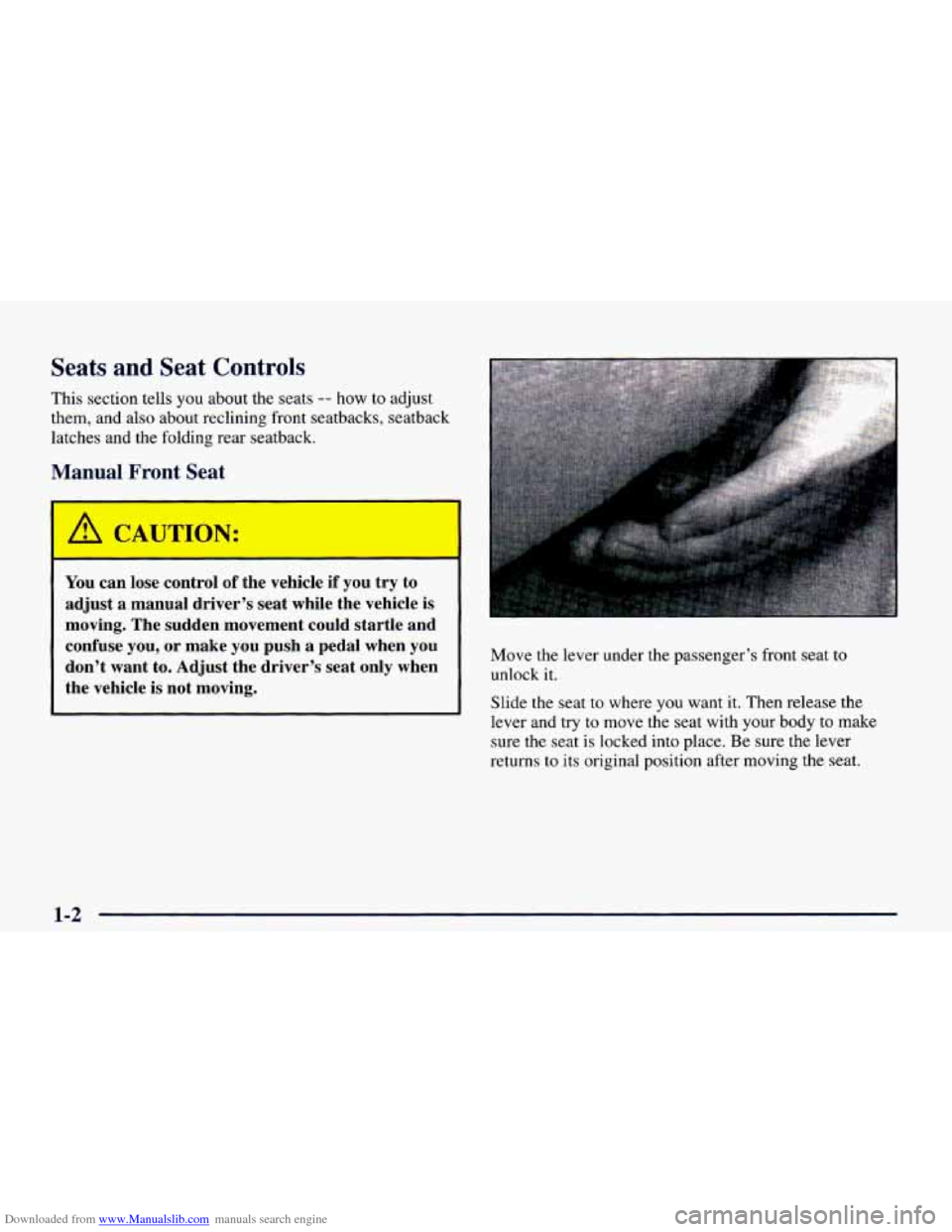

Downloaded from www.Manualslib.com manuals search engine Seats and Seat Controls
This section tells you about the seats -- how to adjust
them, and also about reclining front seatbacks, seatback
latches and the folding rear seatback.
Manual Front Seat
I
I A CAUTION:
You can lose control of the vehicle if you try to
adjust
a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push
a pedal when you
don’t want to. Adjust the driver’s seat only when
the vehicle
is not moving. Move the
lever under the passenger’s front seat
to
unlock it.
Slide
the seat to where you want it. Then release the
lever and try to move the seat with your body to make
sure
the seat is locked into place. Be sure the lever
returns to its original position after moving the seat.
1-2

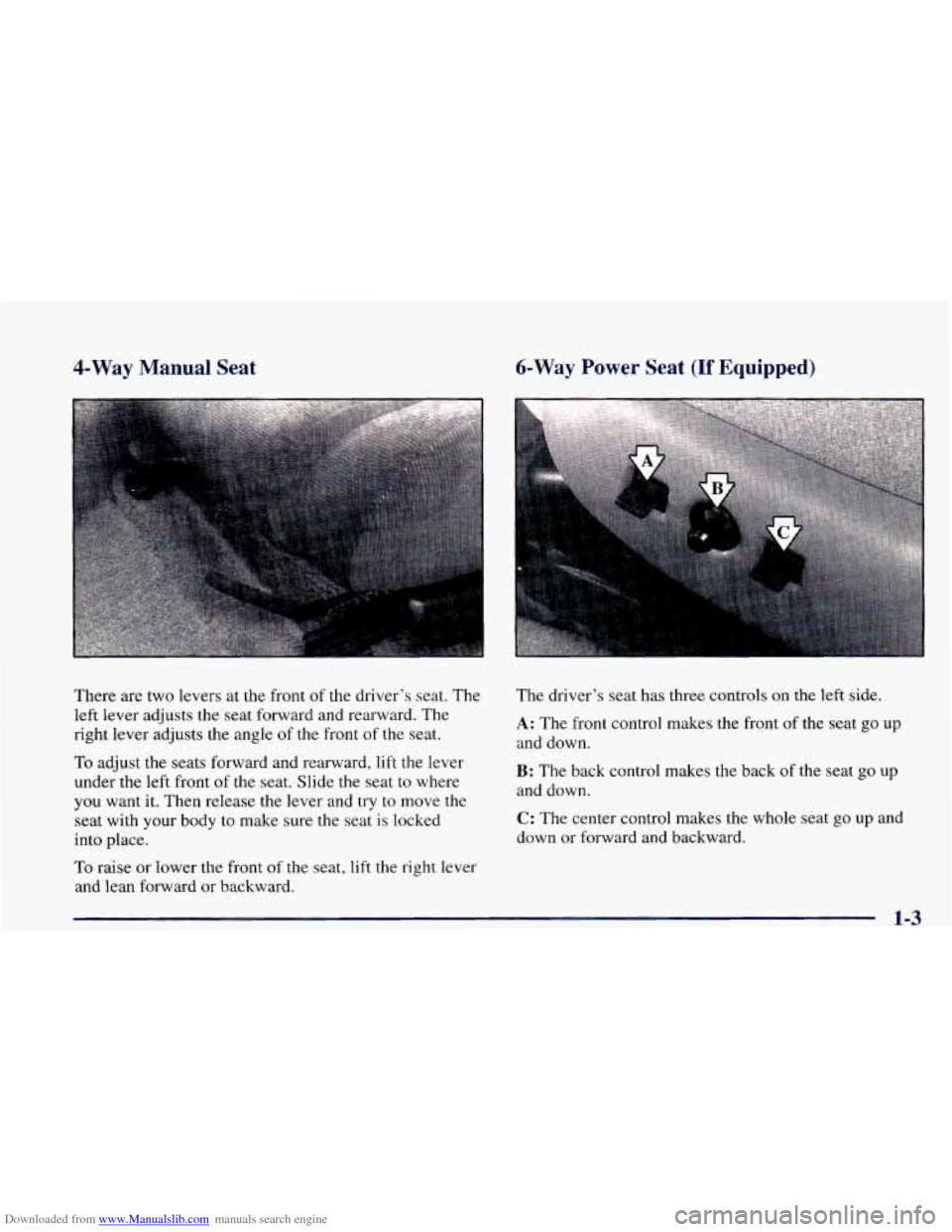

Downloaded from www.Manualslib.com manuals search engine 4-Way Manual Seat &Way Power Seat (If Equipped)
There are two levers at the front of the driver’s seat. The
left lever adjusts the seat forward and rearward. The
right lever adjusts the angle of the front
of the seat.
To adjust the seats forward and rearward, lift the lever
under the left front of the seat. Slide the seat to where
you want it. Then release the lever and try
to move the
seat with your body to make sure the seat is locked
into place. The
driver’s seat
has three controls on the left side.
A: The front control makes the front of the seat go up
and down.
B: The back control makes the back of the seat go up
and down.
C: The center control makes the whole seat go up and
down
or forward and backward.
To raise or lower the front of the seat, lift the right lever
and lean forward or backward.
1-3

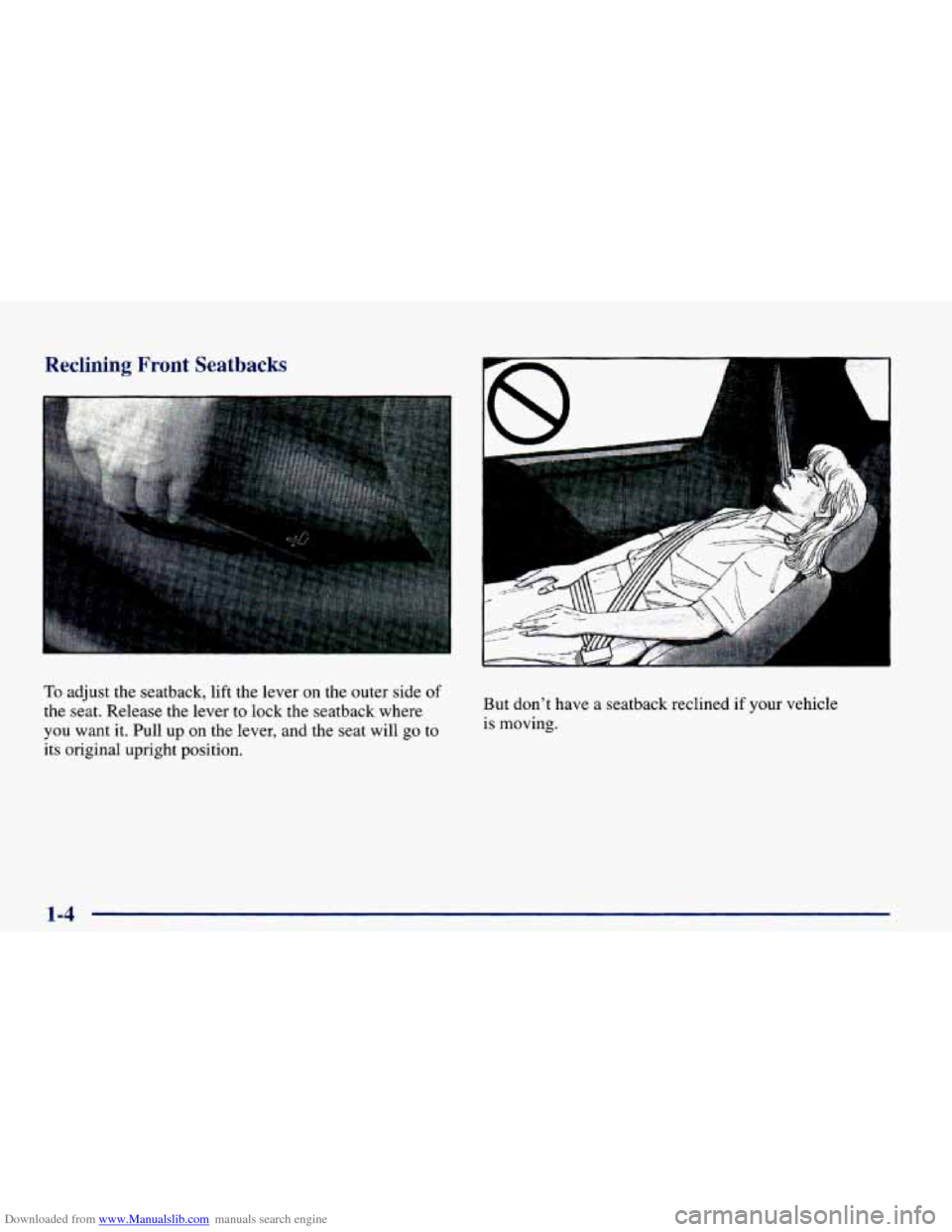

Downloaded from www.Manualslib.com manuals search engine To adjust the seatback, lift the lever on the outer side of
the seat. Release the lever to lock the seatback where
you want it. Pull up on the lever, and the seat will go to
its original upright position. But
don't have a seatback reclined if your vehicle
is moving.
1-4

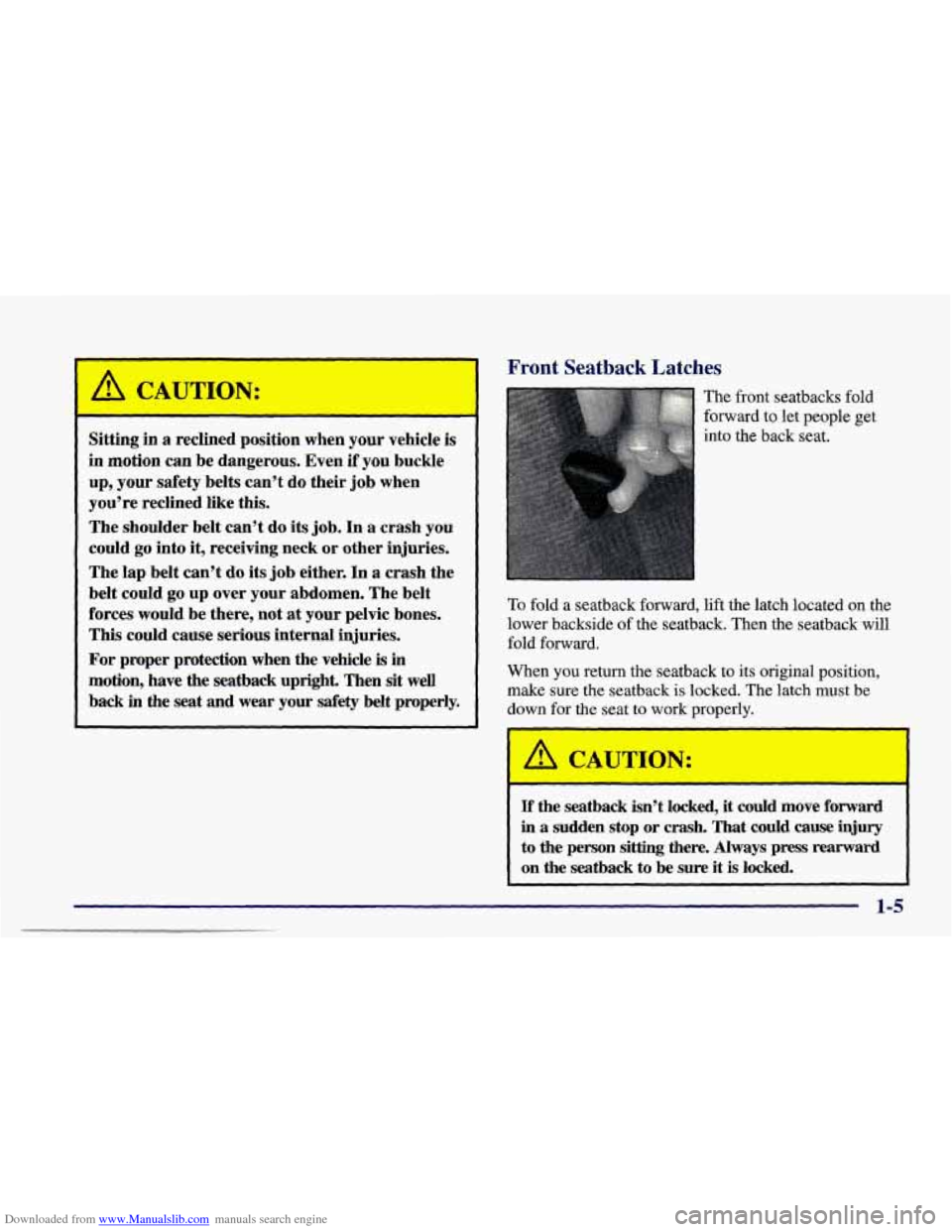

Downloaded from www.Manualslib.com manuals search engine Front Seatback Latches
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can’t do their
job when
you’re reclined like this.
The shoulder belt can’t do
its job, In a crash you
could go into it, receiving neck or other injuries.
The lap belt can’t
do its job either. In a crash the
belt could
go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause
serious internal injuries.
For proper protection when the vehicle
is in
motion, have the seatback upright. Then sit well
back
in the seat and wear your safety belt properly.
The front seatbacks fold
forward
to let people get
into
the back seat.
To fold a seatback forward, lift the latch located on the
lower backside of the seatback. Then the seatback will
fold forward.
When you return the seatback to its original position,
make sure the seatback is locked. The latch must be
down for the seat to work properly.
I
If the seatback isn’t locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
1-5

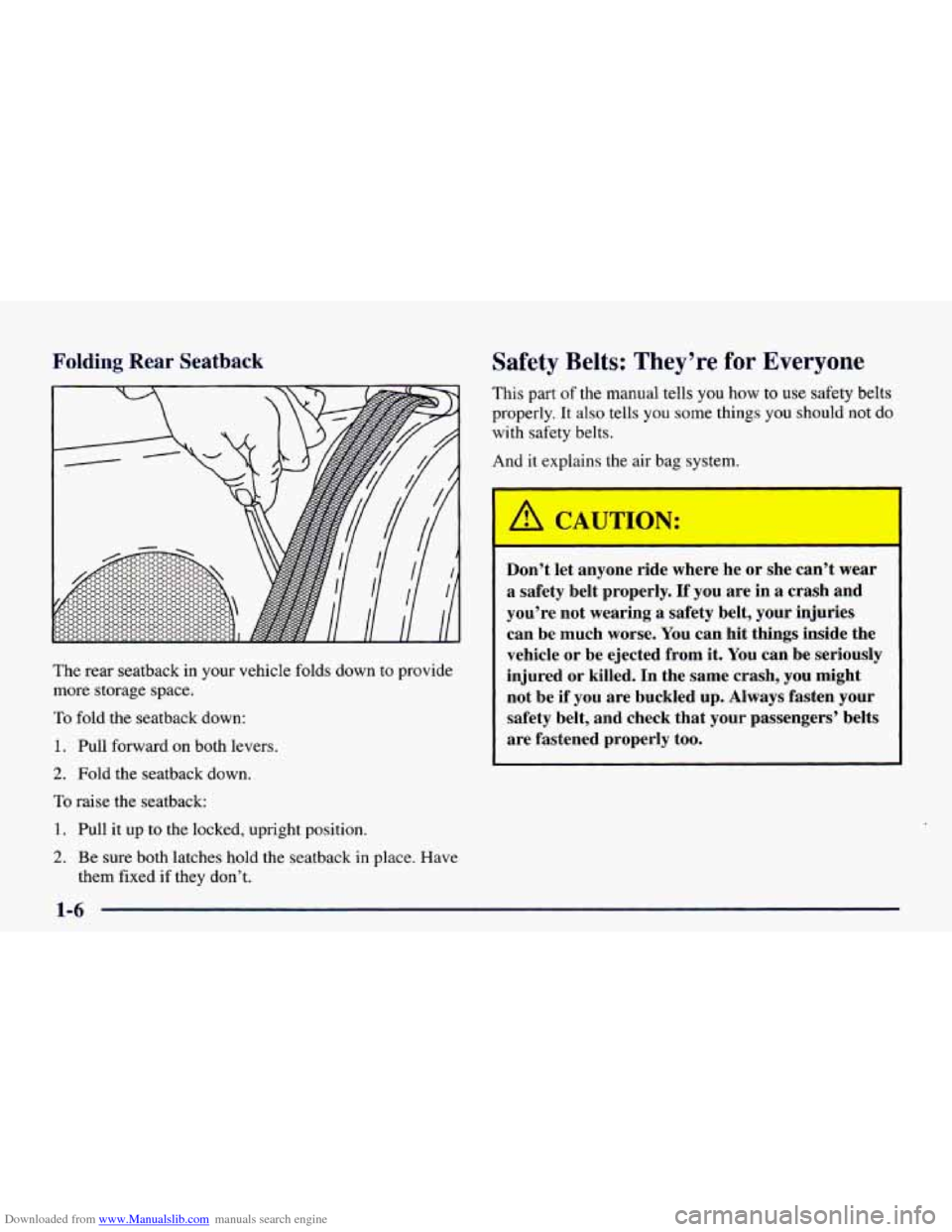

Downloaded from www.Manualslib.com manuals search engine Folding Rear Seatback
The rear seatback in your vehicle folds down to provide
more storage space.
To fold the seatback down:
1. Pull forward on both levers.
2. Fold the seatback down.
To raise the seatback:
1. Pull it up to the locked, upright position.
2. Be sure both latches hold the seatback in place. Have
them fixed if they don’t.
Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not
do
with safety belts.
And it explains the air bag system.
Don’t let anyone ride where he or she can’t wear
a safety belt properly.
If you are in a crash and
you’re not wearing a safety belt, your injuries
can
be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed.
In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.

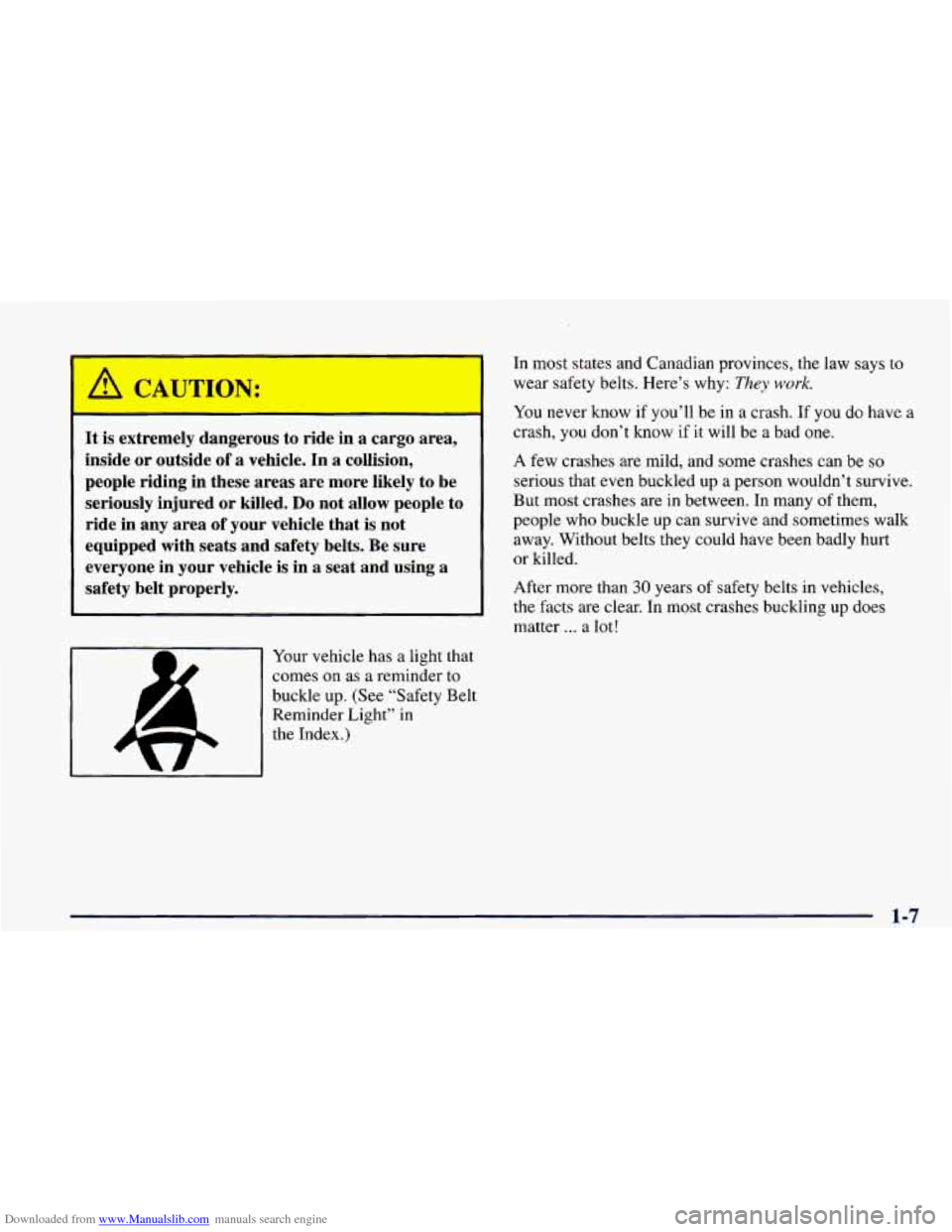

Downloaded from www.Manualslib.com manuals search engine It is extremely dangerous to ride in a cargo area,
inside or outside
of a vehicle. In a collision,
people riding in these areas
are more likely to be
seriously injured or killed.
Do not allow people to
ride in any area
of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
I
4
Your vehicle has a light that
comes on as
a reminder to
buckle up. (See “Safety Belt
Reminder Light”
in
the Index.) In most states and Canadian provinces, the law says
to
wear safety belts. Here’s why:
They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between. In many
of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than
30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter
... a lot!
1-7

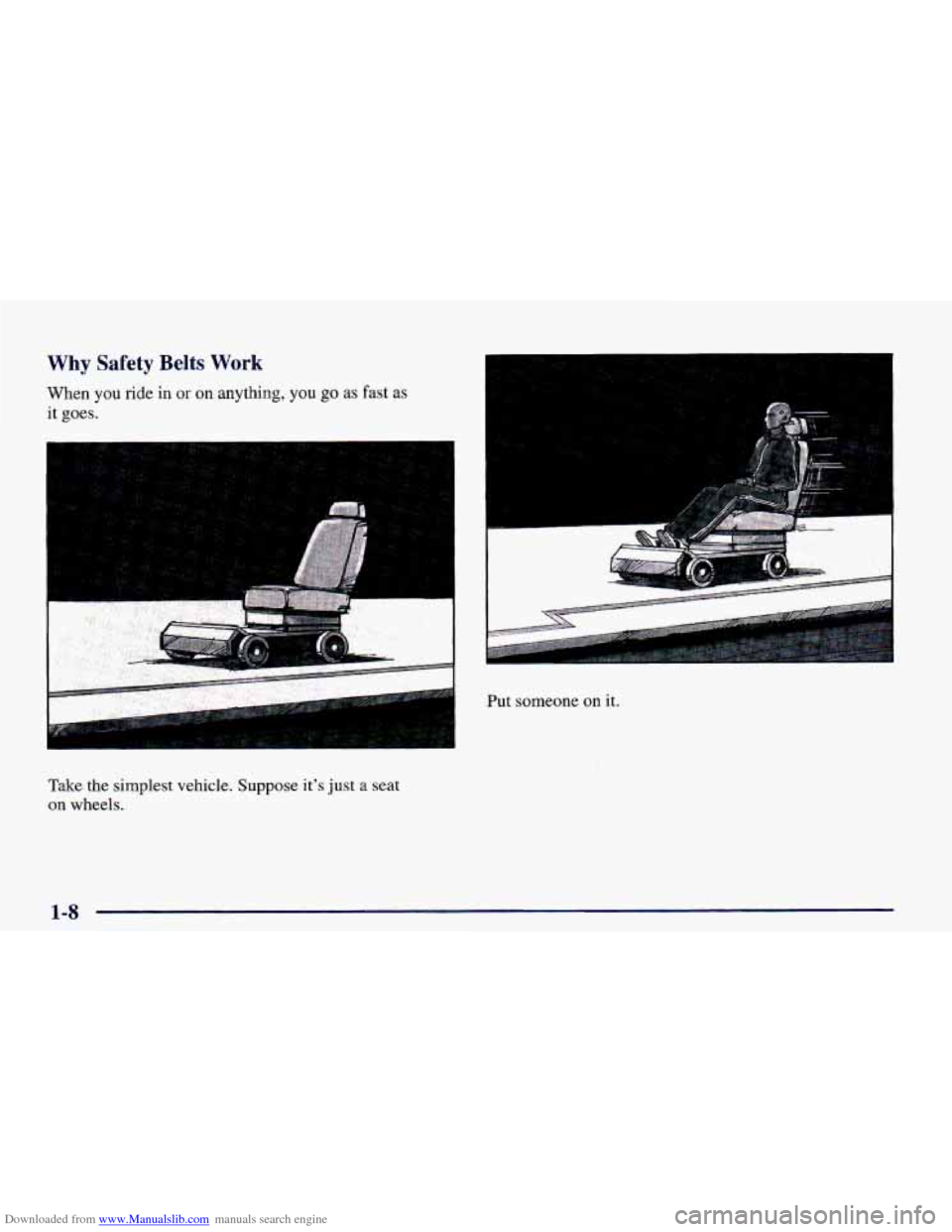

Downloaded from www.Manualslib.com manuals search engine Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
c
Take the simplest vehicle. Sumose it's just a seat
on wheels. Put someone
on it.
1-8

Downloaded from www.Manualslib.com manuals search engine r
e

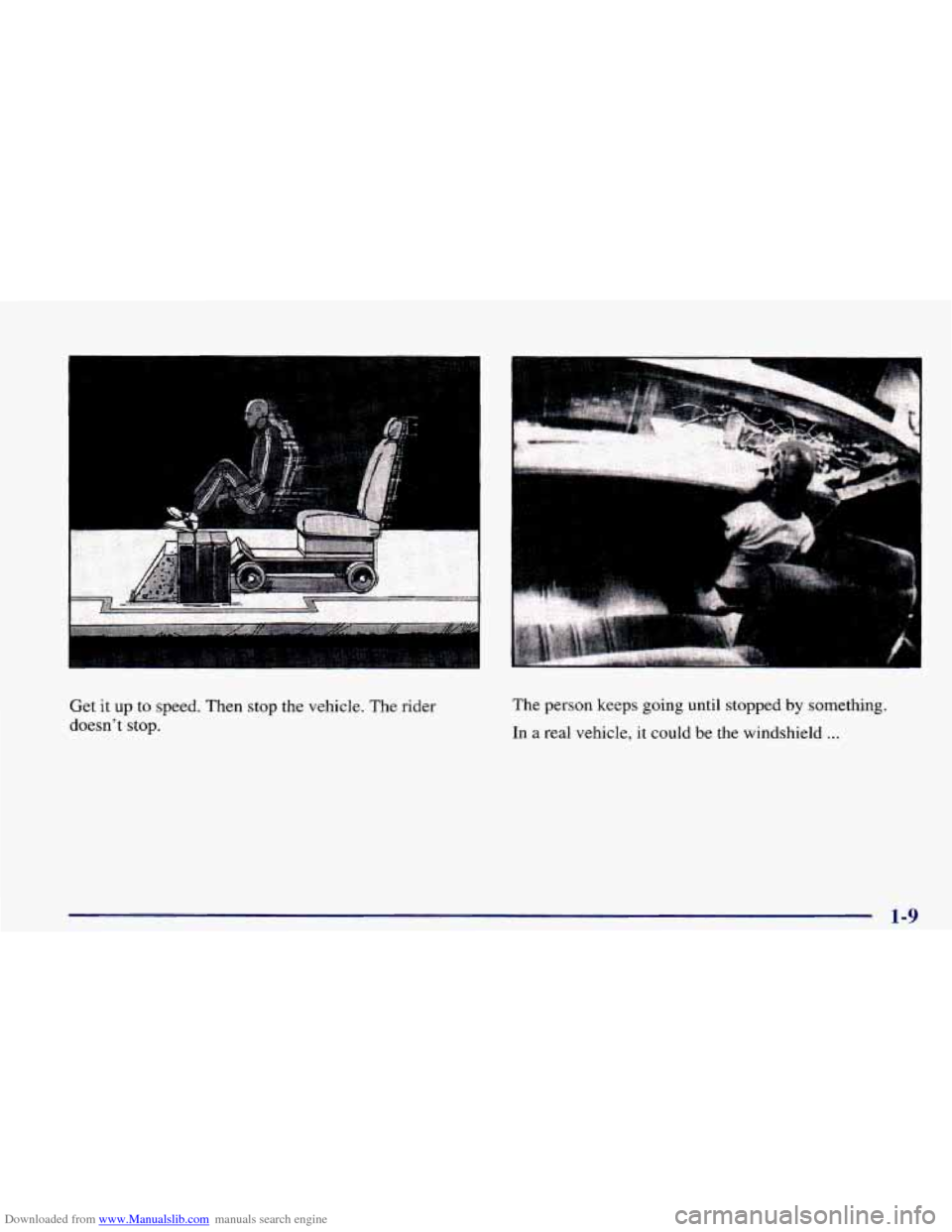

Get it up to speed. Then stop the vehicle. The rider
doesn't stop.
. ...
I
The person keeps going until stopped by something.
In a real vehicle, it could be the windshield ...
1-9

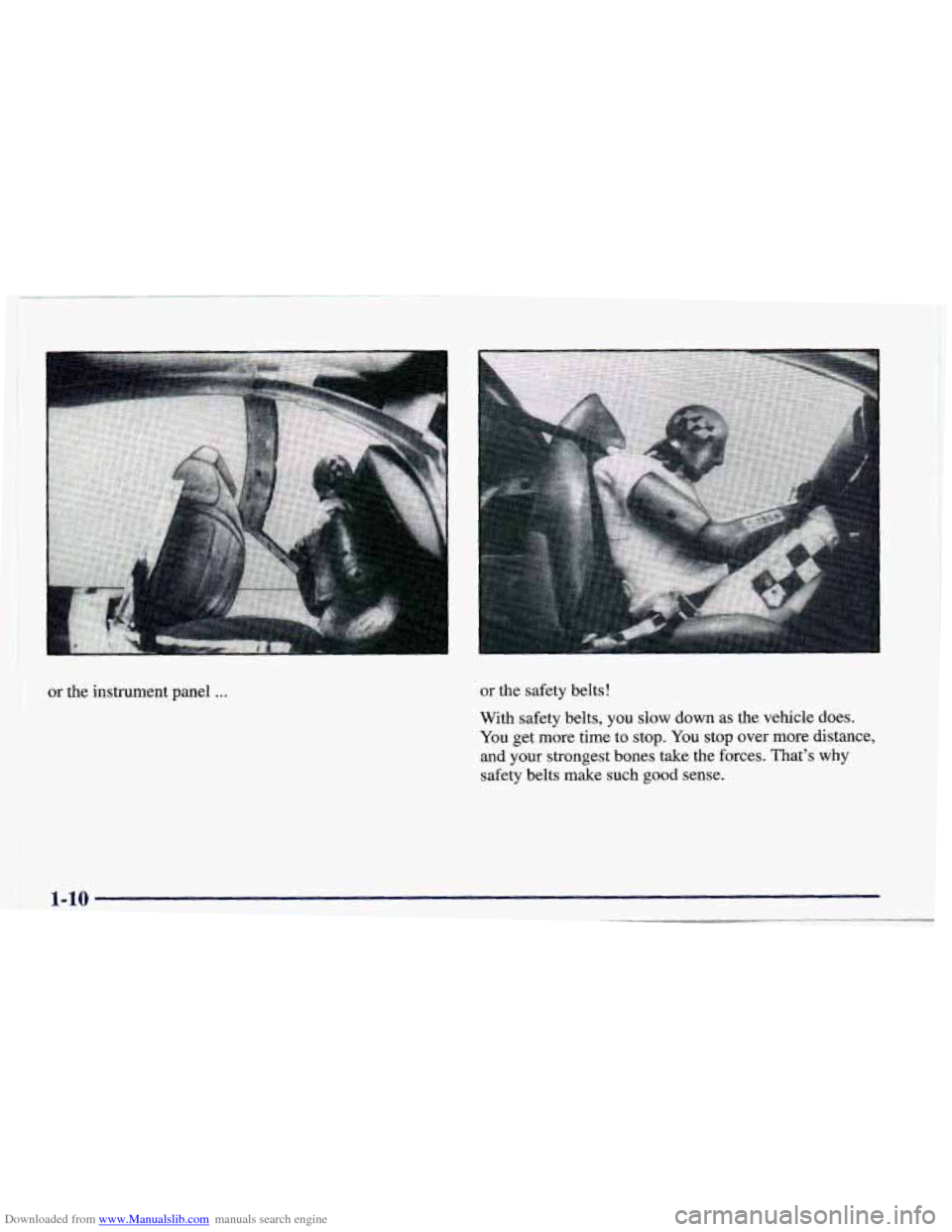

Downloaded from www.Manualslib.com manuals search engine or the instrument panel ...
3
I
or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That’s why
safety belts make such good sense.
1-10
