bulb CHEVROLET CAMARO 1998 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine As you signal a turn or a lane change, if the arrows don’t
flash but just stay on
as you signal a turn or lane change,
a signal bulb may be burned out and other drivers won’t
see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident.
If the arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses and Circuit
Breakers” in the Index).
Headlamp High/Low-Beam Changer
To change the headlamps
from low beam to high
or
high to low, pull the turn
signal lever all the way
toward you. Then release it.
When the high-beams headlamps
are on, this light on
the instrument panel also will be on.
Windshield Wipers
I 1
I I
i
You can control the windshield wipers by turning the
band with the wiper symbol on it.
For
a single wiping cycle, turn the band to MIST. Hold
it there until the wipers start, then let go. The wipers will
stop after one cycle. If you want more cycles, hold the
band on MIST longer.
You can set the wiper speed for
a long or short delay
between wipes. This can be very useful in light rain or
snow. Turn the band to choose the delay time. The
closer to
LO, the shorter the delay.
2-46

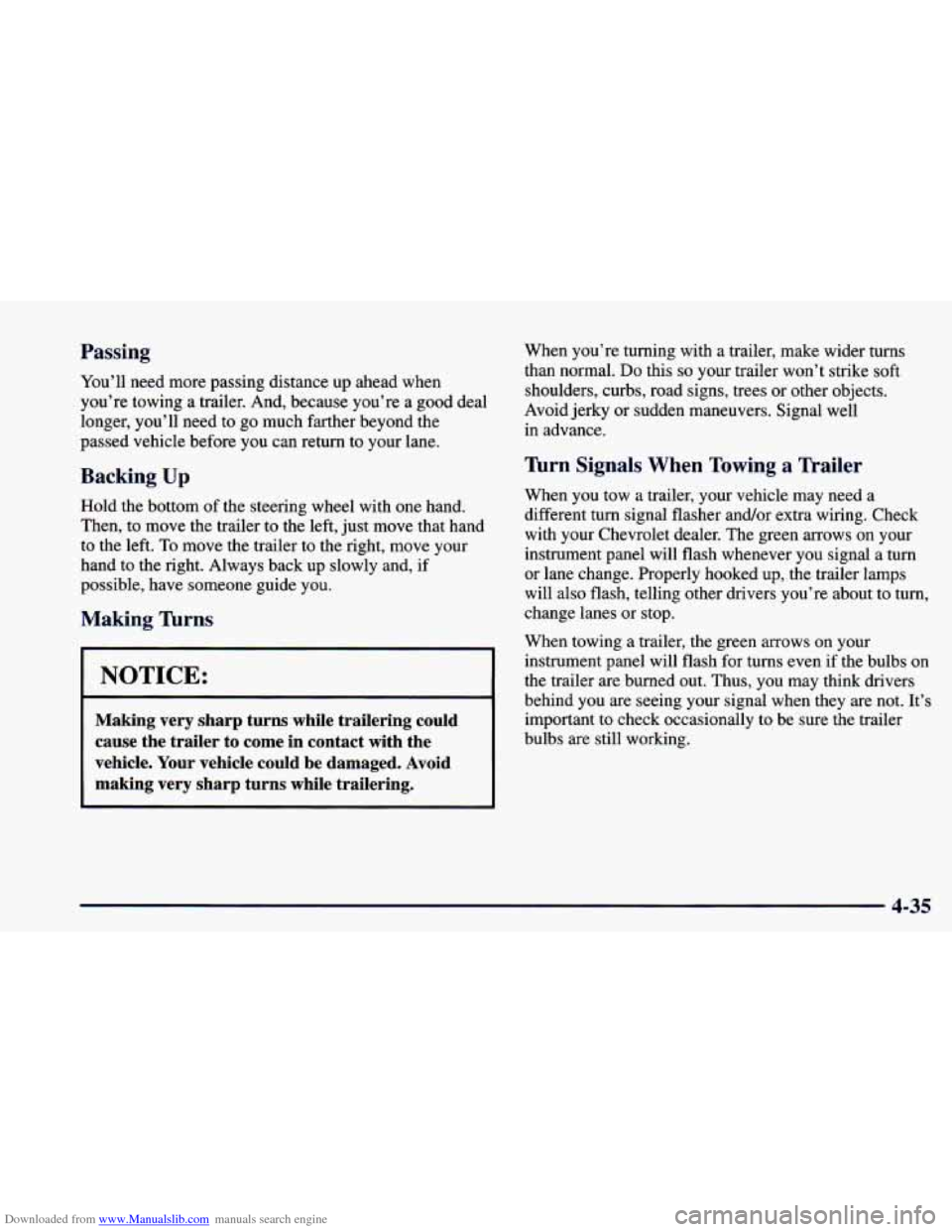

Downloaded from www.Manualslib.com manuals search engine Passing
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re a good deal
longer, you’ll need to go much farther beyond the
passed vehicle before you can return to your lane.
Backing Up
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and, if
possible, have someone guide
you.
Making Turns
NOTICE:
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns
than normal.
Do this so your trailer won’t strike soft
shoulders, curbs, road signs, trees or other objects.
Avoid jerky or sudden maneuvers. Signal well
in advance.
lhrn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal flasher and/or extra wiring. Check
with your Chevrolet dealer. The green arrows on your
instrument panel will flash whenever you signal a turn
or lane change. Properly hooked up, the trailer lamps
will also flash, telling other drivers you’re about to turn,
change lanes or stop.
When towing a trailer, the green arrows on your
instrument panel will flash for turns even
if the bulbs on
the trailer are burned out. Thus, you may think drivers
behind you are seeing your signal when they are not. It’s
important to check occasionally to be sure the trailer
bulbs are still working.
4-35

Downloaded from www.Manualslib.com manuals search engine Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and
a part devoted to its appearance care.
6-2
6-3 6-5
6-6 6-8
6-8
6- 12
6-18
6-20
6-24
6-26
6-30
6-3
1
6-33
6-37 Service
Fuel
Fuels in Foreign Countries
Filling Your Tank
Filling
a Portable Fuel Container
Checking Things Under the Hood
Engine Oil
Air Cleaner
Automatic Transmission Fluid
Manual Transmission Fluid
Engine Coolant
Power Steering Fluid
Windshield Washer Fluid
Brakes
Battery 6-37
6-43
6-52
6-53
6-55
6-57 6-5 8
6-60
6-6
1
6-62
6-62
6-69
6-69 Bulb Replacement
Tires
Appearance Care Cleaning the Inside
of Your Vehicle
Care of Safety Belts
Cleaning the Outside of Your Vehicle
Cleaning Aluminum or Chrome Wheels
(If Equipped)
Underbody Maintenance
Appearance Care Materials
Chart
Vehicle Identification Number (VIN)
Electrical System Replacement Bulbs
Capacities and Specifications
6-1

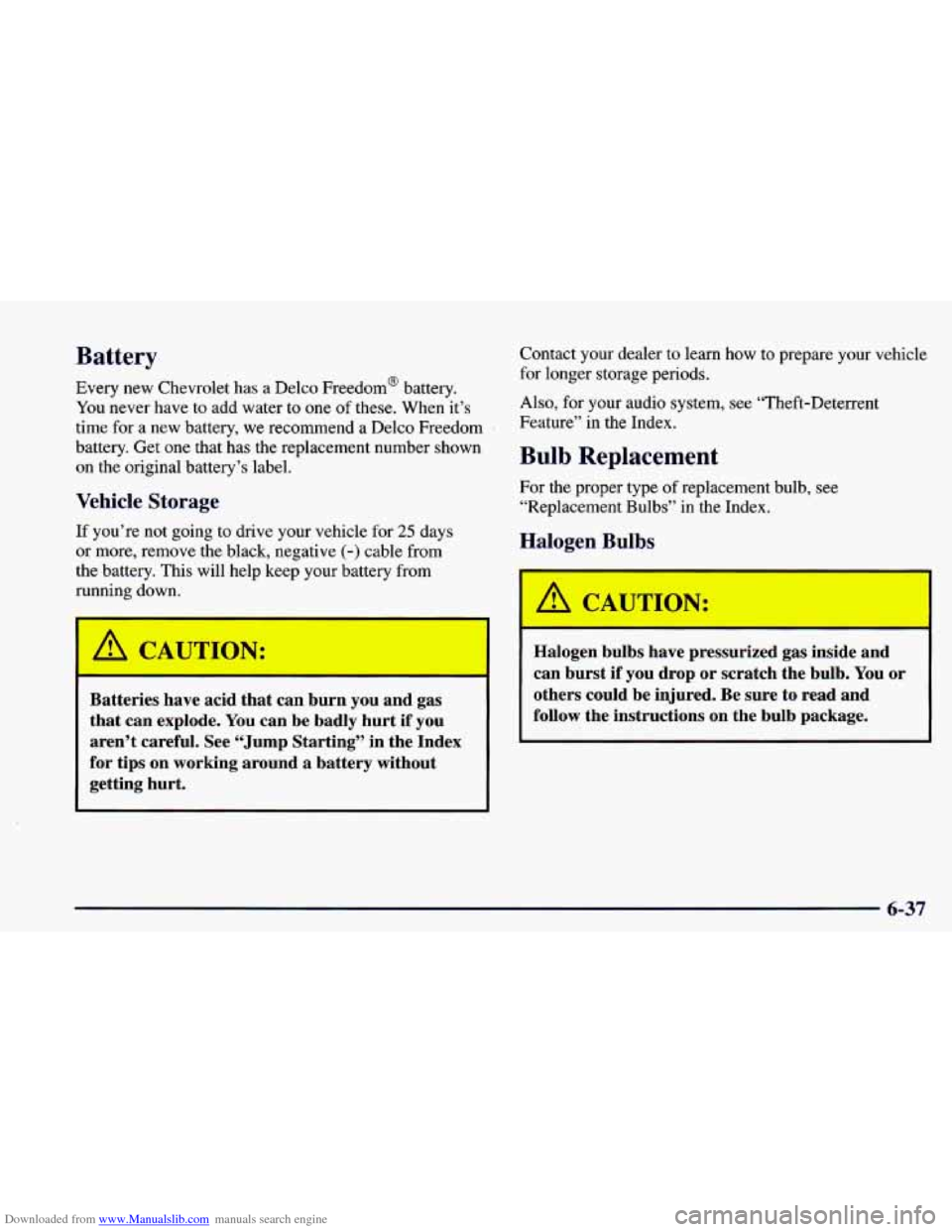

Downloaded from www.Manualslib.com manuals search engine Battery
Every new Chevrolet has a Delco Freedom@ battery.
You never have to add water to one of these. When it’s
time for a new battery, we recommend a Delco Freedom
battery. Get one that has the replacement number shown
on the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days
or more, remove the black, negative
(-) cable from
the battery. This will help keep your battery from
running down.
I A CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around
a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage
pe Ids.
Also, for your audio system, see “Theft-Deterrent
Feature” in the Index.
Bulb Replacement
For the proper type of replacement bulb, see
“Replacement
Bulbs” in the Index.
Halogen Bulbs
‘h C WTION:
-
Halogen bulbs have pressurized gas inside and
can burst
if you drop or scratch the bulb. You or
others could be injured. Be sure
to read and
follow the instructions on the bulb package.
6-37

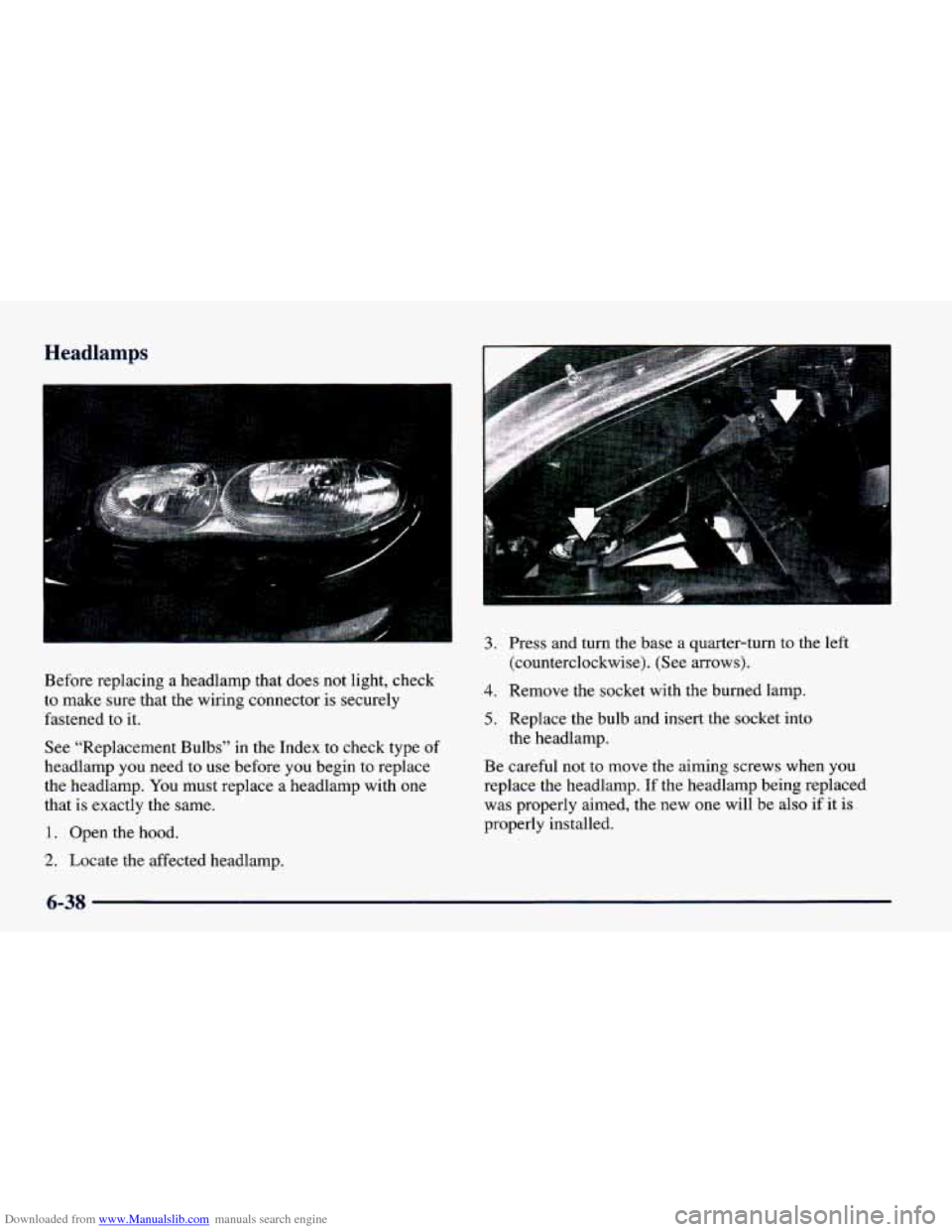

Downloaded from www.Manualslib.com manuals search engine Headlamns
3.
Before replacing a headlamp that does not light, check
to make sure that the wiring connector
is securely
fastened to
it.
See "Replacement Bulbs" in the Index to check type of
headlamp you need to use before you begin to replace
the headlamp.
You must replace a headlamp with one
that is exactly the same.
1. Open the hood.
2. Locate the affected headlamp.
4.
5.
Press and turn the base a quarter-turn to the left
(counterclockwise). (See arrows).
Remove the socket with
the burned lamp.
Replace the bulb and insert the socket into
the headlamp.
Be careful
not to move the aiming screws when you
replace the headlamp. If the headlamp being replaced
was properly aimed, the new one will be also
if it is
properly installed.
6-38

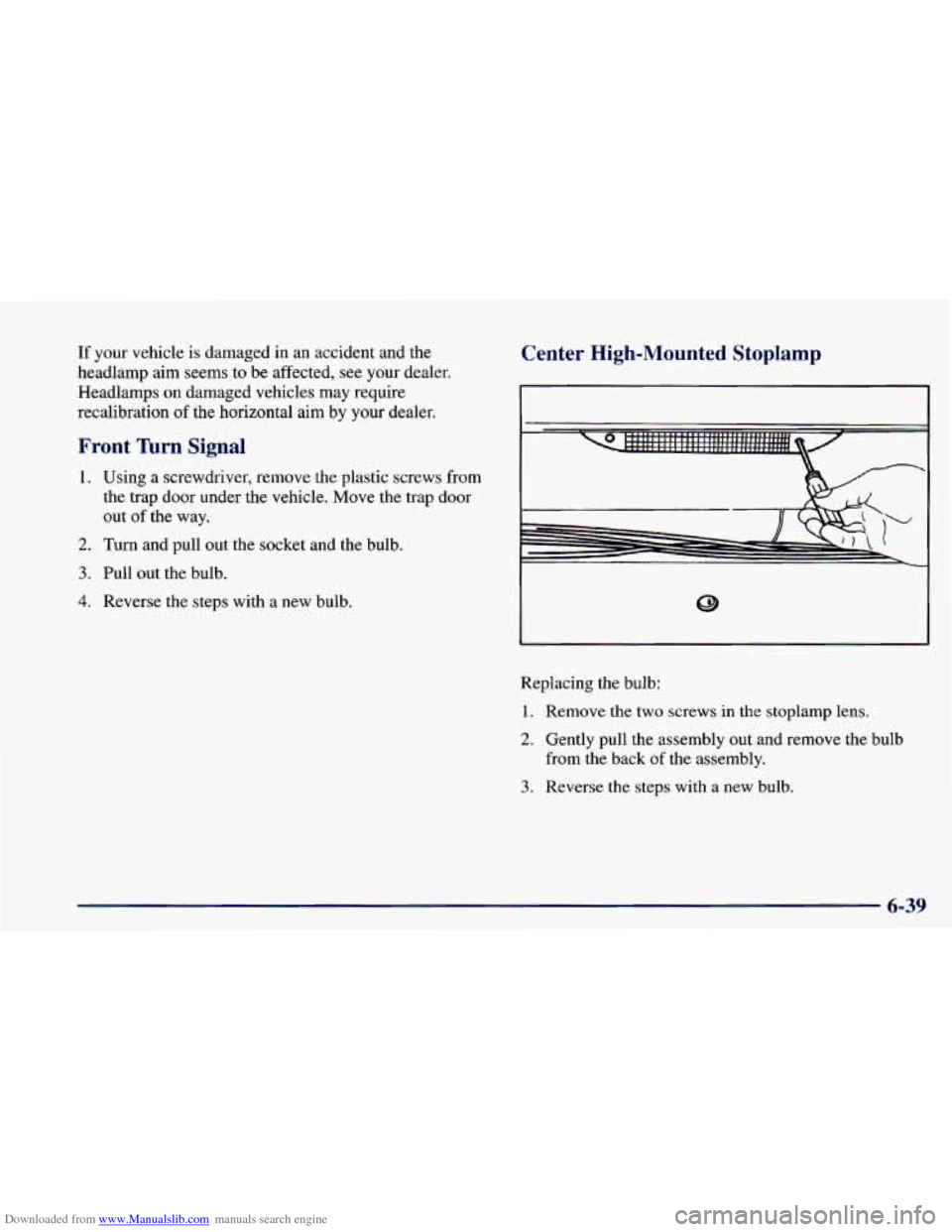

Downloaded from www.Manualslib.com manuals search engine If your vehicle is damaged in an accident and the
headlamp aim
seems to be affected, see your dealer.
Headlamps on damaged vehicles may require
recalibration
of the horizontal aim by your dealer.
Front Turn Signal
1. Using a screwdriver, remove the plastic screws from
the trap door under the vehicle. Move the trap door
out
of the way.
2. Turn and pull out the socket and the bulb.
3. Pull out the bulb.
4. Reverse the steps with a new bulb.
Center High-Mounted Stoplamp
8
Replacing the bulb:
1. Remove the two screws in the stoplamp lens.
2. Gently pull the assembly out and remove the bulb
from the back
of the assembly.
3. Reverse the steps with a new bulb.
6-39

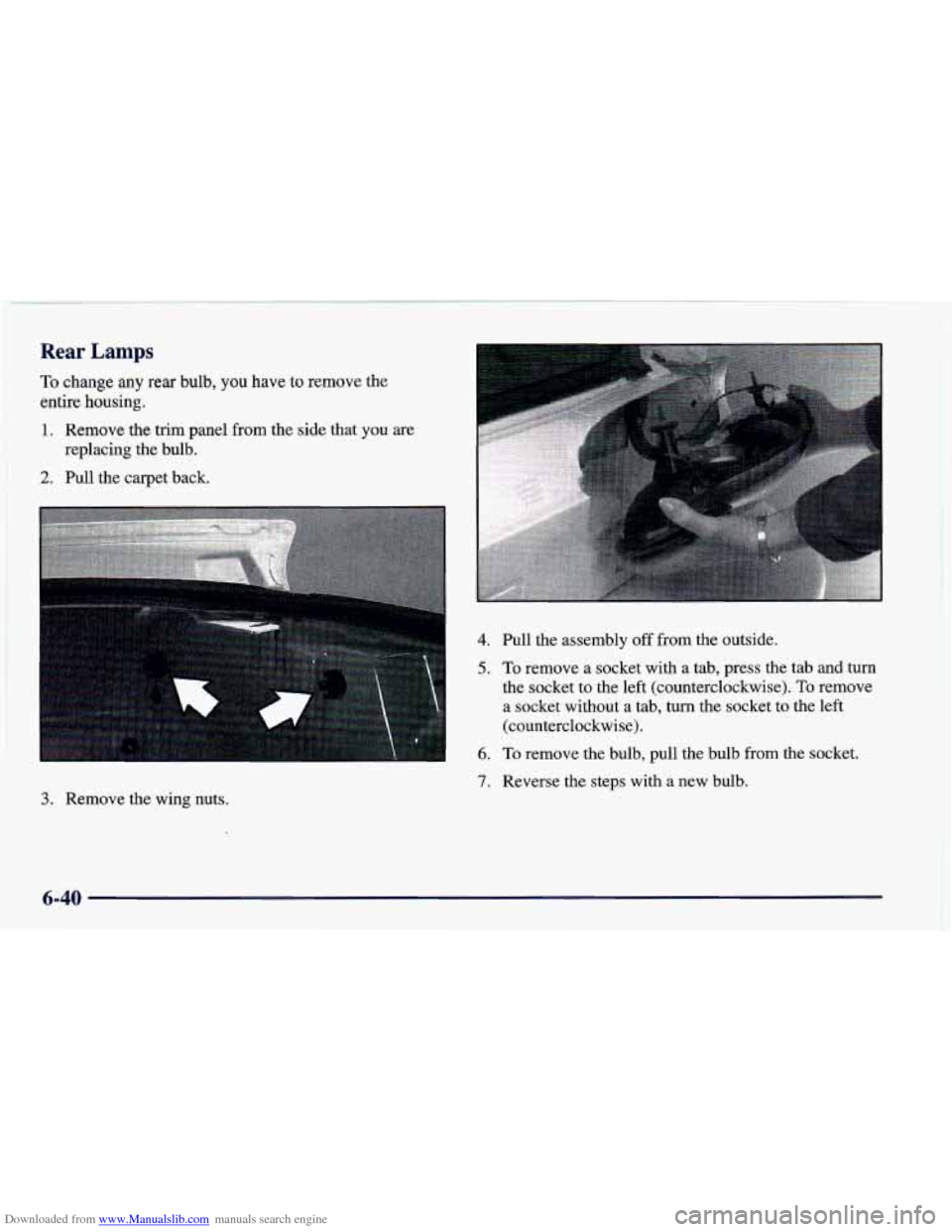

Downloaded from www.Manualslib.com manuals search engine Rear Lamps
To change any rear bulb, you have to remove the
entire housing.
1. Remove the trim panel from the side that you are
replacing the bulb.
2. Pull the carpet back.
4. Pull the assembly off from the outside.
5. To remove a socket with a tab, press the tab and turn
the socket to the left (counterclockwise).
To remove
a socket without a tab, turn the socket to the left
(counterclockwise).
6. To remove the bulb, pull the bulb from the socket.
7. Reverse the steps with a new bulb.
3. Remove the wing nuts.
6-40

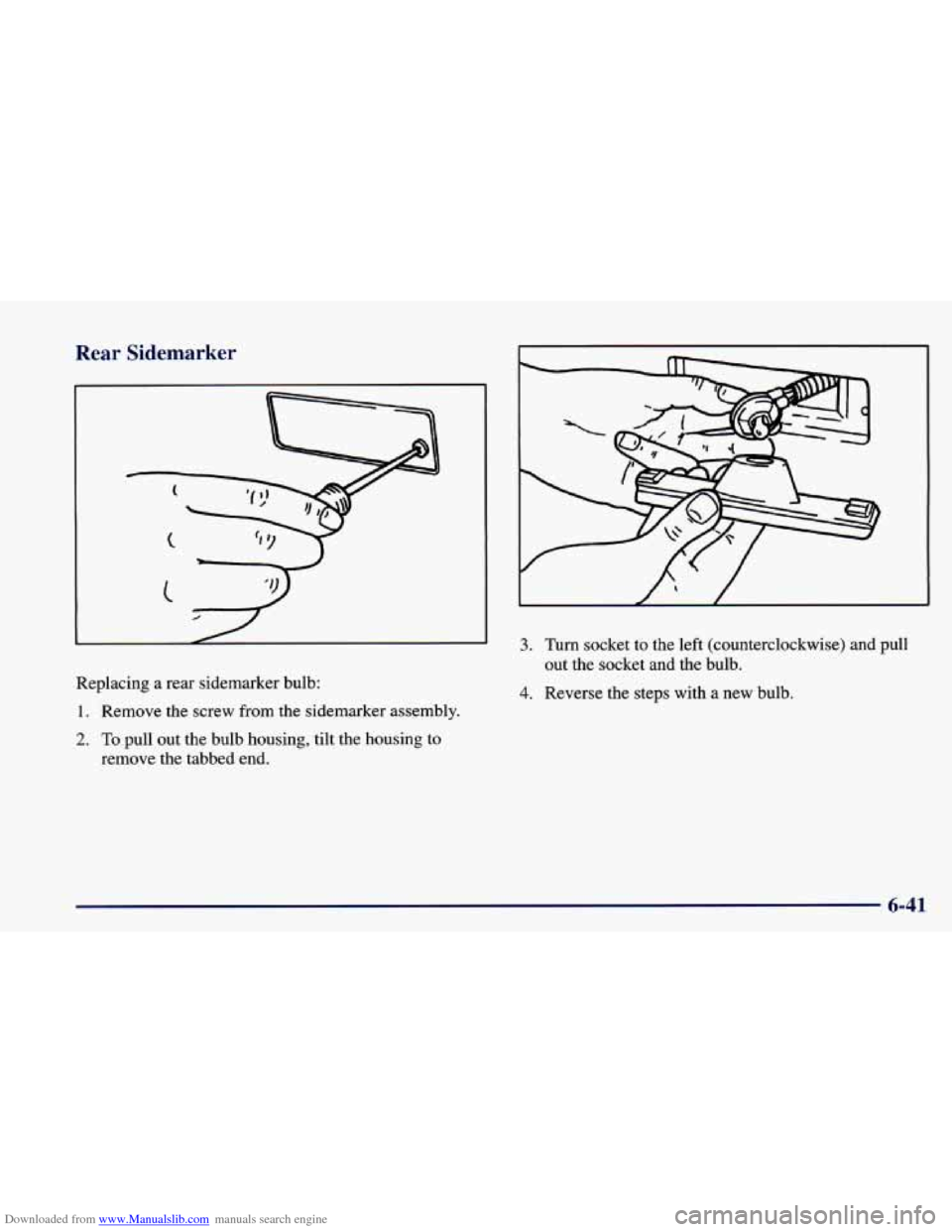

Downloaded from www.Manualslib.com manuals search engine Rear Sid marker
Replacing a rear sidemarker bulb:
1. Remove the screw from the sidemarker assembly.
2. To pull out the bulb housing, tilt the housing to
remove the tabbed
end.
I
3. Turn socket to the left (counterclockwise) and pull
out the socket
and the bulb.
4. Reverse the steps with a new bulb,
6-41

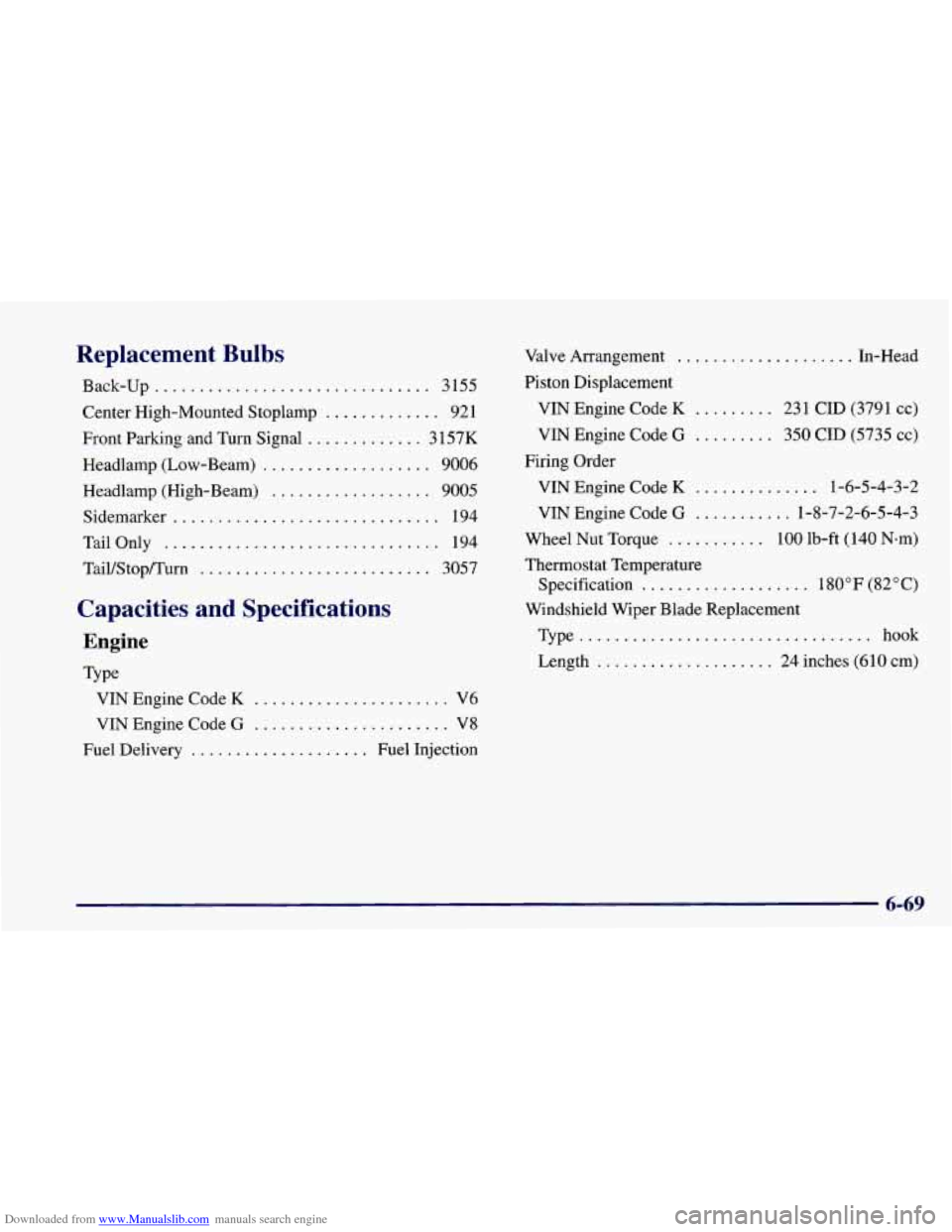

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Back-up ............................... 3155
Center High-Mounted Stoplamp
............. 92 1
Front Parking and Turn Signal
............. 3157K
Headlamp (Low-Beam)
................... 9006
Headlamp (High-Beam) .................. 9005
Sidemarker
.............................. 194
Tail Only
............................... 194
Tail/Stop/Turn
.......................... 3057
Capacities and Specifications
Engine
Type VIN Engine Code
K ...................... V6
VIN Engine Code
G ...................... V8
Fuel Delivery .................... Fuel Injection Valve
Arrangement
.................... In-Head
Piston Displacement
VIN Engine Code
K ......... 23 1 CID (3791 cc)
VIN Engine Code
G ......... 350 CID (5735 cc)
Firing Order
VIN Engine Code
K .............. 1-6-5-4-3-2
VIN Engine Code
G ........... 1-8-7-2-6-5-4-3
Wheel Nut Torque
........... 100 lb-ft (140 Nnm)
Thermostat Temperature
Specification
................... 180°F (82°C)
Windshield Wiper Blade Replacement
Type
................................. hook
Length
.................... 24 inches (610 cm)

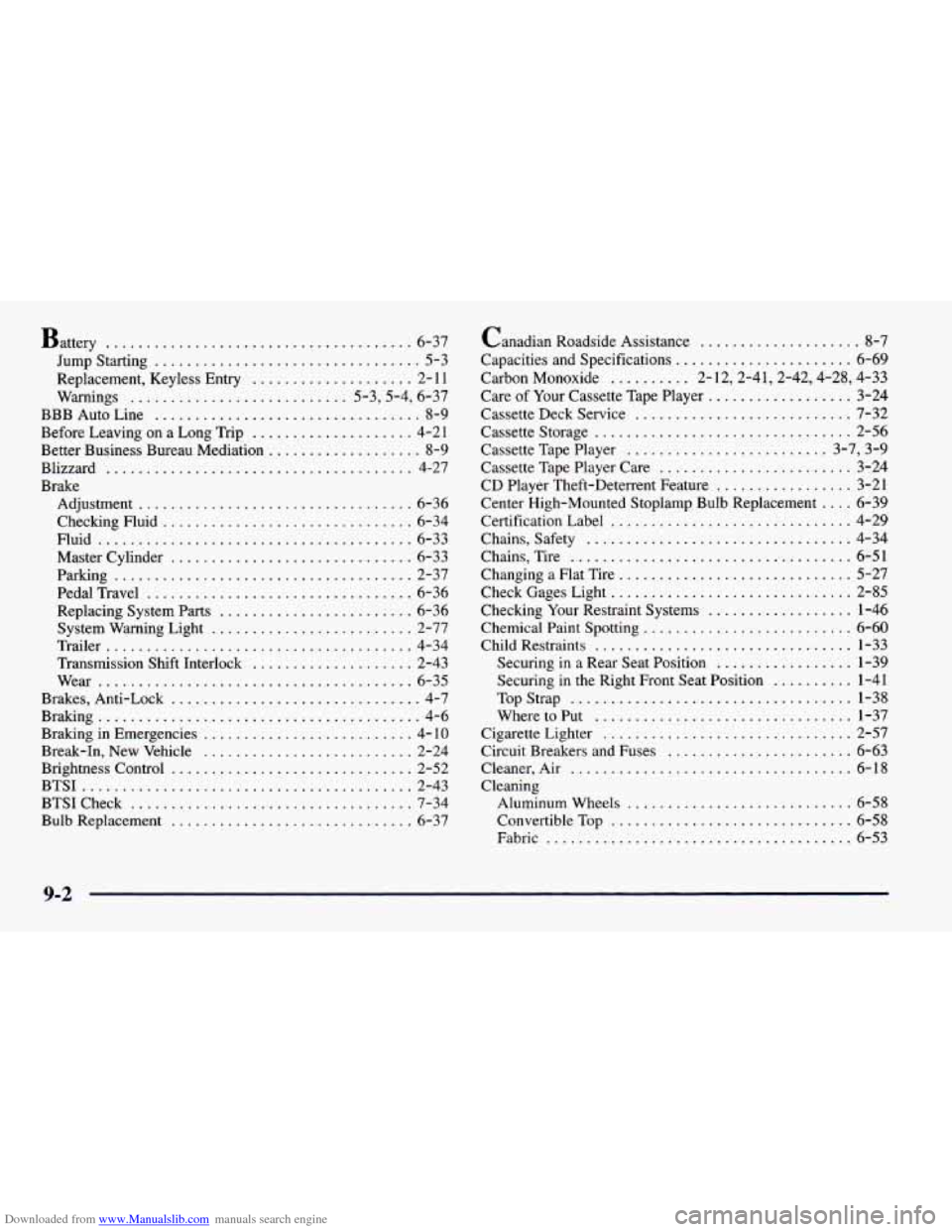

Downloaded from www.Manualslib.com manuals search engine Battery ...................................... 6-37
Jump Starting
................................. 5-3
Replacement. Keyless Entry .................... 2- 11
Warnings
........................... 5.3.5.4. 6.37
BBB Auto Line
................................. 8-9
Before Leaving on a Long Trip
.................... 4-21
Better Business Bureau Mediation
................... 8-9
Blizzard
...................................... 4-27
Brake Adjustment
.................................. 6-36
Checking Fluid
............................... 6-34
Fluid
....................................... 6-33
Master Cylinder
.............................. 6-33
Parking
..................................... 2-37
Pedal Travel
................................. 6-36
Replacing System Parts
........................ 6-36
System Warning Light
......................... 2-77
Trailer
...................................... 4-34
Transmission Shift Interlock
.................... 2-43
Wear
....................................... 6-35
Brakes. Anti-Lock
............................... 4-7
Braking
........................................ 4-6
Braking
in Emergencies .......................... 4- 10
Break-In. New Vehicle
.......................... 2-24
Brightness Control
.............................. 2-52
BTSICheck
................................... 7-34
Bulb Replacement
.............................. 6-37
BTSI
......................................... 2-43 Canadian
Roadside Assistance
.................... 8-7
Capacities and Specifications
...................... 6-69
Carbon Monoxide
.......... 2.12.2.41.2.42.4.28. 4.33
Cassette Deck Service
........................... 7-32
Cassette Storage
................................ 2-56
Cassette Tape Player
......................... 3.7. 3.9
Care
of
Your Cassette Tape Player .................. 3-24
Cassette Tape Player Care
........................ 3-24
CD Player Theft-Deterrent Feature
................. 3-21
Center High-Mounted Stoplamp Bulb Replacement
.... 6-39
Certification Label
.............................. 4-29
Chains. Safety
................................. 4-34
Chains. Tire
................................... 6-51
Changing a Flat Tire
............................. 5-27
Check Gages Light
.............................. 2-85
Checking Your Restraint Systems
.................. 1-46
Chemical Paint Spotting
.......................... 6-60
Child Restraints
................................ 1-33
Securing
in a Rear Seat Position ................. 1-39
Securing in the Right Front Seat Position
.......... 1-41
WheretoPut
................................ 1-37
Cigarette Lighter
............................... 2-57
Circuit Breakers and Fuses
....................... 6-63
Cleaner. Air
................................... 6-18
Cleaning
Aluminurnwheels
............................ 6-58
Convertible Top
.............................. 6-58
Fabric
...................................... 6-53
TopStrap
................................... 1-38
9-2
