fuel pump CHEVROLET CAMARO 1998 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Check Gages Light
CHECK
GAGES
This warning light will
come on briefly when you
are starting the engine.
If the light comes on and stays on while you are driving,
check your gages to see if they are in the warning areas.
Fuel Gage
Your fuel gage shows about
how much fuel is in your
tank. The fuel gage works
only when the ignition is
in the
RUN.
When the gage pointer first indicates empty (E) you still
have a little fuel left (about one to two gallons)
(3.8 to
7.6 litres), but you need to get more fuel right away.
Here are four concerns some owners have had about the
fuel gage. All these situations are normal and do not
indicate that anything
is wrong with the fuel gage.
0 At the gas station, the gas pump shuts off before the
gage reads full
(F).
0 It takes more (or less) gas to fill up than the gage
reads. For example, the gage reads half full, but it
took more (or less) than half of the tank’s capacity to
fill it.
0 The gage moves a little when you turn, stop or
speed up.
0 When you turn the engine off, the gage doesn’t go
back to empty (E).
2-85

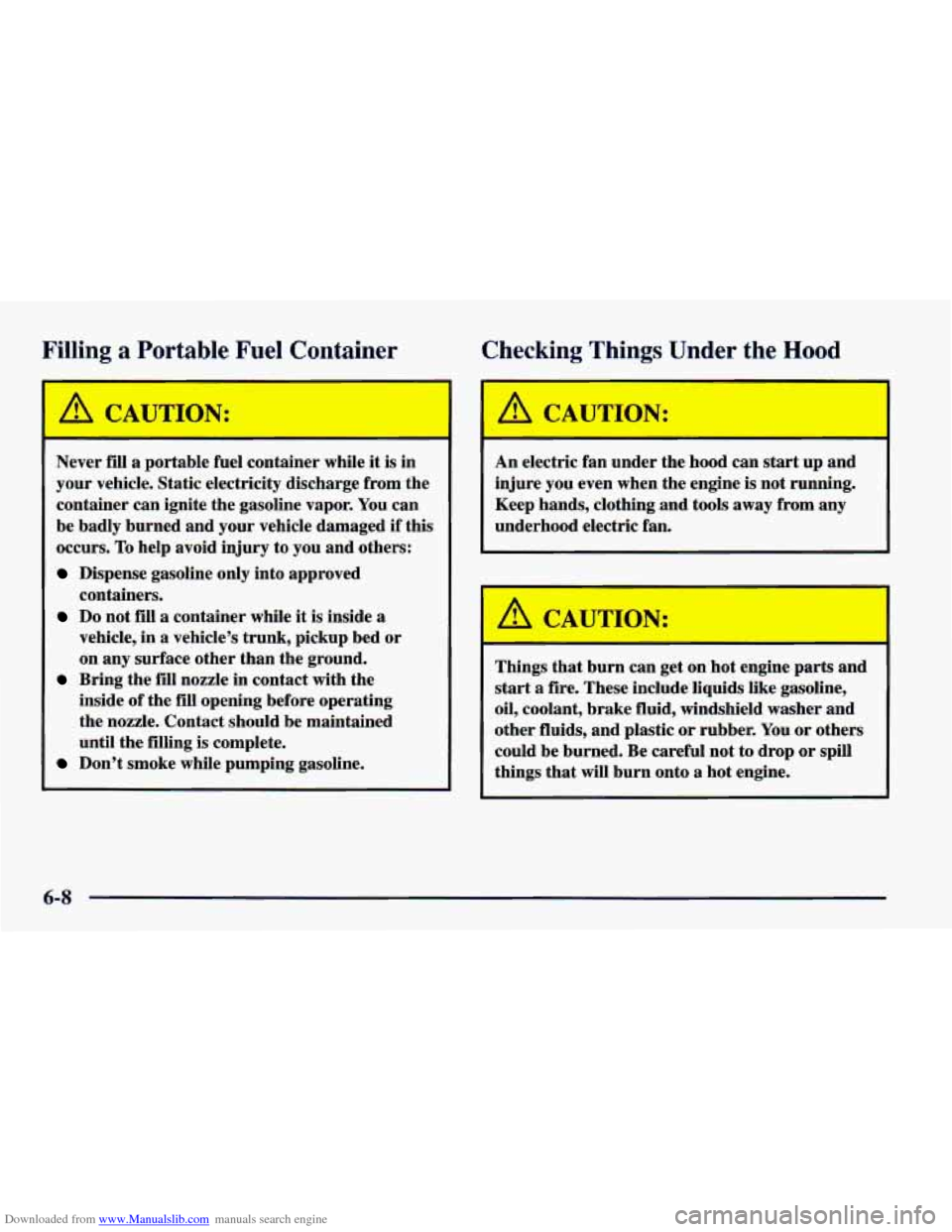

Downloaded from www.Manualslib.com manuals search engine Filling a Portable Fuel Container Checking Things Under the Hood
A CAUTION:
Never fill a portable fuel container while it is in
your vehicle. Static electricity discharge from the
container can ignite the gasoline vapor. You can
be badly burned and your vehicle damaged
if this
occurs.
To help avoid injury to you and others:
Dispense gasoline only into approved
containers.
Do not fill a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed or
on any surface other than the ground.
inside of the fill opening before operating
the nozzle. Contact should be maintained
until the filling is complete.
Bring the fill nozzle in contact with the
Don’t smoke while pumping gasoline.
A CAUTION: I
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
U
Things that burn can get on hot engine parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake
fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop or spill
things that will burn onto
a hot engine.
6-8

Downloaded from www.Manualslib.com manuals search engine Underhood Electrical Center Fuses
ABS BAT SOL TCS BAT COOL FAN
000
PCM BAT FUEL PUMP AIR PUMP
LH HOW OR RH HDLP DR HORN
r
FAN $43 1L
1
15305529 A
The two underhood fuse and relay centers are located
in the engine compartment. Open the cover to expose
the fuses.
Fuse
ABS BAT SOL
TCS BAT
COOL FAN
PCM BAT
FUEL PUMP
AIR PUMP
--- 1
-
Fuse and Relay Center 1
Usage
Anti-Lock Brake System
Traction Control System
Cooling Fan Control
Powertrain Control Module
Fuel Pump
Air Pump Relay and Bleed Valve
6-66

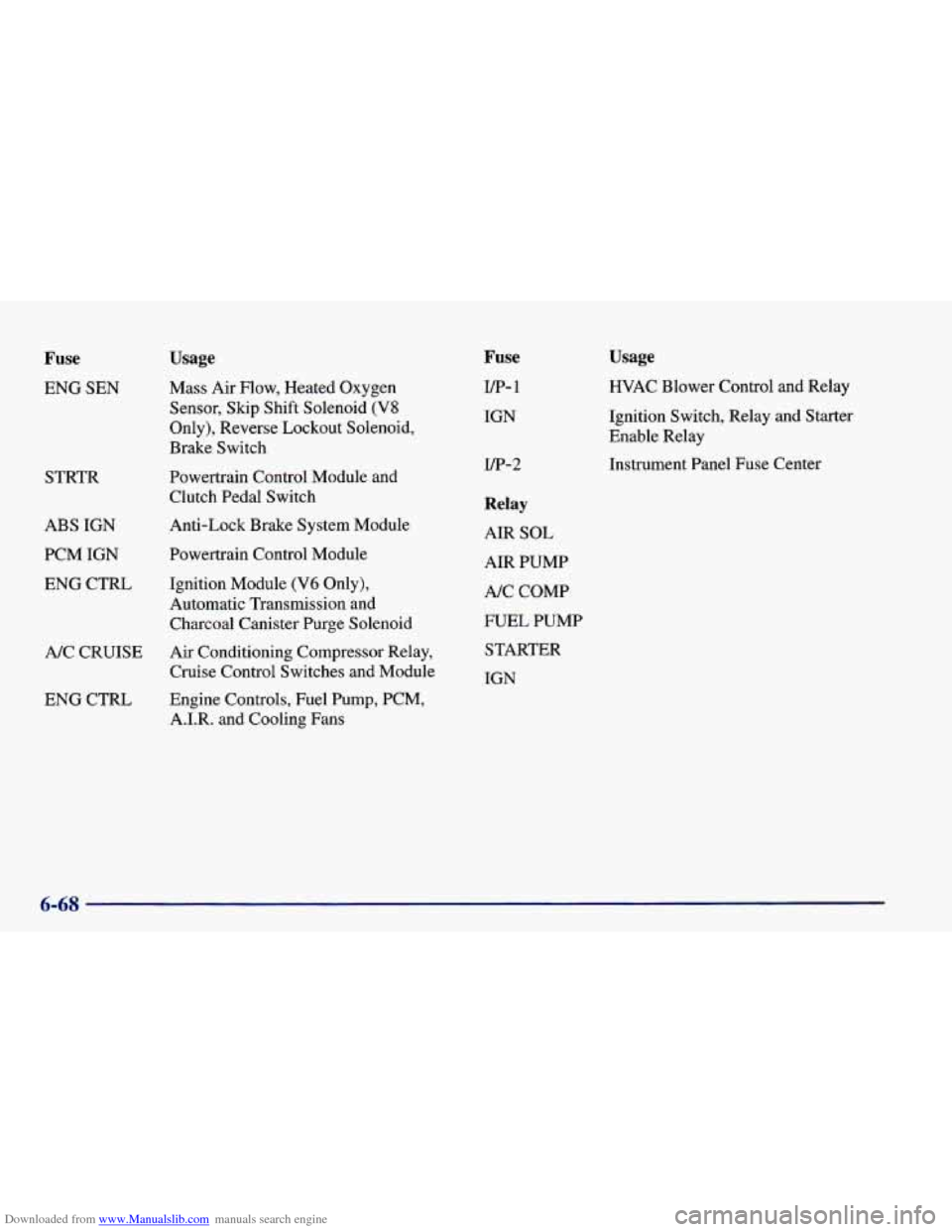

Downloaded from www.Manualslib.com manuals search engine Fuse
ENG SEN
STRTR
ABS IGN PCM IGN
ENG CTRL
Usage
Mass Air Flow, Heated Oxygen
Sensor, Skip Shift Solenoid
(V8
Only), Reverse Lockout Solenoid,
Brake Switch
Powertrain Control Module and
Clutch Pedal Switch
Anti-Lock Brake System Module
Powertrain Control Module
Ignition Module (V6 Only),
Automatic Transmission and
Charcoal Canister Purge Solenoid
A/C CRUISE Air Conditioning Compressor Relay,
Cruise Control Switches and Module
ENG CTRL Engine Controls, Fuel Pump, PCM,
A.I.R. and Cooling Fans
Fuse
I/P- 1
IGN
UP- 2
Relay
AIR SOL
AIR PUMP
A/C COMP
FUEL PUMP STARTER
IGN
Usage
HVAC Blower Control and Relay
Ignition Switch, Relay and Starter
Enable Relay
Instrument Panel Fuse Center
