CHEVROLET CAMARO 2001 4.G Repair Manual

2-3 Power Windows (Option)
Switches on the driver's door control each window
when the ignition is on or when Retained Accessory
Power (RAP) is active. (See ªRetained Accessory
Powerº in the Index.)The switch for the driver's window has an express
-down
feature and is labeled AUTO. To lower the driver's
window completely, press the bottom of the switch and
release it after a second. To open the window partially,
activate the express
-down feature and press the top of
the switch when the window has lowered to the position
you want.
You can open the passenger's window any amount by
pressing the bottom of the switch for the passenger's
window and releasing it when the window has lowered
to the position you want.
To raise the window, press and hold the top of the switch.

2-4

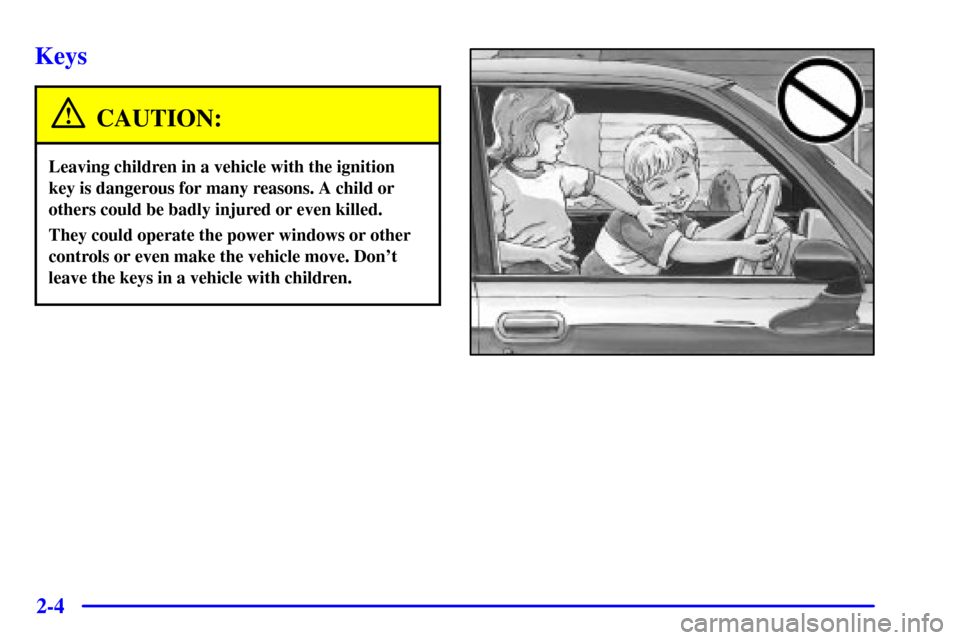

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. Don't
leave the keys in a vehicle with children.

2-5
This key is for the
ignition only.
This key is for the doors
and all other locks.
When a new vehicle is delivered, the dealer removes the
bar
-coded plugs from the door keys and gives them to
the first owner.However, the ignition keys don't have plugs. Instead,
they have bar
-coded key tags. These tags may be
removed by your dealer or even before the vehicle is
delivered to your dealer.
Each door key plug has a code on it that tells your
dealer or a qualified locksmith how to make extra door
keys. Keep the plugs in a safe place. If you lose your
door keys, you'll be able to have new ones made using
these plugs.
If you need a new ignition key, contact your dealer who
can obtain the correct key code. In an emergency, call
Chevrolet Roadside Assistance. See ªRoadside
Assistanceº in the Index for more information.
NOTICE:
Your vehicle has a number of features that can
help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.

2-6

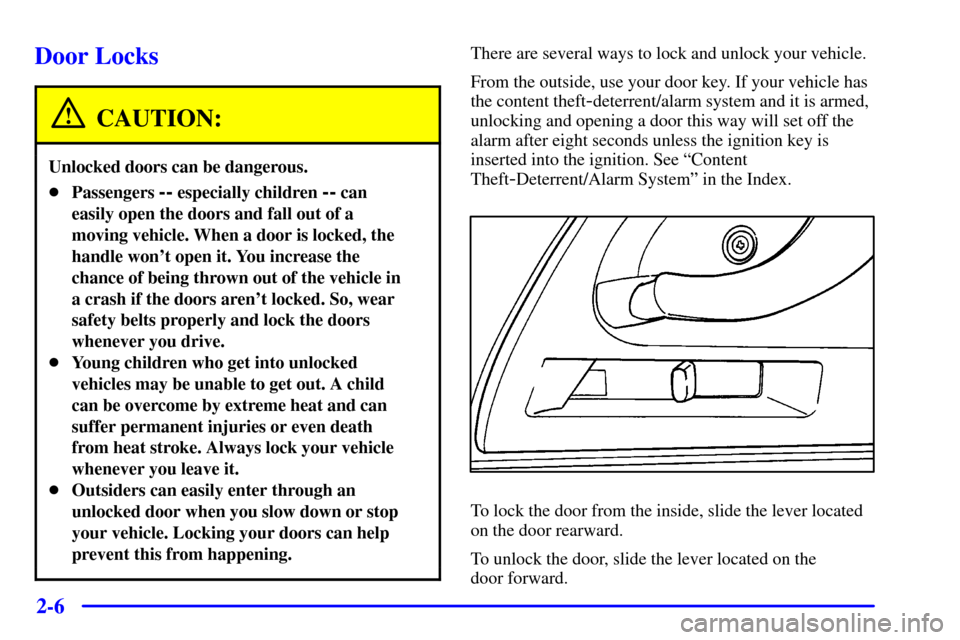

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key. If your vehicle has
the content theft
-deterrent/alarm system and it is armed,
unlocking and opening a door this way will set off the
alarm after eight seconds unless the ignition key is
inserted into the ignition. See ªContent
Theft
-Deterrent/Alarm Systemº in the Index.
To lock the door from the inside, slide the lever located
on the door rearward.
To unlock the door, slide the lever located on the
door forward.

2-7 Power Door Locks (Option)
Press the power door lock switch located on the driver's
door to lock or unlock both doors at once.
The power door lock switch works at all times, except
when lockout prevention (if equipped) is programmed.
The unlock switch only works when the ignition is in
RUN, ACC or when Retained Accessory Power (RAP)
is active. See ªRetained Accessory Power (RAP)º in
the Index.
Operating the power locks may affect the content
theft
-deterrent/alarm system (option). See ªContent
Theft
-Deterrent /Alarm Systemº in the Index.
Last Door Closed Locking (If Equipped)
If you have power door locks, you can program your
vehicle to delay locking the doors. This lets you or your
passengers exit the vehicle after you've pressed the
power door lock switch. All of the doors will lock once
everyone has gotten out of the vehicle and the doors
are closed.
When the power door lock switch is pressed, a chime
will sound three times, indicating that the last door
closed locking feature has been activated. Pressing the
power door lock switch again will lock the doors
immediately. Pressing the unlock switch will cancel a
previously requested last door closed locking.
Your vehicle is shipped from the factory with this
feature off. To turn this feature on, see ªFeature
Customizationº in the Index.

2-8 Lockout Prevention (If Equipped)
To protect you from locking your keys in the vehicle,
this feature stops the power door locks from locking
when the keys are in the ignition and a door is open.
If the power lock switch is pressed when a door is open,
a chime will sound five times as a reminder to take the
keys out of the ignition before locking the door.
The vehicle is shipped from the factory with this feature
turned on. If you would like to turn this feature off, see
ªFeature Customizationº in the Index.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Keyless Entry System (Option)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.

2-9
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left
or right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-10 Operation
The driver's door will unlock automatically when UNLOCK
is pressed on the transmitter. If UNLOCK is pressed again
within five seconds, the passenger's door will also unlock.
All doors will lock when LOCK is pressed.
The hatch will unlock when the REAR 2X button on
the transmitter is pressed twice within five seconds
(pause slightly between presses) and as long as the
ignition is turned to OFF. If the ignition is on, the
REAR 2X button will only work if the transmission is
in PARK (P) for an automatic transmission, or if the
parking brake is set on a manual transmission.
The system will turn on the interior lamps for about
40 seconds (or until the ignition is turned to RUN),
when you unlock the doors or hatch. The interior lamps
will go off when you lock the doors.
Operating the remote keyless entry transmitter may
interact with the content theft
-deterrent/alarm
system (option). See ªContent Theft
-Deterrent/Alarm
Systemº in the Index.Alarm/Panic Mode
If you are involved in a panic situation, press the horn
symbol button on your remote keyless entry transmitter
and the horn will sound and the parking lamps will
flash. This will draw needed attention to you and your
vehicle. To turn this feature off, either push the horn
symbol button again or turn the ignition key to RUN.
This feature will not work if your ignition is on or if
the transmitter is 30 feet (9 m) or more away from
your vehicle.
Transmitter Verification (If Equipped)
This feature provides feedback to the holder of the
remote keyless entry transmitter that a command has been
received by the keyless entry receiver. The parking lamps
will flash on every lock and unlock command and the
horn will sound only if the LOCK button is pressed twice
within five seconds. This allows for silent operation of
locking and unlocking, unless a confirming horn chirp is
desired. Other options may be selected for this feature
(see ªFeature Customizationº in the Index).

2-11 Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
Have each transmitter you intend to match ready for the
next steps. To match transmitters to your vehicle, do
the following:
1. Turn the ignition key to RUN, then to OFF.
This will disarm the content theft
-deterrent/alarm
system (option).
2. Remove the RADIO fuse. This fuse is located in the
main fuse block which is located on the left side of
your instrument panel. See ªFuses and Circuit
Breakersº in the Index.3. Turn the ignition key from OFF to RUN three times
quickly (within five seconds). The vehicle will respond
by locking the doors, unlocking the driver's door and
releasing the hatch. Your transmitter is now ready to
match the vehicle. Leave the ignition in RUN.
4. Press and hold the LOCK and UNLOCK buttons on
the first transmitter for 15 seconds. The vehicle will
respond as in Step 3.
5. Repeat Step 4 for the remaining transmitters.
6. When you have finished matching all of your
transmitters, replace the RADIO fuse.
7. Check that all transmitters work by pressing
the buttons.
If the transmitters don't work, or if you'd rather not
match the transmitters yourself, see your dealer.

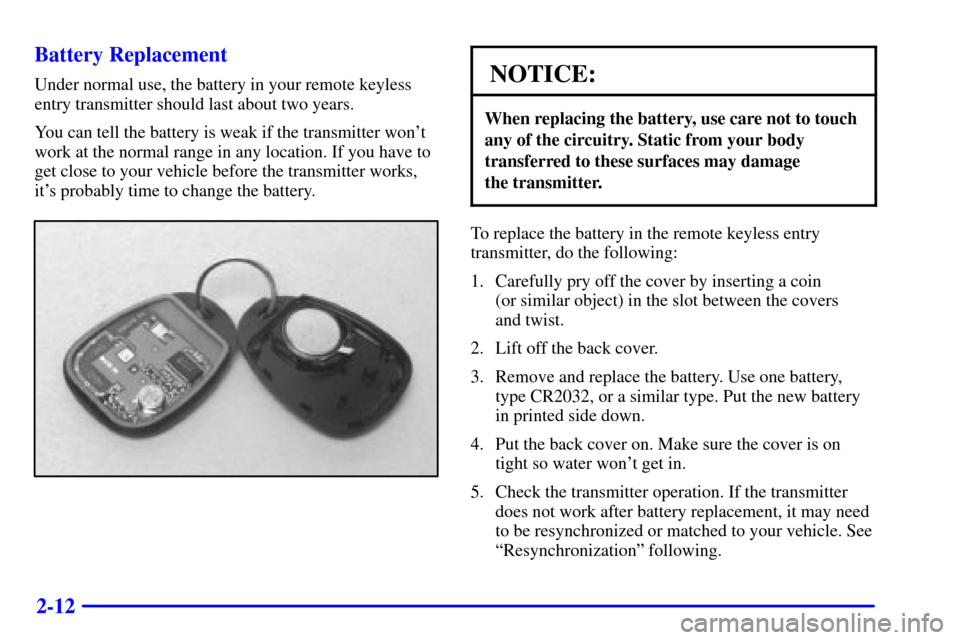

2-12 Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
To replace the battery in the remote keyless entry
transmitter, do the following:
1. Carefully pry off the cover by inserting a coin
(or similar object) in the slot between the covers
and twist.
2. Lift off the back cover.
3. Remove and replace the battery. Use one battery,
type CR2032, or a similar type. Put the new battery
in printed side down.
4. Put the back cover on. Make sure the cover is on
tight so water won't get in.
5. Check the transmitter operation. If the transmitter
does not work after battery replacement, it may need
to be resynchronized or matched to your vehicle. See
ªResynchronizationº following.
