1-45

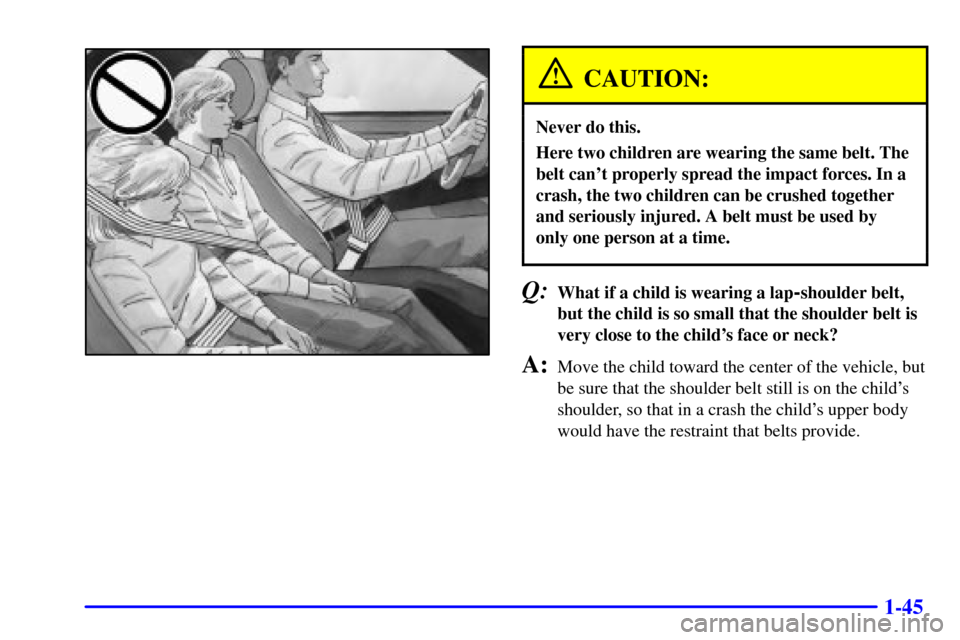

CAUTION:
Never do this.
Here two children are wearing the same belt. The
belt can't properly spread the impact forces. In a
crash, the two children can be crushed together
and seriously injured. A belt must be used by
only one person at a time.
Q:What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt is
very close to the child's face or neck?
A:Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child's
shoulder, so that in a crash the child's upper body
would have the restraint that belts provide.

1-46
CAUTION:
Never do this.
Here a child is sitting in a seat that has a
lap
-shoulder belt, but the shoulder part is behind
the child. If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt's force would then be applied right on the
child's abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should be worn low and snug on the hips, just touching
the child's thighs. This applies belt force to the child's
pelvic bones in a crash.

1-47
Safety Belt Extender
If the vehicle's safety belt will fasten around you, you
should use it.
But if a safety belt isn't long enough to fasten, your
dealer will order you an extender. It's free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don't let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Replacing Restraint System Parts
After a Crash
If you've had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new parts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn't being used at
the time of the collision.
If an air bag inflates, you'll need to replace air bag
system parts. See the part on the air bag system earlier
in this section.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2-4 Keys
2-6 Door Locks
2-8 Keyless Entry System (Option)
2-13 Hatch
2-15 Theft
2-16 Content Theft-Deterrent/Alarm
System (Option)
2
-27 PASS-Key
II
2
-29 New Vehicle ªBreak-Inº
2-29 Ignition Positions
2-32 Starting Your Engine
2-35 Engine Coolant Heater (Canada Only)
2-36 Automatic Transmission Operation
2-39 Manual Transmission Operation
2-44 Parking Brake
2-46 Shifting Into PARK (P)
(Automatic Transmission Only)
2
-48 Shifting Out of PARK (P)
(Automatic Transmission Only)2
-48 Parking Your Vehicle
(Manual Transmission Models Only)
2
-49 Parking Over Things That Burn
2-49 Engine Exhaust
2-50 Running Your Engine While You're Parked
(Automatic Transmission)
2
-51 Limited-Slip Rear Axle
2-51 Tilt Wheel
2-52 Turn Signal/Multifunction Lever
2-58 Exterior Lamps
2-61 Interior Lamps
2-62 Mirrors
2-64 Storage Compartments
2
-68 T-Top Roof Panels (Option)
2
-75 Convertible Top (If Equipped)
2
-82 The Instrument Panel -- Your
Information System
2
-86 Warning Lights, Gages and Indicators

2-2
Windows
CAUTION:
Leaving children in a vehicle with the windows
closed is dangerous. A child can be overcome by
the extreme heat and can suffer permanent
injuries or even death from heat stroke. Never
leave a child alone in a vehicle, especially with the
windows closed in warm or hot weather.
Manual Windows
Turn the window crank handle to open and close
each window.

2-3

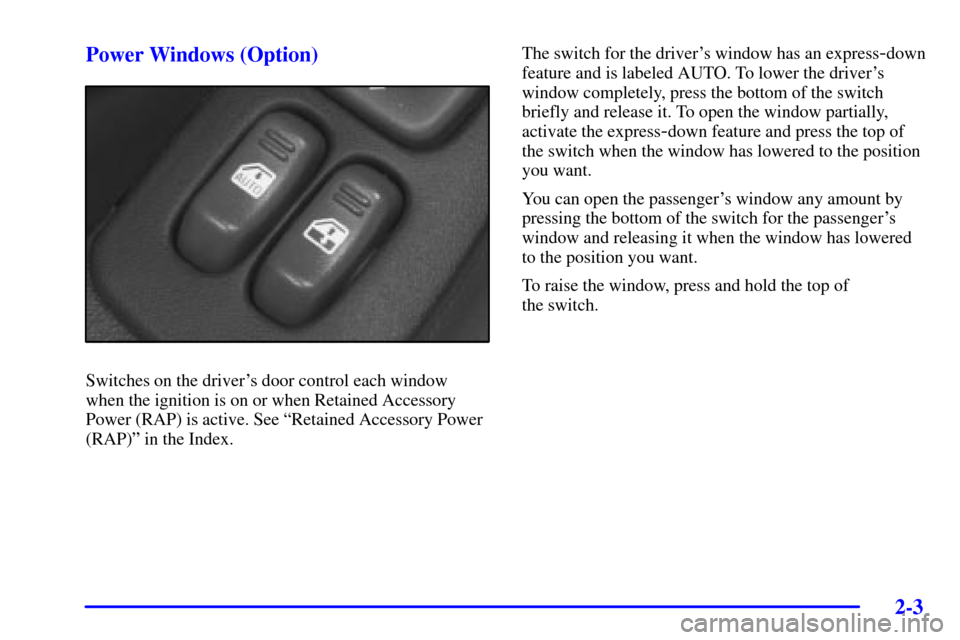

Power Windows (Option)
Switches on the driver's door control each window
when the ignition is on or when Retained Accessory
Power (RAP) is active. See ªRetained Accessory Power
(RAP)º in the Index.The switch for the driver's window has an express
-down
feature and is labeled AUTO. To lower the driver's
window completely, press the bottom of the switch
briefly and release it. To open the window partially,
activate the express
-down feature and press the top of
the switch when the window has lowered to the position
you want.
You can open the passenger's window any amount by
pressing the bottom of the switch for the passenger's
window and releasing it when the window has lowered
to the position you want.
To raise the window, press and hold the top of
the switch.

2-4
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.

2-5
This key is for the
ignition only.
This key is for the doors
and all other locks.
When a new vehicle is delivered, the dealer removes the
bar
-coded plugs from the door keys and gives them to
the first owner.However, the ignition keys don't have plugs. Instead,
they have bar
-coded key tags. These tags may be
removed by your dealer or even before the vehicle is
delivered to your dealer.
Each door key plug has a code on it that tells your dealer
or a qualified locksmith how to make extra door keys.
Keep the plugs in a safe place. If you lose your door
keys, you'll be able to have new ones made using
these plugs.
If you need a new ignition key, contact your dealer who
can obtain the correct key code. In an emergency, call
Chevrolet Roadside Assistance. See ªRoadside
Assistanceº in the Index for more information.
NOTICE:
Your vehicle has a number of features that can
help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.

2-6

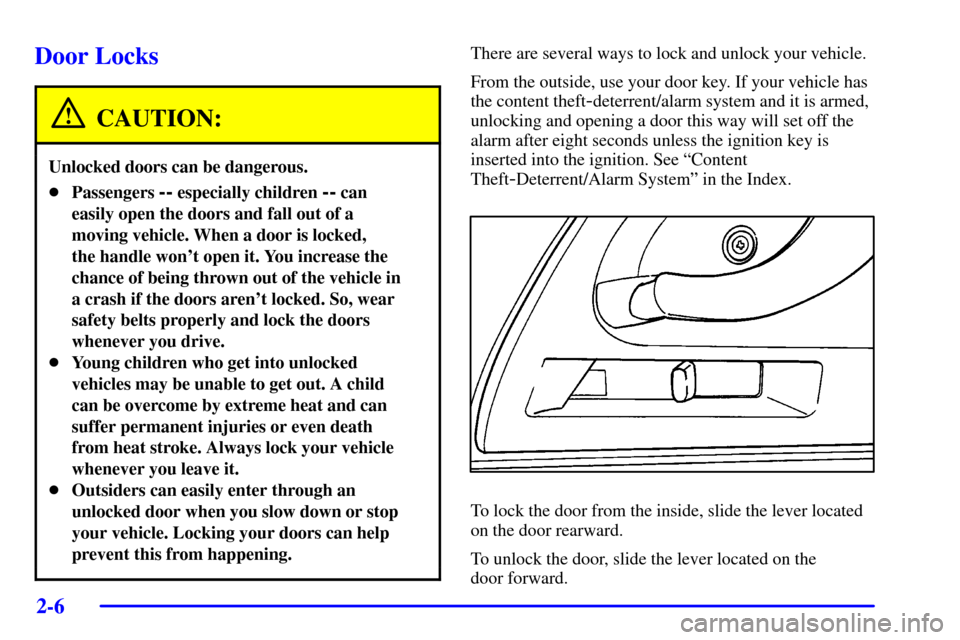

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key. If your vehicle has
the content theft
-deterrent/alarm system and it is armed,
unlocking and opening a door this way will set off the
alarm after eight seconds unless the ignition key is
inserted into the ignition. See ªContent
Theft
-Deterrent/Alarm Systemº in the Index.
To lock the door from the inside, slide the lever located
on the door rearward.
To unlock the door, slide the lever located on the
door forward.

2-7
Power Door Locks (Option)
Press the power door lock switch located on the driver's
door to lock or unlock both doors at once.
The power door lock switch works at all times, except
when lockout prevention (if equipped) is programmed.
The unlock switch only works when the ignition is in
RUN, ACCESSORY or when Retained Accessory
Power (RAP) is active. See ªRetained Accessory
Power (RAP)º in the Index.Operating the power locks may affect the content
theft
-deterrent/alarm system (option). See ªContent
Theft
-Deterrent /Alarm Systemº in the Index.
Last Door Closed Locking
If you have power door locks, you can program your
vehicle to delay locking the doors. This lets you or your
passengers exit the vehicle after you've pressed the
power door lock switch. All of the doors will lock once
everyone has gotten out of the vehicle and the doors
are closed.
When the power door lock switch is pressed, a chime
will sound three times, indicating that the last door
closed locking feature has been activated. Pressing the
power door lock switch again will lock the doors
immediately. Pressing the unlock switch will cancel a
previously requested last door closed locking.
Your vehicle is shipped from the factory with this
feature off. To turn this feature on, see ªFeature
Customizationº in the Index.
