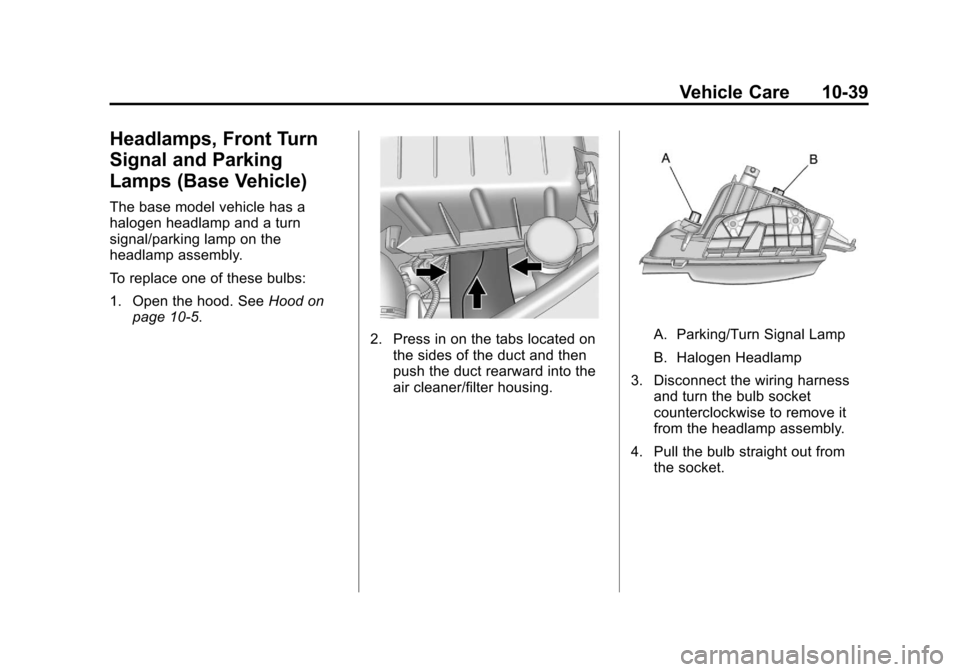

Headlamps, Front Turn
Signal and Parking
Lamps (Base Vehicle)
The base model vehicle has a
halogen headlamp and a turn
signal/parking lamp on the
headlamp assembly.
To replace one of these bulbs:
1. Open the hood. SeeHood on
page 10‑5.
2. Press in on the tabs located on
the sides of the duct and then
push the duct rearward into the
air cleaner/filter housing.A. Parking/Turn Signal Lamp
B. Halogen Headlamp
3. Disconnect the wiring harness and turn the bulb socket
counterclockwise to remove it
from the headlamp assembly.
4. Pull the bulb straight out from the socket.

Black plate (40,1)Chevrolet Camaro Owner Manual - 2011
10-40 Vehicle Care
5. Push the new bulb into thesocket and reinstall the socket
into the headlamp assembly by
turning it clockwise.
6. Reconnect the electrical connector.
7. Pull the duct back out of the air cleaner/filter housing until the
tabs snap the duct back into
position.

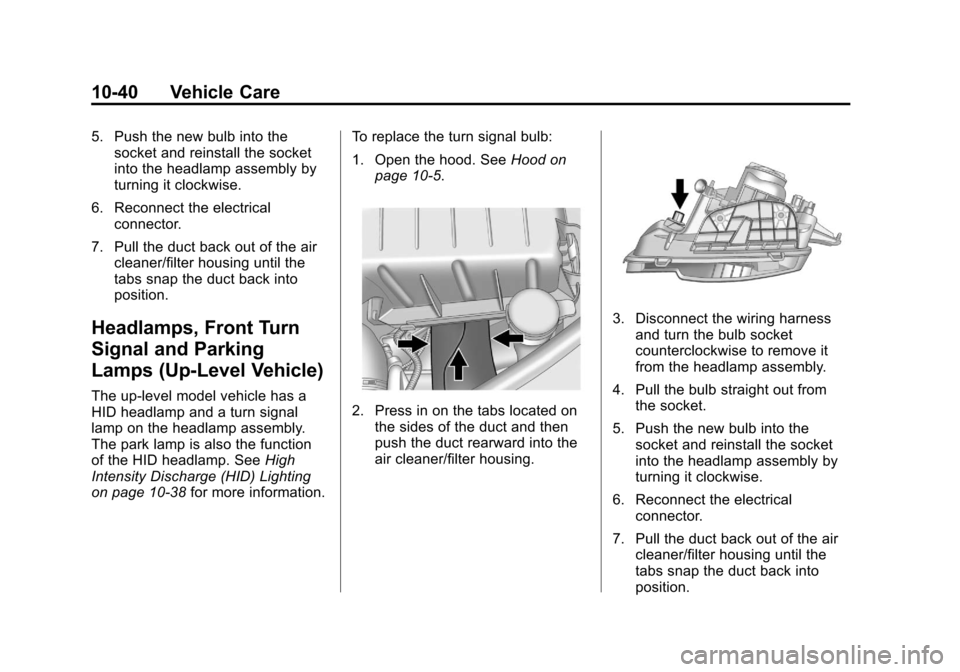

Headlamps, Front Turn
Signal and Parking
Lamps (Up-Level Vehicle)
The up‐level model vehicle has a
HID headlamp and a turn signal
lamp on the headlamp assembly.
The park lamp is also the function
of the HID headlamp. See High
Intensity Discharge (HID) Lighting
on page 10‑38 for more information. To replace the turn signal bulb:
1. Open the hood. See
Hood on
page 10‑5.2. Press in on the tabs located on the sides of the duct and then
push the duct rearward into the
air cleaner/filter housing.
3. Disconnect the wiring harnessand turn the bulb socket
counterclockwise to remove it
from the headlamp assembly.
4. Pull the bulb straight out from the socket.
5. Push the new bulb into the socket and reinstall the socket
into the headlamp assembly by
turning it clockwise.
6. Reconnect the electrical connector.
7. Pull the duct back out of the air cleaner/filter housing until the
tabs snap the duct back into
position.

Black plate (41,1)Chevrolet Camaro Owner Manual - 2011
Vehicle Care 10-41

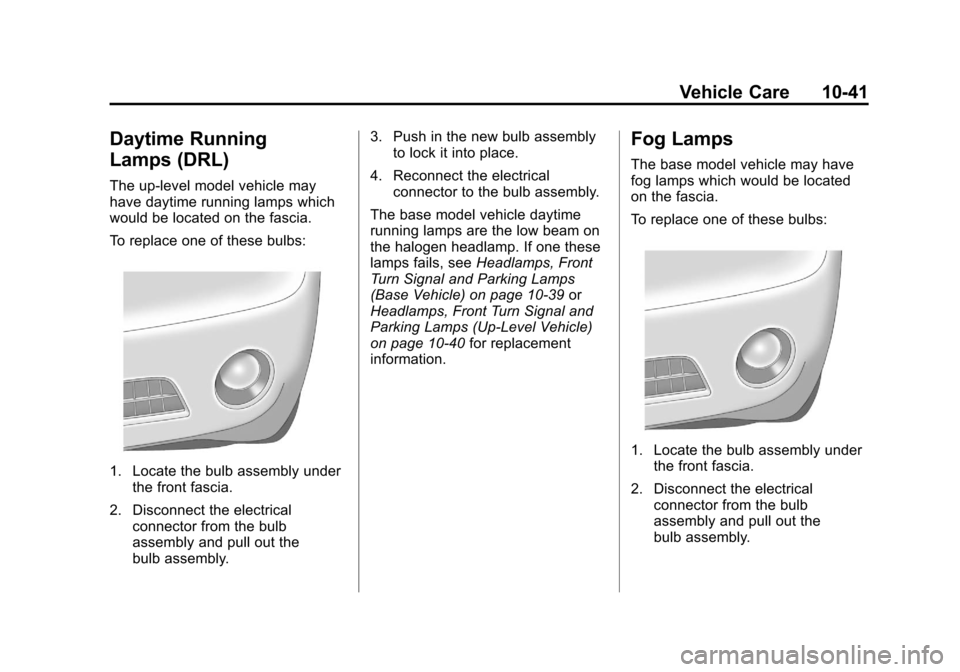

Daytime Running
Lamps (DRL)
The up‐level model vehicle may
have daytime running lamps which
would be located on the fascia.
To replace one of these bulbs:
1. Locate the bulb assembly underthe front fascia.
2. Disconnect the electrical connector from the bulb
assembly and pull out the
bulb assembly. 3. Push in the new bulb assembly
to lock it into place.
4. Reconnect the electrical connector to the bulb assembly.
The base model vehicle daytime
running lamps are the low beam on
the halogen headlamp. If one these
lamps fails, see Headlamps, Front
Turn Signal and Parking Lamps
(Base Vehicle) on page 10‑39 or
Headlamps, Front Turn Signal and
Parking Lamps (Up-Level Vehicle)
on page 10‑40 for replacement
information.
Fog Lamps
The base model vehicle may have
fog lamps which would be located
on the fascia.
To replace one of these bulbs:
1. Locate the bulb assembly under the front fascia.
2. Disconnect the electrical connector from the bulb
assembly and pull out the
bulb assembly.

Black plate (42,1)Chevrolet Camaro Owner Manual - 2011
10-42 Vehicle Care
3. Push in the new bulb assemblyto lock it into place.
4. Reconnect the electrical connector to the bulb assembly.
The up‐level vehicle will not be
equipped with fog lamps.

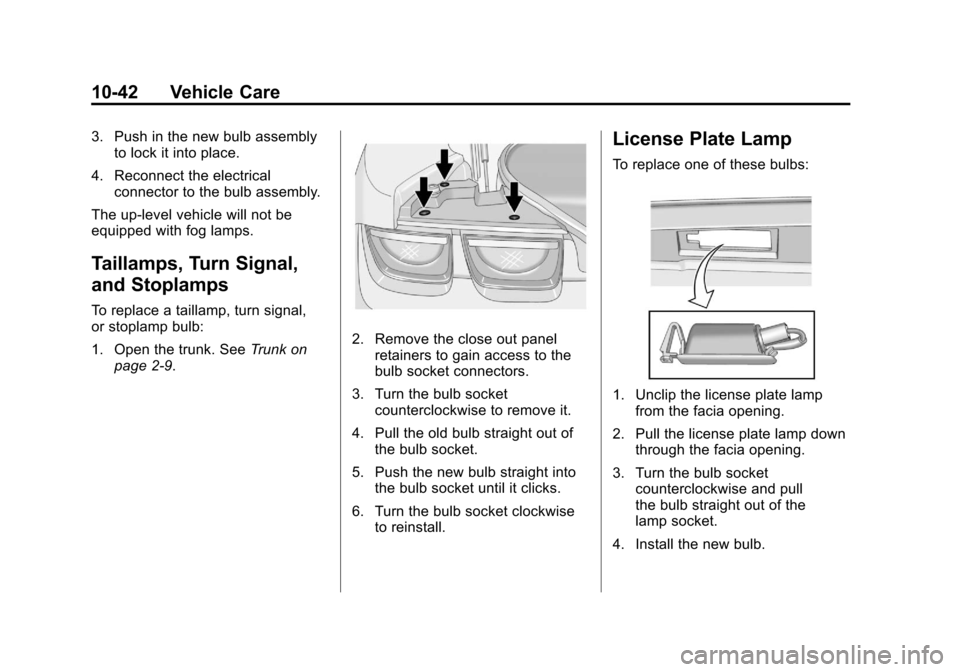

Taillamps, Turn Signal,
and Stoplamps
To replace a taillamp, turn signal,
or stoplamp bulb:
1. Open the trunk. See Trunk on
page 2‑9.
2. Remove the close out panel retainers to gain access to the
bulb socket connectors.
3. Turn the bulb socket counterclockwise to remove it.
4. Pull the old bulb straight out of the bulb socket.
5. Push the new bulb straight into the bulb socket until it clicks.
6. Turn the bulb socket clockwise to reinstall.
License Plate Lamp
To replace one of these bulbs:
1. Unclip the license plate lampfrom the facia opening.
2. Pull the license plate lamp down through the facia opening.
3. Turn the bulb socket counterclockwise and pull
the bulb straight out of the
lamp socket.
4. Install the new bulb.

Black plate (43,1)Chevrolet Camaro Owner Manual - 2011
Vehicle Care 10-43
5. Push the bulb straight into thesocket and turn clockwise to
reinstall.
6. Reinstall the license plate lamp by lifting it through the facia
opening until the clip is in place.

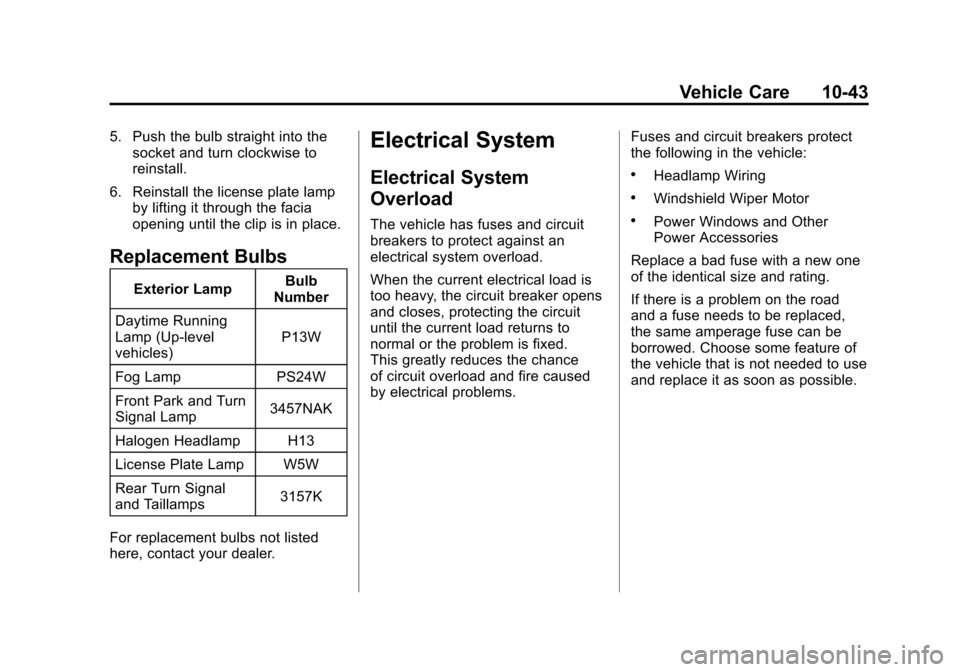

Replacement Bulbs
Exterior Lamp Bulb
Number
Daytime Running
Lamp (Up-level
vehicles) P13W
Fog Lamp PS24W
Front Park and Turn
Signal Lamp 3457NAK
Halogen Headlamp H13
License Plate Lamp W5W
Rear Turn Signal
and Taillamps 3157K
For replacement bulbs not listed
here, contact your dealer.
Electrical System
Electrical System
Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is
too heavy, the circuit breaker opens
and closes, protecting the circuit
until the current load returns to
normal or the problem is fixed.
This greatly reduces the chance
of circuit overload and fire caused
by electrical problems. Fuses and circuit breakers protect
the following in the vehicle:
.Headlamp Wiring
.Windshield Wiper Motor
.Power Windows and Other
Power Accessories
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road
and a fuse needs to be replaced,
the same amperage fuse can be
borrowed. Choose some feature of
the vehicle that is not needed to use
and replace it as soon as possible.

Black plate (44,1)Chevrolet Camaro Owner Manual - 2011
10-44 Vehicle Care

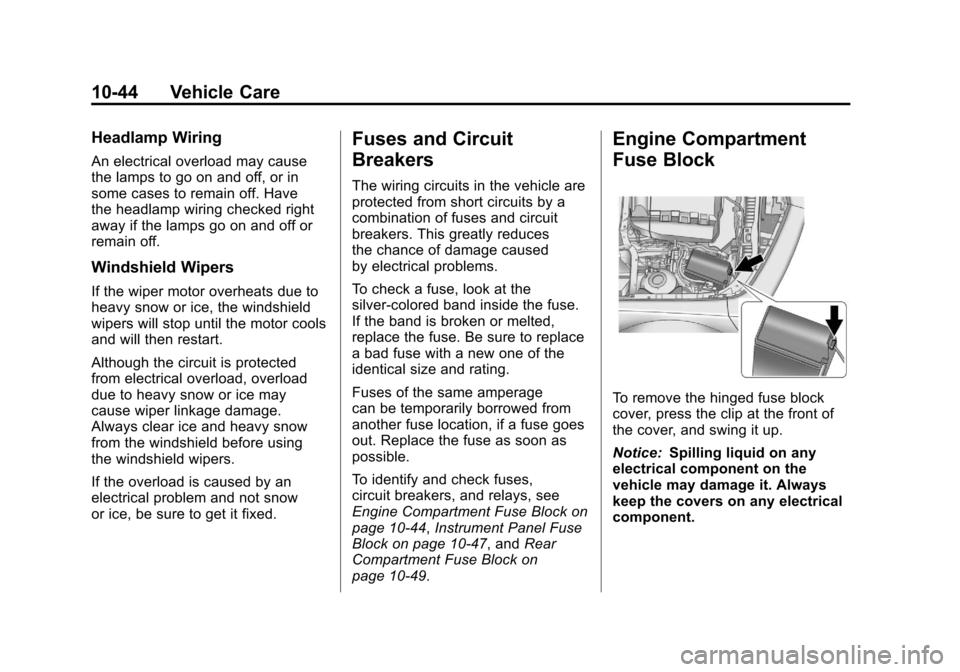

Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have
the headlamp wiring checked right
away if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using
the windshield wipers.
If the overload is caused by an
electrical problem and not snow
or ice, be sure to get it fixed.
Fuses and Circuit
Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces
the chance of damage caused
by electrical problems.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace
a bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage
can be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
possible.
To identify and check fuses,
circuit breakers, and relays, see
Engine Compartment Fuse Block on
page 10‑44,Instrument Panel Fuse
Block on page 10‑47, and Rear
Compartment Fuse Block on
page 10‑49.
Engine Compartment
Fuse Block
To remove the hinged fuse block
cover, press the clip at the front of
the cover, and swing it up.
Notice: Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.

Black plate (45,1)Chevrolet Camaro Owner Manual - 2011
Vehicle Care 10-45

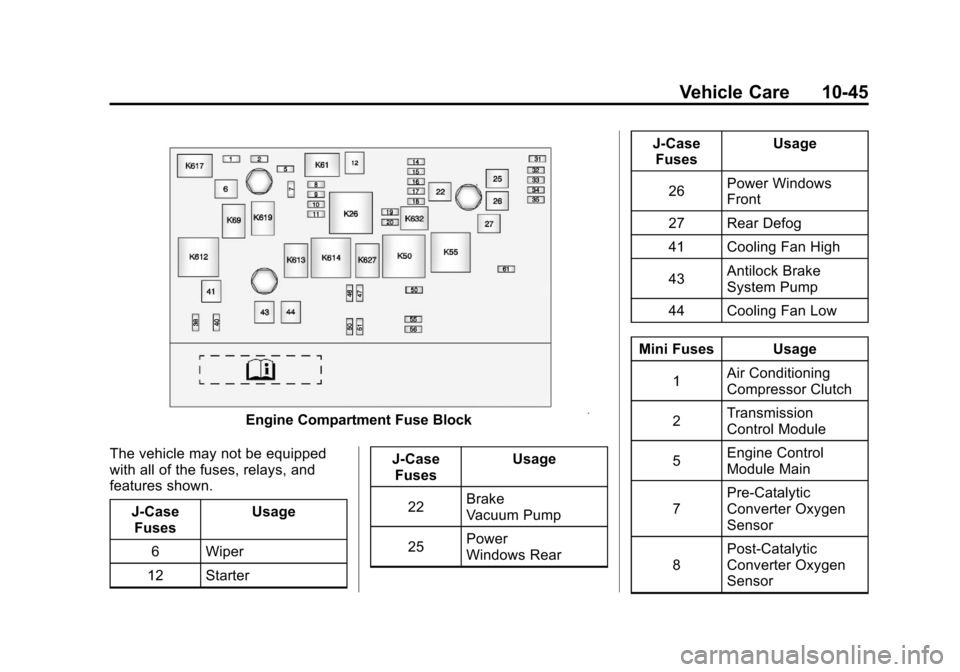

Engine Compartment Fuse Block
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. J-CaseFuses Usage
6 Wiper
12 Starter J-Case
Fuses Usage
22 Brake
Vacuum Pump
25 Power
Windows Rear J-Case
Fuses Usage
26 Power Windows
Front
27 Rear Defog
41 Cooling Fan High
43 Antilock Brake
System Pump
44 Cooling Fan Low
Mini Fuses Usage 1 Air Conditioning
Compressor Clutch
2 Transmission
Control Module
5 Engine Control
Module Main
7 Pre-Catalytic
Converter Oxygen
Sensor
8 Post-Catalytic
Converter Oxygen
Sensor

Black plate (46,1)Chevrolet Camaro Owner Manual - 2011
10-46 Vehicle Care

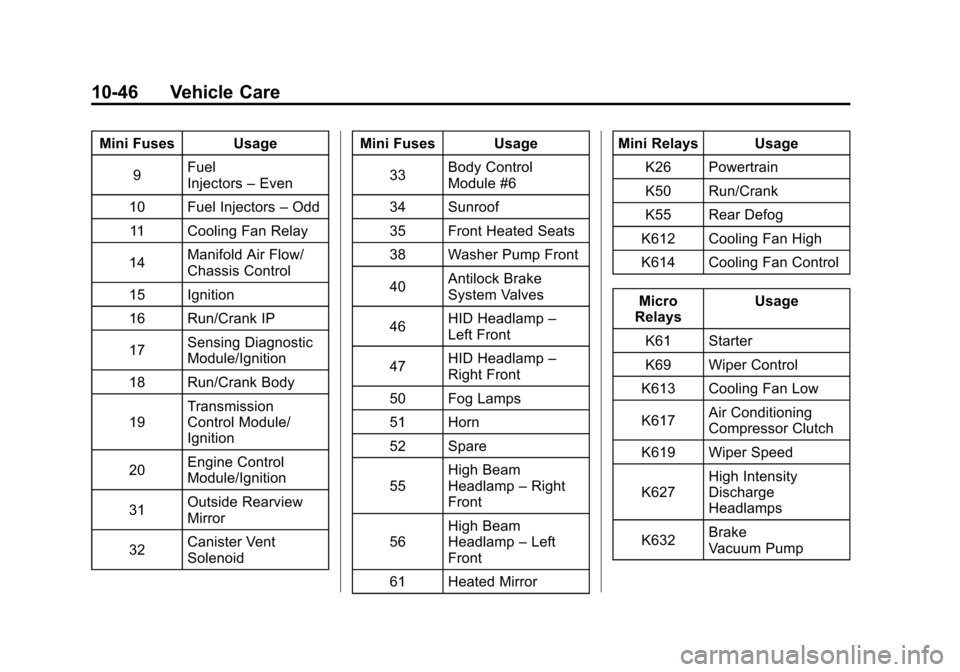

Mini Fuses Usage9 Fuel
Injectors
–Even
10 Fuel Injectors –Odd
11 Cooling Fan Relay
14 Manifold Air Flow/
Chassis Control
15 Ignition
16 Run/Crank IP
17 Sensing Diagnostic
Module/Ignition
18 Run/Crank Body
19 Transmission
Control Module/
Ignition
20 Engine Control
Module/Ignition
31 Outside Rearview
Mirror
32 Canister Vent
Solenoid Mini Fuses Usage
33 Body Control
Module #6
34 Sunroof
35 Front Heated Seats
38 Washer Pump Front
40 Antilock Brake
System Valves
46 HID Headlamp
–
Left Front
47 HID Headlamp
–
Right Front
50 Fog Lamps
51 Horn
52 Spare
55 High Beam
Headlamp
–Right
Front
56 High Beam
Headlamp
–Left
Front
61 Heated Mirror Mini Relays Usage
K26 Powertrain
K50 Run/Crank
K55 Rear Defog
K612 Cooling Fan High
K614 Cooling Fan Control
Micro
Relays Usage
K61 Starter
K69 Wiper Control
K613 Cooling Fan Low
K617 Air Conditioning
Compressor Clutch
K619 Wiper Speed
K627 High Intensity
Discharge
Headlamps
K632 Brake
Vacuum Pump

Black plate (47,1)Chevrolet Camaro Owner Manual - 2011
Vehicle Care 10-47
Instrument Panel Fuse
Block
The instrument panel fuse block is
located on the end of the instrument
panel, on the driver side of the
vehicle. To access the fuses, open
the fuse panel door by pulling out.
To reinstall the door, push the door
back into its original location.
Instrument Panel Fuse Block
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Fuses Usage
F1 Discrete Logic
Ignition Switch
F2 Diagnostic Link
Connector
F3 Airbag

Black plate (48,1)Chevrolet Camaro Owner Manual - 2011
10-48 Vehicle Care

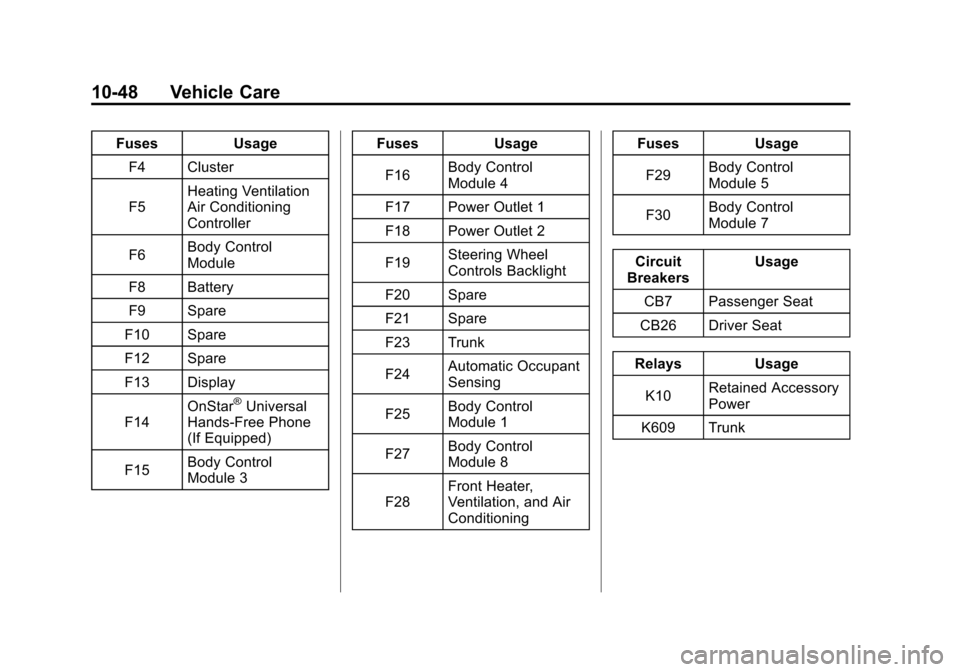

FusesUsage
F4 Cluster
F5 Heating Ventilation
Air Conditioning
Controller
F6 Body Control
Module
F8 Battery
F9 Spare
F10 Spare
F12 Spare
F13 Display
F14 OnStar
®Universal
Hands‐Free Phone
(If Equipped)
F15 Body Control
Module 3 Fuses Usage
F16 Body Control
Module 4
F17 Power Outlet 1
F18 Power Outlet 2
F19 Steering Wheel
Controls Backlight
F20 Spare
F21 Spare
F23 Trunk
F24 Automatic Occupant
Sensing
F25 Body Control
Module 1
F27 Body Control
Module 8
F28 Front Heater,
Ventilation, and Air
Conditioning Fuses Usage
F29 Body Control
Module 5
F30 Body Control
Module 7
Circuit
Breakers Usage
CB7 Passenger Seat
CB26 Driver Seat
Relays Usage
K10 Retained Accessory
Power
K609 Trunk
