CHEVROLET CAMARO 2011 5.G Owners Manual

Black plate (9,1)Chevrolet Camaro Owner Manual - 2011
Vehicle Care 10-9
A. Underhood Electrical Center.See Engine Compartment Fuse
Block on page 10‑44.
B. Engine Coolant Recovery Bottle and Cap. See Engine Coolant
on page 10‑20.
C. Engine Oil Dipstick. See Engine
Oil on page 10‑10.
D. Engine Oil Fill Cap (Out of View). See Engine Oil on
page 10‑10.
E. Engine Cover on page 10‑9.
F. Engine Cooling Fans (Out of View). See Cooling System on
page 10‑18.
G. Power Steering Reservoir and Cap (Under Engine Cover).
See Power Steering Fluid on
page 10‑27. H. Brake Master Cylinder and
Hydraulic Clutch Reservoir
(if equipped with manual
transmission). See Brakes on
page 10‑29 orHydraulic Clutch
on page 10‑16.
I. Remote Positive (+) Terminal. See Battery on page 10‑31.
J. Engine Air Cleaner/Filter on
page 10‑16.
K. Windshield Washer Fluid Reservoir. See Washer Fluid on
page 10‑28.
L. Radiator Fill Cap (Out of View). See Engine Coolant on

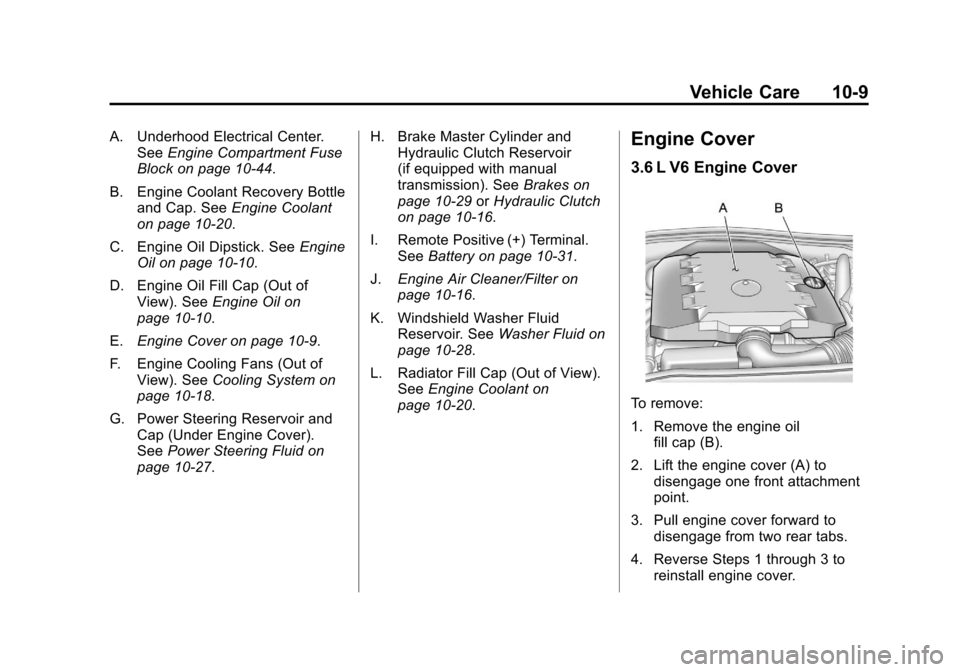

page 10‑20.Engine Cover
3.6 L V6 Engine Cover
To remove:
1. Remove the engine oil fill cap (B).
2. Lift the engine cover (A) to disengage one front attachment
point.
3. Pull engine cover forward to disengage from two rear tabs.
4. Reverse Steps 1 through 3 to reinstall engine cover.

Black plate (10,1)Chevrolet Camaro Owner Manual - 2011
10-10 Vehicle Care
6.2 L V8 Engine Cover (L99
Engine shown LS3 similar)
To remove:
1. Remove the engine oilfill cap (A).
2. Lift the engine cover (B) to disengage two front attachment
points.
3. Pull engine cover forward to disengage from horizontal rear
attachments.
4. Reverse Steps 1 through 3 to reinstall engine cover.
Engine Oil
To ensure proper engine
performance and long life, careful
attention must be paid to engine
oil. Following these simple, but
important steps will help protect
your investment:
.Always use engine oil approved
to the proper specification and
of the proper viscosity grade.
See “Selecting the Right Engine
Oil” in this section.
.Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
.Change the engine oil at the
appropriate time. See Engine
Oil Life System on page 10‑14.
.Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.
Checking Engine Oil
It is a good idea to check the
engine oil level at each fuel fill.
In order to get an accurate reading,
the vehicle must be on level ground.
The engine oil dipstick handle
is a yellow loop. See Engine
Compartment Overview on
page 10‑6 for the location of
the engine oil dipstick.

Black plate (11,1)Chevrolet Camaro Owner Manual - 2011
Vehicle Care 10-11
Obtaining an accurate oil level
reading is essential:
1. If the engine has been runningrecently, turn off the engine and
allow several minutes for the
oil to drain back into the oil pan.
Checking the oil level too soon
after engine shutoff will not
provide an accurate oil level
reading.
2. Pull out the dipstick and clean it with a paper towel or cloth,
then push it back in all the way.
Remove it again, keeping the

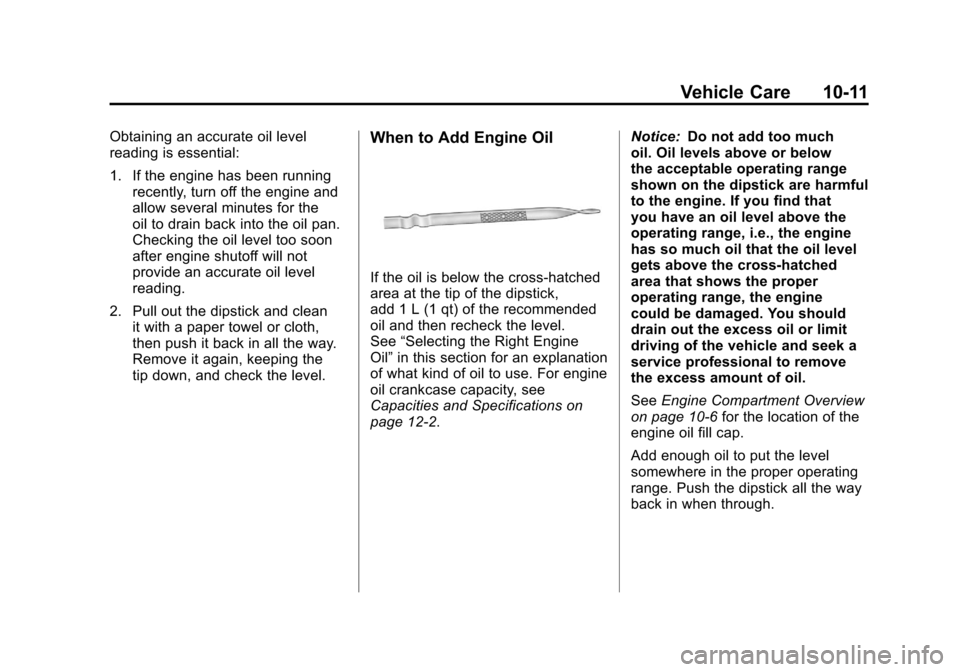

tip down, and check the level.When to Add Engine Oil
If the oil is below the cross-hatched
area at the tip of the dipstick,
add 1 L (1 qt) of the recommended
oil and then recheck the level.
See “Selecting the Right Engine
Oil” in this section for an explanation
of what kind of oil to use. For engine
oil crankcase capacity, see
Capacities and Specifications on
page 12‑2. Notice:
Do not add too much
oil. Oil levels above or below
the acceptable operating range
shown on the dipstick are harmful
to the engine. If you find that
you have an oil level above the
operating range, i.e., the engine
has so much oil that the oil level
gets above the cross-hatched
area that shows the proper
operating range, the engine
could be damaged. You should
drain out the excess oil or limit
driving of the vehicle and seek a
service professional to remove
the excess amount of oil.
See Engine Compartment Overview
on page 10‑6 for the location of the
engine oil fill cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back in when through.

Black plate (12,1)Chevrolet Camaro Owner Manual - 2011
10-12 Vehicle Care

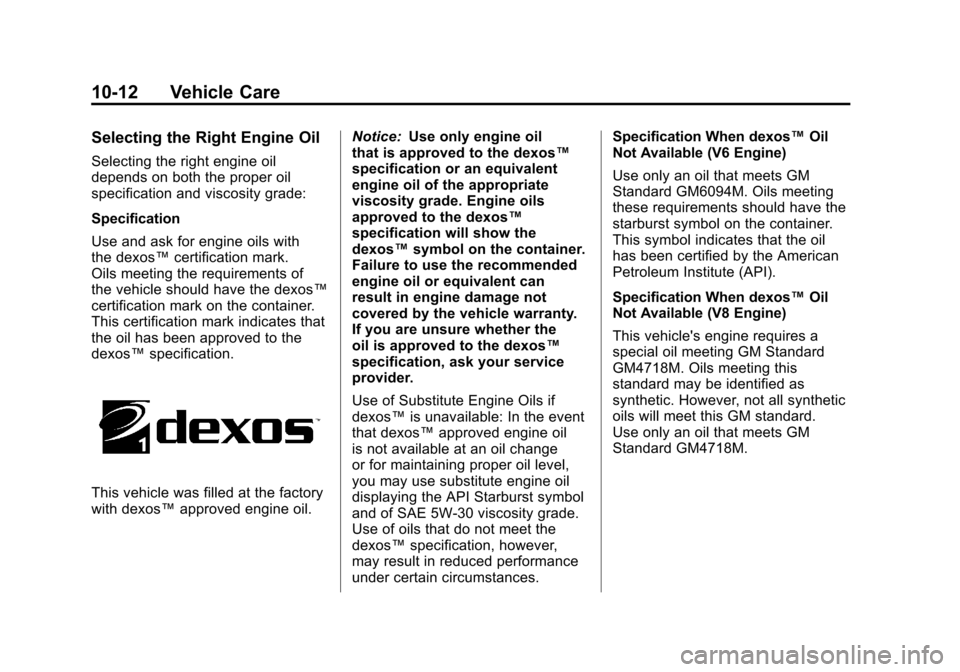

Selecting the Right Engine Oil
Selecting the right engine oil
depends on both the proper oil
specification and viscosity grade:
Specification
Use and ask for engine oils with
the dexos™certification mark.
Oils meeting the requirements of
the vehicle should have the dexos™
certification mark on the container.
This certification mark indicates that
the oil has been approved to the
dexos™ specification.
This vehicle was filled at the factory
with dexos™ approved engine oil. Notice:
Use only engine oil
that is approved to the dexos™
specification or an equivalent
engine oil of the appropriate
viscosity grade. Engine oils
approved to the dexos™
specification will show the
dexos™ symbol on the container.
Failure to use the recommended
engine oil or equivalent can
result in engine damage not
covered by the vehicle warranty.
If you are unsure whether the
oil is approved to the dexos™
specification, ask your service
provider.
Use of Substitute Engine Oils if
dexos™ is unavailable: In the event
that dexos™ approved engine oil
is not available at an oil change
or for maintaining proper oil level,
you may use substitute engine oil
displaying the API Starburst symbol
and of SAE 5W-30 viscosity grade.
Use of oils that do not meet the
dexos™ specification, however,
may result in reduced performance
under certain circumstances. Specification When dexos™
Oil
Not Available (V6 Engine)
Use only an oil that meets GM
Standard GM6094M. Oils meeting
these requirements should have the
starburst symbol on the container.
This symbol indicates that the oil
has been certified by the American
Petroleum Institute (API).
Specification When dexos™ Oil
Not Available (V8 Engine)
This vehicle's engine requires a
special oil meeting GM Standard
GM4718M. Oils meeting this
standard may be identified as
synthetic. However, not all synthetic
oils will meet this GM standard.
Use only an oil that meets GM
Standard GM4718M.

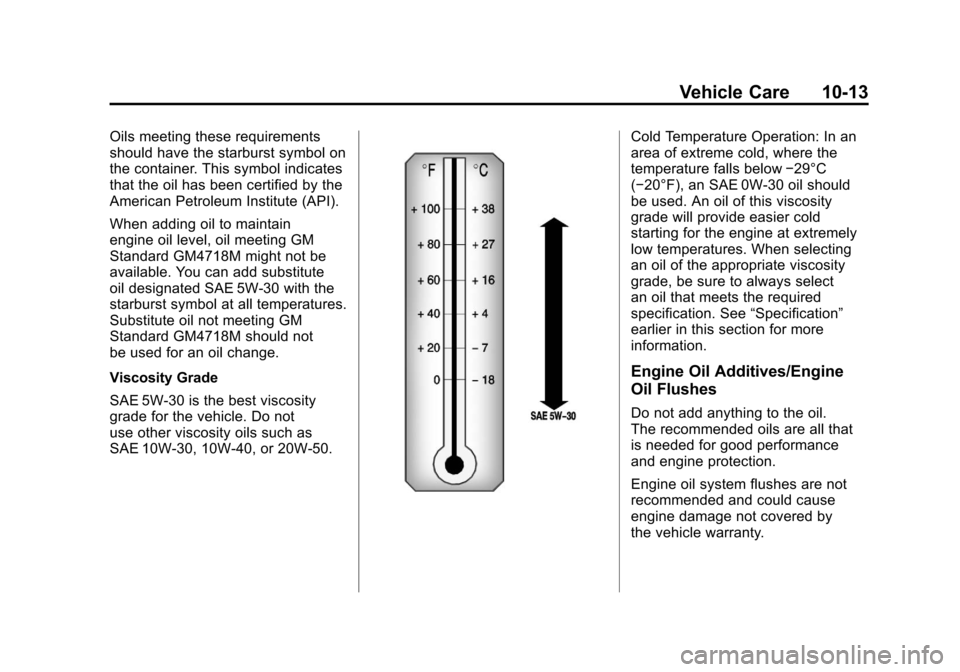

Black plate (13,1)Chevrolet Camaro Owner Manual - 2011
Vehicle Care 10-13
Oils meeting these requirements
should have the starburst symbol on
the container. This symbol indicates
that the oil has been certified by the
American Petroleum Institute (API).
When adding oil to maintain
engine oil level, oil meeting GM
Standard GM4718M might not be
available. You can add substitute
oil designated SAE 5W-30 with the
starburst symbol at all temperatures.
Substitute oil not meeting GM
Standard GM4718M should not
be used for an oil change.
Viscosity Grade
SAE 5W-30 is the best viscosity
grade for the vehicle. Do not
use other viscosity oils such as
SAE 10W‐30, 10W‐40, or 20W-50.Cold Temperature Operation: In an
area of extreme cold, where the
temperature falls below−29°C
(−20°F), an SAE 0W-30 oil should
be used. An oil of this viscosity
grade will provide easier cold
starting for the engine at extremely
low temperatures. When selecting
an oil of the appropriate viscosity
grade, be sure to always select
an oil that meets the required
specification. See “Specification”
earlier in this section for more
information.
Engine Oil Additives/Engine
Oil Flushes
Do not add anything to the oil.
The recommended oils are all that
is needed for good performance
and engine protection.
Engine oil system flushes are not
recommended and could cause
engine damage not covered by
the vehicle warranty.

Black plate (14,1)Chevrolet Camaro Owner Manual - 2011
10-14 Vehicle Care

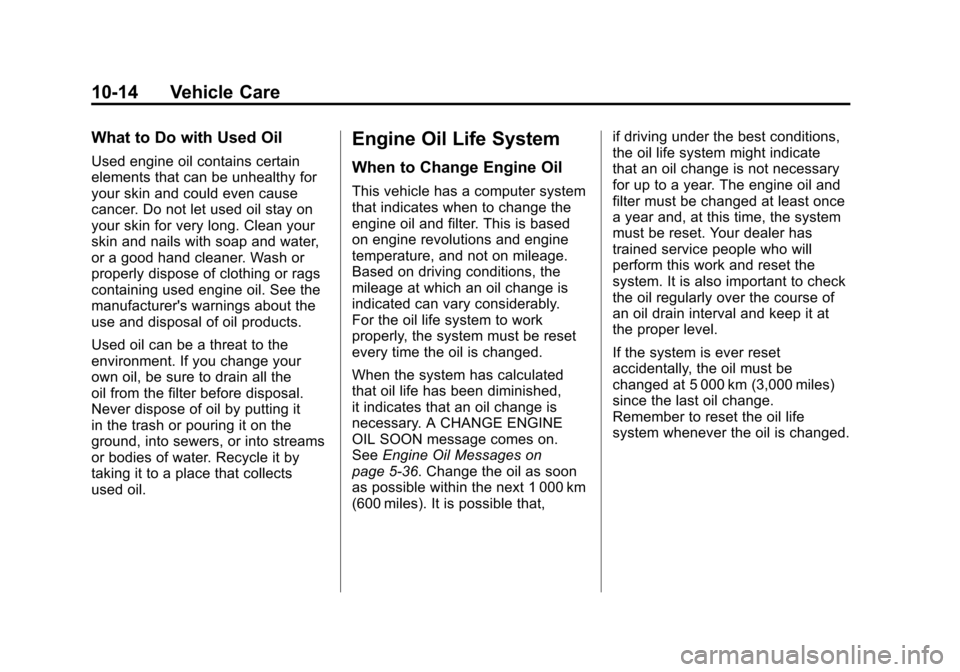

What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer's warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your
own oil, be sure to drain all the
oil from the filter before disposal.
Never dispose of oil by putting it
in the trash or pouring it on the
ground, into sewers, or into streams
or bodies of water. Recycle it by
taking it to a place that collects
used oil.
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer system
that indicates when to change the
engine oil and filter. This is based
on engine revolutions and engine
temperature, and not on mileage.
Based on driving conditions, the
mileage at which an oil change is
indicated can vary considerably.
For the oil life system to work
properly, the system must be reset
every time the oil is changed.
When the system has calculated
that oil life has been diminished,
it indicates that an oil change is
necessary. A CHANGE ENGINE
OIL SOON message comes on.
SeeEngine Oil Messages on
page 5‑36. Change the oil as soon
as possible within the next 1 000 km
(600 miles). It is possible that, if driving under the best conditions,
the oil life system might indicate
that an oil change is not necessary
for up to a year. The engine oil and
filter must be changed at least once
a year and, at this time, the system
must be reset. Your dealer has
trained service people who will
perform this work and reset the
system. It is also important to check
the oil regularly over the course of
an oil drain interval and keep it at
the proper level.
If the system is ever reset
accidentally, the oil must be
changed at 5 000 km (3,000 miles)
since the last oil change.
Remember to reset the oil life
system whenever the oil is changed.

Black plate (15,1)Chevrolet Camaro Owner Manual - 2011
Vehicle Care 10-15

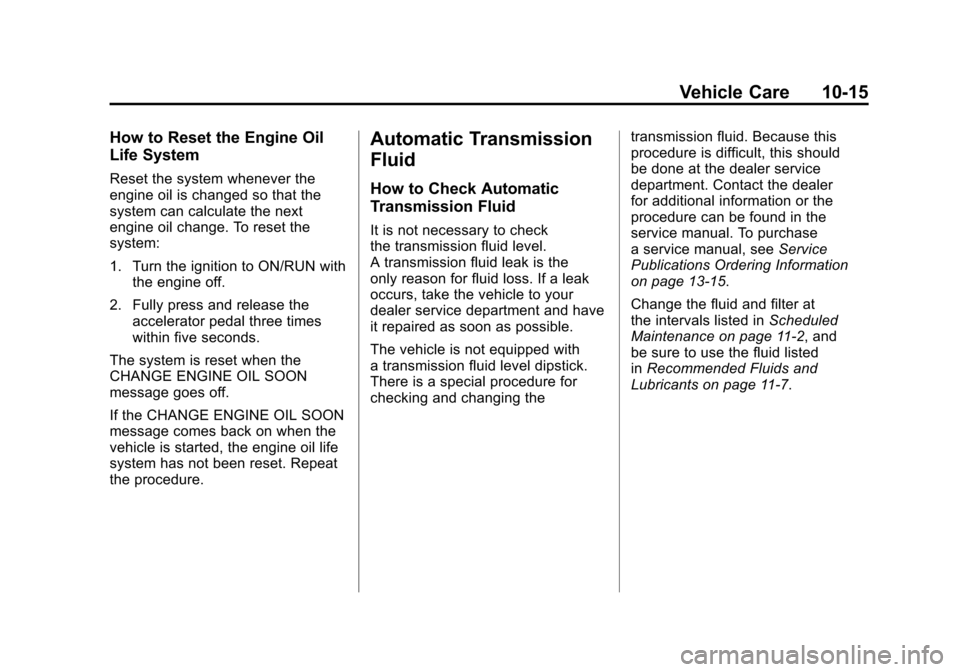

How to Reset the Engine Oil
Life System
Reset the system whenever the
engine oil is changed so that the
system can calculate the next
engine oil change. To reset the
system:
1. Turn the ignition to ON/RUN withthe engine off.
2. Fully press and release the accelerator pedal three times
within five seconds.
The system is reset when the
CHANGE ENGINE OIL SOON
message goes off.
If the CHANGE ENGINE OIL SOON
message comes back on when the
vehicle is started, the engine oil life
system has not been reset. Repeat
the procedure.
Automatic Transmission
Fluid
How to Check Automatic
Transmission Fluid
It is not necessary to check
the transmission fluid level.
A transmission fluid leak is the
only reason for fluid loss. If a leak
occurs, take the vehicle to your
dealer service department and have
it repaired as soon as possible.
The vehicle is not equipped with
a transmission fluid level dipstick.
There is a special procedure for
checking and changing the transmission fluid. Because this
procedure is difficult, this should
be done at the dealer service
department. Contact the dealer
for additional information or the
procedure can be found in the
service manual. To purchase
a service manual, see
Service
Publications Ordering Information
on page 13‑15.
Change the fluid and filter at
the intervals listed in Scheduled
Maintenance on page 11‑2, and
be sure to use the fluid listed
in Recommended Fluids and
Lubricants on page 11‑7.

Black plate (16,1)Chevrolet Camaro Owner Manual - 2011
10-16 Vehicle Care
Manual Transmission
Fluid
It is not necessary to check the
manual transmission fluid level.
A transmission fluid leak is the
only reason for fluid loss. If a leak
occurs, take the vehicle to your
dealer service department and
have it repaired as soon as
possible. SeeRecommended
Fluids and Lubricants on page 11‑7
for the proper fluid to use.
Hydraulic Clutch
For vehicles with a manual
transmission, it is not necessary to
regularly check brake/clutch fluid
unless there is a leak suspected.
Adding fluid will not correct a leak.
A fluid loss in this system could
indicate a problem. Have the
system inspected and repaired.
When to Check and What
to Use
The brake/hydraulic clutch fluid
reservoir cap has this symbol on it.
The common hydraulic clutch and
brake master cylinder fluid reservoir
is filled with DOT 3 brake fluid as
indicated on the reservoir cap.
See Engine Compartment Overview
on page 10‑6 for reservoir location.
How to Check and Add Fluid
Visually check the brake/clutch fluid
reservoir to make sure the fluid level
is at the MIN (minimum) line on the
side of the reservoir. The brake/
hydraulic clutch fluid system
should be closed and sealed. Do not remove the cap to check
the fluid level or to top‐off the fluid
level. Remove the cap only when
necessary to add the proper fluid
until the level reaches the MIN line.
Engine Air Cleaner/Filter
See
Engine Compartment Overview
on page 10‑6 for the location of the
engine air cleaner/filter.
When to Inspect the Engine Air
Cleaner/Filter
Inspect the air cleaner/filter at the
scheduled maintenance intervals
and replace it at the first oil change
after each 80 000 km (50,000 mi)
interval. See Scheduled
Maintenance on page 11‑2 for
more information. If driving in
dusty/dirty conditions, inspect the
filter at each engine oil change.

Black plate (17,1)Chevrolet Camaro Owner Manual - 2011
Vehicle Care 10-17
How to Inspect the Engine Air
Cleaner/Filter
To inspect the air cleaner/filter,
remove the filter from the vehicle
and lightly shake the filter to release
loose dust and dirt. If the filter
remains covered with dirt, a new
filter is required.
To inspect or replace the engine air
cleaner/filter:
1. Open the hood. SeeHood on
page 10‑5.
2. Locate the air filter housing on the front of the driver side
of the engine compartment.
See Engine Compartment
Overview on page 10‑6.

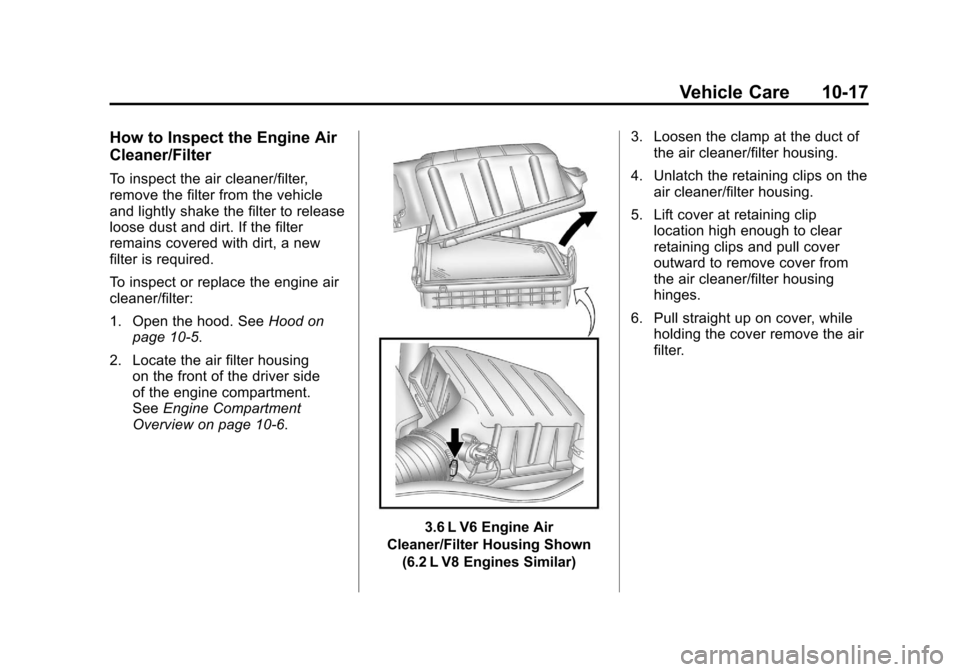

3.6 L V6 Engine Air
Cleaner/Filter Housing Shown (6.2 L V8 Engines Similar) 3. Loosen the clamp at the duct of
the air cleaner/filter housing.
4. Unlatch the retaining clips on the air cleaner/filter housing.
5. Lift cover at retaining clip location high enough to clear
retaining clips and pull cover
outward to remove cover from
the air cleaner/filter housing
hinges.
6. Pull straight up on cover, while holding the cover remove the air
filter.

Black plate (18,1)Chevrolet Camaro Owner Manual - 2011
10-18 Vehicle Care
7. Inspect or replace the air filter.See Maintenance Replacement
Parts on page 11‑9.
8. Reverse steps 6 to 1 to install cover.
{WARNING
Operating the engine with the air
cleaner/filter off can cause you
or others to be burned. The air
cleaner not only cleans the air; it
helps to stop flames if the engine
backfires. Use caution when
working on the engine and do not
drive with the air cleaner/filter off.
Notice: If the air cleaner/filter is
off, dirt can easily get into the
engine, which could damage it.
Always have the air cleaner/filter
in place when you are driving.
Cooling System
When it is safe to lift the hood:
3.6 L V6 Engine
A. Engine Coolant Recovery Bottle
B. Electric Cooling Fans (Out of View)
C. Radiator Cap (Under Engine Cover)
6.2 L V8 Engines
(L99 shown LS3 similar)
A. Engine Coolant Recovery Bottle
B. Electric Cooling Fans (Out of View)
C. Radiator Cap (Out of View)
