CHEVROLET CITY EXPRESS 2018 Manual Online

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
80 Storage
Additional Storage
Features
Cargo Tie-Downs
There are six cargo tie-downs in the
cargo area that can be used to
secure cargo.
Do not apply a total load of more
than 5 000 N (1,124 lb) to a single
cargo tie-down when securing
cargo. SeeVehicle Load Limits
0 140.
{Warning
The child restraint top tether strap
may be damaged by contact with
items in the cargo area. Your child
could be seriously injured or killed
in a collision if the top tether strap
is damaged. Properly secure all
cargo.
{Warning
Properly secure all cargo with
ropes or straps to help prevent it
from sliding or shifting. Do not
place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury. Use
suitable ropes or straps to secure
cargo.
{Warning
Never allow anyone to ride in the
cargo area. It is extremely
dangerous to ride in the cargo
area of a vehicle. In a collision,
people riding in these areas are
more likely to be seriously injured
or killed.
Do not allow people to ride in any
area of the vehicle that is not
equipped with seats and seat
belts. Be sure everyone in the
vehicle is in a seat and using a
seat belt properly.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Instruments and Controls 81
Instruments and
Controls
Controls
Steering Wheel Controls . . . . . . . 82
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Windshield Wiper/Washer . . . . . . 83
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Power Outlets . . . . . . . . . . . . . . . . . 84
Cigarette Lighter . . . . . . . . . . . . . . . 85
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . 85
Warning Lights, Gauges, and
Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . . 86
Instrument Cluster . . . . . . . . . . . . . 87
Speedometer . . . . . . . . . . . . . . . . . . 88
Odometer . . . . . . . . . . . . . . . . . . . . . . 88
Trip Odometer . . . . . . . . . . . . . . . . . 88
Tachometer . . . . . . . . . . . . . . . . . . . . 88
Fuel Gauge . . . . . . . . . . . . . . . . . . . . 88
Seat Belt Reminders . . . . . . . . . . . 89
Airbag Readiness Light . . . . . . . . 89
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 90
Charging System Light . . . . . . . . . 91 Malfunction Indicator Lamp
(Check Engine Light) . . . . . . . . . 91
Brake System Warning Light . . . 93
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . 94
Overdrive Off Light . . . . . . . . . . . . . 94
Power Steering Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . 95
Traction Control System (TCS)/ Electronic Stability Control
Light . . . . . . . . . . . . . . . . . . . . . . . . . 95
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . 96
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . . 96
Tire Pressure Light . . . . . . . . . . . . 96
Engine Oil Pressure Light . . . . . . 97
Low Fuel Warning Light . . . . . . . . 97
Security Light . . . . . . . . . . . . . . . . . . 97
High-Beam On Light . . . . . . . . . . . 98
Low Washer Fluid Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . 98
Cruise Control Light . . . . . . . . . . . 98
Door Ajar Light . . . . . . . . . . . . . . . . 98
Vehicle Messages
Fuel System Messages . . . . . . . . 99
Tire Messages . . . . . . . . . . . . . . . . . 99
Trip Computer
Trip Computer . . . . . . . . . . . . . . . . . 99
Vehicle Personalization
Vehicle Personalization (Radio with Touchscreen Only) . . . . . 100

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
82 Instruments and Controls
Controls
Steering Wheel Controls
Some audio and Bluetooth controls
(if equipped) can be adjusted at the
steering wheel.
SOURCE :Press to change
between AM, FM, CD, USB, and
AUX devices.
QorR:
. For AM and FM stations, press
and hold for less than
15 seconds to tilt the tuning
switch up or down to increase or decrease the preset station.
Press and hold for more than
15 seconds to tilt the tuning
switch up or down to seek to the
previous or next station.
. While listening to a saved
favorite, press and hold for less
than 15 seconds to tilt the tuning
switch up or down to change to
the previous or next favorite
radio station.
. For SXM (if equipped), press
and hold for less than
15 seconds to tilt the tuning
switch up or down to increase or
decrease the preset station.
Press and hold for more than
15 seconds to tilt the tuning
switch up or down to go to the
previous or next category.
. For CD, press and hold for less
than 15 seconds to tilt the tuning
switch up or down to increase or
decrease the track number.
Press and hold for more than
15 seconds to tilt the tuning
switch up or down to increase or
decrease the folder number if playing compressed audio files,
or to fast forward or rewind the
current track.
. For USB devices, press and
hold for less than 15 seconds to
tilt the tuning switch up or down
to increase or decrease the track
number. Press and hold for more
than 15 seconds to tilt the tuning
switch up or down to fast
forward or rewind the current
track.
. For Bluetooth Audio, press and
hold for less than 15 seconds to
tilt the tuning switch up or down
to skip ahead or back to the
next song.
–
x+ : Press the volume control
switch to decrease or increase the
volume.
gV: If equipped, press to interact
with Bluetooth or answer an
incoming call. See Bluetooth0120.
V:If equipped, press and hold to
end a call or reject a call.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Instruments and Controls 83
For more information on using the
steering wheel controls for the
Bluetooth Hands-Free calling
system, seeBluetooth0120.
Horn
Pressaon the steering wheel pad
to sound the horn.
Windshield Wiper/Washer
With the ignition in the ON position,
move the windshield wiper lever
down to select the wiper speed.
HI : Use for fast wipes.
LO : Use for slow wipes.
INT : Use for intermittent wipes. To
adjust wipe frequency, turn the INT
TIME band forward for less frequent
wipes or rearward for more frequent
wipes.
OFF : Use to turn the wipers off.
MIST : For a single wipe, briefly
move the wiper lever up.
Clear snow and ice from the wiper
blades before using them. If frozen
to the windshield, carefully loosen or
thaw them. Damaged blades should
be replaced. See Wiper Blade
Replacement 0195.
Heavy snow or ice can overload the
wiper motor.
Windshield Washer
Pull the windshield wiper lever
toward you to spray windshield
washer fluid and activate the wipers. See
Washer Fluid 0191 for
information on filling the windshield
washer fluid reservoir.
{Warning
In freezing weather, do not use
the washer until the windshield is
warmed. Otherwise the washer
fluid can form ice on the
windshield, blocking your vision.
Clock
Set the clock with the ignition on or
in ACC/ACCESSORY.
Radio without Navigation
To set the clock:
1. Press ENTER SETTING CLOCK.
2. Turn TUNE FOLDER knob to select CLOCK.
3. Press ENTER SETTING CLOCK.
4. Turn TUNE FOLDER knob to select set time.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
84 Instruments and Controls
5. Press ENTER SETTINGCLOCK.
6. Turn TUNE FOLDER knob to adjust hours.
7. Press ENTER SETTING CLOCK.
8. Turn TUNE FOLDER knob to adjust minutes.
9. Press ENTER SETTING CLOCK.
10. Press
0.
Radio with Navigation
To set the clock:
1. Press
BMENU on the
center stack.
2. Select
8Settings - System -
Clock Settings.
Time Format
Select to change between 12 hours
and 24 hours clock.
Date Format
Select the desired format. Clock Mode
Select between Auto and Manual.
If Auto is selected, the clock is
automatically updated through the
Global Positioning System (GPS).
If Manual is selected, see
“Set
Clock Manually” following.
Select “Time Zone” to have the time
set to a specific time. See “Time
Zone” later in this section.
Set Clock Manually
Press −or + to change any of the
settings for Hour, Minute, Day,
Month, and Year.
Daylight Savings Time
Select to turn on and off.
Time Zone
This feature is only available if
selected in Clock Mode.
Select the desired setting.
Power Outlets
The accessory power outlets can be
used to plug in electrical equipment,
such as a cell phone or an MP3
player.
The vehicle may have two
accessory power outlets:
. Near the bottom of the center
stack.
. On the rear of the center floor
console.
Remove the cover to access and
replace when not in use.
Certain power accessory plugs may
not be compatible to the accessory
power outlet and could overload
vehicle or adapter fuses. If a
problem is experienced, see your
dealer.
The outlets are rated at 12 volt,
120W (10A) maximum.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Instruments and Controls 85
{Warning
Power is always supplied to the
outlets. Do not leave electrical
equipment plugged in when the
vehicle is not in use because the
vehicle could catch fire and cause
injury or death.
Caution
Leaving electrical equipment
plugged in for an extended period
of time while the vehicle is off will
drain the battery. Always unplug
electrical equipment when not in
use and do not plug in equipment
that exceeds the maximum
12 volt, 120W (10A) rating.
When adding electrical equipment,
be sure to follow the proper
installation instructions included with
the equipment. See Add-On
Electrical Equipment 0174.
Caution
Hanging heavy equipment from
the power outlet can cause
damage not covered by the
vehicle warranty. The power
outlets are designed for
accessory power plugs only, such
as cell phone charge cords.
Cigarette Lighter
If equipped with a cigarette lighter,
to heat push it in all the way and let
go. When it is ready for use, it will
pop back out by itself.
Do not use the lighter to plug in
accessory devices. Use the power
outlets provided.
Caution
Holding a cigarette lighter in while
it is heating does not let the
lighter back away from the
heating element when it is hot.
(Continued)
Caution (Continued)
Damage from overheating can
occur to the lighter or heating
element, or a fuse could be
blown. Do not hold a cigarette
lighter in while it is heating.
Ashtrays
If equipped with a removable
ashtray, it can be placed into the
front floor console cupholder. Open
the cover to use.
Caution
If papers, pins, or other
flammable items are put in the
ashtray, hot cigarettes or other
smoking materials could ignite
them and possibly damage the
vehicle. Never put flammable
items in the ashtray.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
86 Instruments and Controls
Warning Lights,
Gauges, and
Indicators
Warning lights and gauges can
signal that something is wrong
before it becomes serious enough
to cause an expensive repair or
replacement. Paying attention to the
warning lights and gauges could
prevent injury.
Some warning lights come on briefly
when the engine is started to
indicate they are working. When
one of the warning lights comes on
and stays on while driving, or when
one of the gauges shows there may
be a problem, check the section that
explains what to do. Waiting to do
repairs can be costly and even
dangerous.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Instruments and Controls 87
Instrument Cluster

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
88 Instruments and Controls
1. Tachometer
2. Speedometer
3. Trip Odometer Reset Stem
4. Instrument BrightnessControl
5. Transmission Position Indicator
6. Odometer/Trip Computer
7. Fuel Gauge

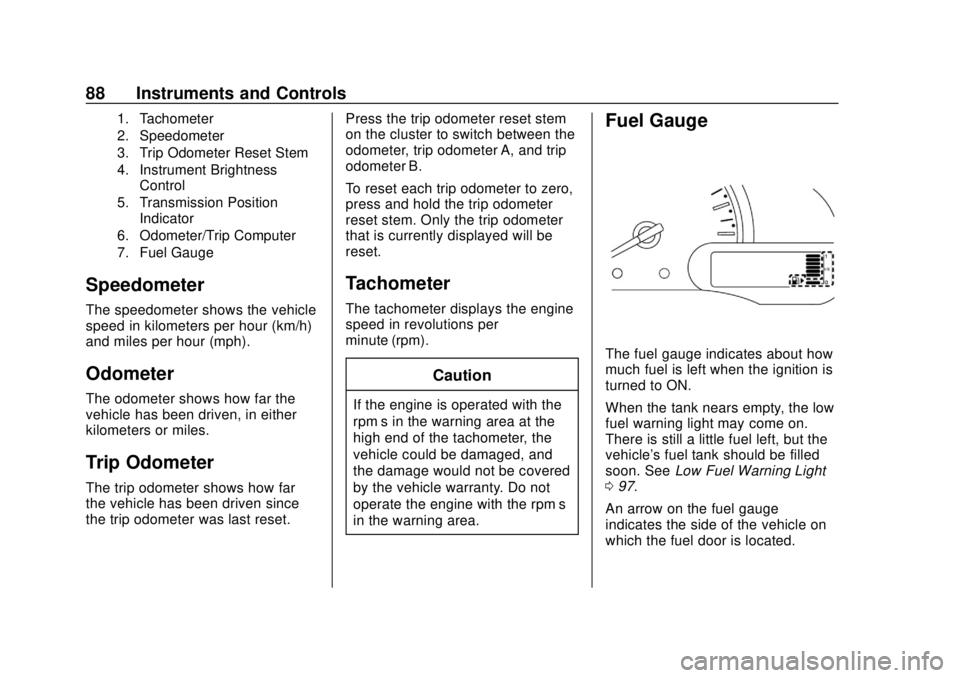

Speedometer
The speedometer shows the vehicle
speed in kilometers per hour (km/h)
and miles per hour (mph).
Odometer
The odometer shows how far the
vehicle has been driven, in either
kilometers or miles.
Trip Odometer
The trip odometer shows how far
the vehicle has been driven since
the trip odometer was last reset. Press the trip odometer reset stem
on the cluster to switch between the
odometer, trip odometer A, and trip
odometer B.
To reset each trip odometer to zero,
press and hold the trip odometer
reset stem. Only the trip odometer
that is currently displayed will be
reset.
Tachometer
The tachometer displays the engine
speed in revolutions per
minute (rpm).
Caution
If the engine is operated with the
rpm’s in the warning area at the
high end of the tachometer, the
vehicle could be damaged, and
the damage would not be covered
by the vehicle warranty. Do not
operate the engine with the rpm’s
in the warning area.
Fuel Gauge
The fuel gauge indicates about how
much fuel is left when the ignition is
turned to ON.
When the tank nears empty, the low
fuel warning light may come on.
There is still a little fuel left, but the
vehicle's fuel tank should be filled
soon. See
Low Fuel Warning Light
0 97.
An arrow on the fuel gauge
indicates the side of the vehicle on
which the fuel door is located.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Instruments and Controls 89
Here are four things that some
owners ask about. None of these
show a problem with the fuel gauge:
.At the service station, the gas
pump shuts off before the gauge
reads full.
. It takes a little more or less fuel
to fill up than the gauge
indicated. For example, the
gauge may have indicated the
tank was half full, but it actually
took a little more or less than
half the tank's capacity to fill
the tank.
. The indicator moves a little when
turning a corner or speeding up.
. The gauge goes back to empty
when the ignition is turned off.
Seat Belt Reminders
The light and chime remind you to
fasten your seat belts. The light
illuminates when the ignition is
placed in ON or START and remains
illuminated until the driver ’s seat belt
is fastened. At the same time, the
chime sounds for about six seconds
unless the driver ’s seat belt is
securely fastened.
The seat belt warning light may also
illuminate if the front passenger ’s
seat belt is not fastened when the
front passenger seat is occupied.
For seven seconds after the ignition
switch is placed in ON, the system
does not activate the warning light
for the front passenger.
{Warning
If the seat belt warning light stays
on continuously while the ignition
is turned ON with all doors closed
and all seat belts fastened, it may
indicate a malfunction in the
system. Have the system
checked by your dealer.
See Seat Belts 043.
Airbag Readiness Light
This light shows if there is an
electrical problem with the airbag
system. The system check includes
the airbag sensor(s), passenger
sensing system, the pretensioners,
the airbag modules, the wiring, and
the crash sensing and diagnostic
module. For more information on the
airbag system, see Airbag System
0 49.
The airbag readiness light comes on
for several seconds when the
vehicle is started. If the light does
not come on then, have it fixed
immediately.
