CHEVROLET CITY EXPRESS 2018 Owner's Manual
Manufacturer: CHEVROLET, Model Year: 2018, Model line: CITY EXPRESS, Model: CHEVROLET CITY EXPRESS 2018Pages: 287, PDF Size: 4.19 MB
Page 1 of 287
City Express Owner’s Manual
2018 City Express
84323699 A
C
M
Y
CM
MY
CY
CMY
K
18_CHEV_City_Express_COV_en_US_84323699A_2017JUL14.ai 1 7/11/2017 \
2:31:01 PM
18_CHEV_City_Express_COV_en_US_84323699A_2017JUL14.ai 1 7/11/2017 \
2:31:01 PM
Page 2 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/11/17
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 21
Seats and Restraints . . . . . . . . . . . 37
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 79
Instruments and Controls . . . . . . . 81
Lighting . . . . . . . . . . . . . . . . . . . . . . . 103
Infotainment System . . . . . . . . . . 108
Climate Controls . . . . . . . . . . . . . . 129
Driving and Operating . . . . . . . . . 133
Vehicle Care . . . . . . . . . . . . . . . . . . 176
Service and Maintenance . . . . . 242
Technical Data . . . . . . . . . . . . . . . . 260
Customer Information . . . . . . . . . 263
Reporting Safety Defects . . . . . . 274
Index . . . . . . . . . . . . . . . . . . . . 277
Page 3 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/11/17
2 Introduction

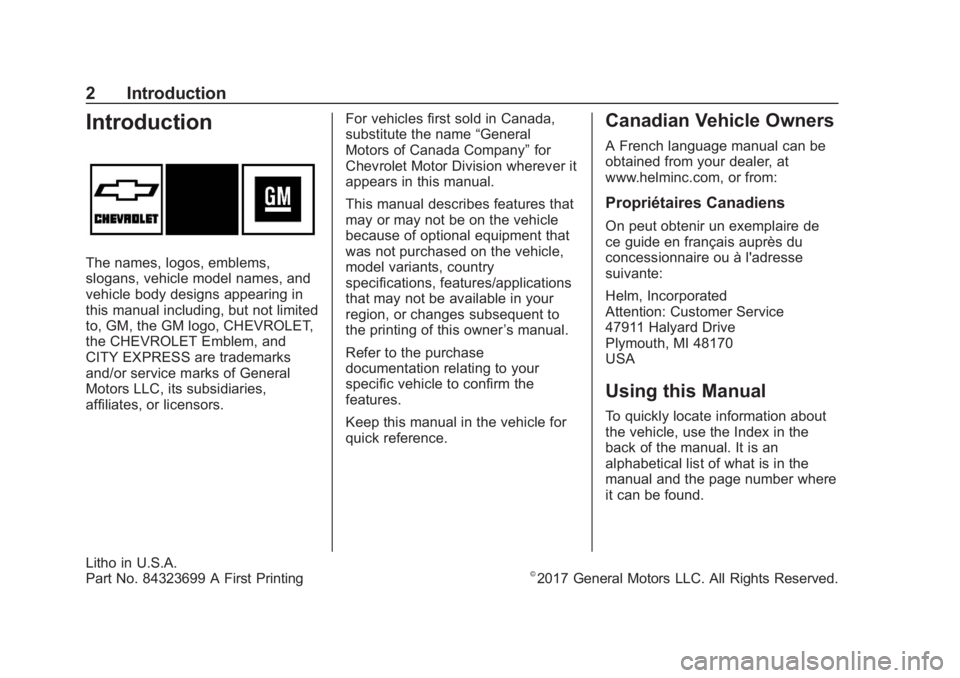

Introduction
The names, logos, emblems,
slogans, vehicle model names, and
vehicle body designs appearing in
this manual including, but not limited
to, GM, the GM logo, CHEVROLET,
the CHEVROLET Emblem, and
CITY EXPRESS are trademarks
and/or service marks of General
Motors LLC, its subsidiaries,
affiliates, or licensors.For vehicles first sold in Canada,
substitute the name
“General
Motors of Canada Company” for
Chevrolet Motor Division wherever it
appears in this manual.
This manual describes features that
may or may not be on the vehicle
because of optional equipment that
was not purchased on the vehicle,
model variants, country
specifications, features/applications
that may not be available in your
region, or changes subsequent to
the printing of this owner ’s manual.
Refer to the purchase
documentation relating to your
specific vehicle to confirm the
features.
Keep this manual in the vehicle for
quick reference.
Canadian Vehicle Owners
A French language manual can be
obtained from your dealer, at
www.helminc.com, or from:
Propriétaires Canadiens
On peut obtenir un exemplaire de
ce guide en français auprès du
concessionnaire ou à l'adresse
suivante:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Using this Manual
To quickly locate information about
the vehicle, use the Index in the
back of the manual. It is an
alphabetical list of what is in the
manual and the page number where
it can be found.
Litho in U.S.A.
Part No. 84323699 A First Printing©2017 General Motors LLC. All Rights Reserved.
Page 4 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/11/17
Introduction 3

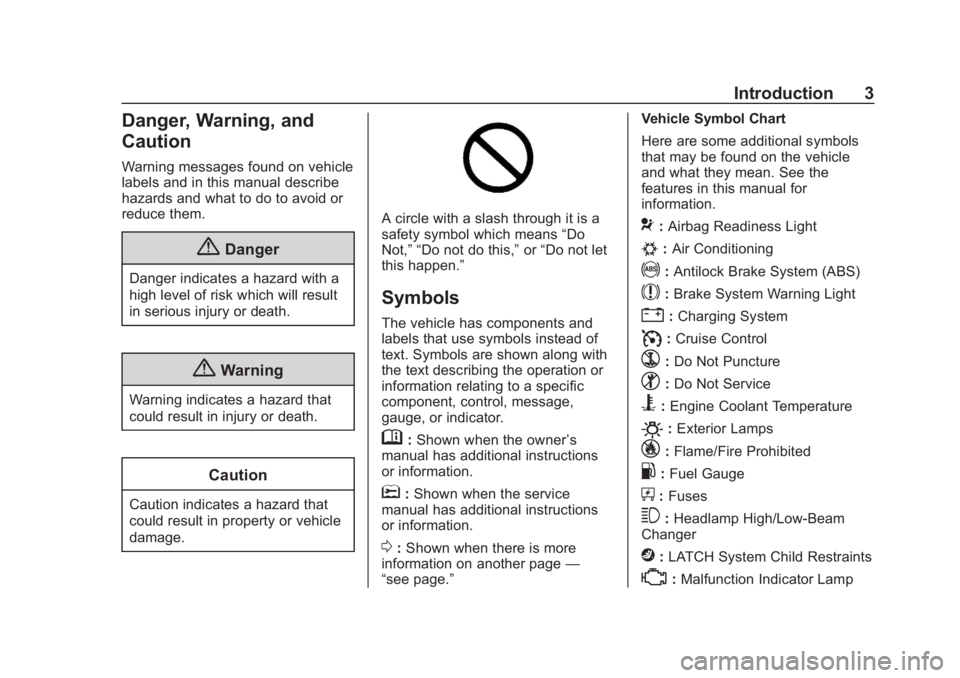

Danger, Warning, and
Caution
Warning messages found on vehicle
labels and in this manual describe
hazards and what to do to avoid or
reduce them.
{Danger
Danger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
A circle with a slash through it is a
safety symbol which means“Do
Not,” “Do not do this,” or“Do not let
this happen.”
Symbols
The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with
the text describing the operation or
information relating to a specific
component, control, message,
gauge, or indicator.
M: Shown when the owner ’s
manual has additional instructions
or information.
*: Shown when the service
manual has additional instructions
or information.
0: Shown when there is more
information on another page —
“see page.” Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. See the
features in this manual for
information.
9:
Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
$:Brake System Warning Light
":Charging System
I: Cruise Control
`:Do Not Puncture
^:Do Not Service
B:Engine Coolant Temperature
O:Exterior Lamps
_: Flame/Fire Prohibited
.:Fuel Gauge
+: Fuses
3:Headlamp High/Low-Beam
Changer
j: LATCH System Child Restraints
*:Malfunction Indicator Lamp
Page 5 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/11/17
4 Introduction
::Oil Pressure
O:Power
/:Remote Vehicle Start
>:Seat Belt Reminders
7: Tire Pressure Monitor
d:Traction Control/StabiliTrak
a:Under Pressure
M: Windshield Washer Fluid
Page 6 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
In Brief 5
In Brief
Instrument Panel
Instrument Panel . . . . . . . . . . . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . 7
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . 7
Door Locks . . . . . . . . . . . . . . . . . . . . . 8
Windows . . . . . . . . . . . . . . . . . . . . . . . . 9
Seat Adjustment . . . . . . . . . . . . . . . . 9
Head Restraint Adjustment . . . . 11
Seat Belts . . . . . . . . . . . . . . . . . . . . . 12
Passenger Sensing System . . . 12
Mirror Adjustment . . . . . . . . . . . . . . 12
Interior Lighting . . . . . . . . . . . . . . . . 13
Exterior Lighting . . . . . . . . . . . . . . . 14
Windshield Wiper/Washer . . . . . . 14
Climate Controls . . . . . . . . . . . . . . . 14
Vehicle Features
Infotainment System . . . . . . . . . . . 15
Radio(s) . . . . . . . . . . . . . . . . . . . . . . . 15
Portable Audio Devices . . . . . . . . 16
Bluetooth
®. . . . . . . . . . . . . . . . . . . . . 16
Steering Wheel Controls . . . . . . . 16
Cruise Control . . . . . . . . . . . . . . . . . 17
Trip Computer . . . . . . . . . . . . . . . . . 17 Rear Vision Camera (RVC) . . . . 18
Parking Assist . . . . . . . . . . . . . . . . . 18
Power Outlets . . . . . . . . . . . . . . . . . 18
Performance and Maintenance
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . 18
Tire Pressure Monitor . . . . . . . . . . 19
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
E85 or FlexFuel . . . . . . . . . . . . . . . . 19
Driving for Better Fuel Economy . . . . . . . . . . . . . . . . . . . . . 19
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . 20
Page 7 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
6 In Brief
Instrument Panel
Page 8 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
In Brief 7
1.Air Vents 0131.
2. Turn Signal Lever. See Turn
and Lane-Change Signals
0 104.
3. Instrument Cluster 087.
4. Cruise Control 0161 (If
Equipped).
5. Windshield Wiper/Washer 083.
6. Rear Window Defogger and Heated Mirror Button (if
Equipped). See Climate
Control Systems 0129 and
Heated Mirrors 034.
7. Infotainment 0108.
8. Climate Control Systems
0129.
9. Passenger Airbag Status
Indicator 090.
10. Shift Lever. See Continuously
Variable Transmission (CVT)
0 150. 11.
Hazard Warning Flashers
0104.
12. Parking Assist 0169 (If
Equipped).
13. Ignition Positions 0145.
14. Steering Wheel Controls 082
(If Equipped).
15. Fuel Door Release. See Filling
the Tank 0172.
Hood Release. See Hood
0 179.
16. Fuses and Circuit Breakers
0199.
17. Power Mirrors 033 (If
Equipped).
18. Traction Control/Electronic
Stability Control 0158.Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner ’s manual.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
transmitter is used to remotely lock
and unlock the doors from up to
10 m (33 ft) away from the vehicle.
Page 9 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
8 In Brief
Keyless Access
Q:Press to lock all doors.
The hazard warning flashers flash
twice and the horn chirps once to
indicate all doors are locked.
If a door is open and
Qis pressed,
the doors will lock but the horn will
not beep and the hazard warning
flashers will not flash. The horn may
or may not beep. See “Silencing the
Horn Sound Feature” underRemote
Keyless Entry (RKE) System
Operation 023.
K:Press once to unlock the driver
door. The hazard warning flashers
flash once if all doors are closed. The interior lamp comes on and the
lamp timer activates for 30 seconds
when the interior lamp switch is in
the door position with the ignition
switch in any position except ON.
The interior lamp can be
immediately turned off by inserting
the key into the ignition switch and
turning the ignition on , by locking
the doors with the RKE transmitter,
by pressing the door switch, or by
turning the interior lamp switch off.
Press
Kagain within five seconds
to unlock all remaining doors. The
hazard warning flashers flash once
if all doors are completely closed.
When
Kis pressed, all doors will
automatically lock within one minute
unless a door is opened, the ignition
switch is turned from off to on, or
Q
is pressed.
7: Press and hold7to sound the
panic alarm. Press any button on
the RKE transmitter to cancel the
panic alarm.
See Keys 021 and Remote Keyless
Entry (RKE) System Operation 023.
Door Locks
Manual Door Locks
Lock and unlock the door from the
outside using the key or the Remote
Keyless Entry (RKE) transmitter,
if equipped. From the inside, move
the inside lock knob inward to the
lock position, then close the door.
To unlock, move the inside lock
knob outward to the unlock position.
See Door Locks 025.
Power Door Locks
On the front doors, if equipped,
press
QorKon the power door
lock switch to lock or unlock the
doors.
See Power Door Locks 027.
Page 10 of 287
Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
In Brief 9
Windows
Power windows work when the
ignition is on or in ACC/
ACCESSORY.
Using the window switch, press to
open or pull to close the window.
The windows may be temporarily
disabled if they are used repeatedly
within a short time.
SeePower Windows 035.
Seat Adjustment
Seat Adjustment
To adjust the seat:
1. Lift the bar to unlock the seat.
2. Slide the seat to the desired position and release the bar.
3. Try to move the seat back and forth to be sure the seat is
locked in place.
To lift the seat, pull up or push down
the lever to adjust the seat.
See Seat Adjustment 039.
