BAND:Press this button to listen to the radio
while a CD is playing. The CD remains inside the
radio for future listening.
CD/AUX (CD/Auxiliary):Press this button to play
a CD while listening to the radio. The CD icon
and a message showing disc and/or track number
displays when a CD is in the player. Press this
button again and the system automatically
searches for an auxiliary input device, such as a
portable audio player. If a portable audio player is
not connected, “No Aux Input Device” displays.
Playing an MP3 CD-R or CD-RW Disc
Your vehicle’s radio system may have the
MP3 feature. If it has this feature, it is capable
of playing an MP3 CD-R or CD-RW disc. For more
information on how to play an MP3 CD-R or
CD-RW disc, seeUsing an MP3 on page 212later
in this section.
CD Messages
CHECK DISC:If an error message displays
and/or the CD comes out, it could be for one of
the following reasons:
It is very hot. When the temperature returns
to normal, the CD should play.
You are driving on a very rough road.
When the road becomes smoother,
the CD should play.
The CD is dirty, scratched, wet, or
upside down.
The air is very humid. If so, wait about
an hour and try again.
There could have been a problem while
burning the CD.
The label could be caught in the CD player.
If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error
cannot be corrected, contact your dealer/retailer.
If the radio displays an error message, write
it down and provide it to your dealer/retailer
while reporting the problem.
211

Using the Auxiliary Input Jack
Your radio system has an auxiliary input jack
located on the lower right side of the faceplate.
This is not an audio output; do not plug the
headphone set into the front auxiliary input jack.
You can however, connect an external audio
device such as an iPod, laptop computer, MP3
player, CD changer, or cassette tape player, etc.
to the auxiliary input jack for use as another
source for audio listening.
Drivers are encouraged to set up any auxiliary
device while the vehicle is in PARK (P).
SeeDefensive Driving on page 226for
more information on driver distraction.
To use a portable audio player, connect a
3.5 mm (1/8 inch) cable to the radio’s front
auxiliary input jack. When a device is connected,
press the radio CD/AUX button to begin playing
audio from the device over the vehicle’s speakers.
O(Power/Volume):Turn theO(volume)
knob clockwise or counterclockwise to increase
or decrease the volume of the portable player.
You might need to make additional volume
adjustments from the portable device.BAND:Press this button to listen to the radio
while a portable audio device is playing. The
portable audio device continues to play, so you
might want to stop it or turn it off.
CD/AUX (CD/Auxiliary):Press this button to play
a CD while a portable audio device is playing.
Press this button again and the system begins
to play audio from the connected portable
audio player. If a portable audio player is not
connected, “No Aux Input Device” displays.
Using an MP3
MP3 CD-R or CD-RW Disc
The radio plays MP3 les that were recorded on a
CD-R or CD-RW disc. The les can be recorded
with the following xed bit rates: 32 kbps, 40 kbps,
56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps,
128 kbps, 160 kbps, 192 kbps, 224 kbps,
256 kbps, and 320 kbps or a variable bit rate.
Song title, artist name, and album can display
when recorded using ID3 tags version 1 and 2.
212

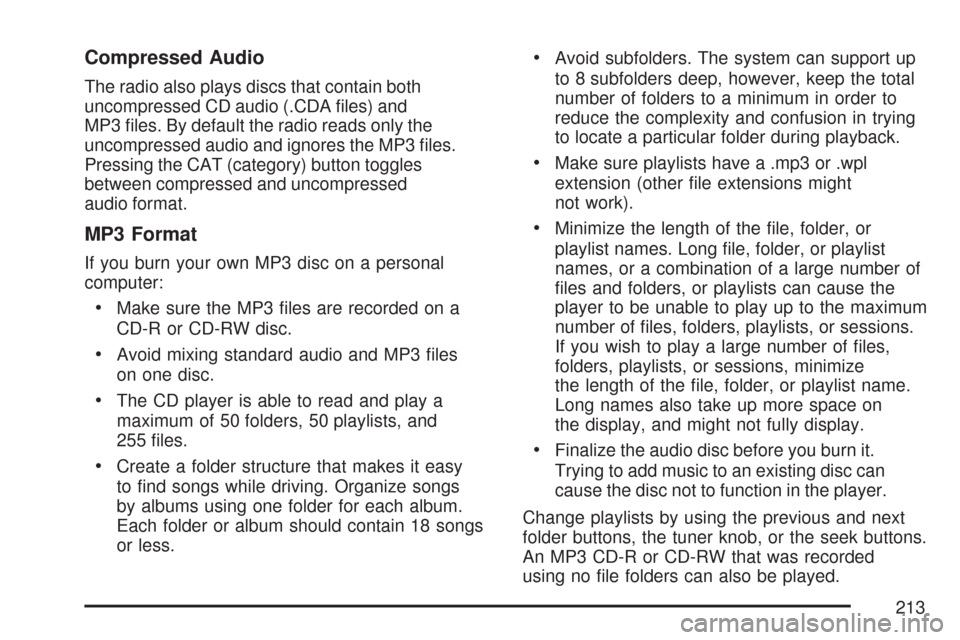

Compressed Audio
The radio also plays discs that contain both
uncompressed CD audio (.CDA les) and
MP3 les. By default the radio reads only the
uncompressed audio and ignores the MP3 les.
Pressing the CAT (category) button toggles
between compressed and uncompressed
audio format.
MP3 Format
If you burn your own MP3 disc on a personal
computer:
Make sure the MP3 les are recorded on a
CD-R or CD-RW disc.
Avoid mixing standard audio and MP3 les
on one disc.
The CD player is able to read and play a
maximum of 50 folders, 50 playlists, and
255 les.
Create a folder structure that makes it easy
to nd songs while driving. Organize songs
by albums using one folder for each album.
Each folder or album should contain 18 songs
or less.
Avoid subfolders. The system can support up
to 8 subfolders deep, however, keep the total
number of folders to a minimum in order to
reduce the complexity and confusion in trying
to locate a particular folder during playback.
Make sure playlists have a .mp3 or .wpl
extension (other le extensions might
not work).
Minimize the length of the le, folder, or
playlist names. Long le, folder, or playlist
names, or a combination of a large number of
les and folders, or playlists can cause the
player to be unable to play up to the maximum
number of les, folders, playlists, or sessions.
If you wish to play a large number of les,
folders, playlists, or sessions, minimize
the length of the le, folder, or playlist name.
Long names also take up more space on
the display, and might not fully display.
Finalize the audio disc before you burn it.
Trying to add music to an existing disc can
cause the disc not to function in the player.
Change playlists by using the previous and next
folder buttons, the tuner knob, or the seek buttons.
An MP3 CD-R or CD-RW that was recorded
using no le folders can also be played.
213

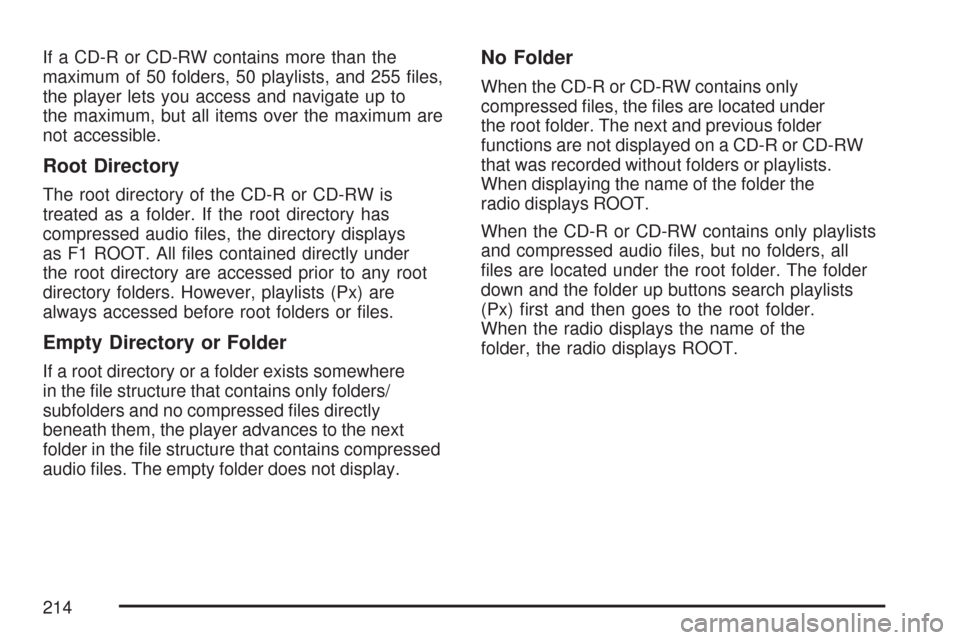

If a CD-R or CD-RW contains more than the
maximum of 50 folders, 50 playlists, and 255 les,
the player lets you access and navigate up to
the maximum, but all items over the maximum are
not accessible.
Root Directory
The root directory of the CD-R or CD-RW is
treated as a folder. If the root directory has
compressed audio les, the directory displays
as F1 ROOT. All les contained directly under
the root directory are accessed prior to any root
directory folders. However, playlists (Px) are
always accessed before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere
in the le structure that contains only folders/
subfolders and no compressed les directly
beneath them, the player advances to the next
folder in the le structure that contains compressed
audio les. The empty folder does not display.
No Folder
When the CD-R or CD-RW contains only
compressed les, the les are located under
the root folder. The next and previous folder
functions are not displayed on a CD-R or CD-RW
that was recorded without folders or playlists.
When displaying the name of the folder the
radio displays ROOT.
When the CD-R or CD-RW contains only playlists
and compressed audio les, but no folders, all
les are located under the root folder. The folder
down and the folder up buttons search playlists
(Px) rst and then goes to the root folder.
When the radio displays the name of the
folder, the radio displays ROOT.
214

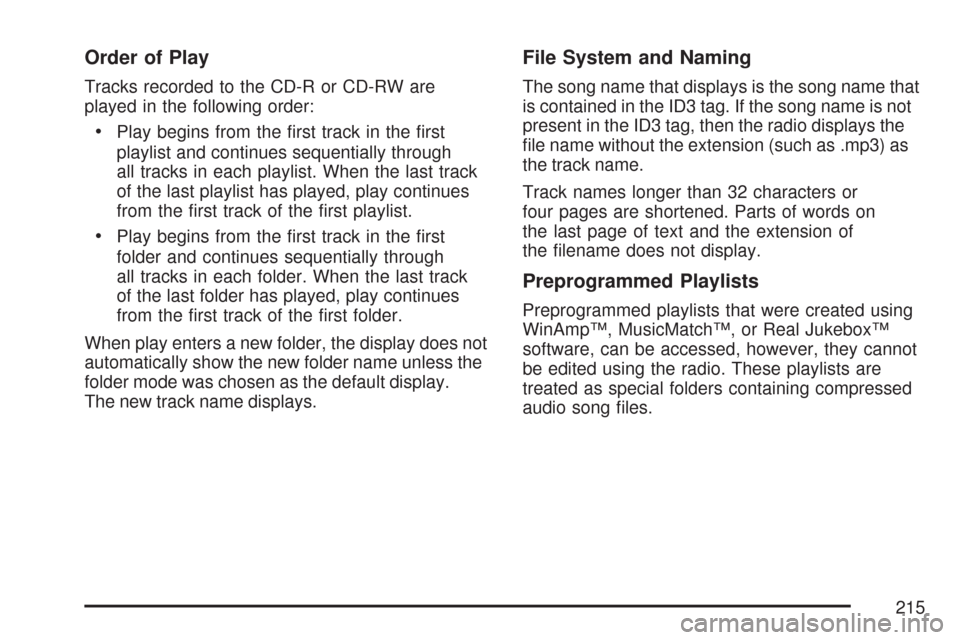

Order of Play
Tracks recorded to the CD-R or CD-RW are
played in the following order:
Play begins from the rst track in the rst
playlist and continues sequentially through
all tracks in each playlist. When the last track
of the last playlist has played, play continues
from the rst track of the rst playlist.
Play begins from the rst track in the rst
folder and continues sequentially through
all tracks in each folder. When the last track
of the last folder has played, play continues
from the rst track of the rst folder.
When play enters a new folder, the display does not
automatically show the new folder name unless the
folder mode was chosen as the default display.
The new track name displays.
File System and Naming
The song name that displays is the song name that
is contained in the ID3 tag. If the song name is not
present in the ID3 tag, then the radio displays the
le name without the extension (such as .mp3) as
the track name.
Track names longer than 32 characters or
four pages are shortened. Parts of words on
the last page of text and the extension of
the lename does not display.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™
software, can be accessed, however, they cannot
be edited using the radio. These playlists are
treated as special folders containing compressed
audio song les.
215

Playing an MP3
Insert a CD-R or CD-RW partway into the slot
(Single CD Player), or press the load button and
wait for the message to insert disc (Six-Disc
CD Player), label side up. The player pulls it in,
and the CD-R or CD-RW should begin playing.
If the ignition or radio is turned off with a CD-R
or CD-RW in the player, it stays in the player.
When the ignition or radio is turned on, the
CD-R starts to play where it stopped, if it was
the last selected audio source.
As each new track starts to play, the track
number and song title displays.
The CD player can play the smaller 3 inch (8 cm)
single CD-Rs or CD-RWs with an adapter ring.
Full-size CD-Rs/CD-RWs and the smaller
CD-Rs/CD-RWs are loaded in the same manner.
If playing a CD-R or CD-RW, the sound quality
can be reduced due to CD-R or CD-RW quality,
the method of recording, the quality of the
music that has been recorded, and the way
the CD-R or CD-RW has been handled.There can be an increase in skipping, difficulty in
nding tracks, and/or difficulty in loading and
ejecting. If these problems occur, check the bottom
surface of the CD. If the surface of the CD is
damaged, such as cracked, broken, or scratched,
the CD does not play properly. If the surface of
the CD is soiled, seeCare of Your CDs on
page 224for more information.
If there is no apparent damage, try a known
good CD.
Notice:If a label is added to a CD, or more than
one CD is inserted into the slot at a time, or an
attempt is made to play scratched or damaged
CDs, the CD player could be damaged. While
using the CD player, use only CDs in good
condition without any label, load one CD at a
time, and keep the CD player and the loading
slot free of foreign materials, liquids, and
debris.
216

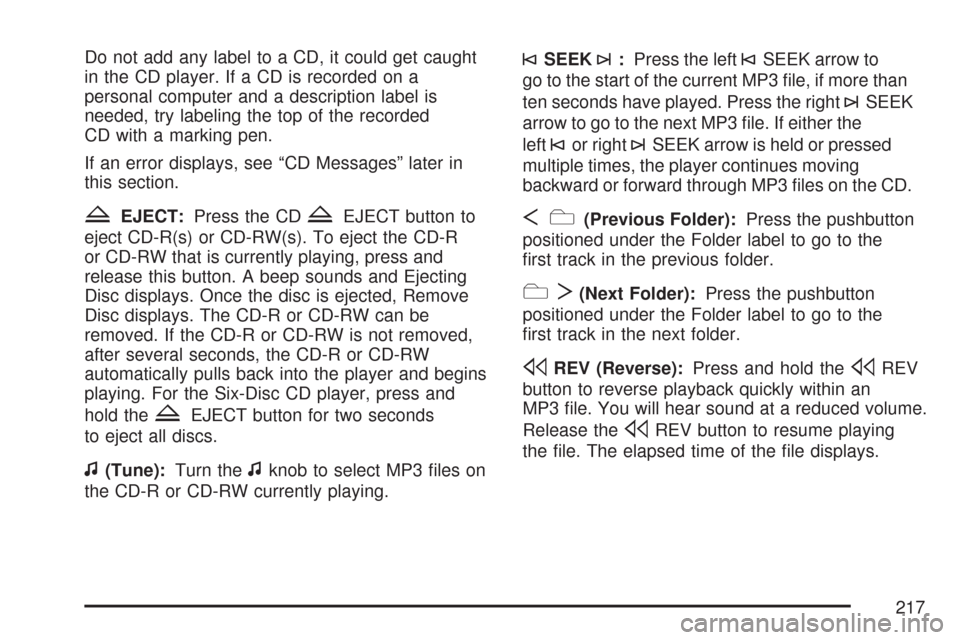

Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded
CD with a marking pen.
If an error displays, see “CD Messages” later in
this section.
ZEJECT:Press the CDZEJECT button to
eject CD-R(s) or CD-RW(s). To eject the CD-R
or CD-RW that is currently playing, press and
release this button. A beep sounds and Ejecting
Disc displays. Once the disc is ejected, Remove
Disc displays. The CD-R or CD-RW can be
removed. If the CD-R or CD-RW is not removed,
after several seconds, the CD-R or CD-RW
automatically pulls back into the player and begins
playing. For the Six-Disc CD player, press and
hold the
ZEJECT button for two seconds
to eject all discs.
f(Tune):Turn thefknob to select MP3 les on
the CD-R or CD-RW currently playing.
©SEEK¨:Press the left©SEEK arrow to
go to the start of the current MP3 le, if more than
ten seconds have played. Press the right
¨SEEK
arrow to go to the next MP3 le. If either the
left
©or right¨SEEK arrow is held or pressed
multiple times, the player continues moving
backward or forward through MP3 les on the CD.
Sc(Previous Folder):Press the pushbutton
positioned under the Folder label to go to the
rst track in the previous folder.
cT(Next Folder):Press the pushbutton
positioned under the Folder label to go to the
rst track in the next folder.
sREV (Reverse):Press and hold thesREV
button to reverse playback quickly within an
MP3 le. You will hear sound at a reduced volume.
Release the
sREV button to resume playing
the le. The elapsed time of the le displays.
217

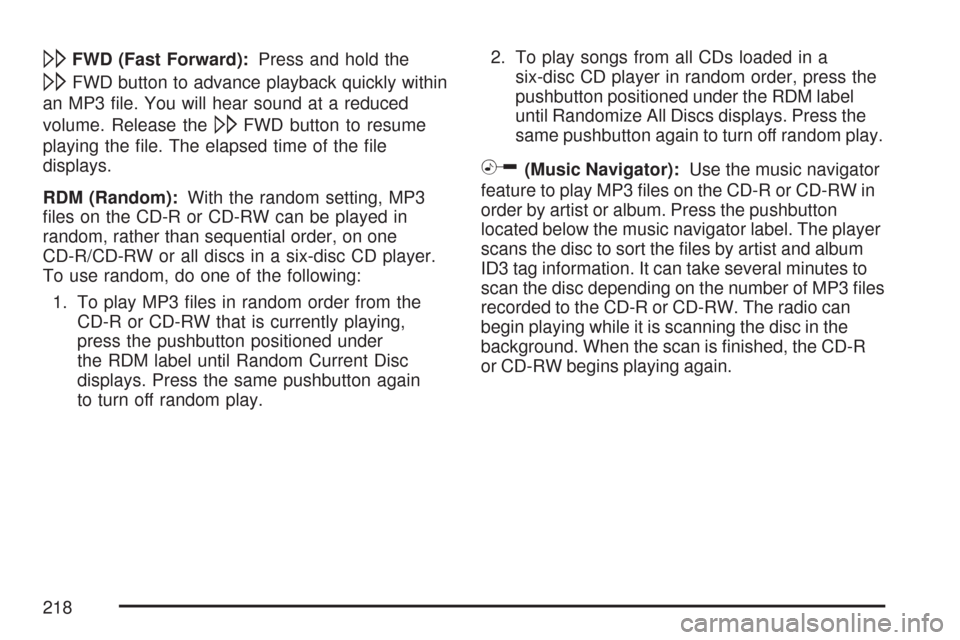

\FWD (Fast Forward):Press and hold the
\FWD button to advance playback quickly within
an MP3 le. You will hear sound at a reduced
volume. Release the
\FWD button to resume
playing the le. The elapsed time of the le
displays.
RDM (Random):With the random setting, MP3
les on the CD-R or CD-RW can be played in
random, rather than sequential order, on one
CD-R/CD-RW or all discs in a six-disc CD player.
To use random, do one of the following:
1. To play MP3 les in random order from the
CD-R or CD-RW that is currently playing,
press the pushbutton positioned under
the RDM label until Random Current Disc
displays. Press the same pushbutton again
to turn off random play.2. To play songs from all CDs loaded in a
six-disc CD player in random order, press the
pushbutton positioned under the RDM label
until Randomize All Discs displays. Press the
same pushbutton again to turn off random play.
h(Music Navigator):Use the music navigator
feature to play MP3 les on the CD-R or CD-RW in
order by artist or album. Press the pushbutton
located below the music navigator label. The player
scans the disc to sort the les by artist and album
ID3 tag information. It can take several minutes to
scan the disc depending on the number of MP3 les
recorded to the CD-R or CD-RW. The radio can
begin playing while it is scanning the disc in the
background. When the scan is nished, the CD-R
or CD-RW begins playing again.
218

Once the disc has been scanned, the player
defaults to playing MP3 les in order by artist.
The current artist playing is shown on the second
line of the display between the arrows. Once all
songs by that artist are played, the player moves to
the next artist in alphabetical order on the CD-R/
CD-RW and begins playing MP3 les by that artist.
If you want to listen to MP3 les by another artist,
press the pushbutton located below either arrow
button. The CD goes to the next or previous artist in
alphabetical order. Continue pressing either button
until the desired artist displays.
To change from playback by artist to playback by
album, press the pushbutton located below the
Sort By label. From the sort screen, push one
of the buttons below the album button. Press the
pushbutton below the back label to return to the
main music navigator screen. The album name
displays on the second line between the arrows and
songs from the current album and begins to play.Once all songs from that album are played, the
player moves to the next album in alphabetical
order on the CD-R or CD-RW and begins playing
MP3 les from that album.
To exit music navigator mode, press the
pushbutton below the Back label to return to
normal MP3 playback.
BAND:Press this button to listen to the radio
while a CD is playing. The CD remains inside the
radio for future listening.
CD/AUX (CD/Auxiliary):Press this button to
play a CD while listening to the radio. The CD icon
and a message showing disc and/or track number
displays while a CD is in the player. Press this
button again and the system automatically
searches for an auxiliary input device such as a
portable audio player. If a portable audio player is
not connected, “No Aux Input Device” displays.
219

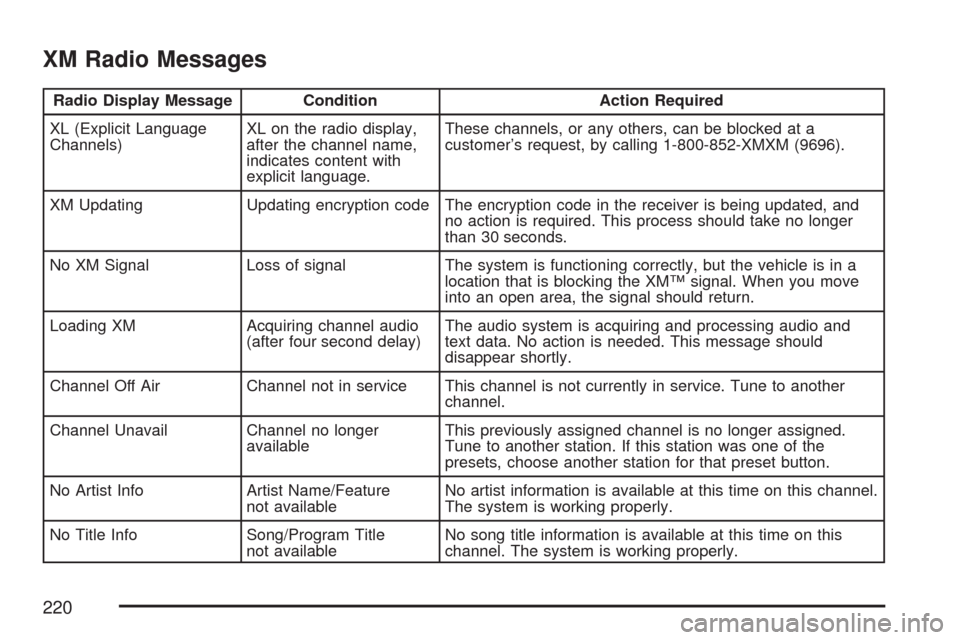

XM Radio Messages
Radio Display Message Condition Action Required
XL (Explicit Language
Channels)XL on the radio display,
after the channel name,
indicates content with
explicit language.These channels, or any others, can be blocked at a
customer’s request, by calling 1-800-852-XMXM (9696).
XM Updating Updating encryption code The encryption code in the receiver is being updated, and
no action is required. This process should take no longer
than 30 seconds.
No XM Signal Loss of signal The system is functioning correctly, but the vehicle is in a
location that is blocking the XM™ signal. When you move
into an open area, the signal should return.
Loading XM Acquiring channel audio
(after four second delay)The audio system is acquiring and processing audio and
text data. No action is needed. This message should
disappear shortly.
Channel Off Air Channel not in service This channel is not currently in service. Tune to another
channel.
Channel Unavail Channel no longer
availableThis previously assigned channel is no longer assigned.
Tune to another station. If this station was one of the
presets, choose another station for that preset button.
No Artist Info Artist Name/Feature
not availableNo artist information is available at this time on this channel.
The system is working properly.
No Title Info Song/Program Title
not availableNo song title information is available at this time on this
channel. The system is working properly.
220
