CHEVROLET COLORADO 2004 1.G Owners Manual
Manufacturer: CHEVROLET, Model Year: 2004, Model line: COLORADO, Model: CHEVROLET COLORADO 2004 1.GPages: 414, PDF Size: 2.71 MB
Page 91 of 414

Rear Door Security Locks
(Crew Cab)
If you have the crew cab model, your vehicle may be
equipped with rear door security locks. With this feature,
you can lock the rear doors so they cannot be opened
from the inside by passengers.
The security lock lever is
located on the inside edge
of each rear door.To use the security locks, do the following:
1. Open one of the rear doors.
2. Using your ignition key, turn the lock clockwise on
the driver’s side rear door, and counterclockwise on
the passenger’s side rear door to engage the
rear door security lock.
3. Close the door.
4. Repeat these steps on the opposite rear door.
If you want to open the rear door when the security lock is
on, unlock the door and open the door from the outside.
To return the rear doors to normal use, disengage the
locks by inserting the ignition key and turning the lock
counterclockwise for the driver’s side rear door, and
clockwise for the passenger’s side rear door.
2-9
Page 92 of 414

Lockout Protection
If you have power door locks, this feature protects you
from locking your key in the vehicle when the key is
in the ignition and a door is open.
If the power door lock switch is pressed when a door is
open and the key is in the ignition, all of the doors
will lock and then the driver’s door will unlock.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Rear Doors (Extended Cab)
If you have an extended cab, your vehicle has rear
doors for convenience in loading and unloading cargo.
To open a rear door, open the front door. Then, use
the handle located on the front edge of the rear
door panel to open it. You must close the rear door
before closing the front door.
Tailgate
You can open the tailgate by pulling up on the handle
while pulling the tailgate down.
When you put the tailgate back up, be sure it
latches securely.
You can lock the tailgate using your ignition key. Turn
the key counterclockwise to lock the tailgate. Turn
the key clockwise to unlock the tailgate.
2-10
Page 93 of 414

Removing the Tailgate
Follow these steps if you want to remove the tailgate:
1. Raise the
tailgate slightly.
2. Remove the retaining cables from both ends of the
tailgate by pulling upward on the clip. Then, push
forward so the larger part of the hole on the bracket
is over the bolt. Pull the end over the bolt.
3. With the tailgate halfway down, pull the tailgate
toward you at the passenger’s side and then
move the tailgate to the right to release the
passenger’s side.
Reverse the procedure to reinstall the tailgate. Make
sure it is secure.To partially lower the tailgate do the following:
1. Raise the
tailgate slightly.
2. Pull upward on each clip. Then, push forward so
the larger part of the hole on the bracket is over
the bolt. Pull the end over the bolt.
3. Slide the end tting off the bottom bolt and onto the
top bolt.
If you would like to close the tailgate, the bracket cannot
be in the partially open position and must be anchored
on the bottom bolt, using the secondary position on
the end tting. Tailgate Fully Down
Tailgate Partially Down
2-11
Page 94 of 414

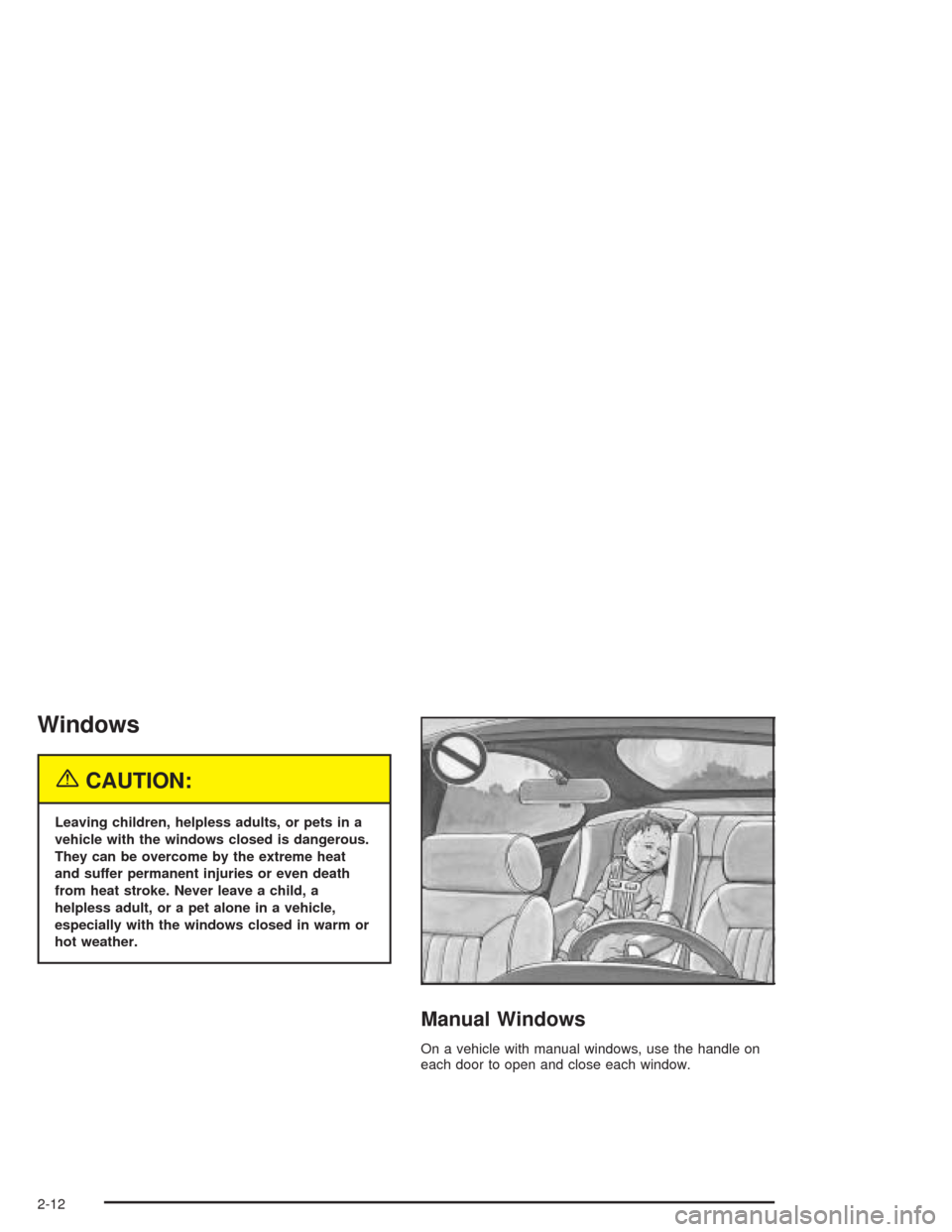

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
Manual Windows
On a vehicle with manual windows, use the handle on
each door to open and close each window.
2-12
Page 95 of 414

Power Windows
The power window
controls are located on the
armrest of each door.
The driver’s door has switches for the passenger
windows as well. Your power windows will work when
the ignition has been turned to ACC (Accessory) or ON
or when Retained Accessory Power (RAP) is active.
See “Retained Accessory Power” underIgnition
Positions on page 2-18.
Pull up the forward edge of the control with the power
window symbol on it to raise the window.
Press the forward edge of the control down to lower
the window.Do not hold all four power window switches down for
several seconds after the windows have been
completely lowered or raised, because the vehicle may
blow a fuse.
Express Down Windows
The driver’s window also has an express down feature
that allows the windows to be lowered without holding
the switch. Press and hold the front edge of the window
switch for one second to activate the express down
mode. The express down mode can be canceled at any
time by pulling up on the switch. To open the window
partway, lightly tap the switch until the window is at the
desired position.
Window Lockout
If you have a crew cab vehicle with power windows, you
will also have a window lockout button located above
the window switches. This feature disables the rear
windows switches when the window lockout button is
pressed. To turn the lockout feature on or off, press the
window lockout button. When the feature is off, the
power windows will operate normally. Crew cab switches
shown
2-13
Page 96 of 414

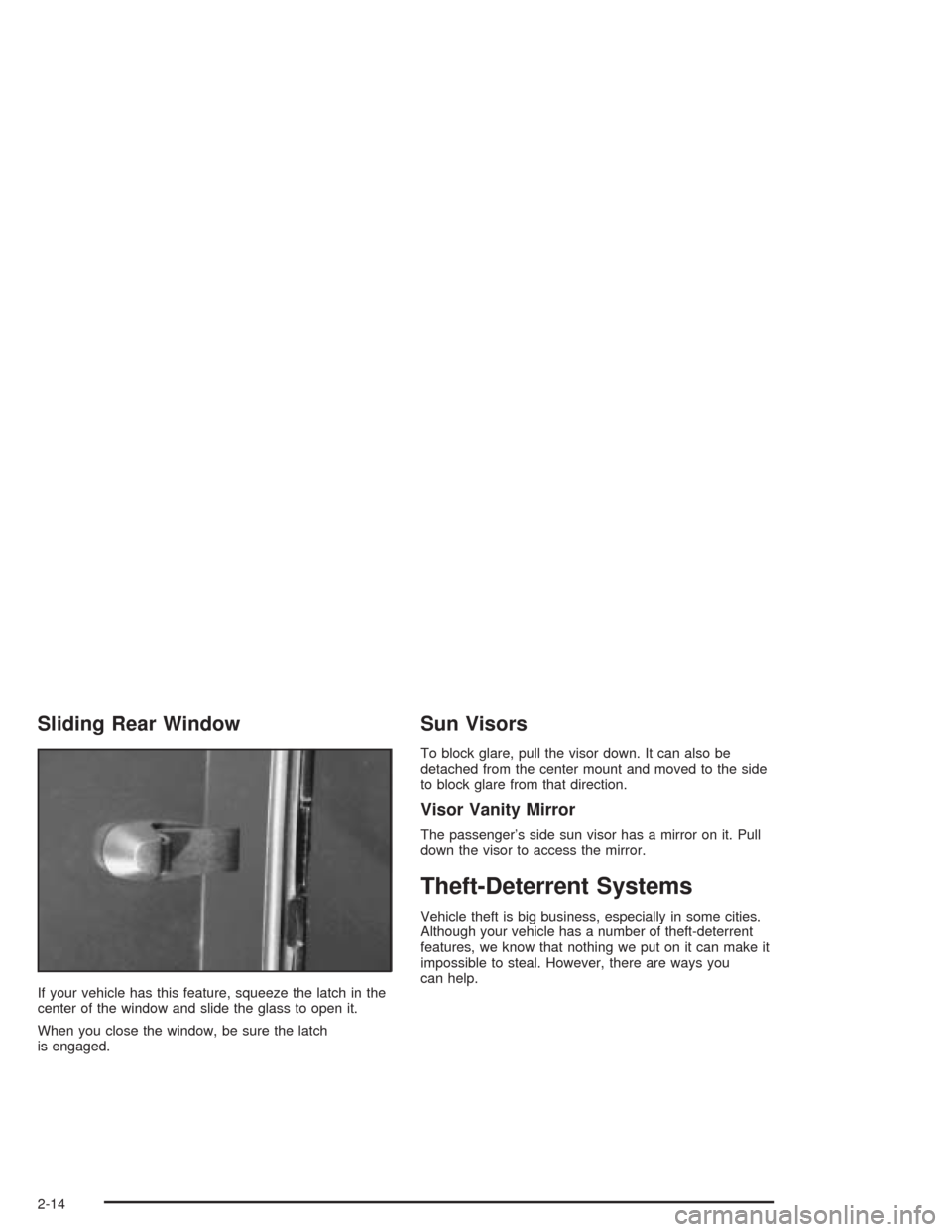

Sliding Rear Window
If your vehicle has this feature, squeeze the latch in the
center of the window and slide the glass to open it.
When you close the window, be sure the latch
is engaged.
Sun Visors
To block glare, pull the visor down. It can also be
detached from the center mount and moved to the side
to block glare from that direction.
Visor Vanity Mirror
The passenger’s side sun visor has a mirror on it. Pull
down the visor to access the mirror.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal. However, there are ways you
can help.
2-14
Page 97 of 414

Content Theft-Deterrent
If your vehicle has the
remote keyless entry
system, the vehicle has a
content theft-deterrent
alarm system.
To activate the content theft-deterrent system, do
the following:
1. Close all the doors.
2. Lock the door with the remote keyless entry
transmitter. The security light ashes.
If the vehicle is equipped with OnStar
®, and OnStar®
locks the doors, with all the doors closed, it will activate
the system.
If the lock button on the remote keyless entry transmitter
is pressed, but a door is open, the horn will chirp six
times. Close the open door and the system will
be activated.If a locked door is not opened with the remote keyless
entry transmitter, or OnStar
®, the alarm will go off.
The front turn signal lamps will ash for two minutes,
and the horn will sound for two minutes, then will turn off
to save the battery power.
Remember, the theft-deterrent system won’t activate if
you lock the doors with a key, the manual door lock,
or power door lock switch. The system can only
be activated with the remote keyless entry transmitter,
or OnStar
®. You should also remember that you
can start your vehicle with the correct ignition key if the
alarm has been set off.
Here’s how to avoid setting off the alarm by accident:
If you don’t want to activate the theft-deterrent
system, the vehicle should be locked with the door
key after the doors are closed.
Always unlock a door with a the remote keyless
entry transmitter. Unlocking a door any other
way will set off the alarm.
If you set off the alarm by accident, you can turn off the
alarm by pressing unlock on the remote keyless
entry transmitter. The alarm won’t stop if you try to
unlock a door any other way.
2-15
Page 98 of 414

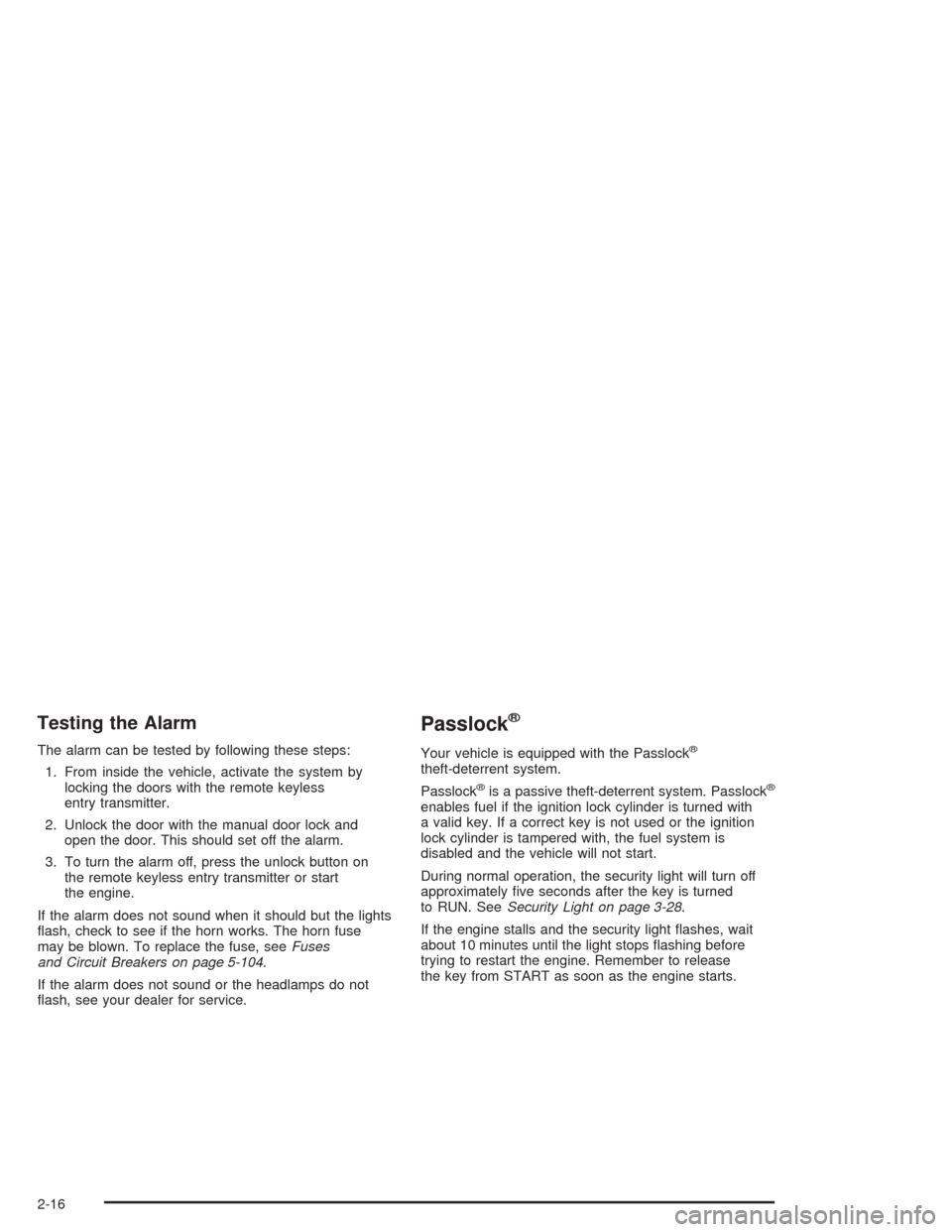

Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, activate the system by
locking the doors with the remote keyless
entry transmitter.
2. Unlock the door with the manual door lock and
open the door. This should set off the alarm.
3. To turn the alarm off, press the unlock button on
the remote keyless entry transmitter or start
the engine.
If the alarm does not sound when it should but the lights
ash, check to see if the horn works. The horn fuse
may be blown. To replace the fuse, seeFuses
and Circuit Breakers on page 5-104.
If the alarm does not sound or the headlamps do not
ash, see your dealer for service.
Passlock®
Your vehicle is equipped with the Passlock®
theft-deterrent system.
Passlock
®is a passive theft-deterrent system. Passlock®
enables fuel if the ignition lock cylinder is turned with
a valid key. If a correct key is not used or the ignition
lock cylinder is tampered with, the fuel system is
disabled and the vehicle will not start.
During normal operation, the security light will turn off
approximately ve seconds after the key is turned
to RUN. SeeSecurity Light on page 3-28.
If the engine stalls and the security light ashes, wait
about 10 minutes until the light stops ashing before
trying to restart the engine. Remember to release
the key from START as soon as the engine starts.
2-16
Page 99 of 414

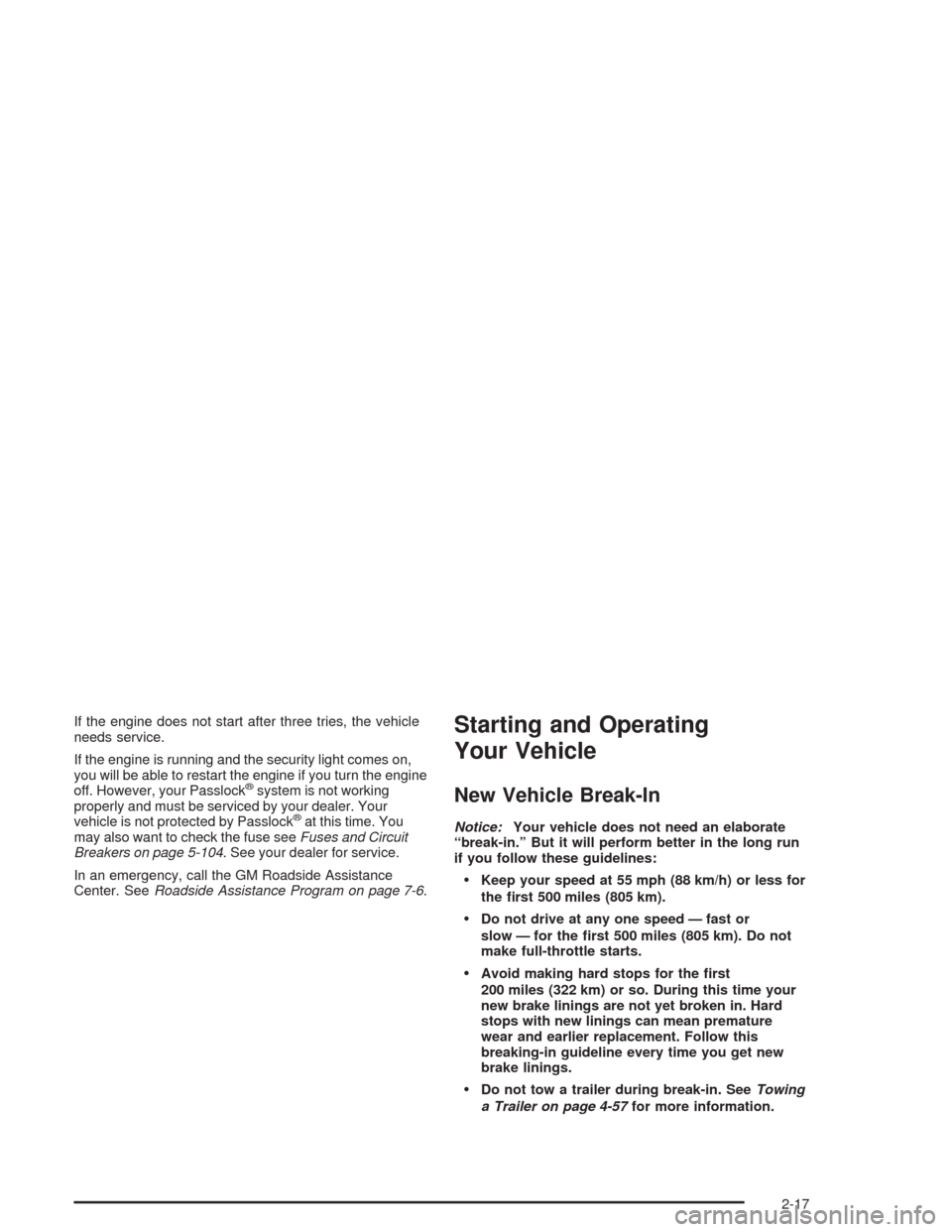

If the engine does not start after three tries, the vehicle
needs service.
If the engine is running and the security light comes on,
you will be able to restart the engine if you turn the engine
off. However, your Passlock
®system is not working
properly and must be serviced by your dealer. Your
vehicle is not protected by Passlock
®at this time. You
may also want to check the fuse seeFuses and Circuit
Breakers on page 5-104. See your dealer for service.
In an emergency, call the GM Roadside Assistance
Center. SeeRoadside Assistance Program on page 7-6.
Starting and Operating
Your Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an elaborate
“break-in.” But it will perform better in the long run
if you follow these guidelines:
Keep your speed at 55 mph (88 km/h) or less for
the rst 500 miles (805 km).
Do not drive at any one speed — fast or
slow — for the rst 500 miles (805 km). Do not
make full-throttle starts.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time your
new brake linings are not yet broken in. Hard
stops with new linings can mean premature
wear and earlier replacement. Follow this
breaking-in guideline every time you get new
brake linings.
Do not tow a trailer during break-in. SeeTowing
a Trailer on page 4-57for more information.
2-17
Page 100 of 414

Ignition Positions
With the key in the ignition
switch, you can turn to four
different positions.
{CAUTION:
On manual transmission vehicles, turning the
key to LOCK will lock the steering column and
result in a loss of ability to steer the vehicle.
This could cause a collision. If you need to
turn the engine off while the vehicle is moving,
turn the key only to ACC. Do not push the key
in while the vehicle is moving.LOCK (A):This position locks your steering wheel,
ignition and transmission on automatic transmission
vehicles. If your vehicle has a manual transmission, this
position locks your steering wheel. It is a theft-deterrent
feature. You will only be able to remove your key
when the ignition is turned to LOCK.
If you have an automatic transmission, the ignition
switch cannot be turned to LOCK unless the shift lever
is in PARK (P).
Notice:Using a tool to force the key from the
ignition switch could cause damage or break the
key. Use the correct key and turn the key only with
your hand. Make sure the key is all the way in. If
it is, turn the steering wheel left and right while you
turn the key hard. If none of this works, then
your vehicle needs service.
ACC (ACCESSORY) (B):This is the position in which
you can operate your electrical accessories or items
plugged into the accessory power outlets. It also unlocks
the steering wheel and ignition. Use this position if
your vehicle must be pushed or towed.
2-18
