Heated Seats
If your vehicle has this
feature, the controls are
located on the outboard
side of the front seats.
This feature will quickly heat the lower cushion and
lower back of the driver’s and front passenger’s seats
for added comfort.Press the lower part of the switch to turn the heater on
at low heat. Press the upper part of the switch to
turn the heater on at high heat. Put the switch in the
center position to turn the heater off.
The ignition must be on for the heated seat feature to
work. The passenger’s safety belt must be engaged for
the heated seat feature to work on the passenger’s seat.
1-5

Reclining Seatbacks
Your vehicle may have reclining seatbacks.
To manually recline your seatback, lift the lever on the
outboard side of the seat.
Release the lever to lock the seatback where you want
it. Pull up on the lever and without pushing on the
seatback, the seat will go to an upright position.If you have power seats, you can use the vertical power
seat control shown previously. Move the seatback
forward or rearward by moving the control toward the
front or rear of the vehicle.
Do not have a seatback reclined if your vehicle is moving.
1-6

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Head Restraints
If your vehicle is equipped with adjustable head
restraints, move the head restraint so that the top of
the restraint is closest to the top of your head. This
position reduces the chance of a neck injury in a crash.
Push up on the head restraint to raise it. To lower
the head restraint, press the button located on top of
the seatback and push down on the head restraint.
1-7

Seatback Latches
Your vehicle may be equipped with front seatbacks that
fold forward to let people get into the rear seat or to
access the storage area behind the seat.
To fold the front seatback
forward, push the lever on
the side of the seat
rearward and pull the
seatback forward.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That
could cause injury to the person sitting there.
Always press rearward on the seatback to
be sure it is locked.To return the seatback to the upright position, push the
seatback all the way back until the latch catches. If
the seatback was reclined before being folded forward,
it will return to the reclined position.
Rear Seats
Rear Seat Operation (Crew Cab)
If your vehicle is a crew cab, the rear seatback can be
folded forward. Before you can fold the rear seatback,
you need to unlatch the center safety belt buckle.
Use the following steps to lower one or both of the rear
seatbacks:
1. Insert a tool with a small tip into the slot to unlatch
the center position safety belt buckle. Then move
the belt to the side so it is not in the way.
1-8

2. Grasp the loop located
on the side of the
seatback you want to
fold and pull until
you hear a click.
3. Fold the seatback down.
4. Repeat Steps 2 and 3 to fold down the other
seatback.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That
could cause injury to the person sitting there.
Always press rearward on the seatback to be
sure it is locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
To return the seatback to the upright position, do the
following:
1. Lift the seatback up and push it back into place.
2. Reconnect the center safety belt latch plate to the
buckle.
3. Make sure the seatback is locked into place by
pushing and pulling on it.
4. Repeat Steps 1 and 3 for the other seatback.
When the seatback is not in use, it should be kept in
the upright, locked position.
1-9

Rear Seat Operation (Extended Cab)
If your vehicle has an
extended cab, there may
be a forward folding seat
in the rear area.
To fold the rear seat down, pull down on the bottom of
the seat until the seat is in place.To store the seat, do the following:
1. To ensure that the safety belt buckle does not
move when not in use, secure it to the inboard
side of the seat by the hook and loop fastener (A).
2. Push the entire seat up until it is ush with the
trim panel.
The rear seat storage compartments must be in the
rearward position before folding the seat down.
1-10

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she can not
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-24.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:They work.
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a bad one.
1-11

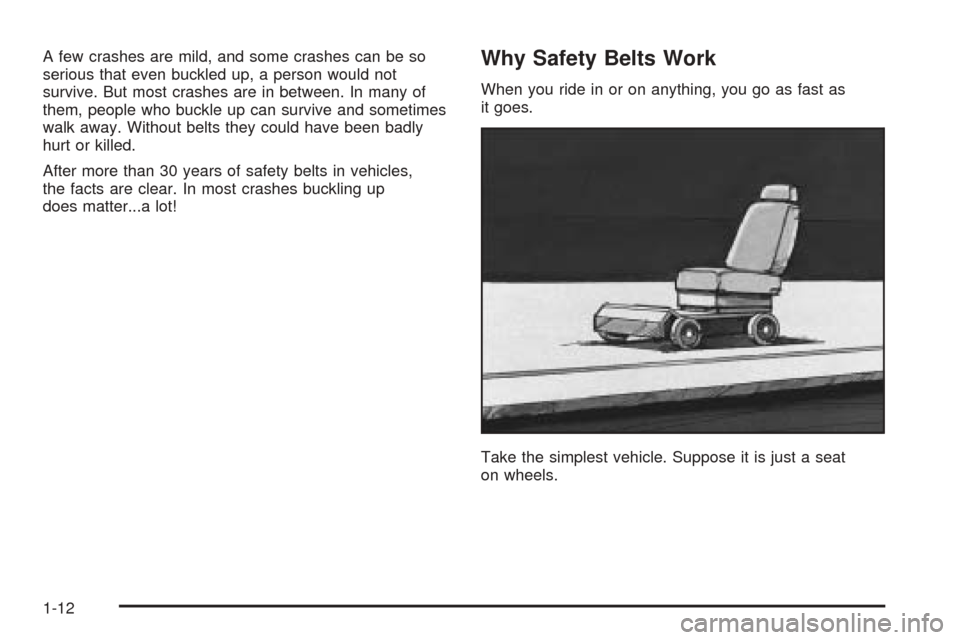

A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter...a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat
on wheels.
1-12

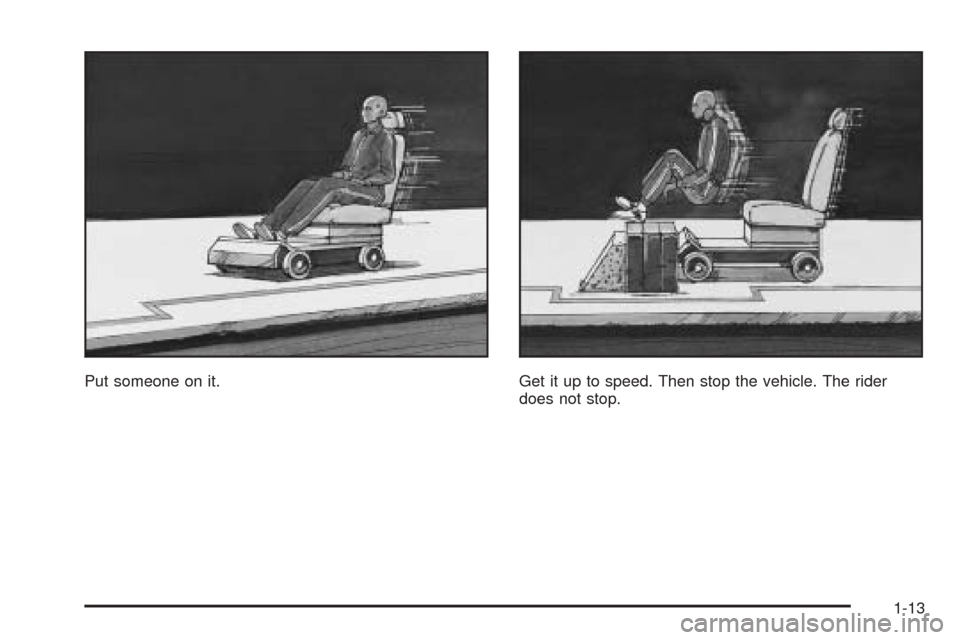

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
does not stop.
1-13

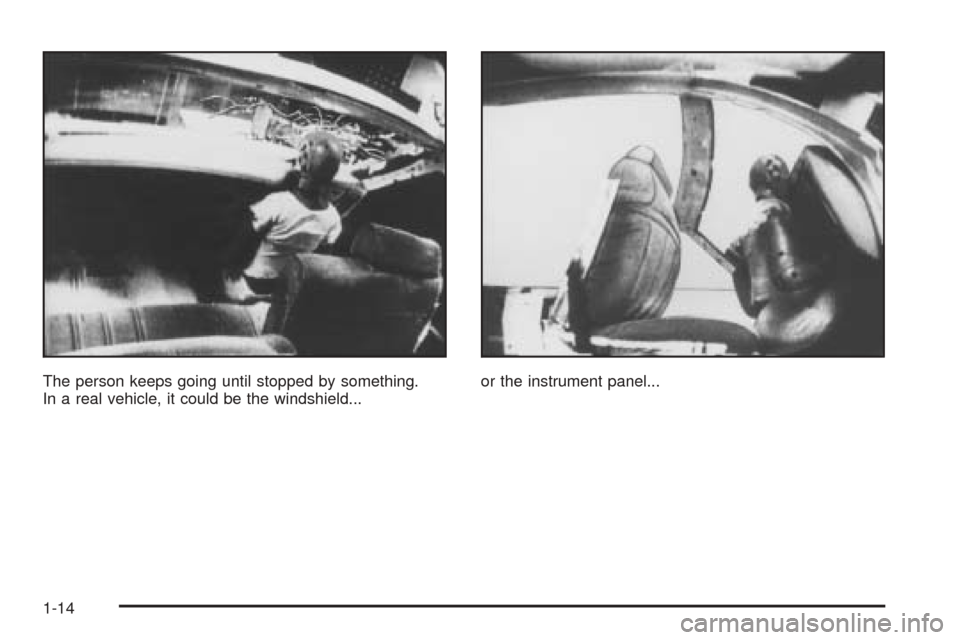

The person keeps going until stopped by something.
In a real vehicle, it could be the windshield...or the instrument panel...
