There are top strap anchors on the back wall behind
each rear seating position. You must pull the seatback
forward to access the top strap anchors (A). See
Rear Seat Operation (Crew Cab)in the Index.
1. Release the rear seatback from its latches (B).
SeeRear Seat Operation (Crew Cab)in the
Index for instructions.
2. Attach the top strap to the anchor (A).
Make sure that you secure the top strap to the top
strap anchor (A) and not to the seatback latch (B).
3. Push rearward on the seatback until it locks into its
upright position.
Push and pull on the seatback to make sure it is
secured properly.
Do not secure a child restraint with a top strap in the
right front passenger’s position if a national or local law
requires that the top strap be anchored, or if the
instructions that come with the child restraint say that
the top strap must be anchored. There is no place
to anchor the top strap in this position.Extended Cab with Rear Seats
A. Top strap routing loops
B. Top strap anchors
C. LATCH anchors (SeeLower Anchorages and Top
Tethers for Children (LATCH System) on page 1-46.
There are two top strap anchorages on the center of the
back wall located behind a removable cover for the
rear seating positions. You must route the top strap
through the loop (A) at the top of the seatback to attach
the top strap to the one of the top strap anchors (B)
as shown.Extended Cab with Rear Seats
1-45

Do not secure a child restraint with a top strap in the
right front passenger’s position if a national or local law
requires that the top strap be anchored, or if the
instructions that come with the child restraint say that
the top strap must be anchored. There is no place
to anchor the top strap in this position.
Regular and Extended Cabs without
Rear Seats
There is a top strap anchor located behind a removable
cover on the back wall behind the right front passenger
seat. You must pull the seatback forward to access the
top strap anchors. SeeSeatback Latches on page 1-8.
Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle is equipped with the LATCH System.
For crew cabs, there are anchors for each outboard
seating position. You will nd the anchors where
the seatback meets the back of the seat cushion.
For extended cabs with rear seats, there are anchors
for each rear seating position. You will nd the anchors
attached to the back wall near the seat cushion.
For regular cabs and extended cabs without rear seats,
there are anchors for the right front passenger position.
You will nd the anchors where the seatback meets the
back of the seat cushion.To assist you in locating the anchors, place your hand
in a palm-up position and reach up between the
seat cushion and the seatback.
This system, designed to make installation of child
restraints easier, does not use the vehicle’s safety belts.
Instead, it uses vehicle anchors and child restraint
attachments to secure the restraints. Some restraints
also use another vehicle anchor to secure a top
tether strap.
A. Lower Anchorage
B. Lower Anchorage
C. Top Tether
1-46

A. Lower Anchorage
B. Lower Anchorage
In order to use the LATCH system in your vehicle,
you need a child restraint designed for that system.
{CAUTION:
If a LATCH-type child restraint is not attached
to its anchorage points, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured or
killed. Make sure that a LATCH-type child
restraint is properly installed using the
anchorage points, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint, and
also the instructions in this manual.
1-47

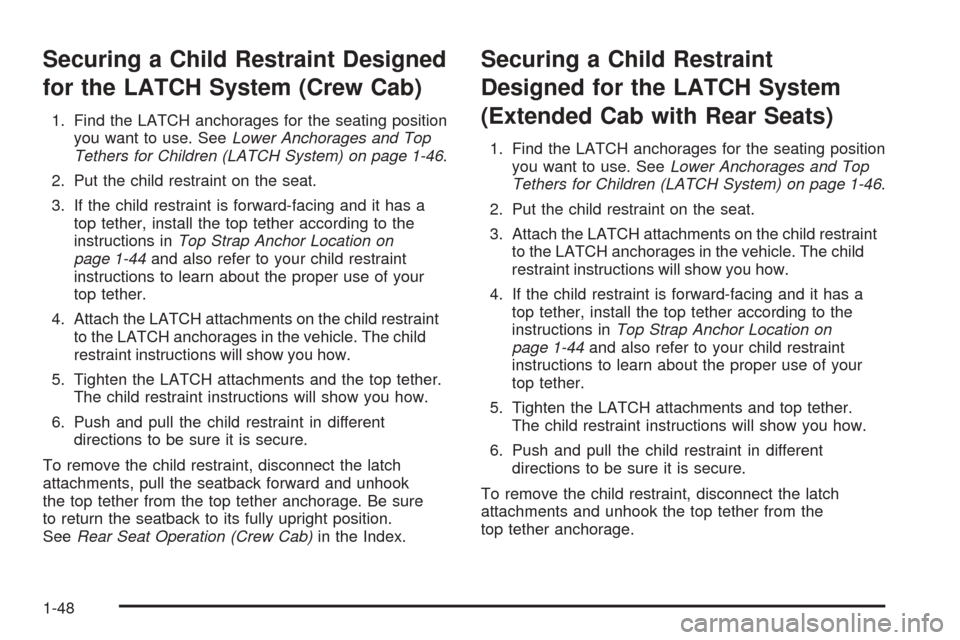

Securing a Child Restraint Designed
for the LATCH System (Crew Cab)
1. Find the LATCH anchorages for the seating position
you want to use. SeeLower Anchorages and Top
Tethers for Children (LATCH System) on page 1-46.
2. Put the child restraint on the seat.
3. If the child restraint is forward-facing and it has a
top tether, install the top tether according to the
instructions inTop Strap Anchor Location on
page 1-44and also refer to your child restraint
instructions to learn about the proper use of your
top tether.
4. Attach the LATCH attachments on the child restraint
to the LATCH anchorages in the vehicle. The child
restraint instructions will show you how.
5. Tighten the LATCH attachments and the top tether.
The child restraint instructions will show you how.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, disconnect the latch
attachments, pull the seatback forward and unhook
the top tether from the top tether anchorage. Be sure
to return the seatback to its fully upright position.
SeeRear Seat Operation (Crew Cab)in the Index.
Securing a Child Restraint
Designed for the LATCH System
(Extended Cab with Rear Seats)
1. Find the LATCH anchorages for the seating position
you want to use. SeeLower Anchorages and Top
Tethers for Children (LATCH System) on page 1-46.
2. Put the child restraint on the seat.
3. Attach the LATCH attachments on the child restraint
to the LATCH anchorages in the vehicle. The child
restraint instructions will show you how.
4. If the child restraint is forward-facing and it has a
top tether, install the top tether according to the
instructions inTop Strap Anchor Location on
page 1-44and also refer to your child restraint
instructions to learn about the proper use of your
top tether.
5. Tighten the LATCH attachments and top tether.
The child restraint instructions will show you how.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, disconnect the latch
attachments and unhook the top tether from the
top tether anchorage.
1-48

Securing a Child Restraint Designed
for the LATCH System (Regular/
Extended Cab - No Rear Seats)
Your vehicle has airbags. Regular cab models and
extended cab models without rear seats have an airbag
off switch on the instrument panel you can use to
turn off the right front passenger’s frontal airbag.
SeeAirbag Off Switch on page 1-71for more on this
including important safety information.Unless the right front passenger’s frontal airbag has
been turned off,neverput a rear-facing child restraint
in this vehicle. Here is why:{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s frontal airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the inating
airbag. Do not use a rear-facing child restraint
in this vehicle unless the airbag has been
turned off.
Even though the airbag off switch is designed
to turn off the right front passenger’s frontal
airbag, no system is fail-safe, and no one can
guarantee that an airbag will not deploy under
some unusual circumstance, even though it is
turned off. We recommend that rear-facing
child restraints be transported in vehicles with
a rear seat that will accommodate a rear-facing
child restraint, whenever possible. United States
Canada
1-49

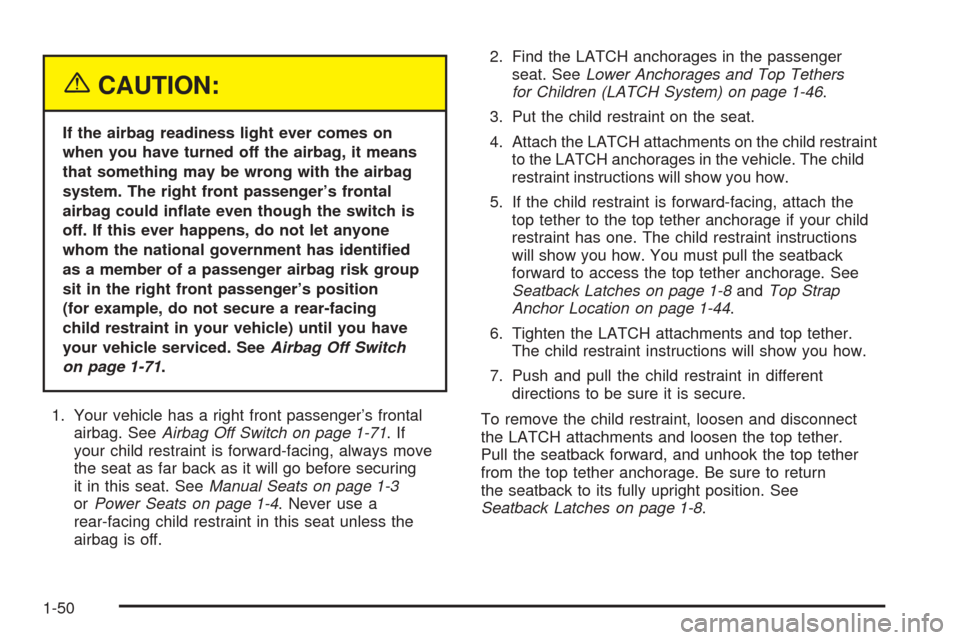

{CAUTION:
If the airbag readiness light ever comes on
when you have turned off the airbag, it means
that something may be wrong with the airbag
system. The right front passenger’s frontal
airbag could inate even though the switch is
off. If this ever happens, do not let anyone
whom the national government has identied
as a member of a passenger airbag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing
child restraint in your vehicle) until you have
your vehicle serviced. SeeAirbag Off Switch
on page 1-71.
1. Your vehicle has a right front passenger’s frontal
airbag. SeeAirbag Off Switch on page 1-71.If
your child restraint is forward-facing, always move
the seat as far back as it will go before securing
it in this seat. SeeManual Seats on page 1-3
orPower Seats on page 1-4. Never use a
rear-facing child restraint in this seat unless the
airbag is off.2. Find the LATCH anchorages in the passenger
seat. SeeLower Anchorages and Top Tethers
for Children (LATCH System) on page 1-46.
3. Put the child restraint on the seat.
4. Attach the LATCH attachments on the child restraint
to the LATCH anchorages in the vehicle. The child
restraint instructions will show you how.
5. If the child restraint is forward-facing, attach the
top tether to the top tether anchorage if your child
restraint has one. The child restraint instructions
will show you how. You must pull the seatback
forward to access the top tether anchorage. See
Seatback Latches on page 1-8andTop Strap
Anchor Location on page 1-44.
6. Tighten the LATCH attachments and top tether.
The child restraint instructions will show you how.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, loosen and disconnect
the LATCH attachments and loosen the top tether.
Pull the seatback forward, and unhook the top tether
from the top tether anchorage. Be sure to return
the seatback to its fully upright position. See
Seatback Latches on page 1-8.
1-50

Turn on the right front passenger’s frontal airbag when
you remove the child restraint from the vehicle unless
the person who will be sitting there is a member of
a passenger airbag risk group. SeeAirbag Off Switch
on page 1-71.
{CAUTION:
If the right front passenger’s frontal airbag is
turned off for a person who is not in a risk
group identied by the national government,
that person will not have the extra protection
of an airbag. In a crash, the airbag would not
be able to inate and help protect the person
sitting there. Do not turn off the right front
passenger’s frontal airbag unless the person
sitting there is in a risk group. SeeAirbag
Off Switch on page 1-71for more on this,
including important safety information.
Securing a Child Restraint in a
Rear Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46. SeeTop Strap
on page 1-42if the child restraint has one.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-51

3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock (crew cab only).
1-52

5. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger. For outboard seating
positions, when the safety belt is not in use, slide
the latch plate up the safety belt webbing. The latch
plate should rest on the stitching on the safety belt, near
the upper anchor on the side wall.
Securing a Child Restraint in the
Center Front Seat Position
Do not use child restraints in this position. The restraints
will not work properly.
1-53

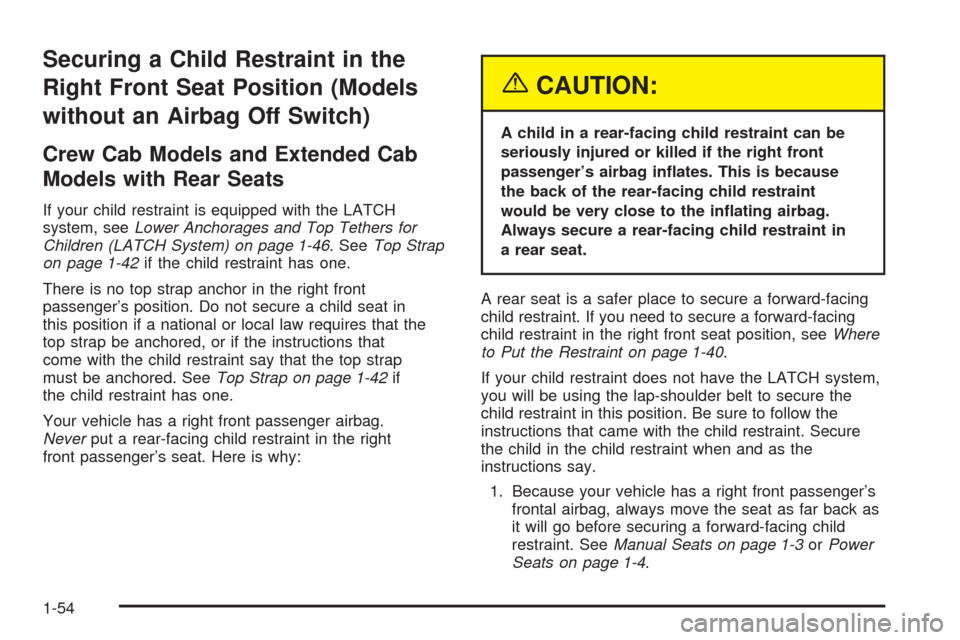

Securing a Child Restraint in the
Right Front Seat Position (Models
without an Airbag Off Switch)
Crew Cab Models and Extended Cab
Models with Rear Seats
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46. SeeTop Strap
on page 1-42if the child restraint has one.
There is no top strap anchor in the right front
passenger’s position. Do not secure a child seat in
this position if a national or local law requires that the
top strap be anchored, or if the instructions that
come with the child restraint say that the top strap
must be anchored. SeeTop Strap on page 1-42if
the child restraint has one.
Your vehicle has a right front passenger airbag.
Neverput a rear-facing child restraint in the right
front passenger’s seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating airbag.
Always secure a rear-facing child restraint in
a rear seat.
A rear seat is a safer place to secure a forward-facing
child restraint. If you need to secure a forward-facing
child restraint in the right front seat position, seeWhere
to Put the Restraint on page 1-40.
If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Because your vehicle has a right front passenger’s
frontal airbag, always move the seat as far back as
it will go before securing a forward-facing child
restraint. SeeManual Seats on page 1-3orPower
Seats on page 1-4.
1-54
