CHEVROLET COLORADO 2007 1.G Owners Manual

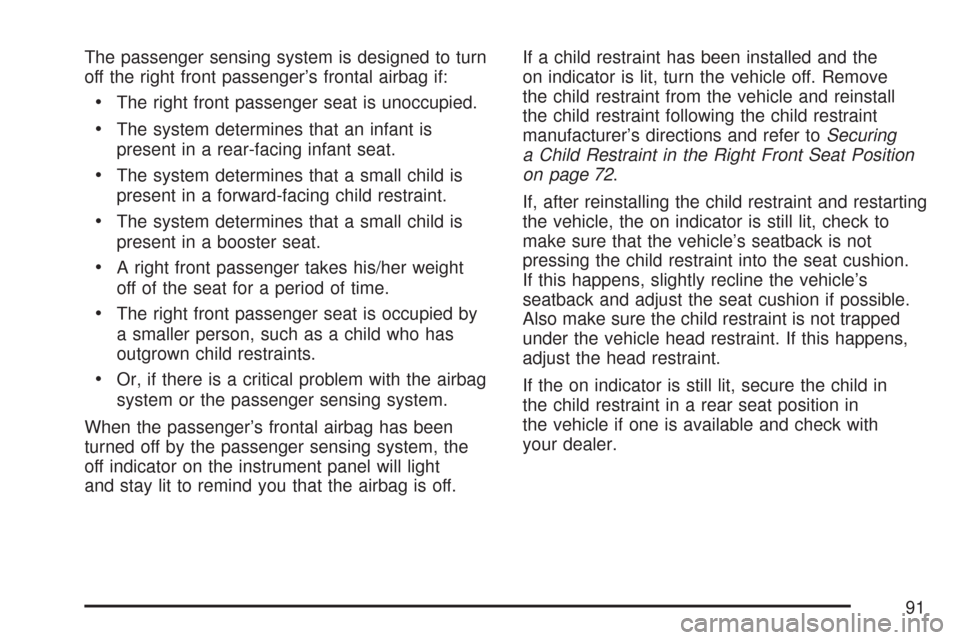

The passenger sensing system is designed to turn
off the right front passenger’s frontal airbag if:
The right front passenger seat is unoccupied.
The system determines that an infant is
present in a rear-facing infant seat.
The system determines that a small child is
present in a forward-facing child restraint.
The system determines that a small child is
present in a booster seat.
A right front passenger takes his/her weight
off of the seat for a period of time.
The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints.
Or, if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger’s frontal airbag has been
turned off by the passenger sensing system, the
off indicator on the instrument panel will light
and stay lit to remind you that the airbag is off.If a child restraint has been installed and the
on indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall
the child restraint following the child restraint
manufacturer’s directions and refer toSecuring
a Child Restraint in the Right Front Seat Position
on page 72.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in
the child restraint in a rear seat position in
the vehicle if one is available and check with
your dealer.
91

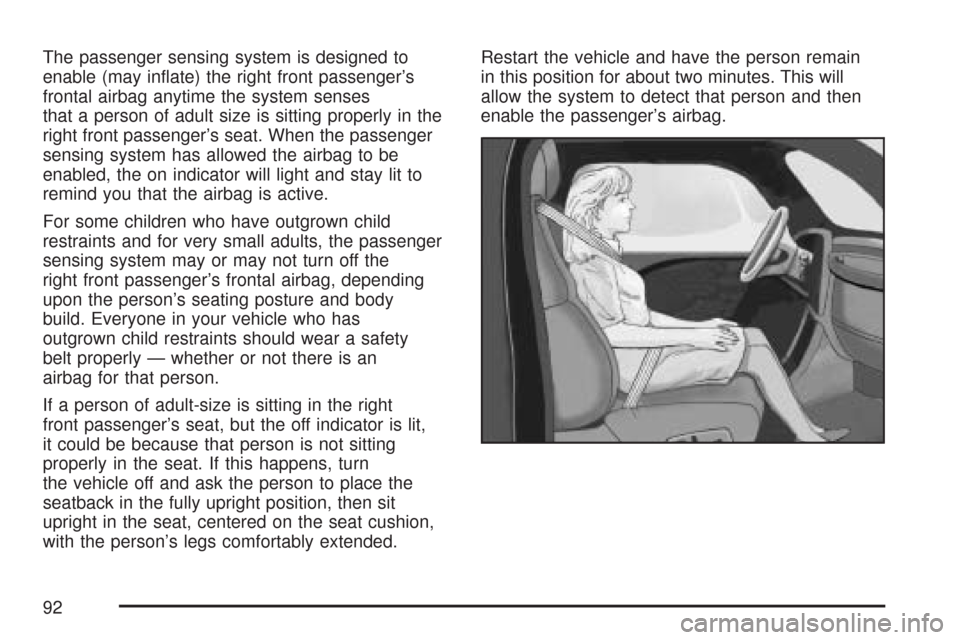

The passenger sensing system is designed to
enable (may inate) the right front passenger’s
frontal airbag anytime the system senses
that a person of adult size is sitting properly in the
right front passenger’s seat. When the passenger
sensing system has allowed the airbag to be
enabled, the on indicator will light and stay lit to
remind you that the airbag is active.
For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the
right front passenger’s frontal airbag, depending
upon the person’s seating posture and body
build. Everyone in your vehicle who has
outgrown child restraints should wear a safety
belt properly — whether or not there is an
airbag for that person.
If a person of adult-size is sitting in the right
front passenger’s seat, but the off indicator is lit,
it could be because that person is not sitting
properly in the seat. If this happens, turn
the vehicle off and ask the person to place the
seatback in the fully upright position, then sit
upright in the seat, centered on the seat cushion,
with the person’s legs comfortably extended.Restart the vehicle and have the person remain
in this position for about two minutes. This will
allow the system to detect that person and then
enable the passenger’s airbag.
92

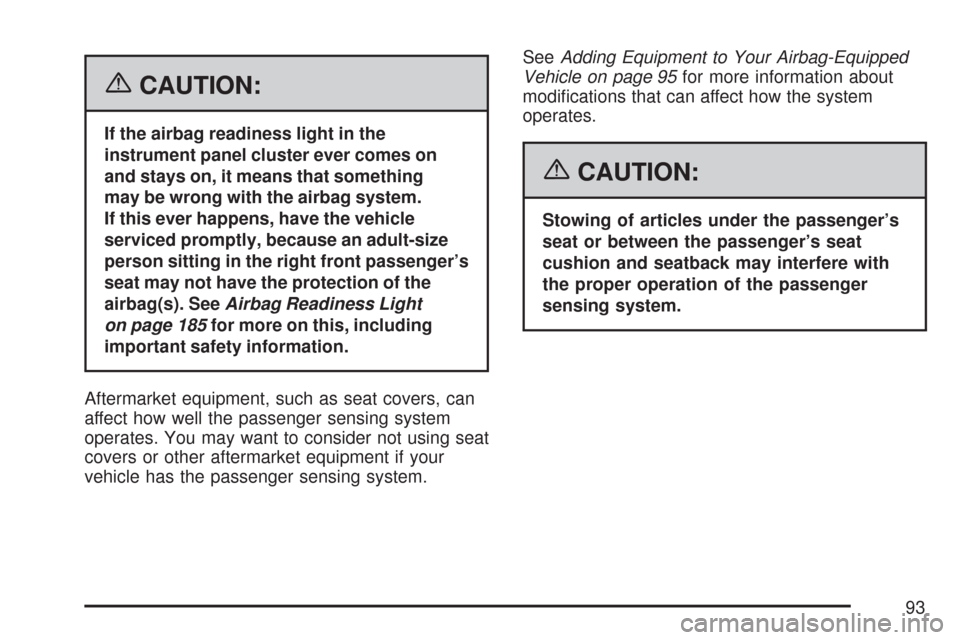

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system.
If this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front passenger’s
seat may not have the protection of the
airbag(s). SeeAirbag Readiness Light
on page 185for more on this, including
important safety information.
Aftermarket equipment, such as seat covers, can
affect how well the passenger sensing system
operates. You may want to consider not using seat
covers or other aftermarket equipment if your
vehicle has the passenger sensing system.SeeAdding Equipment to Your Airbag-Equipped
Vehicle on page 95for more information about
modications that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
93

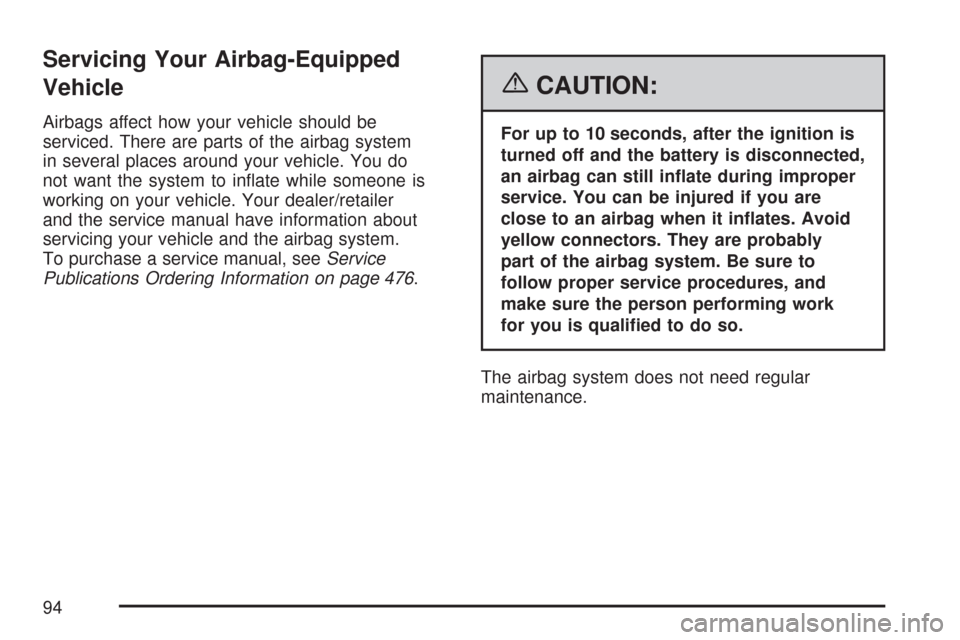

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system
in several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your dealer/retailer
and the service manual have information about
servicing your vehicle and the airbag system.
To purchase a service manual, seeService
Publications Ordering Information on page 476.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably
part of the airbag system. Be sure to
follow proper service procedures, and
make sure the person performing work
for you is qualied to do so.
The airbag system does not need regular
maintenance.
94

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep
the airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors.
If you have any questions about this,
you should contact Customer Assistance
before you modify your vehicle. The phone
numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual.
SeeCustomer Satisfaction Procedure
on page 460.
Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, ceiling headliner, ceiling
and pillar garnish trim, roof-mounted airbag
modules, or airbag wiring can affect the
operation of the airbag system. If you
have questions, call Customer Assistance.
The phone numbers and addresses for
Customer Assistance are in Step Two of
the Customer Satisfaction Procedure in this
manual. SeeCustomer Satisfaction Procedure
on page 460.
95

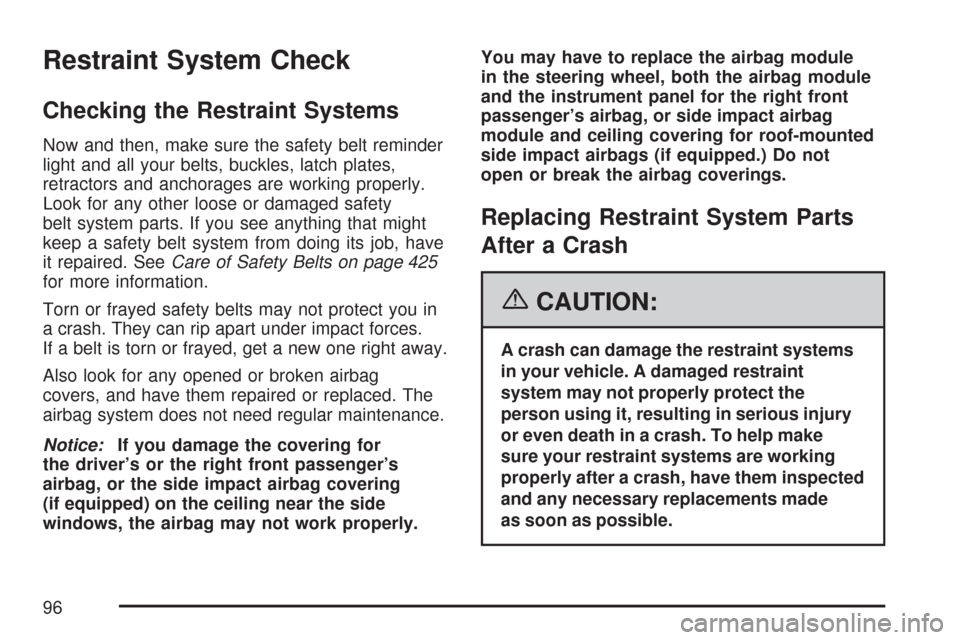

Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors and anchorages are working properly.
Look for any other loose or damaged safety
belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it repaired. SeeCare of Safety Belts on page 425
for more information.
Torn or frayed safety belts may not protect you in
a crash. They can rip apart under impact forces.
If a belt is torn or frayed, get a new one right away.
Also look for any opened or broken airbag
covers, and have them repaired or replaced. The
airbag system does not need regular maintenance.
Notice:If you damage the covering for
the driver’s or the right front passenger’s
airbag, or the side impact airbag covering
(if equipped) on the ceiling near the side
windows, the airbag may not work properly.You may have to replace the airbag module
in the steering wheel, both the airbag module
and the instrument panel for the right front
passenger’s airbag, or side impact airbag
module and ceiling covering for roof-mounted
side impact airbags (if equipped.) Do not
open or break the airbag coverings.
Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them inspected
and any necessary replacements made
as soon as possible.
96

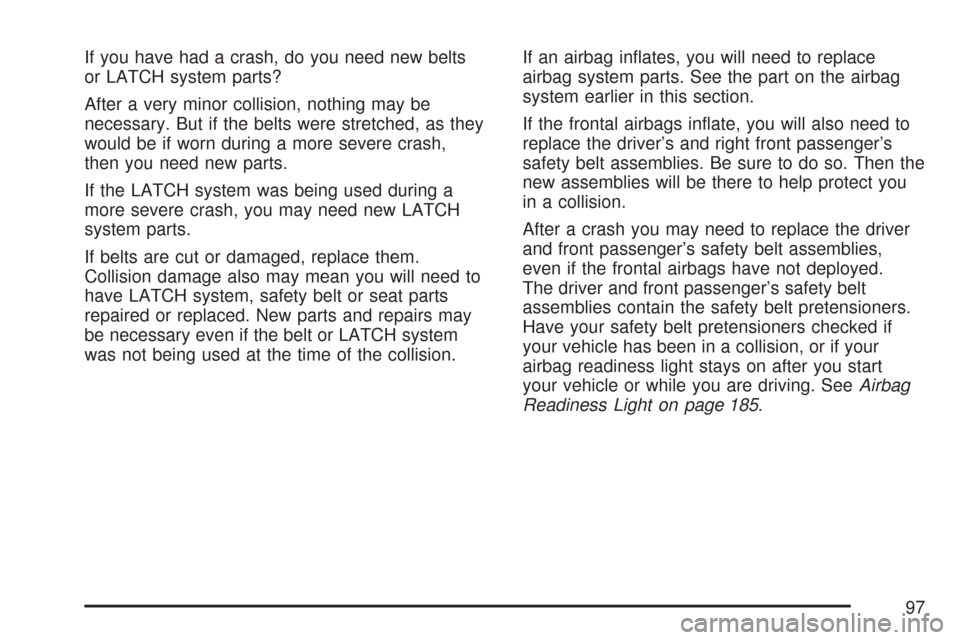

If you have had a crash, do you need new belts
or LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.
If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.If an airbag inates, you will need to replace
airbag system parts. See the part on the airbag
system earlier in this section.
If the frontal airbags inate, you will also need to
replace the driver’s and right front passenger’s
safety belt assemblies. Be sure to do so. Then the
new assemblies will be there to help protect you
in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt assemblies,
even if the frontal airbags have not deployed.
The driver and front passenger’s safety belt
assemblies contain the safety belt pretensioners.
Have your safety belt pretensioners checked if
your vehicle has been in a collision, or if your
airbag readiness light stays on after you start
your vehicle or while you are driving. SeeAirbag
Readiness Light on page 185.
97

✍NOTES
98

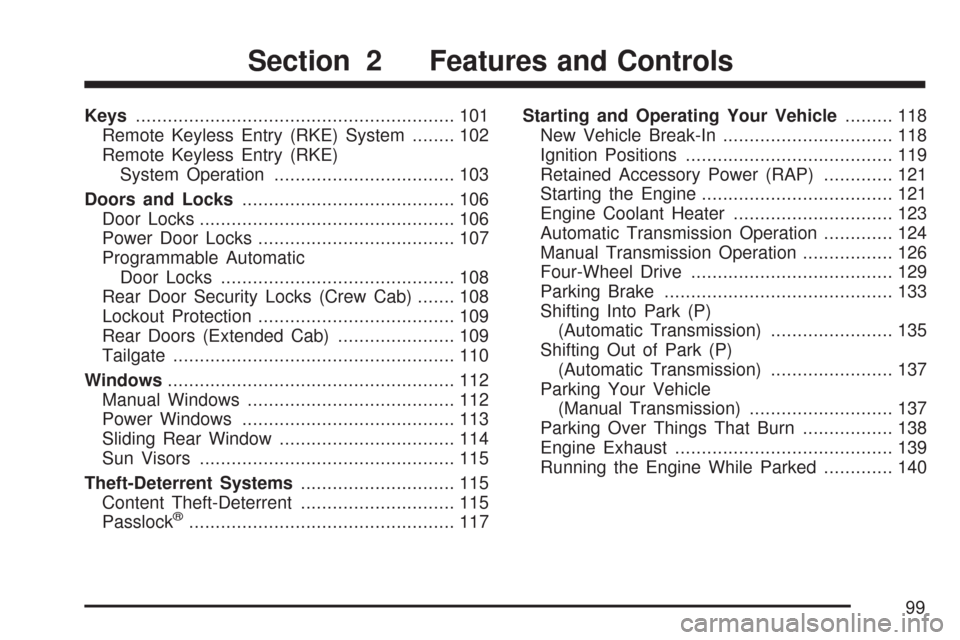

Keys............................................................ 101
Remote Keyless Entry (RKE) System........ 102
Remote Keyless Entry (RKE)
System Operation.................................. 103
Doors and Locks........................................ 106
Door Locks................................................ 106
Power Door Locks..................................... 107
Programmable Automatic
Door Locks............................................ 108
Rear Door Security Locks (Crew Cab)....... 108
Lockout Protection..................................... 109
Rear Doors (Extended Cab)...................... 109
Tailgate..................................................... 110
Windows...................................................... 112
Manual Windows....................................... 112
Power Windows........................................ 113
Sliding Rear Window................................. 114
Sun Visors................................................ 115
Theft-Deterrent Systems............................. 115
Content Theft-Deterrent............................. 115
Passlock
®.................................................. 117Starting and Operating Your Vehicle......... 118
New Vehicle Break-In................................ 118
Ignition Positions....................................... 119
Retained Accessory Power (RAP)............. 121
Starting the Engine.................................... 121
Engine Coolant Heater.............................. 123
Automatic Transmission Operation............. 124
Manual Transmission Operation................. 126
Four-Wheel Drive...................................... 129
Parking Brake........................................... 133
Shifting Into Park (P)
(Automatic Transmission)....................... 135
Shifting Out of Park (P)
(Automatic Transmission)....................... 137
Parking Your Vehicle
(Manual Transmission)........................... 137
Parking Over Things That Burn................. 138
Engine Exhaust......................................... 139
Running the Engine While Parked............. 140
Section 2 Features and Controls
99

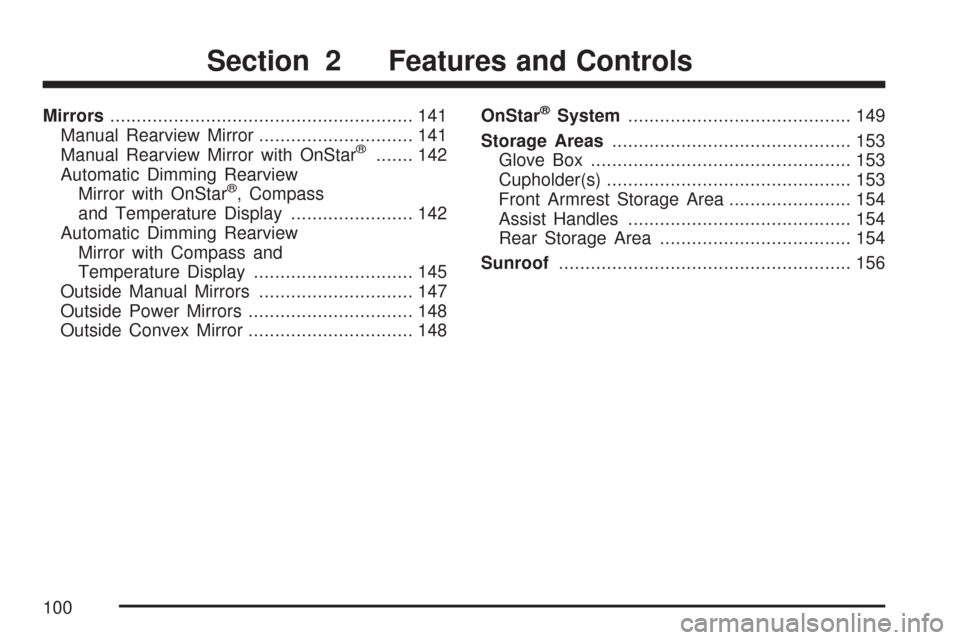

Mirrors......................................................... 141
Manual Rearview Mirror............................. 141
Manual Rearview Mirror with OnStar
®....... 142
Automatic Dimming Rearview
Mirror with OnStar
®, Compass
and Temperature Display....................... 142
Automatic Dimming Rearview
Mirror with Compass and
Temperature Display.............................. 145
Outside Manual Mirrors............................. 147
Outside Power Mirrors............................... 148
Outside Convex Mirror............................... 148OnStar
®System.......................................... 149
Storage Areas............................................. 153
Glove Box................................................. 153
Cupholder(s).............................................. 153
Front Armrest Storage Area....................... 154
Assist Handles.......................................... 154
Rear Storage Area.................................... 154
Sunroof....................................................... 156
Section 2 Features and Controls
100
