CHEVROLET COLORADO 2007 1.G Owners Manual

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be
badly injured or even killed. They could
operate the power windows or other
controls or even make the vehicle move.
The windows will function with the keys in
the ignition and they could be seriously
injured or killed if caught in the path of
a closing window. Do not leave the keys
in a vehicle with children.
101

There is a double-sided
key that can be used for
the ignition, all door
locks, and the tailgate.
When a new vehicle is delivered, the dealer/retailer
provides the owner with a pair of identical keys
and a key code number.
The key code number tells your dealer/retailer
or a qualied locksmith how to make extra keys.
Keep this number in a safe place. If you lose your
keys, you will be able to have new ones made
easily using this number. Your dealer/retailer
should also have this number.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.If you ever do get locked out of your vehicle call
the GM Roadside Assistance Center. See
Roadside Assistance Program on page 466.
Remote Keyless Entry (RKE) System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
102

Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
At times you may notice a decrease in range. This
is normal for any RKE system. If the transmitter
does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far
from your vehicle. You may need to stand
closer during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement
is necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 103.
If you are still having trouble, see your
dealer/retailer or a qualied technician
for service.
Remote Keyless Entry (RKE)
System Operation
If your vehicle has this feature you can lock
and unlock your doors and disarm or arm your
theft-deterrent system from about 3 feet (1 m) up to
30 feet (9 m) away using the Remote Keyless Entry
(RKE) transmitter. SeeContent Theft-Deterrent
on page 115for additional information.
UNLOCK:Press this
button to unlock the
driver’s door and turn
on the interior lamps.
The parking lamps may
also ash, and the
horn may chirp, when
this button is pressed.
Press the unlock button again within three
seconds and all of the doors will unlock.
LOCK:Press this button to lock all the doors.
The parking lamps may also ash and the
horn may chirp when this button is pressed.
103

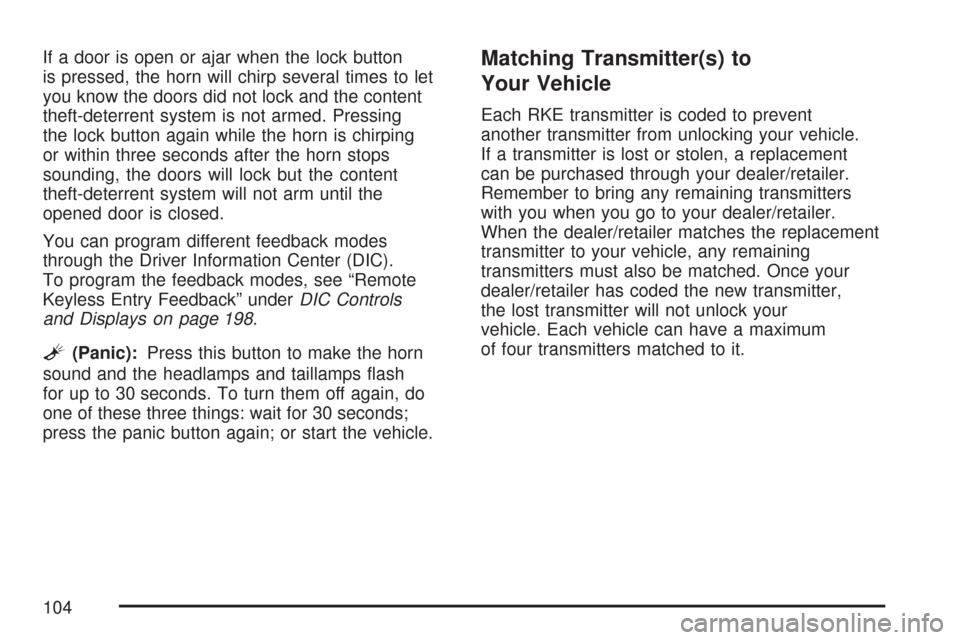

If a door is open or ajar when the lock button
is pressed, the horn will chirp several times to let
you know the doors did not lock and the content
theft-deterrent system is not armed. Pressing
the lock button again while the horn is chirping
or within three seconds after the horn stops
sounding, the doors will lock but the content
theft-deterrent system will not arm until the
opened door is closed.
You can program different feedback modes
through the Driver Information Center (DIC).
To program the feedback modes, see “Remote
Keyless Entry Feedback” underDIC Controls
and Displays on page 198.
L(Panic):Press this button to make the horn
sound and the headlamps and taillamps ash
for up to 30 seconds. To turn them off again, do
one of these three things: wait for 30 seconds;
press the panic button again; or start the vehicle.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to prevent
another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement
can be purchased through your dealer/retailer.
Remember to bring any remaining transmitters
with you when you go to your dealer/retailer.
When the dealer/retailer matches the replacement
transmitter to your vehicle, any remaining
transmitters must also be matched. Once your
dealer/retailer has coded the new transmitter,
the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum
of four transmitters matched to it.
104

Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about two years.
The battery is weak if the transmitter will not work
at the normal range in any location. If you have
to get close to your vehicle before the transmitter
works, it is probably time to change the battery.
Notice:When replacing the battery, use
care not to touch any of the circuitry.
Static from your body transferred to these
surfaces may damage the transmitter.To replace the battery:
1. Insert a thin coin, or similar object, in the slot
between the covers of the transmitter housing.
Gently pry the transmitter apart.
2. Remove and replace the battery with a
three-volt CR2032 or equivalent battery.
3. Align the covers and snap them together.
4. Check the operation of the transmitter.
105

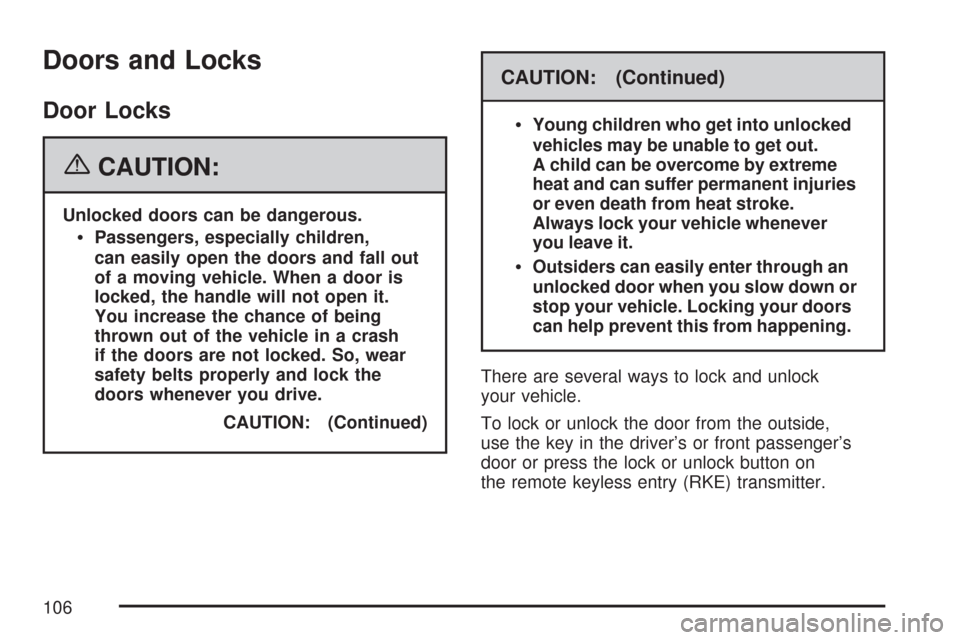

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children,
can easily open the doors and fall out
of a moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash
if the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors
can help prevent this from happening.
There are several ways to lock and unlock
your vehicle.
To lock or unlock the door from the outside,
use the key in the driver’s or front passenger’s
door or press the lock or unlock button on
the remote keyless entry (RKE) transmitter.
106

To lock a door from the inside, push the
manual lever on the door forward. To unlock
a door from the inside, push the lever on the
door rearward.
You will see a colored area on the lever when
the door is unlocked.
Power Door Locks
If your vehicle has
power door locks,
the switches are
located on the
driver’s and the
front passenger’s
armrests.
Press L (lock) to lock all the doors at once.
To unlock all the doors, press U (unlock).
On crew cab models, use the manual door lock
lever on each rear door to lock or unlock the
doors from the rear seating areas.
Driver’s Switch Shown,
Front Passenger’s
Switch Similar
107

Programmable Automatic
Door Locks
If your vehicle has power door locks and the
remote keyless entry system, it has an automatic
lock/unlock feature.
If your vehicle has an automatic transmission,
it is programmed from the factory to lock all doors
automatically when the shift lever is moved out
of PARK (P). All the doors will unlock when
the shift lever is moved back into PARK (P).
If your vehicle has a manual transmission, it is
programmed from the factory to lock all the
doors when the vehicle speed is greater than
15 mph (24 km/h). The doors will unlock when
the key is removed from the ignition.
To change the automatic door lock and unlock
settings, see “Automatic Door Locks” under
DIC Controls and Displays on page 198.
Rear Door Security Locks
(Crew Cab)
If your vehicle is a crew cab model, it may have
rear door security locks. With this feature, you can
lock the rear doors so they cannot be opened
from the inside.
The rear door security
lock is located on
the inside edge of each
rear door below the
security lock label.
108

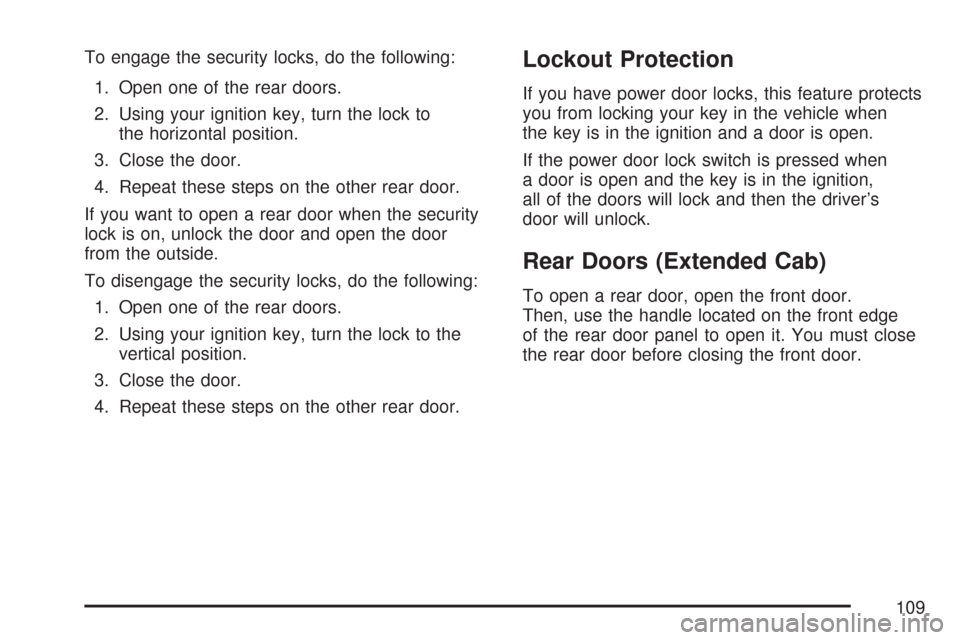

To engage the security locks, do the following:
1. Open one of the rear doors.
2. Using your ignition key, turn the lock to
the horizontal position.
3. Close the door.
4. Repeat these steps on the other rear door.
If you want to open a rear door when the security
lock is on, unlock the door and open the door
from the outside.
To disengage the security locks, do the following:
1. Open one of the rear doors.
2. Using your ignition key, turn the lock to the
vertical position.
3. Close the door.
4. Repeat these steps on the other rear door.Lockout Protection
If you have power door locks, this feature protects
you from locking your key in the vehicle when
the key is in the ignition and a door is open.
If the power door lock switch is pressed when
a door is open and the key is in the ignition,
all of the doors will lock and then the driver’s
door will unlock.
Rear Doors (Extended Cab)
To open a rear door, open the front door.
Then, use the handle located on the front edge
of the rear door panel to open it. You must close
the rear door before closing the front door.
109

Tailgate
{CAUTION:
It is extremely dangerous to ride on the
tailgate, even when the vehicle is operated
at low speeds. People riding on the
tailgate can easily lose their balance and
fall in response to vehicle maneuvers.
Falling from a moving vehicle may result
in serious injuries or death. Do not allow
people to ride on the tailgate. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.You can open the tailgate by pulling up on the
outside handle while pulling the tailgate down.
When you put the tailgate back up, be sure
it latches securely.
You can lock the tailgate using your ignition key.
Turn the key counterclockwise to lock the
tailgate. Turn the key clockwise to unlock the
tailgate.
110
