CHEVROLET COLORADO 2007 1.G Manual Online
Manufacturer: CHEVROLET, Model Year: 2007, Model line: COLORADO, Model: CHEVROLET COLORADO 2007 1.GPages: 496, PDF Size: 2.7 MB
Page 81 of 496

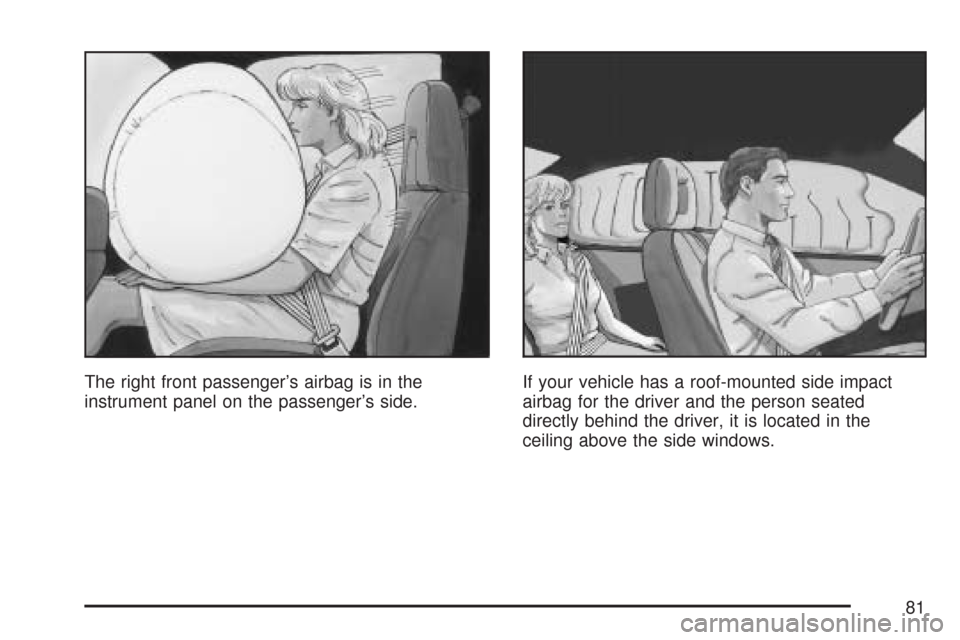

The right front passenger’s airbag is in the
instrument panel on the passenger’s side.If your vehicle has a roof-mounted side impact
airbag for the driver and the person seated
directly behind the driver, it is located in the
ceiling above the side windows.
81
Page 82 of 496

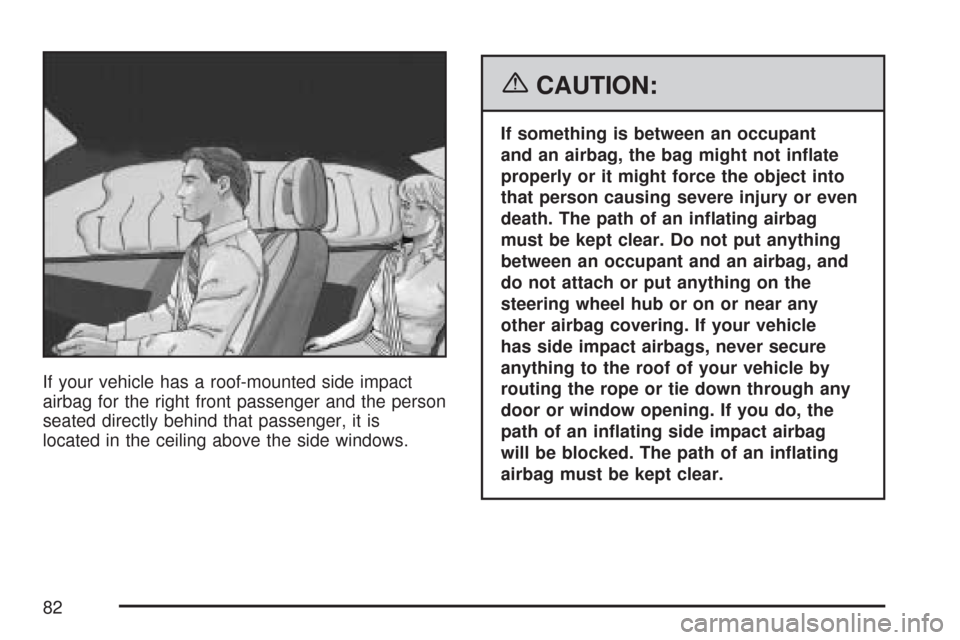

If your vehicle has a roof-mounted side impact
airbag for the right front passenger and the person
seated directly behind that passenger, it is
located in the ceiling above the side windows.
{CAUTION:
If something is between an occupant
and an airbag, the bag might not in ate
properly or it might force the object into
that person causing severe injury or even
death. The path of an in ating airbag
must be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. If your vehicle
has side impact airbags, never secure
anything to the roof of your vehicle by
routing the rope or tie down through any
door or window opening. If you do, the
path of an in ating side impact airbag
will be blocked. The path of an in ating
airbag must be kept clear.
82
Page 83 of 496
When Should an Airbag In ate?
The driver’s and right front passenger’s frontal
airbags are designed to in ate in moderate to
severe frontal or near-frontal crashes. But they are
designed to in ate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and are
used to predict how severe a crash is likely to be in
time for the airbags to in ate and help restrain the
occupants. Whether your frontal airbags will or
should deploy is not based on how fast your vehicle
is traveling. It depends largely on what you hit,
the direction of the impact, and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal
airbags, which adjust the restraint according
to crash severity. Your vehicle has electronic
frontal sensors which help the sensing system
distinguish between a moderate and a more
severe frontal impact. For moderate frontal
impacts, these airbags in ate at a level less
than full deployment. For more severe frontal
impacts, full deployment occurs. If the front of
your vehicle goes straight into a wall that doesn’tmove or deform, the threshold level for the
reduced deployment is about 8 to 16 mph
(12.9 to 25.7 km/h), and the threshold level
for a full deployment is about 19 to 24 mph
(30.6 to 38.6 km/h) if the other sensors do not
over-ride this. The threshold level can vary,
however, with speci c vehicle design, so that it
can be somewhat above or below this range.
Frontal airbags may in ate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could in ate at a different crash
speed than if the vehicle hits a moving object.
If the vehicle hits an object that deforms,
the airbags could in ate at a different
crash speed than if the vehicle hits an
object that does not deform.
If the vehicle hits a narrow object (like a pole),
the airbags could in ate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle,
the airbags could in ate at a different crash
speed than if the vehicle goes straight into
the object.
83
Page 84 of 496
Frontal airbags (driver and right front passenger)
are not intended to in ate during vehicle
rollovers, rear impacts, or in many side impacts.
If your vehicle has side impact airbags, it has
electronic side sensors. The side impact airbags
are intended to in ate in moderate to severe
side crashes. A side impact airbag will in ate if
the crash severity is above the system’s designed
“threshold level.” The threshold level can vary
with speci c vehicle design. Side impact airbags
are not intended to in ate in frontal or near-frontal
impacts, rollovers or rear impacts. Both side
impact airbags will deploy when either side of
the vehicle is struck.
Your vehicle has seat position sensors which
enable the sensing system to monitor the position
of the driver’s seat and the right front passenger’s
seat. Seat position sensors provide information
that is used to determine if the airbags should
deploy at a reduced level or at full deployment.In any particular crash, no one can say whether
an airbag should have in ated simply because
of the damage to a vehicle or because of what
the repair costs were. For frontal airbags, in ation
is determined by what the vehicle hits, the
angle of the impact, and how quickly the vehicle
slows down in frontal or near-frontal impacts.
For side impact airbags, in ation is determined
by the location and severity of the impact.
The airbag system is designed to work properly
under a wide range of conditions, including off-road
usage. Observe safe driving speeds, especially
on rough terrain. As always, wear your safety belt.
SeeOff-Road Driving on page 260for more tips
on off-road driving.
84
Page 85 of 496

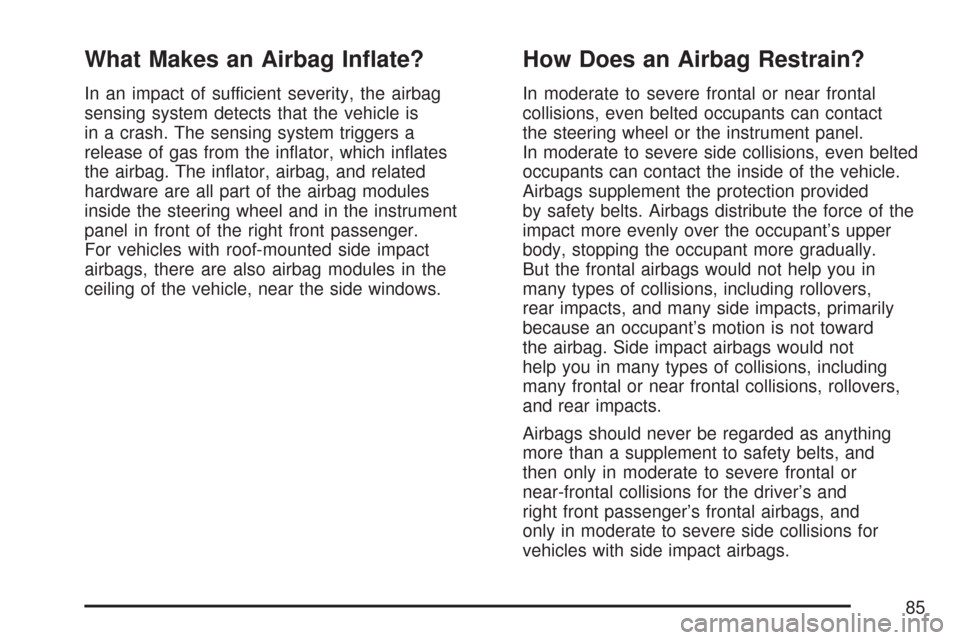

What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. The sensing system triggers a
release of gas from the in ator, which in ates
the airbag. The in ator, airbag, and related
hardware are all part of the airbag modules
inside the steering wheel and in the instrument
panel in front of the right front passenger.
For vehicles with roof-mounted side impact
airbags, there are also airbag modules in the
ceiling of the vehicle, near the side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact
the steering wheel or the instrument panel.
In moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
Airbags supplement the protection provided
by safety belts. Airbags distribute the force of the
impact more evenly over the occupant’s upper
body, stopping the occupant more gradually.
But the frontal airbags would not help you in
many types of collisions, including rollovers,
rear impacts, and many side impacts, primarily
because an occupant’s motion is not toward
the airbag. Side impact airbags would not
help you in many types of collisions, including
many frontal or near frontal collisions, rollovers,
and rear impacts.
Airbags should never be regarded as anything
more than a supplement to safety belts, and
then only in moderate to severe frontal or
near-frontal collisions for the driver’s and
right front passenger’s frontal airbags, and
only in moderate to severe side collisions for
vehicles with side impact airbags.
85
Page 86 of 496

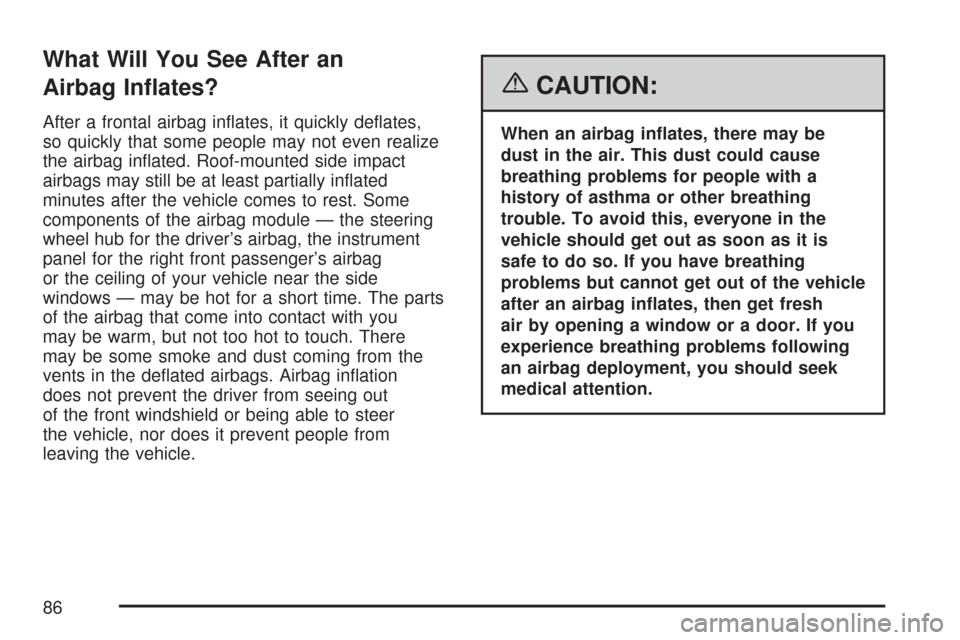

What Will You See After an
Airbag In ates?
After a frontal airbag in ates, it quickly de ates,
so quickly that some people may not even realize
the airbag in ated. Roof-mounted side impact
airbags may still be at least partially in ated
minutes after the vehicle comes to rest. Some
components of the airbag module — the steering
wheel hub for the driver’s airbag, the instrument
panel for the right front passenger’s airbag
or the ceiling of your vehicle near the side
windows — may be hot for a short time. The parts
of the airbag that come into contact with you
may be warm, but not too hot to touch. There
may be some smoke and dust coming from the
vents in the de ated airbags. Airbag in ation
does not prevent the driver from seeing out
of the front windshield or being able to steer
the vehicle, nor does it prevent people from
leaving the vehicle.
{CAUTION:
When an airbag in ates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag in ates, then get fresh
air by opening a window or a door. If you
experience breathing problems following
an airbag deployment, you should seek
medical attention.
86
Page 87 of 496

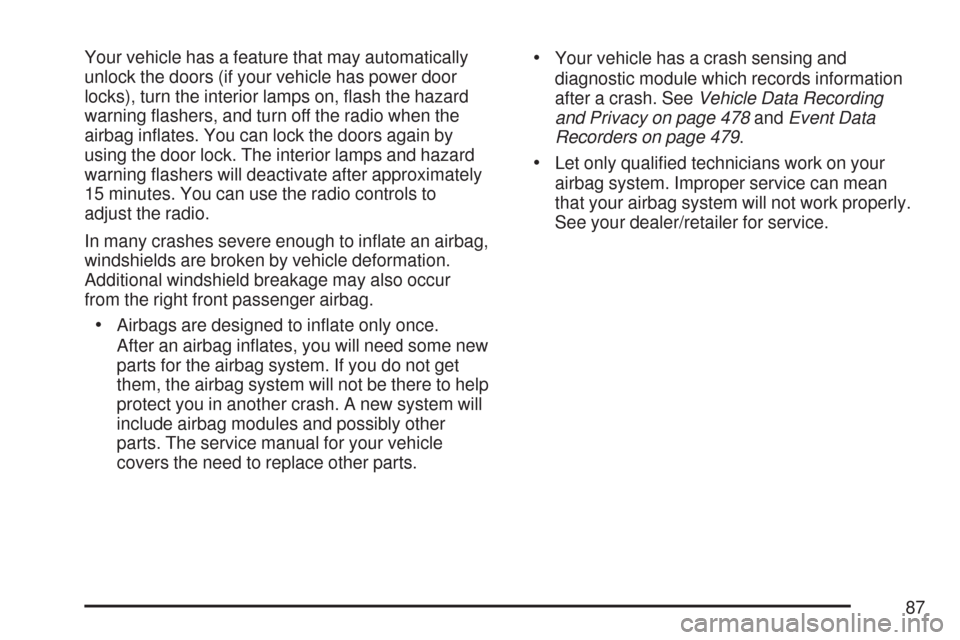

Your vehicle has a feature that may automatically
unlock the doors (if your vehicle has power door
locks), turn the interior lamps on, ash the hazard
warning ashers, and turn off the radio when the
airbag in ates. You can lock the doors again by
using the door lock. The interior lamps and hazard
warning ashers will deactivate after approximately
15 minutes. You can use the radio controls to
adjust the radio.
In many crashes severe enough to in ate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur
from the right front passenger airbag.
Airbags are designed to in ate only once.
After an airbag in ates, you will need some new
parts for the airbag system. If you do not get
them, the airbag system will not be there to help
protect you in another crash. A new system will
include airbag modules and possibly other
parts. The service manual for your vehicle
covers the need to replace other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Recording
and Privacy on page 478andEvent Data
Recorders on page 479.
Let only quali ed technicians work on your
airbag system. Improper service can mean
that your airbag system will not work properly.
See your dealer/retailer for service.
87
Page 88 of 496
Passenger Sensing System
Your vehicle has a passenger sensing system.
The passenger airbag status indicator on the
instrument panel will be visible when you turn
your ignition key to ON or START. The words
ON and OFF or the symbol for on and off,
will be visible during the system check.
When the system check is complete, either the
word ON or the word OFF, or the symbol for on or
the symbol for off will be visible. SeePassenger
Airbag Status Indicator on page 186.The passenger sensing system will turn off the
right front passenger’s frontal airbag under certain
conditions. The driver’s airbags are not part of
the passenger sensing system.
The passenger sensing system works with
sensors that are part of the right front passenger’s
seat and safety belt. The sensors are designed
to detect the presence of a properly seated
occupant and determine if the passenger’s frontal
airbag should be enabled (may in ate) or not.
Accident statistics show that children are safer
if they are restrained in the rear rather than
the front seat. We recommend that child restraints
be secured in a rear seat, including an infant
riding in a rear-facing infant seat, a child riding
in a forward-facing child seat and an older
child riding in a booster seat.
United StatesCanada
88
Page 89 of 496

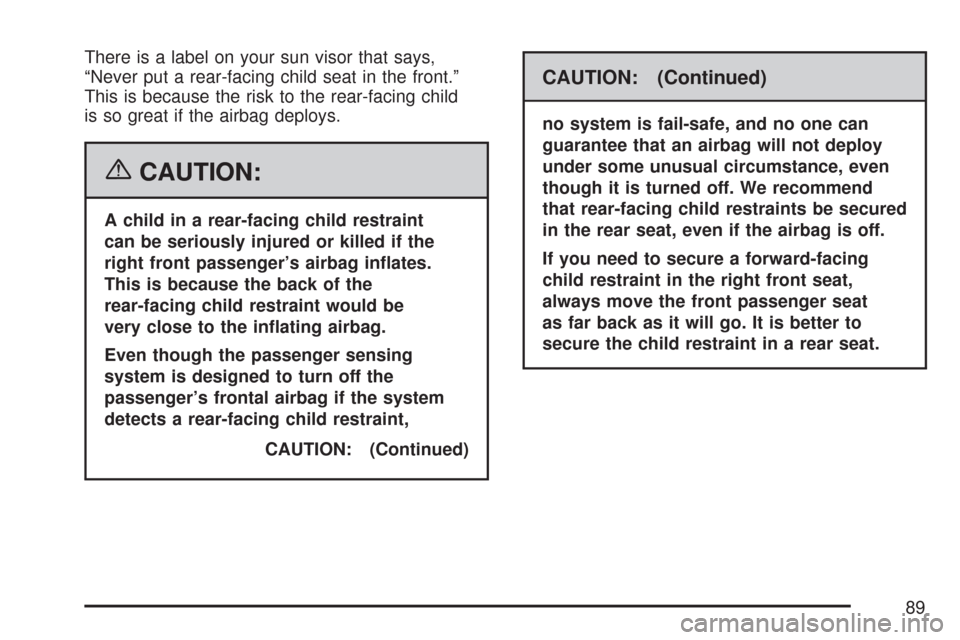

There is a label on your sun visor that says,
“Never put a rear-facing child seat in the front.”
This is because the risk to the rear-facing child
is so great if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint
can be seriously injured or killed if the
right front passenger’s airbag in ates.
This is because the back of the
rear-facing child restraint would be
very close to the in ating airbag.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint,
CAUTION: (Continued)
CAUTION: (Continued)
no system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in the rear seat, even if the airbag is off.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat
as far back as it will go. It is better to
secure the child restraint in a rear seat.
89
Page 90 of 496

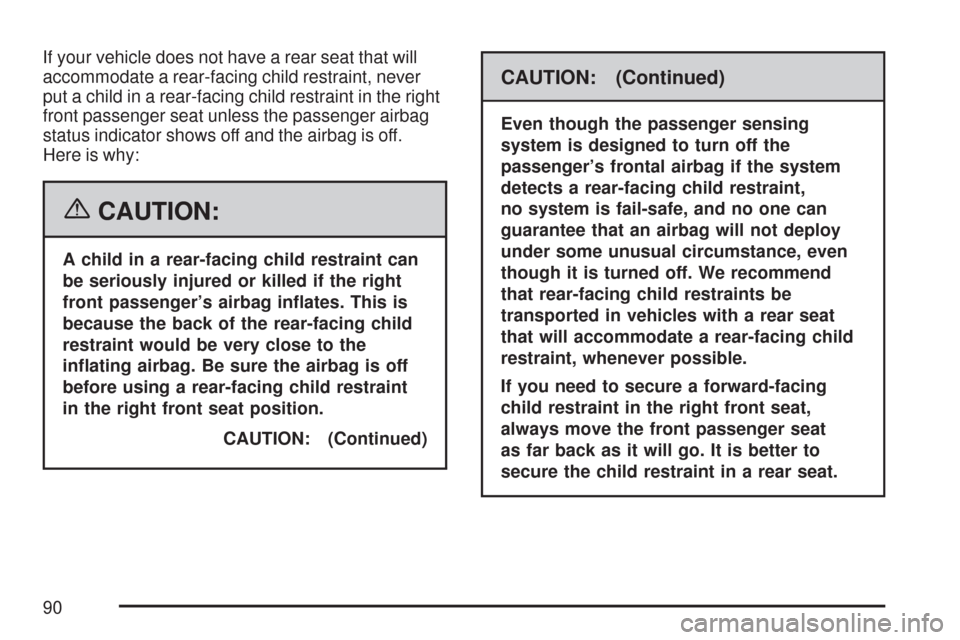

If your vehicle does not have a rear seat that will
accommodate a rear-facing child restraint, never
put a child in a rear-facing child restraint in the right
front passenger seat unless the passenger airbag
status indicator shows off and the airbag is off.
Here is why:
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag. Be sure the airbag is off
before using a rear-facing child restraint
in the right front seat position.
CAUTION: (Continued)
CAUTION: (Continued)
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint,
no system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be
transported in vehicles with a rear seat
that will accommodate a rear-facing child
restraint, whenever possible.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat
as far back as it will go. It is better to
secure the child restraint in a rear seat.
90
