CHEVROLET COLORADO 2007 1.G Owners Manual

{CAUTION:
Incorrect wheel nuts or improperly
tightened wheel nuts can cause the wheel
to come loose and even come off. This
could lead to an accident. Be sure to use
the correct wheel nuts. If you have to
replace them, be sure to get new GM
original equipment wheel nuts. Stop
somewhere as soon as you can and have
the nuts tightened with a torque wrench
to the proper torque specication. See
Capacities and Specifications on page 437
for wheel nut torque specication.
Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage.
To avoid expensive brake repairs, evenly
tighten the wheel nuts in the proper sequence
and to the proper torque specication. See
Capacities and Specifications on page 437
for the wheel nut torque specication.11. Tighten the
wheel nuts rmly
in a crisscross
sequence as
shown by turning
the wheel wrench
clockwise.
When you reinstall the regular wheel and tire,
you must also reinstall the center cap. Place
the cap on the wheel and tap it into place until
it seats ush with the wheel. The cap only goes
on one way. Be sure to line up the tab on the
center cap with the indentation on the wheel.
For the Xtreme, tighten each nut cap by hand,
then tighten an additional one quarter of a turn
with the wheel wrench.
411

Secondary Latch System
Your vehicle has an underbody-mounted tire hoist
assembly that has a secondary latch system.
It is designed to stop the spare tire from suddenly
falling off your vehicle. For the secondary latch
to work, the spare must be installed with the valve
stem pointing down. SeeStoring a Flat or Spare
Tire and Tools on page 416.
{CAUTION:
Before beginning this procedure read all
the instructions. Failure to read and follow
the instructions could damage the hoist
assembly and you and others could get
hurt. Read and follow the instructions
listed next.To release the spare tire from the secondary latch:
1. Check under the
vehicle to see
if the cable end
tting is visible.
2. If the cable end tting is not visible, proceed
to Step 6.
If it is visible, rst try to tighten the cable
by turning the wheel wrench clockwise until
you hear two clicks or feel it skip twice.
You cannot overtighten the cable.
3. Loosen the cable by turning the wheel
wrench counterclockwise three or four turns.
412

4. Repeat this procedure at least two times.
If the spare tire lowers to the ground,
continue with Step 5 underRemoving the
Spare Tire and Tools on page 401.
5. Turn the wrench counterclockwise until
approximately 6 inches (15 cm) of cable
is exposed.
6. Stand the wheel blocks on their shortest
ends, with the backs facing each other.
7. Place the bottom
edge of the
jack (A) on the
wheel blocks (B),
separating them
so that the jack is
balanced securely.8. Attach the jack handle, extension, and wheel
wrench to the jack and place it (with the
wheel blocks) under the vehicle towards the
front of the rear bumper. Position the center
lift point of the jack under the wheel.
9. Turn the wheel wrench clockwise to raise the
jack until it lifts the tire.
10. Continue raising the jack until the tire stops
moving upward and is held rmly in place,
the secondary latch has released, and the
tire is balancing on the jack.
413

11. Remove the jack handle and insert the hoist
end of the extension through the hole in the
rear bumper.
Turn the wheel wrench counterclockwise
one turn or until the wheel retainer assembly
is disengaged.12. Reinsert the jack handle into the jack.
Lower the jack by turning the wheel wrench
counterclockwise. Keep lowering the jack
until the spare tire slides off the jack or
is hanging by the cable.
{CAUTION:
Someone standing too close during the
procedure could be injured by the jack.
If the spare tire does not slide off the jack
completely, make sure no one is behind
you or on either side of you as you pull
the jack out from the under spare.
414

13. Disconnect the jack handle from the jack and
carefully remove the jack. Use one hand to
push against the spare while rmly pulling the
jack out from under the spare tire with the
other hand.
If the spare tire is hanging from the cable,
insert the hoist end of the extension into
the hoist shaft hole in the bumper and turn
the wheel wrench counterclockwise to
lower the spare the rest of the way.
14. Tilt the tire retainer at the end of the cable
and pull it through the wheel opening.
Pull the tire out from under the vehicle.
15. If the cable is hanging under the vehicle, turn
the wheel wrench clockwise to raise the cable.
Have the hoist assembly inspected as soon
as you can. You will not be able to store
a spare or at tire using the hoist assembly
until it has been replaced.
To continue changing the at tire, seeRemoving
the Flat Tire and Installing the Spare Tire on
page 404.
415

Storing a Flat or Spare Tire
and Tools
{CAUTION:
Storing a jack, a tire, or other equipment
in the passenger compartment of the
vehicle could cause injury. In a sudden
stop or collision, loose equipment could
strike someone. Store all these in the
proper place.
Notice:Storing an aluminum wheel with a
at tire under your vehicle for an extended
period of time or with the valve stem pointing
up may damage the wheel. Always stow
the wheel with the valve stem pointing down
and have the wheel/tire repaired as soon
as possible.Store the tire under the rear of the vehicle in the
spare tire carrier.
1. Put the tire on the ground at the rear of the
vehicle with the valve stem pointed down.
2. Tilt the retainer downward and through the
wheel opening. Make sure the retainer is
fully seated across the underside of the wheel.
416

3. Attach the wheel wrench and extensions
together as shown.
4. Insert the hoist end of the extension through
the hole in the rear bumper and into the
funnel-shaped guide.
5. Turn the wheel wrench clockwise to raise
the tire part way up. Make sure the retainer
is seated in the wheel opening and the
valve stem is pointed down.
6. Raise the tire fully against the underside
of the vehicle by turning the wheel wrench
clockwise until you feel it skip twice.
You cannot overtighten the cable.
417

7. Make sure the tire is stored securely. Push,
pull (A), and then try to turn (B) the tire.
If the tire moves, check to make sure the
tire valve stem is pointing down, then use
the wheel wrench to loosen and then
tighten the cable.To store the tools, do the following:
1. Return the wheel wrench, jack extensions
and the storage bag to the locations
described underRemoving the Spare
Tire and Tools on page 401.
2. Install the wheel blocks rst.
Then install the jack.
3. Secure the items in the vehicle as
shown next.
418

A. Jack
B. Wheel Blocks
C. Wing NutA. Jack
B. Wheel Blocks
C. Wing Nut
Crew Cab
Regular/Extended Cab
419

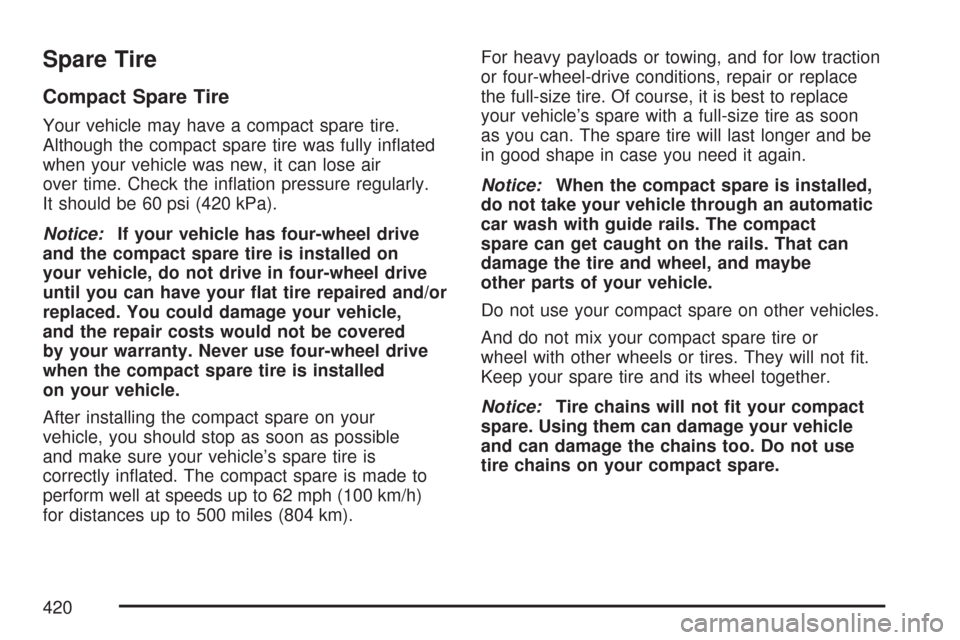

Spare Tire
Compact Spare Tire
Your vehicle may have a compact spare tire.
Although the compact spare tire was fully inated
when your vehicle was new, it can lose air
over time. Check the ination pressure regularly.
It should be 60 psi (420 kPa).
Notice:If your vehicle has four-wheel drive
and the compact spare tire is installed on
your vehicle, do not drive in four-wheel drive
until you can have your at tire repaired and/or
replaced. You could damage your vehicle,
and the repair costs would not be covered
by your warranty. Never use four-wheel drive
when the compact spare tire is installed
on your vehicle.
After installing the compact spare on your
vehicle, you should stop as soon as possible
and make sure your vehicle’s spare tire is
correctly inated. The compact spare is made to
perform well at speeds up to 62 mph (100 km/h)
for distances up to 500 miles (804 km).For heavy payloads or towing, and for low traction
or four-wheel-drive conditions, repair or replace
the full-size tire. Of course, it is best to replace
your vehicle’s spare with a full-size tire as soon
as you can. The spare tire will last longer and be
in good shape in case you need it again.
Notice:When the compact spare is installed,
do not take your vehicle through an automatic
car wash with guide rails. The compact
spare can get caught on the rails. That can
damage the tire and wheel, and maybe
other parts of your vehicle.
Do not use your compact spare on other vehicles.
And do not mix your compact spare tire or
wheel with other wheels or tires. They will not t.
Keep your spare tire and its wheel together.
Notice:Tire chains will not t your compact
spare. Using them can damage your vehicle
and can damage the chains too. Do not use
tire chains on your compact spare.
420
