CHEVROLET COLORADO 2011 1.G Owners Manual

Black plate (7,1)Chevrolet Colorado Owner Manual - 2011
Infotainment System 7-7
LOC (Locked):This message
displays when the THEFTLOCK®
system has locked up. Take the
vehicle to your dealer for service.
If any error occurs repeatedly or if
an error cannot be corrected,
contact your dealer.
Radio with CD (MP3/WMA)
CAL ERR (Calibration Error): The
audio system has been calibrated
for the vehicle from the factory.
If CAL ERR displays it means that
the radio has not been configured
properly for the vehicle and it must
be returned to your dealer for
service.
LOCKED: This message displays
when the THEFTLOCK
®system has
locked up. Take the vehicle to your
dealer for service.
If any error occurs repeatedly or if
an error cannot be corrected,
contact your dealer.
Radio
AM-FM Radio
Finding a Station
AM-FM Radio
AM FM: Press to switch between
FM1, FM2, or AM.
TUNE : Turn to select radio
stations.
oSEEK: Press to go to the
previous station and stay there.
To scan stations, press and hold
o
SEEK for two seconds until a beep
sounds. The radio goes to a station,
plays for a few seconds, then goes
to the next station. Press
oSEEK
again to stop scanning.
To scan preset stations, press
and hold
oSEEK for more than
four seconds until two beeps sound. The radio goes to the first preset
station, plays for a few seconds,
then goes to the next preset station.
Press
oSEEK again to stop
scanning presets.
SEEK
p: Press to go to the next
station and stay there.
To scan stations, press and hold
SEEK
pfor two seconds until a
beep sounds. The radio goes to a
station, plays for a few seconds,
then goes to the next station. Press
SEEK
pagain to stop scanning.
To scan preset stations, press
and hold SEEK
pfor more than
four seconds until two beeps sound.
The radio goes to the first preset
station stored on the pushbuttons,
plays for a few seconds, then goes
to the next preset station. Press
SEEK
pagain to stop scanning
presets.

Black plate (8,1)Chevrolet Colorado Owner Manual - 2011
7-8 Infotainment System
Radio with CD (MP3/WMA)
BAND:Press to switch between
FM1, FM2, AM, or XM1 or XM2 (if
equipped). The selection displays.
qTUNEr: Turn to select radio
stations.
qSEEKr: Press to go to the
previous or next station and stay
there.
qSCANr: Press and hold for
more than two seconds, SCAN
displays and the radio beeps once.
The radio goes to a station, plays
for a few seconds, then goes to the
next station. Press
qorragain, to
stop scanning presets.
To scan preset stations, press
and hold
qorrfor more than
four seconds, PSCN displays and
the radio beeps once. The radio
goes to a preset station, plays for a
few seconds, then goes to the next
preset station. Press
qorragain,
to stop scanning presets.
Radio Data System (RDS)
The Radio with CD (MP3/WMA) has
an RDS system. RDS features are
available for use only on FM
stations that broadcast RDS
information.
With RDS, the radio can do the
following:
.Seek to stations broadcasting
the selected type of
programming.
.Receive announcements
concerning local and national
emergencies.
.Display messages from radio
stations.
.Seek to stations with traffic
announcements.
This system relies upon receiving
specific information from these
stations and only works when the
information is available. In rare
cases, a radio station could
broadcast incorrect information that causes the radio features to work
improperly. If this happens, contact
the radio station.
While the radio is tuned to an RDS
station, the station name or call
letters display instead of the
frequency. RDS stations can also
provide the time of day, a program
type (PTY) for current programming,
and the name of the program being
broadcast.
RDS Messages
ALERT!:
The Alert feature warns of
local or national emergencies. When
an alert announcement comes on
the current radio station, ALERT!
displays. The announcement is
heard, even if the volume is low or a
CD is playing. If a CD is playing,
play stops during the
announcement. Alert
announcements cannot be
turned off.
ALERT! is not affected by tests of
the emergency broadcast system.
This feature is not supported by all
RDS stations.

Black plate (9,1)Chevrolet Colorado Owner Manual - 2011
Infotainment System 7-9
INFO (Information):If the current
station has a message, the
information symbol or INFO
displays. Press this button to see
the message. The message can
display the artist, song title, call in
phone numbers, etc.
If the entire message is not
displayed, parts of the message
display every three seconds. To
scroll through the message, press
and release the INFO button. A new
group of words displays after every
press of this button. Once the
complete message has displayed,
the information symbol or INFO
disappears from the display until
another new message is received.
The last message can be displayed
by pressing the INFO button. The
last message stays on the display
until a new message is received or
the radio is tuned to a different
station.
When a message is not available
from a station, NO INFO displays. TRAF (Traffic):
TRAF displays
when the station tuned to
broadcasts traffic announcements.
When a traffic announcement is
broadcast on this station you will
hear it.
If the station does not broadcast
traffic announcements, press the
TRAF button and the radio seeks
to a station that does. When a
station that broadcasts traffic
announcements is found, the radio
stops seeking and TRAF displays.
If no station is found that broadcasts
traffic announcements, NO TRAF
displays.
If TRAF displays, press the TRAF
button to turn off the traffic
announcements.
The radio plays the traffic
announcement if the volume is low.
The radio interrupts the play of a CD
if the last tuned station broadcasts
traffic announcements. Finding a Program Type (PTY)
Station
To select and find a PTY station:
1. Turn the P-TYPE knob. TYPE
and a PTY displays.
2. Turn the P-TYPE knob again, to select a PTY.
3. Once the desired PTY displays, press the SEEK / TYPE button
to select PTY's first station.
4. To go to another station within that PTY, press the SEEK /
TYPE button twice to display the
PTY and then go to another
station.
To cancel the seek, press the
SEEK / TYPE button. This also exits
the program type seek mode and
returns to the last tuned station.
If both PTY and TRAF (traffic) are
on, the radio searches for stations
with the selected PTY and traffic
announcements.

Black plate (10,1)Chevrolet Colorado Owner Manual - 2011
7-10 Infotainment System
If the radio cannot find the desired
program type, NONE displays and
the radio returns to the last tuned
station.
SCAN:To scan PTYs, press and
hold the SEEK / SCAN until a beep
sounds. The radio goes to a station,
plays for a few seconds, then goes
to the next station.
BAND (Alternate Frequency):
Alternate frequency lets the radio
switch to a stronger station with
the same program type. To turn
alternate frequency on, press and
hold BAND for two seconds. AF ON
displays. The radio could switch to
stations with a stronger frequency.
To turn alternate frequency off,
press and hold BAND again for
2 seconds. AF OFF displays. The
radio does not switch to other
stations.
DISPL (Display): Press to change
what information displays while
using RDS. The display options are
station name, RDS station frequency, PTY (program type),
and the name of the program (if
available).
Setting Preset PTYs Only
The six pushbuttons have factory
PTY presets. Up to 12 PTYs
(6 FM1 and 6 FM2), can be
programmed on the numbered
pushbuttons. To program PTYs:
1. Press BAND to select FM1
or FM2.
2. Turn the P‐TYPE knob to activate program type select
mode. TYPE and the last
selected PTY displays.
3. Turn the P‐TYPE knob to select a PTY.
4. Press and hold one of the six numbered pushbuttons until a
beep sounds. When that
numbered pushbutton is
pressed, the PTY that was set,
returns.
5. Repeat the steps for each pushbutton.Setting Preset Stations
If the radio does not have XM, up to
18 stations (6 FM1, 6 FM2, and
6 AM) can be programmed on the
six numbered pushbuttons.
If the radio has XM, up to
30 stations (6 FM1, 6 FM2, 6 AM,
6 XM1, and 6 XM2) can be
programmed on the six numbered
pushbuttons.
To program either radio:
1. Tune in the desired station.
2. Press and hold one of the six
numbered pushbuttons until the
radio beeps once. When that
numbered pushbutton is pressed
again, the station that was
stored, returns.
3. Repeat the steps for each pushbutton.

Black plate (11,1)Chevrolet Colorado Owner Manual - 2011
Infotainment System 7-11
Satellite Radio
XM™Satellite Radio Service
XM is a satellite radio service that is
based in the 48 contiguous United
States and 10 Canadian provinces.
XM Satellite Radio has a wide
variety of programming and
commercial-free music,
coast-to-coast, and in digital-quality
sound. A service fee is required to
receive the XM service. For more
information, contact XM at
www.xmradio.com or call
1-800-929-2100 in the U.S. and
www.xmradio.ca or call
1-877-438-9677 in Canada.
Finding a Program Type (PTY)
Channel
To select and find a PTY:
1. Turn the P-TYPE knob. TYPE
and a PTY displays.
2. Turn the P-TYPE knob again, to select a PTY. 3. Once the desired PTY displays,
press the SEEK / TYPE button
to select PTY's first station.
4. To go to another station within that PTY, pess the SEEK / TYPE
button twice to display the PTY
and then go to another station.
To cancel the seek, press the
SEEK / TYPE button. This also exits
the program type seek mode and
returns to the last tuned station.
If the radio cannot find the desired
program type, NONE displays and
the radio returns to the last tuned
station.
Finding an XM Channel
BAND: Press to switch between
FM1, FM2, AM, or XM1 or XM2 (if
equipped). The selection displays.
DISPL (Display): Press to retrieve
four different categories of
information related to the current
song or channel: Artist, Song Title,
Category or PTY, Channel Number/
Channel Name.
qTUNEr: Turn to select XM
Channels.
qSEEKr: Press to go to the
previous or next channel and stay
there.
qSCANr: Press and hold for
more than two seconds, SCAN
displays and the radio beeps once.
The radio goes to a channel, plays
for a few seconds, then goes to the
next channel. Press
qorragain,
to stop scanning presets.
To scan preset channels, press
and hold
qorrfor more than
four seconds, PSCN displays and
the radio beeps once. The radio
goes to a preset channel, plays for a
few seconds, then goes to the next
preset channel. Press
qorragain,
to stop scanning presets.

Black plate (12,1)Chevrolet Colorado Owner Manual - 2011
7-12 Infotainment System
Setting Preset Channels
If the radio has XM, up to
30 stations (6 FM1, 6 FM2, 6 AM,
6 XM1, and 6 XM2) can be
programmed on the six numbered
pushbuttons.
To program either radio:
1. Tune in the desired channel.
2. Press and hold one of the sixnumbered pushbuttons until the
radio beeps once. When that
numbered pushbutton is pressed
again, the channel that was
stored, returns.
3. Repeat the steps for each pushbutton.
XM Radio Messages
XL (Explicit Language
Channels): These channels, or
any others, can be blocked at a
customer's request, by calling
1-800-929-2100 in the U.S. and
1-877-438-9677 in Canada. Updating:
The encryption code in
the receiver is being updated, and
no action is required. This process
should take no longer than
30 seconds.
No Signl: The system is
functioning correctly, but the vehicle
is in a location that is blocking the
XM signal. When the vehicle is
moved into an open area, the signal
should return.
Loading: The radio system is
acquiring and processing audio and
text data. No action is needed. This
message should disappear shortly.
Off Air: This channel is not
currently in service. Tune to another
channel.
CH Unavl: This previously
assigned channel is no longer
assigned. Tune to another station.
If this station was one of the
presets, choose another station for
that preset button. Unauth:
This channel is blocked or
cannot be received with your XM
Subscription package.
No Info: No artist, song title,
category, or text information is
available at this time on this
channel. The system is working
properly.
NotFound: No artist, song title,
category, or text information is
available at this time on this
channel. The system is working
properly.
XM Lock: The XM receiver in your
vehicle could have previously been
in another vehicle. For security
purposes, XM receivers cannot be
swapped between vehicles. If this
message is received after having
your vehicle serviced, check with
your dealer.
Radio ID: If this message is
received when tuned to channel 0,
there could be a receiver fault.
Consult with your dealer.

Black plate (13,1)Chevrolet Colorado Owner Manual - 2011
Infotainment System 7-13
Unknown:If this message is
received when tuned to channel 0,
there could be a receiver fault.
Consult with your dealer.
Check XM: If this message does
not clear within a short period of
time, the receiver could have a fault.
Consult with your dealer.

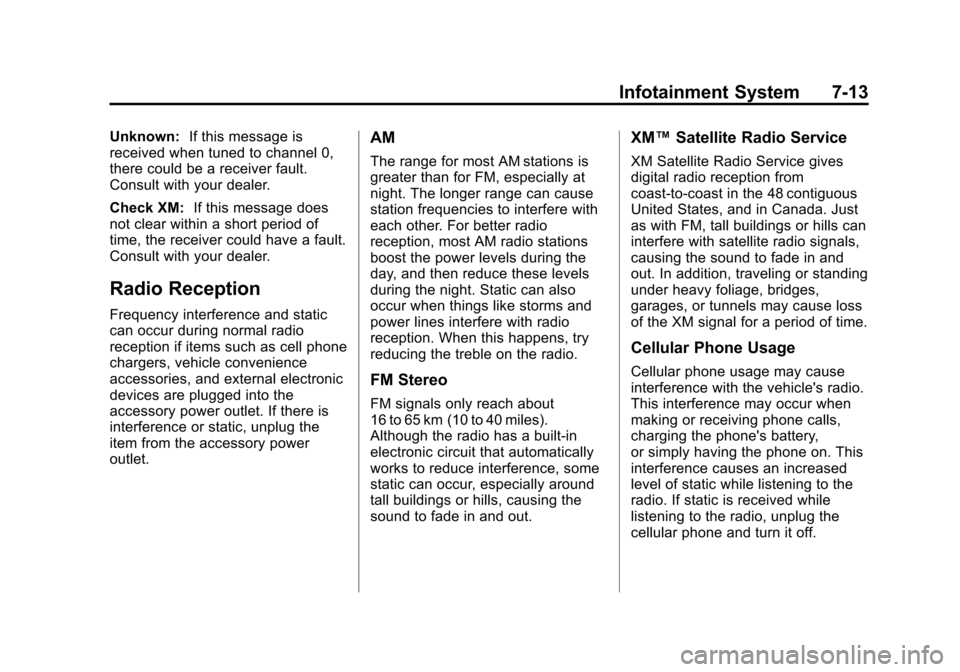

Radio Reception
Frequency interference and static
can occur during normal radio
reception if items such as cell phone
chargers, vehicle convenience
accessories, and external electronic
devices are plugged into the
accessory power outlet. If there is
interference or static, unplug the
item from the accessory power
outlet.
AM
The range for most AM stations is
greater than for FM, especially at
night. The longer range can cause
station frequencies to interfere with
each other. For better radio
reception, most AM radio stations
boost the power levels during the
day, and then reduce these levels
during the night. Static can also
occur when things like storms and
power lines interfere with radio
reception. When this happens, try
reducing the treble on the radio.
FM Stereo
FM signals only reach about
16 to 65 km (10 to 40 miles).
Although the radio has a built-in
electronic circuit that automatically
works to reduce interference, some
static can occur, especially around
tall buildings or hills, causing the
sound to fade in and out.
XM™ Satellite Radio Service
XM Satellite Radio Service gives
digital radio reception from
coast-to-coast in the 48 contiguous
United States, and in Canada. Just
as with FM, tall buildings or hills can
interfere with satellite radio signals,
causing the sound to fade in and
out. In addition, traveling or standing
under heavy foliage, bridges,
garages, or tunnels may cause loss
of the XM signal for a period of time.
Cellular Phone Usage
Cellular phone usage may cause
interference with the vehicle's radio.
This interference may occur when
making or receiving phone calls,
charging the phone's battery,
or simply having the phone on. This
interference causes an increased
level of static while listening to the
radio. If static is received while
listening to the radio, unplug the
cellular phone and turn it off.

Black plate (14,1)Chevrolet Colorado Owner Manual - 2011
7-14 Infotainment System

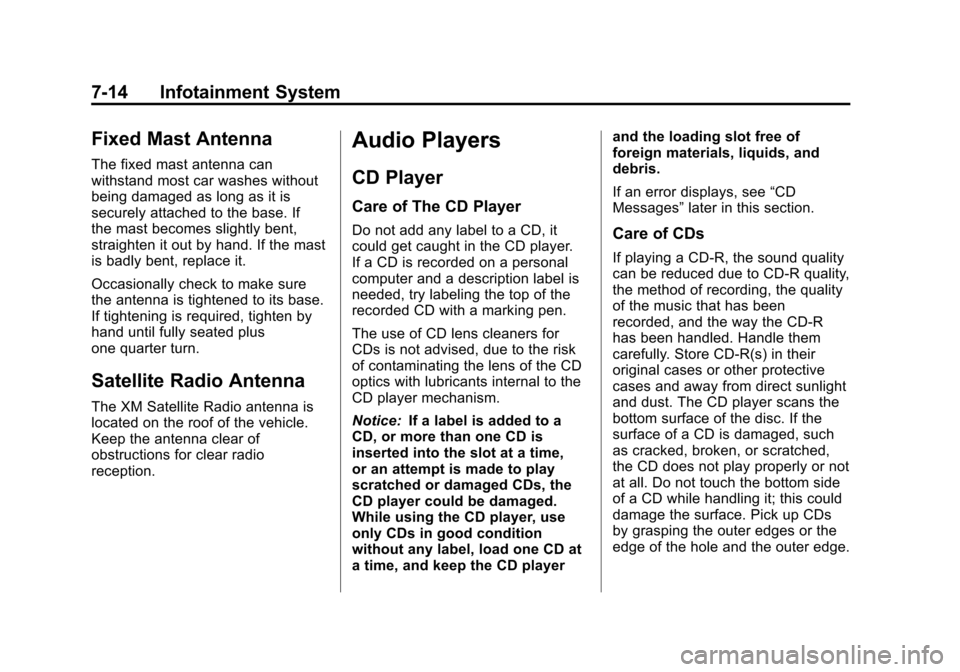

Fixed Mast Antenna
The fixed mast antenna can
withstand most car washes without
being damaged as long as it is
securely attached to the base. If
the mast becomes slightly bent,
straighten it out by hand. If the mast
is badly bent, replace it.
Occasionally check to make sure
the antenna is tightened to its base.
If tightening is required, tighten by
hand until fully seated plus
one quarter turn.
Satellite Radio Antenna
The XM Satellite Radio antenna is
located on the roof of the vehicle.
Keep the antenna clear of
obstructions for clear radio
reception.
Audio Players
CD Player
Care of The CD Player
Do not add any label to a CD, it
could get caught in the CD player.
If a CD is recorded on a personal
computer and a description label is
needed, try labeling the top of the
recorded CD with a marking pen.
The use of CD lens cleaners for
CDs is not advised, due to the risk
of contaminating the lens of the CD
optics with lubricants internal to the
CD player mechanism.
Notice:If a label is added to a
CD, or more than one CD is
inserted into the slot at a time,
or an attempt is made to play
scratched or damaged CDs, the
CD player could be damaged.
While using the CD player, use
only CDs in good condition
without any label, load one CD at
a time, and keep the CD player and the loading slot free of
foreign materials, liquids, and
debris.
If an error displays, see
“CD
Messages” later in this section.Care of CDs
If playing a CD-R, the sound quality
can be reduced due to CD-R quality,
the method of recording, the quality
of the music that has been
recorded, and the way the CD-R
has been handled. Handle them
carefully. Store CD-R(s) in their
original cases or other protective
cases and away from direct sunlight
and dust. The CD player scans the
bottom surface of the disc. If the
surface of a CD is damaged, such
as cracked, broken, or scratched,
the CD does not play properly or not
at all. Do not touch the bottom side
of a CD while handling it; this could
damage the surface. Pick up CDs
by grasping the outer edges or the
edge of the hole and the outer edge.

Black plate (15,1)Chevrolet Colorado Owner Manual - 2011
Infotainment System 7-15

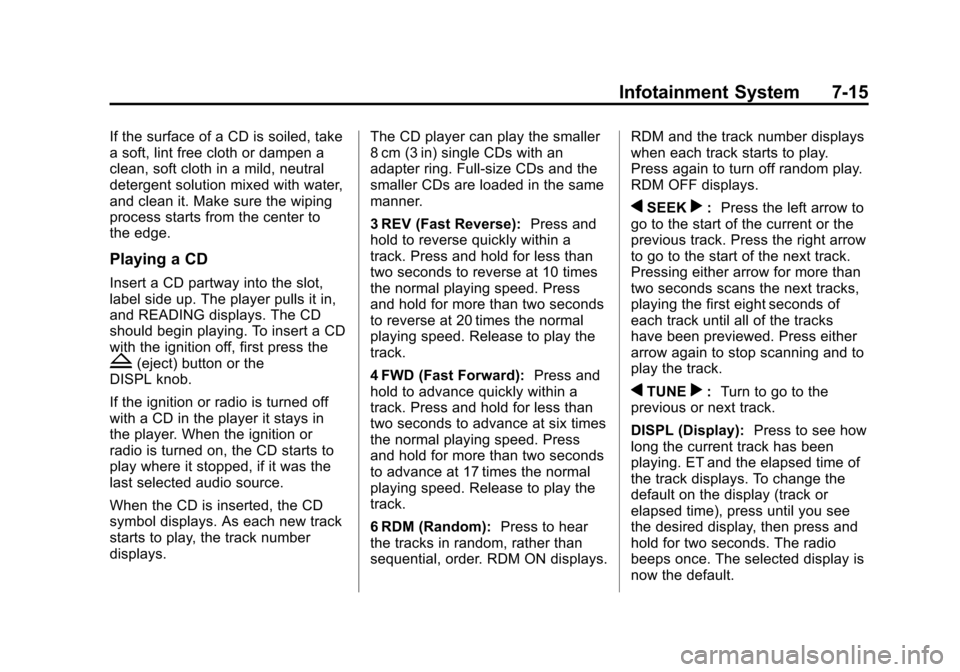

If the surface of a CD is soiled, take
a soft, lint free cloth or dampen a
clean, soft cloth in a mild, neutral
detergent solution mixed with water,
and clean it. Make sure the wiping
process starts from the center to
the edge.
Playing a CD
Insert a CD partway into the slot,
label side up. The player pulls it in,
and READING displays. The CD
should begin playing. To insert a CD
with the ignition off, first press the
Z(eject) button or the
DISPL knob.
If the ignition or radio is turned off
with a CD in the player it stays in
the player. When the ignition or
radio is turned on, the CD starts to
play where it stopped, if it was the
last selected audio source.
When the CD is inserted, the CD
symbol displays. As each new track
starts to play, the track number
displays. The CD player can play the smaller
8 cm (3 in) single CDs with an
adapter ring. Full-size CDs and the
smaller CDs are loaded in the same
manner.
3 REV (Fast Reverse):
Press and
hold to reverse quickly within a
track. Press and hold for less than
two seconds to reverse at 10 times
the normal playing speed. Press
and hold for more than two seconds
to reverse at 20 times the normal
playing speed. Release to play the
track.
4 FWD (Fast Forward): Press and
hold to advance quickly within a
track. Press and hold for less than
two seconds to advance at six times
the normal playing speed. Press
and hold for more than two seconds
to advance at 17 times the normal
playing speed. Release to play the
track.
6 RDM (Random): Press to hear
the tracks in random, rather than
sequential, order. RDM ON displays. RDM and the track number displays
when each track starts to play.
Press again to turn off random play.
RDM OFF displays.
qSEEKr:
Press the left arrow to
go to the start of the current or the
previous track. Press the right arrow
to go to the start of the next track.
Pressing either arrow for more than
two seconds scans the next tracks,
playing the first eight seconds of
each track until all of the tracks
have been previewed. Press either
arrow again to stop scanning and to
play the track.
qTUNEr: Turn to go to the
previous or next track.
DISPL (Display): Press to see how
long the current track has been
playing. ET and the elapsed time of
the track displays. To change the
default on the display (track or
elapsed time), press until you see
the desired display, then press and
hold for two seconds. The radio
beeps once. The selected display is
now the default.

Black plate (16,1)Chevrolet Colorado Owner Manual - 2011
7-16 Infotainment System
BAND:Press to listen to the radio
when a CD is playing. The inactive
CD remains inside the radio for
future listening.
CD AUX (Auxiliary): Press to play
a CD when listening to the radio.
The CD symbol displays when a CD
is loaded.
Z(Eject): Press to eject a CD.
Eject can be activated with either
the ignition or radio off. CDs can be
loaded with the ignition and radio off
if this button is pressed first.
Playing an MP3/WMA Disc
MP3/WMA CD-R Disc Format
If you burn your own MP3/WMA
disc on a personal computer:
.Make sure the MP3/WMA files
are recorded on a CD-R disc.
.Make sure playlists have a .m3u
or .wpl extension, other file
extensions might not work.
.Files can be recorded with a
variety of fixed or variable bit
rates. Song title, artist name, and album are displayed by the
radio when recorded using ID3
tags version 1 and 2.
.Create a folder structure that
makes it easy to find songs
while driving. Organize songs by
albums using one folder for each
album. Each folder or album
should contain 18 songs or less.
.Make sure to finalize the disc
when burning an MP3/WMA
disc, using multiple sessions.
It is usually better to burn the
disc all at once.
The player is able to read and
play a maximum of 253 folders,
50 playlists, 20 sessions, and
949 files. Long file names, folder
names, or playlist names may use
more disc memory space than
necessary. To conserve space on
the disc, minimize the length of the
file, folder, or playlist names. An
MP3/WMA CD-R that was recorded
using no file folders can also be
used. The system can support up to
11 folders in depth, though, keep the depth of the folders to a minimum in
order to keep down the complexity
and confusion in trying to locate a
particular folder during playback.
If a CD contains more than the
maximum of 253 folders,
50 playlists, 20 sessions, and
949 files, the player lets you access
and navigate up to the maximum,
but all items over the maximum are
played.
Root Directory
The root directory is treated as a
folder. If the root directory has
compressed audio files, the
directory displays as F1 ROOT. All
files contained directly under the
root directory are accessed prior to
any root directory folders. However,
playlists (Px) are always accessed
before root folders or files.
Empty Directory or Folder
If a root directory or a folder exists
somewhere in the file structure that
contains only folders/subfolders and
no compressed files directly
beneath them, the player advances
