Black plate (5,1)Chevrolet Colorado Owner Manual - 2012
In Brief 1-5

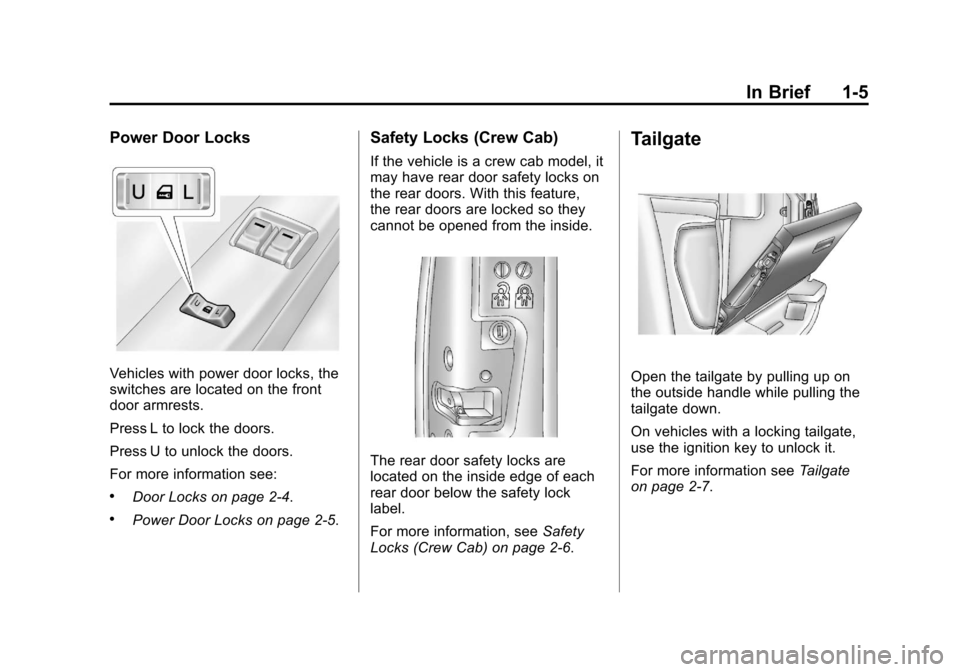

Power Door Locks
Vehicles with power door locks, the
switches are located on the front
door armrests.
Press L to lock the doors.
Press U to unlock the doors.
For more information see:
.Door Locks on page 2‑4.
.Power Door Locks on page 2‑5.
Safety Locks (Crew Cab)
If the vehicle is a crew cab model, it
may have rear door safety locks on
the rear doors. With this feature,
the rear doors are locked so they
cannot be opened from the inside.
The rear door safety locks are
located on the inside edge of each
rear door below the safety lock
label.
For more information, seeSafety
Locks (Crew Cab) on page 2‑6.
Tailgate
Open the tailgate by pulling up on
the outside handle while pulling the
tailgate down.
On vehicles with a locking tailgate,
use the ignition key to unlock it.
For more information see Tailgate
on page 2‑7.

Black plate (6,1)Chevrolet Colorado Owner Manual - 2012
1-6 In Brief

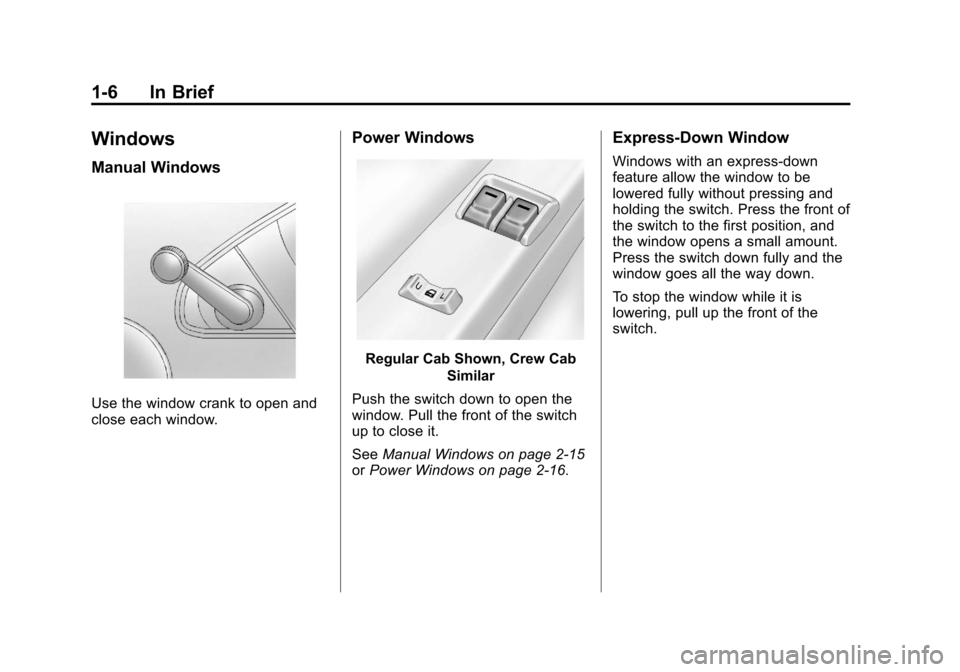

Windows
Manual Windows
Use the window crank to open and
close each window.
Power Windows
Regular Cab Shown, Crew CabSimilar
Push the switch down to open the
window. Pull the front of the switch
up to close it.
See Manual Windows on page 2‑15
or Power Windows on page 2‑16.
Express-Down Window
Windows with an express-down
feature allow the window to be
lowered fully without pressing and
holding the switch. Press the front of
the switch to the first position, and
the window opens a small amount.
Press the switch down fully and the
window goes all the way down.
To stop the window while it is
lowering, pull up the front of the
switch.

Black plate (7,1)Chevrolet Colorado Owner Manual - 2012
In Brief 1-7
Seat Adjustment
Manual Seats
To adjust a manual seat:
1. Lift the bar under the front of theseat cushion to unlock the seat.
2. Slide the seat to the desired position and release the bar.
3. Try to move the seat back and forth to make sure it is locked in
place.
See Seat Adjustment on page 3‑3
for more information.
Power Seats
To adjust a power seat, if available:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front or rear
part of the seat cushion by
moving the front or rear of the
control up or down.
.Raise or lower the entire seat
by moving the entire control up
or down. Use the vertical control to adjust the
seatback.
See
Power Seat Adjustment on
page 3‑3 andReclining Seatbacks
on page 3‑4 for more information.
Power Lumbar
If available, press and hold the front
or rear of the control to increase or
decrease lumbar support. Release
the control when the level of support
is reached.
SeeLumbar Adjustment on
page 3‑4 for more information.

Black plate (8,1)Chevrolet Colorado Owner Manual - 2012
1-8 In Brief
Heated Seats
If available, the switches are on the
outboard sides of the front seats. To
operate, the ignition must be on.
.Press the top of the switch for
the high setting.
.Press the bottom of the switch
for the low setting.
.Put the switch in the center
position to turn this feature off.
See Heated Front Seats on
page 3‑7 for more information.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the
head restraint height in the proper
position.
For more information see Head
Restraints on page 3‑2 andSeat
Adjustment on page 3‑3.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑10.
.How to Wear Safety Belts
Properly on page 3‑12.
.Lap-Shoulder Belt on page 3‑13.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑42.

Black plate (9,1)Chevrolet Colorado Owner Manual - 2012
In Brief 1-9

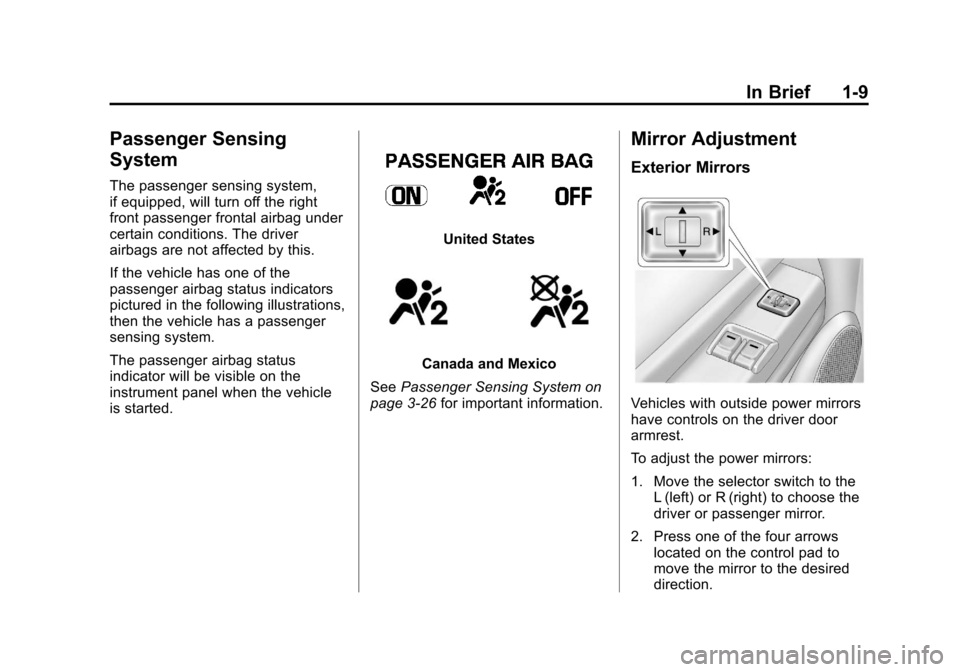

Passenger Sensing
System
The passenger sensing system,
if equipped, will turn off the right
front passenger frontal airbag under
certain conditions. The driver
airbags are not affected by this.
If the vehicle has one of the
passenger airbag status indicators
pictured in the following illustrations,
then the vehicle has a passenger
sensing system.
The passenger airbag status
indicator will be visible on the
instrument panel when the vehicle
is started.
United States
Canada and Mexico
See Passenger Sensing System on
page 3‑26 for important information.
Mirror Adjustment
Exterior Mirrors
Vehicles with outside power mirrors
have controls on the driver door
armrest.
To adjust the power mirrors:
1. Move the selector switch to the
L (left) or R (right) to choose the
driver or passenger mirror.
2. Press one of the four arrows located on the control pad to
move the mirror to the desired
direction.

Black plate (10,1)Chevrolet Colorado Owner Manual - 2012
1-10 In Brief
3. Return the selector switch to thecenter position once the mirrors
are adjusted.
See Power Mirrors on page 2‑13.
Vehicles with manual outside
mirrors can be adjusted by pressing
the mirror up and down and left and
right so that you can see a clear
view behind you.
Manually fold the mirrors inward
to prevent damage when going
through an automatic car wash.
To fold, push the mirror toward the
vehicle. Push the mirror outward, to
return to its original position.
See Manual Mirrors on page 2‑12.Interior Mirror
On vehicles with a manual inside
rearview mirror, the mirror can be
adjusted by holding it in the center
to move it for a clear view behind
you. To avoid glare from the
headlamps behind you, push the
tab forward for daytime use and
pull it for nighttime use.
SeeManual Rearview Mirror on
page 2‑13.
The automatic dimming inside
rearview mirror will automatically
reduce the glare of lights from
behind the vehicle.
See Automatic Dimming Rearview
Mirror on page 2‑14.
Steering Wheel
Adjustment
The steering wheel adjustment lever
is located on the left side of the
steering wheel.

Black plate (11,1)Chevrolet Colorado Owner Manual - 2012
In Brief 1-11
To adjust:
1. Hold the steering wheel and pullthe lever toward you.
2. Move the steering wheel up or down.
3. Release the lever to lock the wheel in place.
Do not adjust the steering wheel
while driving.Interior Lighting
Dome Lamps
The dome lamps come on when any
door is opened.
To manually turn on the dome
lamps, turn the thumbwheel, located
next to the exterior lamps control, all
the way up. The cargo lamps may
come on, if the vehicle is equipped
with Bluetooth. In this position, the
lamps remain on whether a door is
opened or closed. Reading Lamps
Press the lens on the lamps to turn
each reading lamp on or off.
These lamps will not come on with
the dome lamps.
For more information see:
.“Dome Lamp Override”
under
Dome Lamps on page 6‑6.
.Instrument Panel Illumination
Control on page 6‑6.
.Exit Lighting on page 6‑7.

Black plate (12,1)Chevrolet Colorado Owner Manual - 2012
1-12 In Brief
Exterior Lighting
O:Turns off all exterior lamps
including the Daytime Running
Lamps (DRL).
AUTO: Automatic operation of the
headlamps and other exterior lamps
at normal brightness.
;: Manual operation of the
parking lamps and other exterior
lamps.
5: Manual operation of the
headlamps and other exterior
lamps. For more information, see:
.Exterior Lamp Controls on
page 6‑1.
.Daytime Running Lamps (DRL)
on page 6‑2.
.Automatic Headlamp System on
page 6‑3.
.Fog Lamps on page 6‑5.
.Exterior Cargo Lamps on
page 6‑5.
Windshield Wiper/Washer
8:
For a single wipe, move the
band to
8and then release it.
For several wipes, hold the band
on
8longer.

Black plate (13,1)Chevrolet Colorado Owner Manual - 2012
In Brief 1-13
N:For adjustable interval wipes,
turn the band up for more frequent
wipes or down for less frequent
wipes.
6 :For slow wipes, turn the
band to the first solid position past
the delay settings.
1 :For fast wipes, turn the band
to the second solid position past the
delay settings.
9: Use to turn the wipers off.
Windshield Washer: Push the
paddle on top of the turn signal/lane
change lever to spray washer fluid
on the windshield.
See Windshield Wiper/Washer on
page 5‑2.Climate Controls
A. Temperature Control
B. Fan Control
C. Air Delivery Mode Control D. Air Conditioning
E. Air Recirculation
See
Climate Control Systems on
page 8‑1.

Black plate (14,1)Chevrolet Colorado Owner Manual - 2012
1-14 In Brief
Four-Wheel Drive
Four-wheel drive sends engine
power to all four wheels for extra
traction.
The transfer case buttons are
located to the right of the steering
wheel on the instrument panel.
Use these buttons to shift into and
out of four-wheel drive.2
m(Two-Wheel High):
Use for
driving in most street and highway
situations.
{WARNING
Shifting the transfer case to
N (Neutral) can cause the vehicle
to roll even if the transmission is
in P (Park). You or someone else
could be seriously injured. Be
sure to set the parking brake
before placing the transfer case in
N (Neutral). See Parking Brake on
page 9‑41. N (Neutral):
Use the N (Neutral)
position only when towing the
vehicle. See Recreational Vehicle
Towing on page 10‑89.
4
m(Four-Wheel High): Use when
extra traction is needed in most
off-road situations.
4
n(Four-Wheel Low): Use this
position to deliver extra torque
to all four wheels. Used for extreme
off‐road conditions. See Four-Wheel
Drive on page 9‑36.
