Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20

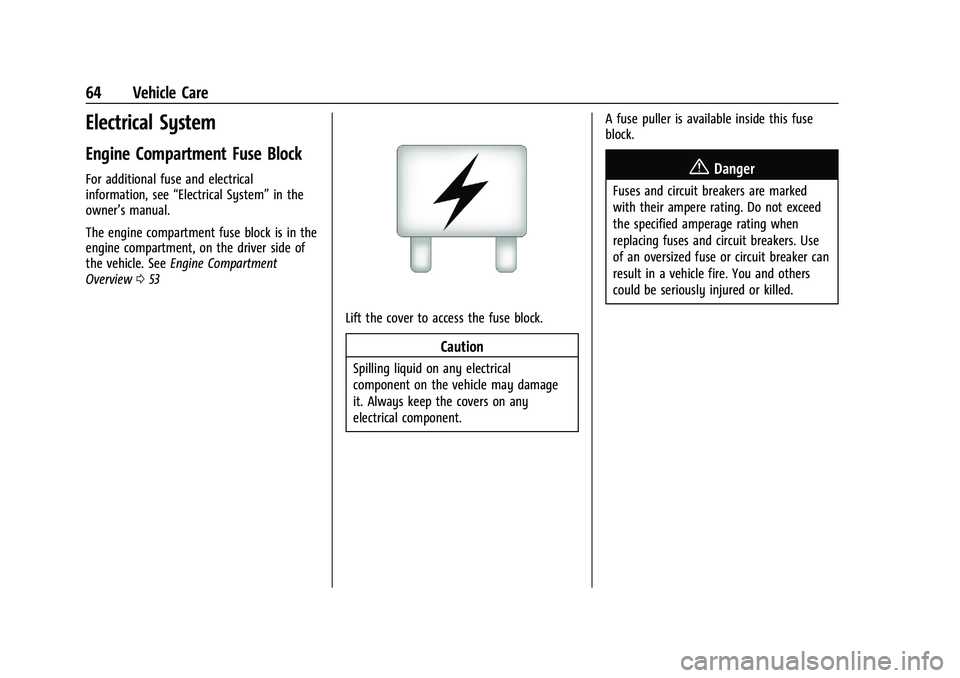

64 Vehicle Care
Electrical System
Engine Compartment Fuse Block
For additional fuse and electrical
information, see“Electrical System” in the
owner’s manual.
The engine compartment fuse block is in the
engine compartment, on the driver side of
the vehicle. See Engine Compartment
Overview 053
Lift the cover to access the fuse block.
Caution
Spilling liquid on any electrical
component on the vehicle may damage
it. Always keep the covers on any
electrical component. A fuse puller is available inside this fuse
block.
{Danger
Fuses and circuit breakers are marked
with their ampere rating. Do not exceed
the specified amperage rating when
replacing fuses and circuit breakers. Use
of an oversized fuse or circuit breaker can
result in a vehicle fire. You and others
could be seriously injured or killed.
Page 67 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20

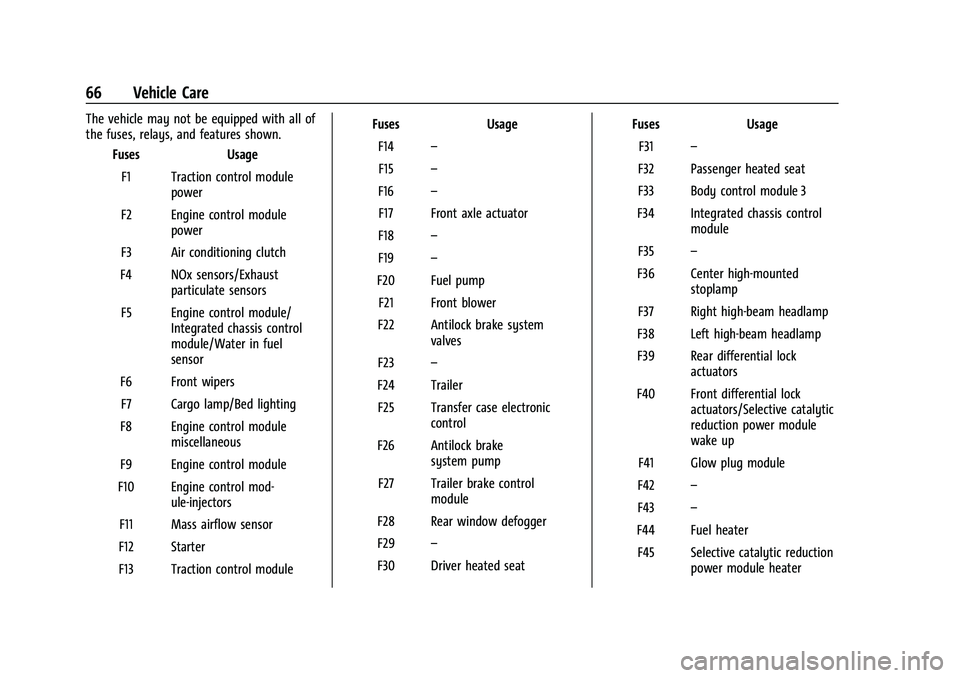

66 Vehicle Care
The vehicle may not be equipped with all of
the fuses, relays, and features shown.Fuses Usage
F1 Traction control module power
F2 Engine control module power
F3 Air conditioning clutch
F4 NOx sensors/Exhaust particulate sensors
F5 Engine control module/ Integrated chassis control
module/Water in fuel
sensor
F6 Front wipers F7 Cargo lamp/Bed lighting
F8 Engine control module miscellaneous
F9 Engine control module
F10 Engine control mod- ule-injectors
F11 Mass airflow sensor
F12 Starter
F13 Traction control module Fuses
Usage
F14 –
F15 –
F16 –
F17 Front axle actuator
F18 –
F19 –
F20 Fuel pump F21 Front blower
F22 Antilock brake system valves
F23 –
F24 Trailer F25 Transfer case electronic control
F26 Antilock brake system pump
F27 Trailer brake control module
F28 Rear window defogger
F29 –
F30 Driver heated seat Fuses
Usage
F31 –
F32 Passenger heated seat
F33 Body control module 3
F34 Integrated chassis control module
F35 –
F36 Center high-mounted stoplamp
F37 Right high-beam headlamp
F38 Left high-beam headlamp
F39 Rear differential lock actuators
F40 Front differential lock actuators/Selective catalytic
reduction power module
wake up
F41 Glow plug module
F42 –
F43 –
F44 Fuel heater F45 Selective catalytic reduction power module heater
Page 68 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20

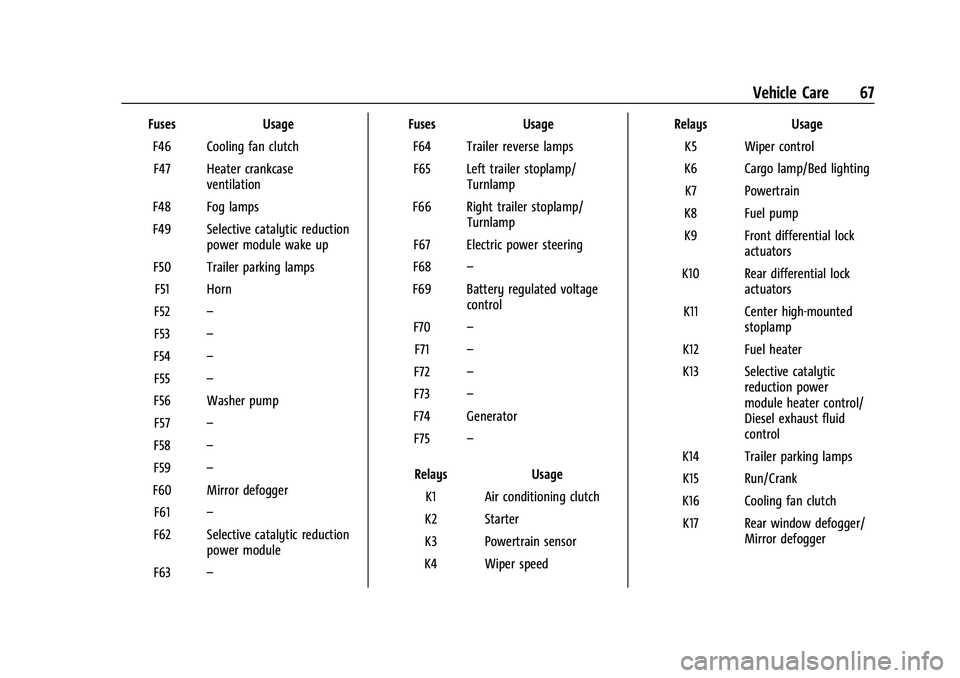

Vehicle Care 67
FusesUsage
F46 Cooling fan clutch F47 Heater crankcase ventilation
F48 Fog lamps
F49 Selective catalytic reduction power module wake up
F50 Trailer parking lamps F51 Horn
F52 –
F53 –
F54 –
F55 –
F56 Washer pump F57 –
F58 –
F59 –
F60 Mirror defogger F61 –
F62 Selective catalytic reduction power module
F63 – Fuses
Usage
F64 Trailer reverse lamps F65 Left trailer stoplamp/ Turnlamp
F66 Right trailer stoplamp/ Turnlamp
F67 Electric power steering
F68 –
F69 Battery regulated voltage control
F70 –
F71 –
F72 –
F73 –
F74 Generator F75 –
Relays Usage
K1 Air conditioning clutch
K2 Starter
K3 Powertrain sensor
K4 Wiper speed Relays
Usage
K5 Wiper control
K6 Cargo lamp/Bed lighting K7 Powertrain
K8 Fuel pump
K9 Front differential lock actuators
K10 Rear differential lock actuators
K11 Center high-mounted stoplamp
K12 Fuel heater
K13 Selective catalytic reduction power
module heater control/
Diesel exhaust fluid
control
K14 Trailer parking lamps K15 Run/Crank
K16 Cooling fan clutch K17 Rear window defogger/ Mirror defogger
Page 70 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Vehicle Care 69
The vehicle may not be equipped with all of
the fuses, relays, and features shown.Fuses Usage
1 Antilock brake system motor
2 Antilock brake system module
3 Right trailer stoplamp/ Turnlamp
4 –
5 –
6 Fuel system control module/Ignition
7 Body control module 5
8 Body control module 7
9 Body control module 4
10 Instrument cluster 11 Trailer wiring
12 –
13 Display/Mirrors/Rear vision camera
14 Washer
16 Horn Fuses Usage
17 Transmission
18 Air conditioning
19 Engine control module battery
20 Left stop/turn cutaway lamp
21 Left stop/turn trailer lamp
22 Right stop/turn cutaway lamp
23 NOx sensors
24 Diesel fuel pump 25 Auxiliary power outlet
26 Body control module 3 27 Special equipment option
28 Airbag
29 Steering wheel sensor
30 Engine control module/ Glow plug module/
Ignition Fuses Usage
31 Transmission control module/Ignition
32 Transmission control module battery
33 Obstacle detection
34 NOx sensors 35 Fuel operated heater module
36 Fuel system control module battery
41 Transmission control module 2, battery
signal
42 Trailer wiring
43 EV fan clutch
44 Starter solenoid 45 Engine control module, powertrain signal 1
46 DC-AC inverter 47 Cooling fan –low
51 Left high-beam headlamp
Page 71 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20

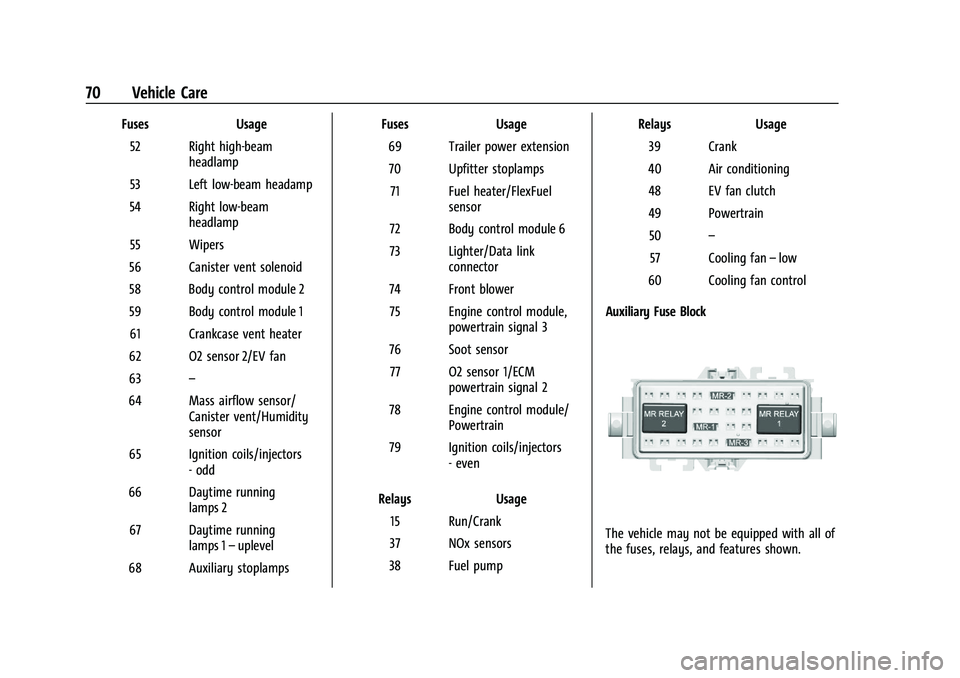

70 Vehicle Care
FusesUsage
52 Right high-beam headlamp
53 Left low-beam headamp
54 Right low-beam headlamp
55 Wipers
56 Canister vent solenoid
58 Body control module 2
59 Body control module 1 61 Crankcase vent heater
62 O2 sensor 2/EV fan
63 –
64 Mass airflow sensor/ Canister vent/Humidity
sensor
65 Ignition coils/injectors - odd
66 Daytime running lamps 2
67 Daytime running lamps 1–uplevel
68 Auxiliary stoplamps Fuses
Usage
69 Trailer power extension 70 Upfitter stoplamps 71 Fuel heater/FlexFuel sensor
72 Body control module 6
73 Lighter/Data link connector
74 Front blower 75 Engine control module, powertrain signal 3
76 Soot sensor 77 O2 sensor 1/ECM powertrain signal 2
78 Engine control module/ Powertrain
79 Ignition coils/injectors - even
Relays Usage
15 Run/Crank
37 NOx sensors
38 Fuel pump Relays
Usage
39 Crank
40 Air conditioning 48 EV fan clutch
49 Powertrain 50 –
57 Cooling fan –low
60 Cooling fan control
Auxiliary Fuse Block
The vehicle may not be equipped with all of
the fuses, relays, and features shown.
Page 72 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20

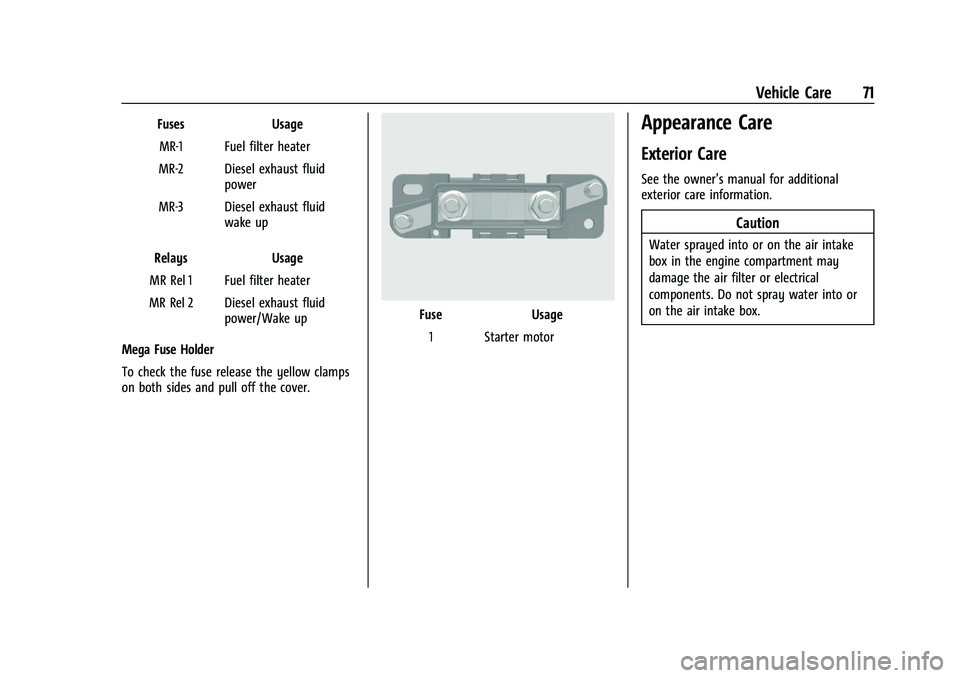

Vehicle Care 71
FusesUsage
MR-1 Fuel filter heater
MR-2 Diesel exhaust fluid power
MR-3 Diesel exhaust fluid wake up
Relays Usage
MR Rel 1 Fuel filter heater
MR Rel 2 Diesel exhaust fluid power/Wake up
Mega Fuse Holder
To check the fuse release the yellow clamps
on both sides and pull off the cover.
Fuse Usage
1 Starter motor
Appearance Care
Exterior Care
See the owner’s manual for additional
exterior care information.
Caution
Water sprayed into or on the air intake
box in the engine compartment may
damage the air filter or electrical
components. Do not spray water into or
on the air intake box.
