Page 161 of 274

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine Problems on the Road

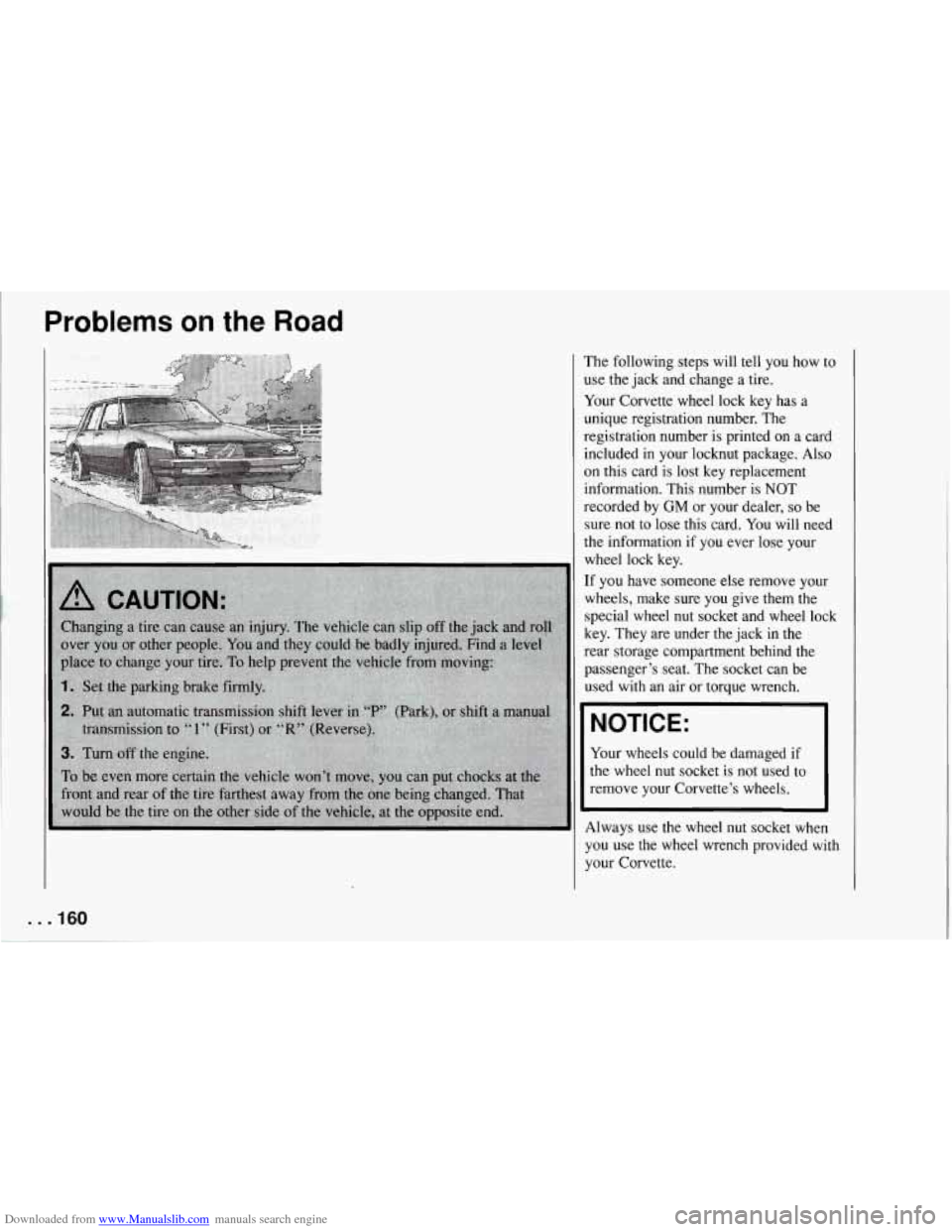

The following  steps  will  tell  you  how to
use  the jack  and  change  a  tire.
Your  Corvette  wheel  lock  key  ha

Page 162 of 274

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine I -

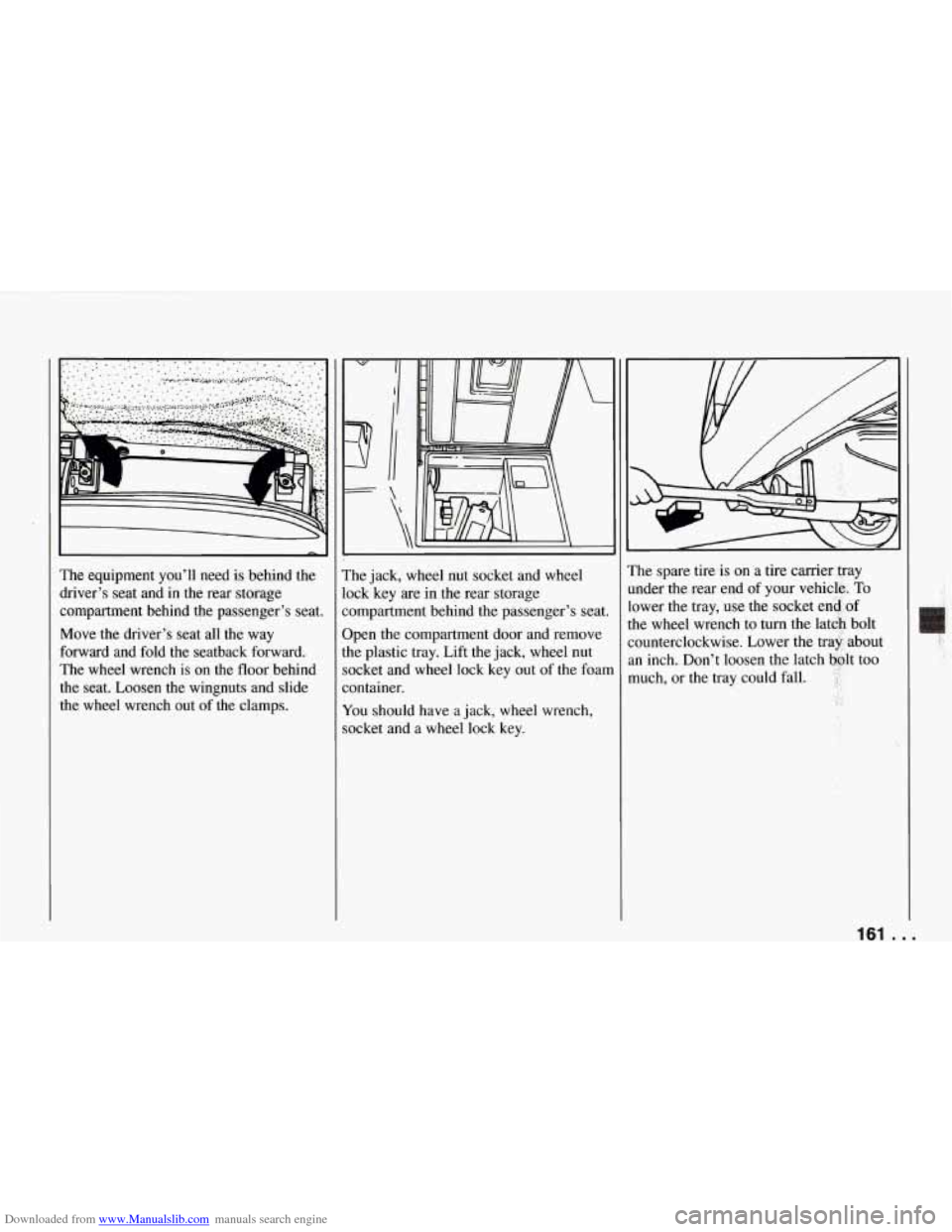

The  equipment  you’ll  need  is  behind the
driver’s  seat  and  in  the  rear  storage
compartment  behind  the  passenger’s  se

Page 163 of 274

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine Problems on the Road

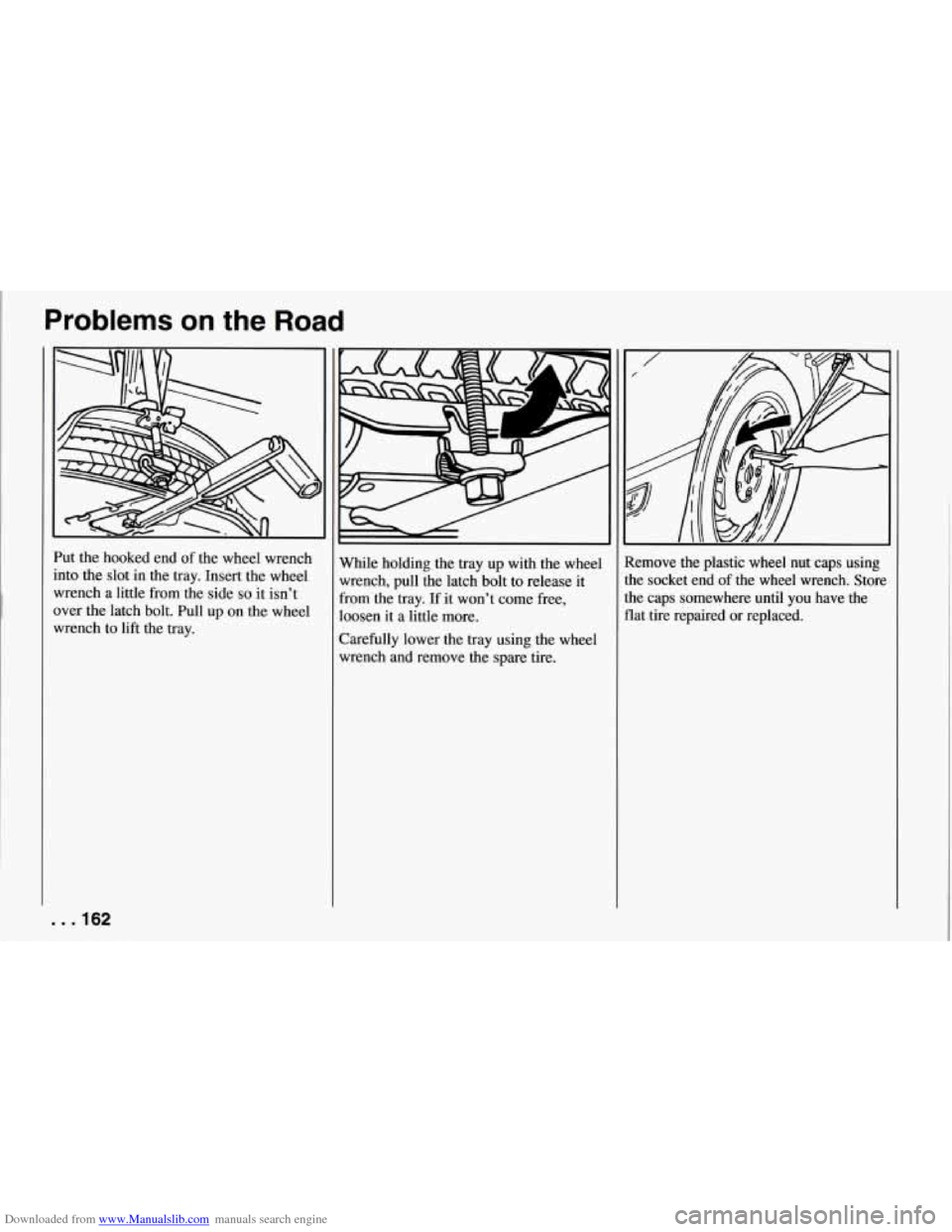

Put the hooked  end  of the  wheel  wrench
into  the slot  in  the  tray.  Insert the wheel
wrench  a little from  the

Page 164 of 274

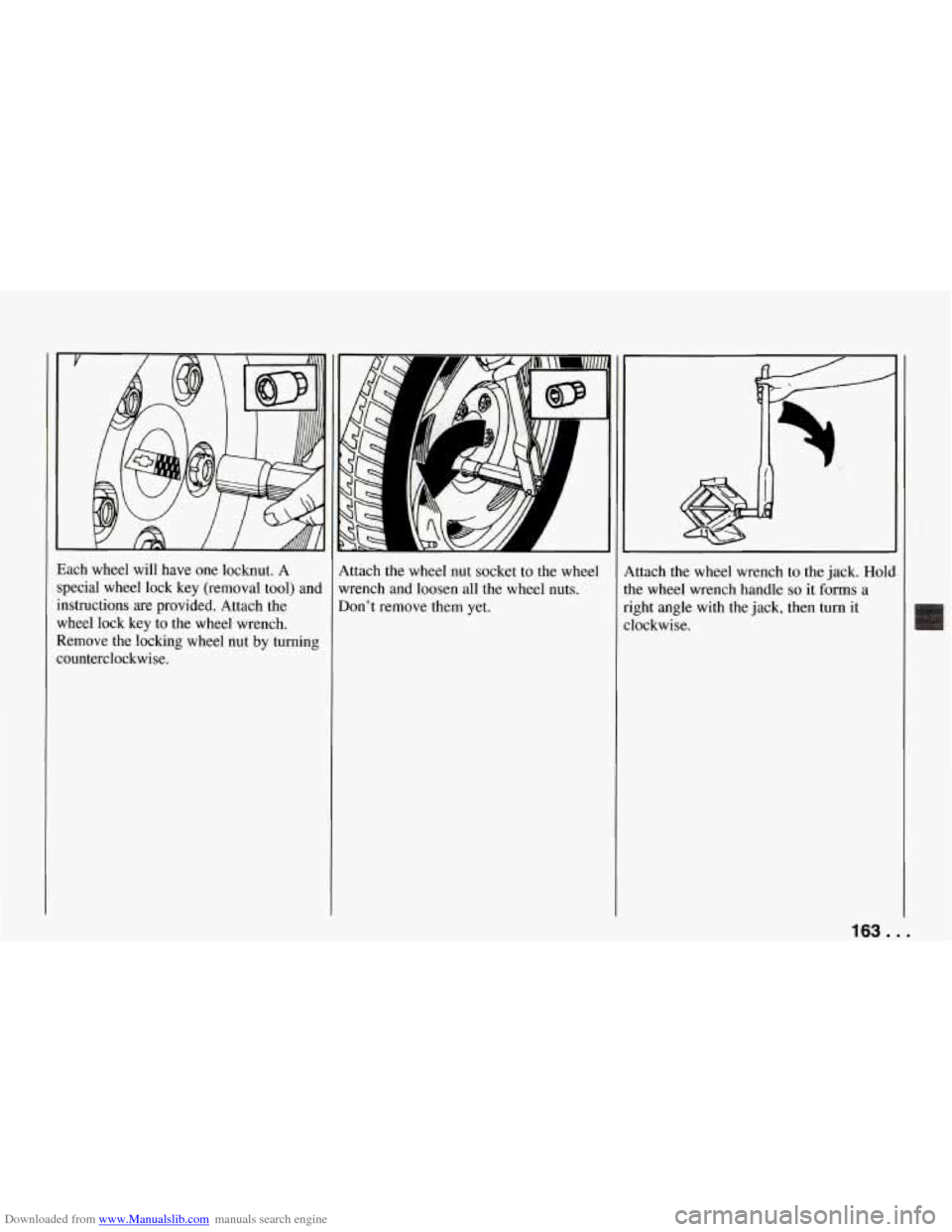

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine Each  wheel  will  have one locknut. A
special  wheel  lock  key  (removal  tool)  and
instructions  are provided.  Attach  the
wheel  lock

Page 165 of 274

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine Problems on the Road
~~~  ~~~~

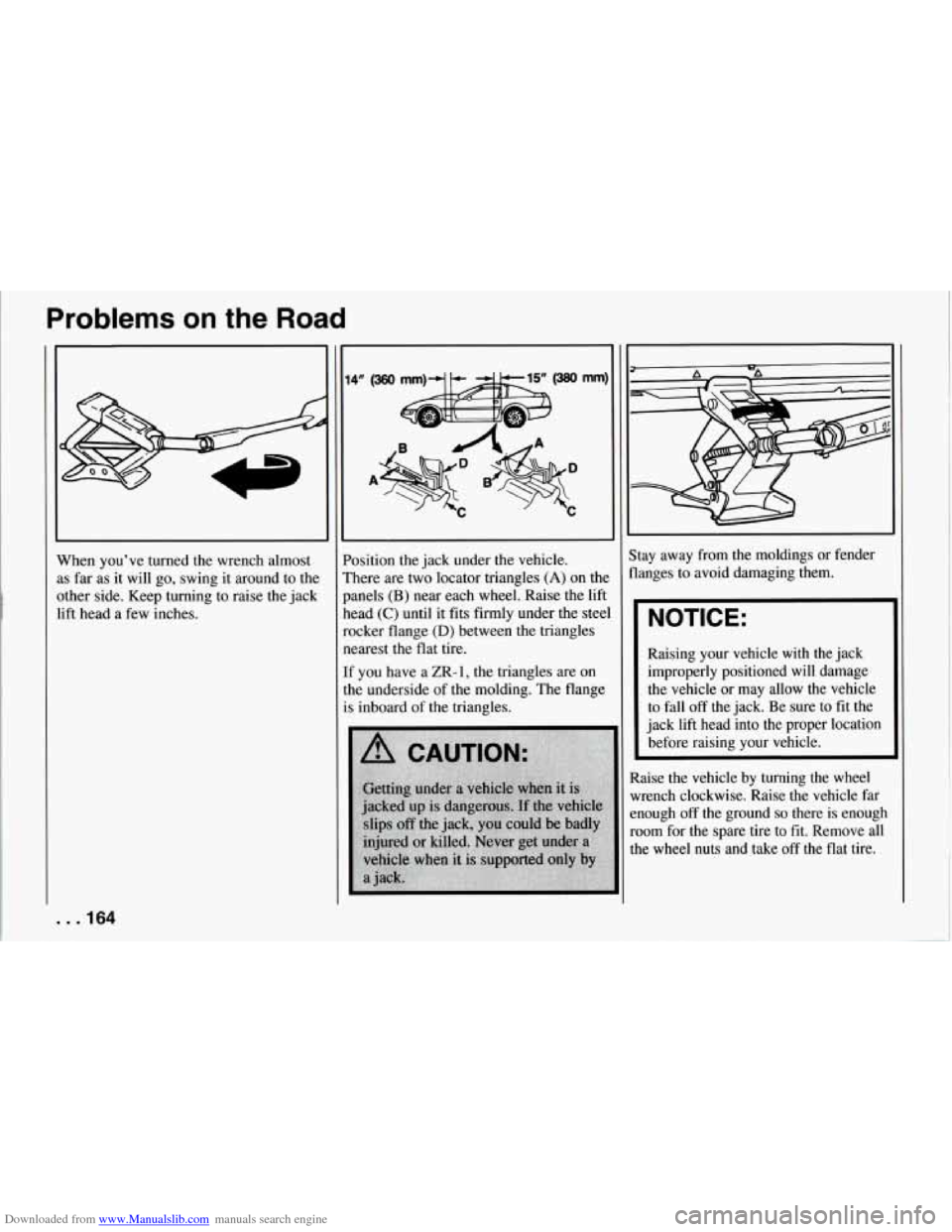

When youve  turned the wrench  almost
LS far as it will  go, swing  it around  to the
)ther  side.  Keep  t

Page 166 of 274

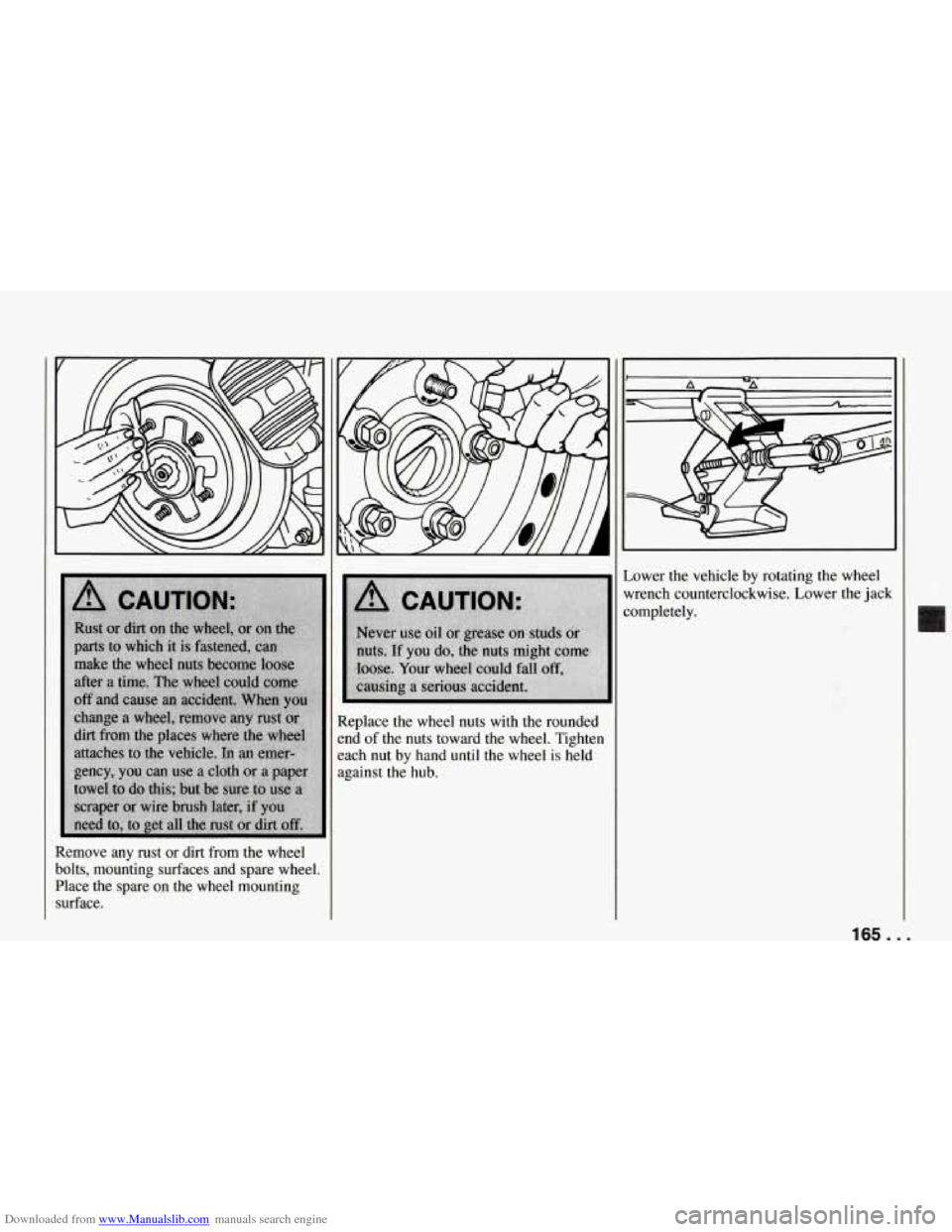

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine Remove  any  rust  or  dirt  from the wheel
bolts,  mounting  surfaces  and  spare wheel.
Place  the  spare  on  the  wheel  mounting  surfac

Page 167 of 274

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine Problems on the Road

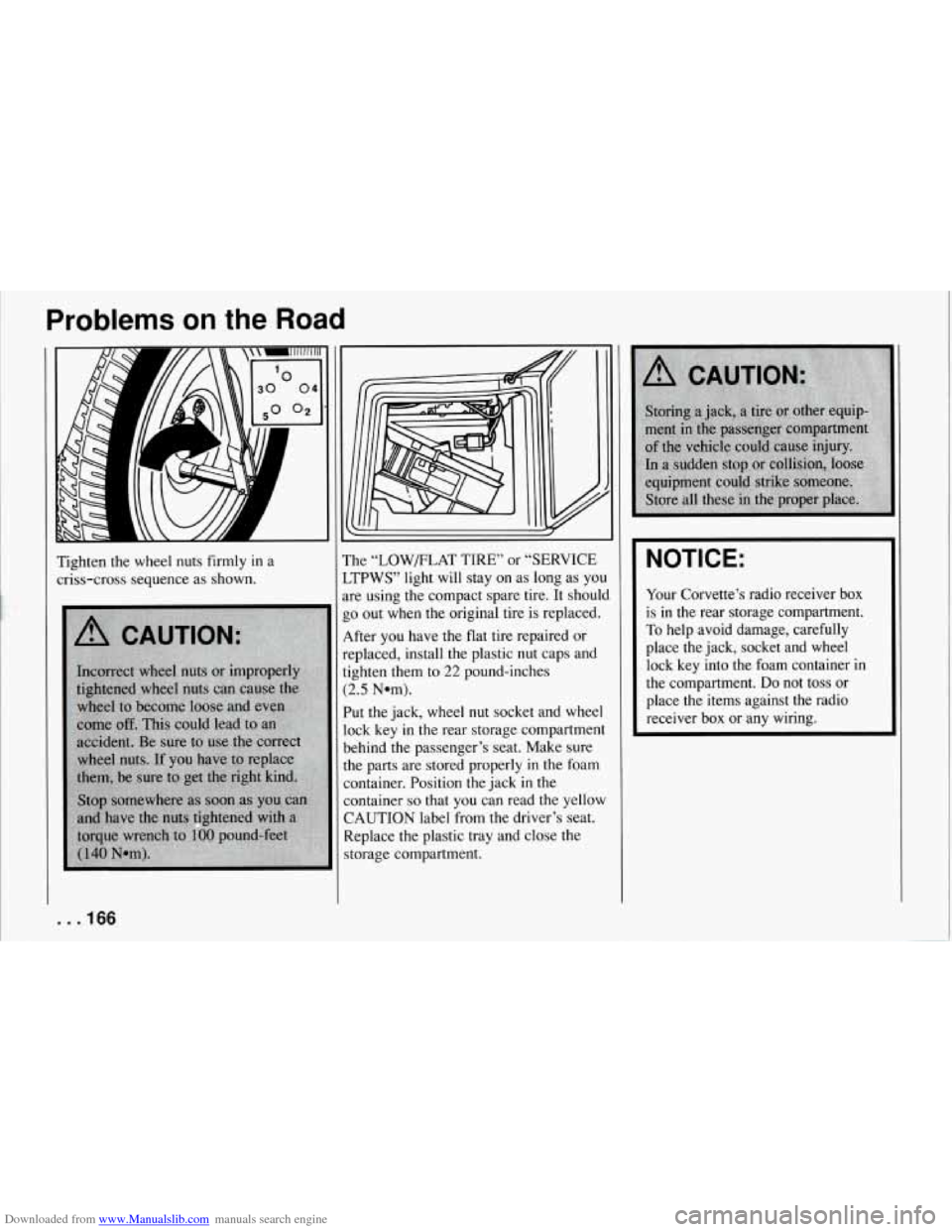

Tighten the wheel nuts firmly  in a
criss-cross  sequence as shown.  The
“LOWELAT  TIRE”  or  “SERVICE
LTPWS”

Page 168 of 274

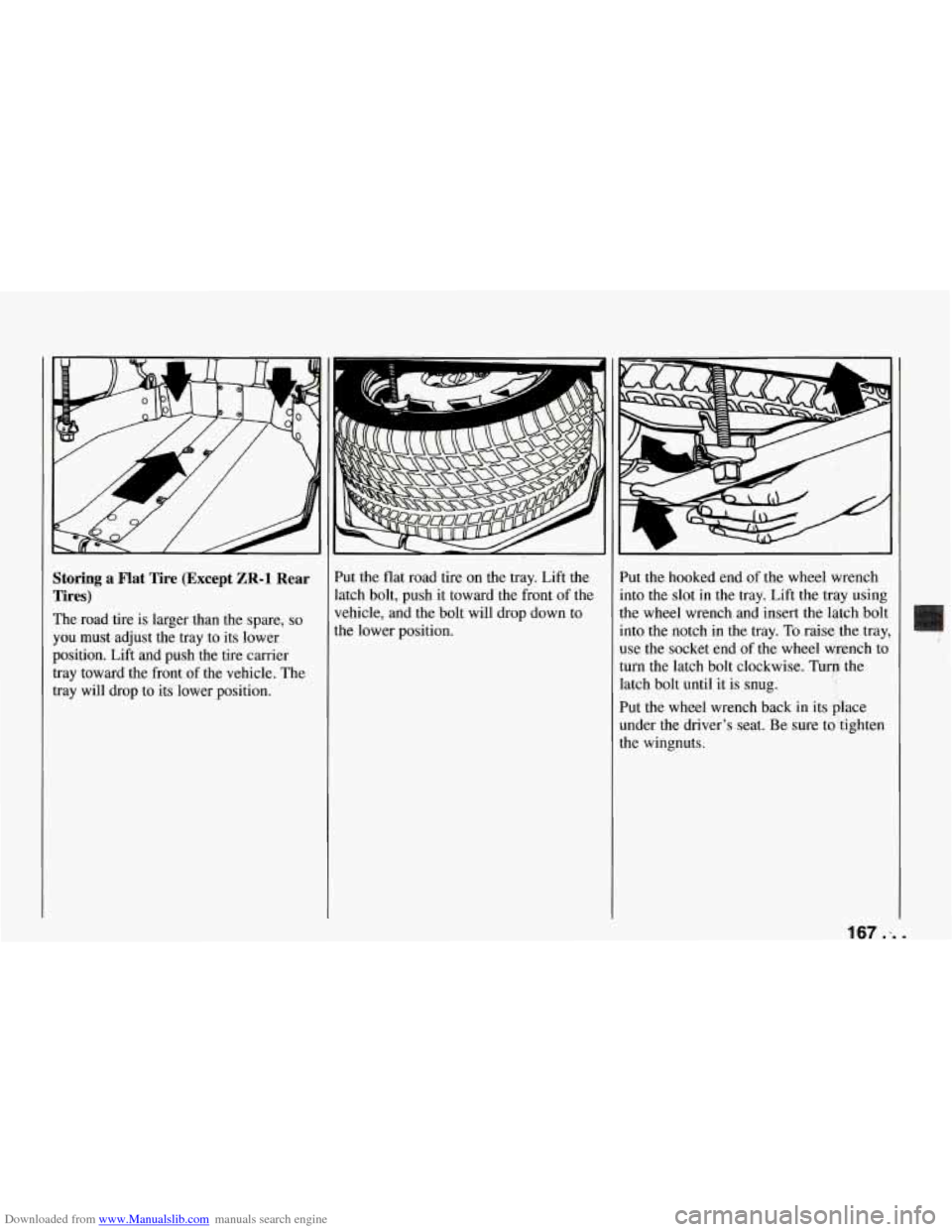

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine Storing  a  Flat  Tire  (Except ZR-1 Rear
Tires)
The  road  tire  is  larger  than the spare, so
you  must  adjust  the  tray  to its  lower

Page 169 of 274

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine Problems on the Road

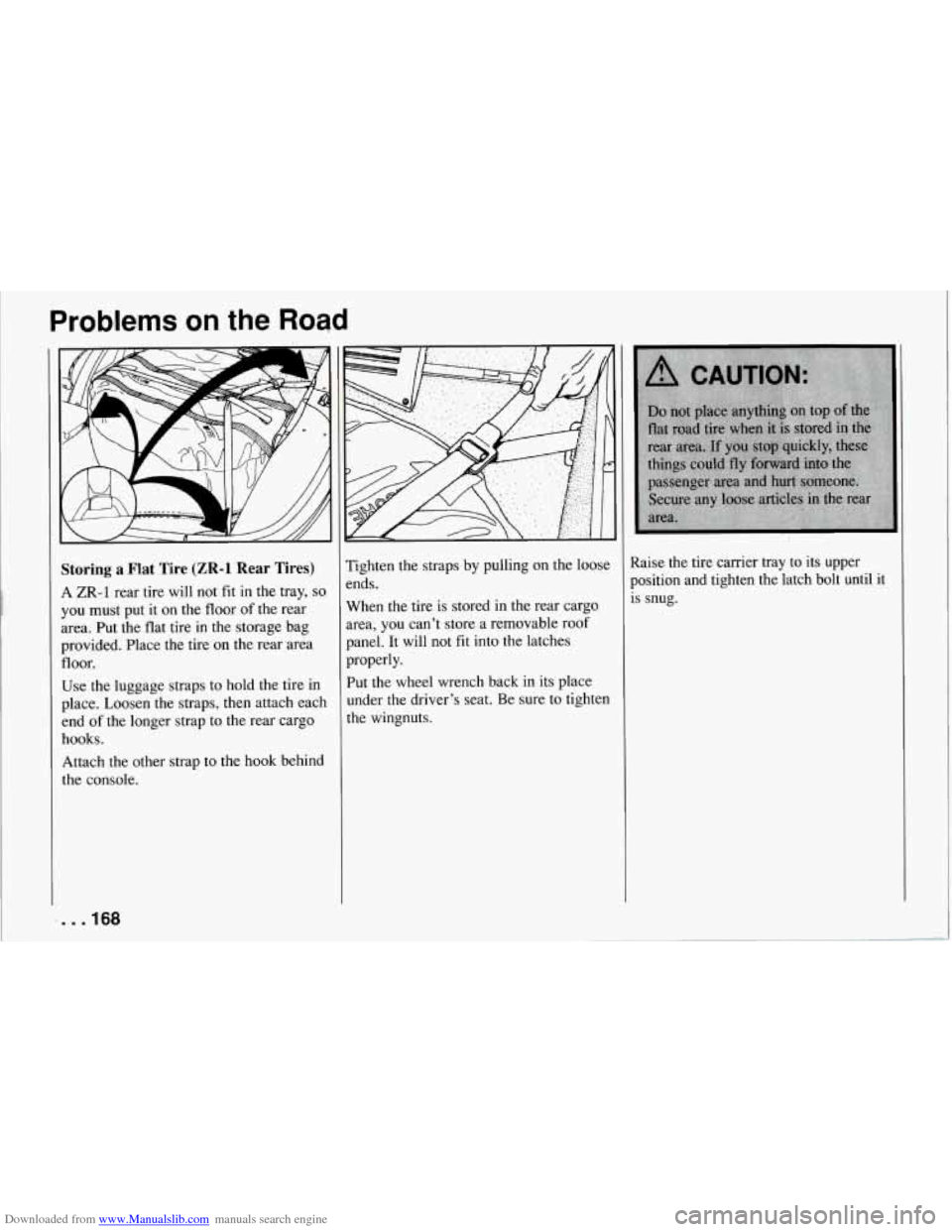

Storing a Flat  Tire  (ZR-1  Rear  Tires)
A ZR-1 rear  tire will  not  fit in the  tray, so
you  must  put  it on the f

Page 170 of 274

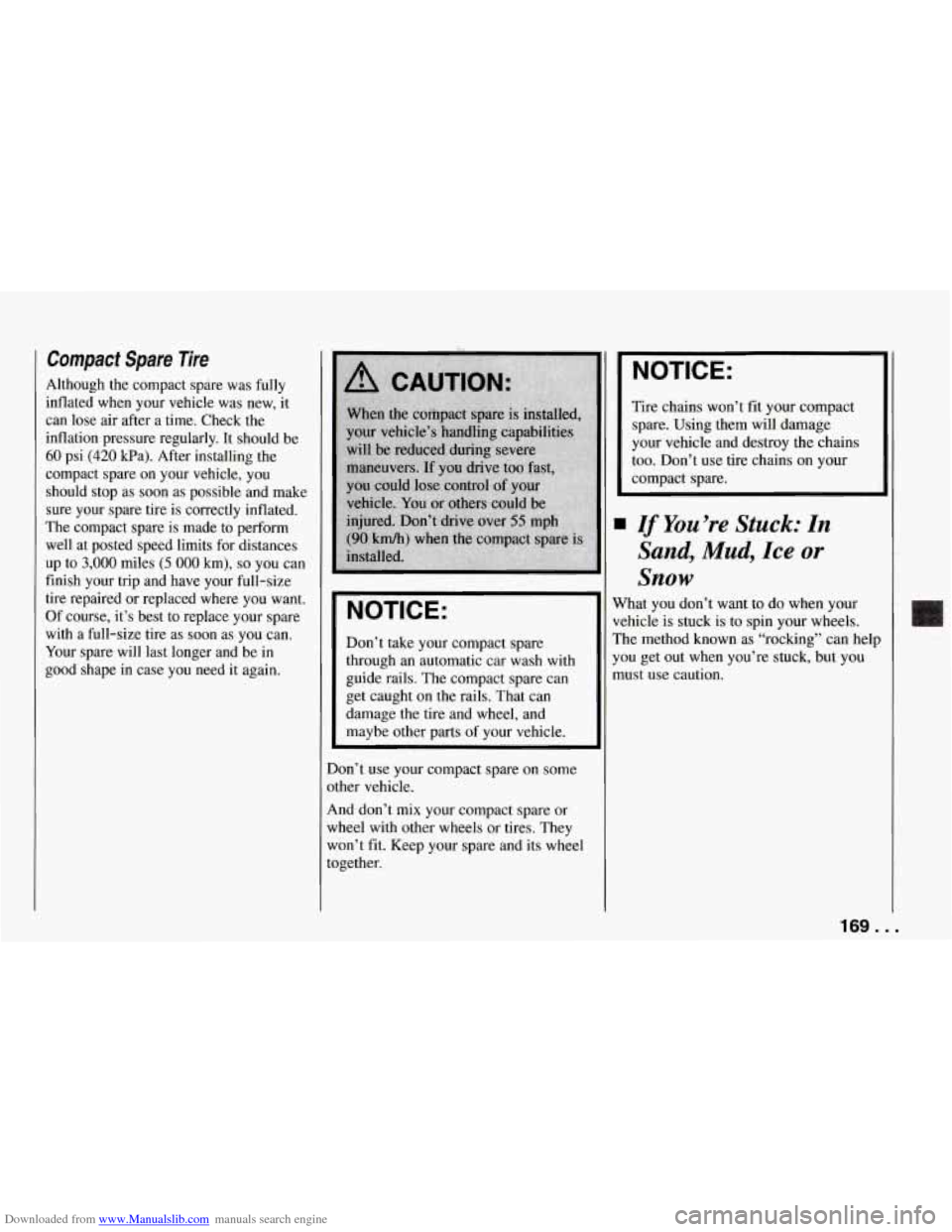

CHEVROLET CORVETTE 1994 4.G Owners Manual Downloaded from www.Manualslib.com manuals search engine Compact  Spare Tire
Although  the  compact  spare  was fully
inflated  when your  vehicle  was  new, it
can  lose  air after  a  time.  Chec
