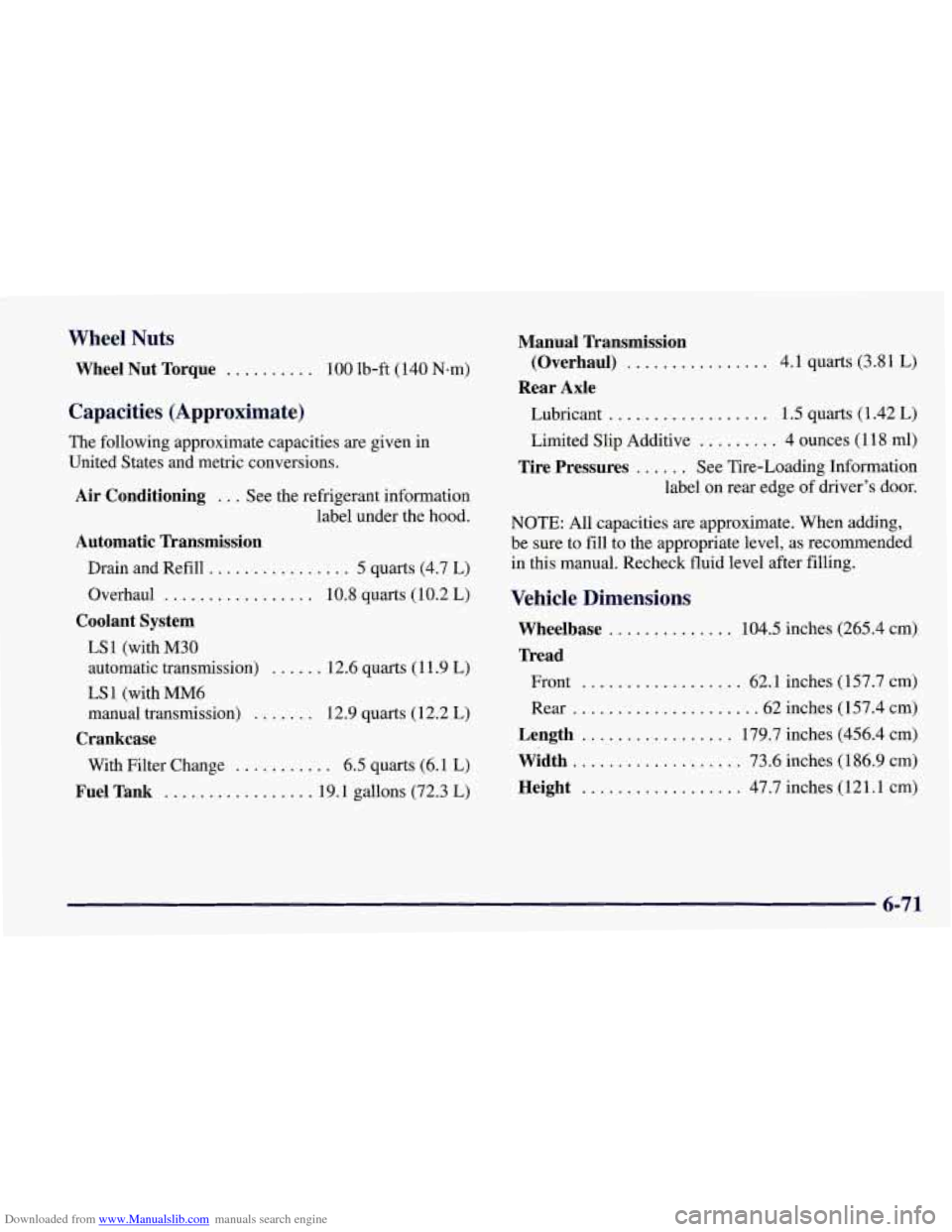

Downloaded from www.Manualslib.com manuals search engine Wheel Nuts
Wheel Nut Torque .......... 100 lb-ft (140 N-m)
Capacities (Approximate)
The following approximate capacities are given in
United States and metric conversions.
Air Conditioning ... See the refrigerant information
label under the hood.
Automatic Transmission
Drain and Refill ................ 5 quarts (4.7 L)
Overhaul
................. 10.8 quarts (10.2 L)
Coolant System
LS 1 (with M30
automatic transmission)
...... 12.6 quarts (1 1.9 L)
LS 1 (with "6
manual transmission)
....... 12.9 quarts ( 12.2 L)
Crankcase
With Filter Change ........... 6.5 quarts (6.1 L)
Fuel Tank ................. 19.1 gallons (72.3 L)
Manual Transmission
Rear Axle (Overhaul)
................ 4.1
quarts (3.8 1 L)
Lubricant
.................. 1.5 quarts (1 -42 L)
Limited Slip Additive ......... 4 ounces (1 18 ml)
Tire Pressures ...... See Tire-Loading Information
label on rear edge of driver's door.
NOTE: All capacities are approximate. When adding,
be sure to fill to the appropriate level, as recommended
in this manual. Recheck fluid level after filling.
Vehicle Dimensions
Wheelbase .............. 104.5 inches (265.4 cm)
Tread
Front .................. 62.1 inches (157.7 cm)
Rear
.................... .62 inches (157.4 cm)
Length ................. 179.7 inches (456.4 cm)
Width ................... 73.6 inches (1 86.9 cm)
Height .................. 47.7 inches (1 21.1 cm)
6-71

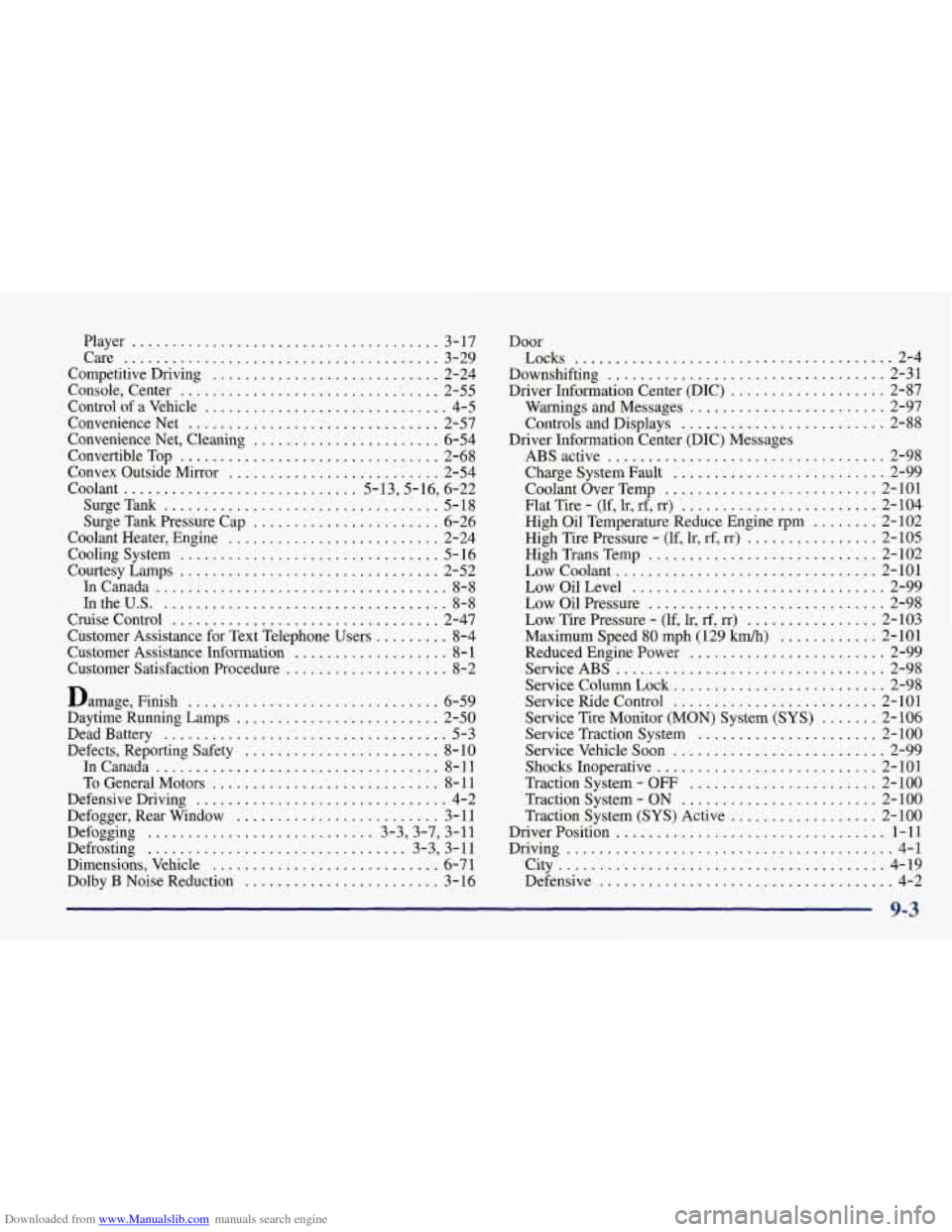

Downloaded from www.Manualslib.com manuals search engine Player ...................................... 3-17
Care
....................................... 3-29
Competitive Driving
............................ 2-24
Console. Center
........................... .. .... 2-55
Control of a Vehicle
.............................. 4-5
Convenience Net
............................... 2-57
Convenience Net. Cleaning
....................... 6-54
Convertible Top
................................ 2-68
Convex Outside Mirror
.......................... 2-54
Coolant
............................. 5.13.5.16. 6.22
SurgeTank
.................................. 5-18
Surge Tank Pressure Cap
....................... 6-26
Coolant Heater. Engine
.......................... 2-24
CoolingSystem
................................ 5-16
Courtesy Lamps
................................ 2-52
InCanada
.................................... 8-8
1ntheU.S. ................................... 8-8
Cruise Control ................................. 2-47
Customer Assistance for Text Telephone Users
......... 8-4
Customer Assistance Infomation
................... 8- 1
Customer Satisfaction Procedure .................... 8-2
Damage. Finish
............................... 6-59
Daytime Running Lamps
......................... 2-50
Dead Battery
................................... 5-3
Defects. Reporting Safety
........................ 8- 10
InCanada
................................... 8-11
To General Motors
............................ 8- 11
Defensive Driving
............................... 4-2
Defogger. Rear Window
......................... 3- 11
Defogging ............................ 3-3.3-7. 3-11
Defrosting ................................ 3-3. 3-11
Dimensions. Vehicle
............................ 6-7 1
Dolby B Noise Reduction ........................ 3-16 Door
Locks
....................................... 2-4
Downshifting
.................................. 2-31
Driver Information Center (DIC)
................... 2-87
Warnings and Messages
........................ 2-97
Controls and Displays
......................... 2-88
ABS active
.................................. 2-98
Charge System Fault
.......................... 2-99
Coolant Over Temp
.......................... 2- 101
Flat Tire
. (lf. lr. rf. rr) ........................ 2-104
High Oil Temperature Reduce Engine rpm
........ 2- 102
High Tire Pressure
. (If. lr. rf. rr) ................ 2-105
High Trans Temp
............................ 2- 102
Low Coolant
................................ 2- 101
LowOilLevel ............................... 2-99
Low
Oil Pressure ............................. 2-98
Low Tire Pressure
. (If. lr. rf. rr) ................ 2-103
Maximum Speed
80 mph (129 Wh) ............ 2-101
Reduced Engine Power
........................ 2-99
ServiceABS
................................. 2-98
Service Column Lock
.......................... 2-98
Service Ride Control
......................... 2- 101
Service Tire Monitor (MON) System (SYS) ....... 2-106
Service Traction System
...................... 2-100
Service Vehicle Soon
.......................... 2-99
Shocks Inoperative
........................... 2- 10 1
Traction System
- OFF ....................... 2-100
Traction System
- ON ........................ 2-100
Traction System
(SYS) Active .................. 2-100
Driver Position
................................. 1-11
Driving
........................................ 4-1
City
........................................ 4-19
Defensive
.................................... 4-2
Driver Information Center
(DIC) Messages
9-3

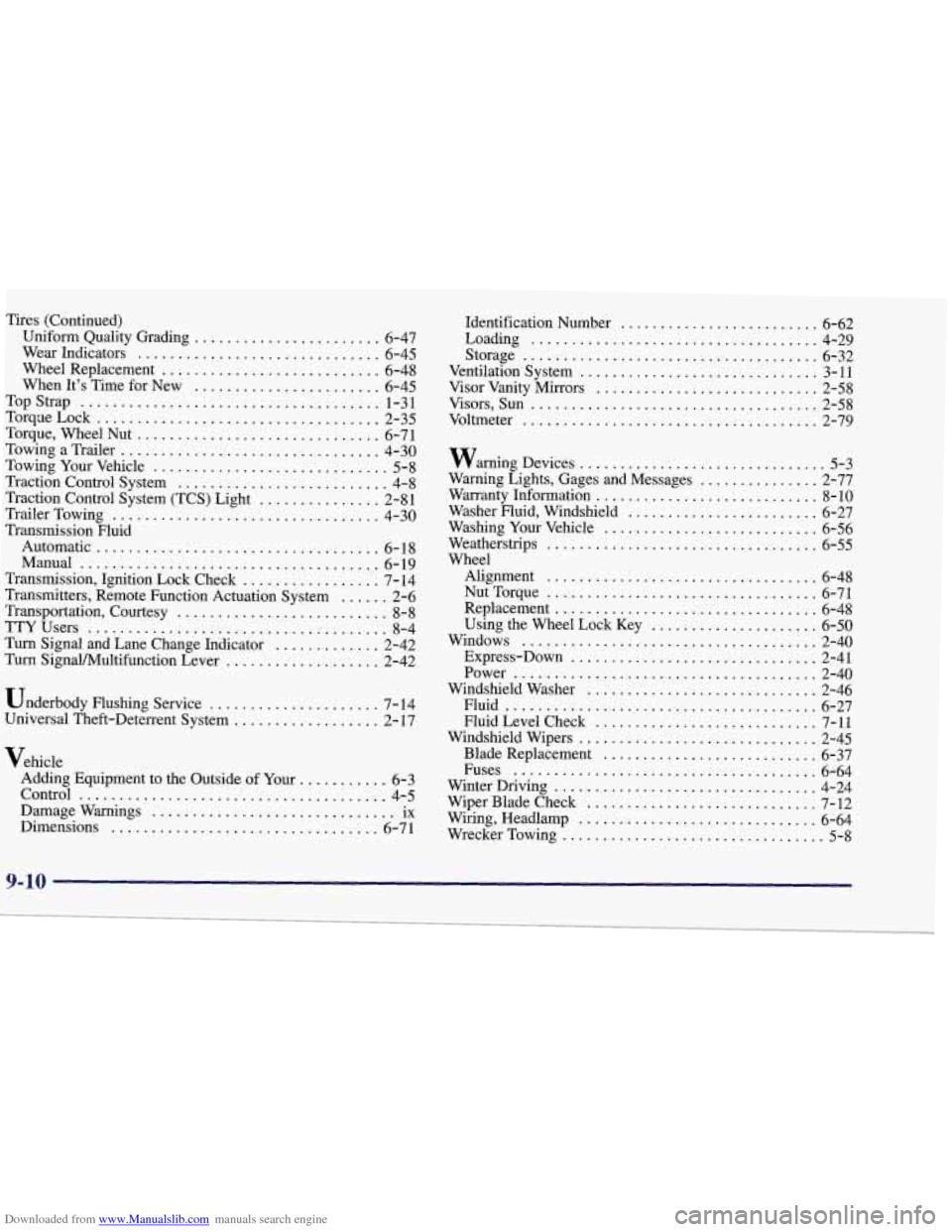

Downloaded from www.Manualslib.com manuals search engine Tires (Continued) Uniform Quality Grading ....................... 6-47
Wear Indicators
.............................. 6-45
Wheel Replacement
........................... 6-48
When It’s Time for New
....................... 6-45
TorqueLock
................................... 2-35
Torque, Wheel Nut .............................. 6-71
Towing a Trailer
................................ 4-30
Towing
Your Vehicle ............................. 5-8
Traction Control System
.......................... 4-8
Traction Control System (TCS) Light
............... 2-81
..................................... Top Strap 1-31
TrailerTowing
................................. 4-30
Transmission Fluid
Automatic 6- 18
...................................
Manual ..................................... 6-19
Transmission, Ignition Lock Check ................. 7-14
Transmitters, Remote Function Actuation System
...... 2-6
Transportation, Courtesy
.......................... 8-8
Turn Signal and Lane Change Indicator
............. 2-42
Turn Signal/Multifunction Lever
................... 2-42
TTYUsers
...................................... 8-4
Underbody Flushing Service
..................... 7-14
Universal Theft-Deterrent System
.................. 2- 17
Vehicle Adding Equipment to the Outside of
Your ........... 6-3
Control
...................................... 4-5
Damage Warnings .............................. ix
Dimensions ................................. 6-71 Identification Number
......................... 6-62
Ventilation System
.............................. 3-11
Visor Vanity Mirrors ............................ 2-58
Loading
.................................... 4-29
Storage
..................................... 6-32
Visors, Sun
.................................... 2-58
Voltmeter
..................................... 2-79
warning Devices
............................... 5-3
Warning Lights. Gages and Messages ............... 2-77
Warranty Information
............................ 8-10
Washer Fluid. Windshield
........................ 6-27
Washing Your Vehicle
........................... 6-56
Weatherstrips
.................................. 6-55
Alignment
.................................. 6-48
NutTorque
.................................. 6-71
Wheel
Replacement ................................. 6-48
Using the Wheel Lock Key
..................... 6-50
Express-Down
............................... 2-41
Power
...................................... 2-40
Windshield Washer ............................. 2-46
Fluid Level Check
............................ 7-11
Windshield Wipers
.............................. 2-45
Blade Replacement
........................... 6-37
Winter Driving
................................. 4-24
Wrecker Towing
................................. 5-8
Windows
..................................... 2-40
Fluid
....................................... 6-27
Fuses
...................................... 6-64
WiperBladeCheck
............................. 7-12
Wiring, Headlamp
.............................. 6-64
9-10
.
