CHEVROLET CORVETTE 2008 6.G Owners Manual

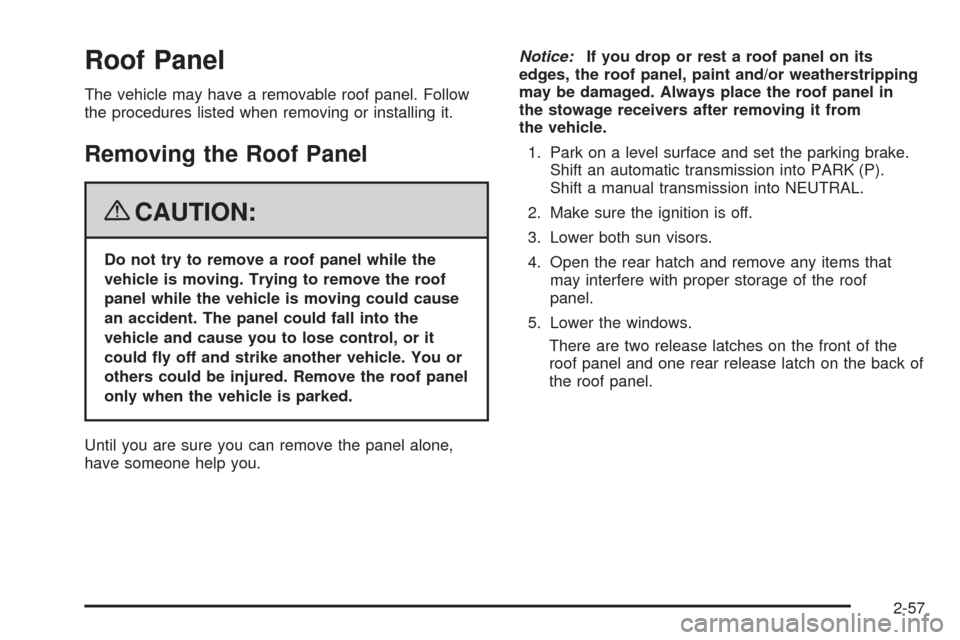

Roof Panel
The vehicle may have a removable roof panel. Follow
the procedures listed when removing or installing it.
Removing the Roof Panel
{CAUTION:
Do not try to remove a roof panel while the
vehicle is moving. Trying to remove the roof
panel while the vehicle is moving could cause
an accident. The panel could fall into the
vehicle and cause you to lose control, or it
could y off and strike another vehicle. You or
others could be injured. Remove the roof panel
only when the vehicle is parked.
Until you are sure you can remove the panel alone,
have someone help you.Notice:If you drop or rest a roof panel on its
edges, the roof panel, paint and/or weatherstripping
may be damaged. Always place the roof panel in
the stowage receivers after removing it from
the vehicle.
1. Park on a level surface and set the parking brake.
Shift an automatic transmission into PARK (P).
Shift a manual transmission into NEUTRAL.
2. Make sure the ignition is off.
3. Lower both sun visors.
4. Open the rear hatch and remove any items that
may interfere with proper storage of the roof
panel.
5. Lower the windows.
There are two release latches on the front of the
roof panel and one rear release latch on the back of
the roof panel.
2-57

6. To unlock the release latches on the front of the
roof panel, grasp each handle with your ngers
and pull it outward.The driver’s side handle moves toward the driver’s
door. The passenger’s side handle moves toward
the passenger’s door.
2-58

7. To unlock the rear of
the roof panel’s rear
release latch, press the
back of the release
handle (B). Then press
the button on the
front of the release
handle, (A) with
your thumb.
Pull down the latch lever with your ngers.
8. Stand on one side of the vehicle, and if necessary,
have someone stand on the other side. Together,
carefully lift the front edge of the roof panel up
and forward.
9. When the roof panel is loosened from the vehicle,
one person should grasp the roof panel as close to
the center as possible and lift it away from the
vehicle.Storing the Roof Panel
{CAUTION:
If a roof panel is not stored properly, it could
be thrown about the vehicle in a crash or
sudden maneuver. People in the vehicle could
be injured. Whenever you store a roof panel in
the vehicle, always be sure that it is stored
securely in the proper location.
Notice:If you drop or rest a roof panel on its
edges, the roof panel, paint and/or weatherstripping
may be damaged. Always place the roof panel in
the stowage receivers after removing it from
the vehicle.
1. Turn the roof panel so that the front edge of the
panel is facing the storage area.
2-59

2. Insert the roof panel so
that the outside front
edges line up between
the receiver covers.
Push forward on
the roof panel until
it stops.
3. Gently place the roof
panel down so that the
back pins on the
roof panel drop into the
receivers in the back
of the storage area.
Press down rmly to seat the pins in the receivers.Installing the Roof Panel
{CAUTION:
An improperly attached roof panel may fall into
or y off the vehicle. You or others could be
injured. After installing the roof panel, always
check that it is rmly attached by pushing up
on the underside of the panel. Check now
and then to be sure the roof panel is rmly in
place.
Notice:If you drop or rest a roof panel on its
edges, the roof panel, paint and/or weatherstripping
may be damaged. Always place the roof panel in
the stowage receivers after removing it from
the vehicle.
2-60

In most cases, it makes it easier if two people re-install
the roof panel.
1. Park on a level surface and set the parking brake.
Shift an automatic transmission into PARK (P).
Shift a manual transmission into NEUTRAL.
2. Check that the front release latches and the rear
release latch on the vehicle’s roof opening are in
their opened positions before attempting to
install the roof panel.
3. If the roof panel is stored in the rear storage area of
the vehicle, grasp the rear edge of the roof panel
with both hands and gently lift it up and remove
it from the storage area.
4. Carefully place the roof panel over the top of the
vehicle.
5. Position the rear edge of the roof panel to the
weatherstrip on the back of the roof opening.
Then align and t the pins at the rear of the roof
panel inside the openings in the rear overhead
weatherstrip. Gently lower the front edge of the
roof panel to the front of the roof opening.6. Turn the front release
handles inward so that
they latch to the
closed position.
7. Push up on the handle of the rear roof release
handle to latch its hook in the closed position.
8. Push and pull the roof panel up and down and
side-to-side to ensure the roof panel is securely
installed.
2-61

Convertible Top
Convertible Top (Manual)
For care and cleaning of the convertible top, see
Convertible Top on page 5-94under “Service and
Appearance Care”. High pressure car washes may
cause water to enter the vehicle.
If the vehicle has this feature, the following
procedures explain the proper operation of the
manual convertible top.
The parts of the manual convertible top that are used
when lowering and raising it are:
A. Front Edge of the Convertible Top
B. Rear Edge of the Convertible Top
C. Tonneau Cover
Notice:Leaving the convertible top down and
exposing the interior of your vehicle to outdoor
conditions may cause damage. Always close
the convertible top if leaving your vehicle outdoors.
2-62

Notice:Lowering the convertible top when there
are objects in the storage area could damage
it or break the glass rear window. Always verify that
no objects are in the storage area before lowering
the convertible top.
Notice:Lowering the top if it is damp, wet, or dirty
can cause stains, mildew, and damage to the
inside of your vehicle. Dry off the top before
lowering it.
Notice:If you lower the top on your vehicle in cold
weather (0°F/-18°C or lower), you may damage
top components. Do not lower the top in cold
weather.
Notice:If you raise or lower the convertible top
while the vehicle is in motion, you could damage the
top or the top mechanism. The repairs would not
be covered by your warranty. Always put an
automatic transmission in PARK (P) or a manual
transmission in NEUTRAL before raising or lowering
the convertible top.Lowering the Manual Convertible Top
1. Park on a level surface. Shift an automatic
transmission into PARK (P) and set the parking
brake. Shift a manual transmission into NEUTRAL
and set the parking brake.
2. Make sure the ignition is off.
3. Make sure the trunk is closed.
4. The convertible top front latch, located above the
inside rearview mirror, must be unlocked. Pull the
convertible top front latch down and turn it clockwise
to unlock it.
2-63

5. Lift upward on the front edge (A) of the convertible
top off of the windshield frame. Then lift upward on
the rear edge (B) of the convertible top so it is
vertical to the tonneau cover (C). The front edge (A)
and rear edge (B) should be straight up.6. Tilt the driver seatback forward and press the
tonneau cover release button located on the
underside of the tonneau cover (C) behind the
driver seat. Then raise the tonneau cover (C).
If the tonneau cover does not release and three
chimes are heard, check to make sure the trunk lid
is closed. Also, the cover will not release if the
vehicle alarm is armed.
After pressing the release button, the driver and
passenger door glass should retract to the full-down
position.
If the vehicle has lost battery power, the tonneau
cover (C) can still be opened using the manual
release cable.
2-64

The tonneau cover emergency manual release
cable is located underneath the carpeting behind the
passenger’s seat head restraint, on the underside
forward edge of the tonneau cover. To access
the cable, lift and pull back the carpeting. Also, see
Hatch on page 2-13for information on the
emergency trunk release handle.
Notice:If you lower the convertible top into the
storage compartment and the rear edge of the top is
not in the full-down position, you could damage
the top. Always verify that the rear edge of the
convertible top is in the full-down position before
lowering the top into the storage compartment.
7. Pull the cable to release the tonneau cover.8. Push forward on the front edge (A) of the
convertible top to allow the rear edge (B) of the
convertible top to be moved to its full-down position.
2-65

9. Then move the top rearward to its fully-stored
position.
10. After the top is stored, apply one even push on the
center of the front edge (A) of the convertible top to
assure that the top is fully retracted.
11. Close the tonneau cover (B) by pressing down on it
with a swift, rm motion.
Raising the Manual Convertible Top
1. Park on a level surface. Shift an automatic
transmission into PARK (P) and set the parking
brake. Shift a manual transmission into NEUTRAL
and set the parking brake.
2. Lower both windows.
3. Make sure the ignition is off.
4. Tilt the driver’s seat forward and press the tonneau
cover release button, or use the manual release
cable if battery power has been lost. See Step
6 under “Lowering the Manual Convertible Top”
earlier in this section.
After pressing the release button, the driver’s and
passenger’s door glass should retract to the
full-down position, if they have not already been
lowered.
5. Lift the tonneau cover.
2-66
