Page 291 of 432

CHEVROLET CORVETTE 2008 6.G Owners Manual Checking Engine Oil (Z06 Only)
A. Engine Oil Dipstick
B. Engine Oil Fill Cap
It is a good idea to check the engine oil level every time
you get fuel. In order to get an accurate reading, the
oil must

Page 292 of 432

CHEVROLET CORVETTE 2008 6.G Owners Manual 3. Wait at least �ve minutes (but not more than
20 minutes) to allow oil to drain and settle in
the engine.
4. Remove the dipstick from the external engine oil
tank and clean it with a lint-free paper

Page 293 of 432

CHEVROLET CORVETTE 2008 6.G Owners Manual Changing Engine Oil and Filter
(Z06 Only)
Z06 models have a racetrack-ready dry sump engine
lubrication system. This high-performance system
operates differently than a standard engine lubrication
sys

Page 294 of 432

CHEVROLET CORVETTE 2008 6.G Owners Manual What Kind of Engine Oil to Use
Look for three things:
GM4718M
Your vehicle’s engine requires a special oil meeting
GM Standard GM4718M. Oils meeting this standard
may be identi�ed as synthetic. Howe

Page 295 of 432

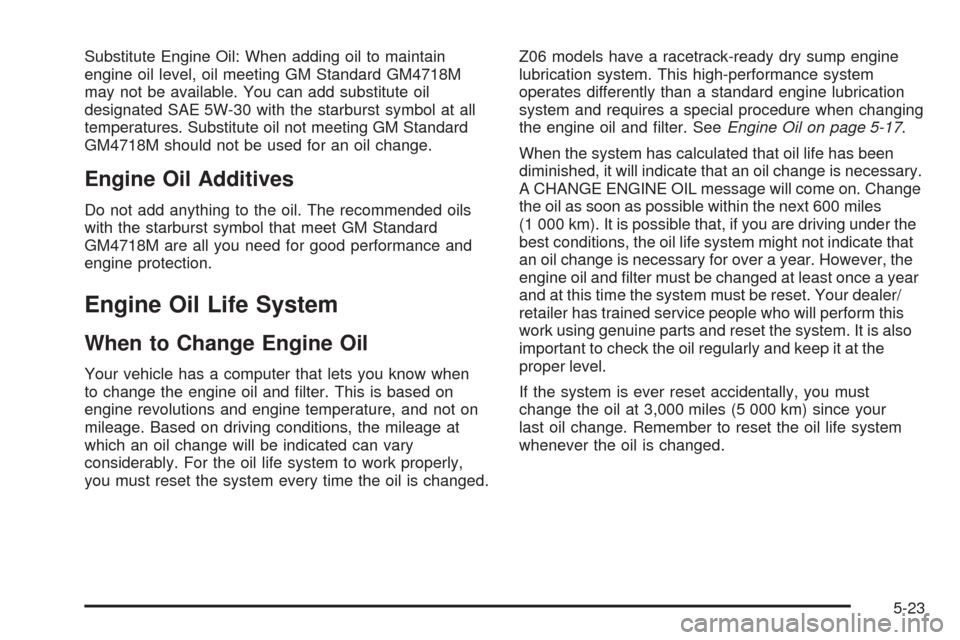

CHEVROLET CORVETTE 2008 6.G Owners Manual Substitute Engine Oil: When adding oil to maintain
engine oil level, oil meeting GM Standard GM4718M
may not be available. You can add substitute oil
designated SAE 5W-30 with the starburst symbol at

Page 296 of 432

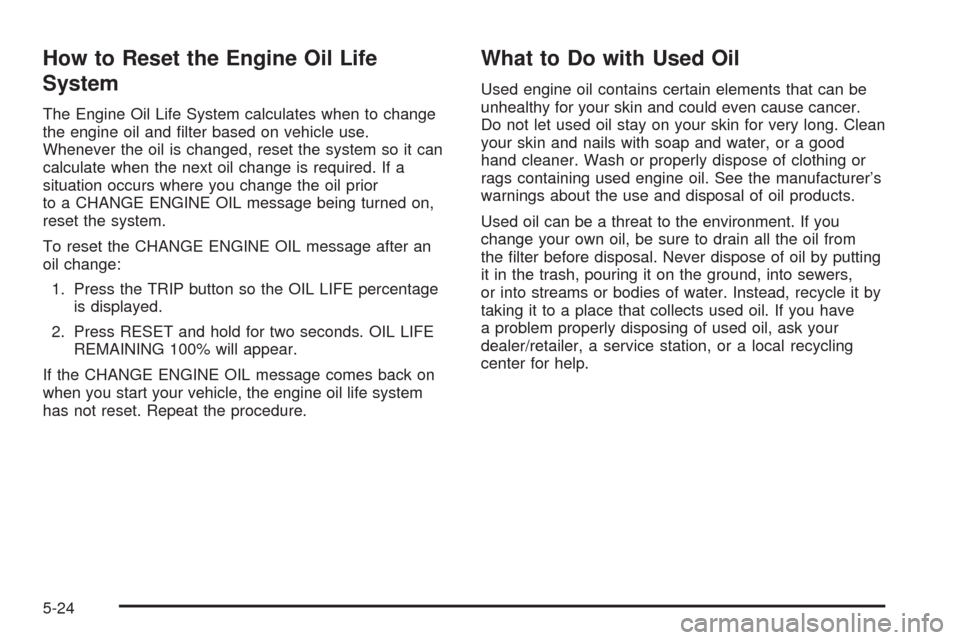

CHEVROLET CORVETTE 2008 6.G Owners Manual How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to change
the engine oil and �lter based on vehicle use.
Whenever the oil is changed, reset the system so it can
calc

Page 297 of 432

CHEVROLET CORVETTE 2008 6.G Owners Manual Engine Air Cleaner/Filter
SeeEngine Compartment Overview on page 5-14for
the location of the engine air cleaner/�lters.
Notice:If you spray water into the engine air
cleaner/�lter intake and water ent

Page 298 of 432

CHEVROLET CORVETTE 2008 6.G Owners Manual How to Inspect the Engine Air
Cleaner/Filters
To inspect the air cleaner/�lters, remove the �lters from
the vehicle and lightly shake the �lters to release
loose dust and dirt. If the �lters remain ca

Page 299 of 432

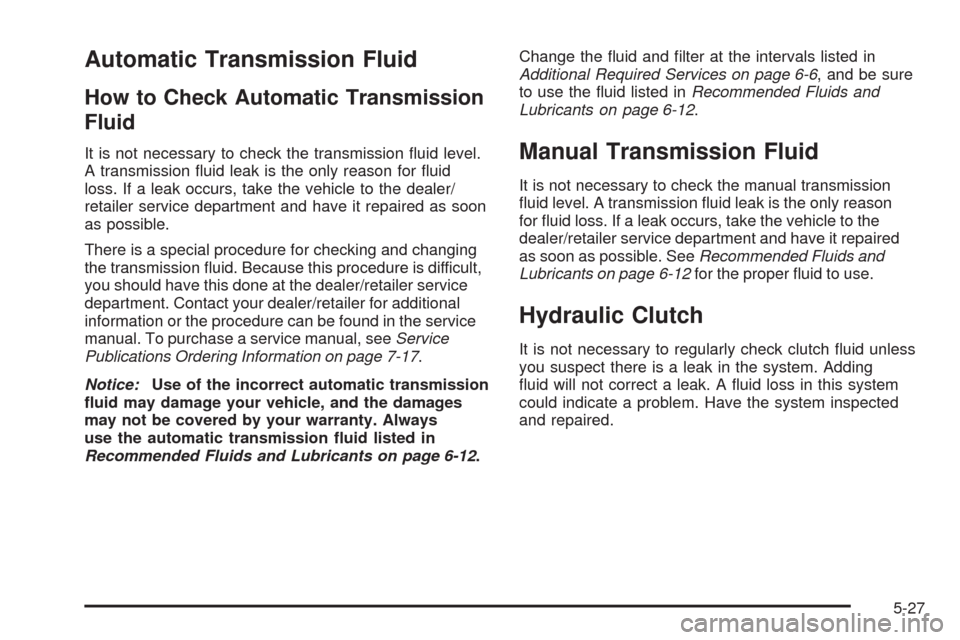

CHEVROLET CORVETTE 2008 6.G Owners Manual Automatic Transmission Fluid
How to Check Automatic Transmission
Fluid
It is not necessary to check the transmission �uid level.
A transmission �uid leak is the only reason for �uid
loss. If a leak oc

Page 300 of 432

CHEVROLET CORVETTE 2008 6.G Owners Manual When to Check and What to Use
The hydraulic clutch �uid
reservoir cap has this
symbol on it. SeeEngine
Compartment Overview
on page 5-14for reservoir
location.
Refer to the Maintenance Schedule for th
