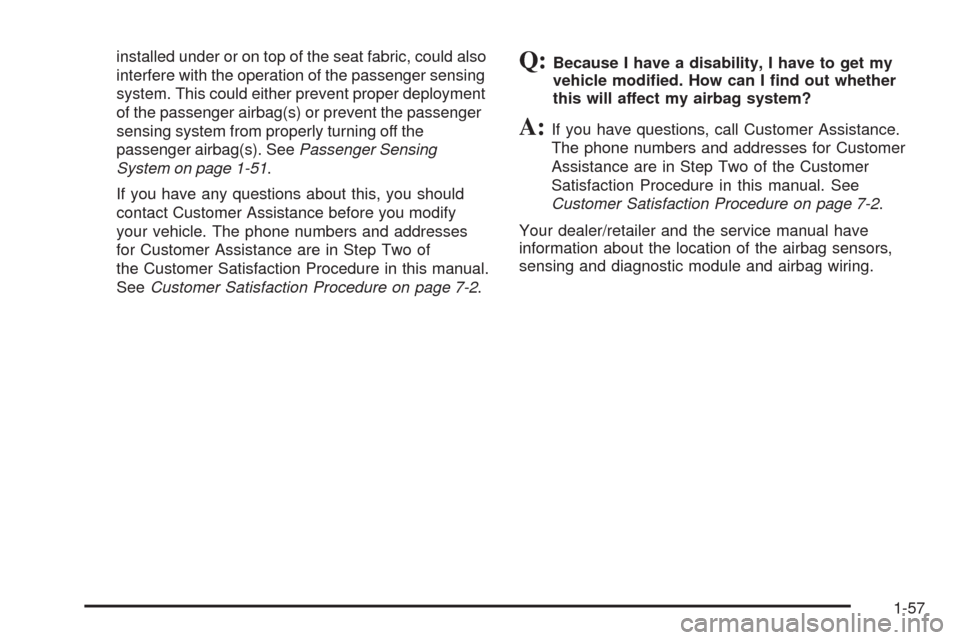

installed under or on top of the seat fabric, could also
interfere with the operation of the passenger sensing
system. This could either prevent proper deployment
of the passenger airbag(s) or prevent the passenger
sensing system from properly turning off the
passenger airbag(s). SeePassenger Sensing
System on page 1-51.
If you have any questions about this, you should
contact Customer Assistance before you modify
your vehicle. The phone numbers and addresses
for Customer Assistance are in Step Two of
the Customer Satisfaction Procedure in this manual.
SeeCustomer Satisfaction Procedure on page 7-2.Q:Because I have a disability, I have to get my
vehicle modied. How can I nd out whether
this will affect my airbag system?
A:If you have questions, call Customer Assistance.
The phone numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual. See
Customer Satisfaction Procedure on page 7-2.
Your dealer/retailer and the service manual have
information about the location of the airbag sensors,
sensing and diagnostic module and airbag wiring.
1-57

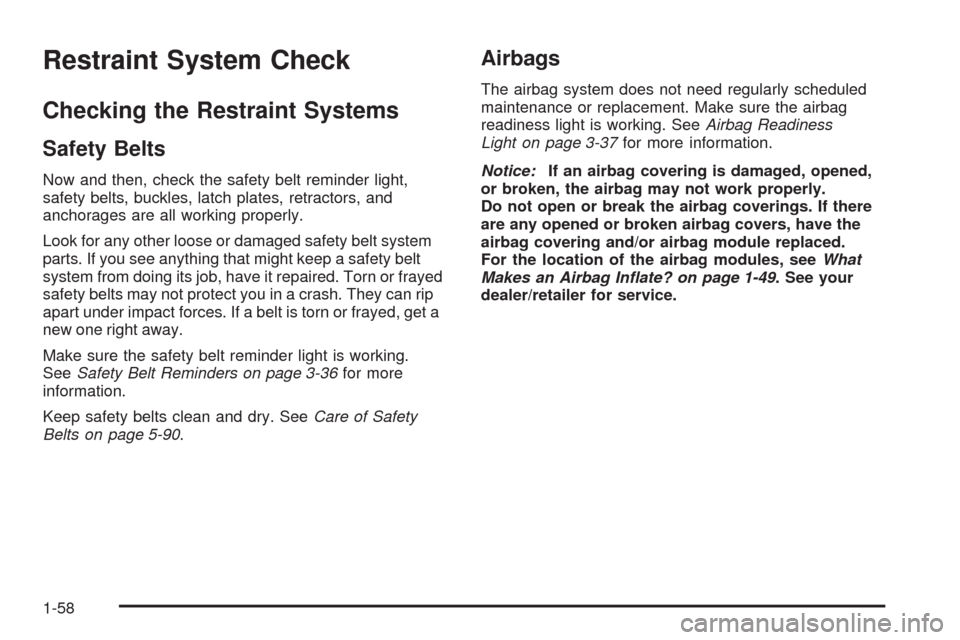

Restraint System Check
Checking the Restraint Systems
Safety Belts
Now and then, check the safety belt reminder light,
safety belts, buckles, latch plates, retractors, and
anchorages are all working properly.
Look for any other loose or damaged safety belt system
parts. If you see anything that might keep a safety belt
system from doing its job, have it repaired. Torn or frayed
safety belts may not protect you in a crash. They can rip
apart under impact forces. If a belt is torn or frayed, get a
new one right away.
Make sure the safety belt reminder light is working.
SeeSafety Belt Reminders on page 3-36for more
information.
Keep safety belts clean and dry. SeeCare of Safety
Belts on page 5-90.
Airbags
The airbag system does not need regularly scheduled
maintenance or replacement. Make sure the airbag
readiness light is working. SeeAirbag Readiness
Light on page 3-37for more information.
Notice:If an airbag covering is damaged, opened,
or broken, the airbag may not work properly.
Do not open or break the airbag coverings. If there
are any opened or broken airbag covers, have the
airbag covering and/or airbag module replaced.
For the location of the airbag modules, seeWhat
Makes an Airbag Inflate? on page 1-49. See your
dealer/retailer for service.
1-58

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in
your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or even death in a
crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new safety belts
or LATCH system (if equipped) parts?
After a very minor crash, nothing may be necessary.
But the safety belt assemblies that were used during any
crash may have been stressed or damaged. See your
dealer/retailer to have the safety belt assemblies
inspected or replaced.If the vehicle has the LATCH system and it was
being used during a crash, you may need new
LATCH system parts.
New parts and repairs may be necessary even if the
safety belt or LATCH system (if equipped), was
not being used at the time of the crash.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
Have the safety belt pretensioners checked if the
vehicle has been in a crash, if the airbag readiness light
stays on after the vehicle is started, or while you are
driving. SeeAirbag Readiness Light on page 3-37.
1-59

✍NOTES
1-60

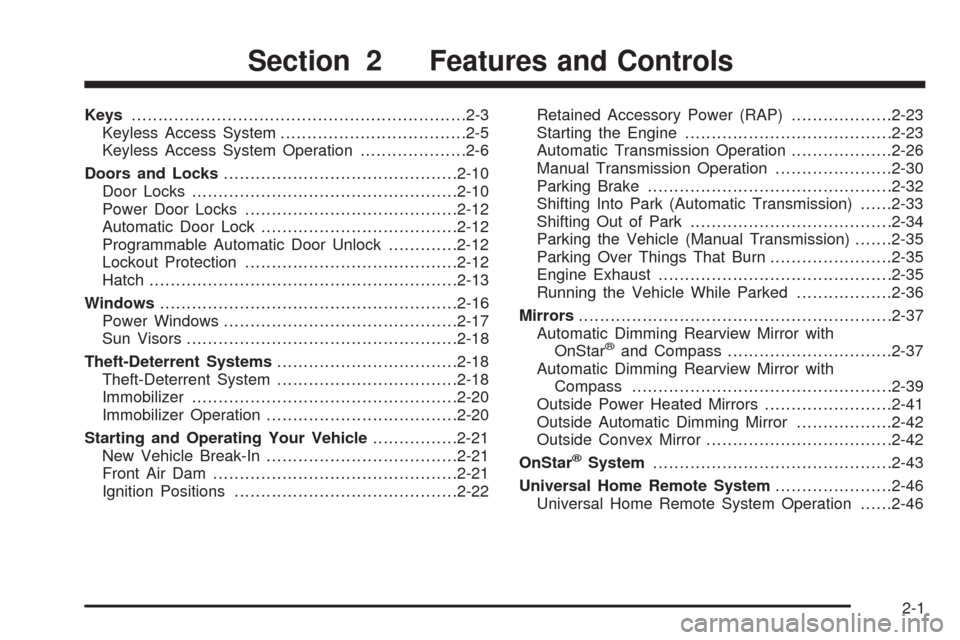

Keys...............................................................2-3
Keyless Access System...................................2-5
Keyless Access System Operation....................2-6
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-12
Automatic Door Lock.....................................2-12
Programmable Automatic Door Unlock.............2-12
Lockout Protection........................................2-12
Hatch..........................................................2-13
Windows........................................................2-16
Power Windows............................................2-17
Sun Visors...................................................2-18
Theft-Deterrent Systems..................................2-18
Theft-Deterrent System..................................2-18
Immobilizer..................................................2-20
Immobilizer Operation....................................2-20
Starting and Operating Your Vehicle................2-21
New Vehicle Break-In....................................2-21
Front Air Dam..............................................2-21
Ignition Positions..........................................2-22Retained Accessory Power (RAP)...................2-23
Starting the Engine.......................................2-23
Automatic Transmission Operation...................2-26
Manual Transmission Operation......................2-30
Parking Brake..............................................2-32
Shifting Into Park (Automatic Transmission)......2-33
Shifting Out of Park......................................2-34
Parking the Vehicle (Manual Transmission).......2-35
Parking Over Things That Burn.......................2-35
Engine Exhaust............................................2-35
Running the Vehicle While Parked..................2-36
Mirrors...........................................................2-37
Automatic Dimming Rearview Mirror with
OnStar
®and Compass...............................2-37
Automatic Dimming Rearview Mirror with
Compass.................................................2-39
Outside Power Heated Mirrors........................2-41
Outside Automatic Dimming Mirror..................2-42
Outside Convex Mirror...................................2-42
OnStar
®System.............................................2-43
Universal Home Remote System......................2-46
Universal Home Remote System Operation......2-46
Section 2 Features and Controls
2-1

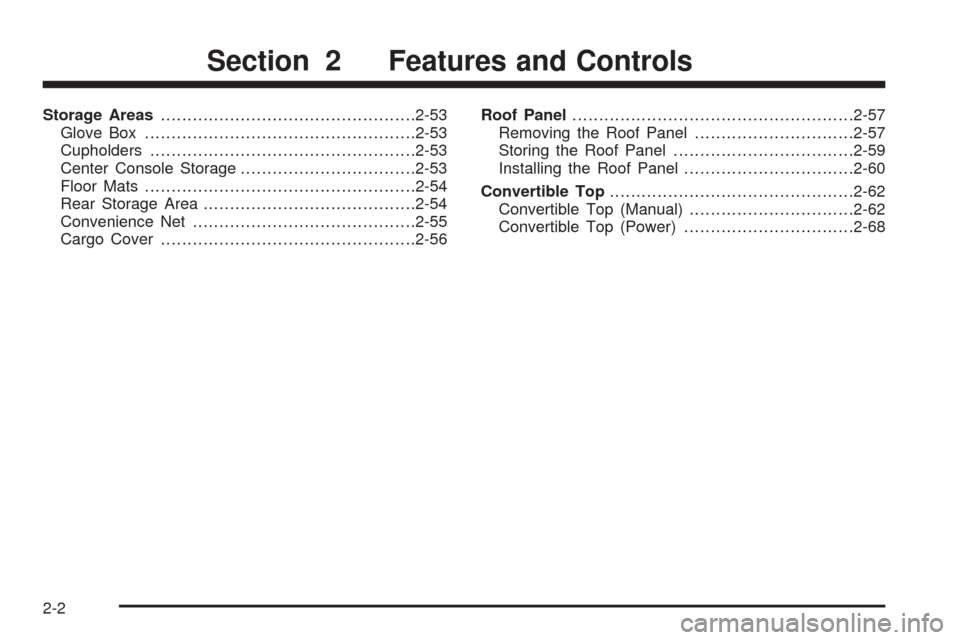

Storage Areas................................................2-53
Glove Box...................................................2-53
Cupholders..................................................2-53
Center Console Storage.................................2-53
Floor Mats...................................................2-54
Rear Storage Area........................................2-54
Convenience Net..........................................2-55
Cargo Cover................................................2-56Roof Panel.....................................................2-57
Removing the Roof Panel..............................2-57
Storing the Roof Panel..................................2-59
Installing the Roof Panel................................2-60
Convertible Top..............................................2-62
Convertible Top (Manual)...............................2-62
Convertible Top (Power)................................2-68
Section 2 Features and Controls
2-2

Keys
{CAUTION:
Leaving children in a vehicle with the keyless
access transmitter is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate the
power windows or other controls or even make
the vehicle move. The windows will function
with the keyless access transmitter in the
vehicle and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave the keyless access
transmitter in a vehicle with children.
2-3

The key, located inside the
keyless access transmitter,
can be used to lock and
unlock the glove box
and to open the
hatch/trunk lid if power to
the vehicle is lost. See
Hatch on page 2-13
for more information.
Press the button (A) near
the bottom of the keyless
access transmitter to
remove the key. Never pull
the key out without
pressing the button.This vehicle has a keyless access system with
pushbutton start. SeeIgnition Positions on page 2-22
for information on starting the vehicle.
Notice:If you ever lose your transmitter(s) and/or
key, it could be difficult to get into your vehicle.
You may even have to damage your vehicle to get
in. Be sure you have a spare transmitter and/or key.
If you are locked out of the vehicle, contact Roadside
Assistance. SeeRoadside Assistance Program on
page 7-8.
2-4

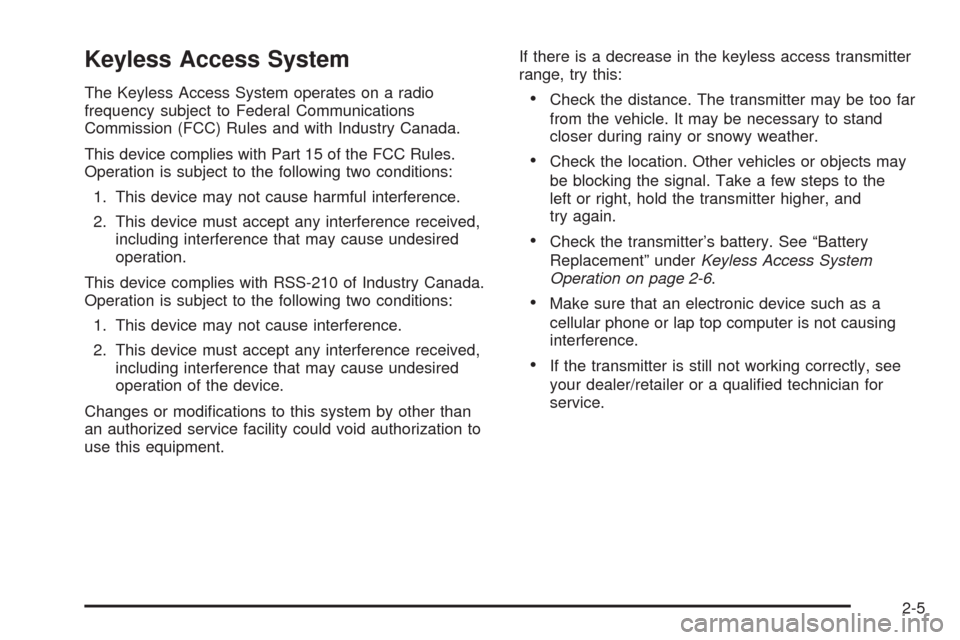

Keyless Access System
The Keyless Access System operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.If there is a decrease in the keyless access transmitter
range, try this:Check the distance. The transmitter may be too far
from the vehicle. It may be necessary to stand
closer during rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check the transmitter’s battery. See “Battery
Replacement” underKeyless Access System
Operation on page 2-6.
Make sure that an electronic device such as a
cellular phone or lap top computer is not causing
interference.
If the transmitter is still not working correctly, see
your dealer/retailer or a qualied technician for
service.
2-5

Keyless Access System Operation
The Keyless Access System transmitter functions
work up to 100 feet (30 m) away.
There are other conditions that can affect the
performance of the transmitter. SeeKeyless Access
System on page 2-5.
This vehicle comes with
two transmitters.
Q(Lock):Press to lock the doors. The light on the
door ashes once. If
Qis pressed two times, the
doors lock, the light ashes, and the horn sounds.
K(Unlock):Press to unlock the driver door. The light
on the door ashes two times. Press
Ktwo times
within ve seconds to unlock both doors. If it is dark
enough outside, the interior lamps come on.
Press
Kto recall the memory settings. SeeMemory
Seat, Mirrors and Steering Wheel on page 1-4for more
information.
}(Hatch/Trunk):Press and hold for about
one second to open the hatch/trunk lid while the engine
is off. If the engine is running, the shift lever must be
in PARK (P) for an automatic transmission or NEUTRAL
with the parking brake set for a manual transmission.
SeeParking Brake on page 2-32.
L(Panic):Press to sound the vehicle alarm. Press
any other button on the keyless access transmitter
to stop the vehicle alarm.
2-6
