156 Driving and Operating
5. Thread the lower lock nut (2)back on to the center support
tube and torque it against the
spring seat (1) to 25 Y
(18.4 lb ft).
Load Limit
Limit vehicle load to the driver only,
with no other cargo. Inflate the front
tires to 159 kPa (23 psi) and the rear
tires to 165 kPa (24 psi). Drive at a
maximum speed of 296 km/h
(184 mph).
Road Course target hot pressures of
220–240 kPa (32–35 psi). Value will
vary based on driving style, track,
temperature, and weather
conditions.
Wheel Alignment
Caution
Using these wheel alignment
settings may cause excessive tire
wear. Only use these wheel
alignment settings for racing or (Continued)
Caution (Continued)
competitive driving. Excessive tire
wear is not covered under the
vehicle warranty.
The racing and competitive driving
wheel alignment settings should be
set as described here.
To achieve the track alignment
specified settings: 1. The upper control arm to body washers on all four corners will
need to be moved from
between the body and the
control arm and relocated
between the head of the bolt
and the control arm.
2. Adjust the lower control arm cam bolt position to achieve
the following specifications.
Front (per corner)
. Caster: +8.0 degrees
. Camber: -3.0 degrees
. Toe (total): 0.1 degrees toe in Rear (per corner)
.
Caster: 0 degrees
. Camber: -2.5 degrees
. Toe (total): 0.1 degrees toe in
. Thrust Angle: 0 degrees
After track use, reinstall washers
between the body and the control
arms. Reset to factory alignment
settings.
General Information
If reduced performance is
experienced during track events or
competitive driving, turning off the
A/C will help to improve engine
performance.
Maintain a mixture of 40%
DEX-COOL coolant and 60% clean,
drinkable water to optimize engine
performance.
Driving on Wet Roads
Rain and wet roads can reduce
vehicle traction and affect your
ability to stop and accelerate.
Always drive slower in these types

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Vehicle Care 209
Vehicle Care
General Information
General Information . . . . . . . . . . 210
California Proposition65 Warning . . . . . . . . . . . . . . . . . 210
California Perchlorate Materials Requirements . . . . . . . . . . . . . . . 211
Accessories and Modifications . . . . . . . . . . . . . . . . 211
Lifting the Vehicle . . . . . . . . . . . . . 211
Vehicle Checks
Doing Your Own Service Work . . . . . . . . . . . . . . . 213
Underhood Compartment Overview . . . . . . . . . . . . . . . . . . . . 214
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 215
Engine Oil . . . . . . . . . . . . . . . . . . . . 218
Engine Oil Life System . . . . . . . 221
Dual Clutch Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 222
Dual Clutch Transmission Fluid Life System . . . . . . . . . . . . . . . . . 223
Engine Air Filter Life System . . . . . . . . . . . . . . . . . . . . . . 224
Engine Air Cleaner/Filter . . . . . . 224
Cooling System . . . . . . . . . . . . . . 226 Engine Overheating . . . . . . . . . . 230
Washer Fluid . . . . . . . . . . . . . . . . . 231
Brakes . . . . . . . . . . . . . . . . . . . . . . . 232
Brake Fluid . . . . . . . . . . . . . . . . . . . 233
Battery - North America . . . . . . 234
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . 235
Wiper Blade Replacement . . . . 236
Windshield Replacement . . . . . 236
Gas Strut(s) . . . . . . . . . . . . . . . . . . 237
Headlamp Aiming
Front Headlamp Aiming . . . . . . 238
Bulb Replacement
LED Lighting . . . . . . . . . . . . . . . . . 238
Electrical System
Electrical System Overload . . . 239
Fuses and Circuit Breakers . . . 239
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 239
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 242
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 245
All-Season Tires . . . . . . . . . . . . . . 246
Winter Tires . . . . . . . . . . . . . . . . . . 247
Run-Flat Tires . . . . . . . . . . . . . . . . 247
Low-Profile Tires . . . . . . . . . . . . . 248
Summer Tires . . . . . . . . . . . . . . . . 248 Tire Sidewall Labeling . . . . . . . . 249
Tire Designations . . . . . . . . . . . . . 250
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . 251
Tire Pressure . . . . . . . . . . . . . . . . . 253
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . . 254
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 255
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 256
Tire Inspection . . . . . . . . . . . . . . . . 259
Tire Rotation . . . . . . . . . . . . . . . . . 259
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 260
Buying New Tires . . . . . . . . . . . . . 261
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 262
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 263
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 264
Wheel Replacement . . . . . . . . . . 265
Tire Chains . . . . . . . . . . . . . . . . . . . 266
If a Tire Goes Flat . . . . . . . . . . . . 267Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 267

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Vehicle Care 259

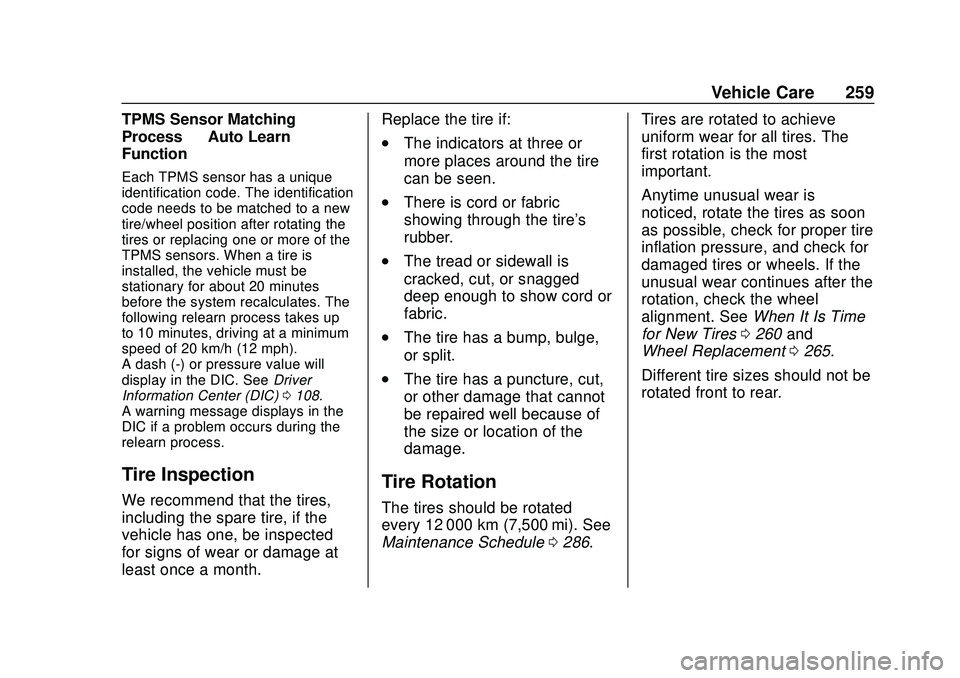

TPMS Sensor Matching
Process—Auto Learn
Function
Each TPMS sensor has a unique
identification code. The identification
code needs to be matched to a new
tire/wheel position after rotating the
tires or replacing one or more of the
TPMS sensors. When a tire is
installed, the vehicle must be
stationary for about 20 minutes
before the system recalculates. The
following relearn process takes up
to 10 minutes, driving at a minimum
speed of 20 km/h (12 mph).
A dash (-) or pressure value will
display in the DIC. See Driver
Information Center (DIC) 0108.
A warning message displays in the
DIC if a problem occurs during the
relearn process.
Tire Inspection
We recommend that the tires,
including the spare tire, if the
vehicle has one, be inspected
for signs of wear or damage at
least once a month. Replace the tire if:
.The indicators at three or
more places around the tire
can be seen.
.There is cord or fabric
showing through the tire's
rubber.
.The tread or sidewall is
cracked, cut, or snagged
deep enough to show cord or
fabric.
.The tire has a bump, bulge,
or split.
.The tire has a puncture, cut,
or other damage that cannot
be repaired well because of
the size or location of the
damage.
Tire Rotation
The tires should be rotated
every 12 000 km (7,500 mi). See
Maintenance Schedule
0286. Tires are rotated to achieve
uniform wear for all tires. The
first rotation is the most
important.
Anytime unusual wear is
noticed, rotate the tires as soon
as possible, check for proper tire
inflation pressure, and check for
damaged tires or wheels. If the
unusual wear continues after the
rotation, check the wheel
alignment. See
When It Is Time
for New Tires 0260 and
Wheel Replacement 0265.
Different tire sizes should not be
rotated front to rear.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
264 Vehicle Care

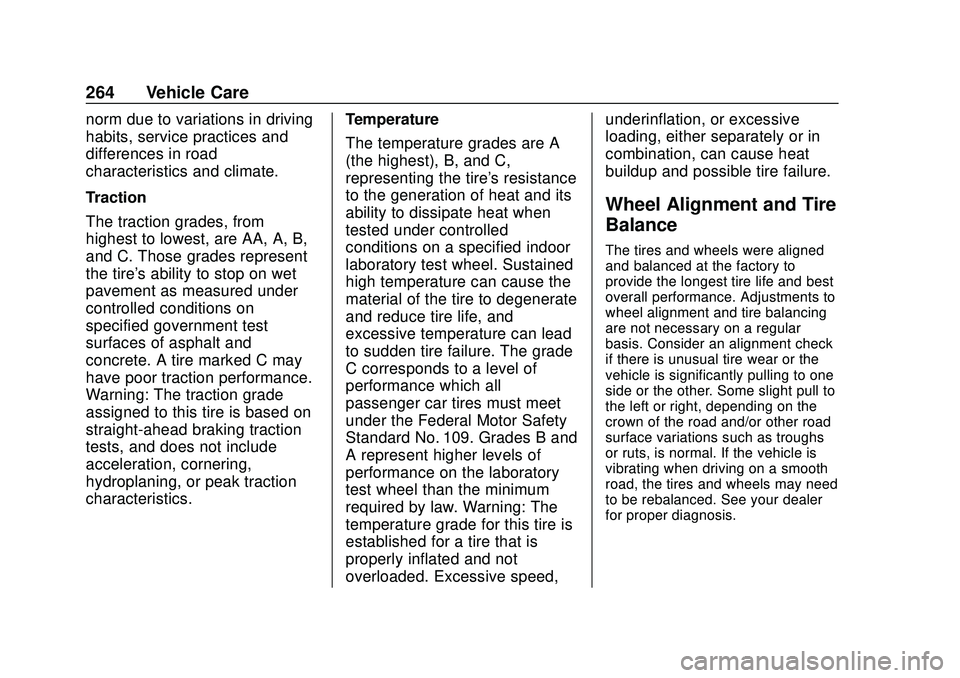

norm due to variations in driving
habits, service practices and
differences in road
characteristics and climate.
Traction
The traction grades, from
highest to lowest, are AA, A, B,
and C. Those grades represent
the tire's ability to stop on wet
pavement as measured under
controlled conditions on
specified government test
surfaces of asphalt and
concrete. A tire marked C may
have poor traction performance.
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction
tests, and does not include
acceleration, cornering,
hydroplaning, or peak traction
characteristics.Temperature
The temperature grades are A
(the highest), B, and C,
representing the tire's resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained
high temperature can cause the
material of the tire to degenerate
and reduce tire life, and
excessive temperature can lead
to sudden tire failure. The grade
C corresponds to a level of
performance which all
passenger car tires must meet
under the Federal Motor Safety
Standard No. 109. Grades B and
A represent higher levels of
performance on the laboratory
test wheel than the minimum
required by law. Warning: The
temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned
and balanced at the factory to
provide the longest tire life and best
overall performance. Adjustments to
wheel alignment and tire balancing
are not necessary on a regular
basis. Consider an alignment check
if there is unusual tire wear or the
vehicle is significantly pulling to one
side or the other. Some slight pull to
the left or right, depending on the
crown of the road and/or other road
surface variations such as troughs
or ruts, is normal. If the vehicle is
vibrating when driving on a smooth
road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

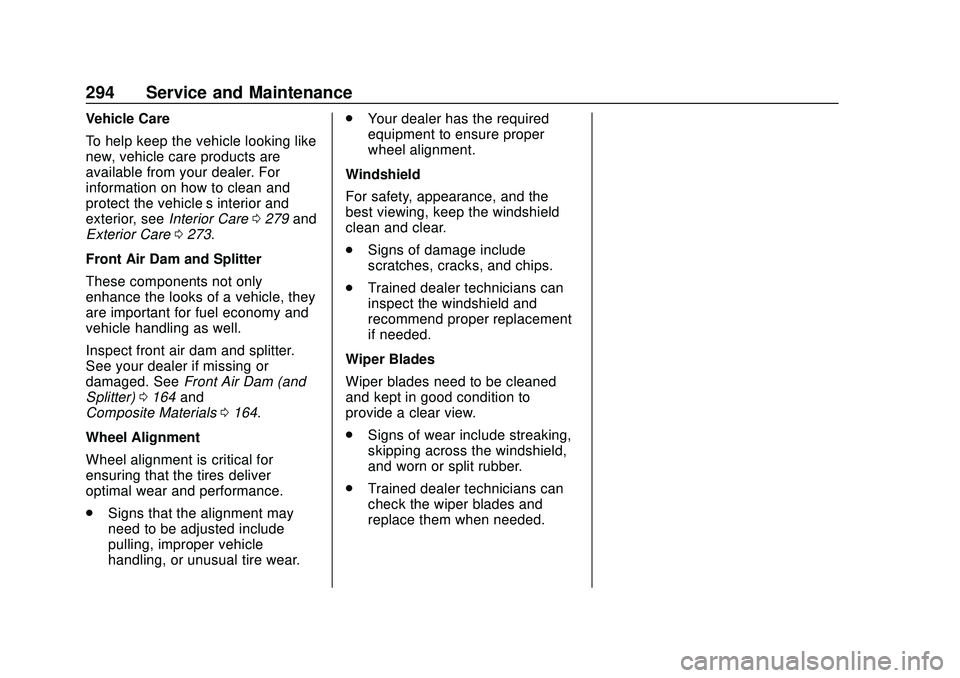

294 Service and Maintenance
Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For
information on how to clean and
protect the vehicle’s interior and
exterior, seeInterior Care 0279 and
Exterior Care 0273.
Front Air Dam and Splitter
These components not only
enhance the looks of a vehicle, they
are important for fuel economy and
vehicle handling as well.
Inspect front air dam and splitter.
See your dealer if missing or
damaged. See Front Air Dam (and
Splitter) 0164 and
Composite Materials 0164.
Wheel Alignment
Wheel alignment is critical for
ensuring that the tires deliver
optimal wear and performance.
. Signs that the alignment may
need to be adjusted include
pulling, improper vehicle
handling, or unusual tire wear. .
Your dealer has the required
equipment to ensure proper
wheel alignment.
Windshield
For safety, appearance, and the
best viewing, keep the windshield
clean and clear.
. Signs of damage include
scratches, cracks, and chips.
. Trained dealer technicians can
inspect the windshield and
recommend proper replacement
if needed.
Wiper Blades
Wiper blades need to be cleaned
and kept in good condition to
provide a clear view.
. Signs of wear include streaking,
skipping across the windshield,
and worn or split rubber.
. Trained dealer technicians can
check the wiper blades and
replace them when needed.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Index 333
Service (cont'd)Accessories and
Modifications . . . . . . . . . . . . . . . . .211
Doing Your Own Work . . . . . . . . 213
Maintenance Records . . . . . . . . 297
Maintenance, General Information . . . . . . . . . . . . . . . . . . 284
Parts Identification . . . . . . . . . . . . 298
Scheduling Appointments . . . . . 308
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . 105
Services
Special Application . . . . . . . . . . . 292
Servicing the Airbag . . . . . . . . . . . . . 72
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 168
Out of Park . . . . . . . . . . . . . . . . . . . 169
Side Blind Zone Alert (SBZA) . . . 202
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 128
Special Application Services . . . . 292
Specifications and
Capacities . . . . . . . . . . . . . . . . . . . . . 299
Speedometer . . . . . . . . . . . . . . . . . . . . 98
Start Vehicle, Remote . . . . . . . . . . . 15
Starting the Engine . . . . . . . . . . . . . 166
Steering . . . . . . . . . . . . . . . . . . . . . . . . 148 Heated Wheel . . . . . . . . . . . . . . . . . . 87 Steering (cont'd)
Wheel Adjustment . . . . . . . . . . . . . . 87
Wheel Controls . . . . . . . . . . . . . . . . . 87
Storage Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Storage Areas Center Console . . . . . . . . . . . . . . . . . 85
Convenience Net . . . . . . . . . . . . . . . 85
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Glove Box . . . . . . . . . . . . . . . . . . . . . . 83
Storage Compartments . . . . . . . . . . 83
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 159
Summer Tires . . . . . . . . . . . . . . . . . . 248
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 37
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Engine Air Filter Life . . . . . . . . . . 224
Front Lift . . . . . . . . . . . . . . . . . . . . . . 191
Infotainment . . . . . . . . . . . . . 132, 315
Systems Driver Assistance . . . . . . . . . . . . . 199
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . 98
Text Telephone (TTY) Users . . . . 305
Theft-Deterrent Systems . . . . . . . . . 28 Theft-Deterrent Systems (cont'd)
Immobilizer . . . . . . . . . . . . . . . . . . . . . 28
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245 All-Season . . . . . . . . . . . . . . . . . . . . 246
Buying New Tires . . . . . . . . . . . . . 261
Chains . . . . . . . . . . . . . . . . . . . . . . . . 266
Designations . . . . . . . . . . . . . . . . . 250
Different Size . . . . . . . . . . . . . . . . . 262
If a Tire Goes Flat . . . . . . . . . . . . 267
Inspection . . . . . . . . . . . . . . . . . . . . 259
Lifting the Vehicle . . . . . . . . . . . . . .211
Low Profile . . . . . . . . . . . . . . . . . . . 248
Pressure . . . . . . . . . . . . . . . . . 253, 254
Pressure Light . . . . . . . . . . . . . . . . 106
Pressure Monitor Operation . . 256
Pressure Monitor System . . . . . 255
Rotation . . . . . . . . . . . . . . . . . . . . . . 259
Run-Flat . . . . . . . . . . . . . . . . . . . . . . 247
Sidewall Labeling . . . . . . . . . . . . . 249
Terminology and Definitions . . 251
Uniform Tire QualityGrading . . . . . . . . . . . . . . . . . . . . . 263
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 264
Wheel Replacement . . . . . . . . . . 265
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 260

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
334 Index
Tires (cont'd)Winter . . . . . . . . . . . . . . . . . . . . . . . . 247
Top Tier Fuel . . . . . . . . . . . . . . . . . . . 204
Towing General Information . . . . . . . . . . 208
Recreational Vehicle . . . . . . . . . . 273
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 271
Track Events and Competitive Driving . . . . . . . . . . . 150
Traction Limited-Slip Differential . . . . . . . 195
Off Light . . . . . . . . . . . . . . . . . . . . . . 105
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 182
Transmission Dual Clutch . . . . . . . . . . . . . . . . . . . 171
Dual Clutch Fluid . . . . . . . . . . . . . 222
Dual Clutch Fluid Life
System . . . . . . . . . . . . . . . . . . . . . . 223
Temperature Gauge . . . . . . . . . . . . 99
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . 308
Trip Odometer . . . . . . . . . . . . . . . . . . . 98
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 128U
Underhood CompartmentOverview . . . . . . . . . . . . . . . . . . . . . . 214
Uniform Tire Quality Grading . . . 263
Universal Remote System . . . . . . 121 Operation . . . . . . . . . . . . . . . . . . . . . 123
Programming . . . . . . . . . . . . . . . . . 121
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 26
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 148
Identification Number (VIN) . . . 298
Load Limits . . . . . . . . . . . . . . . . . . . 160
Messages . . . . . . . . . . . . . . . . . . . . .114
Personalization . . . . . . . . . . . . . . . .116
Remote Start . . . . . . . . . . . . . . . . . . . 15
Security . . . . . . . . . . . . . . . . . . . . . . . . 26
Speed Messages . . . . . . . . . . . . . .115
Towing . . . . . . . . . . . . . . . . . . . . . . . . 271
Vehicle Care Tire Pressure . . . . . . . . . . . . . . . . . 253
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 314
Ventilation, Air . . . . . . . . . . . . . . . . . . 143
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
W
Warning Brake System Light . . . . . . . . . . . 104
Caution and Danger . . . . . . . . . . . . . 3
Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . . . . 93
Warnings Hazard Flashers . . . . . . . . . . . . . . 128
Washer Fluid . . . . . . . . . . . . . . . . . . . 231
Wheels Alignment and Tire Balance . . 264
Different Size . . . . . . . . . . . . . . . . . 262
Replacement . . . . . . . . . . . . . . . . . 265
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Windows . . . . . . . . . . . . . . . . . . . . . . . . 35 Power . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Windshield
Replacement . . . . . . . . . . . . . . . . . 236
Wiper/Washer . . . . . . . . . . . . . . . . . . 87
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . 158
Winter Tires . . . . . . . . . . . . . . . . . . . . 247
Wiper Blade Replacement . . . . . . 236
Wireless Charging . . . . . . . . . . . . . . . 90
