winter tires CHEVROLET EQUINOX 2018 Owner's Manual

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17
Driving and Operating 209
Winter Driving
Driving on Snow or Ice
Snow or ice between the tires and
the road creates less traction or
grip, so drive carefully. Wet ice can
occur at about 0 °C (32 °F) when
freezing rain begins to fall. Avoid
driving on wet ice or in freezing rain
until roads can be treated.
For Slippery Road Driving:
.Accelerate gently. Accelerating
too quickly causes the wheels to
spin and makes the surface
under the tires slick.
. Turn on Traction Control. See
Traction Control/Electronic
Stability Control 0238.
. The Antilock Brake System
(ABS) improves vehicle stability
during hard stops, but the
brakes should be applied sooner
than when on dry pavement.
See Antilock Brake System
(ABS) 0235. .
Allow greater following distance
and watch for slippery spots. Icy
patches can occur on otherwise
clear roads in shaded areas.
The surface of a curve or an
overpass can remain icy when
the surrounding roads are clear.
Avoid sudden steering
maneuvers and braking while
on ice.
. Turn off cruise control.
Blizzard Conditions
Stop the vehicle in a safe place and
signal for help. Stay with the vehicle
unless there is help nearby.
If possible, use Roadside
Assistance. See Roadside
Assistance Program 0393. To get
help and keep everyone in the
vehicle safe:
. Turn on the hazard warning
flashers.
. Tie a red cloth to an outside
mirror.
{Warning
Snow can trap engine exhaust
under the vehicle. This may
cause exhaust gases to get
inside. Engine exhaust contains
carbon monoxide (CO), which
cannot be seen or smelled. It can
cause unconsciousness and even
death.
If the vehicle is stuck in snow:
. Clear snow from the base of
the vehicle, especially any
blocking the exhaust pipe.
. Open a window about 5 cm
(2 in) on the vehicle side
that is away from the wind,
to bring in fresh air.
. Fully open the air outlets on
or under the instrument
panel.
. Adjust the climate control
system to circulate the air
inside the vehicle and set
(Continued)

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17
278 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 279
California Proposition65 Warning . . . . . . . . . . . . . . . . . 279
California Perchlorate Materials Requirements . . . . . 280
Accessories and Modifications . . . . . . . . . . . . . . . . 280
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 280
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 281
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 283
Engine Oil . . . . . . . . . . . . . . . . . . . . 288
Engine Oil Life System . . . . . . . 292
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 293
Engine Air Cleaner/Filter . . . . . . 293
Cooling System . . . . . . . . . . . . . . 295
Engine Overheating . . . . . . . . . . 299
Washer Fluid . . . . . . . . . . . . . . . . . 300
Brakes . . . . . . . . . . . . . . . . . . . . . . . 301
Brake Fluid . . . . . . . . . . . . . . . . . . . 302
Battery - North America . . . . . . 303
All-Wheel Drive . . . . . . . . . . . . . . . 303 Starter Switch Check . . . . . . . . . 304
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 304
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . 304
Wiper Blade Replacement . . . . 305
Windshield Replacement . . . . . 306
Gas Strut(s) . . . . . . . . . . . . . . . . . . 306
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 308
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 308
Halogen Bulbs . . . . . . . . . . . . . . . . 308
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 308
LED Lighting . . . . . . . . . . . . . . . . . 308
Headlamps . . . . . . . . . . . . . . . . . . . 309
Front Turn Signal and Fog Lamps . . . . . . . . . . . . . . . . . . . . . . 309
Taillamps . . . . . . . . . . . . . . . . . . . . . 310
License Plate Lamp . . . . . . . . . . 311
Electrical System
Electrical System Overload . . . 311
Fuses and Circuit Breakers . . . 312
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 312 Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 315
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 318
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 319
All-Season Tires . . . . . . . . . . . . . . 320
Winter Tires . . . . . . . . . . . . . . . . . . 320
Summer Tires . . . . . . . . . . . . . . . . 321
Tire Sidewall Labeling . . . . . . . . 321
Tire Designations . . . . . . . . . . . . . 323
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 324
Tire Pressure . . . . . . . . . . . . . . . . . 327
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 328
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 329
Tire Inspection . . . . . . . . . . . . . . . . 333
Tire Rotation . . . . . . . . . . . . . . . . . 333
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 334
Buying New Tires . . . . . . . . . . . . . 335
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 336
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 337
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 338
Wheel Replacement . . . . . . . . . . 338

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17
320 Vehicle Care
Warning (Continued)
.Underinflated tires pose
the same danger as
overloaded tires. The
resulting crash could
cause serious injury.
Check all tires frequently
to maintain the
recommended pressure.
Tire pressure should be
checked when the tires
are cold.
.Overinflated tires are
more likely to be cut,
punctured, or broken by
a sudden impact—such
as when hitting a pothole.
Keep tires at the
recommended pressure.
.Worn or old tires can
cause a crash. If the
tread is badly worn,
replace them.
(Continued)
Warning (Continued)
.Replace any tires that
have been damaged by
impacts with potholes,
curbs, etc.
.Improperly repaired tires
can cause a crash. Only
the dealer or an
authorized tire service
center should repair,
replace, dismount, and
mount the tires.
.Do not spin the tires in
excess of 56 km/h
(35 mph) on slippery
surfaces such as snow,
mud, ice, etc. Excessive
spinning may cause the
tires to explode.
All-Season Tires
This vehicle may come with
all-season tires. These tires are
designed to provide good overall performance on most road surfaces
and weather conditions. Original
equipment tires designed to GM's
specific tire performance criteria
have a TPC specification code
molded onto the sidewall. Original
equipment all-season tires can be
identified by the last two characters
of this TPC code, which will
be
“MS.”
Consider installing winter tires on
the vehicle if frequent driving on
snow or ice-covered roads is
expected. All-season tires provide
adequate performance for most
winter driving conditions, but they
may not offer the same level of
traction or performance as winter
tires on snow or ice-covered roads.
See Winter Tires 0320.
Winter Tires
This vehicle was not originally
equipped with winter tires. Winter
tires are designed for increased
traction on snow and ice-covered
roads. Consider installing winter
tires on the vehicle if frequent
driving on ice or snow covered

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17
Vehicle Care 321
roads is expected. See your dealer
for details regarding winter tire
availability and proper tire selection.
Also, seeBuying New Tires 0335.
With winter tires, there may be
decreased dry road traction,
increased road noise, and shorter
tread life. After changing to winter
tires, be alert for changes in vehicle
handling and braking.
If using winter tires:
. Use tires of the same brand and
tread type on all four wheel
positions.
. Use only radial ply tires of the
same size, load range, and
speed rating as the original
equipment tires.
Winter tires with the same speed
rating as the original equipment tires
may not be available for H, V, W, Y,
and ZR speed rated tires. If winter
tires with a lower speed rating are
chosen, never exceed the tire's
maximum speed capability.Summer Tires
This vehicle may come with high
performance summer tires. These
tires have a special tread and
compound that are optimized for
maximum dry and wet road
performance. This special tread and
compound will have decreased
performance in cold climates, and
on ice and snow. It is recommended
that winter tires be installed on the
vehicle if frequent driving at
temperatures below approximately
5 °C (40 °F) or on ice or snow
covered roads is expected. See
Winter Tires 0320.
Caution
High performance summer tires
have rubber compounds that lose
flexibility and may develop
surface cracks in the tread area
at temperatures below −7 °C
(20 °F). Always store high
performance summer tires
indoors and at temperatures
(Continued)
Caution (Continued)
above−7 °C (20 °F) when not in
use. If the tires have been
subjected to −7 °C (20 °F) or less,
let them warm up in a heated
space to at least 5 °C (40 °F) for
24 hours or more before being
installed or driving a vehicle on
which they are installed. Do not
apply heat or blow heated air
directly on the tires. Always
inspect tires before use. See Tire
Inspection 0333.
Tire Sidewall Labeling
Useful information about a tire is
molded into its sidewall. The
examples show a typical
passenger vehicle tire and a
compact spare tire sidewall.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17

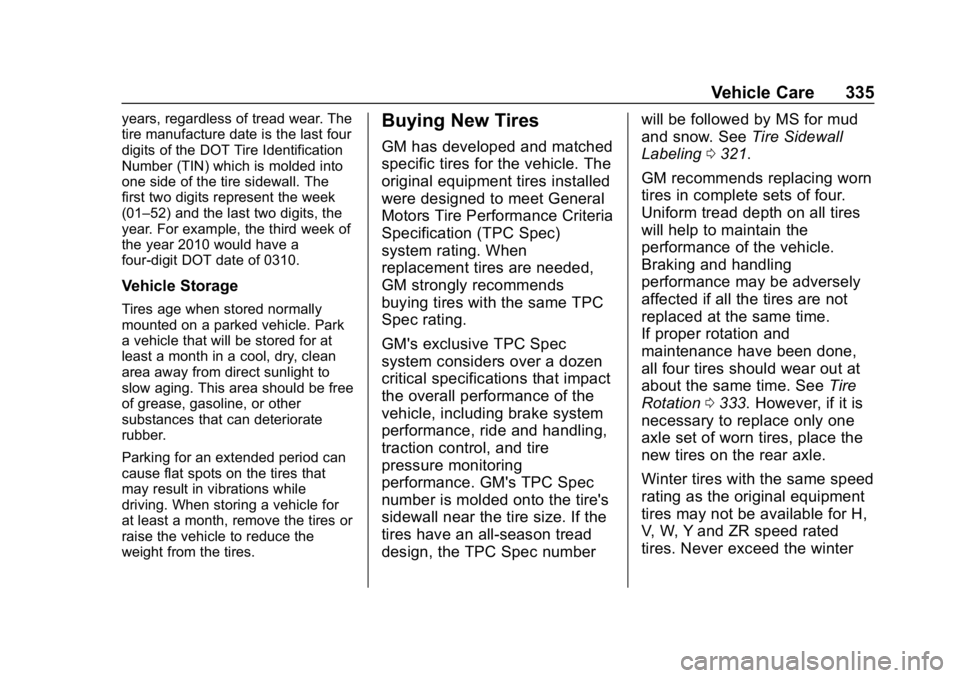

Vehicle Care 335
years, regardless of tread wear. The
tire manufacture date is the last four
digits of the DOT Tire Identification
Number (TIN) which is molded into
one side of the tire sidewall. The
first two digits represent the week
(01–52) and the last two digits, the
year. For example, the third week of
the year 2010 would have a
four-digit DOT date of 0310.
Vehicle Storage
Tires age when stored normally
mounted on a parked vehicle. Park
a vehicle that will be stored for at
least a month in a cool, dry, clean
area away from direct sunlight to
slow aging. This area should be free
of grease, gasoline, or other
substances that can deteriorate
rubber.
Parking for an extended period can
cause flat spots on the tires that
may result in vibrations while
driving. When storing a vehicle for
at least a month, remove the tires or
raise the vehicle to reduce the
weight from the tires.
Buying New Tires
GM has developed and matched
specific tires for the vehicle. The
original equipment tires installed
were designed to meet General
Motors Tire Performance Criteria
Specification (TPC Spec)
system rating. When
replacement tires are needed,
GM strongly recommends
buying tires with the same TPC
Spec rating.
GM's exclusive TPC Spec
system considers over a dozen
critical specifications that impact
the overall performance of the
vehicle, including brake system
performance, ride and handling,
traction control, and tire
pressure monitoring
performance. GM's TPC Spec
number is molded onto the tire's
sidewall near the tire size. If the
tires have an all-season tread
design, the TPC Spec numberwill be followed by MS for mud
and snow. See
Tire Sidewall
Labeling 0321.
GM recommends replacing worn
tires in complete sets of four.
Uniform tread depth on all tires
will help to maintain the
performance of the vehicle.
Braking and handling
performance may be adversely
affected if all the tires are not
replaced at the same time.
If proper rotation and
maintenance have been done,
all four tires should wear out at
about the same time. See Tire
Rotation 0333. However, if it is
necessary to replace only one
axle set of worn tires, place the
new tires on the rear axle.
Winter tires with the same speed
rating as the original equipment
tires may not be available for H,
V, W, Y and ZR speed rated
tires. Never exceed the winter

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17
336 Vehicle Care
tires’maximum speed capability
when using winter tires with a
lower speed rating.
{Warning
Tires could explode during
improper service. Attempting
to mount or dismount a tire
could cause injury or death.
Only your dealer or authorized
tire service center should
mount or dismount the tires.
{Warning
Mixing tires of different sizes,
brands, or types may cause
loss of control of the vehicle,
resulting in a crash or other
vehicle damage. Use the
correct size, brand, and type
of tires on all wheels.
{Warning
Using bias-ply tires on the
vehicle may cause the wheel
rim flanges to develop cracks
after many miles of driving.
A tire and/or wheel could fail
suddenly and cause a crash.
Use only radial-ply tires with
the wheels on the vehicle.
If the vehicle tires must be
replaced with a tire that does not
have a TPC Spec number, make
sure they are the same size,
load range, speed rating, and
construction (radial) as the
original tires.
Vehicles that have a tire
pressure monitoring system
could give an inaccurate
low-pressure warning if non-TPC
Spec rated tires are installed.
See Tire Pressure Monitor
System 0328. The Tire and Loading
Information label indicates the
original equipment tires on the
vehicle. See
Vehicle Load Limits
0 210.
Different Size Tires and
Wheels
If wheels or tires are installed that
are a different size than the original
equipment wheels and tires, vehicle
performance, including its braking,
ride and handling characteristics,
stability, and resistance to rollover
may be affected. If the vehicle has
electronic systems such as antilock
brakes, rollover airbags, traction
control, electronic stability control,
or All-Wheel Drive, the performance
of these systems can also be
affected.
{Warning
If different sized wheels are used,
there may not be an acceptable
level of performance and safety if
(Continued)

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17
Vehicle Care 337
Warning (Continued)
tires not recommended for those
wheels are selected. This
increases the chance of a crash
and serious injury. Only use GM
specific wheel and tire systems
developed for the vehicle, and
have them properly installed by a
GM certified technician.
See Buying New Tires 0335 and
Accessories and Modifications
0 280.
Uniform Tire Quality
Grading
The following information relates
to the system developed by the
United States National Highway
Traffic Safety Administration
(NHTSA), which grades tires by
treadwear, traction, and
temperature performance. This
applies only to vehicles sold in
the United States. The grades
are molded on the sidewalls of most passenger car tires. The
Uniform Tire Quality Grading
(UTQG) system does not apply
to deep tread, winter tires,
compact spare tires, tires with
nominal rim diameters of
10 to 12 inches (25 to 30 cm),
or to some limited-production
tires.
While the tires available on
General Motors passenger cars
and light trucks may vary with
respect to these grades, they
must also conform to federal
safety requirements and
additional General Motors Tire
Performance Criteria (TPC)
standards.
Quality grades can be found
where applicable on the tire
sidewall between tread shoulder
and maximum section width. For
example:
Treadwear 200 Traction AA
Temperature A
All Passenger Car Tires Must
Conform to Federal Safety
Requirements In Addition To
These Grades.
Treadwear
The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course. For example, a tire
graded 150 would wear one and
one-half (1½) times as well on
the government course as a tire
graded 100. The relative
performance of tires depends
upon the actual conditions of
their use, however, and may
depart significantly from the
norm due to variations in driving
habits, service practices and
differences in road
characteristics and climate.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17
394 Customer Information
Roadside Assistance is not a part of
the New Vehicle Limited Warranty.
General Motors North America and
Chevrolet reserve the right to make
any changes or discontinue the
Roadside Assistance program at
any time without notification.
General Motors North America and
Chevrolet reserve the right to limit
services or payment to an owner or
driver if they decide the claims are
made too often, or the same type of
claim is made many times.
Services Provided
.Emergency Fuel Delivery:
Delivery of enough fuel for the
vehicle to get to the nearest
service station.
. Lock-Out Service: Service to
unlock the vehicle if you are
locked out. A remote unlock may
be available if you have OnStar.
For security reasons, the driver
must present identification
before this service is given. .
Emergency Tow from a Public
Road or Highway: Tow to the
nearest Chevrolet dealer for
warranty service, or if the vehicle
was in a crash and cannot be
driven. Assistance is not given
when the vehicle is stuck in the
sand, mud, or snow.
. Flat Tire Change: Service to
change a flat tire with the spare
tire. The spare tire, if equipped,
must be in good condition and
properly inflated. It is the owner's
responsibility for the repair or
replacement of the tire if it is not
covered by the warranty.
. Battery Jump Start: Service to
jump start a dead battery.
. Trip Interruption Benefits and
Assistance: If your trip is
interrupted due to a warranty
event, incidental expenses may
be reimbursed within the
Powertrain warranty period.
Items considered are reasonable
and customary hotel, meals,
rental car, or a vehicle being
delivered back to the customer,
up to 500 miles.
Services Not Included in
Roadside Assistance
. Impound towing caused by
violation of any laws
. Legal fines
. Mounting, dismounting,
or changing of snow tires,
chains, or other traction devices
Service is not provided if a vehicle
is in an area that is not accessible
to the service vehicle or is not a
regularly traveled or maintained
public road, which includes ice and
winter roads. Off-road use is not
covered.
Services Specific to
Canadian-Purchased Vehicles
. Fuel Delivery: Reimbursement
is up to 7 liters. If available,
diesel fuel delivery may be
restricted. Propane and other
fuels are not provided through
this service.
. Lock-Out Service: Vehicle
registration is required.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17
416 Index
Apple CarPlay andAndroid Auto . . . . . . . . . . . . . . . . . . 185
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 393
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 248
Assistance Systems for
Parking and Backing . . . . . . . . . . 245
Audio Theft-Deterrent Feature . . . . . . . 166
Automatic
Dimming Mirrors . . . . . . . . . . . . . . . . 52
Door Locks . . . . . . . . . . . . . . . . . . . . . 43
Forward Braking . . . . . . . . . . . . . . 250
Headlamp System . . . . . . . . . . . . 160
Transmission . . . . . . . . . . . . . . . . . 231
Transmission Fluid . . . . . . . . . . . 293
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 233
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 304
Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . 179
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . 173B
Battery
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 164
Load Management . . . . . . . . . . . . 164
Power Protection . . . . . . . . . . . . . 164
Battery - North America . . . . 303, 354
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . 261
Blade Replacement, Wiper . . . . . 305
Bluetooth Overview . . . . . . . . . . . . . . . . 180, 181
Brake Parking, Electric . . . . . . . . . . . . . . 236
System Warning Light . . . . . . . . 132
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 301 Antilock . . . . . . . . . . . . . . . . . . . . . . . 235
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 237
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 201
Automatic Forward . . . . . . . . . . . 250
Break-In, New Vehicle . . . . . . . . . . 215
Bulb Replacement Front Turn Signal and FogLamps . . . . . . . . . . . . . . . . . . . . . . 309
Halogen Bulbs . . . . . . . . . . . . . . . . 308
Headlamp Aiming . . . . . . . . . . . . . 308
Headlamps . . . . . . . . . . . . . . 308, 309 Bulb Replacement (cont'd)
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 308
License Plate Lamps . . . . . . . . . .311
Taillamps . . . . . . . . . . . . . . . . . . . . . 310
Buying New Tires . . . . . . . . . . . . . . . 335
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 116
California Fuel Requirements . . . . . . . . . . . 257
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 280
California
Proposition
65 Warning . . . . . . . . . .279, 303, 354, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 386
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 224
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 44
Winter Driving . . . . . . . . . . . . . . . . 209
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . 109
Tie-Downs . . . . . . . . . . . . . . . . . . . . .110
Caution, Danger, and Warning . . . . 3

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10446639) - 2018 - CRC - 8/18/17
Index 425
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 126
Taillamps . . . . . . . . . . . . . . . . . . . . . . . 310
Text Telephone (TTY) Users . . . . 392
Theft-Deterrent Systems . . . . . . . . . 50Immobilizer . . . . . . . . . . . . . . . . . . . . . 50
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319 All-Season . . . . . . . . . . . . . . . . . . . . 320
Buying New Tires . . . . . . . . . . . . . 335
Chains . . . . . . . . . . . . . . . . . . . . . . . . 339
Changing . . . . . . . . . . . . . . . . . . . . . 348
Compact Spare . . . . . . . . . . . . . . . 353
Designations . . . . . . . . . . . . . . . . . 323
Different Size . . . . . . . . . . . . . . . . . 336
If a Tire Goes Flat . . . . . . . . . . . . 340
Inspection . . . . . . . . . . . . . . . . . . . . 333
Pressure . . . . . . . . . . . . . . . . . . . . . . 327
Pressure Light . . . . . . . . . . . . . . . . 136
Pressure Monitor Operation . . 329
Pressure Monitor System . . . . . 328
Rotation . . . . . . . . . . . . . . . . . . . . . . 333
Sealant andCompressor Kit . . . . . . . . . . . . . 341
Sealant and Compressor Kit, Storing . . . . . . . . . . . . . . . . . . 347
Sidewall Labeling . . . . . . . . . . . . . 321
Terminology and Definitions . . 324 Tires (cont'd)
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 337
Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . 338
Wheel Replacement . . . . . . . . . . 338
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 334
Winter . . . . . . . . . . . . . . . . . . . . . . . . 320
Tow/Haul Mode . . . . . . . . . . . . . . . . . 234
Tow/Haul Mode Light . . . . . . . . . . . 134
Towing Driving Characteristics . . . . . . . . 271
Equipment . . . . . . . . . . . . . . . . . . . . 276
General Information . . . . . . . . . . 271
Recreational Vehicle . . . . . . . . . . 358
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 274
Trailer Sway Control (TSC) . . . 277
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 357
Traction Control System (TCS)/StabiliTrak Light . . . . . . . . . . . . . 135
Off Light . . . . . . . . . . . . . . . . . . . . . . 135
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 238
Trademarks and License Agreements . . . . . . . . . . . . . . . . . . . 188 Trailer
Sway Control (TSC) . . . . . . . . . . 277
Towing . . . . . . . . . . . . . . . . . . . . . . . . 274
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 231
Fluid, Automatic . . . . . . . . . . . . . . 293
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . 395
Trip Odometer . . . . . . . . . . . . . . . . . . 126
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 161
U
Uniform Tire Quality Grading . . . 337
Universal Remote System . . . . . . 154
Operation . . . . . . . . . . . . . . . . . . . . . 156
Programming . . . . . . . . . . . . . . . . . 154
Updates Software . . . . . . . . . . . . . . . . . . . . . . 169
USB Port . . . . . . . . . . . . . . . . . . . . . . . 173
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 49
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 201
Design . . . . . . . . . . . . . . . . . . . . . . . . 199
Identification Number (VIN) . . . 385
