CHEVROLET EXPRESS 1998 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Starter Switch Check Brake-Transmission Shift Interlock (BTSI) Check
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
2. Firmly apply both the parking brake (see “Parking
around the vehicle.
Brake” in the Index if necessary) and the
regular brake.
NOTE: Do not use the accelerator pedal, and be
ready to turn off the engine immediately if
it starts.
3. Try to start the engine in each gear. The starter
should work only in PARK (P) or
NEUTRAL (N).
If the starter works in any other position, your
vehicle needs service.
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be injured. Follow the steps below.
1 I
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on
a level surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try
to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle’s BTSI
needs service.
7-40

Downloaded from www.Manualslib.com manuals search engine Ignition Transmission Lock Check While parked, and with the parking brake
set, try to turn
the ignition key
to LOCK in each shift lever position,
0 The key should turn to LOCK only when the shift
lever
is in PARK (P).
The key should come out only in LOCK.
Parking Brake and Automatic Transmission
PARK (P) MerhslnicTn Vhmk
1 A CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there
is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move. Park
on a
fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
0 To check the parking brake’s holding ability: With
the engine running and transmission in
NEUTRAL
(N), slowly remove foot pressure from
the regular brake pedal.
Do this until the vehicle is
held by
the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift
to PARK (P). Then
release all brakes.
Underbody Flushing Service At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
7-4 1
__

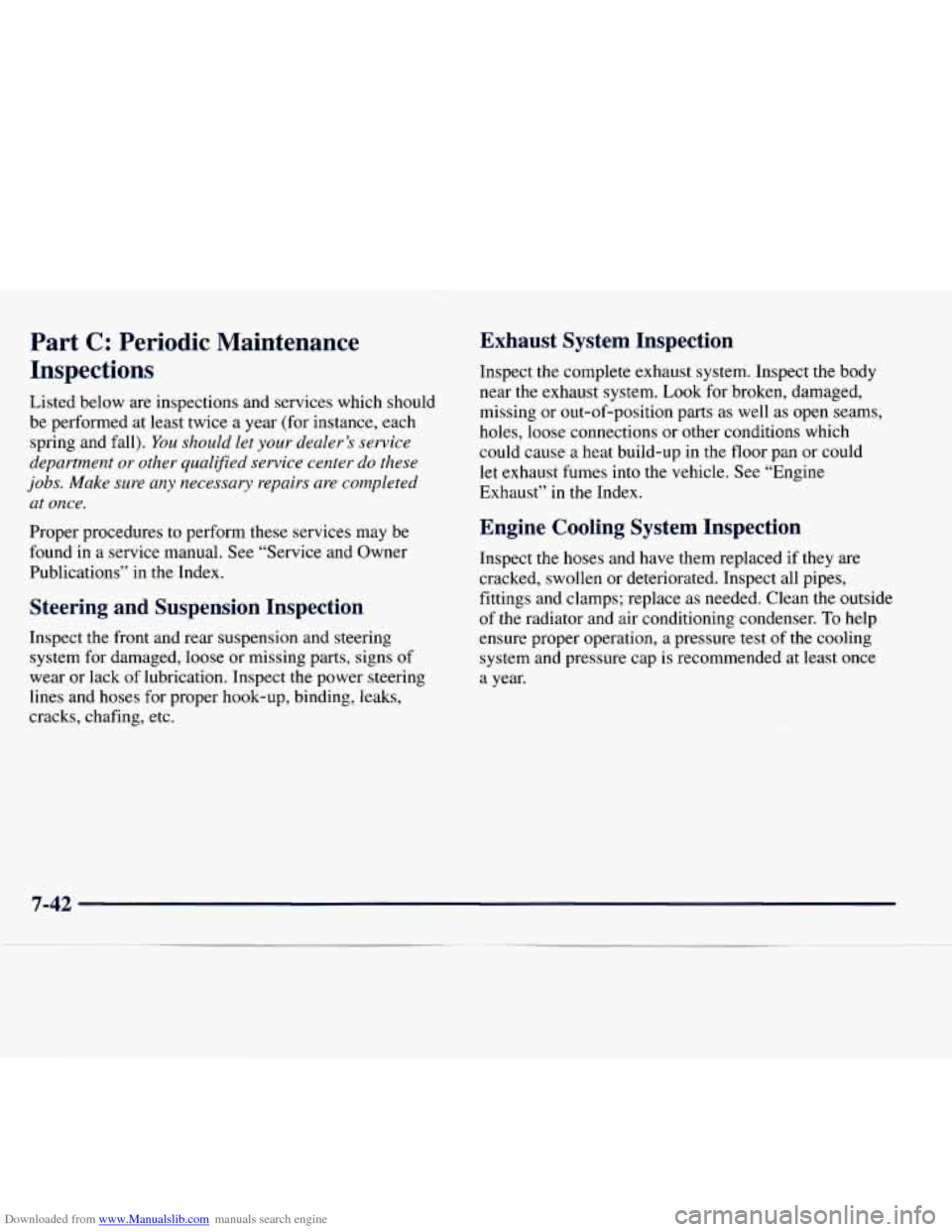

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Main A !n: Ice
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall).
You should let your dealer’s service
department or other qualified service center do these
jobs. Make sure any necessary repairs are completed
at once.
Proper procedures to perform these services may be
found in
a service manual. See “Service and Owner
Publications” in the Index.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs
of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system.
Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections or other conditions which
could cause a heat build-up in the floor pan or could
let exhaust fumes into the vehicle. See “Engine
Exhaust” in the Index.
Engine Cooling System Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed. Clean the outside
of the radiator and air conditioning condenser. To help
ensure proper operation, a pressure test
of the cooling
system and pressure cap is recommended at least once
a year.
7-42

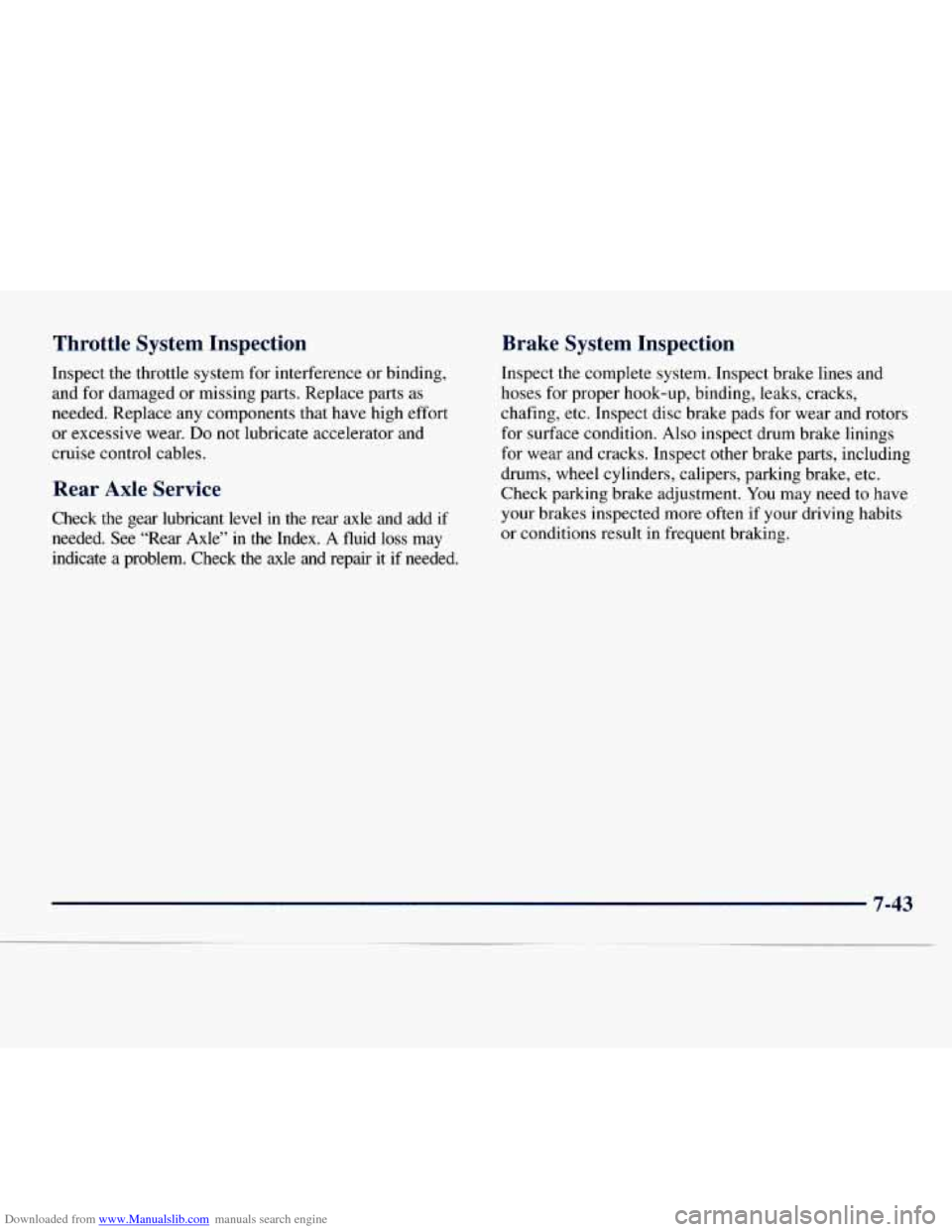

Downloaded from www.Manualslib.com manuals search engine Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts
as
needed. Replace any components that have high effort
or excessive wear.
Do not lubricate accelerator and
cruise control cables.
Rear Axle Service
Check the gear lubricant level in the rear axle and add if
needed. See “Rear Axle” in the Index. A fluid loss may
indicate a problem. Check the axle and repair it if needed.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment.
You may need to have
your brakes inspected more often if your driving habits
or conditions result
in frequent braking.

Downloaded from www.Manualslib.com manuals search engine Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from
your dealer.
USAGE
Engine Oil
(Gasoline
Engine)
Engine Coolant
FLUIDLUBRICANT
Engine Oil with the American
Petroleum Institute Certified For Gasoline Engines “Starburst”
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL@
or Havoline@ DEX-COOL@
Coolant. See “Engine Coolant”
in
the Index.
USAGE FLUIDLUBRICANT
Hydraulic Brake Delco Supreme 11 @ Brake Fluid
System
(GM Part No. 12377967 or
equivalent DOT-3 Brake Fluid).
Parking Brake Chassis Lubricant (GM Part
Cable Guides
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI ## 2, Category LB
or GC-LB.
Power Steering GM
Power Steering Fluid
(GM
System Part No. 1052884 - 1 pint,
Automatic DEXRON@-I11
Automatic
Transmission Transmission
Fluid.
Key Lock Multi-Pu
ose Lubricant,
Cylinders Superlube
% (GM Part
1050017
- 1 quart, or equivalent).
No. 1234624 1 or equivalent).
7-44

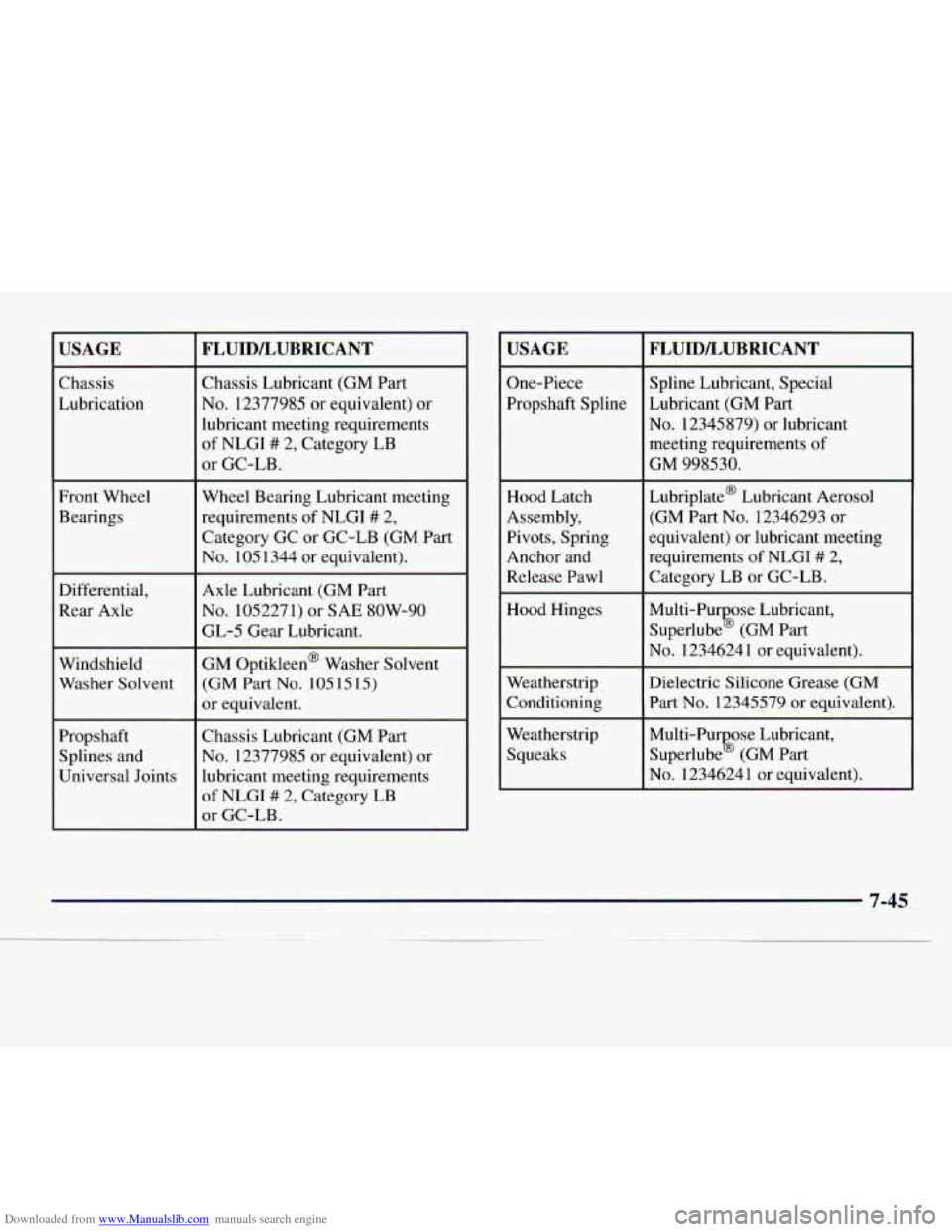

Downloaded from www.Manualslib.com manuals search engine USAGE
Chassis
Lubrication
Front Wheel
Bearings
Differential,
Rear Axle
Windshield
Washer Solvent
Propshaft Splines and
Universal Joints
FLUIDLUBRICANT
Chassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI
# 2, Category LB
or GC-LB.
Wheel Bearing Lubricant meeting requirements of NLGI
# 2,
Category GC or GC-LB (GM Part
No. 105 1344 or equivalent).
Axle Lubricant (GM Part
No. 1052271) or SAE SOW-90
GL-5 Gear Lubricant.
GM Optikleen@ Washer Solvent
(GM Part
No. 1051515)
or equivalent.
Chassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB
or GC-LB.
USAGE ~ ~~ ~
One-Piece
Propshaft Spline
Hood Latch
Assembly, Pivots, Spring
Anchor and
Release Pawl
Hood Hinges
Weatherstrip Conditioning
Weatherstrip Squeaks
FLUIDLUBRICANT
Spline Lubricant, Special
Lubricant (GM Part
No. 12345879) or lubricant
meeting requirements
of
GM 998530.
Lubriplate@ Lubricant Aerosol (GM Part No. 12346293 or
equivalent) or lubricant meeting
requirements
of NLGI # 2,
Category LB or GC-LB.
Multi-Pu ose Lubricant,
Superlube
% (GM Part
No. 1234624 1 or equivalent).
Dielectric Silicone Grease
(GM
Part No. 12345579 or equivalent).
Multi-Pu ose Lubricant,
Superlube
% (GM Part
No. 12346241 or equivalent).
7-45

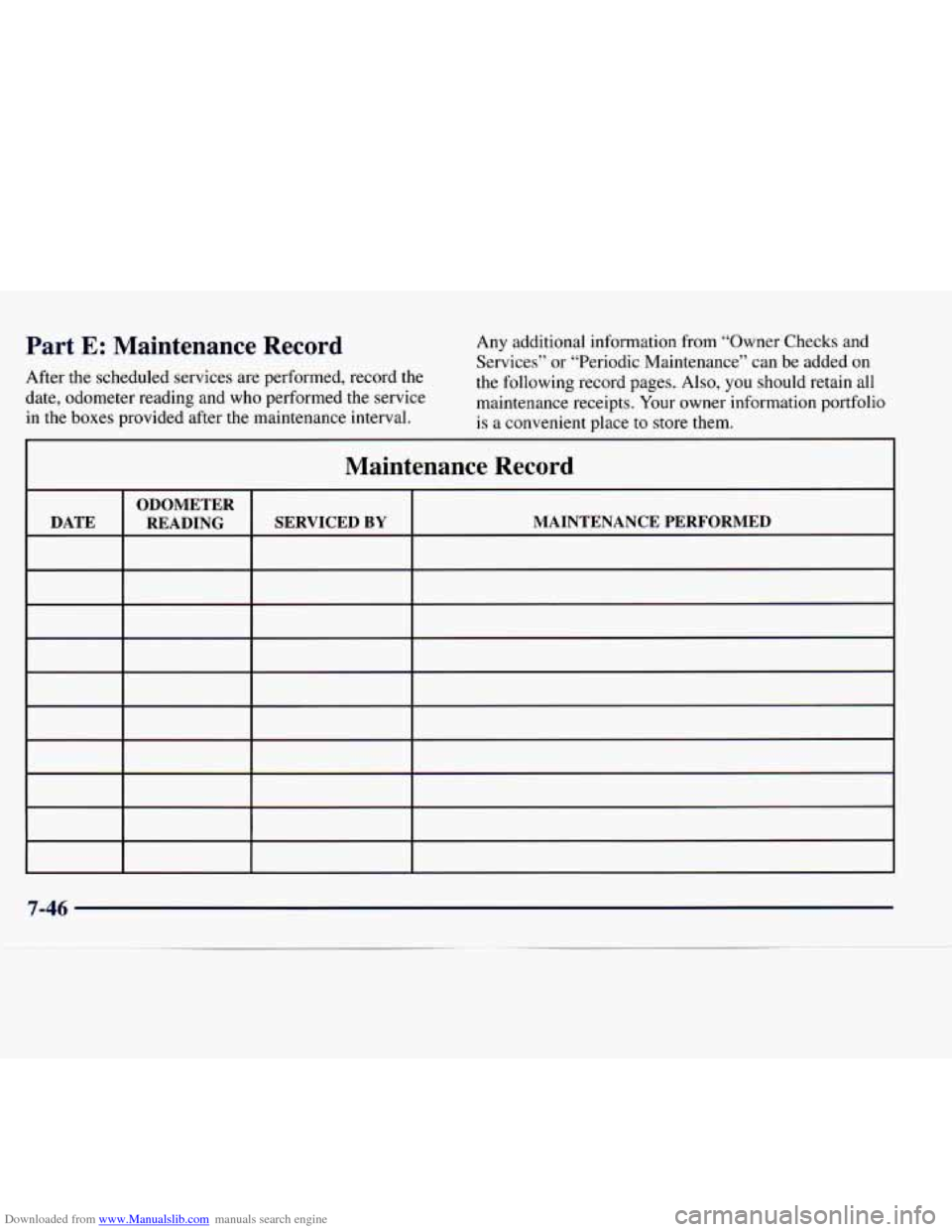

Downloaded from www.Manualslib.com manuals search engine Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval. Any additional information
from “Owner Checks and
Services” or “Periodic Maintenance” can
be added on
the following record pages. Also, you should retain
all
maintenance receipts. Your owner information portfolio
is a convenient place to store them.
ODOMETER
I DATE I READING
Maintenance Record
SERVICED BY MAINTENANCE PERFORMED

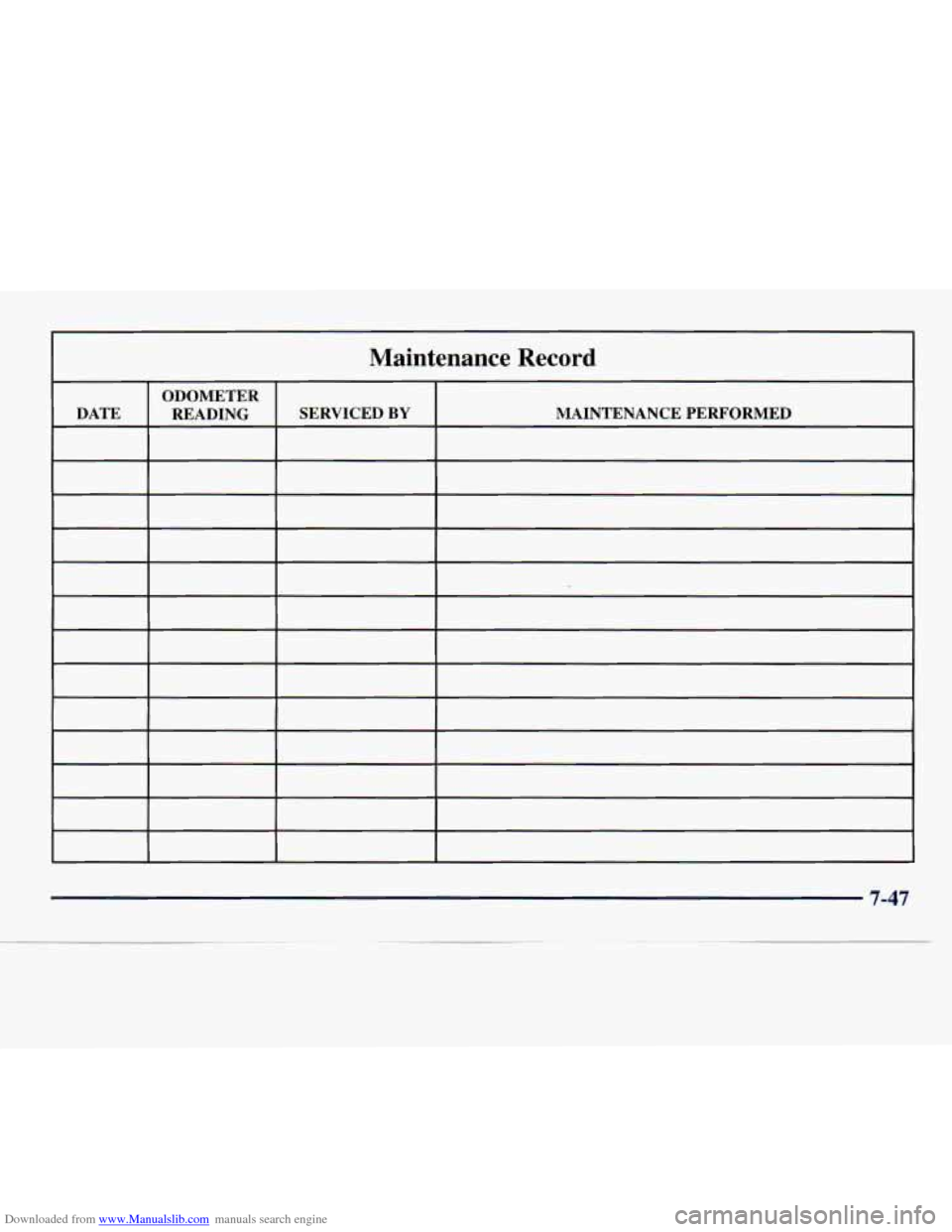

Downloaded from www.Manualslib.com manuals search engine Maintenance Record
ODOMETER
DATE READING SERVICED
BY MAr- -rENANCE PERFORMED
7-47

Downloaded from www.Manualslib.com manuals search engine Maintenance Record

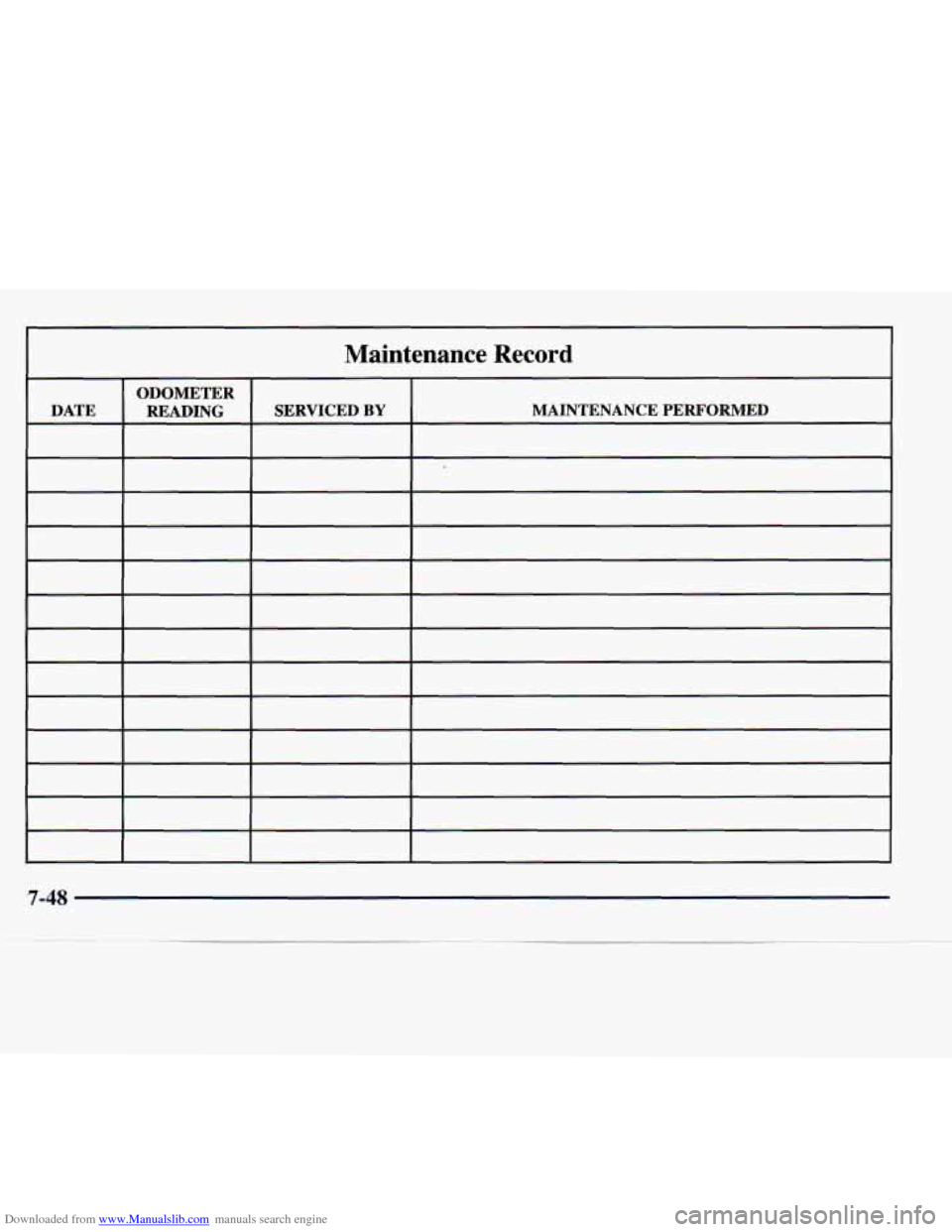

MAINTENANCE PERFORMED
7-48

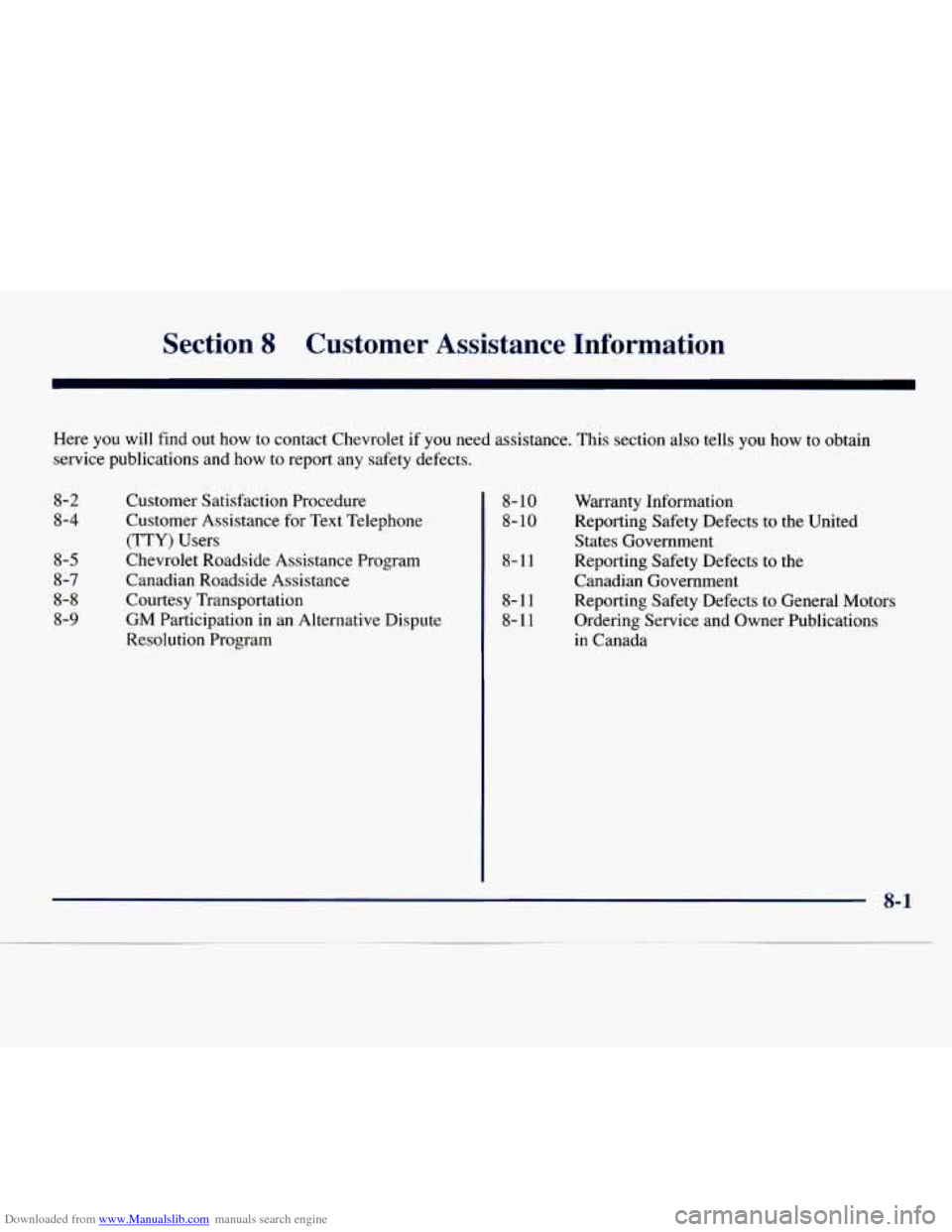

Downloaded from www.Manualslib.com manuals search engine Section 8 Customer Assistance Information
Here you will find out how to contact Chevrolet if you need assistance. This section also tells you how to obtain
service publications and how to report any safety defects.
8-2
8-4
8-5
8-7
8-8
8-9
Customer Satisfaction Procedure
Customer Assistance for Text Telephone
(TTY) Users
Chevrolet Roadside Assistance Program
Canadian Roadside Assistance
Courtesy Transportation
GM Participation in an Alternative Dispute
Resolution Program 8-
10
8- 10
8-11
8-11 8-11 Warranty
Information
Reporting Safety Defects to the United
States Government
Reporting Safety Defects to the
Canadian Government Reporting Safety Defects to General Motors
Ordering Service and Owner Publications
in Canada
8-1
