CHEVROLET EXPRESS CARGO VAN 2003 1.G Owners Manual

Move the lever down to engage the security feature.
Move the lever up to return the door locks to normal
operation
Move the button to the left
to engage the security
feature. Move the button to
the right to return the
door locks to normal
operation.Move the button to the
right to engage the
security feature. Move the
button to the left to
return the door locks to
normal operation.
Right±hand 60/40
Swing-Out Side Door
Left±hand 60/40
Swing-Out Side Door
2-9

Move the button up to
engage the security
feature. Move the button
down to return the
door locks to normal
operation.Lockout Protection
This feature protects you from locking your key in the
vehicle when the key is in the ignition and a door
is open.
If the power lock switch is pressed when either the
driver's, passenger's, or rear door is open, all the doors
will lock and then the driver's door will unlock. This
feature does not include the side cargo door.
Leaving Your Vehicle
If you are leaving your vehicle, take your key, open your
door and set the locks from inside. Then get out and
close the door. Side Sliding Door
2-10

Sliding Side Door

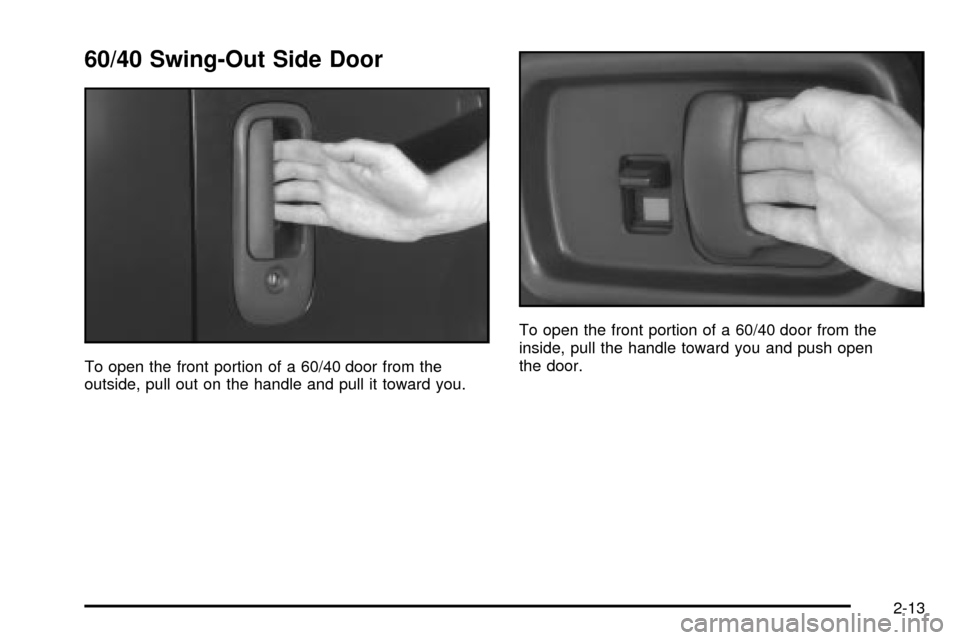

To open the sliding side door from outside, pull the
handle toward the rear of the vehicle. Then, slide the
door open.To close the sliding side door from outside, use the
outside door handle to slide the door toward the front of
the vehicle.
When the door slides closed completely, it will be ¯ush
with the side of the body.
2-11

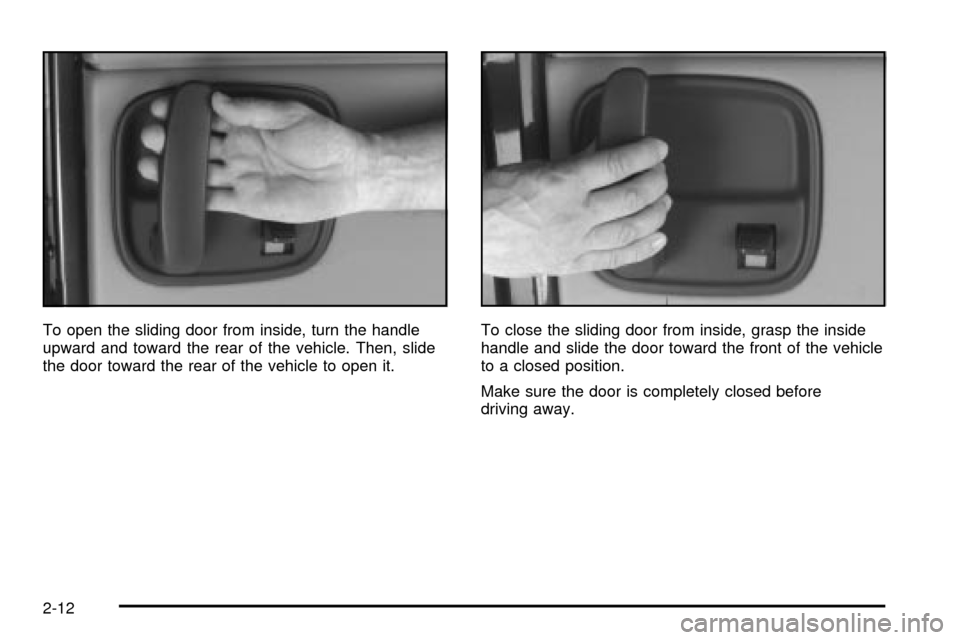

To open the sliding door from inside, turn the handle
upward and toward the rear of the vehicle. Then, slide
the door toward the rear of the vehicle to open it.To close the sliding door from inside, grasp the inside
handle and slide the door toward the front of the vehicle
to a closed position.
Make sure the door is completely closed before
driving away.
2-12

60/40 Swing-Out Side Door

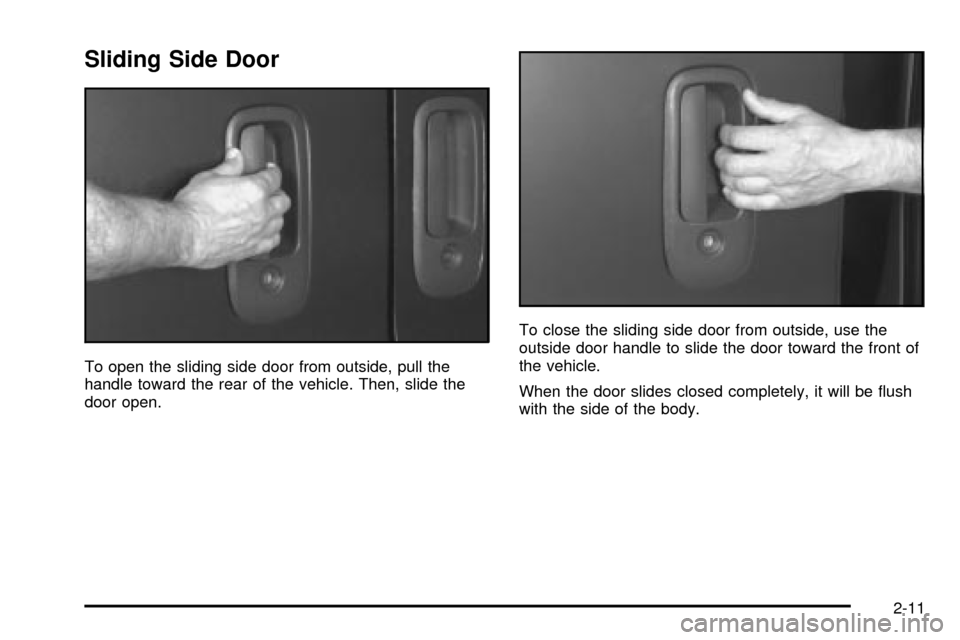

To open the front portion of a 60/40 door from the
outside, pull out on the handle and pull it toward you.To open the front portion of a 60/40 door from the
inside, pull the handle toward you and push open
the door.
2-13

To open the rear portion of a 60/40 door from the
outside, pull the handle on the side of the rear door and
pull it toward you.
To close the 60/40 side doors, close the rear door ®rst.
Then close the front door. Check to make sure that
both doors are completely closed.
The front side swing-out door has a check strap
assembly in the door frame to keep the door from
opening beyond 90 degrees.
To open the door beyond 90 degrees, close the door
partially, pull the check strap toward you and then open
the door. When you close the door, the check strap
will automatically re-engage.
Rear Doors
{CAUTION:
Unlocked doors can be dangerous.
·Passengers Ð especially children Ð can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors aren't locked. So,
wear safety belts properly and lock the
doors whenever you drive.
·Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
·Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.
2-14

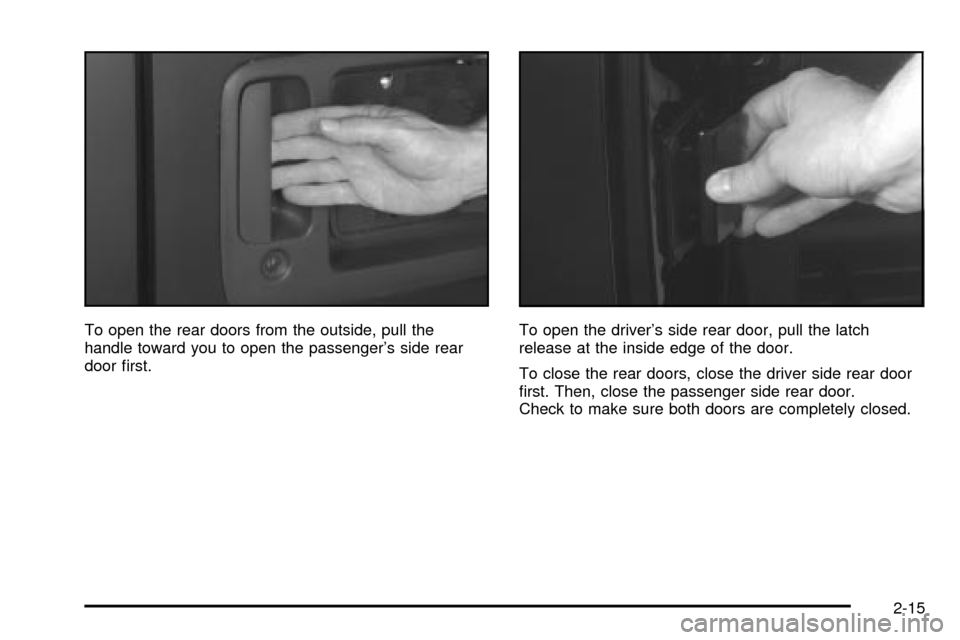

To open the rear doors from the outside, pull the
handle toward you to open the passenger's side rear
door ®rst.To open the driver's side rear door, pull the latch
release at the inside edge of the door.
To close the rear doors, close the driver side rear door
®rst. Then, close the passenger side rear door.
Check to make sure both doors are completely closed.
2-15

Windows
{CAUTION:
Leaving children in a vehicle with the windows
closed is dangerous. A child can be overcome
by the extreme heat and can suffer permanent
injuries or even death from heat stroke. Never
leave a child alone in a vehicle, especially with
the windows closed in warm or hot weather.
Manual Windows
To operate your manual windows, turn the hand crank
on each door to raise or lower your side door windows.
2-16

Power Windows
If you have power
windows, the controls are
located on each of the
side doors.
The driver's door has a switch for the passenger
window as well. Your power windows will work when the
ignition has been turned to RUN or ACCESSORY, or
when Retained Accessory Power (RAP) is active.
See

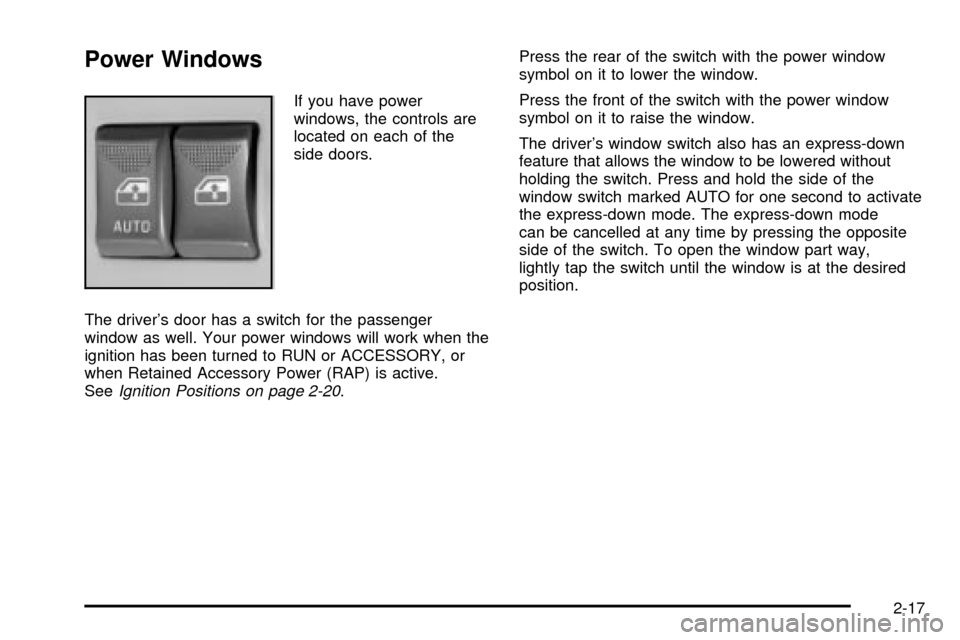

Ignition Positions on page 2-20.Press the rear of the switch with the power window
symbol on it to lower the window.
Press the front of the switch with the power window
symbol on it to raise the window.
The driver's window switch also has an express-down
feature that allows the window to be lowered without
holding the switch. Press and hold the side of the
window switch marked AUTO for one second to activate
the express-down mode. The express-down mode
can be cancelled at any time by pressing the opposite
side of the switch. To open the window part way,
lightly tap the switch until the window is at the desired
position.
2-17

Swing-Out Windows

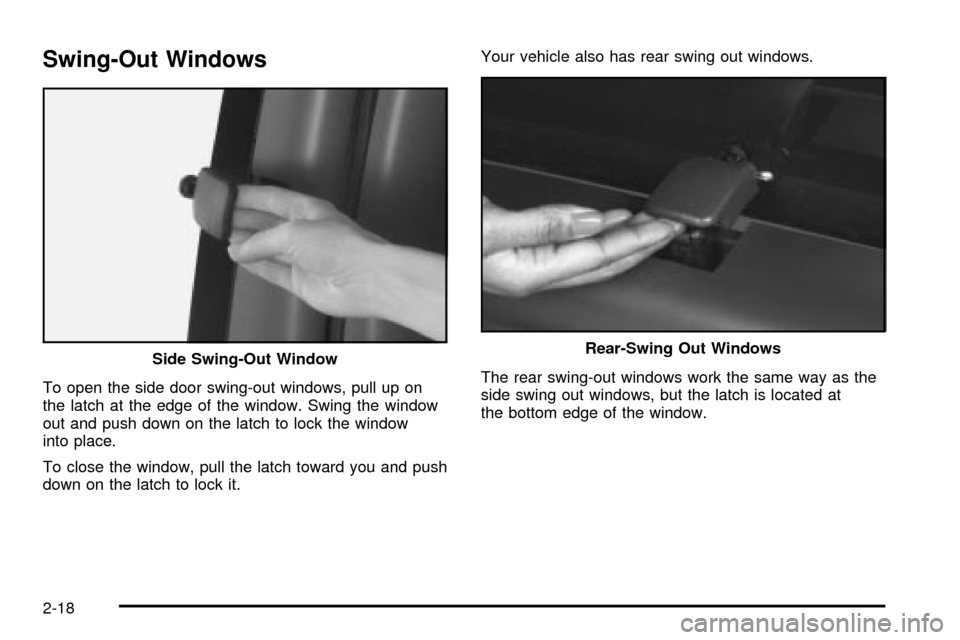

To open the side door swing-out windows, pull up on
the latch at the edge of the window. Swing the window
out and push down on the latch to lock the window
into place.
To close the window, pull the latch toward you and push
down on the latch to lock it.Your vehicle also has rear swing out windows.
The rear swing-out windows work the same way as the
side swing out windows, but the latch is located at
the bottom edge of the window. Side Swing-Out Window
Rear-Swing Out Windows
2-18
