50 Seats and Restraints
pulled out. If this happens, pull thesafety belt straight out firmly tounlock the webbing, and thenrelease it. If the webbing is stilllocked in the retractor, see yourdealer.
Before a door is closed, be sure thesafety belt is out of the way. If adoor is slammed against a safetybelt, damage can occur to both thesafety belt and the vehicle.

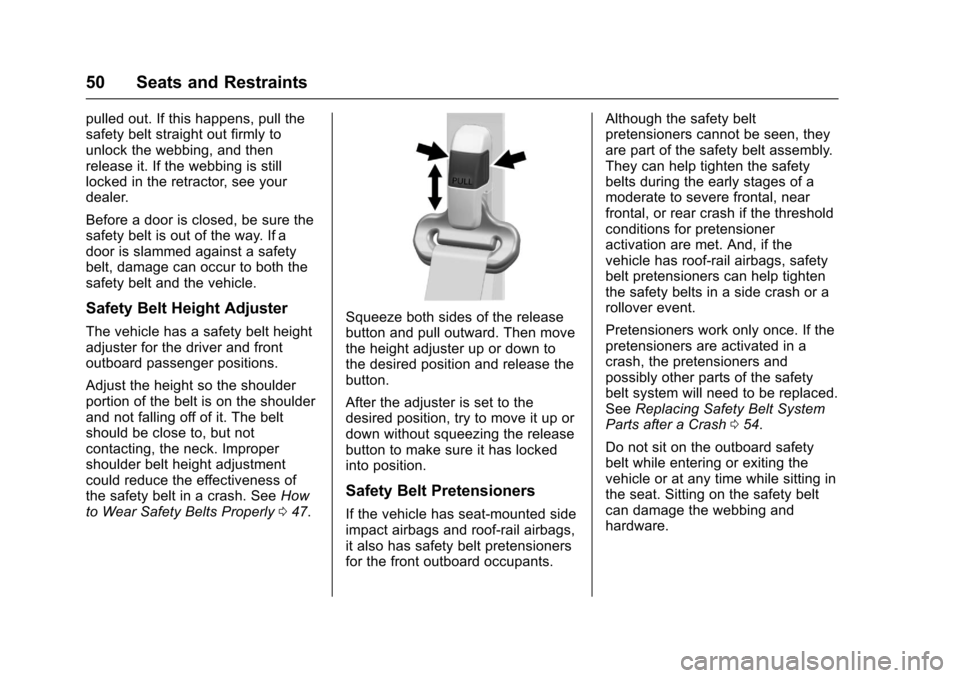

Safety Belt Height Adjuster
The vehicle has a safety belt heightadjuster for the driver and frontoutboard passenger positions.
Adjust the height so the shoulderportion of the belt is on the shoulderand not falling off of it. The beltshould be close to, but notcontacting, the neck. Impropershoulder belt height adjustmentcould reduce the effectiveness ofthe safety belt in a crash. SeeHowto Wear Safety Belts Properly047.
Squeeze both sides of the releasebutton and pull outward. Then movethe height adjuster up or down tothe desired position and release thebutton.
After the adjuster is set to thedesired position, try to move it up ordown without squeezing the releasebutton to make sure it has lockedinto position.
Safety Belt Pretensioners
If the vehicle has seat-mounted sideimpact airbags and roof-rail airbags,it also has safety belt pretensionersfor the front outboard occupants.
Although the safety beltpretensioners cannot be seen, theyare part of the safety belt assembly.They can help tighten the safetybelts during the early stages of amoderate to severe frontal, nearfrontal, or rear crash if the thresholdconditions for pretensioneractivation are met. And, if thevehicle has roof-rail airbags, safetybelt pretensioners can help tightenthe safety belts in a side crash or arollover event.
Pretensioners work only once. If thepretensioners are activated in acrash, the pretensioners andpossibly other parts of the safetybelt system will need to be replaced.SeeReplacing Safety Belt SystemParts after a Crash054.
Do not sit on the outboard safetybelt while entering or exiting thevehicle or at any time while sitting inthe seat. Sitting on the safety beltcan damage the webbing andhardware.
Page 52 of 346

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Seats and Restraints 51

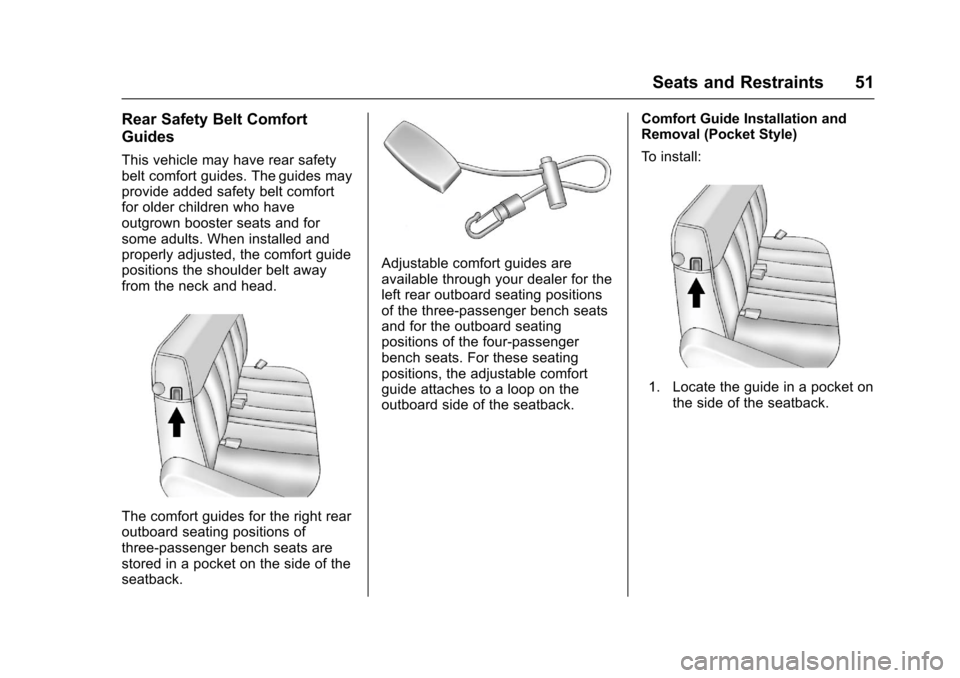

Rear Safety Belt Comfort
Guides
This vehicle may have rear safetybelt comfort guides. The guides mayprovide added safety belt comfortfor older children who haveoutgrown booster seats and forsome adults. When installed andproperly adjusted, the comfort guidepositions the shoulder belt awayfrom the neck and head.
The comfort guides for the right rearoutboard seating positions ofthree-passenger bench seats arestored in a pocket on the side of theseatback.
Adjustable comfort guides areavailable through your dealer for theleft rear outboard seating positionsof the three-passenger bench seatsand for the outboard seatingpositions of the four-passengerbench seats. For these seatingpositions, the adjustable comfortguide attaches to a loop on theoutboard side of the seatback.
Comfort Guide Installation andRemoval (Pocket Style)
To i n s t a l l :
1. Locate the guide in a pocket onthe side of the seatback.
Page 53 of 346

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
52 Seats and Restraints
2. Place the guide over the belt,and insert the two edges of thebelt into the slots of the guide.
3. Be sure that the belt is nottwisted and it lies flat. Theelastic cord must be behind thebelt with the plastic guide onthe front.
{Warning
Asafetybeltthatisnotproperly
worn may not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. The shoulder
belt should go over the shoulder
and across the chest. These parts
of the body are best able to take
belt restraining forces.
4. Buckle, position, and releasethe safety belt as describedpreviously in this section. Makesure the shoulder portion of thebelt is on the shoulder and notfalling off of it. The belt shouldbe close to, but not contacting,the neck.
To r e m o v e a n d s t o r e t h e c o m f o r tguide, squeeze the belt edgestogether so that the safety belt canbe removed from the guide. Slidethe guide into its storage pocket onthe side of the seatback.
Page 54 of 346

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Seats and Restraints 53
Comfort Guide Installation andRemoval (Adjustable Style)
{Warning
Asafetybeltthatisnotproperly
worn may not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. The shoulder
belt should go over the shoulder
and across the chest. These parts
of the body are best able to take
belt restraining forces.
Adjustable comfort guides areavailable through your dealer for theleft rear outboard seating positionsof the three-passenger bench seatsand for the outboard seatingpositions of the four-passengerbench seats. Instructions areincluded with the guides.
Safety Belt Use During
Pregnancy
Safety belts work for everyone,including pregnant women. Like alloccupants, they are more likely tobe seriously injured if they do notwear safety belts.
Apregnantwomanshouldwearalap-shoulder belt, and the lapportion should be worn as low aspossible, below the rounding,throughout the pregnancy.
The best way to protect the fetus isto protect the mother. When a safetybelt is worn properly, it is more likelythat the fetus will not be hurt in acrash. For pregnant women, as foranyone, the key to making safetybelts effective is wearing themproperly.
Safety Belt Extender
If the vehicle's safety belt will fastenaround you, you should use it.
But if a safety belt is not longenough, your dealer will order youan extender. When you go in toorder it, take the heaviest coat youwill wear, so the extender will belong enough for you. To help avoidpersonal injury, do not let someoneelse use it, and use it only for theseat it is made to fit. The extenderhas been designed for adults. Neveruse it for securing child restraints.To w e a r i t , a t t a c h i t t o t h e r e g u l a r
Page 55 of 346

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
54 Seats and Restraints
safety belt. For more information,see the instruction sheet that comeswith the extender.
Safety System Check
Check that the safety belt reminder,safety belts, buckles, latch plates,and retractors, are all workingproperly. Look for any other loose ordamaged safety belt system partsthat might keep a safety belt systemfrom performing properly. See yourdealer to have it repaired. Torn orfrayed safety belts may not protectyou in a crash. They can rip apartunder impact forces. If a belt is tornor frayed, have it replacedimmediately.
Make sure the safety belt reminderlight is working. SeeSafety BeltReminders099.
Keep safety belts clean and dry.SeeSafety Belt Care054.
Safety Belt Care
Keep belts clean and dry.
{Warning
Do not bleach or dye safety belt
webbing. It may severely weaken
the webbing. In a crash, they
might not be able to provide
adequate protection. Clean and
rinse safety belt webbing only
with mild soap and lukewarm
water. Allow the webbing to dry.
Safety belts should be properlycared for and maintained.
Safety belt hardware should be keptdry and free of dust or debris. Asnecessary exterior hard surfacesand safety belt webbing may belightly cleaned with mild soap andwater. Ensure there is not excessivedust or debris in the mechanism.If dust or debris exists in the systemplease see the dealer. Parts mayneed to be replaced to ensureproper functionality of the system.
Replacing Safety Belt
System Parts after a
Crash
{Warning
Acrashcandamagethesafety
belt system in the vehicle.
Adamagedsafetybeltsystem
may not properly protect the
person using it, resulting in
serious injury or even death in a
crash. To help make sure the
safety belt systems are working
properly after a crash, have them
inspected and any necessary
replacements made as soon as
possible.
After a minor crash, replacement ofsafety belts may not be necessary.But the safety belt assemblies thatwere used during any crash mayhave been stressed or damaged.See your dealer to have the safetybelt assemblies inspected orreplaced.
Page 56 of 346

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Seats and Restraints 55
New parts and repairs may benecessary even if the safety beltsystem was not being used at thetime of the crash.
Have the safety belt pretensionerschecked if the vehicle has been in acrash, or if the airbag readiness lightstays on after you start the vehicleor while you are driving. SeeAirbagReadiness Light099.
Airbag System
The vehicle has the followingairbag:
.Afrontalairbagforthedriver.
The vehicle may have the followingairbags:
.Afrontalairbagforthefrontoutboard passenger.
.Aseat-mountedsideimpactairbag for the driver.
.Aseat-mountedsideimpactairbag for the front outboardpassenger.
Seat-mounted side impactairbags are only available onvehicles equipped with roof-railairbags.
.Aroof-railairbagforthedriveron vans with single row seating.
.Aroof-railairbagforthefrontoutboard passenger on vanswith single row seating.
.Aroof-railairbagforthedriverand the passenger seateddirectly behind the driver onvans with two row seating.
.Aroof-railairbagforthefrontoutboard passenger and thepassenger seated directlybehind the front outboardpassenger on vans with two rowseating.
If the van is equipped with asliding door, the roof-rail airbagfor the front outboard passengeris separate from the roof-railairbag for the passenger seateddirectly behind the front outboardpassenger. If the van isequipped with a 60/40 swing-outdoor, a single roof-rail airbagcovers both seating positions.
.Aroof-railairbagforthedriverand the second and third rowpassengers seated directlybehind the driver on vans withthree or more seating rows.
.Aroof-railairbagforthefrontoutboard passenger and thesecond and third rowpassengers seated directlybehind the front outboardpassenger on vans with three ormore seating rows.
Page 57 of 346

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
56 Seats and Restraints
If the van is equipped with asliding door, the roof-rail airbagfor the front outboard passengeris separate from the roof-railairbag for the second and thirdrow passengers seated directlybehind the front outboardpassenger. If the van isequipped with a 60/40 swing-outdoor, a single roof-rail airbagcovers all three seatingpositions.
All vehicle airbags have the wordAIRBAG on the trim or on anattached label near the deploymentopening.
For frontal airbags, the wordAIRBAG is on the center of thesteering wheel for the driver and onthe instrument panel for the frontoutboard passenger.
For seat-mounted side impactairbags, the word AIRBAG is on theside of the seatback closest tothe door.
For roof-rail airbags, the wordAIRBAG is on the ceiling or trim.
Airbags are designed to supplementthe protection provided by safetybelts. Even though today’sairbagsare also designed to help reducethe risk of injury from the force of aninflating airbag, all airbags mustinflate very quickly to do their job.
Here are the most important thingsto know about the airbag system:
{Warning
Yo u c a n b e s e v e r e l y i n j u r e d o r
killed in a crash if you are not
wearing your safety belt, even
with airbags. Airbags are
designed to work with safety
belts, not replace them. Also,
airbags are not designed to inflate
in every crash. In some crashes
safety belts are the only restraint.
SeeWhen Should an Airbag
Inflate?059.
Wearing your safety belt during a
crash helps reduce your chance
of hitting things inside the vehicle
or being ejected from it. Airbags
(Continued)
Warning (Continued)
are“supplemental restraints”to
the safety belts. Everyone in the
vehicle should wear a safety belt
properly, whether or not there is
an airbag for that person.
{Warning
Because airbags inflate with great
force and faster than the blink of
an eye, anyone who is up
against, or very close to any
airbag when it inflates can be
seriously injured or killed. Do not
sit unnecessarily close to any
airbag, as you would be if sitting
on the edge of the seat or leaning
forward. Safety belts help keep
you in position before and during
acrash.Alwayswearasafety
belt, even with airbags. The driver
should sit as far back as possible
while still maintaining control of
the vehicle. The safety belts and
(Continued)
Page 58 of 346

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Seats and Restraints 57
Warning (Continued)
the front outboard passenger
airbags are most effective when
you are sitting well back and
upright in the seat with both feet
on the floor.
Occupants should not lean on or
sleep against the door or side
windows in seating positions with
seat-mounted side impact airbags
and/or roof-rail airbags.
{Warning
Children who are up against,
or very close to, any airbag when
it inflates can be seriously injured
or killed. Always secure children
properly in the vehicle. To read
how, seeOlder Children066or
Infants and Young Children068.
There is an airbag readiness lighton the instrument panel, whichshows the airbag symbol.
The system checks the airbagelectrical system for malfunctions.The light tells you if there is anelectrical problem. SeeAirbagReadiness Light099.
Where Are the Airbags?
The driver frontal airbag is in thecenter of the steering wheel.
If the vehicle has a front outboardpassenger frontal airbag, it is in thepassenger side instrument panel.
Page 59 of 346

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
58 Seats and Restraints

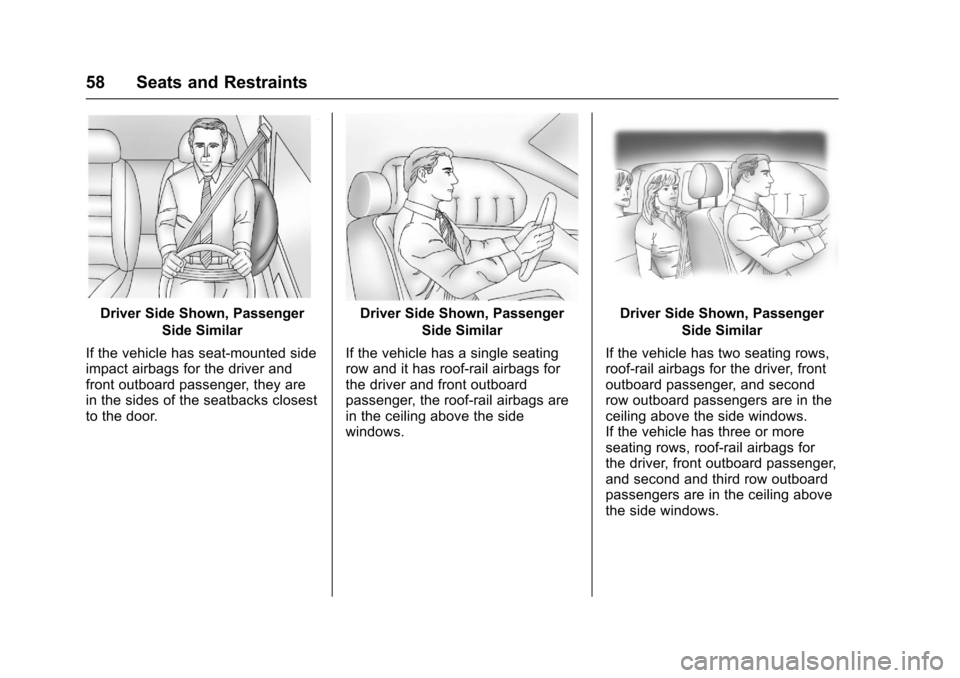

Driver Side Shown, Passenger
Side Similar
If the vehicle has seat-mounted sideimpact airbags for the driver andfront outboard passenger, they arein the sides of the seatbacks closestto the door.
Driver Side Shown, Passenger
Side Similar
If the vehicle has a single seatingrow and it has roof-rail airbags forthe driver and front outboardpassenger, the roof-rail airbags arein the ceiling above the sidewindows.
Driver Side Shown, Passenger
Side Similar
If the vehicle has two seating rows,roof-rail airbags for the driver, frontoutboard passenger, and secondrow outboard passengers are in theceiling above the side windows.If the vehicle has three or moreseating rows, roof-rail airbags forthe driver, front outboard passenger,and second and third row outboardpassengers are in the ceiling abovethe side windows.
Page 60 of 346

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Seats and Restraints 59
{Warning
If something is between an
occupant and an airbag, the
airbag might not inflate properly
or it might force the object into
that person causing severe injury
or even death. The path of an
inflating airbag must be kept
clear. Do not put anything
between an occupant and an
airbag, and do not attach or put
anything on the steering wheel
hub or on or near any other
airbag covering.
Do not use seat accessories that
block the inflation path of a
seat-mounted side impact airbag.
Never secure anything to the roof
of a vehicle with roof-rail airbags
by routing a rope or tie⇣down
through any door or window
opening. If you do, the path of an
inflating roof-rail airbag will be
blocked.

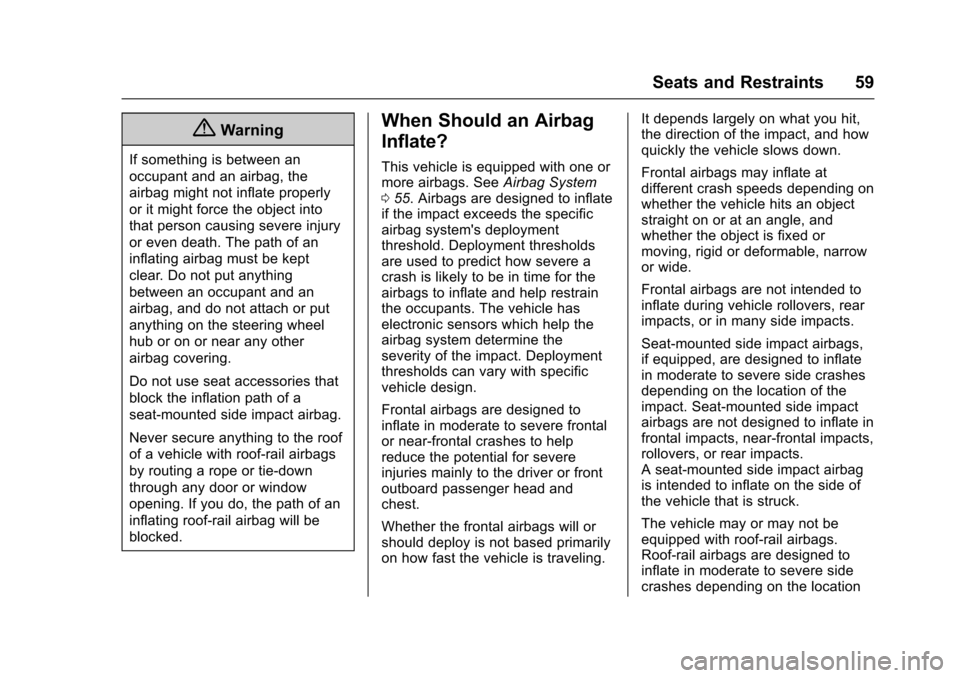

When Should an Airbag
Inflate?
This vehicle is equipped with one ormore airbags. SeeAirbag System055.Airbagsaredesignedtoinflateif the impact exceeds the specificairbag system's deploymentthreshold. Deployment thresholdsare used to predict how severe acrash is likely to be in time for theairbags to inflate and help restrainthe occupants. The vehicle haselectronic sensors which help theairbag system determine theseverity of the impact. Deploymentthresholds can vary with specificvehicle design.
Frontal airbags are designed toinflate in moderate to severe frontalor near-frontal crashes to helpreduce the potential for severeinjuries mainly to the driver or frontoutboard passenger head andchest.
Whether the frontal airbags will orshould deploy is not based primarilyon how fast the vehicle is traveling.
It depends largely on what you hit,the direction of the impact, and howquickly the vehicle slows down.
Frontal airbags may inflate atdifferent crash speeds depending onwhether the vehicle hits an objectstraight on or at an angle, andwhether the object is fixed ormoving, rigid or deformable, narrowor wide.
Frontal airbags are not intended toinflate during vehicle rollovers, rearimpacts, or in many side impacts.
Seat-mounted side impact airbags,if equipped, are designed to inflatein moderate to severe side crashesdepending on the location of theimpact. Seat-mounted side impactairbags are not designed to inflate infrontal impacts, near-frontal impacts,rollovers, or rear impacts.Aseat-mountedsideimpactairbagis intended to inflate on the side ofthe vehicle that is struck.
The vehicle may or may not beequipped with roof-rail airbags.Roof-rail airbags are designed toinflate in moderate to severe sidecrashes depending on the location
