CHEVROLET HHR 2007 1.G Owners Manual

Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 8
Rear Seats
............................................. 17
Safety Belts
............................................ 20
Child Restraints
...................................... 43
Airbag System
........................................ 71
Restraint System Check
......................... 90
Features and Controls
................................ 93
Keys
....................................................... 95
Doors and Locks
.................................. 103
Windows
............................................... 109
Theft-Deterrent Systems
....................... 111
Starting and Operating Your Vehicle
..... 115
Mirrors
.................................................. 134OnStar®System
................................... 139
Storage Areas
...................................... 143
Sunroof
................................................ 147
Instrument Panel
....................................... 149
Instrument Panel Overview
................... 152
Climate Controls
................................... 170
Warning Lights, Gages, and Indicators
.... 177
Driver Information Center (DIC)
............ 194
Audio System(s)
................................... 206
Driving Your Vehicle
................................. 237
Your Driving, the Road, and
Your Vehicle
..................................... 238
Towing
................................................. 274
2007 Chevrolet HHR Owner ManualM
1

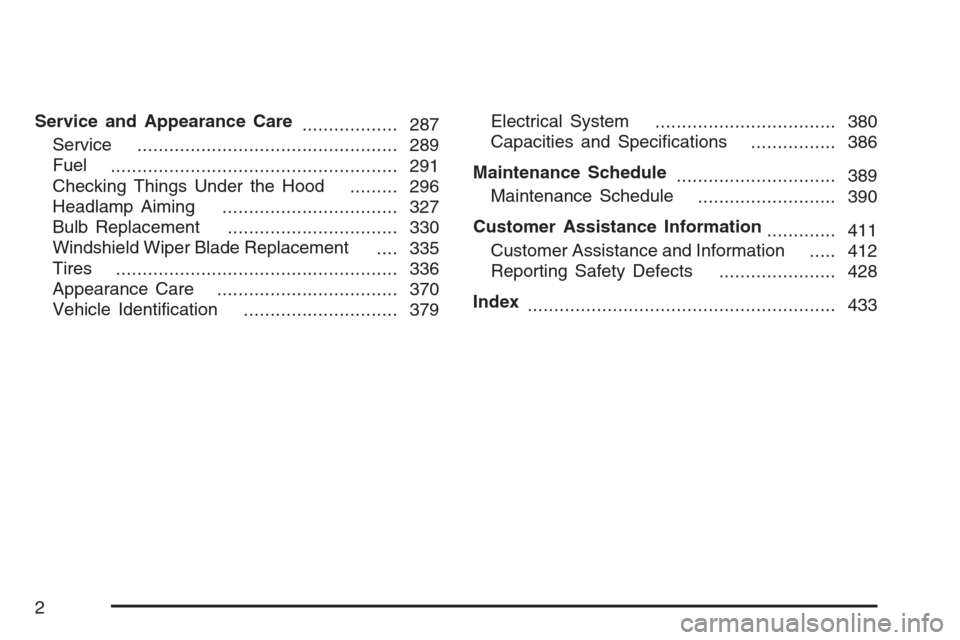

Service and Appearance Care
.................. 287
Service
................................................. 289
Fuel
...................................................... 291
Checking Things Under the Hood
......... 296
Headlamp Aiming
................................. 327
Bulb Replacement
................................ 330
Windshield Wiper Blade Replacement
.... 335
Tires
..................................................... 336
Appearance Care
.................................. 370
Vehicle Identication
............................. 379Electrical System
.................................. 380
Capacities and Specications
................ 386
Maintenance Schedule
.............................. 389
Maintenance Schedule
.......................... 390
Customer Assistance Information
............. 411
Customer Assistance and Information
..... 412
Reporting Safety Defects
...................... 428
Index
.......................................................... 433
2

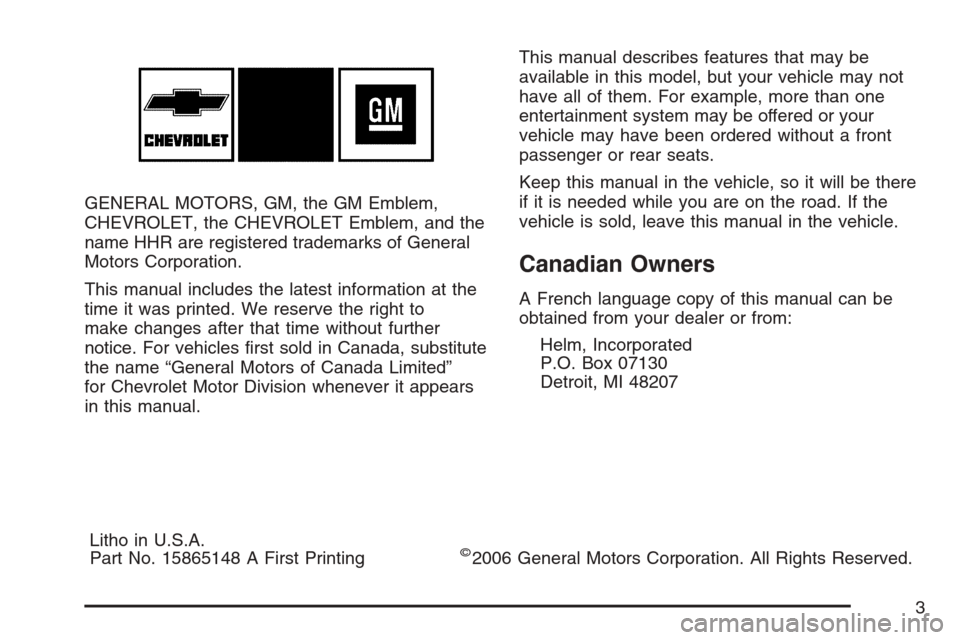

GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, the CHEVROLET Emblem, and the
name HHR are registered trademarks of General
Motors Corporation.
This manual includes the latest information at the
time it was printed. We reserve the right to
make changes after that time without further
notice. For vehicles rst sold in Canada, substitute
the name “General Motors of Canada Limited”
for Chevrolet Motor Division whenever it appears
in this manual.This manual describes features that may be
available in this model, but your vehicle may not
have all of them. For example, more than one
entertainment system may be offered or your
vehicle may have been ordered without a front
passenger or rear seats.
Keep this manual in the vehicle, so it will be there
if it is needed while you are on the road. If the
vehicle is sold, leave this manual in the vehicle.
Canadian Owners
A French language copy of this manual can be
obtained from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Litho in U.S.A.
Part No. 15865148 A First Printing
©2006 General Motors Corporation. All Rights Reserved.
3

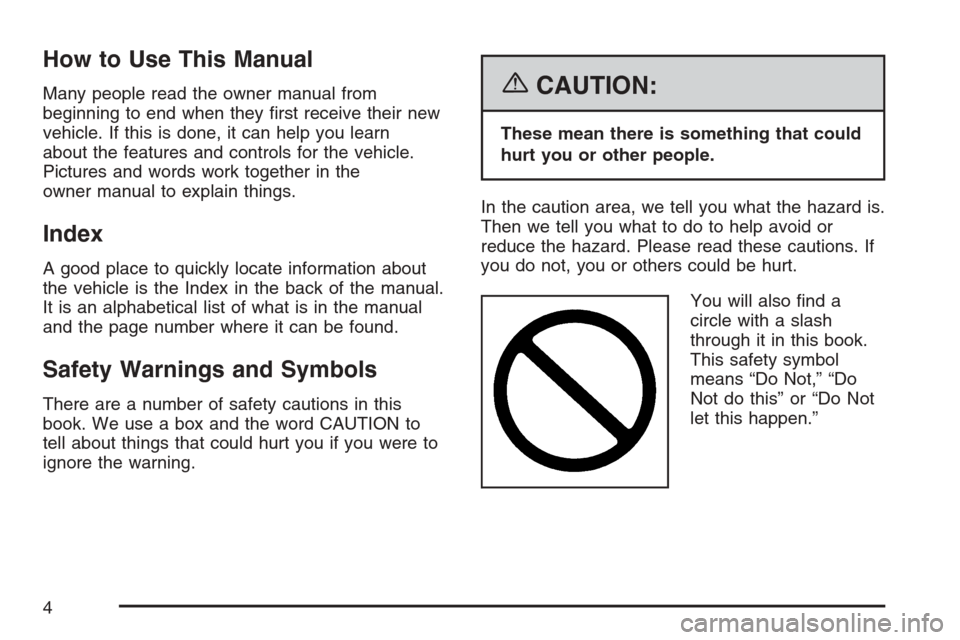

How to Use This Manual
Many people read the owner manual from
beginning to end when they rst receive their new
vehicle. If this is done, it can help you learn
about the features and controls for the vehicle.
Pictures and words work together in the
owner manual to explain things.
Index
A good place to quickly locate information about
the vehicle is the Index in the back of the manual.
It is an alphabetical list of what is in the manual
and the page number where it can be found.
Safety Warnings and Symbols
There are a number of safety cautions in this
book. We use a box and the word CAUTION to
tell about things that could hurt you if you were to
ignore the warning.
{CAUTION:
These mean there is something that could
hurt you or other people.
In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or
reduce the hazard. Please read these cautions. If
you do not, you or others could be hurt.
You will also nd a
circle with a slash
through it in this book.
This safety symbol
means “Do Not,” “Do
Not do this” or “Do Not
let this happen.”
4

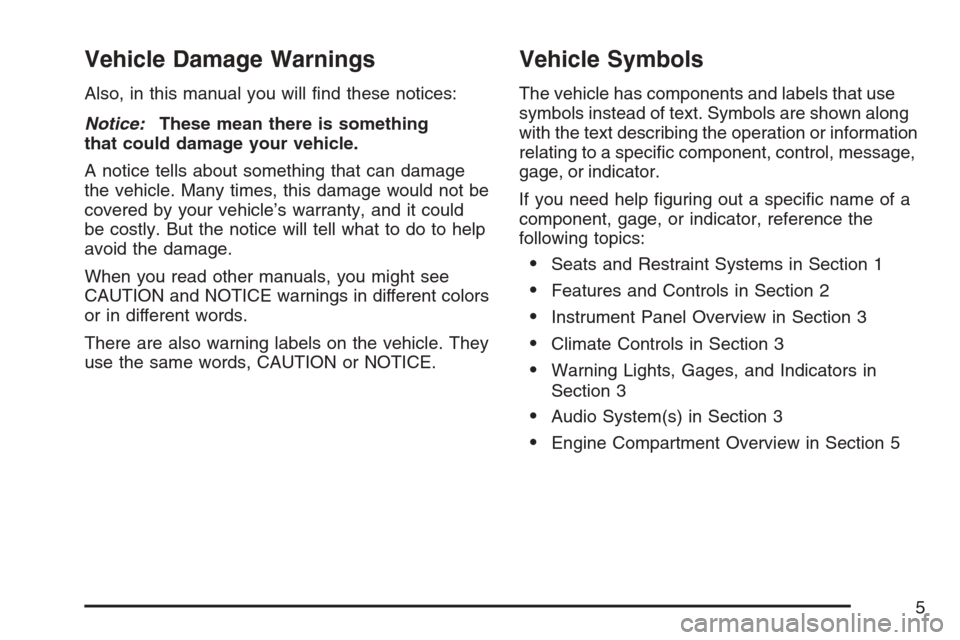

Vehicle Damage Warnings
Also, in this manual you will nd these notices:
Notice:These mean there is something
that could damage your vehicle.
A notice tells about something that can damage
the vehicle. Many times, this damage would not be
covered by your vehicle’s warranty, and it could
be costly. But the notice will tell what to do to help
avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle. They
use the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along
with the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
If you need help guring out a specic name of a
component, gage, or indicator, reference the
following topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in
Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
5

These are some examples of symbols that may be found on the vehicle:
6

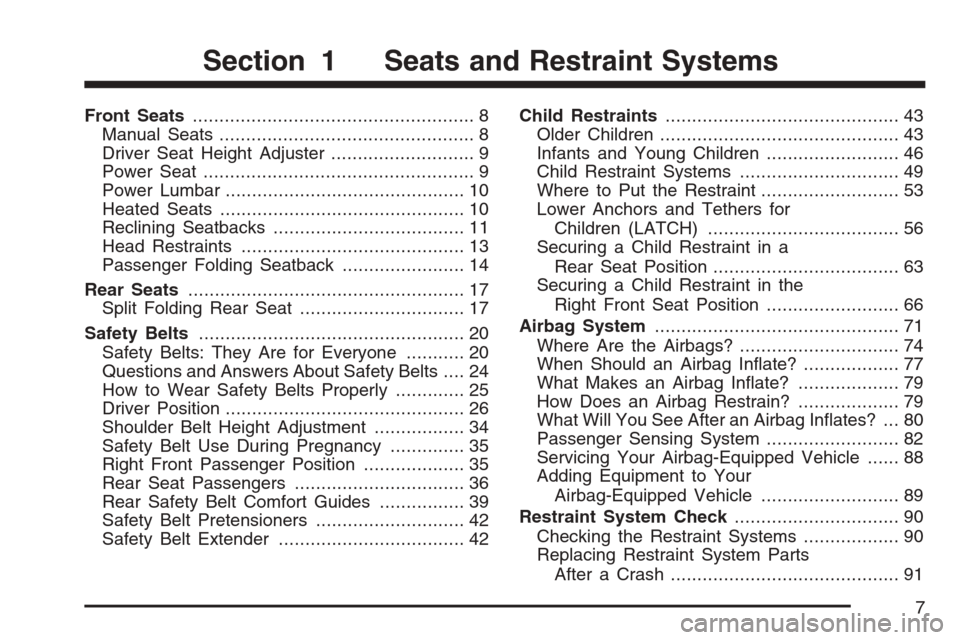

Front Seats..................................................... 8
Manual Seats................................................ 8
Driver Seat Height Adjuster........................... 9
Power Seat................................................... 9
Power Lumbar............................................. 10
Heated Seats.............................................. 10
Reclining Seatbacks.................................... 11
Head Restraints.......................................... 13
Passenger Folding Seatback....................... 14
Rear Seats.................................................... 17
Split Folding Rear Seat............................... 17
Safety Belts.................................................. 20
Safety Belts: They Are for Everyone........... 20
Questions and Answers About Safety Belts.... 24
How to Wear Safety Belts Properly............. 25
Driver Position............................................. 26
Shoulder Belt Height Adjustment................. 34
Safety Belt Use During Pregnancy.............. 35
Right Front Passenger Position................... 35
Rear Seat Passengers................................ 36
Rear Safety Belt Comfort Guides................ 39
Safety Belt Pretensioners............................ 42
Safety Belt Extender................................... 42Child Restraints............................................ 43
Older Children............................................. 43
Infants and Young Children......................... 46
Child Restraint Systems.............................. 49
Where to Put the Restraint.......................... 53
Lower Anchors and Tethers for
Children (LATCH).................................... 56
Securing a Child Restraint in a
Rear Seat Position................................... 63
Securing a Child Restraint in the
Right Front Seat Position......................... 66
Airbag System.............................................. 71
Where Are the Airbags?.............................. 74
When Should an Airbag Inate?.................. 77
What Makes an Airbag Inate?................... 79
How Does an Airbag Restrain?................... 79
What Will You See After an Airbag Inates? ... 80
Passenger Sensing System......................... 82
Servicing Your Airbag-Equipped Vehicle...... 88
Adding Equipment to Your
Airbag-Equipped Vehicle.......................... 89
Restraint System Check............................... 90
Checking the Restraint Systems.................. 90
Replacing Restraint System Parts
After a Crash........................................... 91
Section 1 Seats and Restraint Systems
7

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you
try to adjust a manual driver’s seat while
the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.Lift the bar located under the front of the seat to
unlock it. Slide the seat to where you want it
and release the bar. Try to move the seat with your
body to be sure the seat is locked in place.
8

Driver Seat Height Adjuster
If your vehicle has this feature, the driver’s seat
height adjuster is located on the outboard
side of the seat.
To raise the seat, move the lever upward
repeatedly until the seat is at the desired height.
To lower the seat, move the lever downward
repeatedly until the seat is at the desired height.
Power Seat
If the vehicle has a power seat, the control used
to operate it is located on the outboard side of the
driver’s seat. To adjust the seat, do any of the
following:
Move the seat forward or rearward by sliding
the control forward or rearward.
Raise or lower the front part of the seat cushion
by holding the front of the control up or down.
Raise or lower the entire seat by holding the
rear of the control up or down.
Driver’s Seat with Power Seat Control and
Power Lumbar shown
9

Power Lumbar
If your vehicle has this feature, the control is
located on the outboard side of the driver’s seat
cushion.
To increase support, press and hold the front of
the control. To decrease support, press and
hold the rear of the control. Keep in mind that as
your seating position changes, as it may during
long trips, so should the position of your lumbar
support. Adjust the seat as needed.
Heated Seats
If your vehicle has this
feature, the driver’s and
passenger’s heated
seat buttons are located
on the climate control
panel below the
fan switch.
Press the button once to turn the heated seat to
the high setting. Both lights below the heated seat
symbol will come on. Press the button a second
time and the heated seat will go to the low setting.
The bottom light will come on to indicate that
the setting is on low. Press the button a third time
to turn the heated seat off.
The heated seat feature will need to be turned on
each time the ignition is turned off and back on
again.
Driver’s side button
shown, Passenger’s
side button similar
10
