CHEVROLET IMPALA 2002 8.G Owners Manual

2-65
Ashtrays and Lighter
The front ashtray may be on the instrument panel or
on the console. To remove the instrument panel ashtray,
open it, push down on the locking tab and pull out
the ashtray.
To remove the console ashtray, open the ashtray door,
lift up on the ashtray and pull it out.
If your vehicle is equipped with a center console, a rear
ashtray is located behind a small door at the rear of the
console. Push on the right side of the door. The ashtray
will then turn to the right for usage. You can only access
the ashtray by pushing on the door's right side. To
remove the ashtray, push down on the snuffer located in
the middle of the ashtray and lift it out.
NOTICE:
Don't put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire,
causing damage.
To use the lighter, just push it in all the way and let go.
When it's ready, it will pop back out by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
Sun Visors
To block out glare, you can swing down the visors. You
can also move them from side to side. The visors also
have extenders that you can pull out for added coverage.
Visor Vanity Mirrors
Open the cover to expose the vanity mirror.
If your vehicle has the lighted vanity mirrors, the lamps
come on when you open the cover.

2-66
Accessory Power Outlet
Your vehicle has a
12
-volt outlet which
can be used to plug in
electrical equipment such
as a cellular telephone, a
compact disc player, etc.
Console Version Shown
On vehicles with a center console, it is located at the
rear of the console. Lift the cover to access the outlet.
Close the cover when not using the outlet.On vehicles without a center console, it is located in the
ashtray drawer to the right of the ashtray. Remove the
rubber cover to access the outlet. When not using the
outlet, make sure the cover is on it.
NOTICE:
When using accessory power outlets:

Maximum load of any outlet should not
exceed the amperage rating.

Be sure to turn off electrical equipment
when not in use. Leaving electrical
equipment on for extended periods can
drain the battery.

2-67

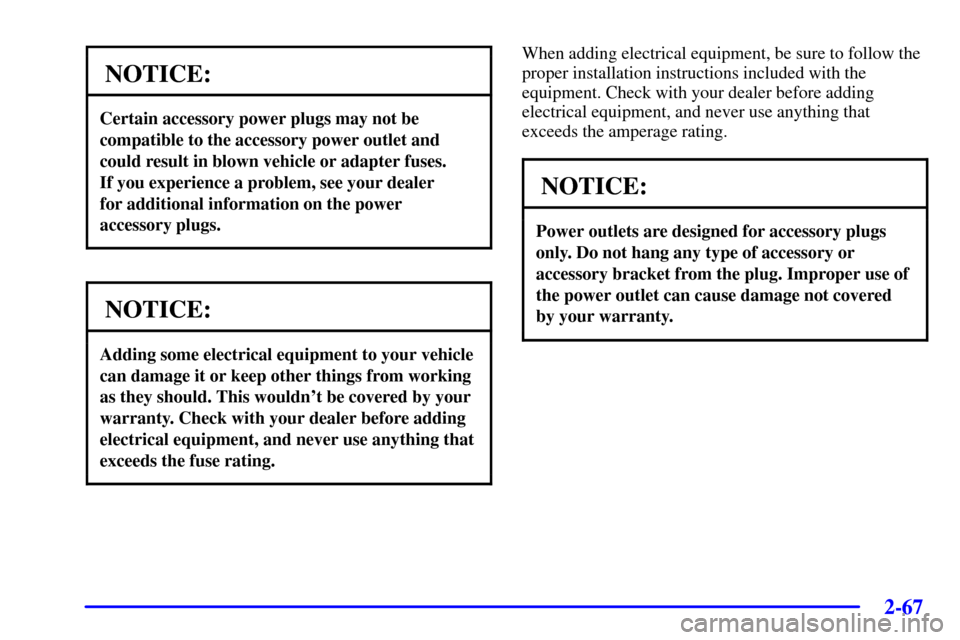

NOTICE:
Certain accessory power plugs may not be
compatible to the accessory power outlet and
could result in blown vehicle or adapter fuses.
If you experience a problem, see your dealer
for additional information on the power
accessory plugs.
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the fuse rating.
When adding electrical equipment, be sure to follow the
proper installation instructions included with the
equipment. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the amperage rating.
NOTICE:
Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of
the power outlet can cause damage not covered
by your warranty.

2-68
Auxiliary Power Connection
(Power Drop)
Your vehicle is equipped with an auxiliary power
connection. This feature provides power, ground and
accessory wires which can be accessed to add
aftermarket electrical equipment to your vehicle.
It is located on the passenger's side of the vehicle, under
the glove box, and is labeled with a wire function and
fuse rating.
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the fuse rating.
For information on accessing the connection and
electrical hookup, please refer to your service manual.
To order a service manual, see ªService Publications,
Orderingº in the Index.

2-69
OnStar
System (If Equipped)
OnStar is a vehicle communications system that offers a
variety of services and provides a one
-touch hands-free
communication link between you and the OnStar Center.
To receive OnStar services, a service subscription
agreement is required and an additional fee may be
required. Services are available 24 hours a day, 7 days a
week. For more information, call 1
-888-ONSTAR-7
(1
-888-667-8277).
OnStar Services Button: Press this button once
to contact an advisor who will be able to assist you with
these services. If you are not quickly connected, the
system will automatically reset and redial. This ensures
connection to the center; there is no additional action
required. Press the Communication button to cancel the
automatic redial.
Emergency Button: In an emergency situation,
press the emergency service button. Upon receiving the
call, an advisor at the center will locate your vehicle and
assess the situation. If necessary, the advisor will alert
the nearest emergency service provider.
Communication Button: Press this button at
the end of a call. Also press this button to answer a
call from the center, or cancel a call if one of the other
buttons is accidentally pressed. This button is also used
to access OnStar Personal Calling and Virtual Advisor
services. See the OnStar owner package for
more information.

2-70
Volume Control: You can control the volume of
the OnStar System using either the volume knob
on the radio or using the optional steering wheel
volume control.
Telltale Light: This light will indicate the status of
the system. A solid green light will come on when you
start the vehicle to let you know that the system is on
and is ready to make or receive calls.
If the light blinks green it means that an incoming or
outgoing call is in progress. Press the Communication
button if you notice the light blinking and you are not
on a call.
The light will be red in the event of an OnStar system
malfunction. If this occurs press the OnStar Services
button to attempt to contact an advisor. If the connection
is made, the advisor will assist you with steps to take to
make sure that the system is functioning properly. If you
cannot contact the advisor, take your vehicle to your
dealership as soon as possible for assistance.
Cellular Antenna
The cellular antenna on the outside of your vehicle is
critical to effective communications using the OnStar
system. Optimum cellular reception can be obtained
when the mast is straight up and down.
OnStar Services
The following services are available within OnStar
service plans. Your vehicle comes with a specific
one
-year service plan that allows use of some or all of
the following services.
Automatic Notification of Air Bag Deployment: If an
air bag deploys, a priority emergency signal is
automatically sent to the center. An advisor will locate
your vehicle's position, try to contact you and assist you
in the situation. If the center is unable to contact you,
an emergency service provider will be contacted.
Stolen Vehicle Tracking: Call the center at
1
-888-4-ONSTAR (1-888-466-7827) to report your
vehicle stolen. The system can then attempt to locate
and track your vehicle and the advisor will assist the
proper authorities.
Roadside Assistance with Location: For vehicle
breakdowns, press the OnStar Services button.
An advisor will contact the appropriate help.

2-71
Remote Diagnostics: If an instrument panel light comes
on, press the OnStar Services button. An advisor can
perform a check of the engine on
-board computer, and
recommend what action needs to be taken.
OnStar MED
-NET: Med-Net can store your personal
medical history and provide it to emergency personnel if
necessary. (Requires activation and additional fee).
Accident Assist: An advisor can provide step
-by-step
guidance following an accident.
Remote Door Unlock: To contact the center, call
1
-888-4-ONSTAR. You will be required to provide
your security information. An advisor will send a
command to your vehicle to unlock itself. The advisor
can delay unlocking your vehicle. Remote Door Unlock
is disabled 48 hours after the vehicle is parked to
maintain the battery charge.Vehicle Locator Service: To contact the center, call
1
-888-4-ONSTAR. You will be required to provide your
security information. An advisor will send a command
to your vehicle to sound the horn and/or flash the lamps.
Route Support: An advisor can provide directions or
guidance to most places you want to go. In addition,
they can help you locate gas stations, rest areas, ATMs,
hospitals, hotels, stores, eateries and more.
Ride Assist: An advisor can locate transportation in the
event that you are unable to drive.
Concierge Services: The concierge advisor can obtain
tickets, reservations, or help with vacation/trip planning
and other unique items and services.

2-72 OnStar System Limitations
Complete limitations can be found on the Subscriber
Services Agreement. In order to provide you with
excellent service, calls with the OnStar Center may
be monitored or recorded.
OnStar Service is:

available in the United States and Canada;

available when the vehicle is within the operating
range of a cellular provider;

subject to limitations caused by atmospheric
conditions, such as severe weather or topographical
conditions, such as mountainous terrain;

subject to cellular carrier equipment limitations.
Global positioning locating capabilities will not be
available if satellite signals are obstructed.OnStar will not function if the vehicle's battery is
discharged or disconnected. It may also be inoperative if
the vehicle is in an accident and the OnStar or vehicle
electrical system components are damaged.
OnStar is the communication link between you and
existing governmental emergency and roadside service
providers. OnStar will receive your call and use
reasonable effort to contact an appropriate provider.
OnStar cannot promise that the providers will respond in
a timely manner or at all.
Assist Handles (If Equipped)
An assist handle above each passenger door can be used
when getting out of your vehicle.
The rear assist handles also include courtesy and reading
lamps. See ªInterior Lampsº in the Index.
Garment Hooks
For your convenience, garment hooks are attached to the
headliner in the rear of the vehicle.

2-73
Power Sunroof (Option)
Your vehicle may have an express-open sunroof. It
includes a sliding and tilting glass panel and a sunshade.
The switch is located on the overhead console if the
vehicle is equipped with a Driver Information Center
(DIC). If the vehicle is not equipped with a DIC,
sunroof switch is located on the roof panel headliner.
To open the power
sunroof, press the
switch to the rear twice
and the power sunroof
will fully open.
DIC Version Shown
The switch works only when the ignition is in ACC, ON
or when Retained Accessory Power (RAP) is active.Open/Express
-Open:To activate the express-open
feature, push the switch rearward. You can stop the
power sunroof before it is completely open by pushing
the switch forward.
Vent:Your sunroof also has a vent feature. It can
be activated from the closed sunroof position by
pushing the switch once rearward. To close, push and
hold the sunroof switch forward. When using this
feature, the sunshade should be fully opened in the
rearward position.
The sunshade can be opened manually by sliding it
rearward or automatically by opening the power
sunroof. You will need to close the sunshade manually
by sliding it forward.
Close:To close the sunroof, push the switch forward and
hold until the sunroof motor stops, or release the switch
when the desired position has been reached.

2-74
HomeLink
Transmitter (Option)This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including interference
that may cause undesired operation of the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
