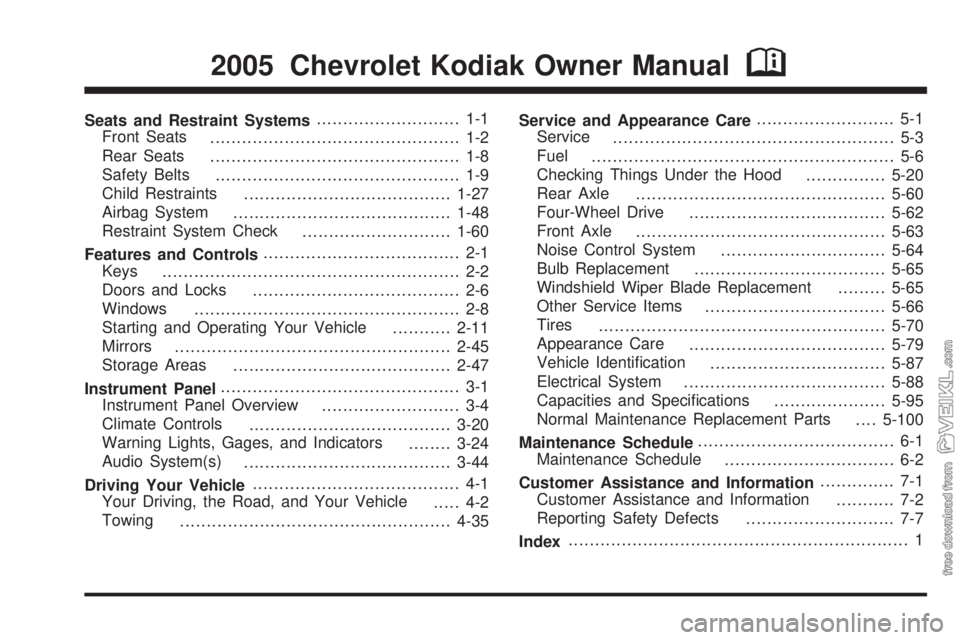

CHEVROLET KODIAK 2005 Owners Manual
Manufacturer: CHEVROLET, Model Year: 2005, Model line: KODIAK, Model: CHEVROLET KODIAK 2005Pages: 374, PDF Size: 5.46 MB
Page 1 of 374
Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-8
Safety Belts
.............................................. 1-9
Child Restraints
.......................................1-27
Airbag System
.........................................1-48
Restraint System Check
............................1-60
Features and Controls..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-6
Windows
.................................................. 2-8
Starting and Operating Your Vehicle
...........2-11
Mirrors
....................................................2-45
Storage Areas
.........................................2-47
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-20
Warning Lights, Gages, and Indicators
........3-24
Audio System(s)
.......................................3-44
Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-35Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-6
Checking Things Under the Hood
...............5-20
Rear Axle
...............................................5-60
Four-Wheel Drive
.....................................5-62
Front Axle
...............................................5-63
Noise Control System
...............................5-64
Bulb Replacement
....................................5-65
Windshield Wiper Blade Replacement
.........5-65
Other Service Items
..................................5-66
Tires
......................................................5-70
Appearance Care
.....................................5-79
Vehicle Identification
.................................5-87
Electrical System
......................................5-88
Capacities and Specifications
.....................5-95
Normal Maintenance Replacement Parts
....5-100
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
............................ 7-7
Index................................................................ 1
2005 Chevrolet Kodiak Owner ManualM
Page 2 of 374

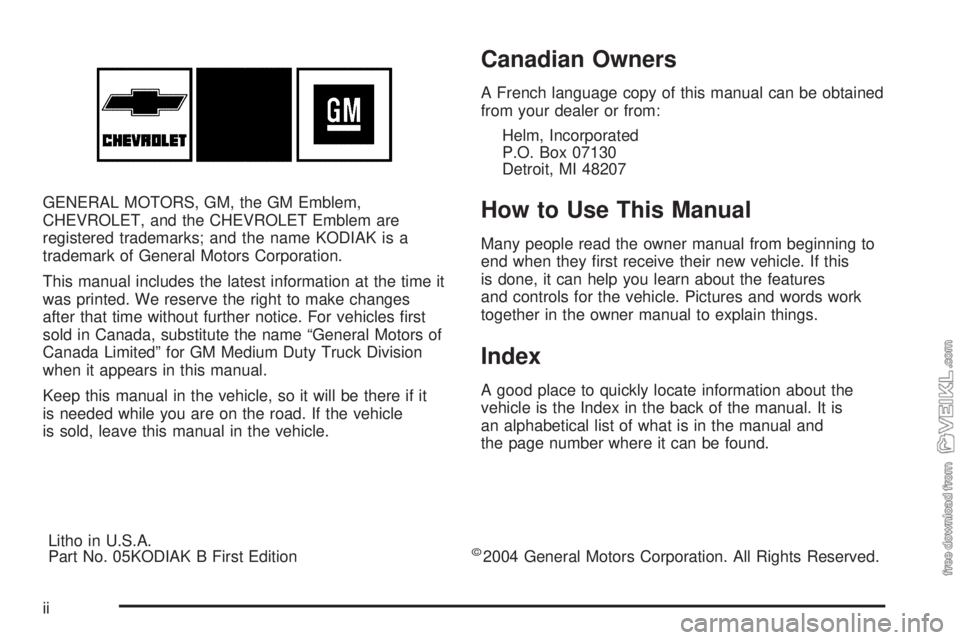

GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, and the CHEVROLET Emblem are
registered trademarks; and the name KODIAK is a
trademark of General Motors Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes
after that time without further notice. For vehicles first
sold in Canada, substitute the name “General Motors of
Canada Limited” for GM Medium Duty Truck Division
when it appears in this manual.
Keep this manual in the vehicle, so it will be there if it
is needed while you are on the road. If the vehicle
is sold, leave this manual in the vehicle.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
How to Use This Manual
Many people read the owner manual from beginning to
end when they first receive their new vehicle. If this
is done, it can help you learn about the features
and controls for the vehicle. Pictures and words work
together in the owner manual to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is
an alphabetical list of what is in the manual and
the page number where it can be found.
Litho in U.S.A.
Part No. 05KODIAK B First Edition
©2004 General Motors Corporation. All Rights Reserved.
ii
Page 3 of 374
Safety Warnings and Symbols
There are a number of safety cautions in this book.
We use a box and the word CAUTION to tell about
things that could hurt you if you were to ignore
the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce the
hazard. Please read these cautions. If you do not,
you or others could be hurt.
You will also find a circle
with a slash through it in
this book. This safety
symbol means “Do Not,”
“Do Not do this” or “Do Not
let this happen.”
iii
Page 4 of 374

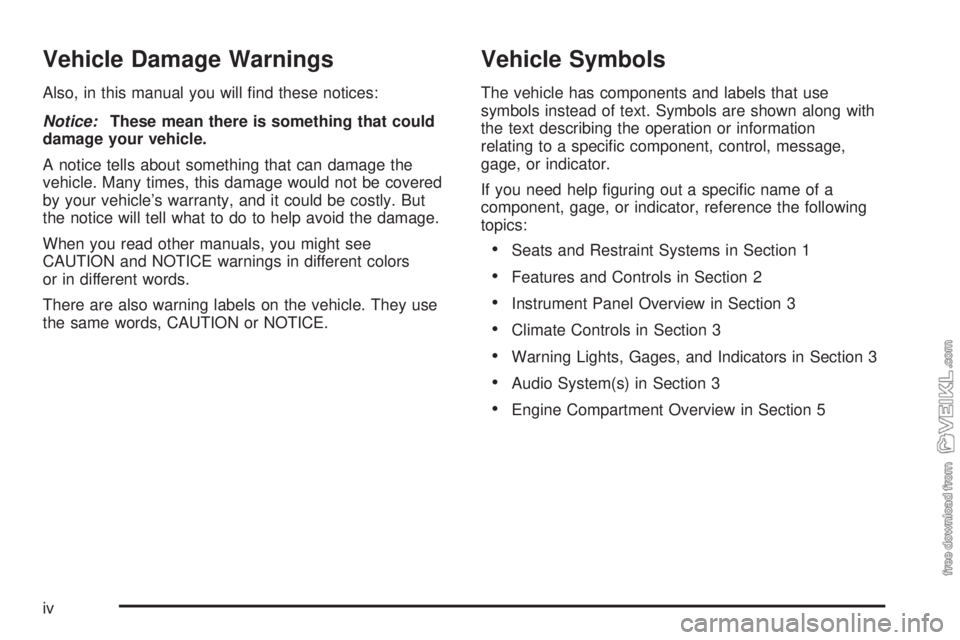

Vehicle Damage Warnings
Also, in this manual you will find these notices:
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly. But
the notice will tell what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle. They use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specific component, control, message,
gage, or indicator.
If you need help figuring out a specific name of a
component, gage, or indicator, reference the following
topics:
•Seats and Restraint Systems in Section 1
•Features and Controls in Section 2
•Instrument Panel Overview in Section 3
•Climate Controls in Section 3
•Warning Lights, Gages, and Indicators in Section 3
•Audio System(s) in Section 3
•Engine Compartment Overview in Section 5
iv
Page 5 of 374
These are some examples of symbols that may be found on the vehicle:
v
Page 6 of 374
✍NOTES
vi
Page 7 of 374

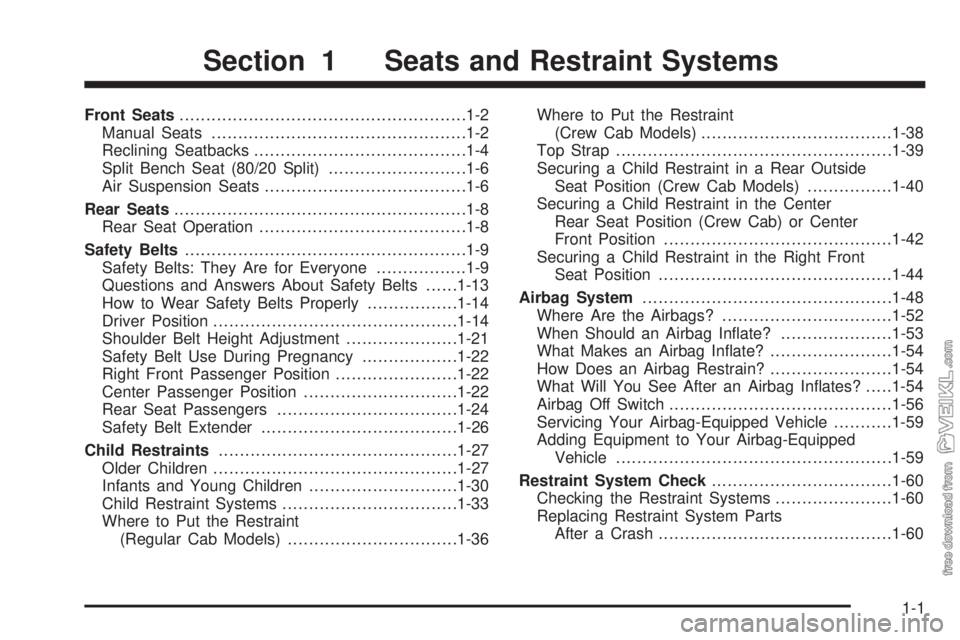

Front Seats......................................................1-2
Manual Seats................................................1-2
Reclining Seatbacks........................................1-4
Split Bench Seat (80/20 Split)..........................1-6
Air Suspension Seats......................................1-6
Rear Seats.......................................................1-8
Rear Seat Operation.......................................1-8
Safety Belts.....................................................1-9
Safety Belts: They Are for Everyone.................1-9
Questions and Answers About Safety Belts......1-13
How to Wear Safety Belts Properly.................1-14
Driver Position..............................................1-14
Shoulder Belt Height Adjustment.....................1-21
Safety Belt Use During Pregnancy..................1-22
Right Front Passenger Position.......................1-22
Center Passenger Position.............................1-22
Rear Seat Passengers..................................1-24
Safety Belt Extender.....................................1-26
Child Restraints.............................................1-27
Older Children..............................................1-27
Infants and Young Children............................1-30
Child Restraint Systems.................................1-33
Where to Put the Restraint
(Regular Cab Models)................................1-36Where to Put the Restraint
(Crew Cab Models)....................................1-38
Top Strap....................................................1-39
Securing a Child Restraint in a Rear Outside
Seat Position (Crew Cab Models)................1-40
Securing a Child Restraint in the Center
Rear Seat Position (Crew Cab) or Center
Front Position...........................................1-42
Securing a Child Restraint in the Right Front
Seat Position............................................1-44
Airbag System...............................................1-48
Where Are the Airbags?................................1-52
When Should an Airbag Inflate?.....................1-53
What Makes an Airbag Inflate?.......................1-54
How Does an Airbag Restrain?.......................1-54
What Will You See After an Airbag Inflates?.....1-54
Airbag Off Switch..........................................1-56
Servicing Your Airbag-Equipped Vehicle...........1-59
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-59
Restraint System Check..................................1-60
Checking the Restraint Systems......................1-60
Replacing Restraint System Parts
After a Crash............................................1-60
Section 1 Seats and Restraint Systems
1-1
Page 8 of 374
Front Seats
Manual Seats
Bucket Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust the seat while the vehicle is moving.
The sudden movement could startle and
confuse you, or make you push a pedal when
you do not want to. Adjust the driver’s seat
only when the vehicle is not moving.If your vehicle has bucket seats, you can adjust them
forward or rearward with the lever located at the front
of the seat.
To adjust the seat, pull the lever up, slide the seat to
where you want it and release the lever. Then try to
move the seat with your body to make sure the seat
is locked in place.
1-2
Page 9 of 374
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
Lumbar Adjustments
The lumbar adjustment
knob is located on the
seatback, on the inboard
side of the driver’s seat and
on the outboard side of the
passenger’s seat.
For more support to your lower back, turn the lumbar
adjustment knob clockwise. To decrease the amount of
lumbar support, turn the knob counterclockwise.
Seatback Adjustment
The seatback adjustment
knob is located on the
inboard side of the
driver’s and passenger’s
seat cushions.
To tilt the seatback rearward, turn the knob
counterclockwise. Turn the knob clockwise to tilt the
seat forward.
1-3
Page 10 of 374
Fore-and-Aft Adjustment
The fore-and-aft
adjustment lever is
located underneath the
seat, in the front.
To slide the seat forward or rearward, move the lever
toward the driver’s door. The seat will lock in at 1/2 inch
(1.5 cm) increments.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
Reclining Seatbacks
If your vehicle has non-suspension bucket seats, you
can recline the seatbacks. The lever is located on
the outboard side of the seat cushion.
To recline the seatback, lift the lever and use your body
to move the seatback. Release the lever to lock the
seatback where you want it. Lean forward and pull up on
the lever to return the seatback to an upright position.
1-4
