CHEVROLET KODIAK 2005 Owners Manual

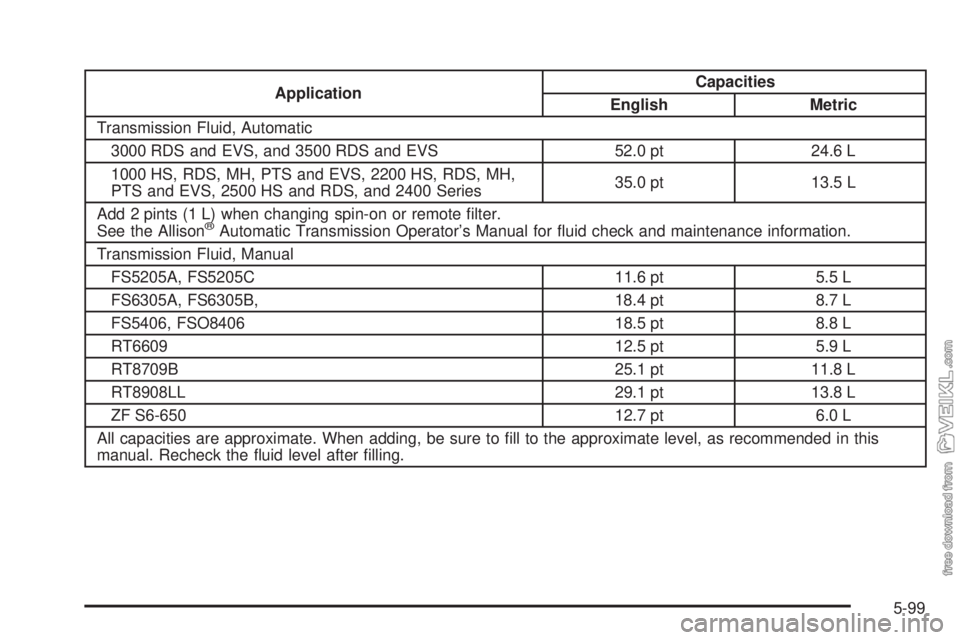

ApplicationCapacities
English Metric
Transmission Fluid, Automatic
3000 RDS and EVS, and 3500 RDS and EVS 52.0 pt 24.6 L
1000 HS, RDS, MH, PTS and EVS, 2200 HS, RDS, MH,
PTS and EVS, 2500 HS and RDS, and 2400 Series35.0 pt 13.5 L
Add 2 pints (1 L) when changing spin-on or remote filter.
See the Allison
®Automatic Transmission Operator’s Manual for fluid check and maintenance information.
Transmission Fluid, Manual
FS5205A, FS5205C 11.6 pt 5.5 L
FS6305A, FS6305B, 18.4 pt 8.7 L
FS5406, FSO8406 18.5 pt 8.8 L
RT6609 12.5 pt 5.9 L
RT8709B 25.1 pt 11.8 L
RT8908LL 29.1 pt 13.8 L
ZF S6-650 12.7 pt 6.0 L
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck the fluid level after filling.
5-99

Engine Specications
Engine RPO Type
6.6LV8 DURAMAX®6600 LLY Common Rail Fuel System
7.2L L6 Caterpillar®C7 LG5 HEUI Fuel System
7.8L L6 DURAMAX®7800 LG4 Common Rail Fuel System
8.1L V8 Vortec 8100 L18 SPFI Fuel System
Normal Maintenance Replacement Parts
Replacement parts identified by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco®Part Number
Air Compressor Filter
Bendix Tu-Flo 550 (13.2 CFM)2467368 —
Engine Air Cleaner/Filter
6.6L; 7.8L (C4/C5 Models) 88937527 —
6.6L; 7.8L (C6/C7/C8 Models) 88937548*** —
7.2L — P522606†
8.1L 25313349 A1518C
Engine Oil Filter
6.6L 88917036 PF2232
7.2L — 1R0739††
7.8L 94392475 —
8.1L 25324052 PF454
5-100

Part GM Part Number ACDelco®Part Number
Fuel Filter
6.6L 97385488 TP1298A
7.2L — 915 Primary**
7.8L 94392474 —
8.1L — GF626*
Power Steering Fluid Filter 88892858 —
Pressure Caps
6.6L; 7.8L 15075118 —
7.2L — —
8.1L 15997145 —
Secondary Fuel Filter
6.6L — —
7.2L — 1R0751††
7.8L 15098649 —
8.1L 25055052 —
Spark Plugs
6.6L — —
7.2L — —
7.8L — —
8.1L 12578277 41-983
*Optional Davco (K28) D350921 spin-on type filter located on driver’s side frame rail.
**Optional Cold Weather (KUK) Racor B6484GM spin-on type filter located on driver’s side frame rail.
***Optional air filter (GM Part No. 88937525) for C6/C7/C8 Models. Fits inside standard size filter
(GM Part No. 88937548) listed previously.
†Donaldson part number.
††CAT part number.
See the Allison Transmission
®Operator’s Manual in your vehicle for external filter part numbers and information.
5-101

✍NOTES
5-102

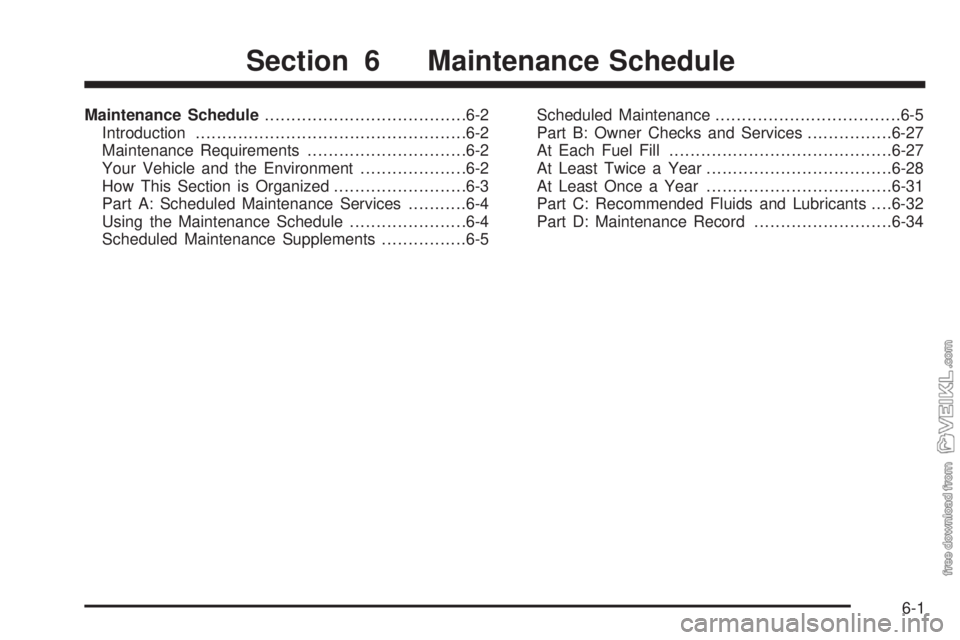

Maintenance Schedule......................................6-2
Introduction...................................................6-2
Maintenance Requirements..............................6-2
Your Vehicle and the Environment....................6-2
How This Section is Organized.........................6-3
Part A: Scheduled Maintenance Services...........6-4
Using the Maintenance Schedule......................6-4
Scheduled Maintenance Supplements................6-5Scheduled Maintenance...................................6-5
Part B: Owner Checks and Services................6-27
At Each Fuel Fill..........................................6-27
At Least Twice a Year...................................6-28
At Least Once a Year...................................6-31
Part C: Recommended Fluids and Lubricants. . . .6-32
Part D: Maintenance Record..........................6-34
Section 6 Maintenance Schedule
6-1

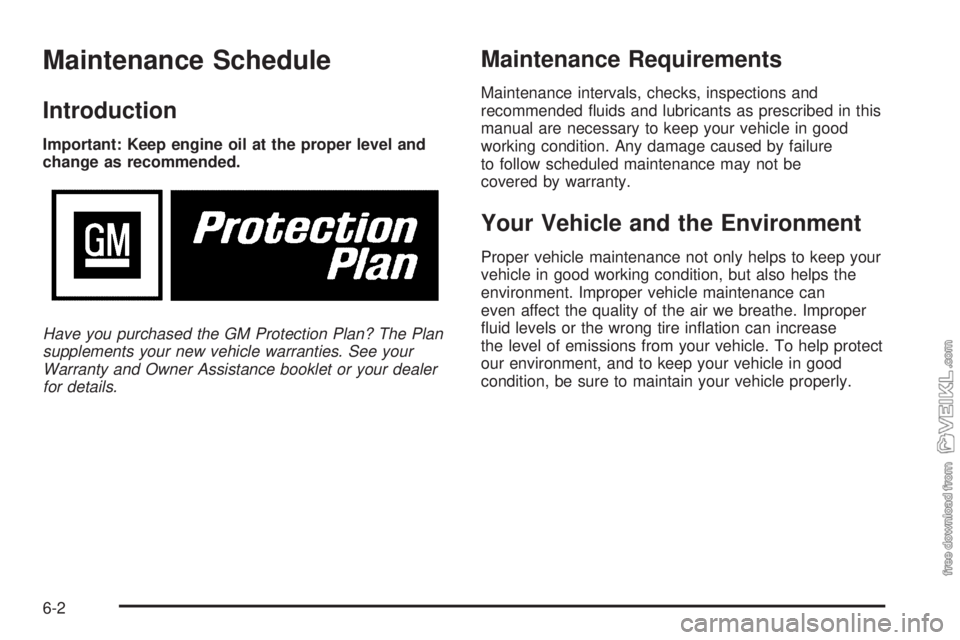

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet or your dealer
for details.
Maintenance Requirements
Maintenance intervals, checks, inspections and
recommended fluids and lubricants as prescribed in this
manual are necessary to keep your vehicle in good
working condition. Any damage caused by failure
to follow scheduled maintenance may not be
covered by warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. Improper vehicle maintenance can
even affect the quality of the air we breathe. Improper
fluid levels or the wrong tire inflation can increase
the level of emissions from your vehicle. To help protect
our environment, and to keep your vehicle in good
condition, be sure to maintain your vehicle properly.
6-2

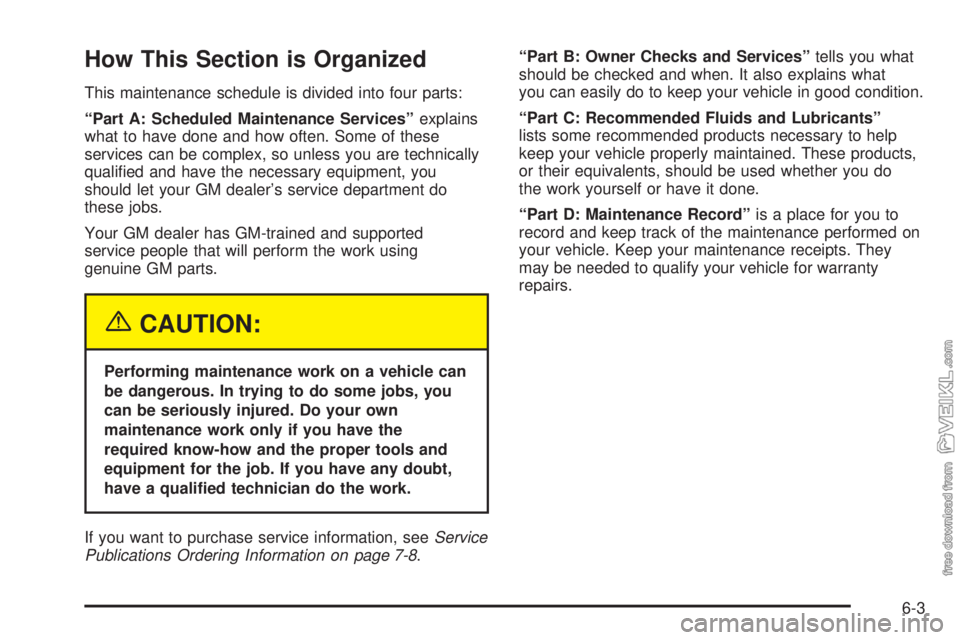

How This Section is Organized
This maintenance schedule is divided into four parts:
“Part A: Scheduled Maintenance Services”explains
what to have done and how often. Some of these
services can be complex, so unless you are technically
qualified and have the necessary equipment, you
should let your GM dealer’s service department do
these jobs.
Your GM dealer has GM-trained and supported
service people that will perform the work using
genuine GM parts.
{CAUTION:
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you
can be seriously injured. Do your own
maintenance work only if you have the
required know-how and the proper tools and
equipment for the job. If you have any doubt,
have a qualied technician do the work.
If you want to purchase service information, seeService
Publications Ordering Information on page 7-8.“Part B: Owner Checks and Services”tells you what
should be checked and when. It also explains what
you can easily do to keep your vehicle in good condition.
“Part C: Recommended Fluids and Lubricants”
lists some recommended products necessary to help
keep your vehicle properly maintained. These products,
or their equivalents, should be used whether you do
the work yourself or have it done.
“Part D: Maintenance Record”is a place for you to
record and keep track of the maintenance performed on
your vehicle. Keep your maintenance receipts. They
may be needed to qualify your vehicle for warranty
repairs.
6-3

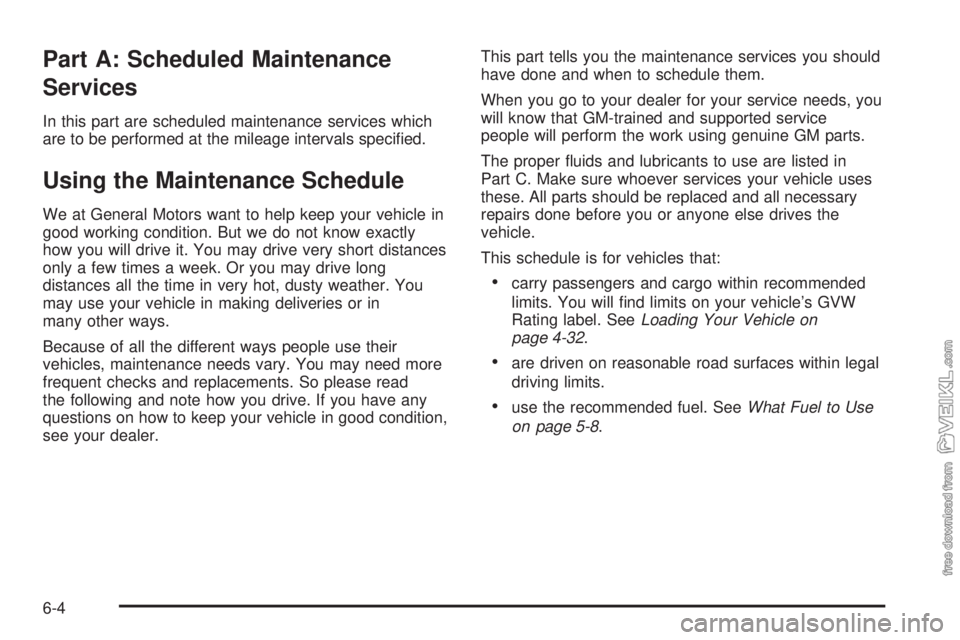

Part A: Scheduled Maintenance
Services
In this part are scheduled maintenance services which
are to be performed at the mileage intervals specified.
Using the Maintenance Schedule
We at General Motors want to help keep your vehicle in
good working condition. But we do not know exactly
how you will drive it. You may drive very short distances
only a few times a week. Or you may drive long
distances all the time in very hot, dusty weather. You
may use your vehicle in making deliveries or in
many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may need more
frequent checks and replacements. So please read
the following and note how you drive. If you have any
questions on how to keep your vehicle in good condition,
see your dealer.This part tells you the maintenance services you should
have done and when to schedule them.
When you go to your dealer for your service needs, you
will know that GM-trained and supported service
people will perform the work using genuine GM parts.
The proper fluids and lubricants to use are listed in
Part C. Make sure whoever services your vehicle uses
these. All parts should be replaced and all necessary
repairs done before you or anyone else drives the
vehicle.
This schedule is for vehicles that:
•carry passengers and cargo within recommended
limits. You will find limits on your vehicle’s GVW
Rating label. SeeLoading Your Vehicle on
page 4-32.
•are driven on reasonable road surfaces within legal
driving limits.
•use the recommended fuel. SeeWhat Fuel to Use
on page 5-8.
6-4

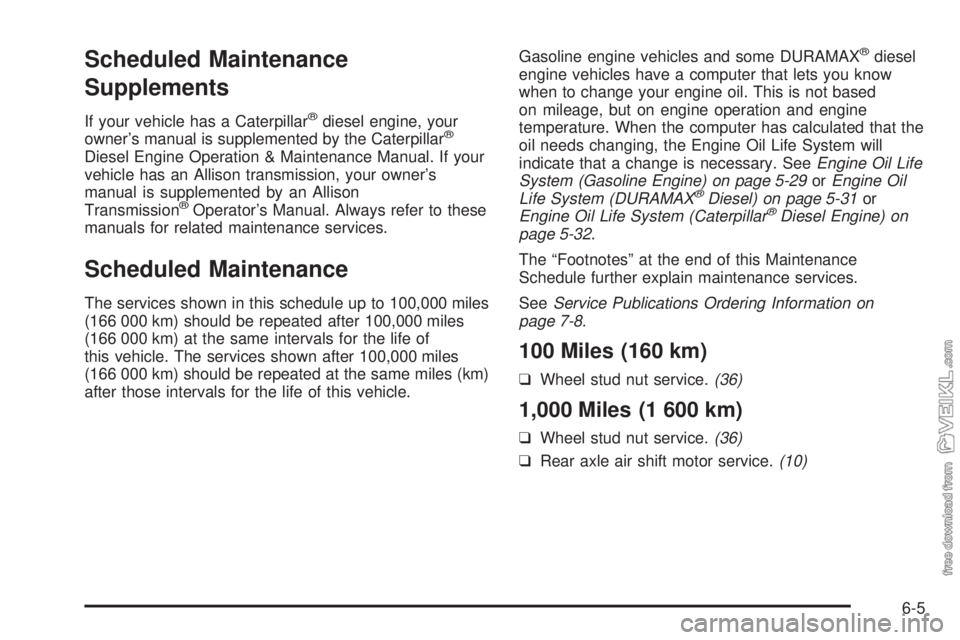

Scheduled Maintenance
Supplements
If your vehicle has a Caterpillar®diesel engine, your
owner’s manual is supplemented by the Caterpillar®
Diesel Engine Operation & Maintenance Manual. If your
vehicle has an Allison transmission, your owner’s
manual is supplemented by an Allison
Transmission
®Operator’s Manual. Always refer to these
manuals for related maintenance services.
Scheduled Maintenance
The services shown in this schedule up to 100,000 miles
(166 000 km) should be repeated after 100,000 miles
(166 000 km) at the same intervals for the life of
this vehicle. The services shown after 100,000 miles
(166 000 km) should be repeated at the same miles (km)
after those intervals for the life of this vehicle.Gasoline engine vehicles and some DURAMAX
®diesel
engine vehicles have a computer that lets you know
when to change your engine oil. This is not based
on mileage, but on engine operation and engine
temperature. When the computer has calculated that the
oil needs changing, the Engine Oil Life System will
indicate that a change is necessary. SeeEngine Oil Life
System (Gasoline Engine) on page 5-29orEngine Oil
Life System (DURAMAX
®Diesel) on page 5-31or
Engine Oil Life System (Caterpillar®Diesel Engine) on
page 5-32.
The “Footnotes” at the end of this Maintenance
Schedule further explain maintenance services.
SeeService Publications Ordering Information on
page 7-8.
100 Miles (160 km)
❑Wheel stud nut service.(36)
1,000 Miles (1 600 km)
❑Wheel stud nut service.(36)
❑Rear axle air shift motor service.(10)
6-5

7,500 Miles (12 000 km)
❑Gasoline Engine Only: Check engine oil life system. If
engine oil and filter are changed, reset system. See
“Engine Oil (Gasoline Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months, whichever
occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
12,000 Miles (20 000 km)
❑7.8L DURAMAX®Diesel Without Engine Oil Life
System Only: Change engine oil and filter (or
every 12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑7.8L DURAMAX
®Diesel With Engine Oil Life System
Only: Check oil life system (or every 600 hours of
engine operation, whichever occurs first). If engine oil
and filter are changed, reset system. See “Engine
Oil (DURAMAX
®Diesel)” in the Index.(2) (7)
15,000 Miles (24 000 km)
❑Gasoline Engine Only: Check engine oil life system. If
engine oil and filter are changed, reset system. See
“Engine Oil (Gasoline Engine)” in the Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil Life
System Only: Change engine oil and filter (or every
12 months, or every 750 hours of engine operation,
whichever occurs first).(2)
❑6.6L DURAMAX
®Diesel With Engine Oil Life System
Only: Check oil life system. If engine oil and filter are
changed, reset system. See “Engine Oil (DURAMAX
®
Diesel)” in the Index.(2) (9)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
6-6
