CHEVROLET KODIAK 2006 Owners Manual

ApplicationCapacities
English Metric
23082T (H25) 44.0 pt 20.8 L
26080T (GJ4) 44.0 pt 20.8 L
Transfer Case (Four-Wheel Drive) 4.0 pt 1.9 L
Transmission Fluid, Automatic
3000 RDS and EVS, and 3500 RDS and EVS 52.0 pt 24.6 L
1000 HS, RDS, MH, PTS and EVS, 2200 HS, RDS, MH,
PTS and EVS, 2500 HS and RDS, and 2300 HS and RDS35.0 pt 13.5 L
Add 2 pints (1 L) when changing spin-on or remote filter.
See the Allison
®Automatic Transmission Operator’s Manual for fluid check and maintenance information.
Transmission Fluid, Manual
FS5205A, FS5205C 11.6 pt 5.5 L
FS6305A, FS6305B, 18.4 pt 8.7 L
FS5406, FSO8406 18.5 pt 8.8 L
RT6609 12.5 pt 5.9 L
RT8709B 25.1 pt 11.8 L
RT8908LL 29.1 pt 13.8 L
ZF S6-650 12.7 pt 6.0 L
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck the fluid level after filling.
5-103

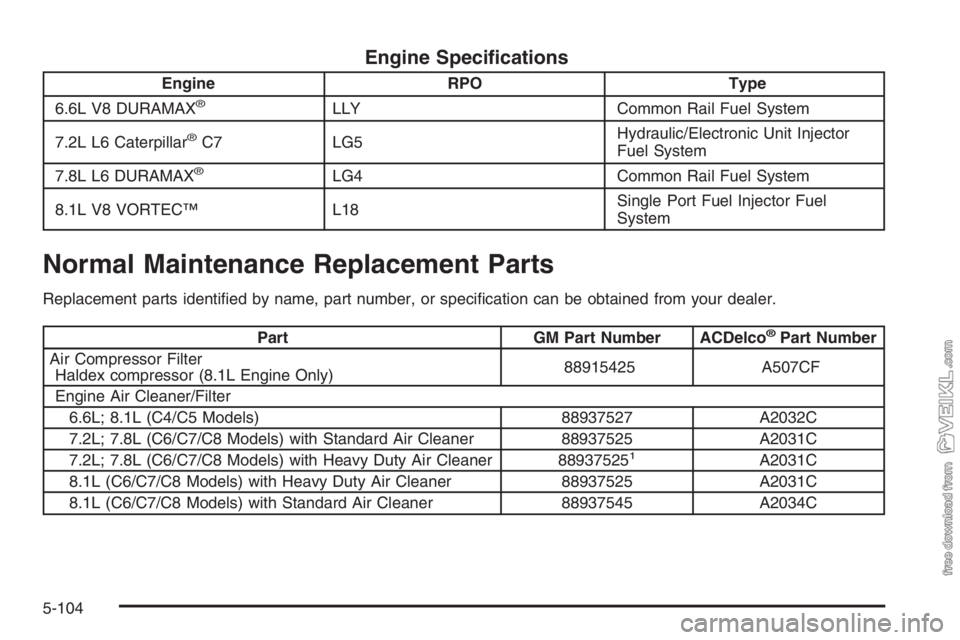

Engine Specications
Engine RPO Type
6.6L V8 DURAMAX
®LLY Common Rail Fuel System
7.2L L6 Caterpillar
®C7 LG5Hydraulic/Electronic Unit Injector
Fuel System
7.8L L6 DURAMAX
®LG4 Common Rail Fuel System
8.1L V8 VORTEC™ L18Single Port Fuel Injector Fuel
System
Normal Maintenance Replacement Parts
Replacement parts identified by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco®Part Number
Air Compressor Filter
Haldex compressor (8.1L Engine Only)88915425 A507CF
Engine Air Cleaner/Filter
6.6L; 8.1L (C4/C5 Models) 88937527 A2032C
7.2L; 7.8L (C6/C7/C8 Models) with Standard Air Cleaner 88937525 A2031C
7.2L; 7.8L (C6/C7/C8 Models) with Heavy Duty Air Cleaner 88937525
1A2031C
8.1L (C6/C7/C8 Models) with Heavy Duty Air Cleaner 88937525 A2031C
8.1L (C6/C7/C8 Models) with Standard Air Cleaner 88937545 A2034C
5-104

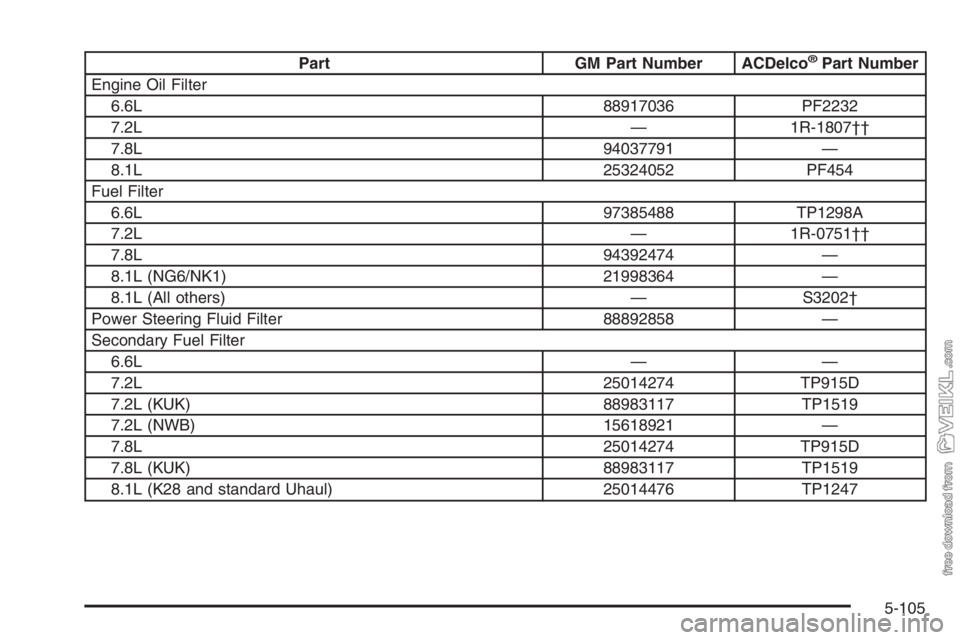

Part GM Part Number ACDelco®Part Number
Engine Oil Filter
6.6L 88917036 PF2232
7.2L — 1R-1807††
7.8L 94037791 —
8.1L 25324052 PF454
Fuel Filter
6.6L 97385488 TP1298A
7.2L — 1R-0751††
7.8L 94392474 —
8.1L (NG6/NK1) 21998364 —
8.1L (All others) — S3202†
Power Steering Fluid Filter 88892858 —
Secondary Fuel Filter
6.6L — —
7.2L 25014274 TP915D
7.2L (KUK) 88983117 TP1519
7.2L (NWB) 15618921 —
7.8L 25014274 TP915D
7.8L (KUK) 88983117 TP1519
8.1L (K28 and standard Uhaul) 25014476 TP1247
5-105

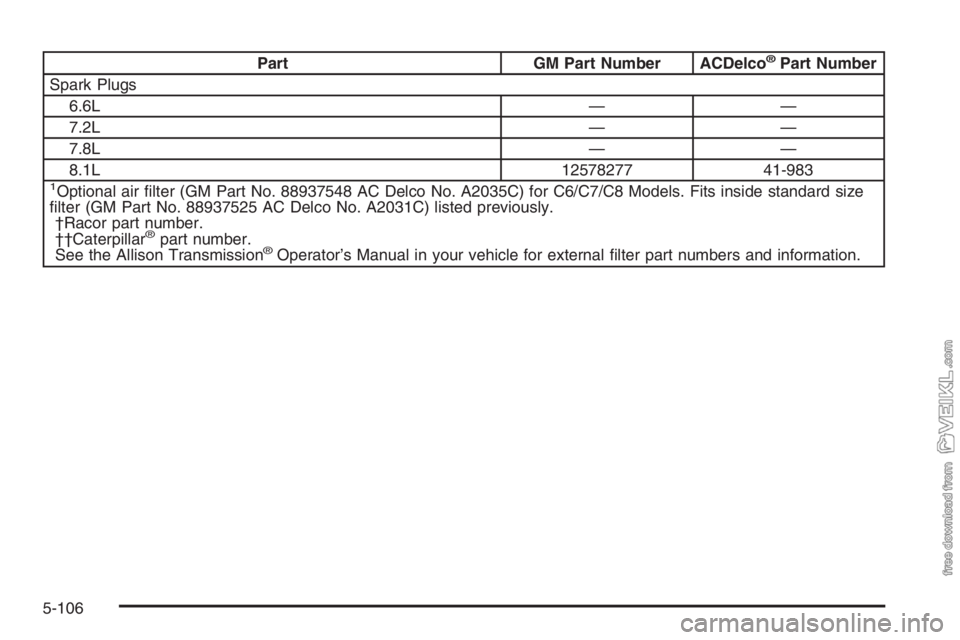

Part GM Part Number ACDelco®Part Number
Spark Plugs
6.6L — —
7.2L — —
7.8L — —
8.1L 12578277 41-983
1Optional air filter (GM Part No. 88937548 AC Delco No. A2035C) for C6/C7/C8 Models. Fits inside standard size
filter (GM Part No. 88937525 AC Delco No. A2031C) listed previously.
†Racor part number.
††Caterpillar
®part number.
See the Allison Transmission®Operator’s Manual in your vehicle for external filter part numbers and information.
5-106

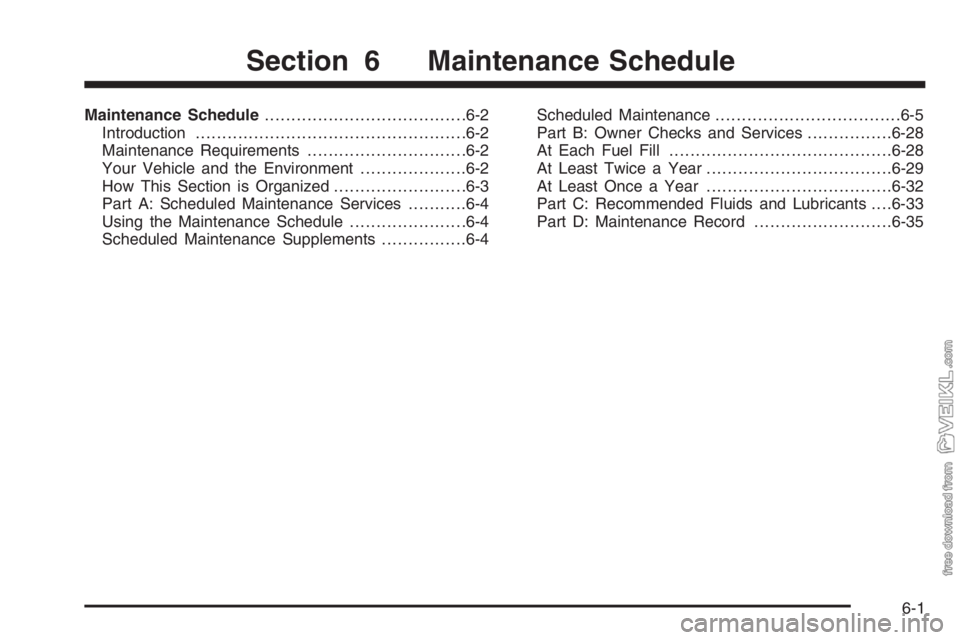

Maintenance Schedule......................................6-2
Introduction...................................................6-2
Maintenance Requirements..............................6-2
Your Vehicle and the Environment....................6-2
How This Section is Organized.........................6-3
Part A: Scheduled Maintenance Services...........6-4
Using the Maintenance Schedule......................6-4
Scheduled Maintenance Supplements................6-4Scheduled Maintenance...................................6-5
Part B: Owner Checks and Services................6-28
At Each Fuel Fill..........................................6-28
At Least Twice a Year...................................6-29
At Least Once a Year...................................6-32
Part C: Recommended Fluids and Lubricants. . . .6-33
Part D: Maintenance Record..........................6-35
Section 6 Maintenance Schedule
6-1

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet or your dealer
for details.
Maintenance Requirements
Maintenance intervals, checks, inspections and
recommended fluids and lubricants as prescribed in this
manual are necessary to keep your vehicle in good
working condition. Any damage caused by failure
to follow scheduled maintenance may not be covered by
warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. Improper vehicle maintenance can
even affect the quality of the air we breathe. Improper
fluid levels or the wrong tire inflation can increase
the level of emissions from your vehicle. To help protect
our environment, and to keep your vehicle in good
condition, be sure to maintain your vehicle properly.
6-2

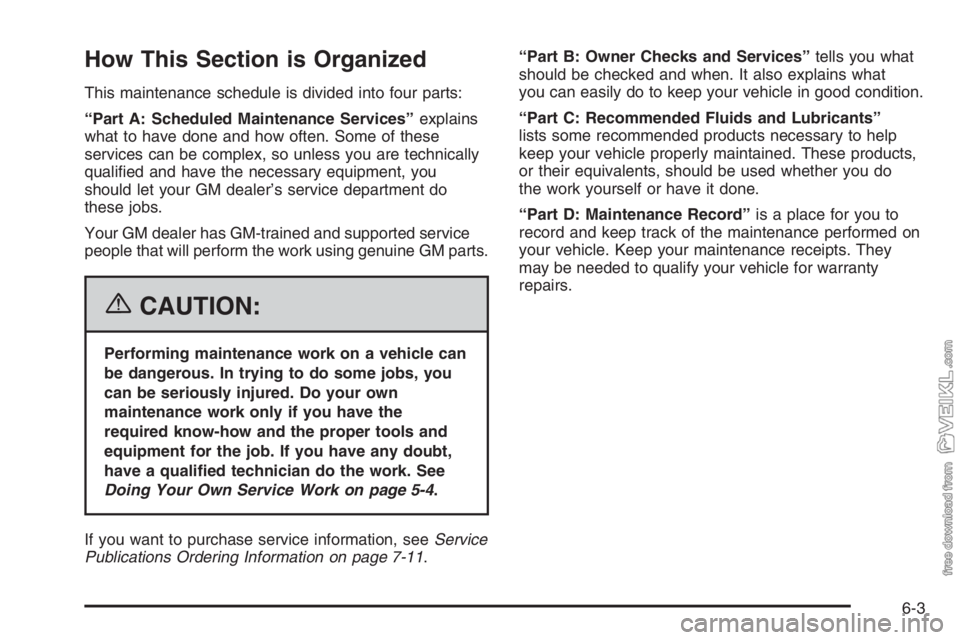

How This Section is Organized
This maintenance schedule is divided into four parts:
“Part A: Scheduled Maintenance Services”explains
what to have done and how often. Some of these
services can be complex, so unless you are technically
qualified and have the necessary equipment, you
should let your GM dealer’s service department do
these jobs.
Your GM dealer has GM-trained and supported service
people that will perform the work using genuine GM parts.
{CAUTION:
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you
can be seriously injured. Do your own
maintenance work only if you have the
required know-how and the proper tools and
equipment for the job. If you have any doubt,
have a qualied technician do the work. See
Doing Your Own Service Work on page 5-4.
If you want to purchase service information, seeService
Publications Ordering Information on page 7-11.“Part B: Owner Checks and Services”tells you what
should be checked and when. It also explains what
you can easily do to keep your vehicle in good condition.
“Part C: Recommended Fluids and Lubricants”
lists some recommended products necessary to help
keep your vehicle properly maintained. These products,
or their equivalents, should be used whether you do
the work yourself or have it done.
“Part D: Maintenance Record”is a place for you to
record and keep track of the maintenance performed on
your vehicle. Keep your maintenance receipts. They
may be needed to qualify your vehicle for warranty
repairs.
6-3

Part A: Scheduled Maintenance
Services
In this part are scheduled maintenance services which
are to be performed at the mileage intervals specified.
Using the Maintenance Schedule
We at General Motors want to help keep your vehicle in
good working condition. But we do not know exactly
how you will drive it. You may drive very short distances
only a few times a week. Or you may drive long
distances all the time in very hot, dusty weather. You
may use your vehicle in making deliveries or in
many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may need more
frequent checks and replacements. So please read
the following and note how you drive. If you have any
questions on how to keep your vehicle in good condition,
see your dealer.
This part tells you the maintenance services you should
have done and when to schedule them.
When you go to your dealer for your service needs, you
will know that GM-trained and supported service
people will perform the work using genuine GM parts.The proper fluids and lubricants to use are listed in
Part C. Make sure whoever services your vehicle uses
these. All parts should be replaced and all necessary
repairs done before you or anyone else drives the
vehicle.
This schedule is for vehicles that:
•carry passengers and cargo within recommended
limits. You will find limits on your vehicle’s GVW
Rating label. SeeLoading Your Vehicle on
page 4-34.
•are driven on reasonable road surfaces within legal
driving limits.
•use the recommended fuel. SeeGasoline Octane
on page 5-6for gasoline engine vehicles orWhat
Fuel to Use on page 5-8for diesel engine vehicles.
Scheduled Maintenance
Supplements
If your vehicle has a Caterpillar®diesel engine, your
owner’s manual is supplemented by the Caterpillar®
Diesel Engine Operation & Maintenance Manual. If your
vehicle has an Allison Transmission®, your owner’s
manual is supplemented by an Allison Transmission®
Operator’s Manual. Always refer to these manuals
for related maintenance services.
6-4

Scheduled Maintenance
The services shown in this schedule up to 100,000 miles
(166 000 km) should be repeated after 100,000 miles
(166 000 km) at the same intervals for the life of
this vehicle. The services shown after 100,000 miles
(166 000 km) should be repeated at the same miles (km)
after those intervals for the life of this vehicle.
Gasoline engine vehicles and some DURAMAX
®diesel
engine vehicles have a computer that lets you know
when to change your engine oil. This is not based
on mileage, but on engine operation and engine
temperature. When the computer has calculated that the
oil needs changing, the Engine Oil Life System will
indicate that a change is necessary. SeeEngine Oil Life
System (Gasoline Engine) on page 5-31orEngine Oil
Life System (DURAMAX
®Diesel) on page 5-33or
Engine Oil Life System (Caterpillar®Diesel Engine) on
page 5-34.
The “Footnotes” at the end of this Maintenance
Schedule further explain maintenance services.
SeeService Publications Ordering Information on
page 7-11.
100 Miles (160 km)
❑Wheel stud nut service.(36)
1,000 Miles (1 600 km)
❑Wheel stud nut service.(36)
❑Rear axle air shift motor service.(10)
7,500 Miles (12 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
6-5

❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
12,000 Miles (20 000 km)
❑7.8L DURAMAX®Diesel Without Engine Oil Life
System Only: Change engine oil and filter
(or every 12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑7.8L DURAMAX
®Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months, or
every 600 hours of engine operation, whichever
occurs first). If engine oil and filter are changed, reset
system. See “Engine Oil (DURAMAX
®Diesel)” in
the Index.(2) (7)
15,000 Miles (24 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil Life
System Only: Change engine oil and filter
(or every 12 months, or every 750 hours of engine
operation, whichever occurs first).(2)
❑6.6L DURAMAX
®Diesel With Engine Oil Life System
Only: Check oil life system. If engine oil and filter are
changed, reset system. See “Engine Oil (DURAMAX
®
Diesel)” in the Index.(2) (9)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Gasoline Engine: Inspect engine air cleaner filter. If
necessary, replace the filter. If vehicle is driven in
dusty/dirty conditions, inspect filter at every engine oil
change. SeeEngine Air Cleaner/Filter on page 5-35
for more information.
6-6
