4. Install the new filter element.
5. Reinstall and tighten the filter container and
reconnect the water sensor wire to the filter.
6. Use the fuel filter priming procedure earlier in this
section to prime the fuel filter.
7. Tighten the air bleed valve by turning it clockwise
until hand-tight.
8. Start the engine and let it idle for five minutes.
Check the fuel filter and air bleed valve for leaks.
How to Reset Fuel Filter Change
Light - DURAMAX 6.6L (LMM) Engine
The engine controller calculates when to change the fuel
filter based on vehicle and fuel use. Whenever the
fuel filter is changed, reset the fuel filter light so
the engine controller can calculate when the next fuel
filter change is required. If the fuel filter is ever changed
prior to a change fuel filter light being turned on,
reset the fuel filter change light.To reset the Fuel Filter Change light:
1. Turn the ignition key to ON/RUN with the engine off
2. Fully press the accelerator and brake pedals at the
same time for 10 seconds. If the Fuel Filter Change
light flashes for 5 seconds, the system is resetting.
3. Turn the key to OFF.
If the Fuel Filter Change light comes back on when you
start the vehicle, the light has not been reset. Repeat
the procedure. SeeChange Fuel Filter Warning Light on
page 3-45for more information.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel might be hard
to find. Never use leaded gasoline or any other fuel
not recommended in the previous text on fuel. Costly
repairs caused by use of improper fuel would not
be covered by the vehicle warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you will be driving.
5-19

Filling the Tank
{CAUTION:
Fuel vapor is highly flammable. It burns violently,
and that can cause very bad injuries. Do not
smoke if you are near fuel or refueling the vehicle.
Keep sparks, flames and smoking materials away
from fuel.
The fuel cap can be on either or both sides of the
vehicle depending on option content.
To take off the cap, turn it slowly counterclockwise. Fuel caps for all
gasoline applications,
and all diesel between
frame rail fuel tank
applications
Fuel caps for all side
mounted diesel
applications
5-20

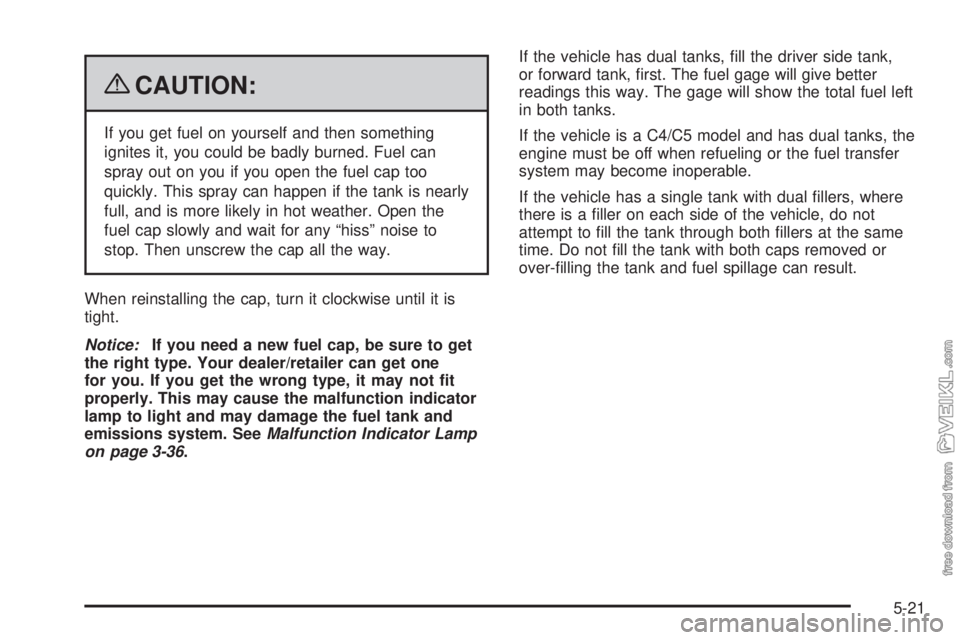

{CAUTION:
If you get fuel on yourself and then something
ignites it, you could be badly burned. Fuel can
spray out on you if you open the fuel cap too
quickly. This spray can happen if the tank is nearly
full, and is more likely in hot weather. Open the
fuel cap slowly and wait for any “hiss” noise to
stop. Then unscrew the cap all the way.
When reinstalling the cap, turn it clockwise until it is
tight.
Notice:If you need a new fuel cap, be sure to get
the right type. Your dealer/retailer can get one
for you. If you get the wrong type, it may not fit
properly. This may cause the malfunction indicator
lamp to light and may damage the fuel tank and
emissions system. SeeMalfunction Indicator Lamp
on page 3-36.If the vehicle has dual tanks, fill the driver side tank,
or forward tank, first. The fuel gage will give better
readings this way. The gage will show the total fuel left
in both tanks.
If the vehicle is a C4/C5 model and has dual tanks, the
engine must be off when refueling or the fuel transfer
system may become inoperable.
If the vehicle has a single tank with dual fillers, where
there is a filler on each side of the vehicle, do not
attempt to fill the tank through both fillers at the same
time. Do not fill the tank with both caps removed or
over-filling the tank and fuel spillage can result.
5-21

Filling a Portable Fuel Container
{CAUTION:
Never fill a portable fuel container while it is in the
vehicle. Static electricity discharge from the
container can ignite the fuel vapor. You can be
badly burned and the vehicle damaged if this
occurs. To help avoid injury to you and others:
•Dispense fuel only into approved containers.
•Do not fill a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed, or on
any surface other than the ground.
•Bring the fill nozzle in contact with the inside
of the fill opening before operating the nozzle.
Contact should be maintained until the filling
is complete.
•Do not smoke while pumping fuel.
•Do not use a cellular phone while
pumping fuel.
Checking Things Under
the Hood
{CAUTION:
Things that burn can get on hot engine parts and
start a fire. These include liquids like fuel, oil,
coolant, brake fluid, windshield washer and other
fluids, and plastic or rubber. You or others could
be burned. Be careful not to drop or spill things
that will burn onto a hot engine.
5-22

Hood Latches
To tilt the hood forward, pull back and up on each of the
hood latches, located above the wheel wells on both
sides of the vehicle.Then take the hand hold and pull the hood forward.
When you tilt the hood far enough, there are cables that
will support it. When you close the hood, make sure
both latches are secured.
5-23

Engine Oil (DURAMAX Diesel
Engine)
Checking Engine Oil
It is a good idea to check the engine oil level every time
you get fuel.
The engine oil dipstick is
located in the engine
compartment on the driver
side of the vehicle.In order to get an accurate reading, the engine should
be at normal operating temperature, so that the oil
is warm, and the vehicle must be on level ground.
1. If the engine is at normal operating temperature and
the oil is warm, turn off the engine and allow at
least five minutes for the oil to drain back into the
oil pan. If you do not do this, the oil dipstick
might not show the actual level.
If the engine has not been run long enough to bring it
up to normal operating temperature and the oil is
cool, turn off the engine and allow 30 minutes for the
oil to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
5-24

2. Pull out the dipstick and clean it with a paper towel
or a cloth, then push it back in all the way.
3. Remove the dipstick again, keeping the tip down,
and check the oil level.
When to Add Engine Oil
If the oil is below the cross-hatched area at the tip
of the dipstick, add at least two quarts/liters of
the recommended oil. This section explains what kind
of oil to use. For engine oil crankcase capacity, see
Capacities and Specifications on page 5-102.
Notice:Do not add too much oil. If the engine
has so much oil that the oil level gets above the
cross-hatched area that shows the proper operating
range, the engine could be damaged.Add oil at the engine oil fill
cap in the engine
compartment. Install and
fully tighten the fill cap
when you are through.
Add enough oil to put the level somewhere in the proper
operating range. Push the dipstick all the way back in
when you are through.
5-25

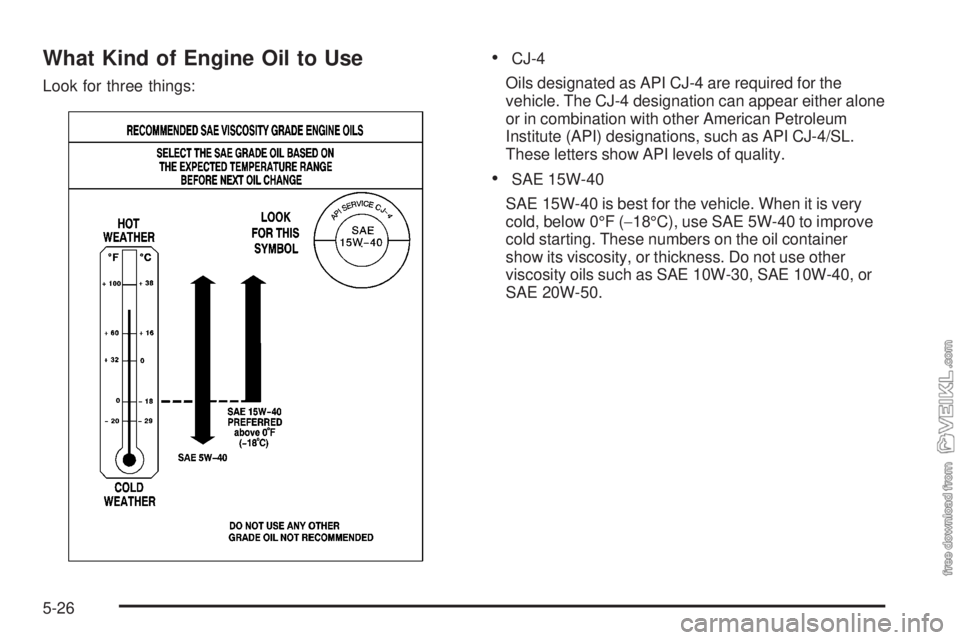

What Kind of Engine Oil to Use
Look for three things:
•CJ-4
Oils designated as API CJ-4 are required for the
vehicle. The CJ-4 designation can appear either alone
or in combination with other American Petroleum
Institute (API) designations, such as API CJ-4/SL.
These letters show API levels of quality.
•SAE 15W-40
SAE 15W-40 is best for the vehicle. When it is very
cold, below 0°F (−18°C), use SAE 5W-40 to improve
cold starting. These numbers on the oil container
show its viscosity, or thickness. Do not use other
viscosity oils such as SAE 10W-30, SAE 10W-40, or
SAE 20W-50.
5-26

•American Petroleum Institute (API) symbol
This doughnut-shaped logo
(symbol) is used on most
oil containers to help you
select the correct oil. It
means that the oil has been
certified by the American
Petroleum Institute.
Look for this on the oil container, and use only
those oils that display this logo.
Notice:Use only engine oils that have the
designation CJ-4 for the diesel engine. Failure to
use the recommended oil can result in engine
damage not covered by the vehicle warranty.Engine Oil Additives
Do not add anything to the oil. The recommended oils
with the API service symbol are all you need for
good performance and engine protection.
When to Change Engine Oil (Vehicles
Without the Engine Oil Life System)
Change the engine oil and filter every 15,000 miles
(24 000 km), or every 12 months, or every 750 hours of
engine operation, whichever occurs first. See
Scheduled Maintenance on page 6-5.
Engine Oil (Caterpillar Diesel
Engine)
See the Caterpillar®Operation & Maintenance Manual
for information on oil quality and viscosities as well
as the temperature range chart.
5-27

Engine Oil (Isuzu Diesel Engine)
Checking Engine Oil
It is a good idea to check the engine oil level every time
you get fuel.
The engine oil dipstick is
located in the engine
compartment on the driver
side of the vehicle.In order to get an accurate reading, the engine should
be at normal operating temperature, so that the oil
is warm, and the vehicle must be on level ground.
1. If the engine is at normal operating temperature and
the oil is warm, turn off the engine and allow at
least five minutes for the oil to drain back into the
oil pan. If you do not do this, the oil dipstick
might not show the actual level.
If the engine has not been run long enough to bring
it up to normal operating temperature and the oil
is cool, turn off the engine and allow 30 minutes for
the oil to drain back into the oil pan. If you do
not do this, the oil dipstick might not show the actual
level.
2. Pull out the dipstick and clean it with a paper towel
or a cloth, then push it back in all the way.
3. Remove the dipstick again, keeping the tip down,
and check the oil level.
