320 Service and Maintenance
Front
1. Roofmarker Lamp(Identification/
Clearance Lamp)
2. Front Turn Signal Lamp
3. Side Turn Signal Lamp/ Sidemarker Lamp
4. Cornering Lamp
5. Side Reflector
6. Headlamp/Parking Lamp
Rear
1. Rear Turn Signal Lamp
2. Back-up Lamp
3. License Plate Lamp
4. Taillamp/Stoplamp
Lubrication
One of the most important items of
good vehicle care is the lubrication
of all necessary points with the
Right Lubricant, at the Right Time
and in the Right Way. It is the
owner's responsibility to maintain
proper lubrication practices as
recommended in the following
pages. Greasing Chassis Components
The type (characteristics) of the
grease specified for use with a
chassis component differs from that
of the grease specified for use with
another component. Be sure to use
only the specified grease for each
component and perform greasing
according to the Maintenance
Schedule.
King pins (left and right)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Service and Maintenance 321

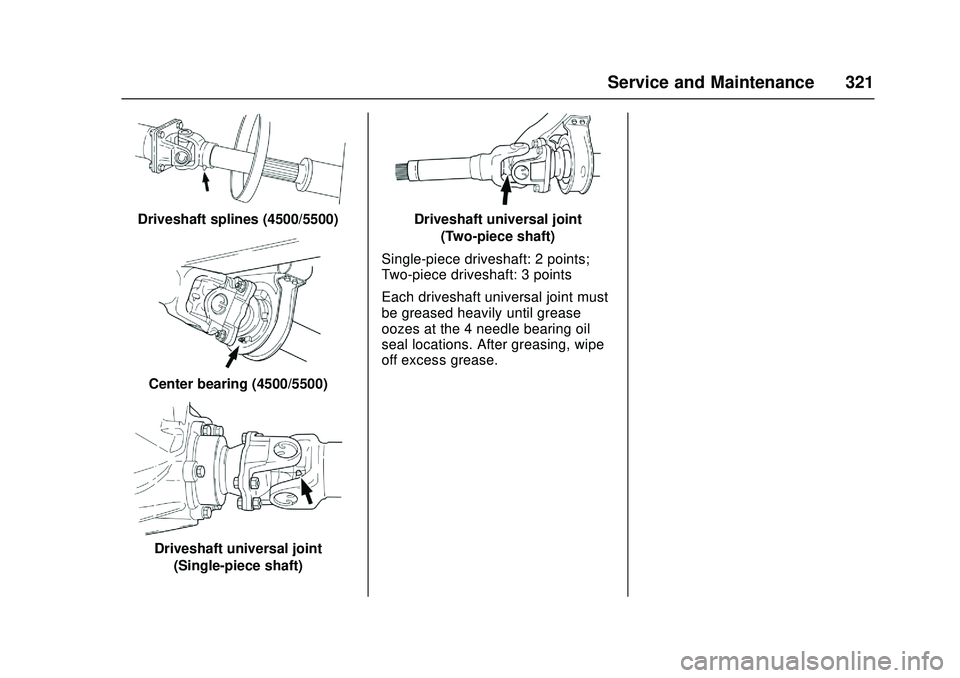

Driveshaft splines (4500/5500)
Center bearing (4500/5500)
Driveshaft universal joint(Single-piece shaft)
Driveshaft universal joint
(Two-piece shaft)
Single-piece driveshaft: 2 points;
Two-piece driveshaft: 3 points
Each driveshaft universal joint must
be greased heavily until grease
oozes at the 4 needle bearing oil
seal locations. After greasing, wipe
off excess grease.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
322 Service and Maintenance

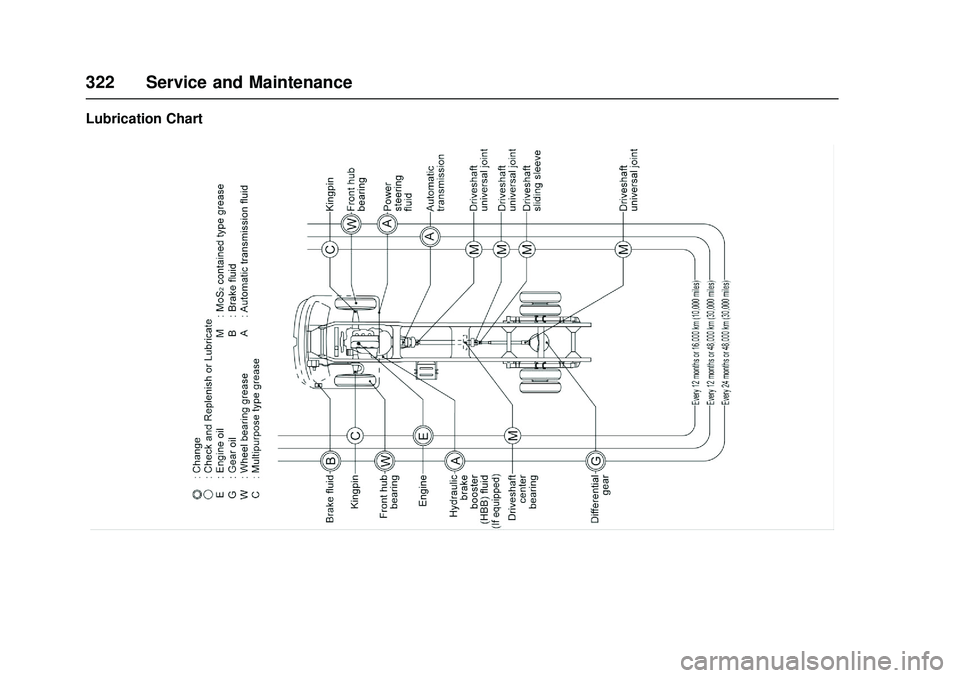

Lubrication Chart

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Service and Maintenance 323
Additional
Maintenance and Care
Owner Safety and Routine
Maintenance
Listed below are vehicle checks
which should be made periodically
by either the owner or a qualified
technician to ensure proper
performance and safety of your
vehicle. Take any problems promptly
to a technician for service advice.
For your safety and that of others,
any of the safety-related
components that may have been
damaged in an accident should be
checked and necessary repairs
performed before operating your
vehicle.
At the minimum, these routine
checks should be made every
6 months or 16,000 km
(10,000 miles), whichever comes
first. Whenever repairs are
necessary, have them completed
before operating the vehicle.A: Parking Brake :
Park on a fairly
steep hill and hold the vehicle with
the parking brake only. This checks
holding ability.
Before checking item (B) below, be
sure to have enough room around
the vehicle. Then firmly apply both
the parking brake see Parking
Brake 0200 and the regular brakes.
Do not use the accelerator pedal.
If the engine starts, be ready to turn
off the engine control switch at
once. Take these precautions
because the vehicle could move
without warning and possibly cause
injury or property damage.
B: Starter Safety Switch : Check
by trying to start the engine in each
gear. The starter should crank only
at selector position "P" or "N".
C: Transmission Shift Indicator :
Check that the indicator points to
the gear chosen.
D: Steering : Be alert for any
changes in steering action. An
inspection or service is needed
when: the steering wheel is harder to turn or has too much free play,
or when there are strange sounds
when turning or parking.
E: Wheel Alignment, Balance, and
Tires :
Check tires for abnormal
wear or damage. Also, check for
damaged wheels. A pull right or left
on a straight and level road may
show the need for a wheel
alignment. A vibration of the
steering wheel or seat at normal
highway speeds may mean a wheel
balancing is needed. Check tire
pressure when the tires are "cold,"
at least monthly, and whenever the
vehicle is serviced.
Check the pressure more often if
daily checks show it's needed.
(Refer to "Recommended Daily
(Pre-operation) Inspections" under
Owner Checks and Services 0317).
Change tire pressure as needed
when changing loads.
F: Brakes : Be alert to illumination
of the brake system warning light or
brake low vacuum warning light
(4500HD, 4500XD models) or the
tone alarm, or changes in braking
action, such as repeated pulling to

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
324 Service and Maintenance
one side, unusual sounds when
braking, increased brake pedal
travel or harder pedal. The front and
rear brakes are attached to an auto
adjuster mechanism. If there are no
defects, as the pedal travel is
properly maintained, adjustments
are not necessary. Check regularly
that the brake fluid reservoir
(left-hand side of the instrument
panel) or HBB reservoir (5500HD,
5500XD models: left side behind the
cab) is properly filled and check for
fluid leaks. Any of these conditions
could indicate the need for brake
system inspection and/or service.
G: Exhaust System :Be alert for
any changes in the sound of the
exhaust system or any smell of
fumes. These are signs the system
may be leaking. Have it checked
and/or repaired at once. (Refer to
"Engine Exhaust Emissions Caution
(Carbon Monoxide)" under Engine
Exhaust 0159).
H: Windshield Wipers and
Washers : Check operation and
condition of the wiper blades. Check
the flow of the washer spray. I: Defroster :
Turn the outlet
selector knob to "Defroster" and the
fan speed control knob to the fully
clockwise position. Then check the
airflow from the ducts at the inside
base of the windshield.
J: Rearview Mirrors and Sun
Visors : Check that friction joints
hold mirrors and sun visors in place.
K: Horn : Sound the horn, now and
then, to be sure it works.
L: Lap-Shoulder Belts : Check the
seat belt system (including webbing,
buckles, latch plates and anchors)
for proper operation, and for
damage.
M: Seat Adjusters : When
adjusting the driver's manual seat,
be sure the seat adjusters latch by
pushing the seat forward and
backward. Do not attempt to adjust
the seat when the vehicle is in
motion.
N: Lamps : Check panel lighting,
warning lamps, indicator lamps and
interior lamps. On the outside,
check: license plate lamps, side
marker lamps, reflectors on outside mirrors, headlamps, parking lamps,
identification and clearance lamps,
taillights, brake lamps, turn signals,
cornering lamps, backup lamps and
hazard warning flashers. Have
headlamp aim checked immediately
if beams seem improperly aimed.
O: Glass, Mirrors, Lights and/or
Reflectors Condition :
Look for
broken, scratched, dirty or damaged
glass, mirrors, lamps or reflectors
that could reduce the view or
visibility, or cause injury. Replace,
clean or repair promptly.
P: Door Latches : Check that doors
close, latch and lock tightly. Check
for broken, damaged or missing
parts that might prevent tight
latching.
Q :Tilt Cab (Driving Position) : Be
sure the tilt lever is down and
locked.
R: Fluid Leaks : Check for fuel,
water, oil or other fluid leaks by
looking at the surface beneath the
vehicle after it has been parked for
a while. If you notice diesel fumes or
fluid at any time, have the cause
found and corrected at once.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Service and Maintenance 325

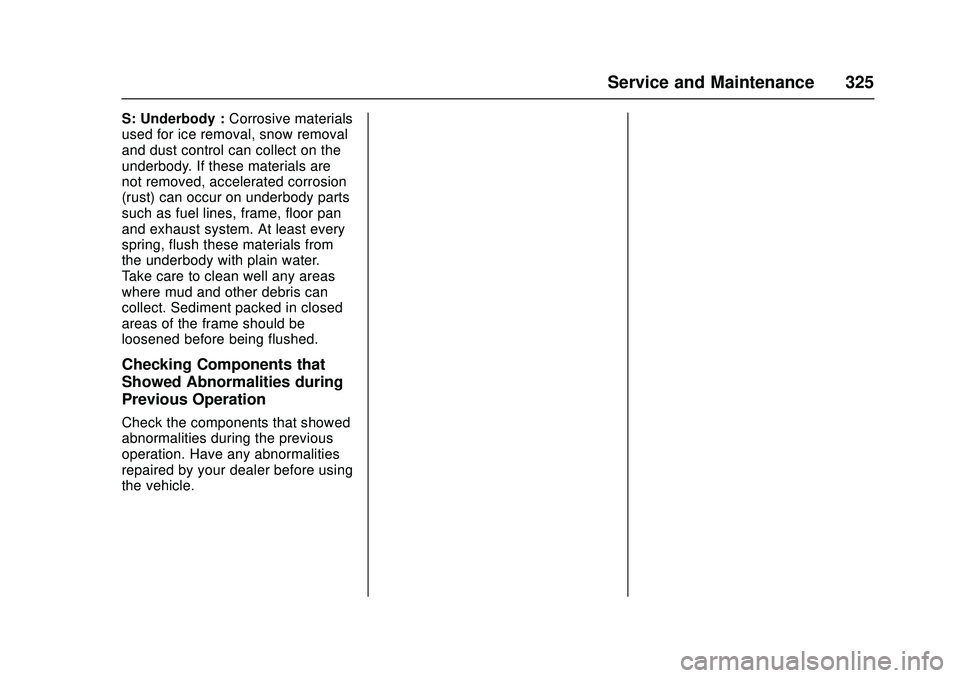

S: Underbody :Corrosive materials
used for ice removal, snow removal
and dust control can collect on the
underbody. If these materials are
not removed, accelerated corrosion
(rust) can occur on underbody parts
such as fuel lines, frame, floor pan
and exhaust system. At least every
spring, flush these materials from
the underbody with plain water.
Take care to clean well any areas
where mud and other debris can
collect. Sediment packed in closed
areas of the frame should be
loosened before being flushed.
Checking Components that
Showed Abnormalities during
Previous Operation
Check the components that showed
abnormalities during the previous
operation. Have any abnormalities
repaired by your dealer before using
the vehicle.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
326 Service and Maintenance
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.Usage Fluid/Lubricant
Automatic Transmission Automatic Transmission Fluid (GM Part No. 19354076).
Battery Terminals Petroleum Jelly (outer surfaces)
Brake Fluid DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818).
Cab-Door Hinges and Latches
Lubricant Multi-Purpose Lubricant, Superlube (GM Part No. 12346241) or equivalent
containing zinc oxide.
Chassis Lubricant Chassis Lubricant (GM Part No. 12377985) or high temperature equivalent.
Diesel Exhaust Fluid (DEF) Diesel Exhaust Fluid (GM Part No. 19286291) or diesel exhaust fluid that meets ISO 22241-1 or displays the API Diesel Exhaust Fluid
Certification Mark.
Driveshaft Center Bearing, Wheel
Hub Bearing Lubricant NLGI #2 or #3
Driveshaft, Universal Joints and
Sliding Sleeve Lubricant NLGI #1 or #2 multi-purpose type grease
Engine Coolant 50/50 mixture of clean, drinkable water and GM extended life coolant. (GM Part No. 12378560) SeeEngine Coolant0231.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Service and Maintenance 327
UsageFluid/Lubricant
Engine Oil Engine oils with the letters CK-4 are required for your vehicle. The CK-4
designation can appear either alone or in combination with other American
Petroleum Institute (API) designations, such as API CK-4/SL. These letters
show API levels of quality. To determine the preferred viscosity for your
vehicle's diesel engine, see Engine Oil0223.
Hydraulic Brake Booster (If
Equipped) DEXRON
®-VI Automatic Transmission Fluid.
Power Steerig Fluid DEXRON
®-VI Automatic Transmission Fluid.
Rear Axle Multi purpose gear oil SAE80W-90 GL-5, SAE90 GL-5
Rear Axle
(Limited slip differential (LSD)) Multi purpose gear oil SAE80W-90 GL-5, SAE90 GL-5 for limited slip
differential together with limited slip differential lubricant additive (GM
Part No. 88900330) or equivalent.
Windshield Washer Solvent Automotive windshield washer fluid that meets regional freeze protection requirements.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
328 Service and Maintenance
Be sure to use the LSD gear oil
additive mentioned above in
vehicles equipped with limited slip
differentials, and ensure there is an
appropriate amount of the LSD gear
oil additive, otherwise a chattering
noise and/or excessive vibration
may occur when turning.
If abnormal noises occur despite
having used the specified LSD gear
oil additive, have it inspected and

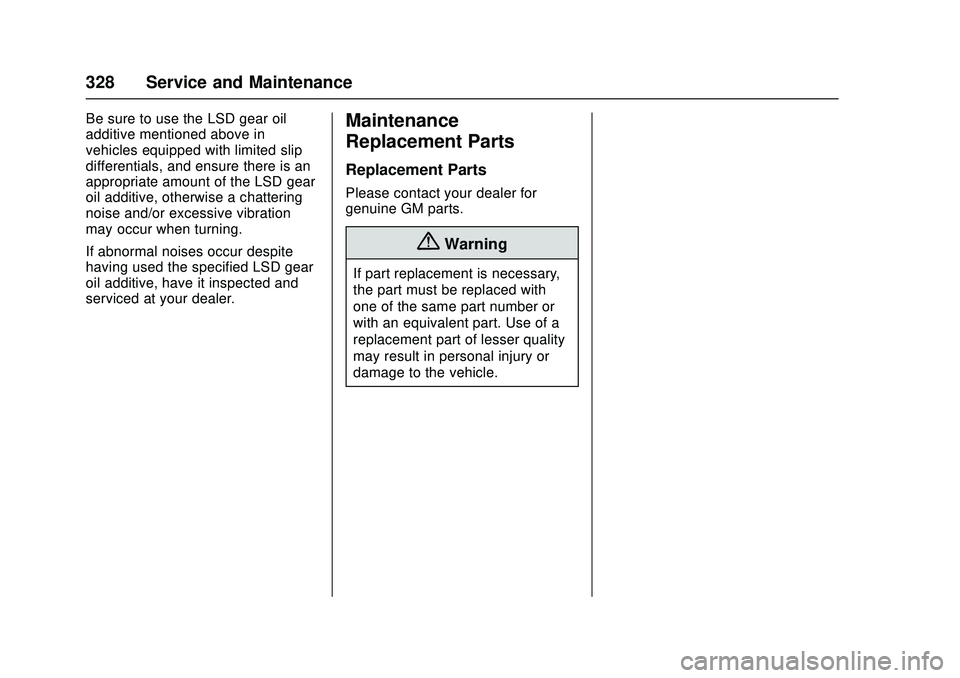

serviced at your dealer.Maintenance
Replacement Parts
Replacement Parts
Please contact your dealer for
genuine GM parts.
{Warning
If part replacement is necessary,
the part must be replaced with
one of the same part number or
with an equivalent part. Use of a
replacement part of lesser quality
may result in personal injury or
damage to the vehicle.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

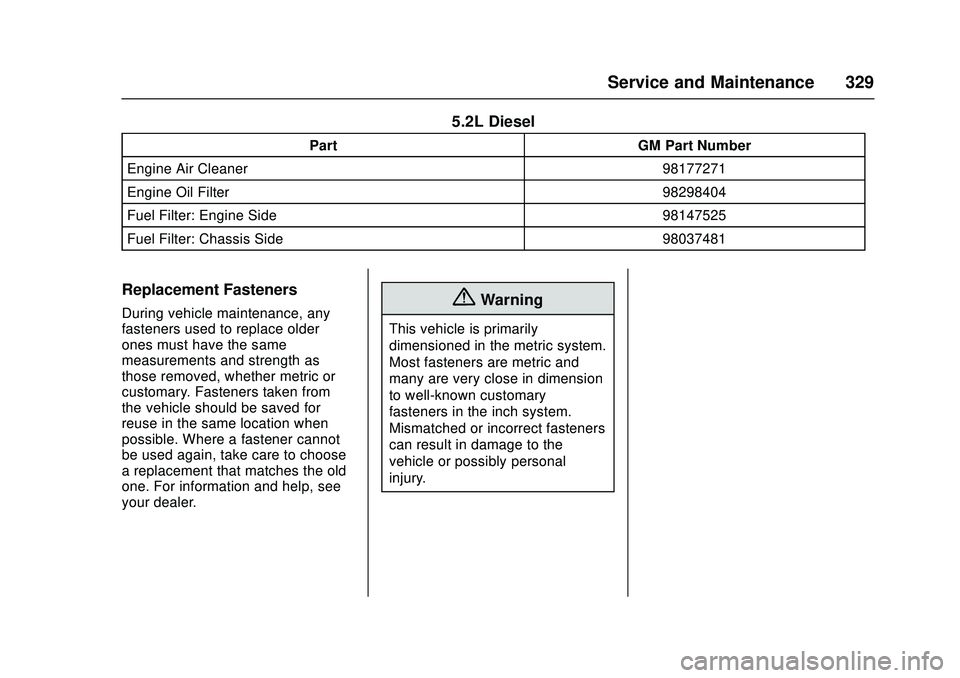

Service and Maintenance 329
5.2L Diesel
PartGM Part Number
Engine Air Cleaner 98177271
Engine Oil Filter 98298404
Fuel Filter: Engine Side 98147525
Fuel Filter: Chassis Side 98037481
Replacement Fasteners
During vehicle maintenance, any
fasteners used to replace older
ones must have the same
measurements and strength as
those removed, whether metric or
customary. Fasteners taken from
the vehicle should be saved for
reuse in the same location when
possible. Where a fastener cannot
be used again, take care to choose
a replacement that matches the old
one. For information and help, see
your dealer.{Warning
This vehicle is primarily
dimensioned in the metric system.
Most fasteners are metric and
many are very close in dimension
to well-known customary
fasteners in the inch system.
Mismatched or incorrect fasteners
can result in damage to the
vehicle or possibly personal
injury.
