Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
16 Emission Control Systems Warranty
the vehicle to fail to conform with
those regulations during the
emission warranty period.
Emission-related defects in the
genuine GM parts listed under the
Emission Warranty Parts List
covered, including related diagnostic
costs, parts, and labor are covered
by this warranty.
Federal Emission Performance
Warranty
Some states and/or local
jurisdictions have established
periodic Chassis Inspection and
Maintenance (I/M) programs to
encourage proper maintenance of
the chassis. If an EPA approved I/M
program is enforced in your area,
you may also be eligible for
Emission Performance Warranty
coverage when all of the following
three conditions are met:
. The Low Cab Forward truck has
been maintained and operated in
accordance with the instructions
for proper maintenance and use
set forth in the owner manual
supplied with the chassis. .
The Low Cab Forward truck fails
an EPA approved I/M test during
the emission warranty period.
. The failure results, or will result,
in the owner of the chassis
having to bear a penalty or other
sanctions (including the denial of
the right to use the chassis)
under local, state, or federal law.
Chevrolet warrants that your dealer
will replace, repair, or adjust to GM
specifications, at no charge to you,
any of the parts listed under the
Emission Warranty Parts List 019,
which may be necessary to conform
to the applicable emission
standards. Non-GM parts labeled
“Certified to EPA Standards” are
covered by the Federal Emission
Performance Warranty.
California Emission Control
System Warranty
This section outlines the emission
warranty that Chevrolet provides for
the truck in accordance with the
California Air Resources Board.
Defects in material or workmanship
in GM emission parts may also be covered under the Low Cab
Forward Limited Warranty coverage.
There may be additional coverage
on diesel engine powered units. In
any case, the warranty with the
broadest coverage applies.
This warranty applies if the Low Cab
Forward truck meets both of the
following requirements:
.
The Low Cab Forward truck is
registered in California or other
states adopting California
emission and warranty
regulations.*
. The Low Cab Forward truck is
certified for sale in California as
indicated on the truck emission
control label.
* Important: Connecticut,
Delaware, Maine, Maryland,
Massachusetts, New Jersey, New
York, Oregon, Pennsylvania, Rhode
Island, Vermont, and Washington
have California Emissions Warranty
coverage.
Page 22 of 42
Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
Emission Control Systems Warranty 17
Your Rights and Obligations (For
Chassis Subject to California
Exhaust Emission Standards)
The California Air Resources Board
and General Motors are pleased to
explain the emission control system
warranty on your Low Cab Forward
truck. In California, new trucks must
be designed, equipped, and built to
meet the state’s stringent anti-smog
standards. Chevrolet must warrant
the Low Cab Forward truck
emission control system for the
periods of time and mileage listed
below provided there has been no
abuse, neglect, or improper
maintenance of your Chevrolet Low
Cab Forward truck. The emission
control system may include parts
such as the fuel injection system,
ignition system, catalytic converter,
and engine computer. Also included
are hoses, belts, connectors, and
other emission related assemblies.
Where a warrantable condition
exists, Chevrolet will repair the truck
at no cost to you including
diagnosis, parts, and labor.California Emission Defect and
Emission Performance Warranty
Coverage
For trucks with a GVWR of
14,000 lbs. or less:
.
Coverage on gasoline engine
powered units is for 3 years or
50,000 miles, whichever comes
first. Coverage on diesel engine
powered units is for 3 years or
50,000 miles, whichever comes
first.
‐If your Low Cab Forward truck
fails a smog check inspection,
Chevrolet will make all
necessary repairs and
adjustments to ensure that
your truck passes the
inspection. This is your
Emission Control System
Performance Warranty.
‐ If any emission related part on
your vehicle is defective,
Chevrolet will repair or replace
it. This is your Short term
Emission Defects Warranty. .
For 7 years or 70,000 miles,
whichever comes first, gasoline
or diesel engine powered units
with a GVWR of 14,000 lbs.
or less:
‐If an emission related part
listed in this booklet specially
noted with coverage for
7 years or 70,000 miles is
defective, Chevrolet will repair
or replace it. This is your
Long-term Emission Control
System Defects Warranty.
For trucks with a GVWR of
14,001 lbs. or more:
. Coverage on gasoline engine
powered units is for 5 years or
50,000 miles, whichever comes
first. Coverage on diesel engine
powered units is for 5 years or
100,000 miles or 3000 engine
hours, whichever comes first
‐If any emission related part on
your truck is defective,
Chevrolet will repair or replace
it. This is your Short-term
Emission Defects Warranty.
Page 23 of 42
Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
18 Emission Control Systems Warranty
Any authorized Chevrolet Low Cab
Forward Truck Dealer will, as
necessary under these warranties,
replace, repair, or adjust to GM
specifications any genuine GM parts
that affect emissions. The applicable
warranty period shall begin on the
date the Low Cab Forward Truck is
delivered to the first retail purchaser
or, if the Low Cab Forward truck is
first placed in service as a
demonstrator or company vehicle
prior to sale at retail, on the date the
vehicle is placed in such service.
Owner's Warranty Responsibilities
As the Low Cab Forward truck
owner, you are responsible for the
performance of the scheduled
maintenance listed in your owner
manual. Chevrolet recommends that
you retain all maintenance receipts
for the chassis, but Chevrolet
cannot deny warranty coverage
solely for the lack of receipts or for
your failure to ensure the
performance of all scheduled
maintenance.You are responsible for presenting
your chassis to a Chevrolet Low
Cab Forward dealer servicing your
chassis line as soon as a problem
exists. The warranted repairs should
be completed in a reasonable
amount of time, not to exceed
30 days.
As the Low Cab Forward truck
owner, you should also be aware
that Chevrolet may deny warranty
coverage if your chassis or a part
has failed due to abuse, neglect,
improper or insufficient
maintenance, or modifications not
approved by GM.
If you have any questions regarding
your rights and responsibilities
under these warranties, you should
contact Customer Assistance
Center at 1-800-862-4389 or, in
California, write to:
State of California Air Resources
Board
Mobile Source Operations Division
P.O. Box 8001
El Monte, CA 91731-2990
Page 24 of 42
Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
Emission Warranty Parts List 19
The emission parts listed here are
covered under the Emission Control
System Warranty. The terms are
explained previously in this section
under“Federal Emission Control
System Warranty” and“California
Emission Control System Warranty.”
Important: Certain parts may be
covered beyond these warranties if
shown with asterisk(s) as follows:
. (*) 7 years/70,000 miles,
whichever comes first, California
Emission Control System
Warranty coverage.
The Emission Control Systems
Warranties obligations do not apply
to conditions resulting from
tampering, abuse, neglect,
or improper maintenance; or any
other item listed under “What Is Not
Covered” in theNew Vehicle Limited
Warranty 03. The “Other Terms”
presented in the New Vehicle
Limited Warranty 03also apply to
the emission-related warranties.
Powertrain Control System
Engine Control Module (ECM)* Engine Coolant Temperature Sensor
Intake Air Temperature Sensor
Manifold Absolute Pressure Sensor
Mass Air Flow Sensor
Oxygen Sensor(s)
NOx Sensor(s)*
Throttle Position Sensor
Fuel Management System
Fuel Injector (*Diesel Only)
Fuel Pressure Regulator
Fuel Pressure Sensor
Fuel Rail Assembly (*Diesel Only)
Fuel Supply Pump (*Diesel Only)
Air Management System
Air Cleaner
Air Intake Ducts
Boost pressure sensor
Charge Air Cooler*
Idle Air Control Valve
Intake Manifold (*Diesel Only)
Intake Manifold GasketThrottle Body
Turbocharger*
Ignition System
Camshaft Position Sensor(s)
Crankshaft Position Sensor(s)
Glow Plug Control Module
Glow Plugs
Ignition Coil(s)
Knock Sensor
Spark Plugs
Spark Plug Wires
Catalytic Converter System
Catalytic Converter(s) and Muffler if
attached as assembly*
Exhaust Temperature Sensor
Diesel Exhaust Fluid (DEF) Control
Unit *
DEF Supply Pump*
DEF Injector*
Diesel Exhaust Fluid (DEF) Tank
DEF Tank Level Sensor
DEF Quality Sensor*
Page 25 of 42
Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
20 Emission Warranty Parts List
DEF Lines (hoses and back flow
connector)
DEF Tank Heater Solenoid Valve
Diesel Particulate Filter (DPF)*
Selective Catalytic Reduction (SCR)
Catalyst*
Oxidation Catalyst*
Diesel Particulate Matter Sensor*
Exhaust brake
Exhaust Manifold and Gasket
Positive Crankcase Ventilation
(PVC) System
PCV Valve
PCV Crankcase Pressure Sensor
EGR System
EGR Valve
EGR Cooler*
EGR Bypass Valve*
Transmission Controls and Torque
Management (Applies to Gasoline
Engines Only)
GMLAN (CAN) Communications
CircuitPark/Neutral Switch
Torque Converter Clutch Solenoids
Torque Converter Clutch Switch
Transmission Control Module *
Transmission Fluid Temperature
Sensor
Transmission Internal Mode Switch *
Transmission Pressure Control
Solenoids *
Transmission Pressure Switches *
Transmission Shift Solenoids *
Transmission Speed Sensor
(Input) *
Transmission Speed Sensor
(Output)
Evaporative Emission Control
System (Applies to Gasoline
Engines Only)
Canister
Canister Purge Solenoid Valve
Canister Vent Solenoid
Fuel Feed and Return Pipes and
Hoses
Fuel Filler Cap
Fuel Level Sensor
Fuel Limiter Vent Valve *
Fuel Tank(s) *
Fuel Tank Filler Pipe (with restrictor)
Fuel Tank Vacuum or Pressure
Sensor
Misc. Items Used with Above
Components
Belts
Boots
Clamps
Connectors
Ducts
Fittings
Gaskets
Grommets
Hoses
Housings
Mounting Hardware
Pipes
Pulleys
Page 26 of 42
Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
Emission Warranty Parts List 21

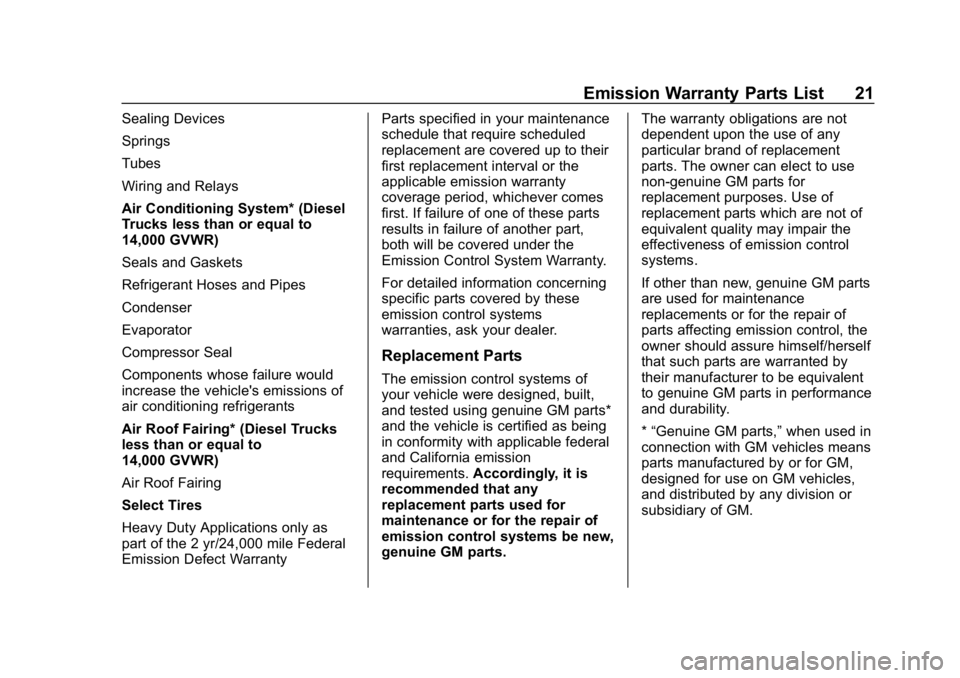

Sealing Devices
Springs
Tubes
Wiring and Relays
Air Conditioning System* (Diesel
Trucks less than or equal to
14,000 GVWR)
Seals and Gaskets
Refrigerant Hoses and Pipes
Condenser
Evaporator
Compressor Seal
Components whose failure would
increase the vehicle's emissions of
air conditioning refrigerants
Air Roof Fairing* (Diesel Trucks
less than or equal to
14,000 GVWR)
Air Roof Fairing
Select Tires
Heavy Duty Applications only as
part of the 2 yr/24,000 mile Federal
Emission Defect WarrantyParts specified in your maintenance
schedule that require scheduled
replacement are covered up to their
first replacement interval or the
applicable emission warranty
coverage period, whichever comes
first. If failure of one of these parts
results in failure of another part,
both will be covered under the
Emission Control System Warranty.
For detailed information concerning
specific parts covered by these
emission control systems
warranties, ask your dealer.
Replacement Parts
The emission control systems of
your vehicle were designed, built,
and tested using genuine GM parts*
and the vehicle is certified as being
in conformity with applicable federal
and California emission
requirements.
Accordingly, it is
recommended that any
replacement parts used for
maintenance or for the repair of
emission control systems be new,
genuine GM parts. The warranty obligations are not
dependent upon the use of any
particular brand of replacement
parts. The owner can elect to use
non-genuine GM parts for
replacement purposes. Use of
replacement parts which are not of
equivalent quality may impair the
effectiveness of emission control
systems.
If other than new, genuine GM parts
are used for maintenance
replacements or for the repair of
parts affecting emission control, the
owner should assure himself/herself
that such parts are warranted by
their manufacturer to be equivalent
to genuine GM parts in performance
and durability.
*
“Genuine GM parts,” when used in
connection with GM vehicles means
parts manufactured by or for GM,
designed for use on GM vehicles,
and distributed by any division or
subsidiary of GM.
Page 27 of 42
Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
22 Emission Warranty Parts List

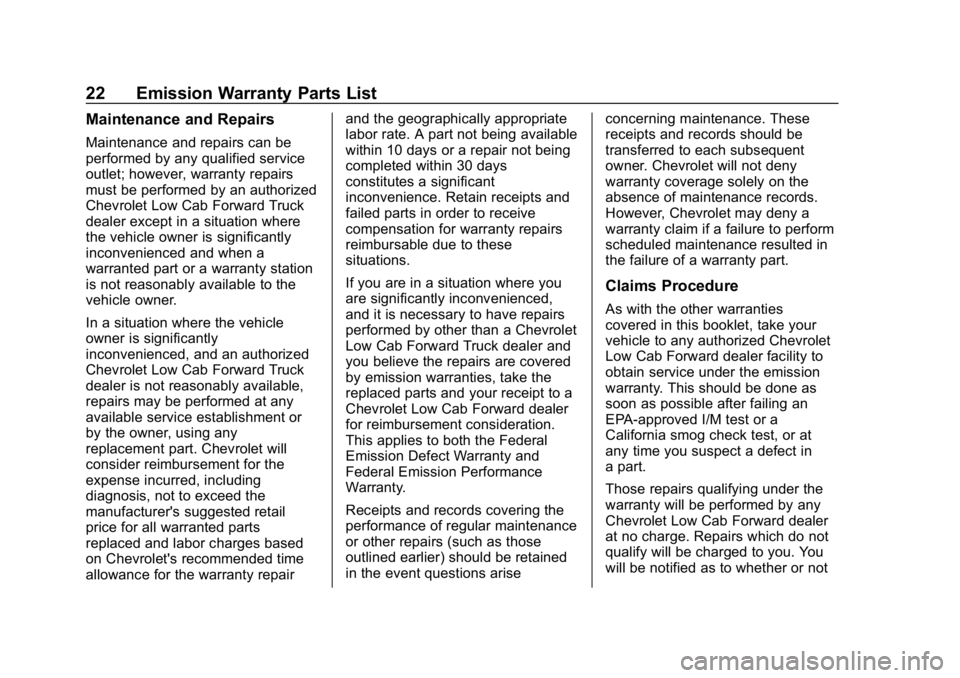

Maintenance and Repairs
Maintenance and repairs can be
performed by any qualified service
outlet; however, warranty repairs
must be performed by an authorized
Chevrolet Low Cab Forward Truck
dealer except in a situation where
the vehicle owner is significantly
inconvenienced and when a
warranted part or a warranty station
is not reasonably available to the
vehicle owner.
In a situation where the vehicle
owner is significantly
inconvenienced, and an authorized
Chevrolet Low Cab Forward Truck
dealer is not reasonably available,
repairs may be performed at any
available service establishment or
by the owner, using any
replacement part. Chevrolet will
consider reimbursement for the
expense incurred, including
diagnosis, not to exceed the
manufacturer's suggested retail
price for all warranted parts
replaced and labor charges based
on Chevrolet's recommended time
allowance for the warranty repairand the geographically appropriate
labor rate. A part not being available
within 10 days or a repair not being
completed within 30 days
constitutes a significant
inconvenience. Retain receipts and
failed parts in order to receive
compensation for warranty repairs
reimbursable due to these
situations.
If you are in a situation where you
are significantly inconvenienced,
and it is necessary to have repairs
performed by other than a Chevrolet
Low Cab Forward Truck dealer and
you believe the repairs are covered
by emission warranties, take the
replaced parts and your receipt to a
Chevrolet Low Cab Forward dealer
for reimbursement consideration.
This applies to both the Federal
Emission Defect Warranty and
Federal Emission Performance
Warranty.
Receipts and records covering the
performance of regular maintenance
or other repairs (such as those
outlined earlier) should be retained
in the event questions arise
concerning maintenance. These
receipts and records should be
transferred to each subsequent
owner. Chevrolet will not deny
warranty coverage solely on the
absence of maintenance records.
However, Chevrolet may deny a
warranty claim if a failure to perform
scheduled maintenance resulted in
the failure of a warranty part.
Claims Procedure
As with the other warranties
covered in this booklet, take your
vehicle to any authorized Chevrolet
Low Cab Forward dealer facility to
obtain service under the emission
warranty. This should be done as
soon as possible after failing an
EPA-approved I/M test or a
California smog check test, or at
any time you suspect a defect in
a part.
Those repairs qualifying under the
warranty will be performed by any
Chevrolet Low Cab Forward dealer
at no charge. Repairs which do not
qualify will be charged to you. You
will be notified as to whether or not
Page 28 of 42
Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
Emission Warranty Parts List 23
the repair qualifies under the
warranty within a reasonable time,
not to exceed 30 days after receipt
of the vehicle by the dealer,
or within the time period required by
local or state law.
The only exceptions would be if you
request or agree to an extension,
or if a delay results from events
beyond the control of your dealer or
GM. If you are not so notified,
Chevrolet will provide any required
repairs at no charge.
In the event a warranty matter is not
handled to your satisfaction, refer to
Customer Satisfaction Procedure
024.
For further information or to report
violations of the Emission Control
System Warranty, contact the
EPA at: U.S. Environmental Protection
Agency
Office of Transportation and Air
Quality
Compliance Division, Light-Duty
Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email:
[email protected]
For a vehicle subject to the
California Exhaust Emission
Standards, contact:
State of California Air Resources
Board
Mobile Source Operations Division
P.O. Box 8001
El Monte, CA 91731-2990
Page 29 of 42
Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
24 Customer Satisfaction Procedure
Your satisfaction and goodwill are
important to your Chevrolet Low
Cab Forward dealer and to
Chevrolet. Normally, any concerns
with the sales transaction or the
operation of your vehicle will be
resolved by your dealer's sales or
service departments. Sometimes,
however, despite the best intentions
of all concerned, misunderstandings
can occur. If your concern has not
been resolved to your satisfaction,
the following steps should be taken:
STEP ONE : Discuss your
concern with a member of dealer
management.Normally, concerns
can be quickly resolved at that level.
If the matter has already been
reviewed with the sales, service,
or parts manager, contact the
owner of the dealer facility or the
general manager.
STEP TWO : If after contacting a
member of dealer management, it
appears your concern cannot be
resolved by the dealer without
further help contact the Chevrolet
Customer Assistance Center by
calling 1-800-862-4389. We encourage you to call the
toll-free number in order to give
your inquiry prompt attention.
Have the following information
available to give the Customer
Assistance Representative:
.
The Vehicle Identification
Number (VIN). This is available
from the vehicle registration or
title, or the plate above the top of
the instrument panel on the
driver side, and visible through
the windshield.
. The dealer name and location.
. The vehicle delivery date and
present mileage.
When contacting Chevrolet,
remember that your concern will
likely be resolved at a dealer's
facility. That is why we suggest you
follow Step One first if you have a
concern. STEP THREE :
Both Chevrolet and
your Chevrolet Low Cab Forward
dealer are committed to making
sure you are completely satisfied
with your new vehicle. However,
if you continue to remain unsatisfied
after following the procedure
outlined in Steps One and Two, you
can file with the Better Business
Bureau (BBB) Auto Line Program to
enforce any additional rights you
may have.
The BBB Auto Line Program is an
out of court program administered
by the Council of Better Business
Bureaus to settle automotive
disputes regarding vehicle repairs or
the interpretation of the New Vehicle
Limited Warranty. Although you may
be required to resort to this informal
dispute resolution program prior to
filing a court action, use of the
program is free of charge and your
case will generally be heard within
40 days. If you do not agree with
the decision given in your case, you
may reject it and proceed with any
other venue for relief available
to you.
Page 30 of 42
Chevrolet Low Cab Forward Limited Warranty and Owner Assistance
Information (GMNA-Localizing-U.S.-12404512) - 2019 - crc - 2/7/18
Customer Satisfaction Procedure 25
Contact the BBB Auto Line Program
using the toll-free telephone number
or write them at the following
address:
BBB Auto Line Program
Council of Better Business Bureaus,
Inc.
3033 Wilson Boulevard
Suite 600
Arlington, VA 22201
Telephone: 1-800-955-5100
http://www.bbb.org/council/
programs-services/
dispute-handling-and-resolution/
bbb-auto-line
This program is available in all
50 states and the District of
Columbia. Eligibility is limited by
vehicle age, mileage, and other
factors. Chevrolet reserves the right
to change eligibility limitations and/
or to discontinue its participation in
this program.
