CHEVROLET LUMINA 1993 1.G Manual PDF
Manufacturer: CHEVROLET, Model Year: 1993, Model line: LUMINA, Model: CHEVROLET LUMINA 1993 1.GPages: 324, PDF Size: 17.44 MB
Page 71 of 324

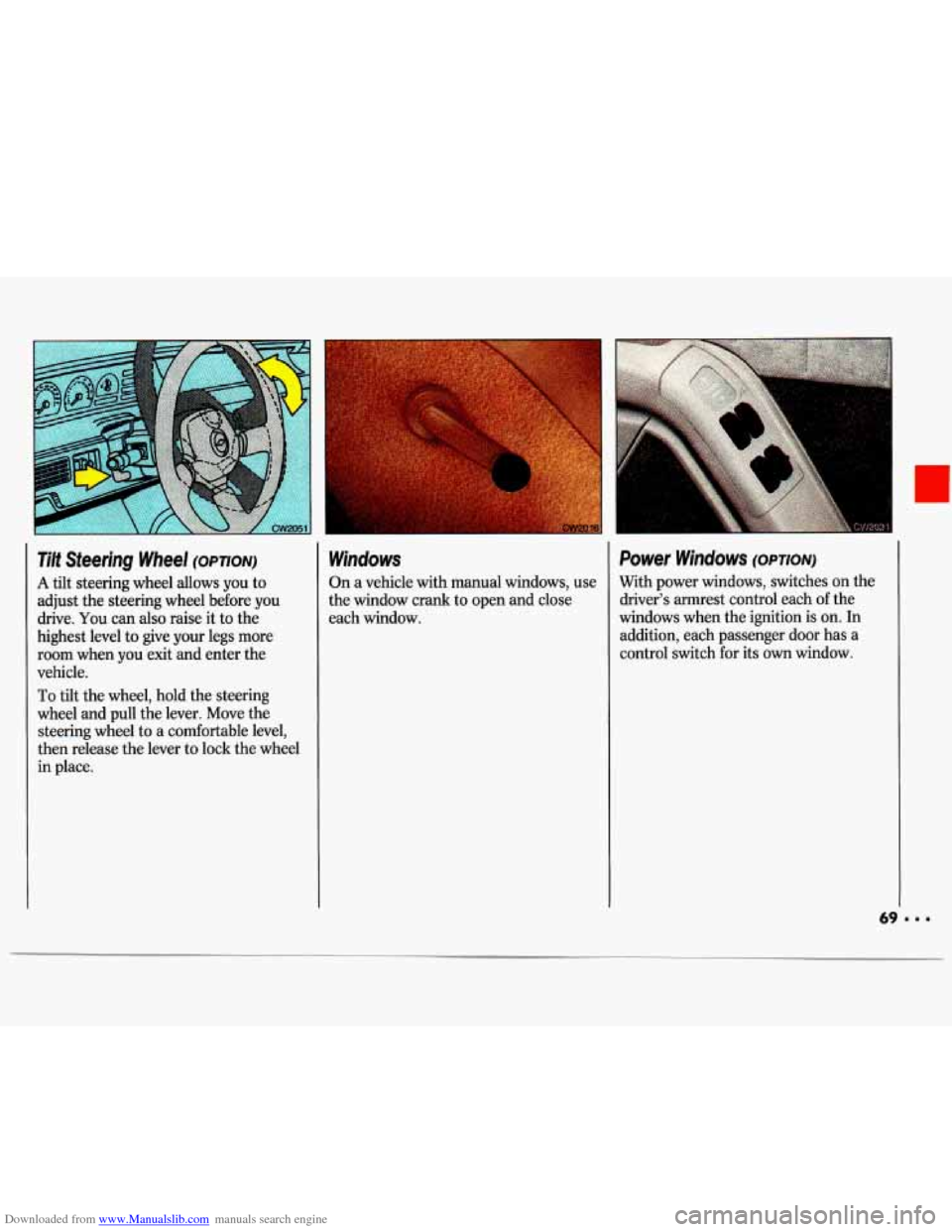

Downloaded from www.Manualslib.com manuals search engine Tilt Steering Wheel (OPTION)
A tilt steering wheel allows you to
adjust the steering wheel before
you
drive. You can also raise it to the
highest level to give
your legs more
room when
you exit and enter the
vehicle.
To tilt the wheel, hold the steering
wheel and pull the lever. Move the
steering wheel to a comfortable level,
then release the lever to lock the wheel
in place.
Windows
On a vehicle with manual windows, use
the window crank to open and close
each window.
Power Windows (OPTION)
With power windows, switches on the
driver’s armrest control each of the
windows when the ignition is on.
In
addition, each passenger door has a
control switch for its
own window.
Page 72 of 324

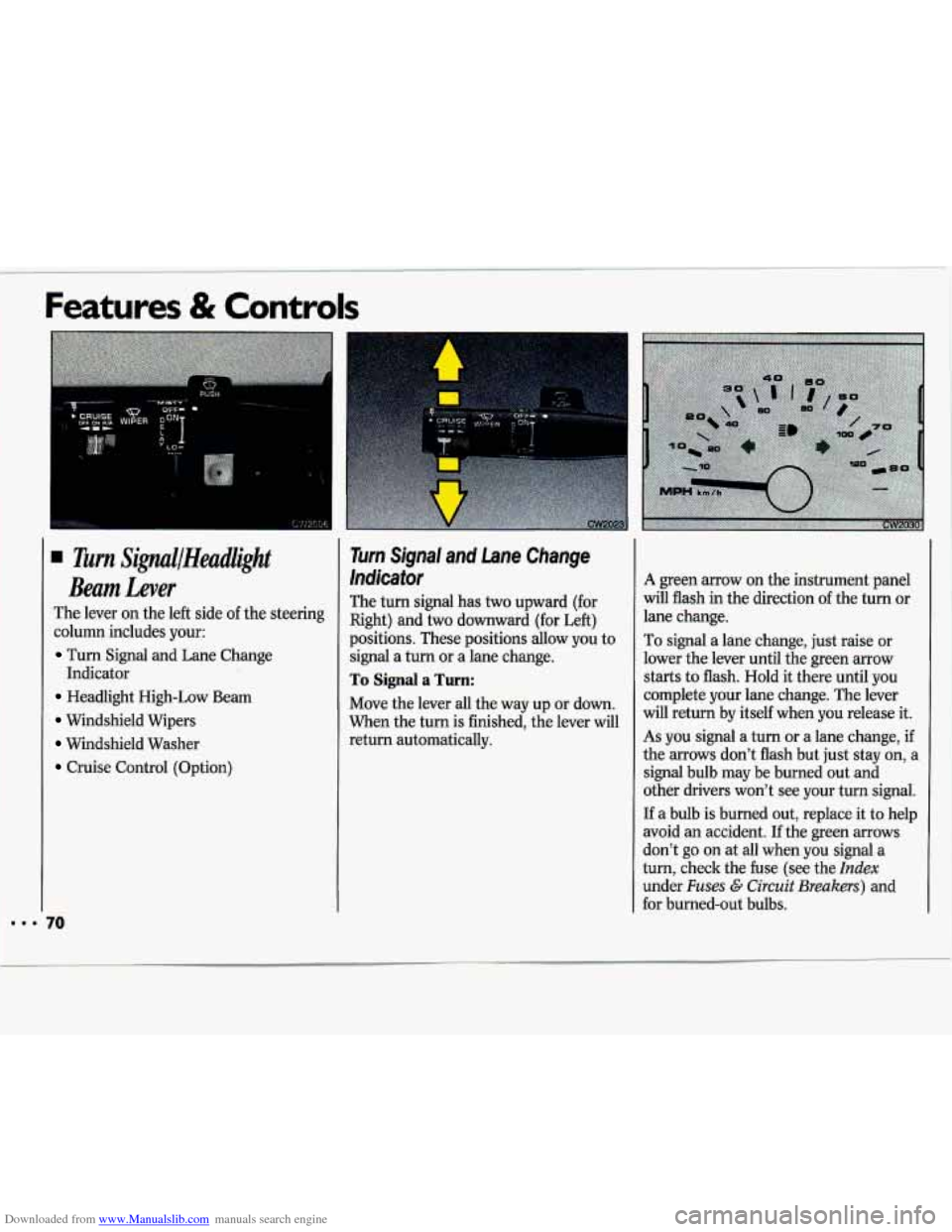

Downloaded from www.Manualslib.com manuals search engine Features & Controls
Turn Si'llHeadlight
Beam kver
The lever on the left side of the steering
column includes your:
Turn Signal and Lane Change
Headlight High-Low Beam
Windshield Wipers
Windshield Washer
Cruise Control (Option)
Indicator
Turn Signal and Lane Change
Indicator
The turn signal has two upward (for
Right) and
two downward (for Left)
positions. These positions allow you to
signal a turn or a lane change.
To Signal a Turn:
Move the lever all the way up or down.
When the turn is finished, the lever will
return automatically.
I
A green arrow on the instrument panel
will flash in the direction of the turn or
lane change.
To signal a lane change, just raise or
lower the lever until the green arrow
starts to flash. Hold it there until you
complete your lane change. The lever
will return by itself when you release it.
As you signal a turn or a lane change, if
the arrows don't flash but just stay
on, a
signal bulb may be burned out and
other drivers won't see your turn signal.
If a bulb is burned out, replace it to help
avoid an accident.
If the green arrows
don't go
on at all when you signal a
turn, check the fuse (see the
Index
under Fuses G. Circuit Breakers) and
for burned-out bulbs.
Page 73 of 324

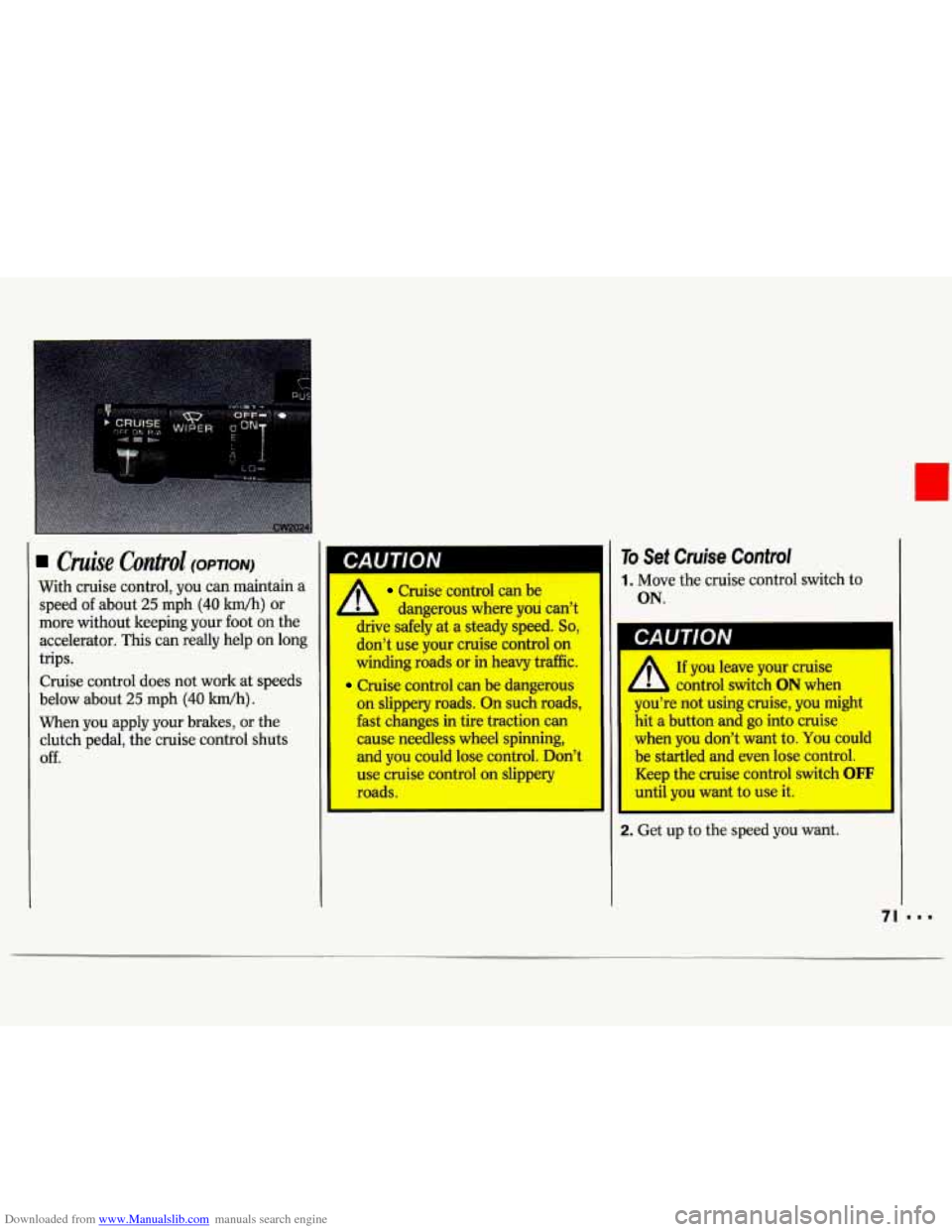

Downloaded from www.Manualslib.com manuals search engine Cruise Control (OPTION)
With cruise control, you can maintain a
speed of about 25 mph
(40 km/h) or
more without keeping your foot on the
accelerator.
This can really help on long
trips.
Cruise control does not work
at speeds
below about 25 mph
(40 lun/h).
When you apply your brakes, or the
clutch pedal, the cruise control shuts
Off.
I w
CAUTION
A dangerous where you can’t
Cruise control can be
drive safely at
a steady speed. So,
don’t use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous
on slippery roads. On such roads,
fast changes in tire traction can
cause needless wheel spinning,
and
you could lose control. Don’t
use cruise control on slippery
roads.
To Set Cruise Control
I. Move the cruise control switch
ON.
to
CAUTION
A If you leave your cruise
- control switch ON when
you’re not using cruise, you might
hit
a button and go into cruise
when you don’t want to.
You could
be startled and even lose control.
Keep the cruise control switch
OFF
until you want to use it.
2. Get up to the speed you want.
Page 74 of 324

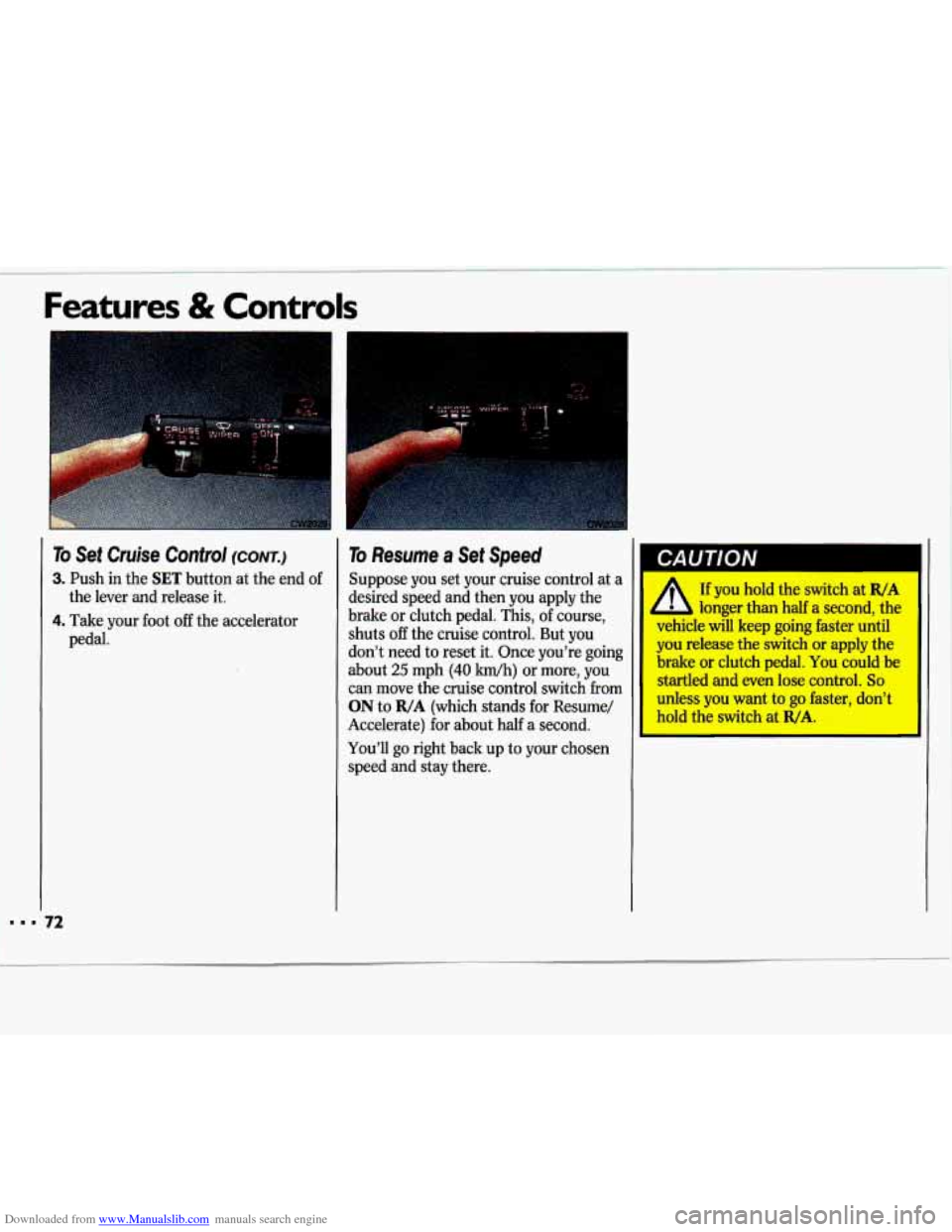

Downloaded from www.Manualslib.com manuals search engine Features & Controls
To Set Cruise Control (CONT.)
3. Push in the SET button at the end of
4. Take your foot off the accelerator
the
lever and release it.
pedal.
To Resume a Set Speed - CAUTION
Suppose you set your cruise control at a I I A If you hold the switch at R/A 1 desired speed and then you apply the
brake or clutch pedal. This, of course,
shuts
off the cruise control. But you
don’t need to reset it. Once you’re going
about
25 mph (40 kwh) or more, you
can move the cruise control switch from
ON to R/A (which stands for Resume/
Accelerate) for about half a second.
You’ll go right back up to your chosen
speed and stay there.
,A longer than half a second, the
vehicle will keep going faster until
you release the switch or apply the
brake or clutch pedal.
You could be
startled and even lose control.
So
unless you want to go faster, don’t
hold the switch at
R/A.
Page 75 of 324

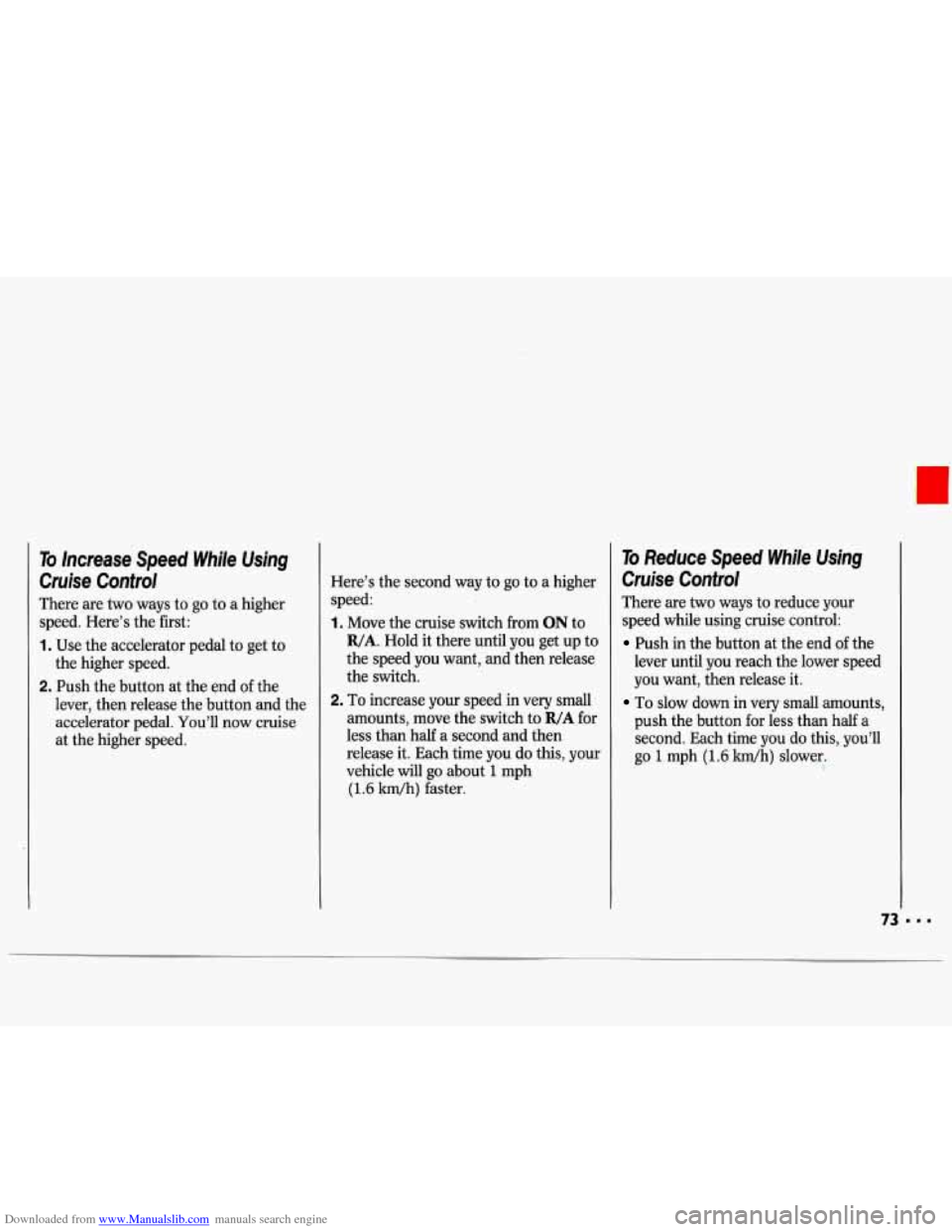

Downloaded from www.Manualslib.com manuals search engine To Increase Speed While Using
Cruise Control
There are two ways to go to a higher
speed. Here’s the first:
1. Use the accelerator pedal to get to
the higher speed.
2. Push the button at the end of the
lever, then release the button and the
accelerator pedal. You’ll now cruise
at the higher speed. Here’s
the second way to go to a higher
speed:
1. Move the cruise switch from ON to
R/A. Hold it there until you get up to
the speed you want, and then release
the switch.
2. To increase your speed in very small
amounts, move the switch to
R/A for
less than half a second and then
release it. Each time you do this, your
vehicle will go about
1 mph
(1.6
km/h) faster.
To Reduce Speed While Using
Cruise Control
There are two ways to reduce your
speed while using cruise control:
Push in the button at the end of the
lever until you reach the lower speed
you want, then release it.
To slow down in very small amounts,
push the button for less than half a
second. Each time you do this, you’ll
go
1 mph (1.6 kdh) slower.
Page 76 of 324

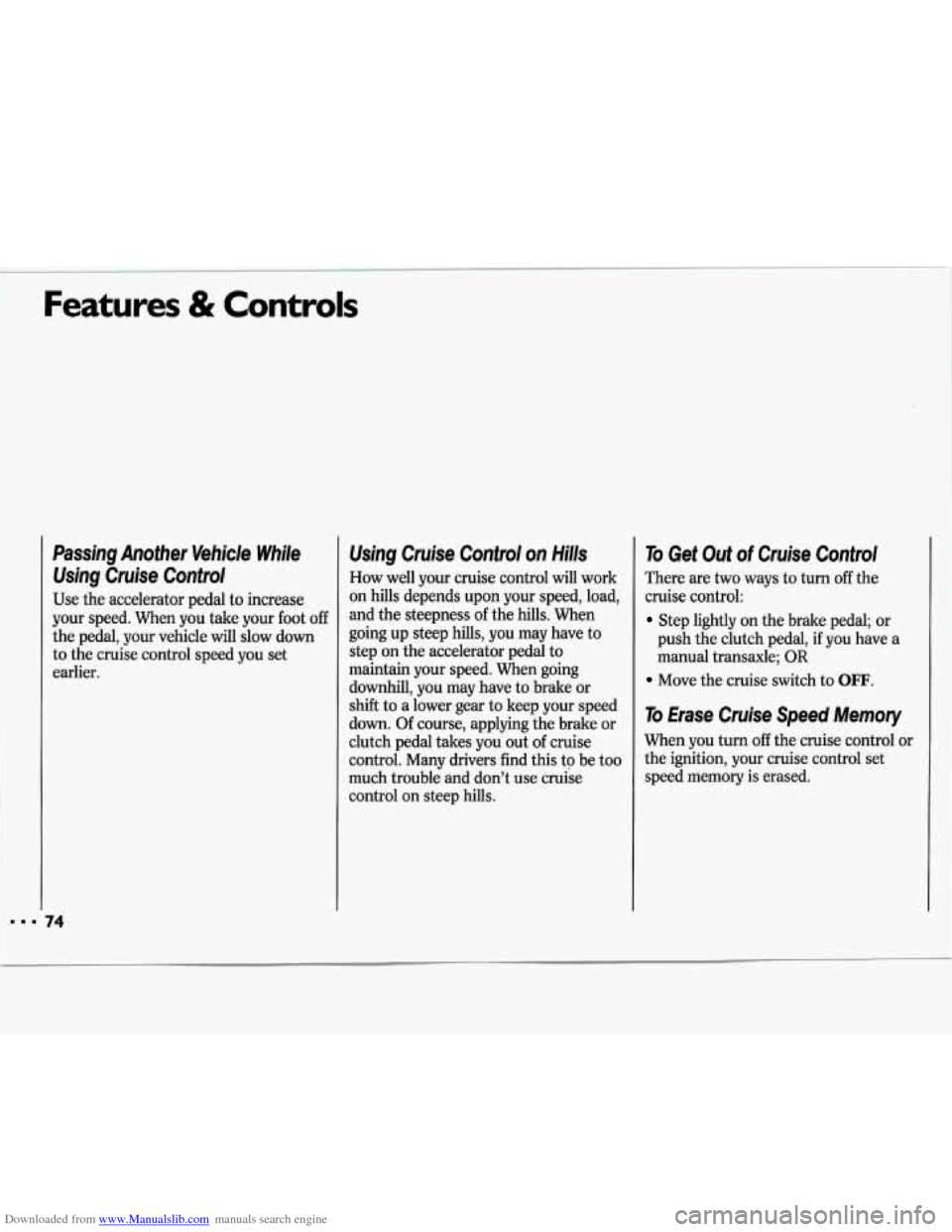

Downloaded from www.Manualslib.com manuals search engine ..I
Features & Controls
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase
your speed. When you take your foot
off
the pedal, your vehicle will slow down
to the cruise control speed you set
earlier.
74
Using Cruise Control on Hills
How well your cruise control will work
on hills depends upon your speed, load,
and the steepness
of the hills. When
going up steep hills, you may have to
step on the accelerator pedal to
maintain your speed. When going
downhill, you may have to brake or
shift to a lower gear to keep your speed
down. Of course, applying the brake or
clutch pedal takes you out of cruise
control. Many drivers find this
to be too
much trouble and don't use cruise
control on steep hills.
To Get Out of Cruise Control
There are two ways to turn off the
cruise control:
Step lightly on the brake pedal; or
push the clutch pedal, if you have a
manual transaxle;
OR
Move the cruise switch to OFF.
To Erase Cruise Speed Memory
When you turn off the cruise control or
the ignition, your cruise control set
speed memory is erased.
Page 77 of 324

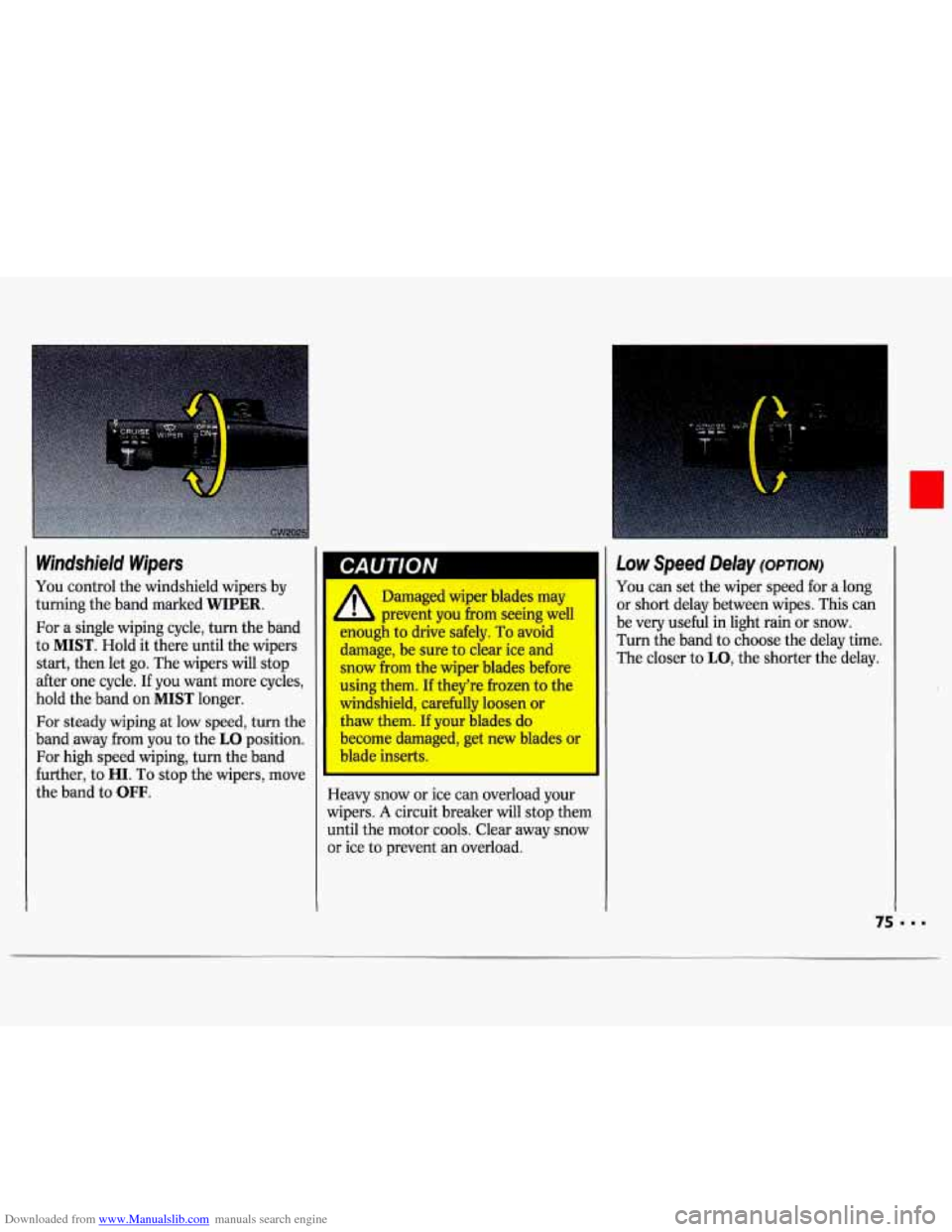

Downloaded from www.Manualslib.com manuals search engine Windshield Wipers
You control the windshield wipers by
turning the band marked
WIPER.
For a single wiping cycle, turn the band
to
MIST. Hold it there until the wipers
start, then let
go. The wipers will stop
after one cycle. If you want more cycles,
hold the band on
MIST longer.
For steady wiping at low speed, turn the
band away from you to the
LO position.
For high speed wiping, turn the band
further, to
HI. To stop the wipers, move
the band to
OFF.
CAUTION
E
A Damaged wiper blades may
L prevent you from seeing well
WUU& to drive safely. To avoid
damage, be sure to clear ice and
snow from the wiper blades before
using them. If they’re frozen to the
windshield, carefully loosen or
thaw them. If your blades do
become damaged, get new blades or
blade inserts.
-
leavy snow or ice can overload your
wipers.
A circuit breaker will stop them
until the motor cools. Clear away snow
or ice to prevent an overload.
Low Speed Delay (OPTION)
You can set the wiper speed for a long
or short delay between wipes. This can
be very useful in light rain or snow.
Turn the band to choose the delay time.
The closer to
LO, the shorter the delay.
Page 78 of 324

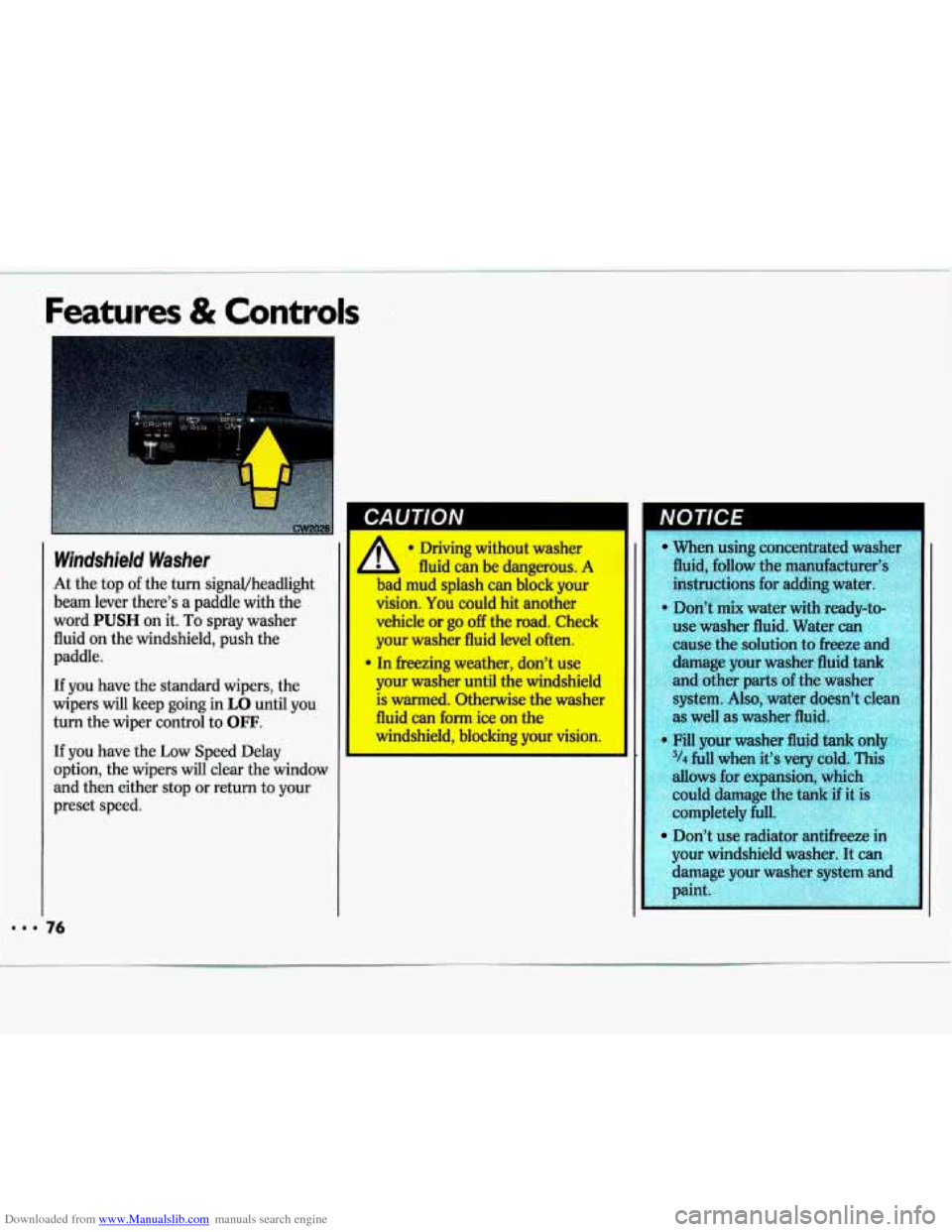

Downloaded from www.Manualslib.com manuals search engine Windshield Washer
At the top of the turn signavheadlight
beam lever there’s a paddle with the
word
PUSH on it. To spray washer
fluid on the windshield, push the
paddle.
If you have the standard wipers, the
wipers will keep going in
LO until you
turn the wiper control to
OFF.
If you have the Low Speed Delay
option, the wipers
will clear the window
and then either stop
or return to your
preset speed.
I CAUTION NOTEE I
\%en using concentrated wash1 1
Ad, follow the manufacturer’s
instructions for adding water.
Don’t mix water with ready-to-
use washer fluid. Water can
cause the solution
to freeze and
damage your washer fluid taI
and ather parts of the washer
as well as washer
flu
Fill your washer fluid tad
3/4 full when it’s very cold. This
allows for expansion, whi
could damage the tank
if i - ompletely full.
I 1 Uon’t use radiator antifreeze in
‘our windshield washer. It can
damage your washer system ant stem.
Also, water doesn” dean
I
I paint.
Page 79 of 324
Downloaded from www.Manualslib.com manuals search engine Headlights
The main light controls are on the left
side of the instrument panel. Push the
switch marked
pf to turn on your:
Parking Lights
Side Marker Lights
Taillights
License Plate Lights
Instrument Panel Lights
Push the switch again to turn them off. Push
the switch marked
-g- to turn on
your headlights, together with your:
Parking Lights
Side Marker Lights
Taillights
License Plate Lights
Instrument Panel Lights
Push the switch again to turn them off.
Operation of Lights
Although your vehicle’s lighting system
(headlamps, parking lamps, fog lamps,
side marker lamps and tail lamps) meets
all applicable federal lighting
requirements, certain states and
provinces may apply their
own lighting
regulations that may require special
attention before
you operate these
lamps. For example, some jurisdictions
may require that you operate your lower
beam lamps with fog lamps
at all times,
or that headlamps be turned on
whenever you must use your windshield
wipers. In addition, most jurisdictions
prohibit drively solely with parking
lamps, especially at dawn or
dusk. It is
recommended that you check with your
own state or provincial highway
authority for applicable lighting
regulations.
Lights On Reminder
If you open the door with the ignition
off and the lights on, you will hear
a
warning chime.
Page 80 of 324
Downloaded from www.Manualslib.com manuals search engine Features & Controls
Daytime Running Lights
(CANADA ONLY)
The Canadian Federal Government has decided that
Daytime Running Lights
(DRL) are a useful feature, in that DRL
can make your vehicle more visible to
pedestrians and other drivers during daylight hours. DRL are required
on
new vehicles sold in Canada.
Your DRL work with a light sensor on
top
of the instrument panel. Don’t
cover it up.
The low beam headlights will come
on
at reduced brightness in daylight when:
The ignition is on
The headlight switch is off, and
The parking brake is released. At dusk,
the exterior lights will come on
automatically and the low beams will
change to full brightness. At dawn, the
exterior lights will go out and the low
beams will change to the reduced
brightness of DRL (if the headlight
switch is
off).
Of course, you may still turn on the
headlights any time you need to.
To idle your vehicle with the
DRL off,
set the parking brake while the ignition
is in the
Off or Lock position. Then
start the vehicle. The DRL will stay
off
until you release the parking brake.
L I
c
Headlight High-Low Beam
Changer
I
To change the headlights from low
beam to high
or high to low, pull the
turn signal lever all the way toward you.
I
Then release it.
When the high beams are
on, a blue
light on the instrument panel also will
be on.
78
