CHEVROLET LUMINA 1993 1.G Owners Manual

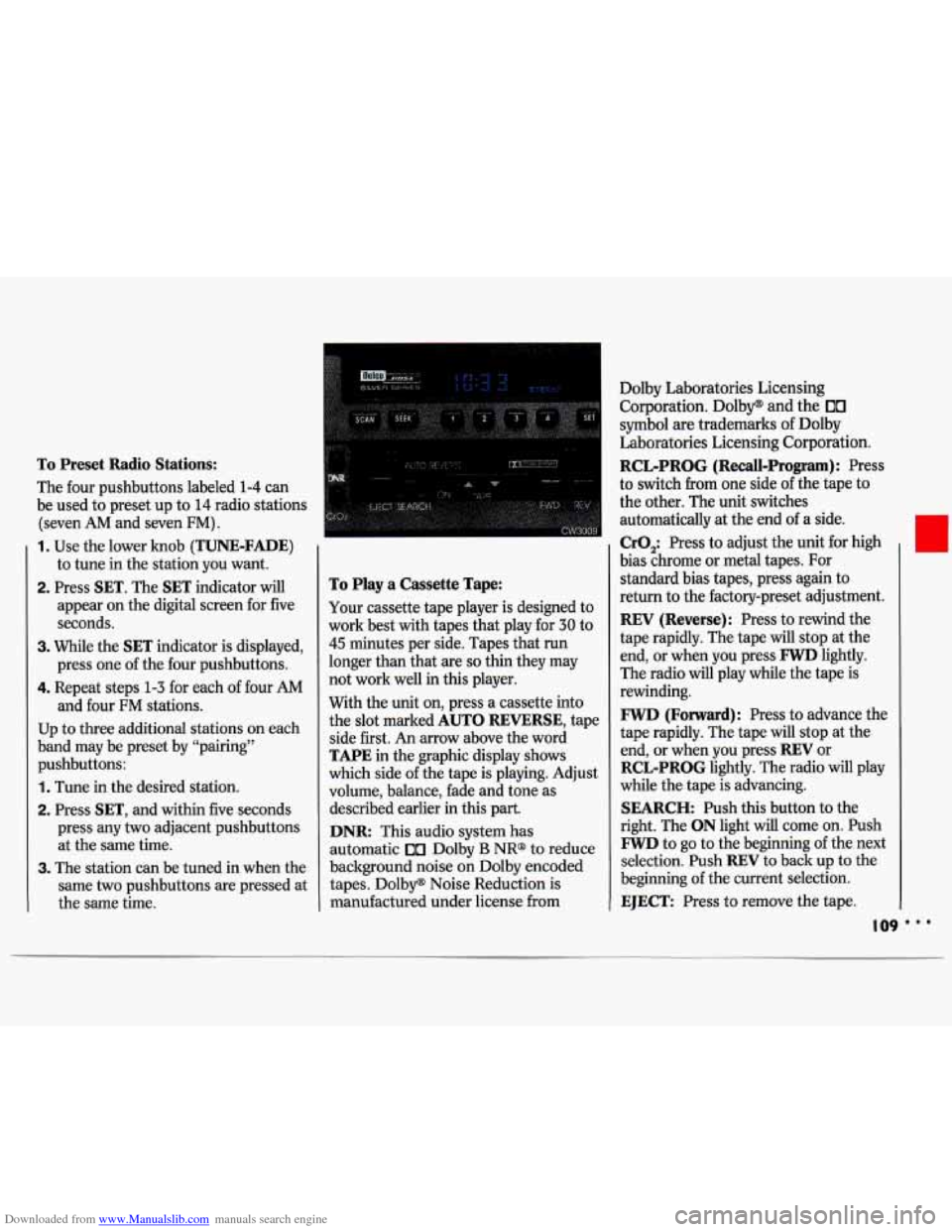

Downloaded from www.Manualslib.com manuals search engine To Preset Radio Stations:
The four pushbuttons labeled 1-4 can
be used to preset up to
14 radio stations
(seven
AM and seven FM) .
1. Use the lower knob (TUNE-FADE)
to tune in the station you want.
2. Press SET. The SET indicator will
appear on the digital screen for five
seconds.
3. While the SET indicator is displayed,
press one of the four pushbuttons.
4. Repeat steps 1-3 for each of four AM
and four FM stations.
Up to three additional stations on each
band may be preset by "pairing"
pushbuttons:
1. Tune in the desired station.
2. Press SET, and within five seconds
press any
two adjacent pushbuttons
at the same time.
3. The station can be tuned in when the
same
two pushbuttons are pressed at
the same time.
To Play a Cassette Tape:
Your cassette tape player is designed to
work best with tapes that play for
30 to
45 minutes per side. Tapes that run
longer than that are
so thin they may
not work well
in this player.
With the unit on, press a cassette into
the slot marked
AUTO REVERSE, tape
side first. An arrow above the word
TAPE in the graphic display shows
which side of the tape is playing. Adjust
volume, balance, fade and tone as
described earlier in this part.
DNR This audio system has
automatic
00 Dolby B NR@ to reduce
background noise on Dolby encoded
tapes. Dolby@ Noise Reduction is
manufactured under license from Dolby
Laboratories Licensing
Corporation. Dolby@
and the 00
symbol are trademarks of Dolby
Laboratories Licensing Corporation.
RCL-PROG (Recall-Program): Press
to switch from one side of the tape
to
the other. The unit switches
automatically at the end of a side.
CrO,: Press to adjust the unit for high
bias chrome or metal tapes. For
standard bias tapes, press again to
return to the factory-preset adjustment.
REV (Reverse): Press to rewind the
tape rapidly. The tape will stop at the
end, or when you press
FWD lightly.
The radio will play while the tape is
rewinding.
FWD (Forward): Press to advance the
tape rapidly. The tape will stop at the
end, or when you press
REV or
RCL-PROG lightly. The radio will play
while the tape is advancing.
SEARCH: Push this button to the
right. The
ON light will come on. Push
FWD to go to the beginning of the next
selection.
Push REV to back up to the
beginning of the current selection.
EJECT Press to remove the tape.

Downloaded from www.Manualslib.com manuals search engine Comfort Controls & Audio Systems

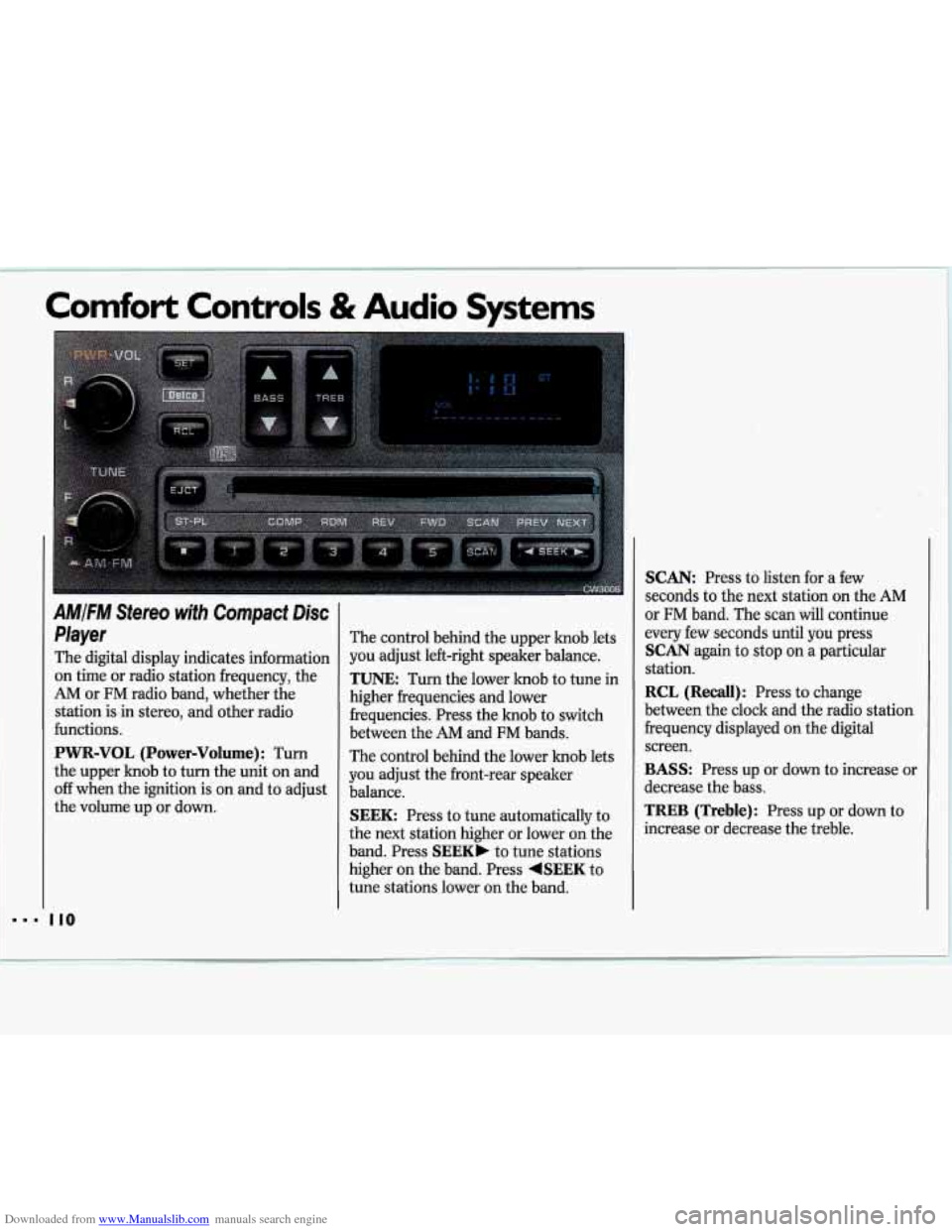

AMIFM Stereo with Compact Disc
Player
The digital display indicates information on time or radio station frequency, the
AM or FM radio band, whether the
station is in stereo, and other radio
functions.
PWR-VOL (Power-Volume) : Turn
the upper knob to turn the unit on and
off when the ignition is on and to adjust
the volume up or down. The control behind
the upper knob lets
you adjust left-right speaker balance.
TUNE: Turn the lower knob to tune in
higher frequencies and lower
frequencies. Press the hob to switch
between the AM and FM bands.
The control behind the lower knob lets
you adjust the front-rear speaker
balance.
SEEK: Press to tune automatically to
the next station higher or lower on the
band. Press
SEEK, to tune stations
higher on the band. Press
+SEEK to
tune stations lower on the band.
SCAN: Press to listen for a few
seconds to the next station on the AM
or
FM band. The scan will continue
every few seconds until you press
SCAN again to stop on a particular
station.
RCL (Recall): Press to change
between the clock and the radio station
frequency displayed on the digital
screen.
BASS: Press up or down to increase or
decrease the bass.
TREB (Treble): Press up or down to
increase or decrease the treble.
110

Downloaded from www.Manualslib.com manuals search engine To Preset Radio Stations:

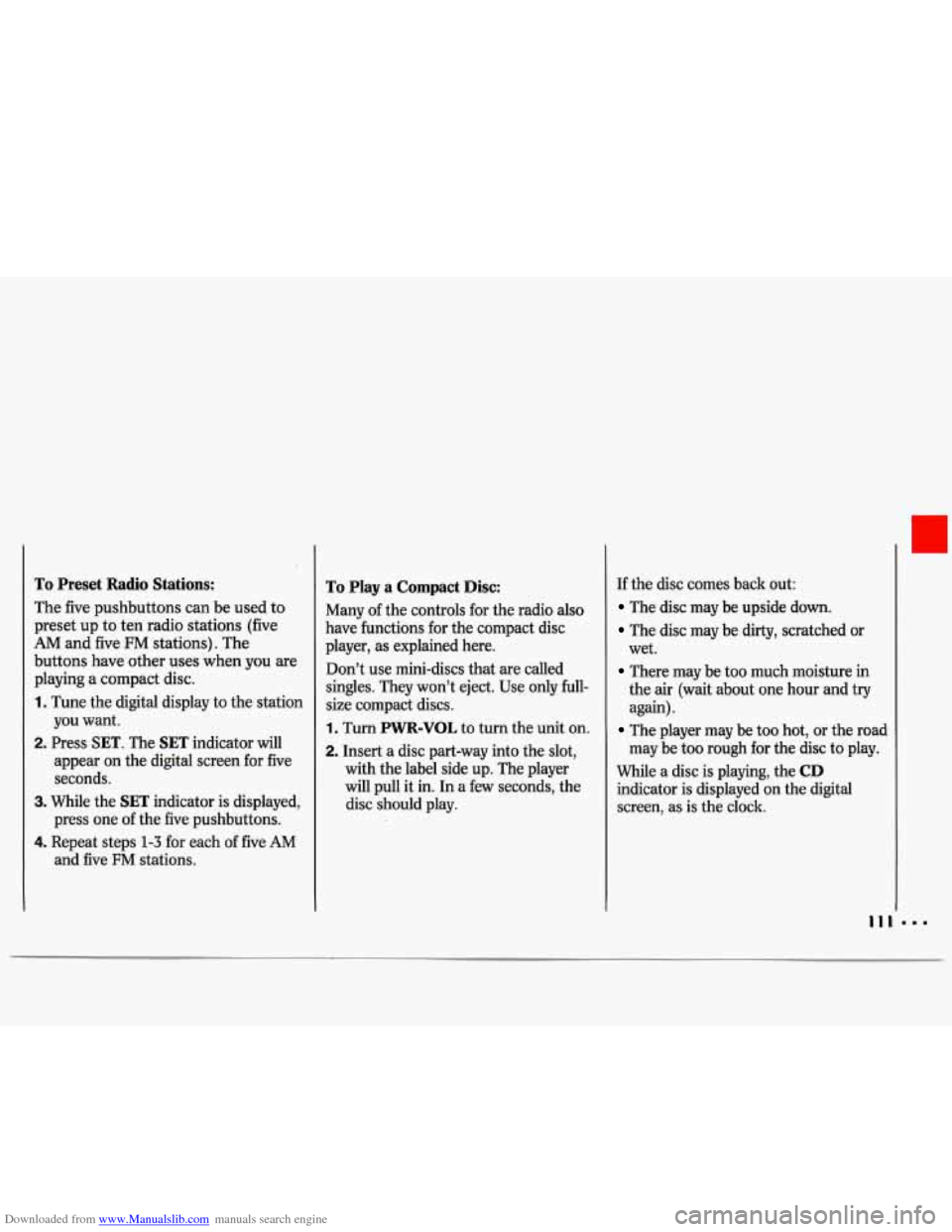

The five pushbuttons can be used to
preset up to ten radio stations (five
AM and five FM stations). The
buttons have other uses when you are
playing a compact disc.
1. Tune the digital display to the station
2. Press SET. The SET indicator will
you want.
appear on the digital screen for five
seconds.
3. While the SET indicator is displayed,
press one of the five pushbuttons.
4. Repeat steps 1-3 for each of five AM
and five FM stations.
To Play a Compact Disc:
Many of the controls for the radio also
have functions for the compact disc
player, as explained here.
Don’t use mini-discs that are called
singles. They won’t eject. Use only full-
size compact discs.
1. Turn PWR-VOL to turn the unit on.
2. Insert a disc part-way into the slot,
with the label side up. The player
will pull it in. In a few seconds, the
disc should play. If
the disc comes back out:
The disc may be upside down.
The disc may be dirty, scratched or
wet.
There may be too much moisture in
the air (wait about one hour and try
again).
The player may be too hot, or the road
may be too rough for the disc to play.
While a disc is playing, the
CD
indicator is displayed on the digital
screen, as is the clock.
1

Downloaded from www.Manualslib.com manuals search engine Comfort Controls & Audio Systems

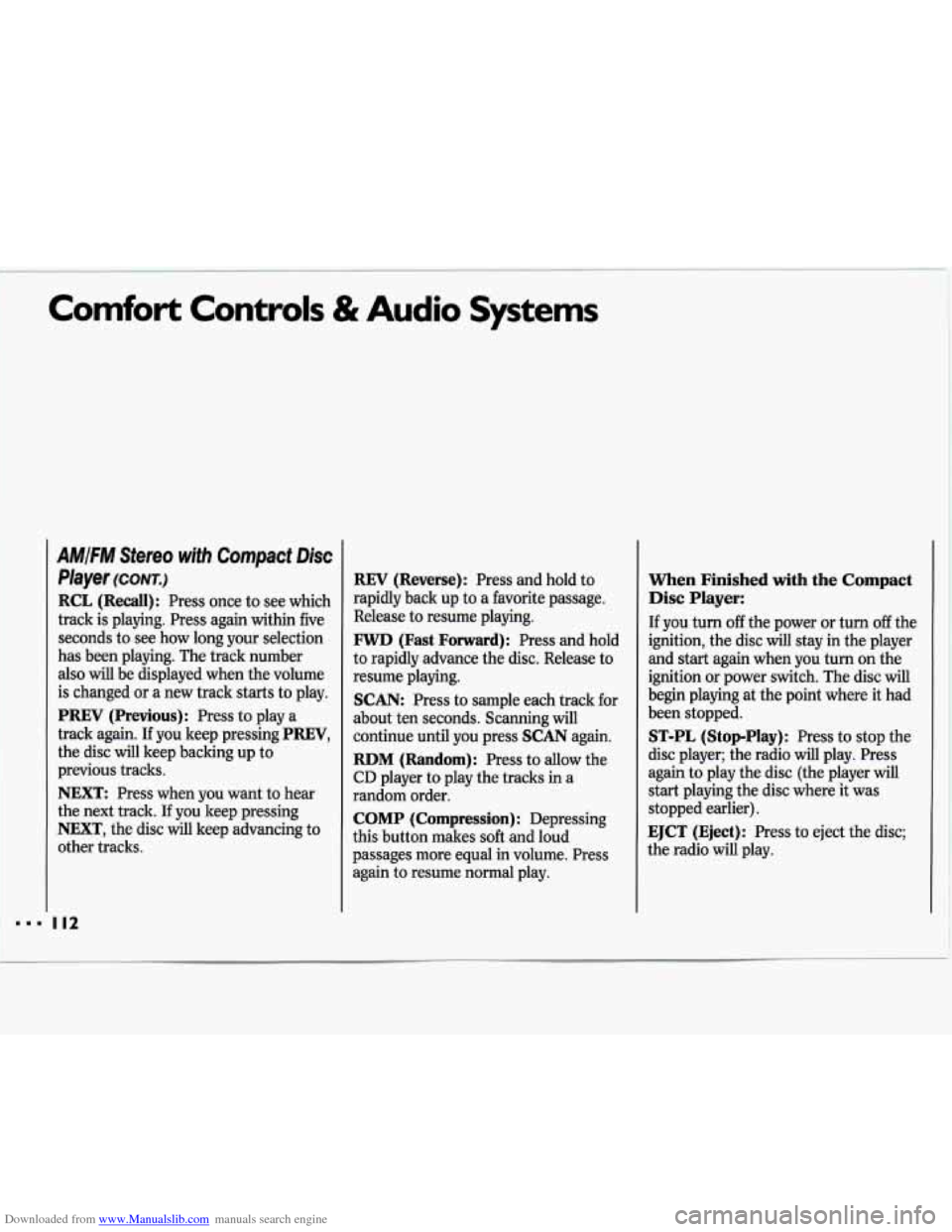

'I
AMIFM Stereo with Compact Disc
Player (CONT.)
RCL (Recall): Press once to see which
track is playing. Press again within five
seconds to see how long your selection
has been playing. The track number
also will be displayed when the volume
is changed or a new track starts to play.
PRFN (Previous): Press to play a
track again.
If you keep pressing PREV,
the disc will keep backing up to
previous tracks.
NEXT: Press when you want to hear
the next track. If you keep pressing
NEXT, the disc will keep advancing to
other tracks.
I I2
REV (Reverse) : Press and hold to
rapidly back up to a favorite passage.
Release to resume playing.
FWD (Fast Forward): Press and hold
to rapidly advance the disc. Release
to
resume playing.
SCAN: Press to sample each track for
about ten seconds. Scanning
will
continue until you press SCAN again.
RDM (Random): Press to allow the
CD player to play the tracks in a
random order.
COMP (Compression): Depressing
this button makes
soft and loud
passages more equal in volume. Press
again to resume normal play.
When Finished with the Compact I
Disc Player:
If you turn off the power or turn off the
ignition, the disc will stay in the player
and start again when you turn on the
ignition or power switch. The disc will
begin playing at the point where it had
been stopped.
ST-PL (Stop-Play): Press to stop the I
disc player; the radio will play. Press
again to play the disc (the player will
start playing the disc where it was
stopped earlier).
EJCT (Eject): Press to eject the disc;
the radio will play.

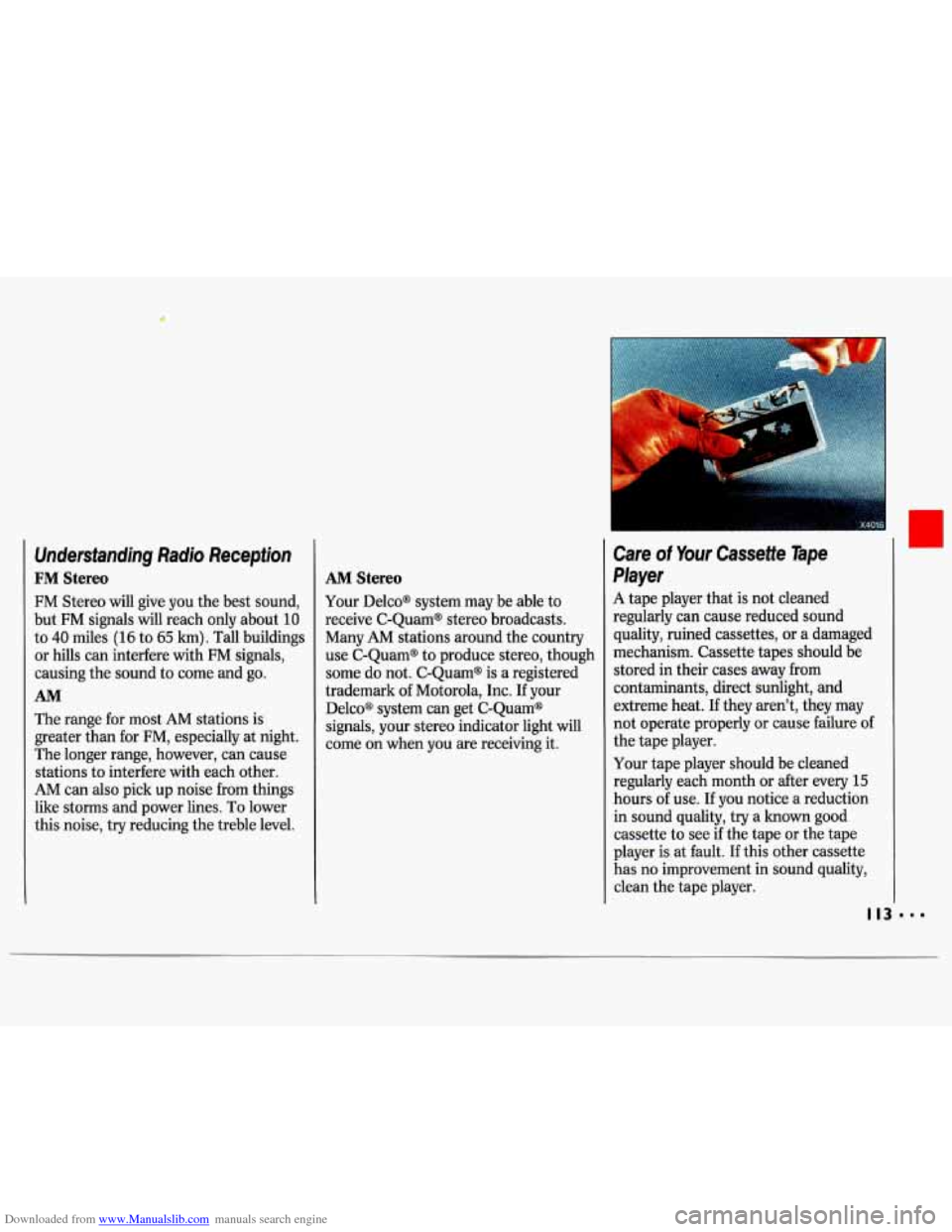

Downloaded from www.Manualslib.com manuals search engine Understanding Radio Reception
FM Stereo
FM Stereo will give you the best sound,
but
FM signals will reach only about 10
to
40 miles (16 to 65 km). Tall buildings
or hills can interfere with
FM signals,
causing the sound to come and go.
AM
The range for most AM stations is
greater than for FM, especially at night.
The longer range, however, can cause
stations to interfere with each other.
AM can also pick up noise from things
like storms and power lines.
To lower
this noise, try reducing the treble level.
AM Stereo
Your Delco@ system may be able to
receive C-Quam@ stereo broadcasts.
Many AM stations around the country
use C-Quam@ to produce stereo, though
some do not. C-Quam@
is a registered
trademark of Motorola, Inc. If your
Delco@ system can get C-Quam@ signals, your stereo indicator light
will
come on when you are receiving it.
Care of Your Cassette Tape
Player
A tape player that is not cleaned
regularly can cause reduced sound
quality, ruined cassettes, or a damaged
mechanism. Cassette tapes should be
stored in their cases away from
contaminants, direct sunlight, and
extreme heat. If they aren't, they may
not operate properly or cause failure of
the tape player.
Your tape player should be cleaned
regularly each month or after every
15
hours of use. If you notice a reduction
in sound quality,
try a known good
cassette to see if the tape or the tape
player is at fault. If this other cassette
has no improvement in sound quality,
clean the tape player.

Downloaded from www.Manualslib.com manuals search engine Comfort Controls & Audio Systems

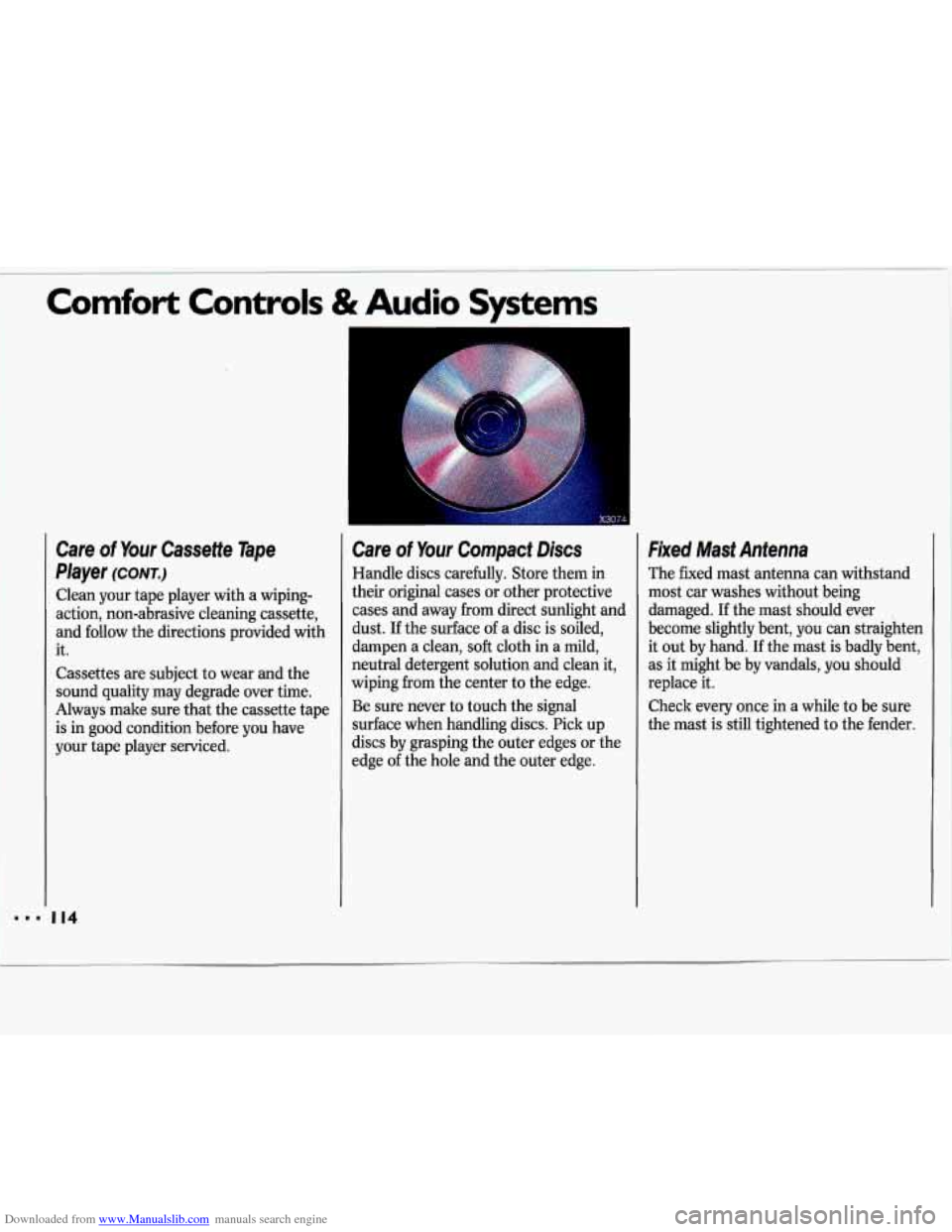

Care of Your Cassette Tape
Player
(CONT.)
Clean your tape player with a wiping-
action, non-abrasive cleaning cassette,
and follow the directions provided with
it.
Cassettes are subject to wear and the
sound quality may degrade over time.
Always make sure that the cassette tape
is in good condition before you have
your tape player serviced.
I14
Care of Your Compact Discs
Handle discs carefully. Store them in
their original cases or other protective
cases and away
from direct sunlight and
dust. If the surface
of a disc is soiled,
dampen a clean,
soft cloth in a mild,
neutral detergent solution and clean it,
wiping from the center to the edge.
Be sure never to touch the signal
surface when handling discs. Pick up
discs by grasping the outer edges or the
edge
of the hole and the outer edge.
Fixed Mast Antenna
The fixed mast antenna can withstand
most car washes without being damaged. If the mast should ever
become slightly bent, you can straighten it out
by hand. If the mast is badly bent,
as it might be by vandals, you should
replace it.
Check every once in a while to be sure
the mast is still tightened to the fender.
I

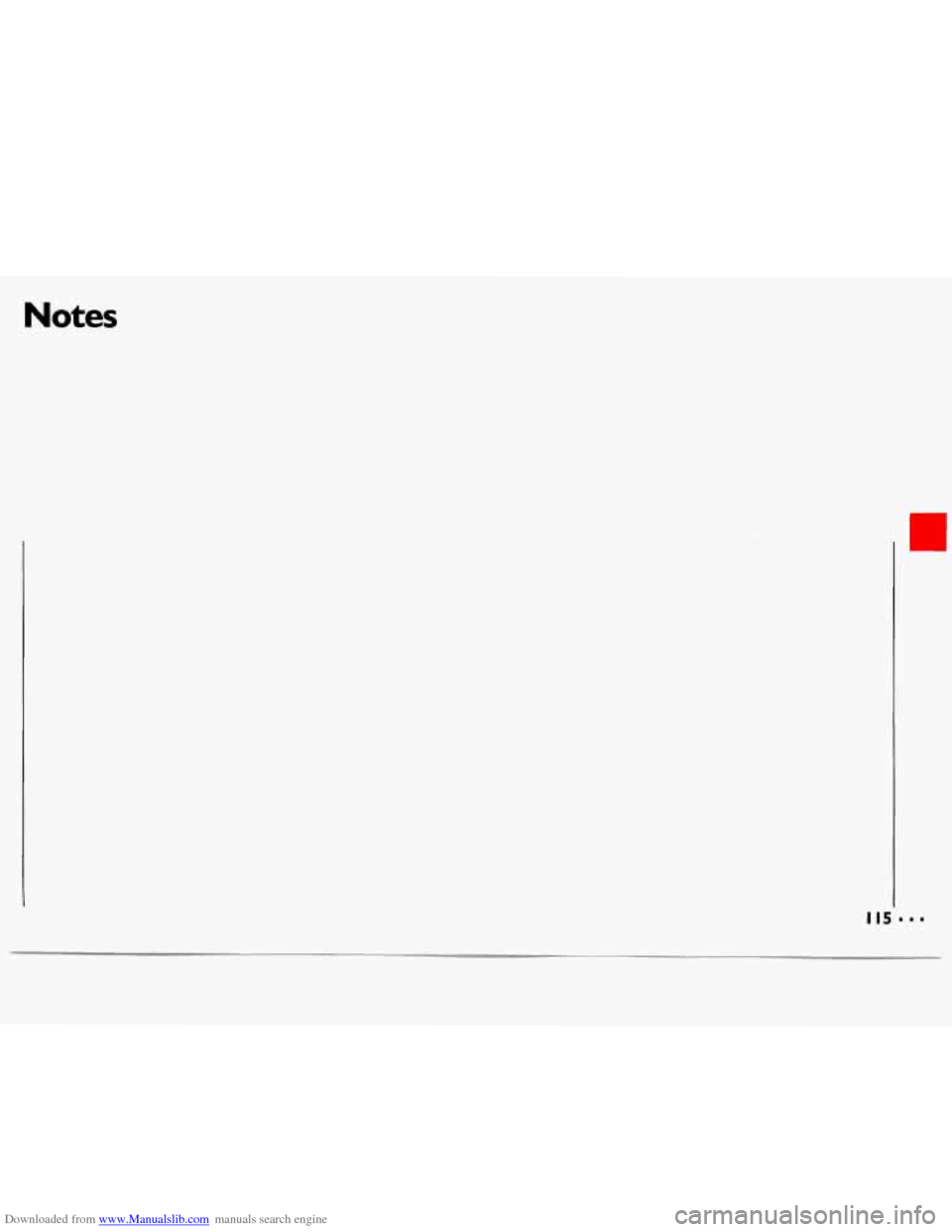

Downloaded from www.Manualslib.com manuals search engine Notes

Downloaded from www.Manualslib.com manuals search engine I

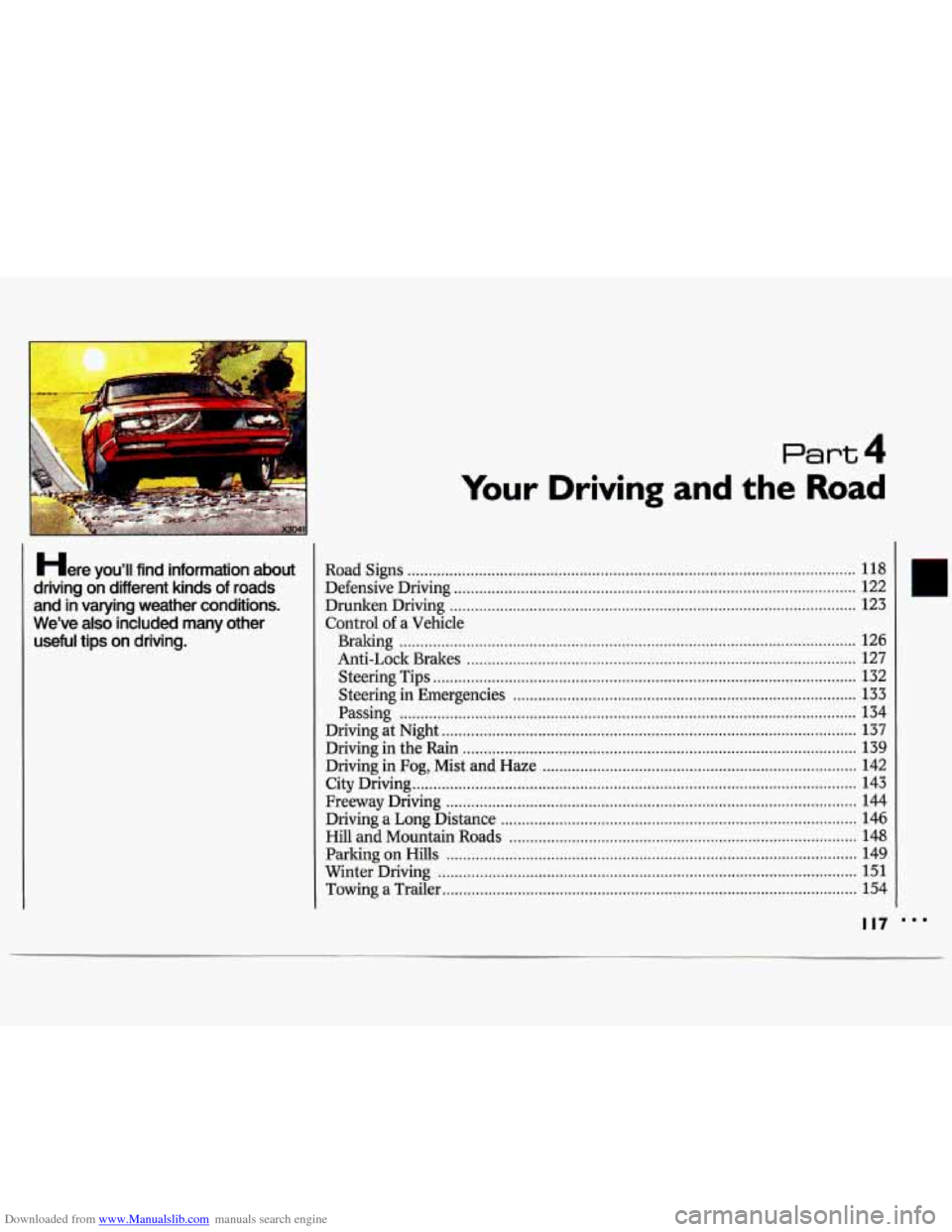

Downloaded from www.Manualslib.com manuals search engine Part 4
Here you’ll find information about
driving on different kinds
of roads
and in varying weather conditions
.
We’ve also included many other useful tips on driving
.
Your Driving and the Road
Road Signs ........................................................................\
................................... 118
Drunken Driving ........................................................................\
......................... 123
Control of a Vehicle
Braking
........................................................................\
..................................... 126
Anti-Lock Brakes ........................................................................\
..................... 127
Steering Tips ........................................................................\
............................. 132
Steering in Emergencies ........................................................................\
.......... 133
Passing ........................................................................\
..................................... 134
Driving at Night ........................................................................\
........................... 137
Driving in the Rain ........................................................................\
...................... 139
Driving in Fog, Mist and Haze ........................................................................\
... 142
City Driving ........................................................................\
.................................. 143
Freeway Driving ........................................................................\
.......................... 144
Driving a Long Distance ........................................................................\
............. 146
Hill and Mountain Roads ........................................................................\
........... 148
Parking on Hills ........................................................................\
.......................... 149
Winter Driving ........................................................................\
............................ 151
Towing a Trailer ........................................................................\
........................... 154
Defensive Driving ........................................................................\
........................ 122
I I7

Downloaded from www.Manualslib.com manuals search engine Your Driving and the Road
Road Signs
The road signs you see everywhere are coded by color, shape and symbols. It’s
a good idea to lmow these codes
so that
you can quickly grasp the basic meaning
or intent
of the sign even before you
have a chance to read it.
Color of Road Signs
Red means Stop. It may also indicate
that some movement is not allowed.
Examples are
Do Not Enter, Wrong
Way,
or No Parking.
Green
is used to guide the driver.
Green signs may indicate upcoming
freeway exits or show the direction you
should turn to reach a particular place.
RR ADVANCE NARROW NO PASSING
CROSSING BRIDGE ZONE
Yellow indicates a general warning.
Slow down and be careful when you see
a yellow sign. It may signal a railroad
crossing ahead, a no passing zone, or
some other potentially dangerous
situation. Likewise, a yellow solid line
painted on the road means
Don’t Cross.
HOSPITAL INFORMATION
Blue signs with white letters show
motorists’ services.
