Page 81 of 324
Downloaded from www.Manualslib.com manuals search engine I
I I
‘I W2161

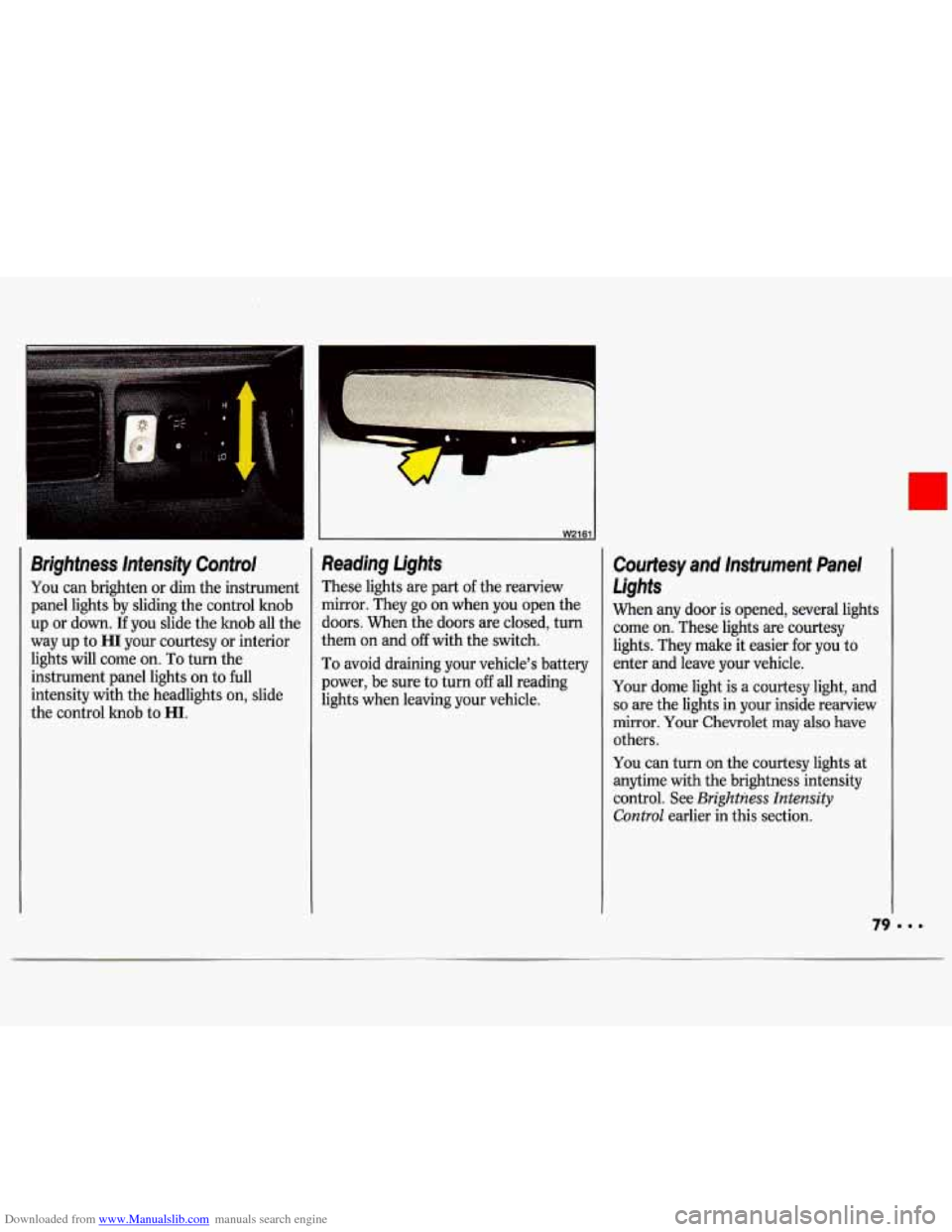

Brightness Intensify Control
You m brighten or dim the instrument
panel lights by sliding the control knob
up or down.
If you slide the knob all the
way up to
HI your courtesy or interior
lights will come on. To turn the
instrument panel lights on to full
intensity with the headlights on, slide
the control knob to
HI.
I
Reading Lights
These lights are part of the rearview
mirror. They go on when you open the
doors. When the doors are closed, turn
them on and
off with the switch.
To avoid draining your vehicle’s battery
power, be sure to turn
off all reading
lights when leaving your vehicle.
Courtesy and Instrument Panel
Lights
When any door is opened, several lights
come on. These lights are courtesy
lights. They make it easier for you to
enter and leave your vehicle.
Your dome light is a courtesy light, and
so are the lights in your inside rearview
mirror. Your Chevrolet may also have
others.
You can turn on the courtesy lights at
anytime with the brightness intensity
control. See
Brightness Intensity
Control earlier in this section.
Page 82 of 324
Downloaded from www.Manualslib.com manuals search engine Features & Controls

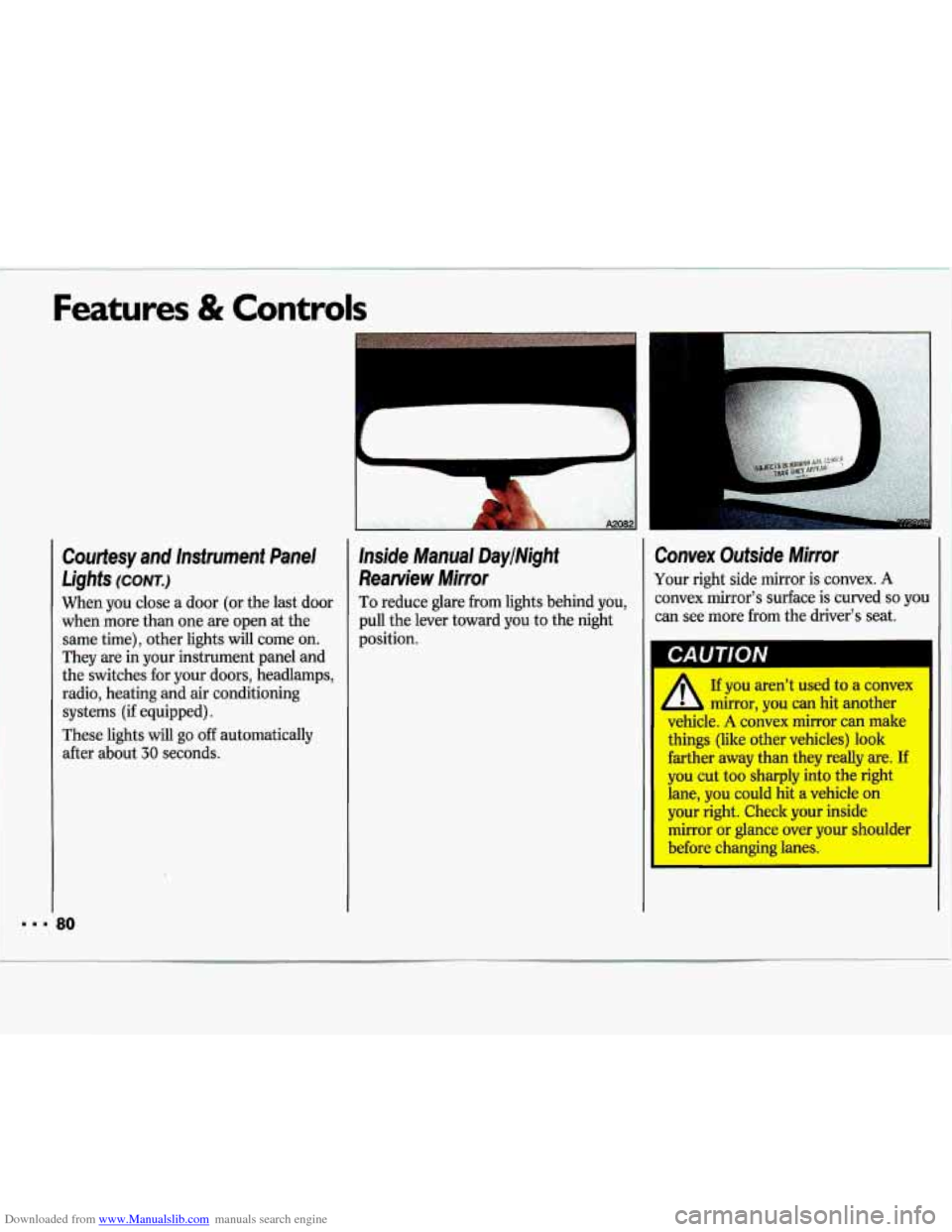

Courtesy and Instrument Panel
Lights (CONT.)
When you close a door (or the last door
when more than one are open at the
same time), other lights will come on.
They are in your instrument panel and
the switches for your doors, headlamps,
radio, heating and air conditioning
systems
(if equipped).
These lights will go
off automatically
after about
30 seconds.
L
".. .
Inside Manual DaylNighf
Rearview Mirror
To reduce glare from lights behind you,
pull the lever toward
you to the night
position.
Convex Outside Mirror
Your right side mirror is convex. A
convex mirror's surface is curved so you
can see more from the driver's seat.
1 CAUTIVN
I
If you aren't used to a convex
mirror, you can hit another
vehicle. A convex mirror can make
things (like other vehicles) look
farther away than they redly are. If
you cut too sharply into the right
lane, you could hit a vehicle on
youi right. Check your inside
mirror
or glance over your shoulder II
before changing lanes.
Page 83 of 324

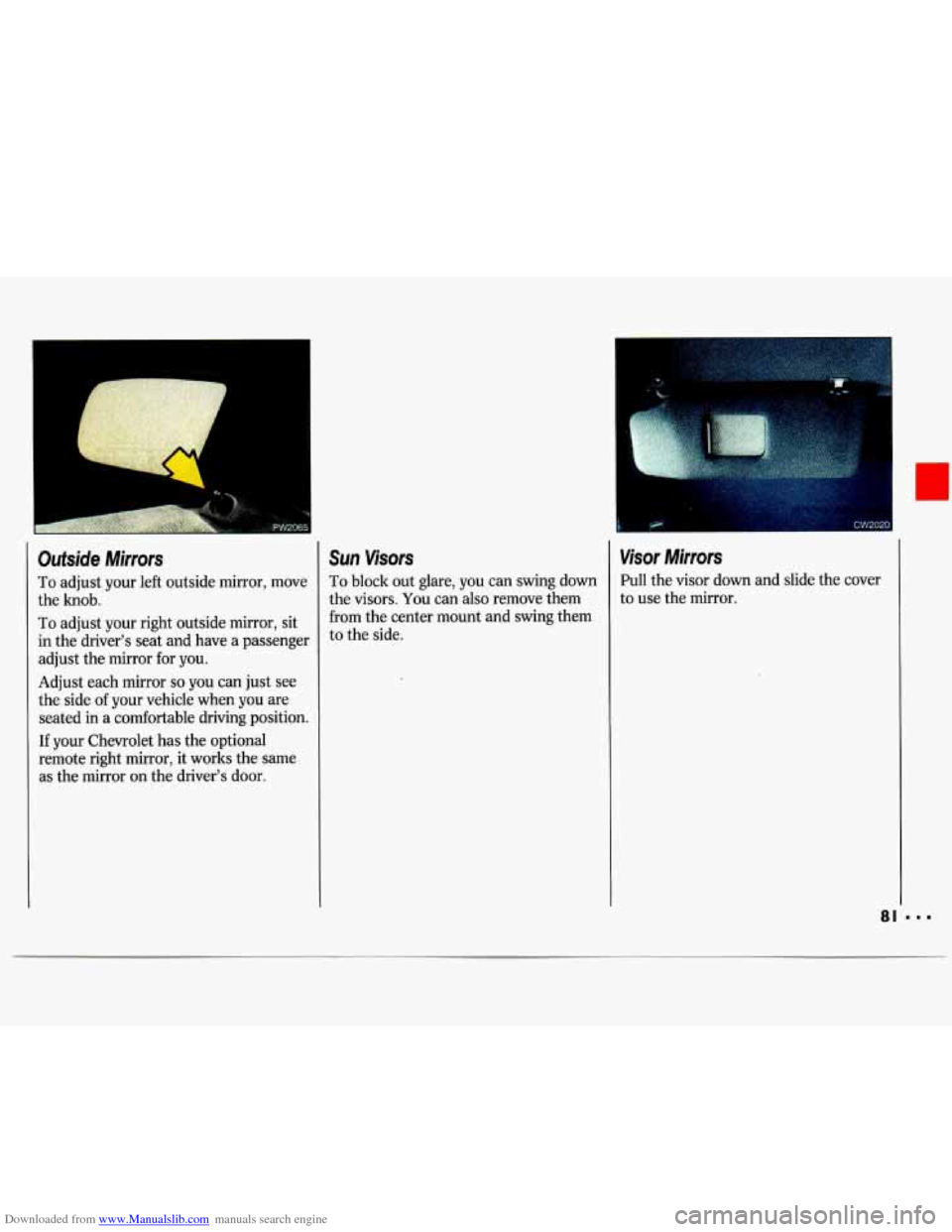

Downloaded from www.Manualslib.com manuals search engine Outside Mirrors
To adjust your left outside mirror, move
the knob.
To adjust your right outside mirror, sit
in the driver’s seat and have a passenger
adjust the mirror for you.
Adjust each mirror so you can just see
the side of your vehicle when you are
seated
in a comfortable driving position.
If your Chevrolet has the optional
remote right mirror, it works the same
as the mirror on the driver’s door.
Sun Visors
To block out glare, you can swing down
the visors. You can also remove them
from the center mount and swing them
to the side.
Visor Mirrors
Pull the visor down and slide the cover
to use the mirror.
81
Page 84 of 324

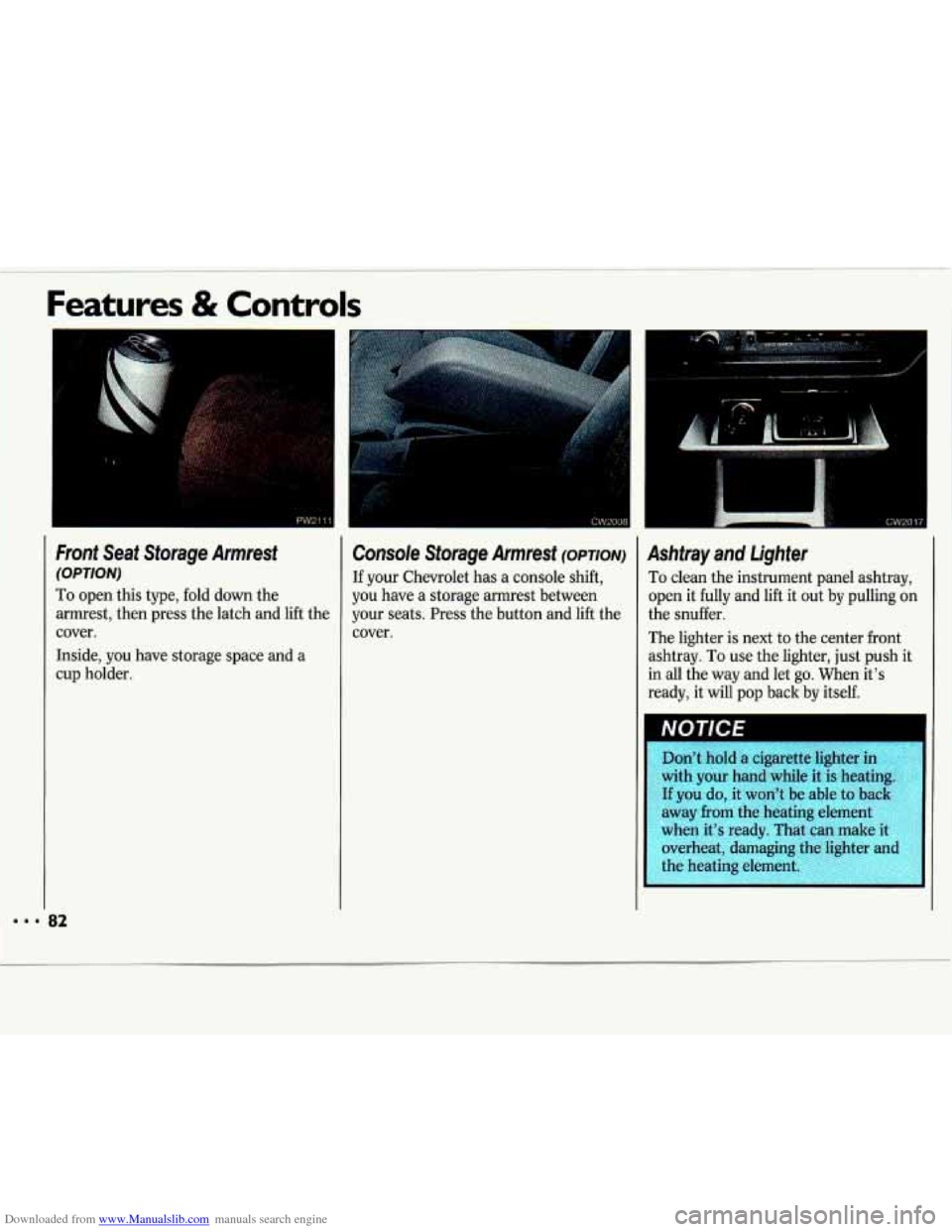

Downloaded from www.Manualslib.com manuals search engine Front Seat Storage Armrest
(OPTION)
To open this type, fold down the
armrest, then press the latch and lift the
cover.
Inside, you have storage space and a
cup holder.
I cw2oue
Console Storage Armrest (OPTION) I Ashtray and Lighter
If your Chewolet has a console shift,
you have
a storage armrest between
your seats. Press the button and lift the
cover.
CW2017 -
To clean the instrument panel ashtray,
open it fully and lift it out by pulling
on
the snuffer.
The lighter
is next to the center front
ashtray.
To use the lighter, just push it
in all the way and let go. When it’s
ready, it will pop back by itself.
Don’t hold a cigarette lighter in
with your hand while it is heating.
If you do, it won’t be able to back
away from the heating element
when it’s ready. That
can make it
overheat, damaging the lighter
and
the heating element.
Page 85 of 324

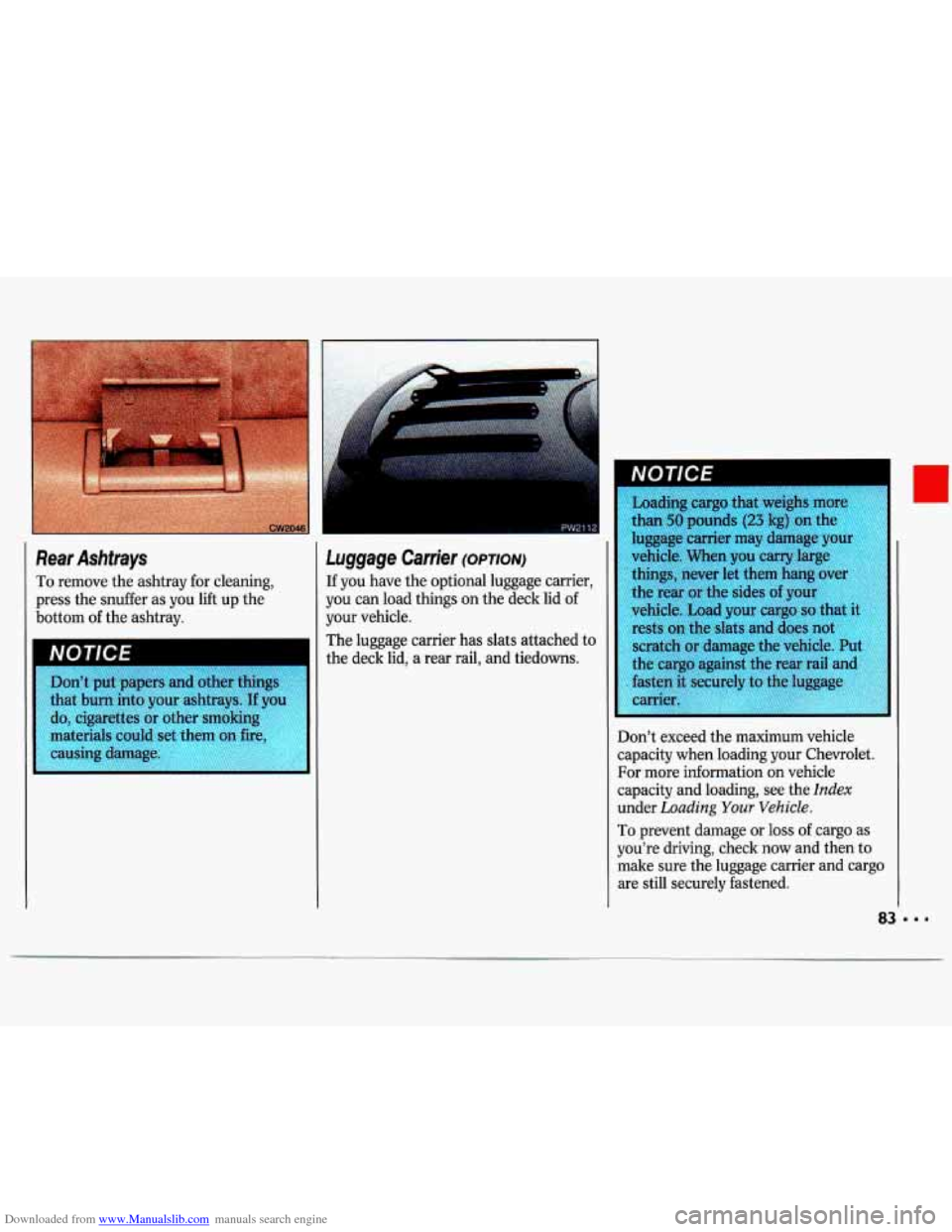

Downloaded from www.Manualslib.com manuals search engine Rear Ashtrays
To remove the ashtray for cleaning,
press the snuffer as you lift up the
bottom
of the ashtray.
Don't put papers and other things
that burn into your ashtrays. If you
do, cigarettes or other smoking
materials could set them on fire,
Luggage Carrier (OPTION)
If you have the optional luggage carrier,
you can load things on the deck lid of
your vehicle.
The luggage carrier has slats attached to
the deck lid, a rear rail, and tiedowns. Loading cargo
that weighs more
than
50 pounds (23 kg) on the
luggage carrier may damage your
vehicle. When you carry large things, never let them hang over
the rear or the sides of your
vehicle. Load your cargo
so that it
rests on the slats and does not
scratch or damage the vehicle.
Pu
the cargo against the rear rail and
Don't exceed the maximum vehicle
capacity when loading your Chevrolet
.
For more information on vehicle
capacity and loading, see the
Index
under Loading Your Vehicle.
To prevent damage or loss of cargo as
you're driving, check now and then to
make sure the luggage carrier and cargo
are still securely fastened.
r
Page 86 of 324
Downloaded from www.Manualslib.com manuals search engine Features & Controls
P
.
CW2052
Page 87 of 324

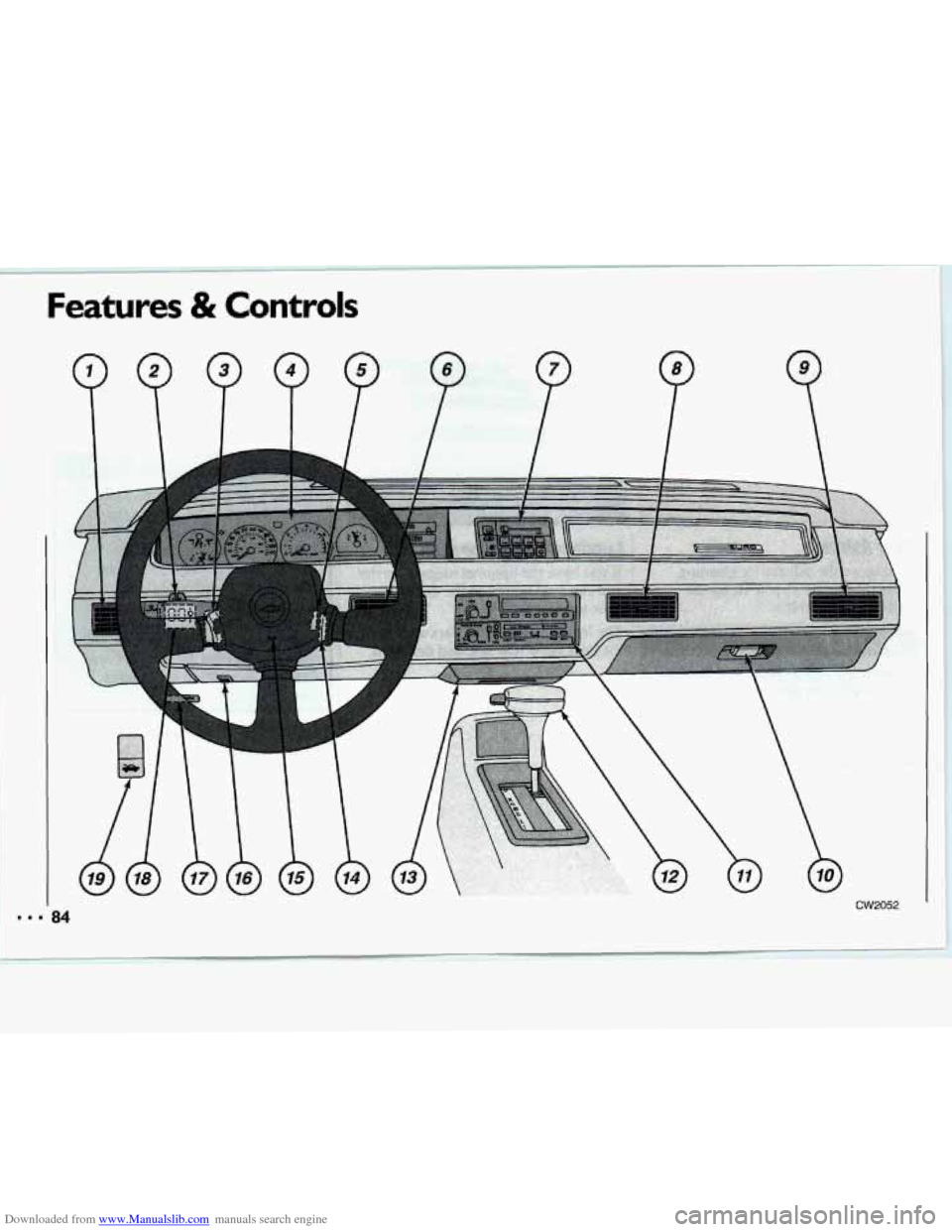

Downloaded from www.Manualslib.com manuals search engine The Instrument Panel-
Your Information System
Your instrument panel is designed to let
you know at
a glance how your vehicle
is running. You’ll know how fast you’re
going, how much. fuel you’re using, and
many other things you’ll need to drive
safely and economically.
The main components
of your
instrument panel are:
1. Vents
2. Turn SignaVHeadlight Beam Lever
3. Tilt Steering Wheel Lever
4. Instrument Cluster
5. Hazard Warning Flashers Switch
6. Vents
7. Climate ControWRear Window
8. Vents
9. Vents Defogger
10. Glove
BodFuse Panel
11. Audio System
12. Gearshift Lever
13. Ashtray and Lighter
14. Ignition Switch
15. Horn
16. Remote Trunk Release (Option)
17. Brake Release
18. Light Controls
19. Hood Release (on floor by driver’s
door)
Page 88 of 324
Downloaded from www.Manualslib.com manuals search engine Features & Controls
Instrument Panel Clusters
Your Chevrolet is equipped with one of these instrument panel clusters, which
includes indicator warning lights and gages that are explained
on the following
pages. Be sure to read about those that apply to the instrument panel cluster for
your Chevrolet
.
STANDARD CLUSTER
cw2054
OPTIONAL CLUSTER
W2173
Page 89 of 324
Downloaded from www.Manualslib.com manuals search engine Warning Lights, Gages and
Indicators
This section describes the warning lights
and gages that may be on your vehicle.
The pictures will help you locate them.
Warning lights and gages can signal that
something is wrong before it becomes
serious enough to cause an expensive
repair or replacement. Paying attention
to your warning lights and gages could
also save you or others
from injury.
Warning lights go on when there may
be or is a problem with one of your
vehicle’s functions.
As you will see in the
details on the next few pages, some
warning lights come on briefly when
you turn the ignition key just to let you
lmow they’re working. If you are
familiar with this section, you should
not be alarmed when this happens.
Gages can indicate when there may be
or is a problem with one
of your
vehicle’s functions. Often gages and
warning lights work together to let you
know when there’s a problem with your
vehicle. When
one of the warning lights comes
on and stays on when you are driving,
or when one of the gages shows there
may be a problem, check the section
that tells you what to do about it. Please
follow the manual’s advice. Waiting to
do repairs can be costly-and even
dangerous, So please get to how your
warning lights and gages. They’re a big
help.
87
Page 90 of 324

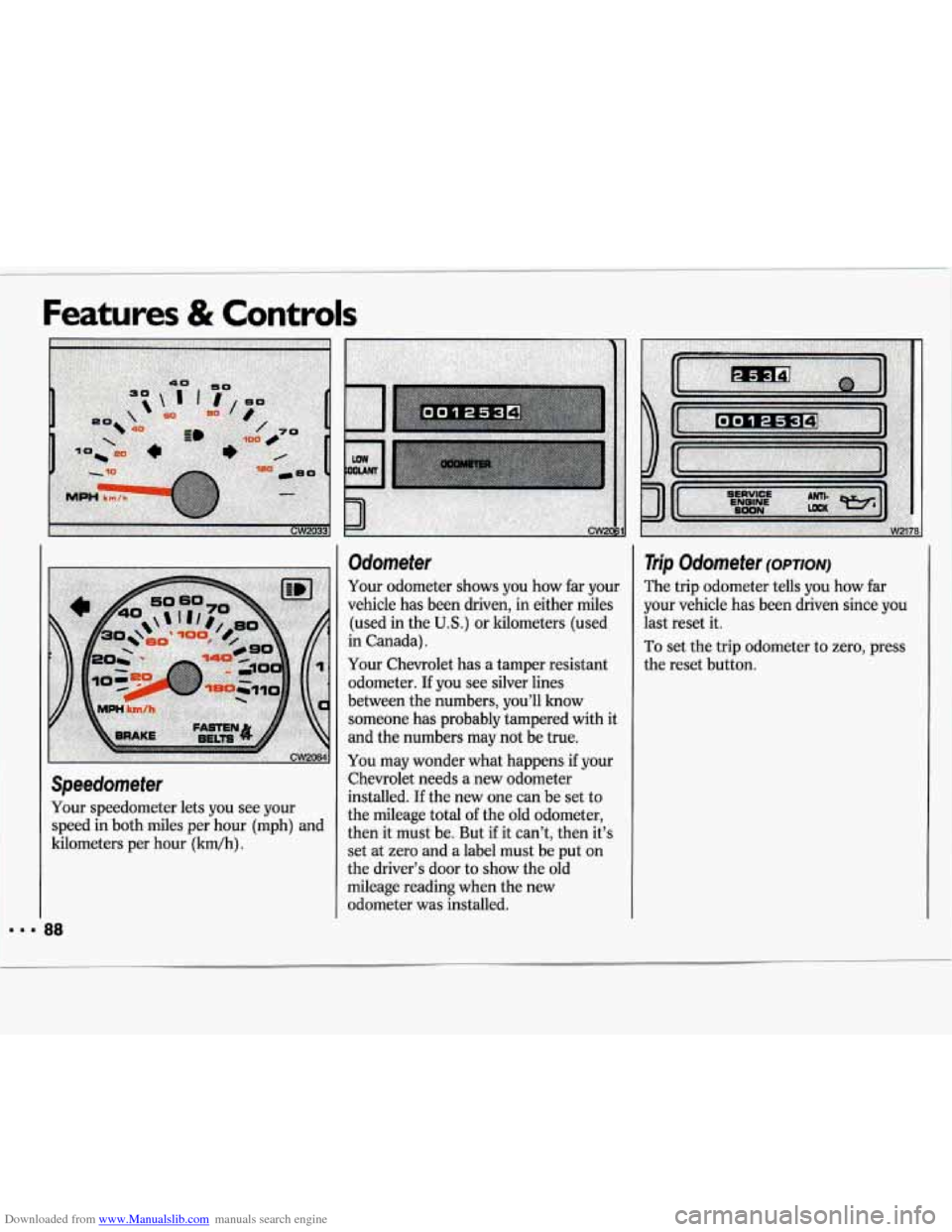

Downloaded from www.Manualslib.com manuals search engine Speedometer
Your speedometer lets you see your speed in both miles per hour (mph) and
kilometers per hour (kdh)
.
Odometer
Your odometer shows you how far your
vehicle has been driven, in either miles
(used in the
U.S.) or kilometers (used
in Canada).
Your Chevrolet has a tamper resistant odometer.
If you see silver lines
between the numbers, you’ll know
someone has probably tampered with it
and the numbers may not be true.
You may wonder what happens if your
Chevrolet needs a new odometer
installed.
If the new one can be set to
the mileage total of the old odometer,
then it must be. But
if it can’t, then it’s
set at zero and a label must be put on
the driver’s door to show the old
mileage reading when the new
odometer was installed.
Trip Odometer (OPTION)
The trip odometer tells you how far
your vehicle has been driven since you
last reset it.
To set the trip odometer to zero, press
the reset button.
