Downloaded from www.Manualslib.com manuals search engine How to Use this Manual
Vehicle Symbols
These are some of the symbols you will
find on your vehicle. For example, these
symbols
are used on an original battery: These symbols
are important for you
and your passengers whenever your
vehicle is driven: These
symbols have
to do with your
lights:
Caution Possible Injury
Protect
Eyes by Shielding
Caustic Battery Acid
Could Cause Burns
Avoid Sparks or Flames
Spark or Flame Could
Explode Battery Fasten Safety Belts
Door Lock/Unlock
la Turn Signal Direction
Hazard Warning Flashers
Headlight High Beam
Parking Lights
pf
Page 11 of 324

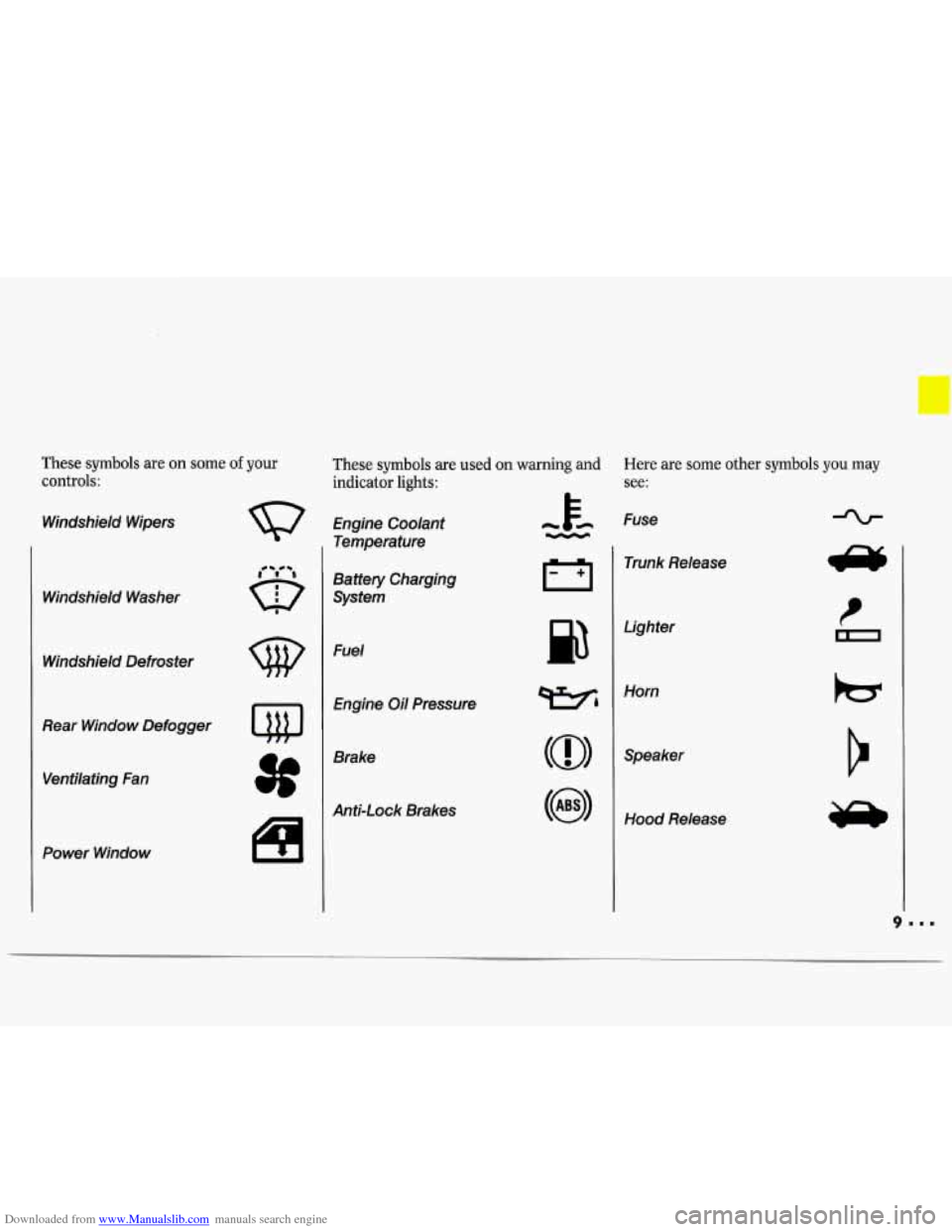

Downloaded from www.Manualslib.com manuals search engine These symbols are on some of your
controls:
Windshield Wipers
Windshield Washer
Windshield Defroster
Rear Window Defogger Ventilating Fan
Power Window
These symbols are used on warning and
indicator lights:
Engine Coolant
Temperature
'*Yi Battery Charging
Q I System
Engine Oil Pressure
3f
Brake
Anti-Lock Brakes
Here are some other symbols you may
see:
Fuse
Trunk Release
Lighter
Horn Speaker
Hood Release
Page 22 of 324
Downloaded from www.Manualslib.com manuals search engine --I Seats & Safety Belts

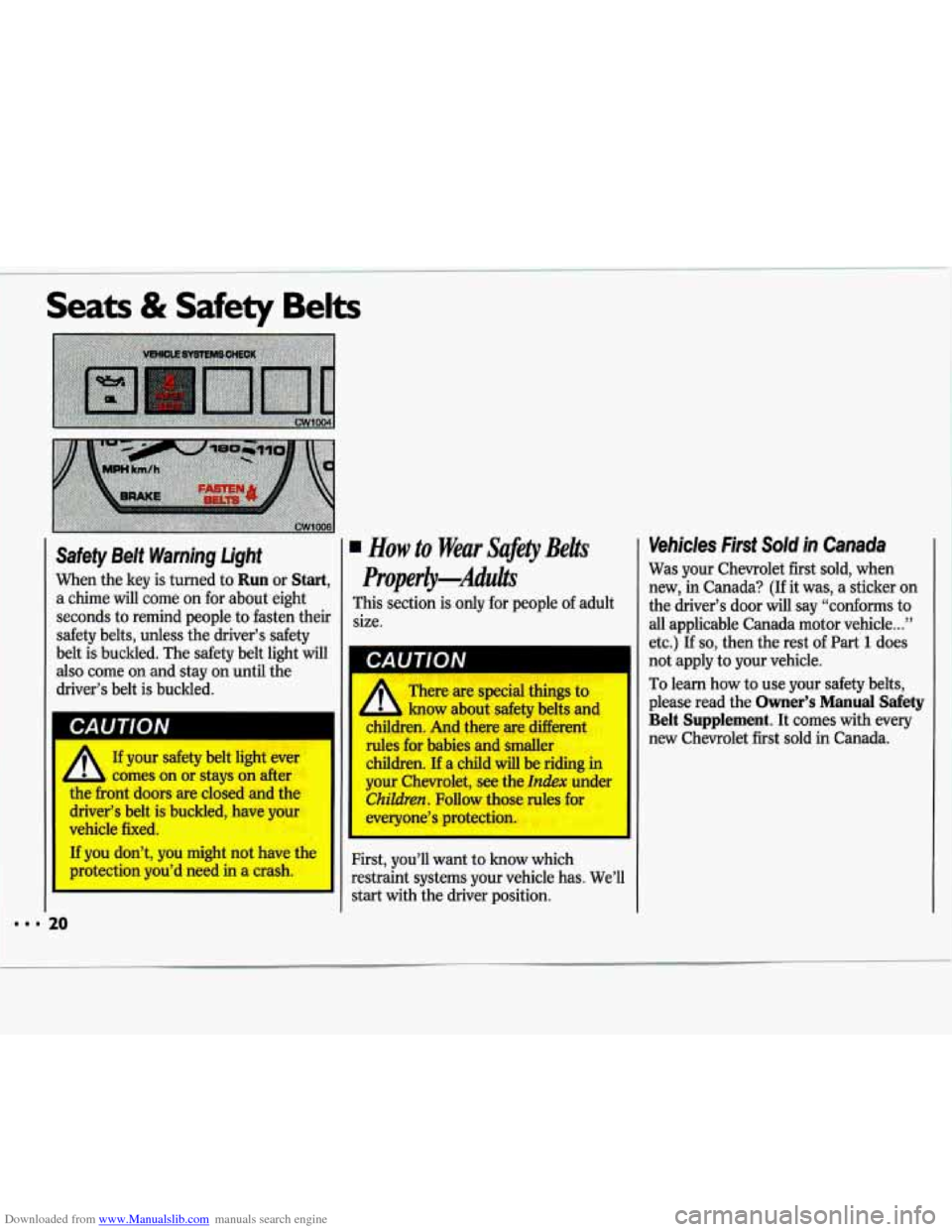

Safety Belt Warning Light How to Wear Safety Belts
When the key is turned to Run or Start, ProperEy--Adults
a chime will come on for about eight This section is only for people of adult
seconds to remind people to fasten their size.
safetv belts. unless the driver’s safetv
Vehicles First Sold in Canada
Was your Chevrolet first sold, when
new, in Canada?
(If it was, a sticker on
the driver’s door
will say “conforms to
all applicable Canada motor vehicle
...”
not apply to your vehicle.
etc.)
If
so, then the rest of Part 1 does
belt [s bucied. The safety belt light bill
I also come on and stay on until the
driver’s belt
is buckled.
I CAUTION
I
If your safety belt light ever
the front doors are closed
and the
driver’s belt is buckled, have vour
/A comes on or stays on after
11 vehicle fixed.
Y
II
There are special things to
-, know about safety belts and
ddren. And there are different To learn how
to use your safety belts,
please read the Owner’s Manual Safety
Belt Supplement. It comes with every
new Chevrolet first sold in Canada.
I rules for babies and smaller
children.
If a child will be riding in
your Chevrolet, see the Index under
Children. Follow those rules for
20
Page 47 of 324
Downloaded from www.Manualslib.com manuals search engine Here you can learn about the
many standard and optional
features on your Chevrolet. and information
on starting. shifting and
braking
. Also explained are the
instrument panel and the warning
systems that tell you if everything is
working properly+ nd what to
do if
you have a problem .

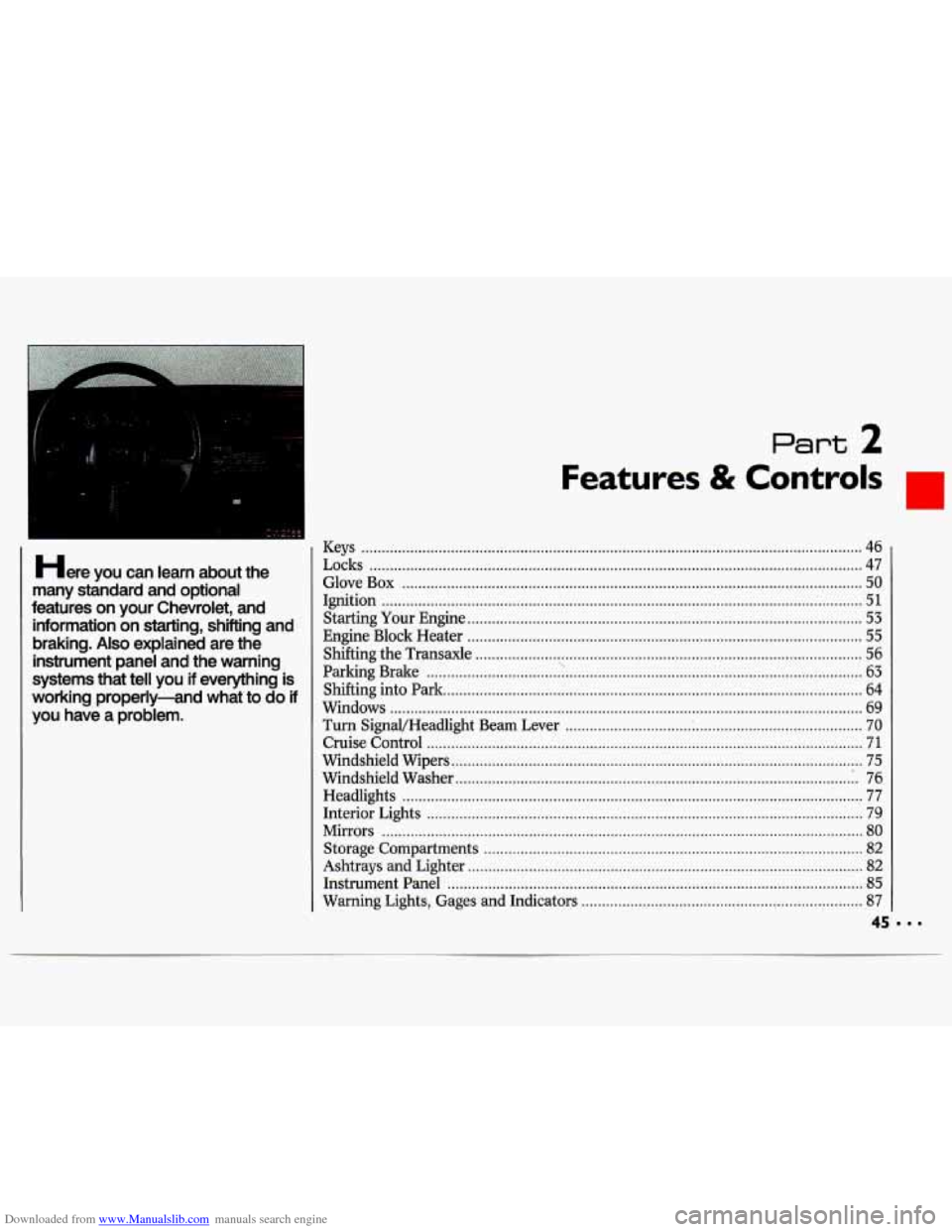

Part 2
Features & Controls .
Keys ........................................................................\
................................................... 46
Locks
........................................................................\
................................................. 47
Glove Box
........................................................................\
......................................... 50
Ignition
........................................................................\
.............................................. 51
Starting Your Engine
........................................................................\
......................... 53
Engine Block Heater
........................................................................\
......................... 55
Shifting the Transaxle
........................................................................\
....................... 56
Parking Brake ........................................................................\
................................... 63
Shifting into Park
........................................................................\
............................... 64
Windows
........................................................................\
............................................ 69
Turn SignaVHeadlight Beam Lever ............................... : ......................................... 70
Cruise Control ........................................................................\
................................... 71
Windshield Wipers ........................................................................\
............................. 75
Windshield Washer
........................................................................\
........................... 76
Headlights
........................................................................\
......................................... 77
Interior Lights ........................................................................\
................................... 79
Mirrors ........................................................................\
.............................................. 80
Storage Compartments
........................................................................\
..................... 82
Ashtrays and Lighter
........................................................................\
......................... 82
Instrument Panel
........................................................................\
.............................. 85
Warning Lights, Gages and Indicators
..................................................................... 87
...
Page 53 of 324
Downloaded from www.Manualslib.com manuals search engine New Vehicle “Break-ln”
/gnition Switch

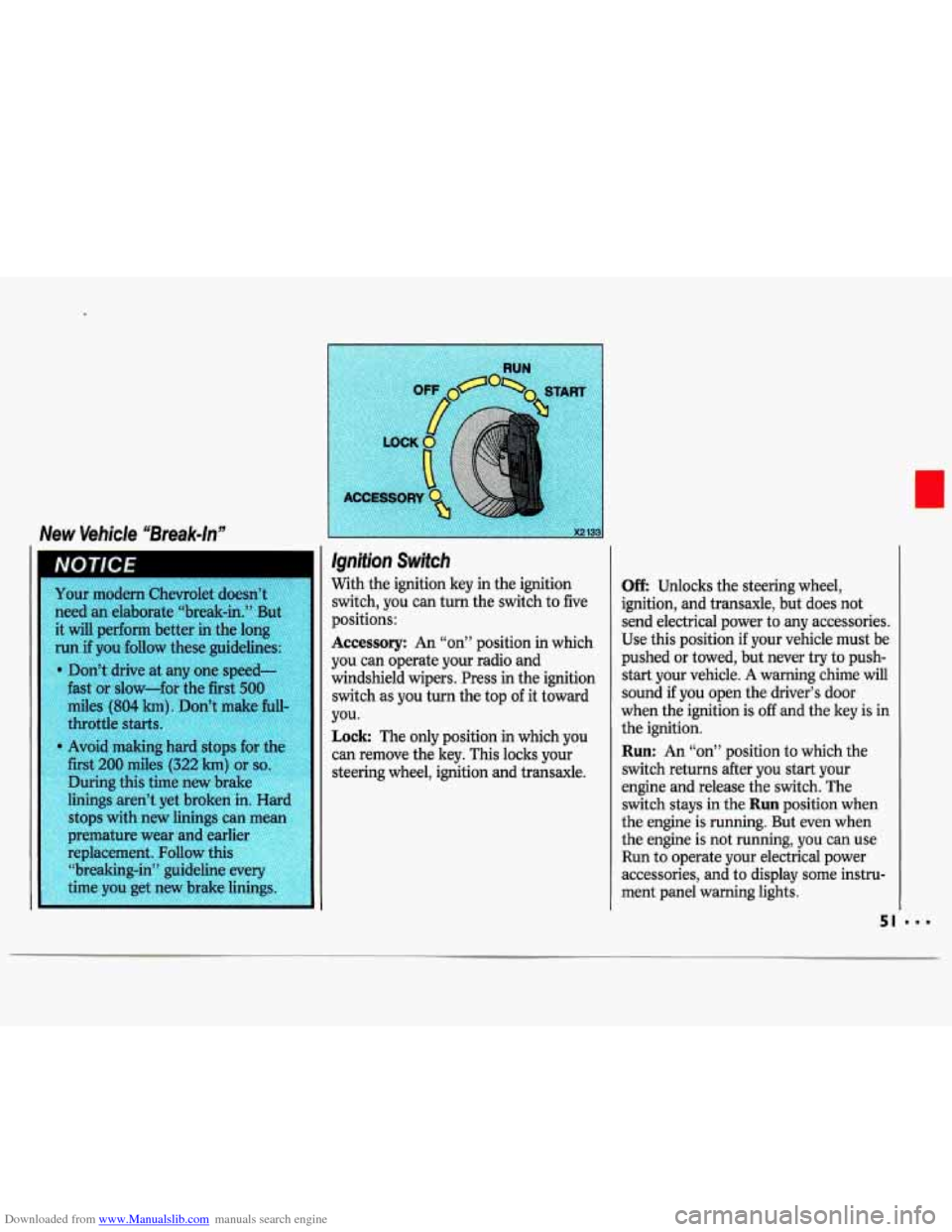

With the ignition key in the ignition
switch, you can turn the switch to five
positions:
Accessory: An “on” position in which
you can operate your radio and
windshield wipers. Press in the ignition
switch as you turn the top
of it toward
you.
Lock The only position in which you
can remove the key. This locks your
steering wheel, ignition and transaxle.
I
Off: Unlocks the steering wheel,
ignition, and transaxle, but does not
send electrical power to any accessories.
Use this position if your vehicle must be
pushed or towed, but never try to push-
start your vehicle. A warning chime will
sound
if you open the driver’s door
when the ignition is
off and the key is in
the ignition.
Run: An “on” position to which the
switch returns after you start your
engine and release the switch. The
switch stays in the
Run position when
the engine is running. But even when
the engine is not running, you can use
Run to operate your electrical power
accessories, and to display some instru-
ment panel warning lights.
Page 65 of 324
Downloaded from www.Manualslib.com manuals search engine CAUTION I
A
If you skip more than one
gear when you downshift,
you could lose control of the
vehicle. And you could injure
yourself or others. Don’t shift from
5 to 2, or 4 to 1.
I
transaxle.

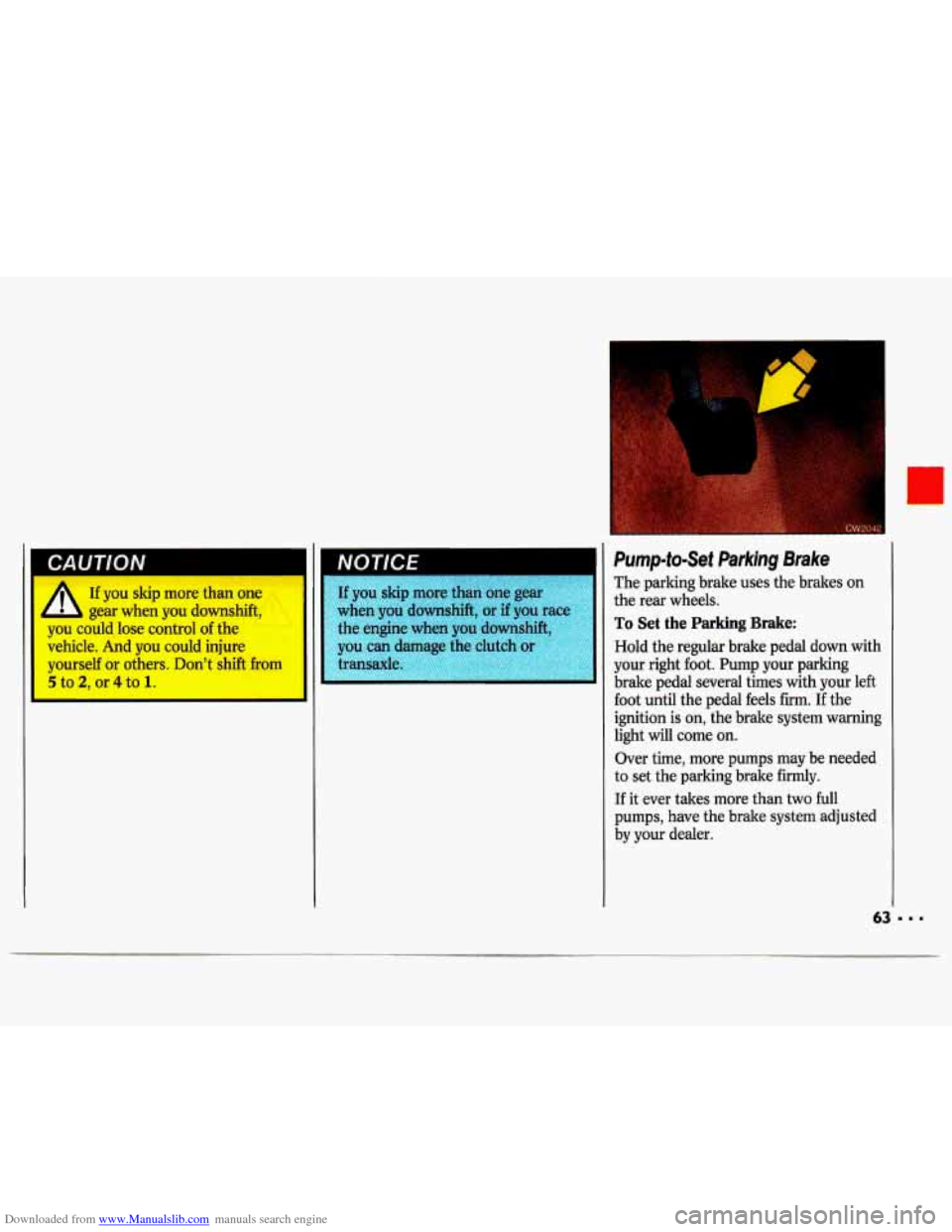

Pump-to-Set Parking Brake
The parking brake uses the brakes on
the rear wheels.
To Set the Parking Brake:
Hold the regular brake pedal down with
your right
foot. Pump your parking
brake pedal several times with your left
foot until the pedal feels firm. If the
ignition is on, the brake system warning
light will come
on.
Over time, more pumps may be needed
to set the parking brake firmly.
If it ever takes more than two full
pumps, have the brake system adjusted
by your dealer.
Page 79 of 324

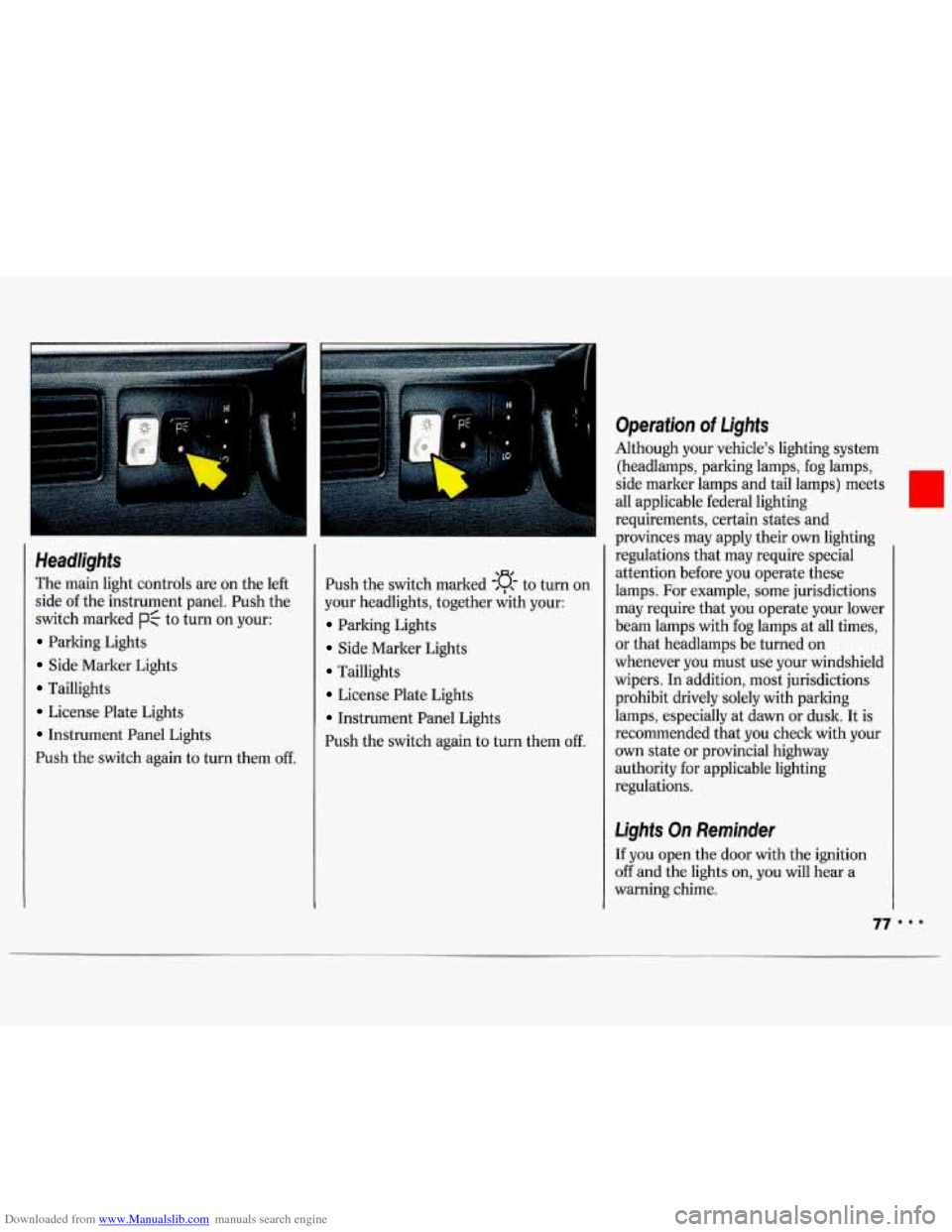

Downloaded from www.Manualslib.com manuals search engine Headlights
The main light controls are on the left
side of the instrument panel. Push the
switch marked
pf to turn on your:
Parking Lights
Side Marker Lights
Taillights
License Plate Lights
Instrument Panel Lights
Push the switch again to turn them off. Push
the switch marked
-g- to turn on
your headlights, together with your:
Parking Lights
Side Marker Lights
Taillights
License Plate Lights
Instrument Panel Lights
Push the switch again to turn them off.
Operation of Lights
Although your vehicle’s lighting system
(headlamps, parking lamps, fog lamps,
side marker lamps and tail lamps) meets
all applicable federal lighting
requirements, certain states and
provinces may apply their
own lighting
regulations that may require special
attention before
you operate these
lamps. For example, some jurisdictions
may require that you operate your lower
beam lamps with fog lamps
at all times,
or that headlamps be turned on
whenever you must use your windshield
wipers. In addition, most jurisdictions
prohibit drively solely with parking
lamps, especially at dawn or
dusk. It is
recommended that you check with your
own state or provincial highway
authority for applicable lighting
regulations.
Lights On Reminder
If you open the door with the ignition
off and the lights on, you will hear
a
warning chime.
Page 87 of 324
Downloaded from www.Manualslib.com manuals search engine The Instrument Panel-

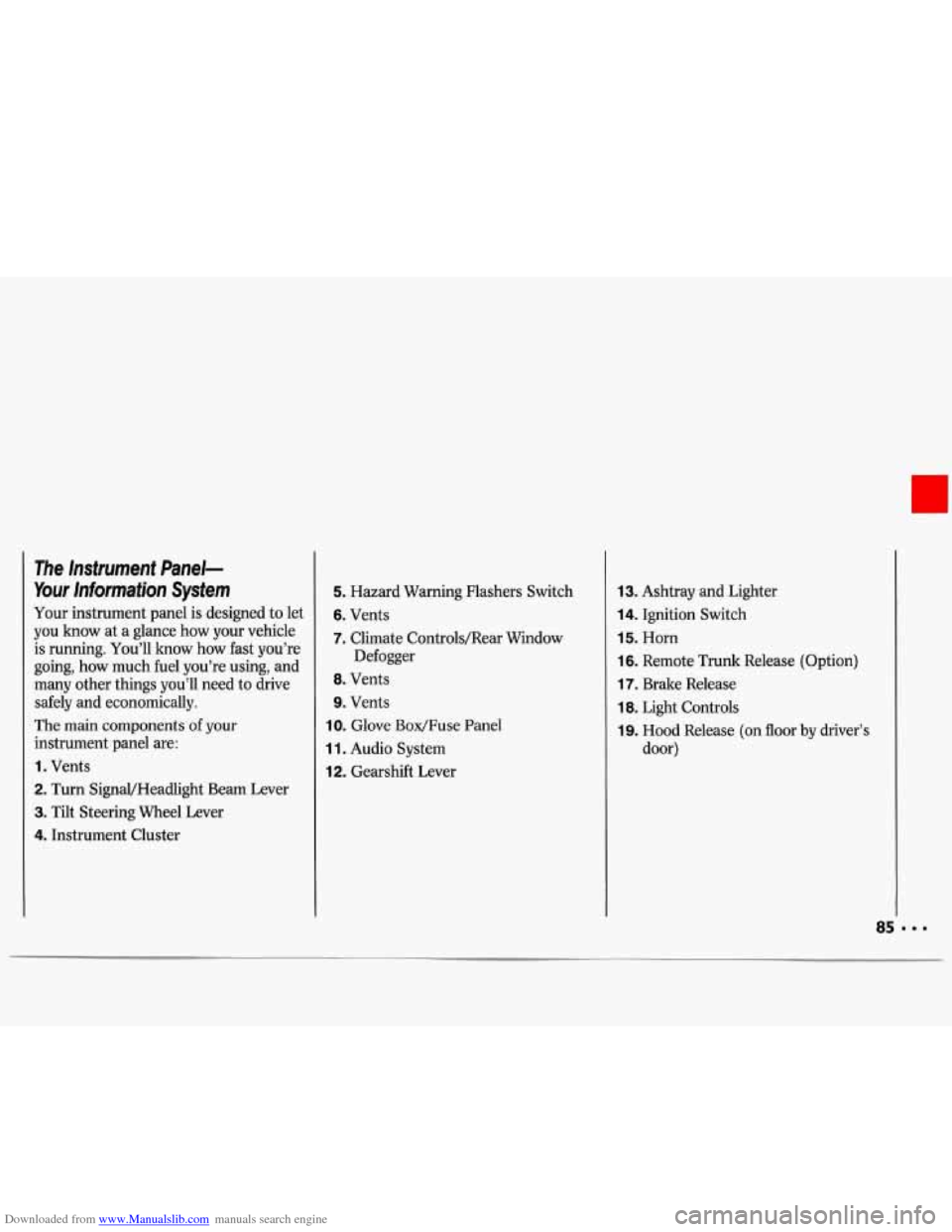

Your Information System
Your instrument panel is designed to let
you know at
a glance how your vehicle
is running. You’ll know how fast you’re
going, how much. fuel you’re using, and
many other things you’ll need to drive
safely and economically.
The main components
of your
instrument panel are:
1. Vents
2. Turn SignaVHeadlight Beam Lever
3. Tilt Steering Wheel Lever
4. Instrument Cluster
5. Hazard Warning Flashers Switch
6. Vents
7. Climate ControWRear Window
8. Vents
9. Vents Defogger
10. Glove
BodFuse Panel
11. Audio System
12. Gearshift Lever
13. Ashtray and Lighter
14. Ignition Switch
15. Horn
16. Remote Trunk Release (Option)
17. Brake Release
18. Light Controls
19. Hood Release (on floor by driver’s
door)
Page 88 of 324
Downloaded from www.Manualslib.com manuals search engine Features & Controls

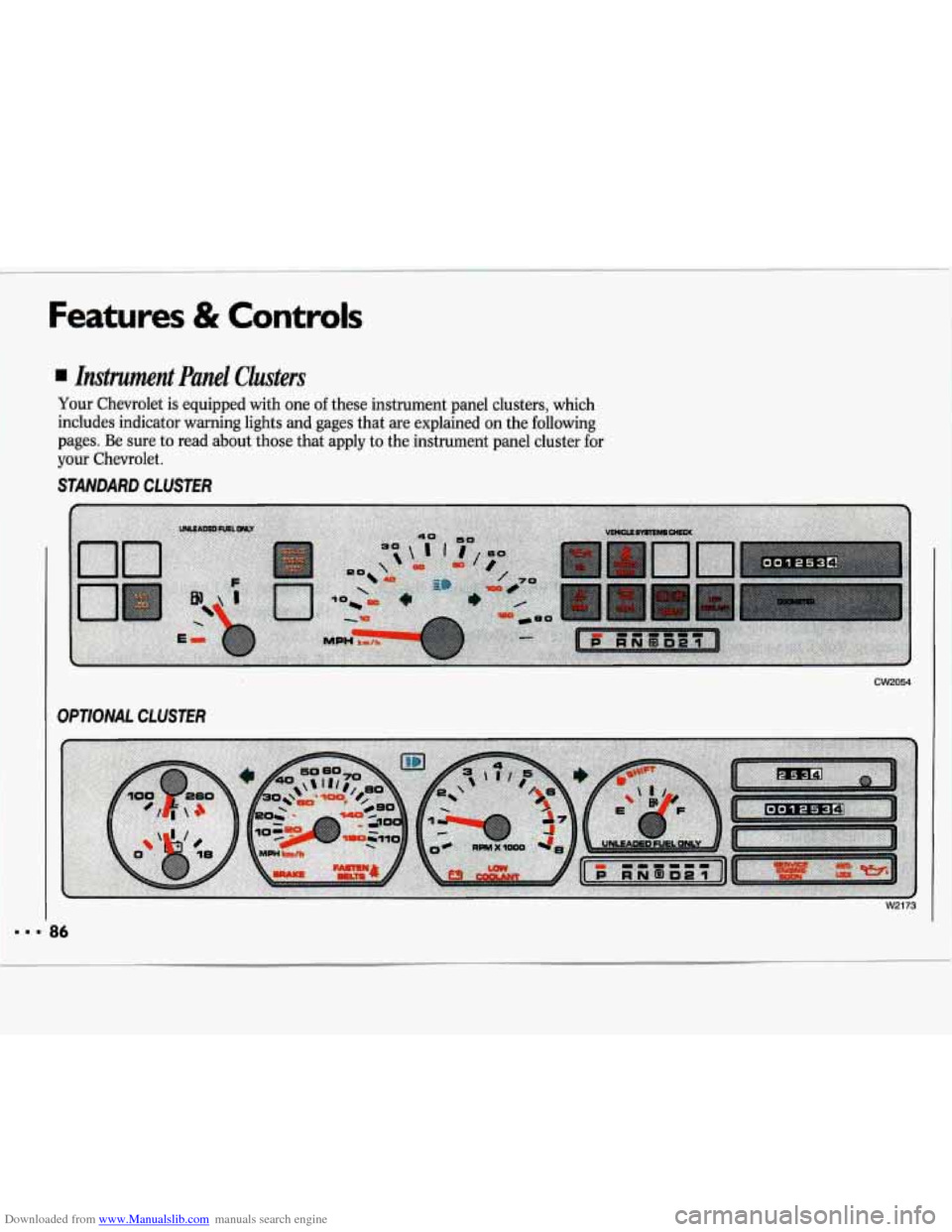

Instrument Panel Clusters
Your Chevrolet is equipped with one of these instrument panel clusters, which
includes indicator warning lights and gages that are explained
on the following
pages. Be sure to read about those that apply to the instrument panel cluster for
your Chevrolet
.
STANDARD CLUSTER
cw2054
OPTIONAL CLUSTER
W2173
Page 89 of 324
Downloaded from www.Manualslib.com manuals search engine Warning Lights, Gages and
Indicators

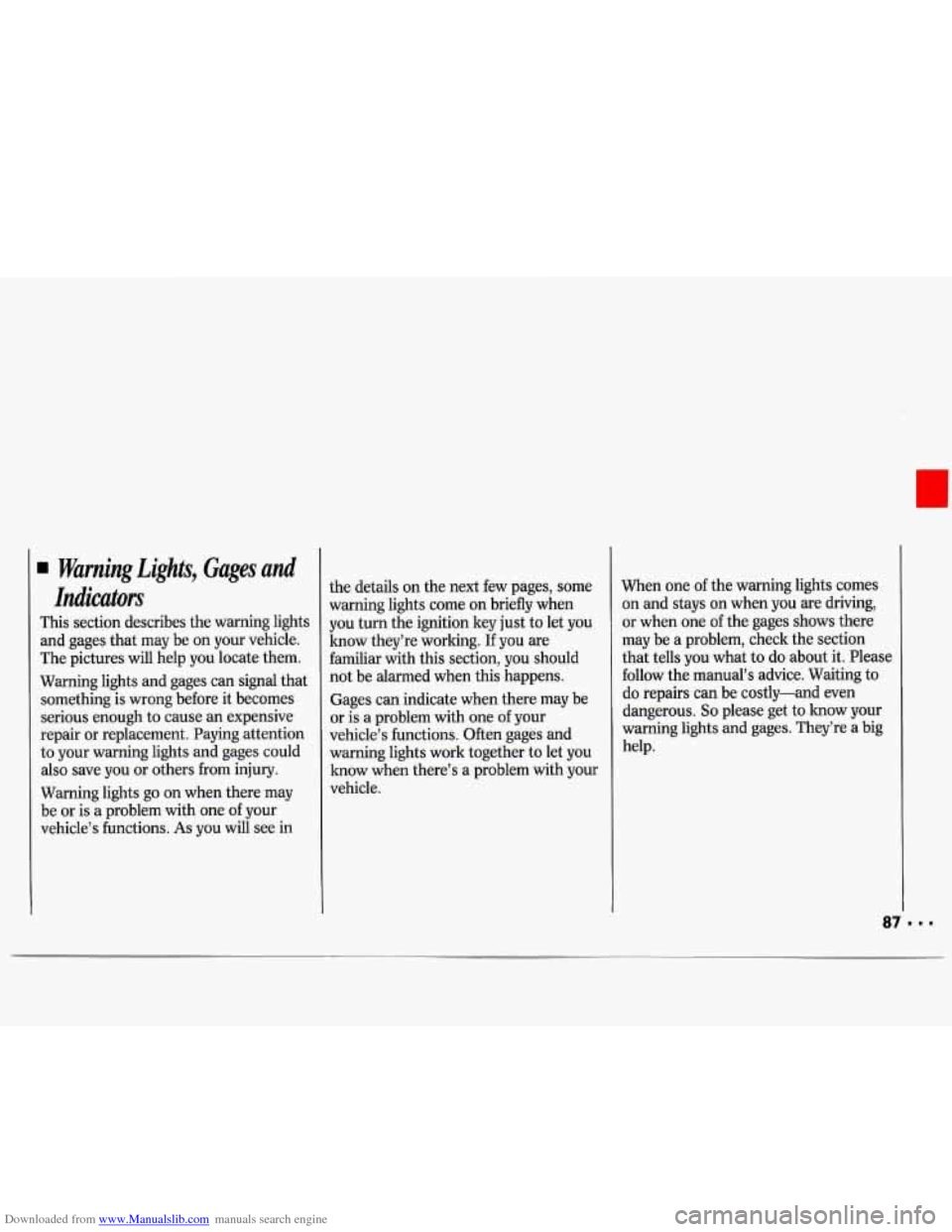

This section describes the warning lights
and gages that may be on your vehicle.
The pictures will help you locate them.
Warning lights and gages can signal that
something is wrong before it becomes
serious enough to cause an expensive
repair or replacement. Paying attention
to your warning lights and gages could
also save you or others
from injury.
Warning lights go on when there may
be or is a problem with one of your
vehicle’s functions.
As you will see in the
details on the next few pages, some
warning lights come on briefly when
you turn the ignition key just to let you
lmow they’re working. If you are
familiar with this section, you should
not be alarmed when this happens.
Gages can indicate when there may be
or is a problem with one
of your
vehicle’s functions. Often gages and
warning lights work together to let you
know when there’s a problem with your
vehicle. When
one of the warning lights comes
on and stays on when you are driving,
or when one of the gages shows there
may be a problem, check the section
that tells you what to do about it. Please
follow the manual’s advice. Waiting to
do repairs can be costly-and even
dangerous, So please get to how your
